Hopkins Details

PropertyValue
Rupture Count4,638
Ruptures Above Sect Min Mag4,635
Ruptures w/ Nonzero Rates4
Magnitude Range[6.93, 8.47]
Length Range[19, 781] km
Total Rate1.10324334E-4 /yr
Multi-Fault Rate1.10324334E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults72

Table Of Contents

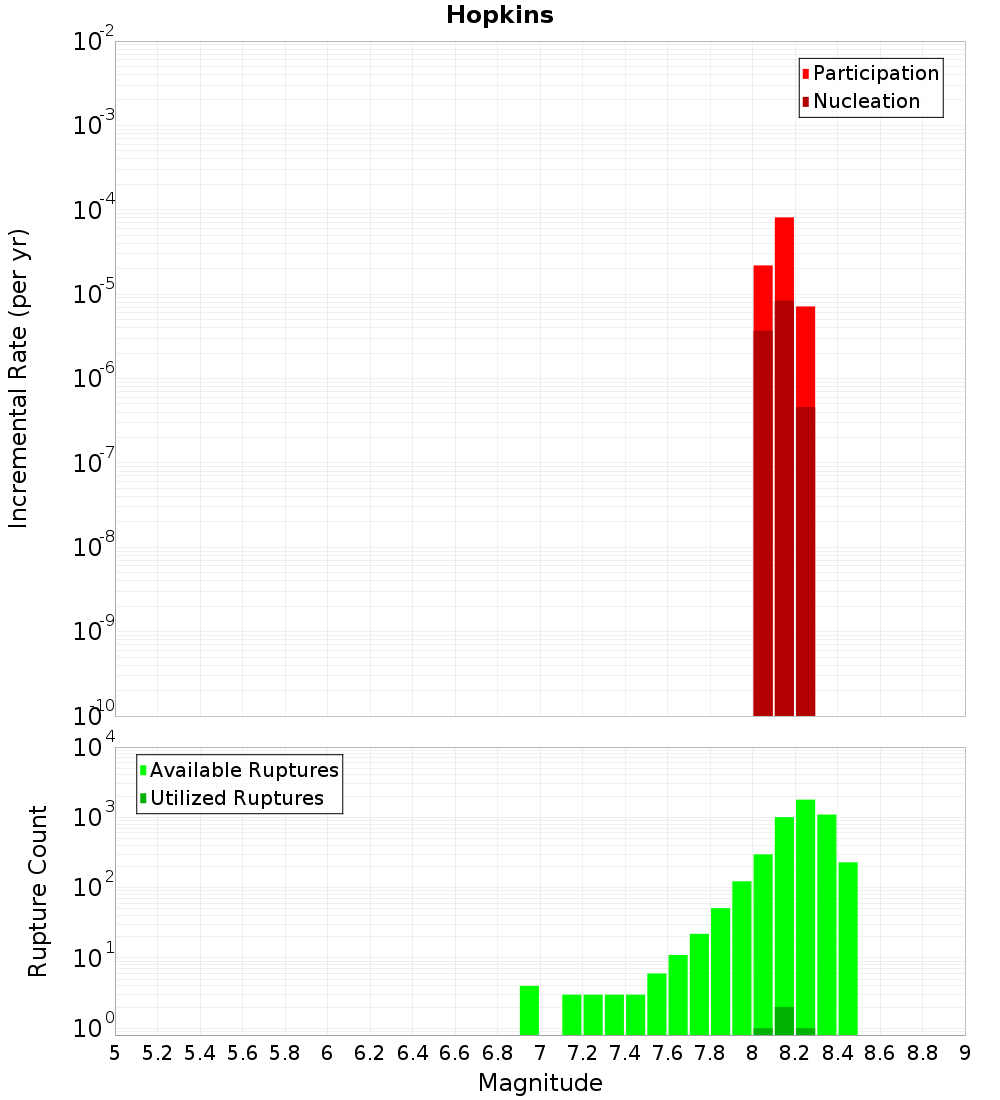

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

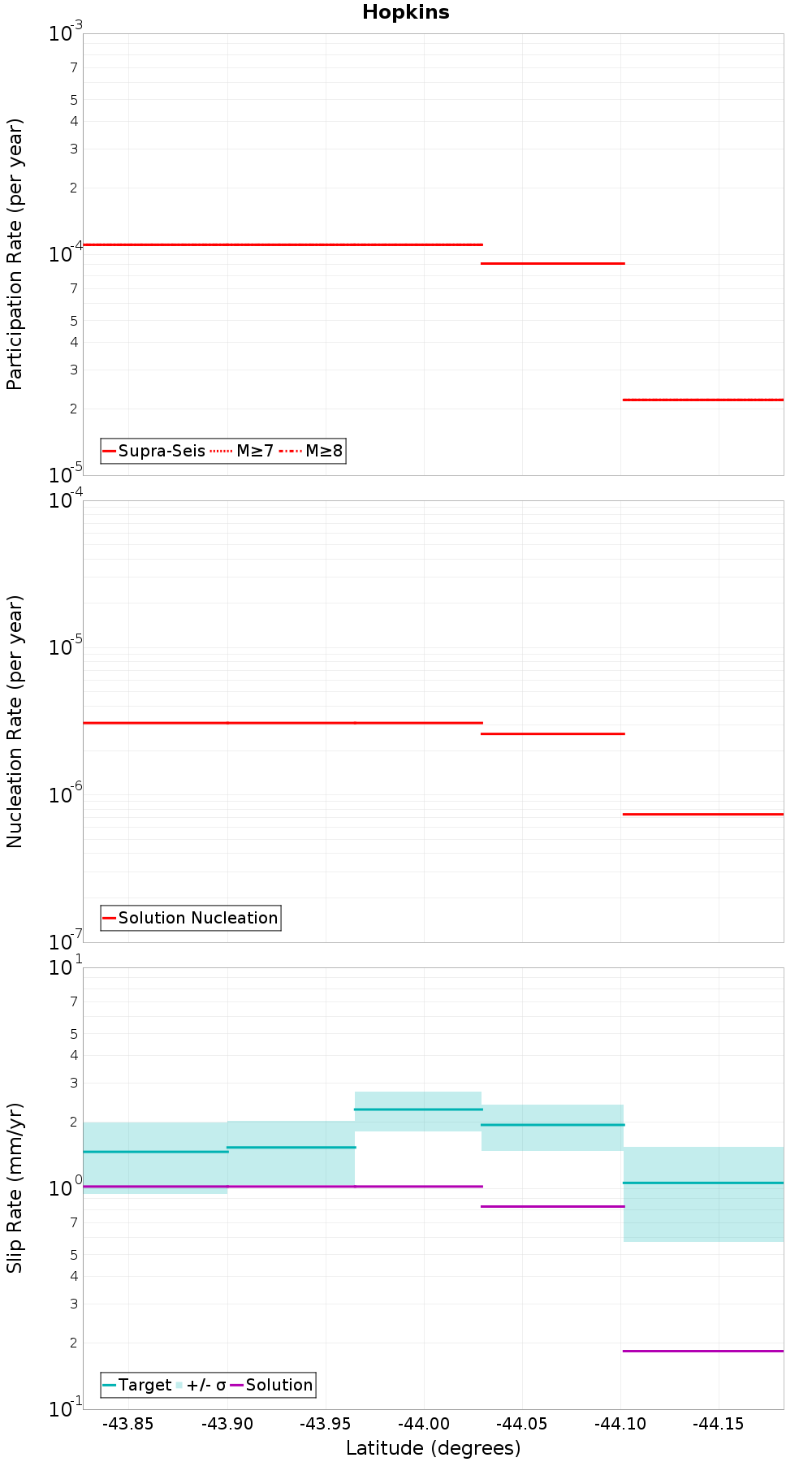

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

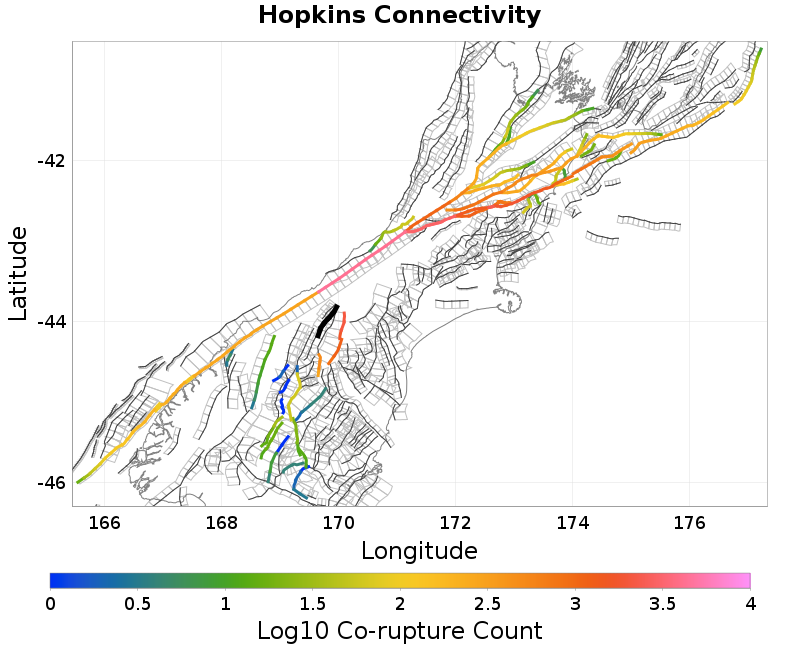

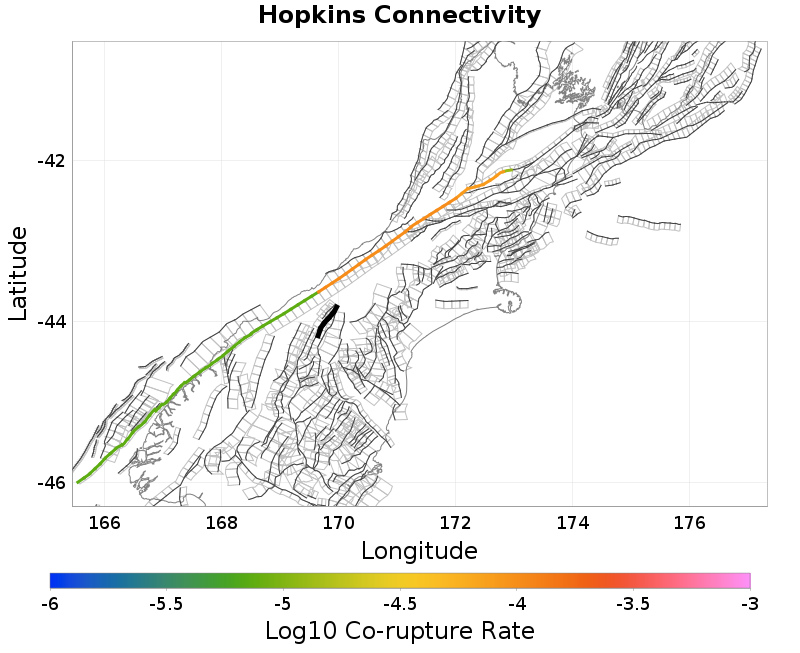

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Dingle, 1.8 km away
Barrier Range, 1.84 km away
Huxley, 3.39 km away
Ostler North, 4.92 km away
Wanaka, 4.94 km away
Alpine: Jacksons to Kaniere, 6.17 km away
Hunter Valley, 7.71 km away
Dromedary, 16.74 km away
Ostler South, 19.74 km away

Dingle, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Barrier Range, 1.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Huxley, 3.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler North, 4.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcz
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.92 km
Co-rupture Count2,093
Co-rupture Rate0.0

Wanaka, 4.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Jacksons to Kaniere, 6.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcz
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.17 km
Min Rate-Weighted Dist6.17 km
Co-rupture Count4,545
Co-rupture Rate1.10324334E-4

Hunter Valley, 7.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dromedary, 16.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcz
Connected?true
Directly Connected?false
Co-rupture Count495
Co-rupture Rate0.0

Ostler South, 19.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcz
Connected?true
Directly Connected?false
Co-rupture Count1,205
Co-rupture Rate0.0
