Alpine: George to Jacksons Details
| Property | Value |
|---|---|
| Rupture Count | 138,360 |
| Ruptures Above Sect Min Mag | 138,349 |
| Ruptures w/ Nonzero Rates | 138 |
| Magnitude Range | [6.80, 8.54] |
| Length Range | [19, 1,156] km |
| Total Rate | 0.002927242 /yr |
| Multi-Fault Rate | 0.0026471217 /yr (90.43%) |
| Directly-Connected Faults | 9 |
| All Co-Rupturing Faults | 89 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

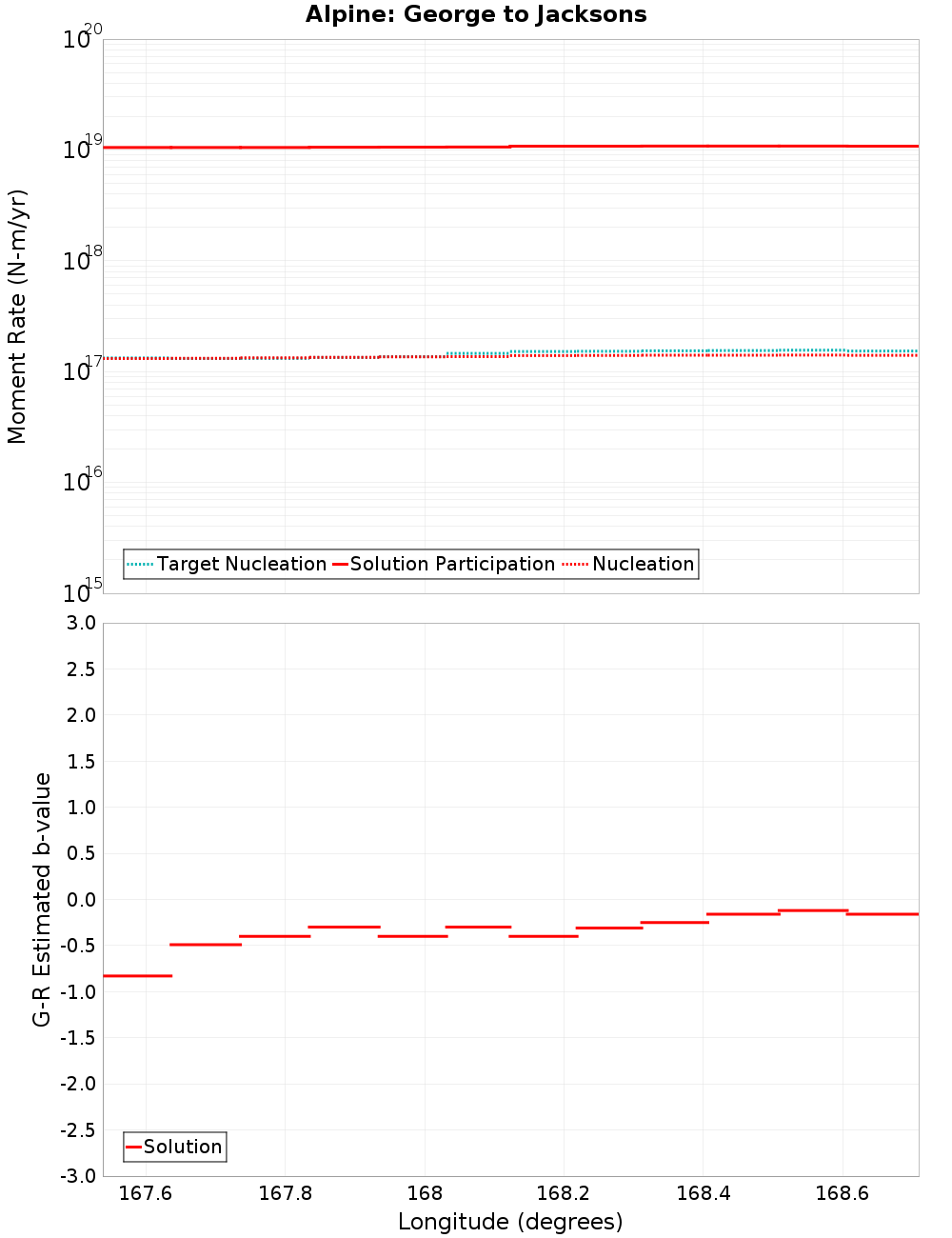

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Alpine: George seaward, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 65,293 |
| Co-rupture Rate | 4.184412E-4 |
Alpine: Jacksons to Kaniere, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 130,768 |
| Co-rupture Rate | 0.0024755702 |
Alpine: George landward, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 54,046 |
| Co-rupture Rate | 0.001942281 |
Darran, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.14 km |
| Min Rate-Weighted Dist | 0.14 km |
| Co-rupture Count | 2,442 |
| Co-rupture Rate | 2.0613614E-5 |
Skippers, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.2 km |
| Min Rate-Weighted Dist | 0.25 km |
| Co-rupture Count | 1,750 |
| Co-rupture Rate | 1.5868574E-4 |
Hollyford, 0.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.73 km |
| Co-rupture Count | 817 |
| Co-rupture Rate | 0.0 |
Madagascar, 0.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.81 km |
| Min Rate-Weighted Dist | 3.28 km |
| Co-rupture Count | 3,136 |
| Co-rupture Rate | 7.700723E-5 |
Barn, 3.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.58 km |
| Min Rate-Weighted Dist | 4.37 km |
| Co-rupture Count | 1,935 |
| Co-rupture Rate | 8.242559E-6 |
Moonlight North, 8.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.52 km |
| Min Rate-Weighted Dist | 9.05 km |
| Co-rupture Count | 206 |
| Co-rupture Rate | 2.8198696E-5 |
Alpine: Caswell - South George, 15.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 116,370 |
| Co-rupture Rate | 0.0023607223 |
Livingstone, 18.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
