Hundalee Details
| Property | Value |
|---|---|
| Rupture Count | 1,843 |
| Ruptures Above Sect Min Mag | 1,841 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.87, 8.45] |
| Length Range | [20, 843] km |
| Total Rate | 4.6522044E-5 /yr |
| Multi-Fault Rate | 4.6522044E-5 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 68 |
Table Of Contents

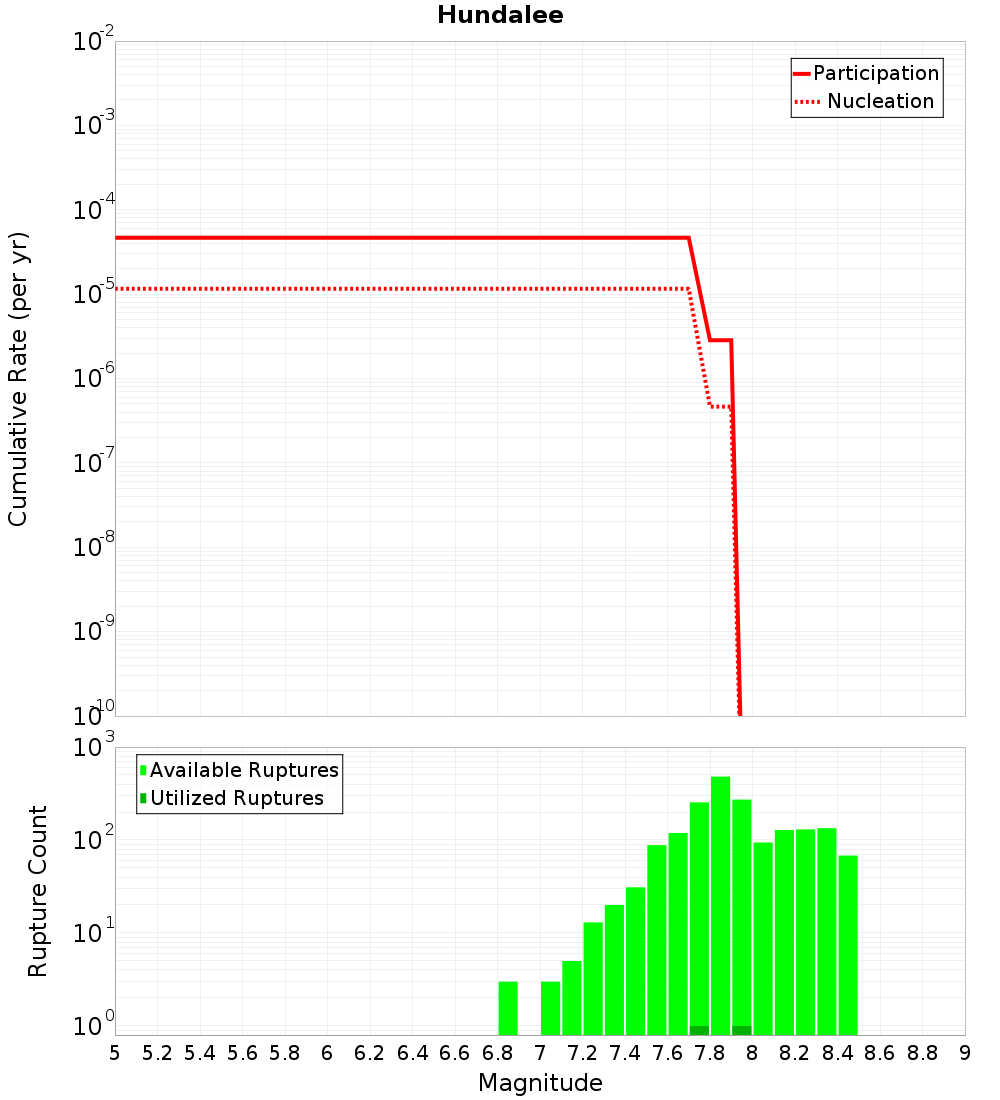

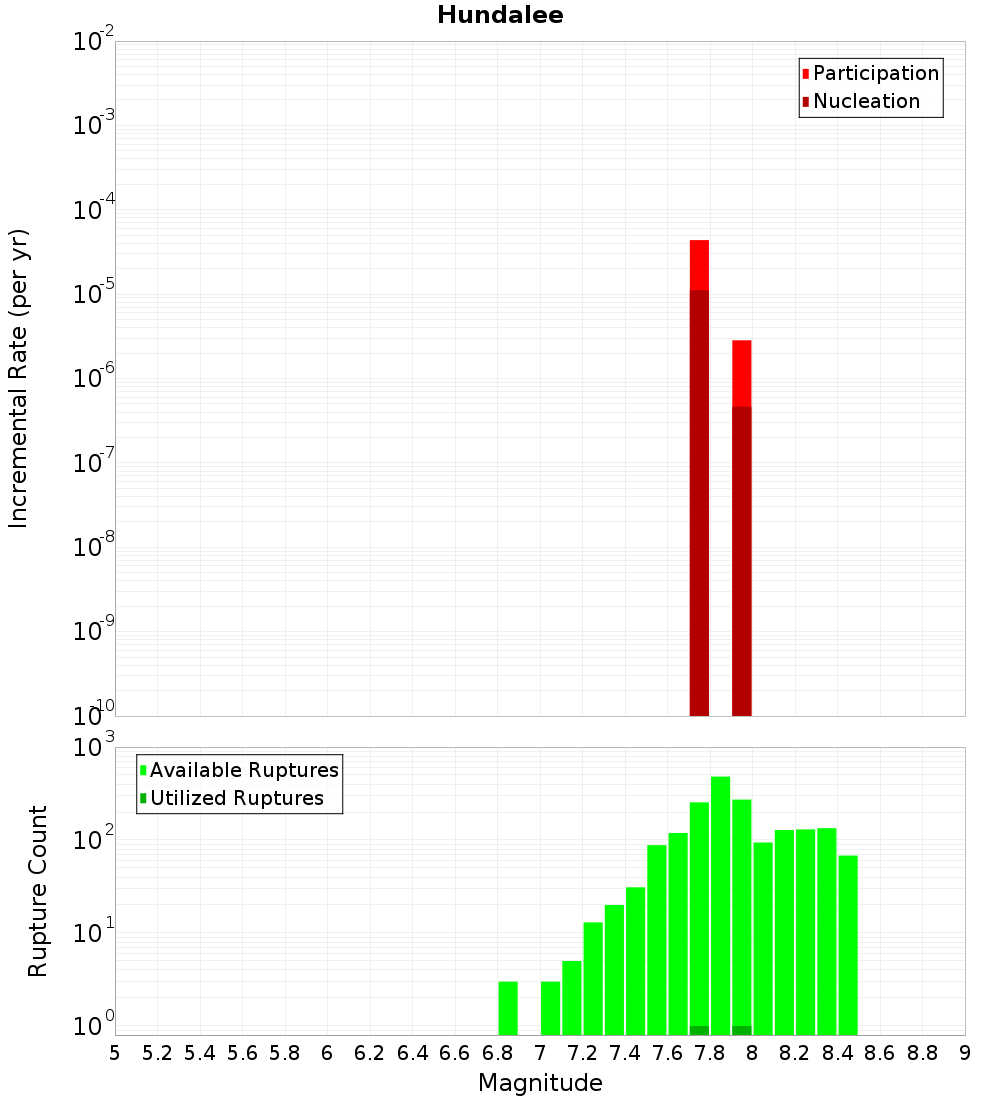

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

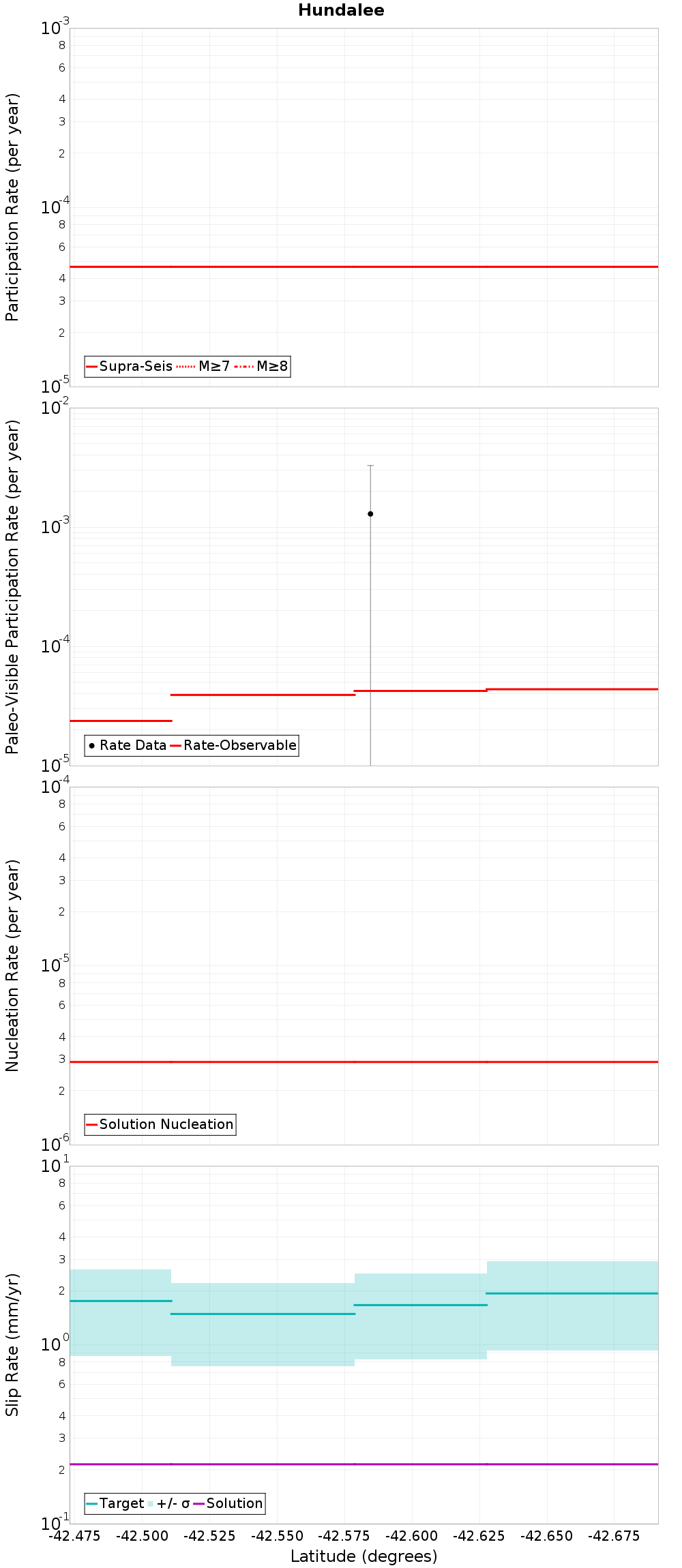

Along-Strike Values
Moment-Rates and b-Values

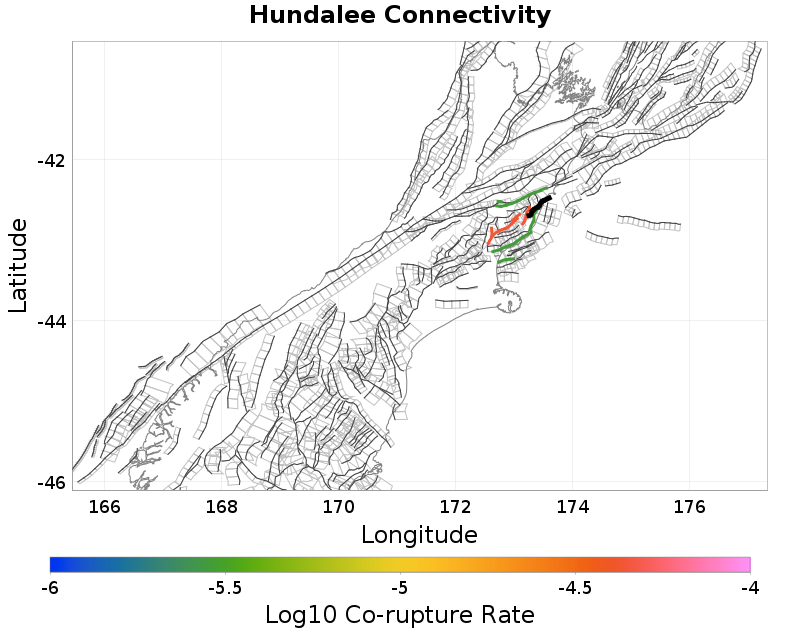

Connectivity
 |  |
|---|
Nearby Sections
Leader: Central, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.23 km |
| Co-rupture Count | 447 |
| Co-rupture Rate | 0.0 |
StoneJug, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
The Humps, 0.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.43 km |
| Co-rupture Count | 17 |
| Co-rupture Rate | 0.0 |
Hawkswood, 0.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.92 km |
| Min Rate-Weighted Dist | 0.92 km |
| Co-rupture Count | 874 |
| Co-rupture Rate | 2.8368124E-6 |
Kaiwara North, 3.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.48 km |
| Min Rate-Weighted Dist | 3.48 km |
| Co-rupture Count | 158 |
| Co-rupture Rate | 4.368523E-5 |
Hope: Conway, 4.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.6 km |
| Min Rate-Weighted Dist | 4.6 km |
| Co-rupture Count | 1,639 |
| Co-rupture Rate | 2.8368124E-6 |
Conway Trough West, 5.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.22 km |
| Co-rupture Count | 20 |
| Co-rupture Rate | 0.0 |
Leader: South, 5.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.67 km |
| Co-rupture Count | 17 |
| Co-rupture Rate | 0.0 |
Leonard Mound, 9.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 15 |
| Co-rupture Rate | 4.368523E-5 |
Leader: North, 12.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 60 |
| Co-rupture Rate | 0.0 |
Jordan, 15.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 15 |
| Co-rupture Rate | 0.0 |
Hope: Seaward, 15.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 492 |
| Co-rupture Rate | 0.0 |
Lowry, 15.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 4.368523E-5 |
Conway Trough East, 15.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mt Culverden, 16.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
Kaikoura - Mangamaunu, 17.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 92 |
| Co-rupture Rate | 0.0 |
Alexander, 19.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 72 |
| Co-rupture Rate | 0.0 |
