Poulter Details

Property	Value
Rupture Count	1,348
Ruptures Above Sect Min Mag	1,340
Ruptures w/ Nonzero Rates	6
Magnitude Range	[6.67, 8.14]
Length Range	[16, 410] km
Total Rate	6.1839045E-4 /yr
Multi-Fault Rate	6.1839045E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	44

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

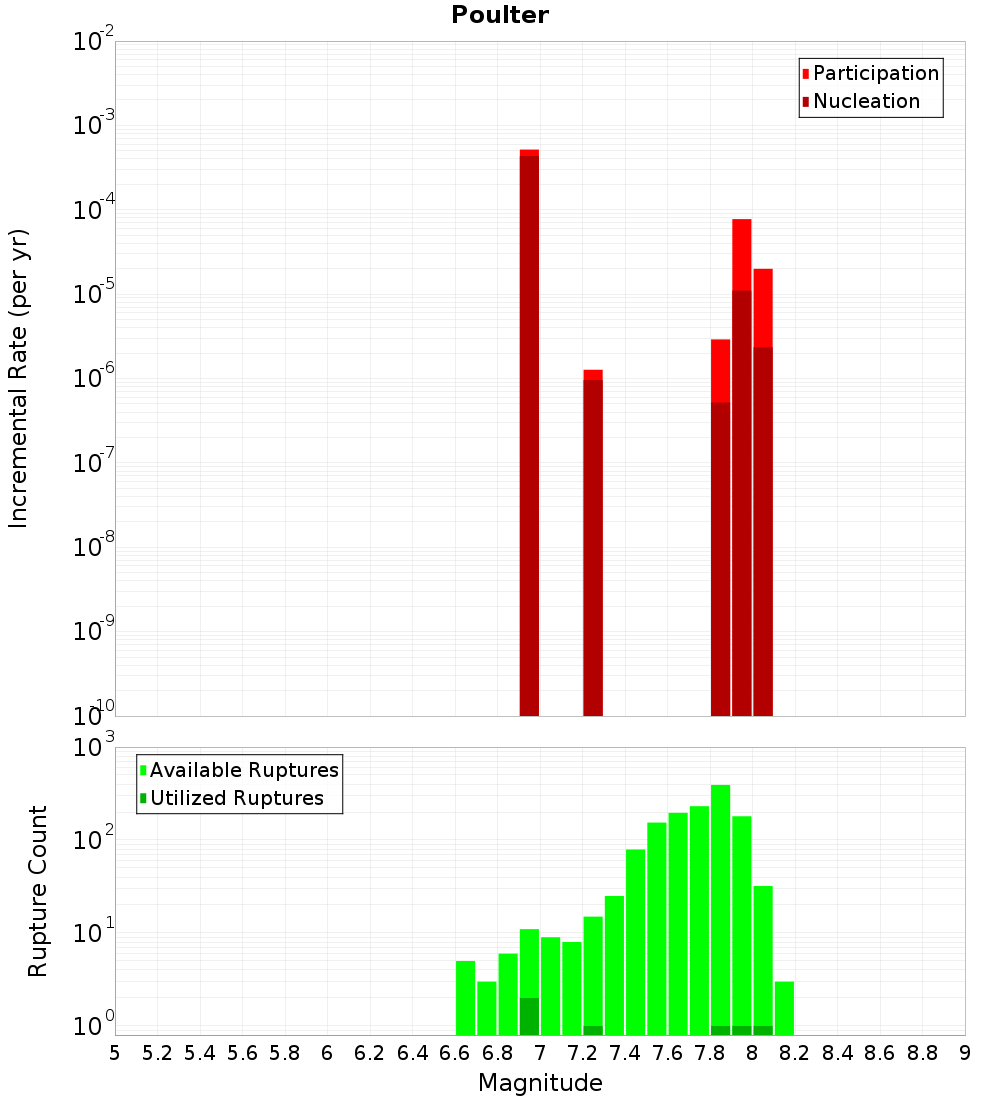

Magnitude-Frequency Distribution

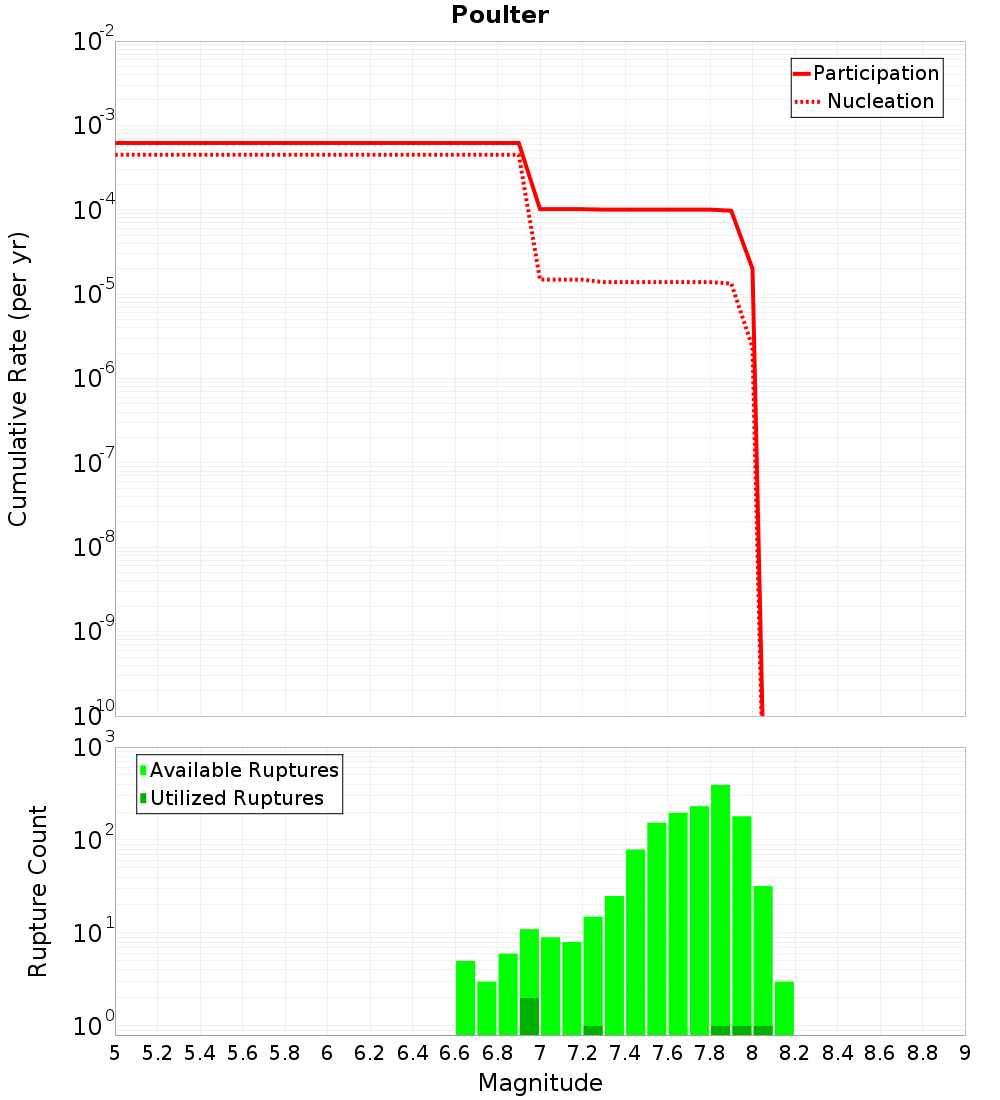

Incremental	Cumulative

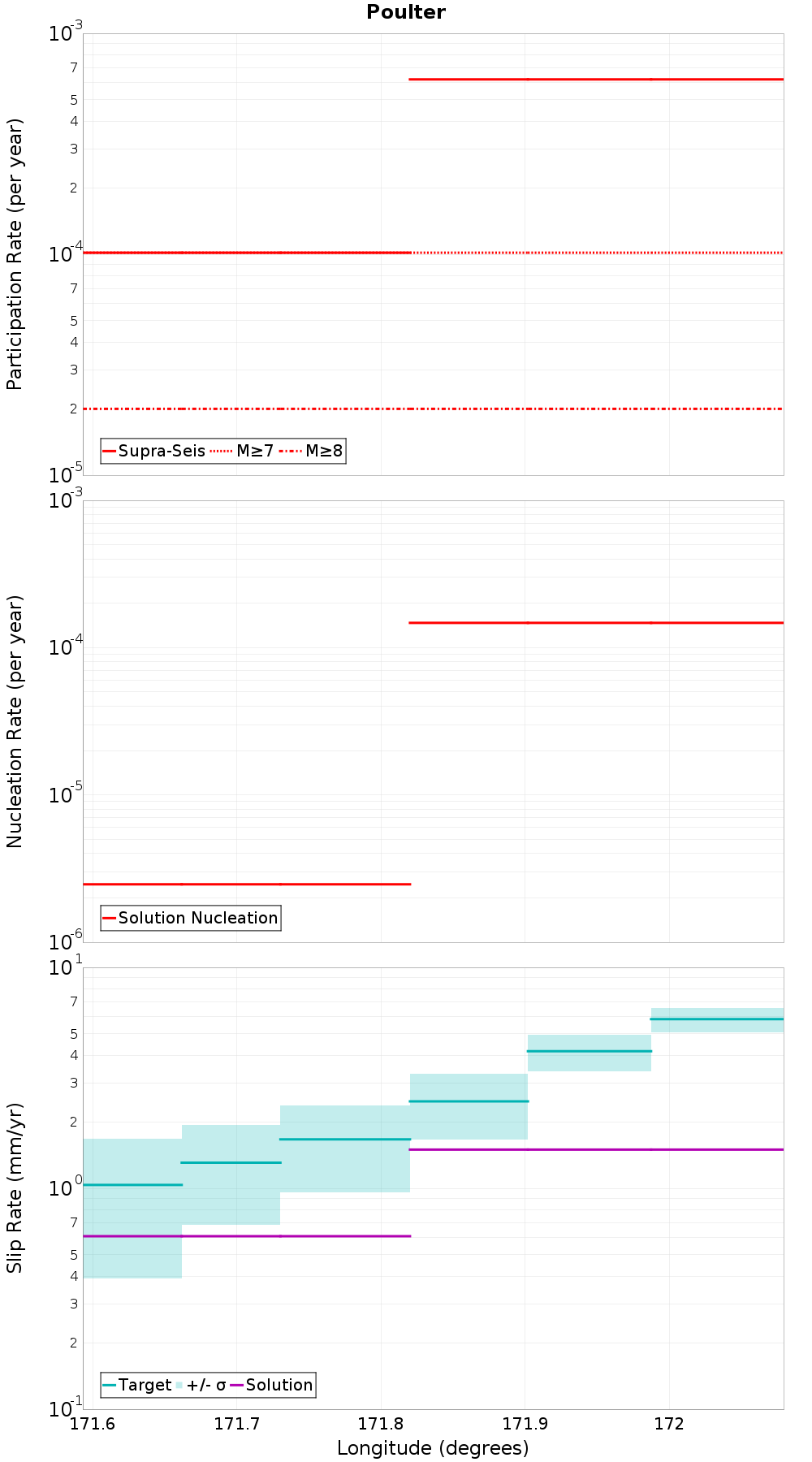

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kakapo, 5.65 km away
Hope: Hurunui, 7.27 km away
Hope: Hope River, 7.81 km away
Cheeseman, 9.19 km away
Kelly, 9.51 km away
Hope: Taramakau, 9.51 km away
Esk North, 9.99 km away
Sailor, 11.28 km away
Browning Pass, 14.55 km away
Clarence: Southwest, 15.04 km away
Alpine: Kaniere to Springs Junction, 17.42 km away

Kakapo, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	5.65 km
Min Rate-Weighted Dist	5.65 km
Co-rupture Count	872
Co-rupture Rate	2.9068228E-6

Hope: Hurunui, 7.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?	true
Directly Connected?	false
Co-rupture Count	342
Co-rupture Rate	0.0

Hope: Hope River, 7.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?	true
Directly Connected?	false
Co-rupture Count	301
Co-rupture Rate	0.0

Cheeseman, 9.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	9.19 km
Co-rupture Count	240
Co-rupture Rate	0.0

Kelly, 9.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	9.51 km
Min Rate-Weighted Dist	9.75 km
Co-rupture Count	391
Co-rupture Rate	5.168059E-4

Hope: Taramakau, 9.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Esk North, 9.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Sailor, 11.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	11.28 km
Min Rate-Weighted Dist	12 km
Co-rupture Count	111
Co-rupture Rate	4.1768185E-6

Browning Pass, 14.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	14.55 km
Min Rate-Weighted Dist	14.55 km
Co-rupture Count	219
Co-rupture Rate	9.740775E-5

Clarence: Southwest, 15.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	0.0

Alpine: Kaniere to Springs Junction, 17.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?	true
Directly Connected?	false
Co-rupture Count	147
Co-rupture Rate	9.740775E-5
