Roaring Lion Details

PropertyValue
Rupture Count1,288
Ruptures Above Sect Min Mag1,287
Ruptures w/ Nonzero Rates8
Magnitude Range[7.28, 8.29]
Length Range[33, 379] km
Total Rate6.0039412E-5 /yr
Multi-Fault Rate6.0039412E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults37

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

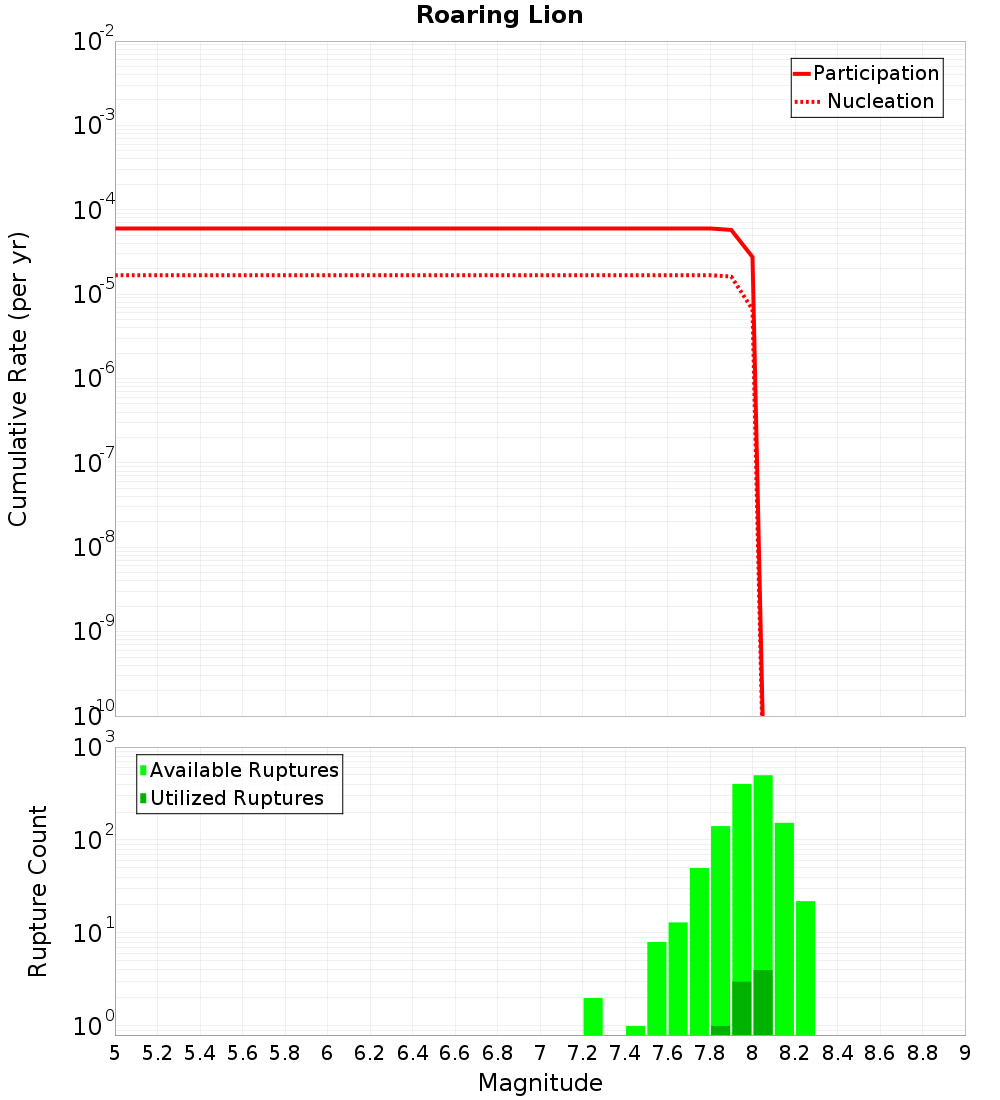

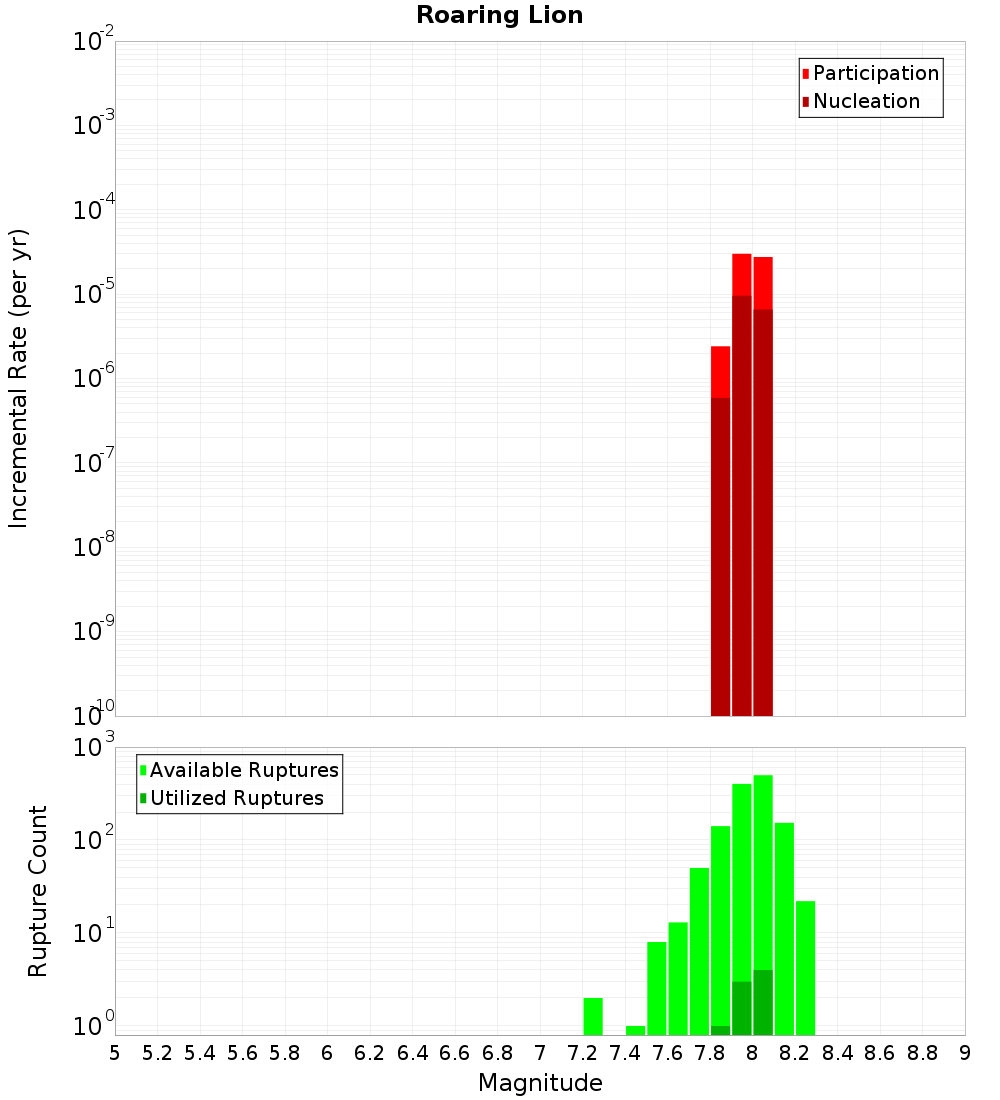

Incremental PlotCumulative Plot

Along-Strike Values

(top)

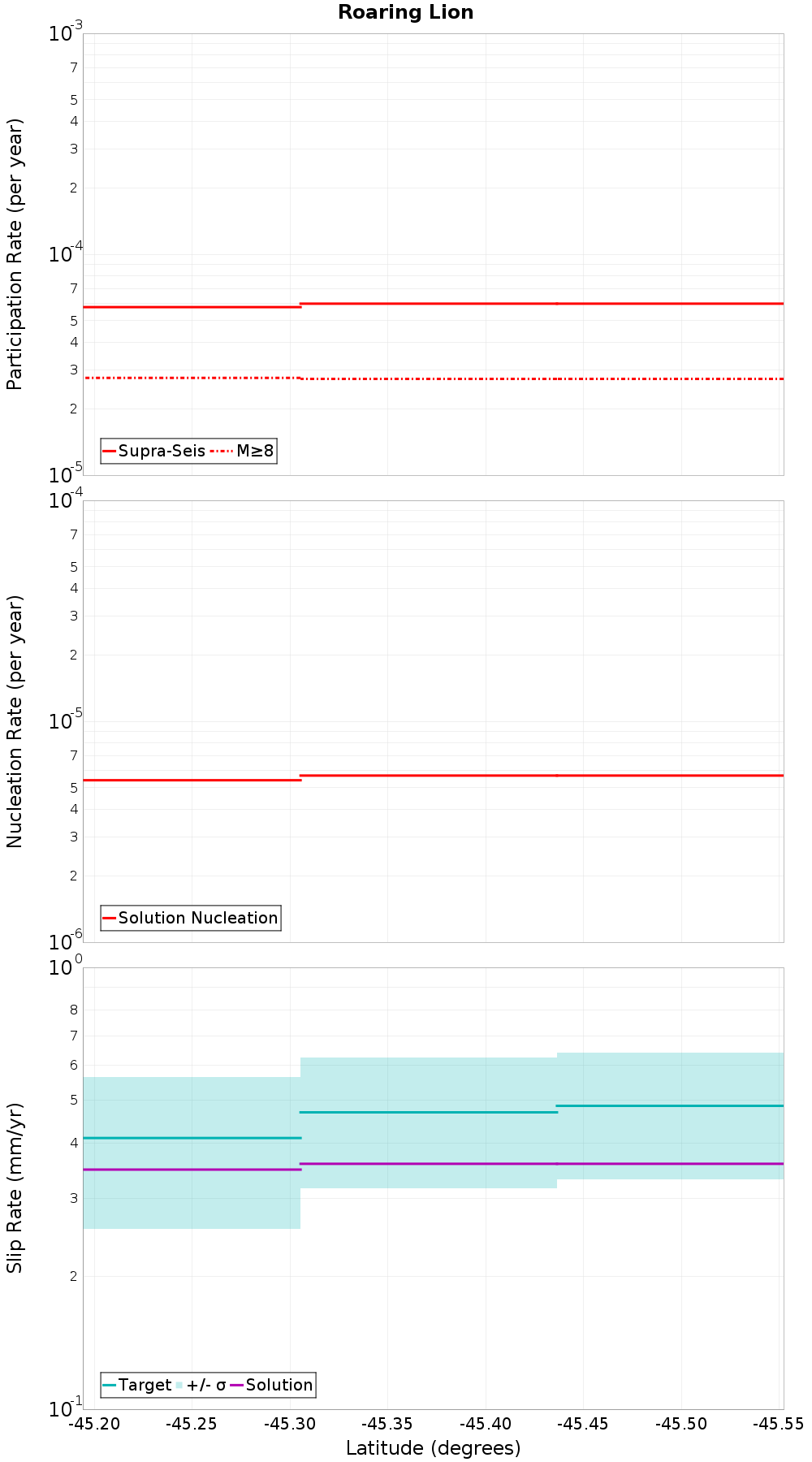

Along-strike plot

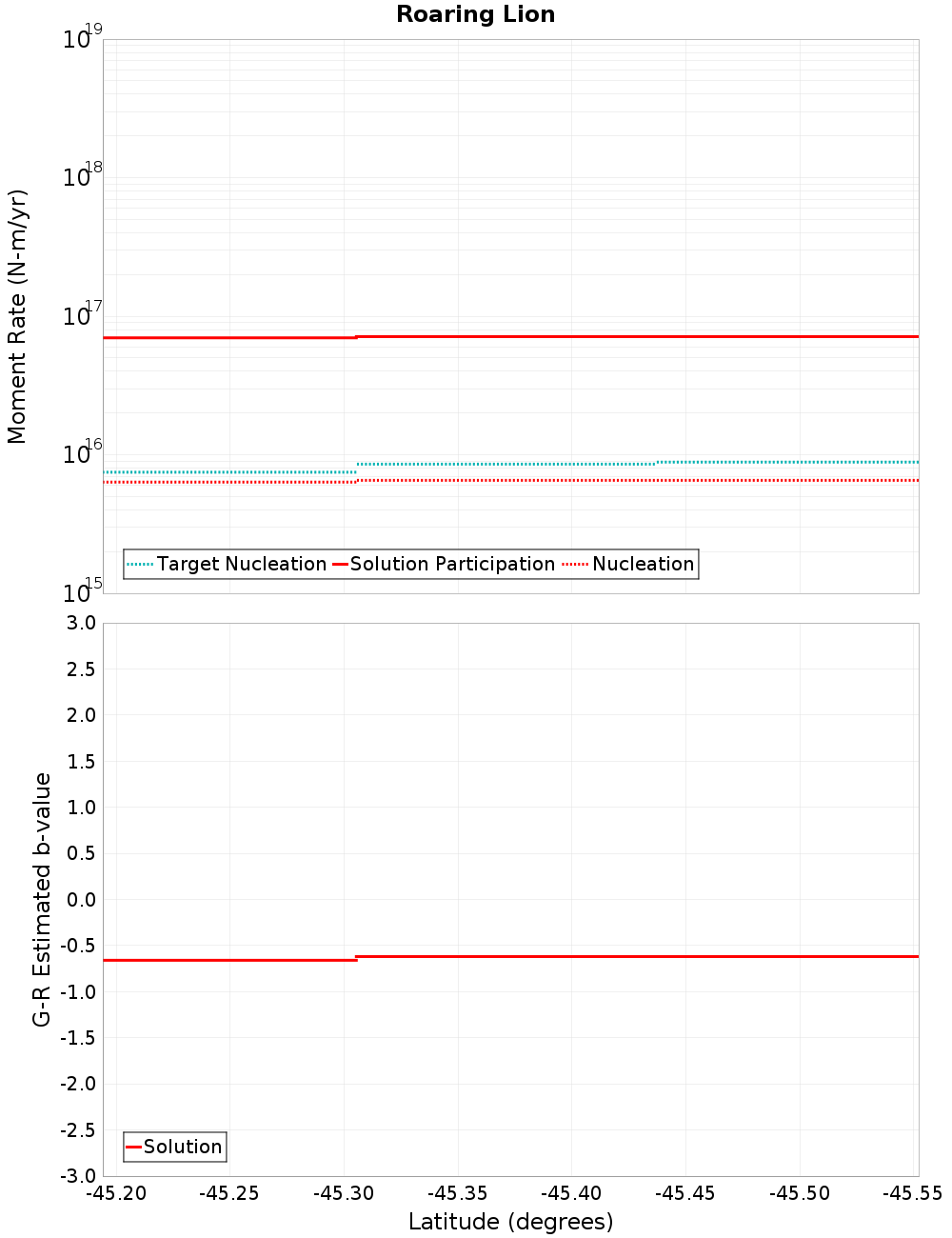

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Old Man, 0.15 km away
Nevis, 0.43 km away
Pisa, 0.79 km away
Garvie, 2.73 km away
Teviot, 3.6 km away
Mid Dome, 5.36 km away
Roaring Meg, 6.05 km away
Dunstan, 6.22 km away
Waikaia, 6.7 km away
Wendon Valley, 10.34 km away
NW Cardrona South, 10.86 km away
Lake Onslow, 12.32 km away
Galloway, 13.84 km away
Waikaka, 18.85 km away

Old Man, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.15 km
Co-rupture Count94
Co-rupture Rate0.0

Nevis, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.43 km
Co-rupture Count5
Co-rupture Rate0.0

Pisa, 0.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.79 km
Min Rate-Weighted Dist0.79 km
Co-rupture Count1,236
Co-rupture Rate2.7555021E-5

Garvie, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.73 km
Min Rate-Weighted Dist2.74 km
Co-rupture Count636
Co-rupture Rate3.437601E-5

Teviot, 3.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.6 km
Min Rate-Weighted Dist3.6 km
Co-rupture Count464
Co-rupture Rate2.2869344E-5

Mid Dome, 5.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Roaring Meg, 6.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.05 km
Co-rupture Count51
Co-rupture Rate0.0

Dunstan, 6.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate0.0

Waikaia, 6.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?true
Directly Connected?false
Co-rupture Count203
Co-rupture Rate1.3528901E-5

Wendon Valley, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?true
Directly Connected?true
Min Co-Rupture Dist10.34 km
Min Rate-Weighted Dist10.34 km
Co-rupture Count178
Co-rupture Rate3.6873113E-5

NW Cardrona South, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Lake Onslow, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Galloway, 13.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Waikaka, 18.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw
Connected?true
Directly Connected?false
Co-rupture Count55
Co-rupture Rate3.0075886E-5
