Volkner 4 Details
| Property | Value |
|---|---|
| Rupture Count | 7,890 |
| Ruptures Above Sect Min Mag | 7,889 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [6.82, 8.27] |
| Length Range | [17, 552] km |
| Total Rate | 8.779543E-4 /yr |
| Multi-Fault Rate | 8.779543E-4 /yr (100.00%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 70 |
Table Of Contents

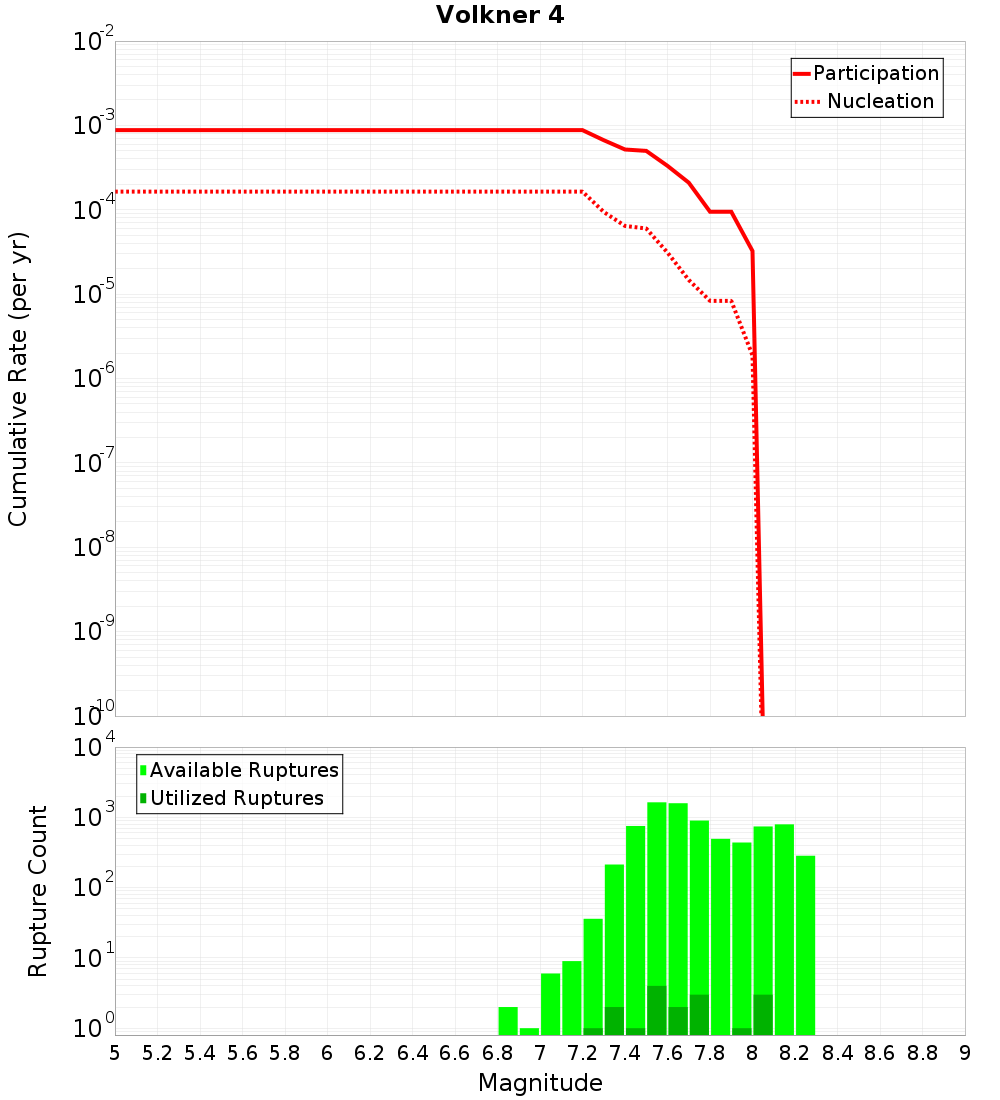

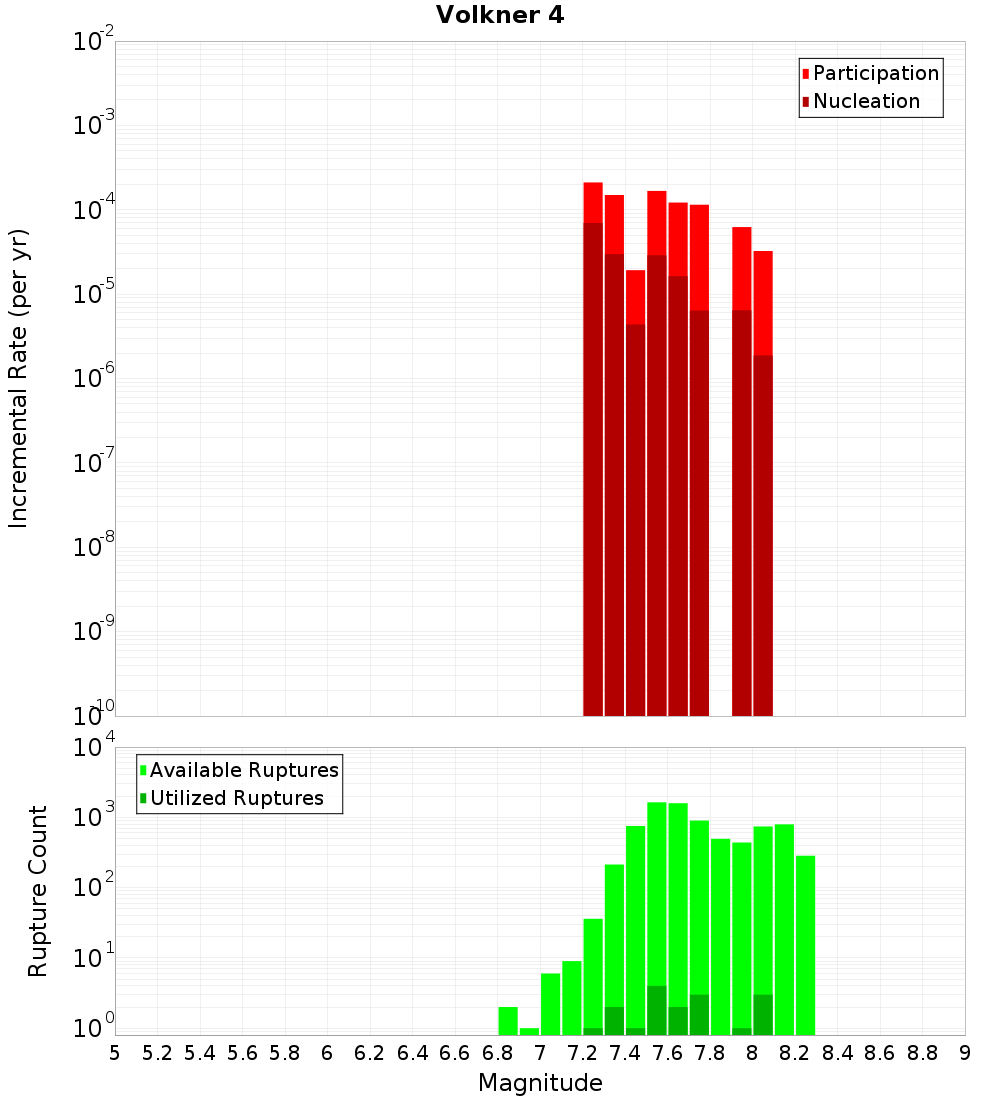

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

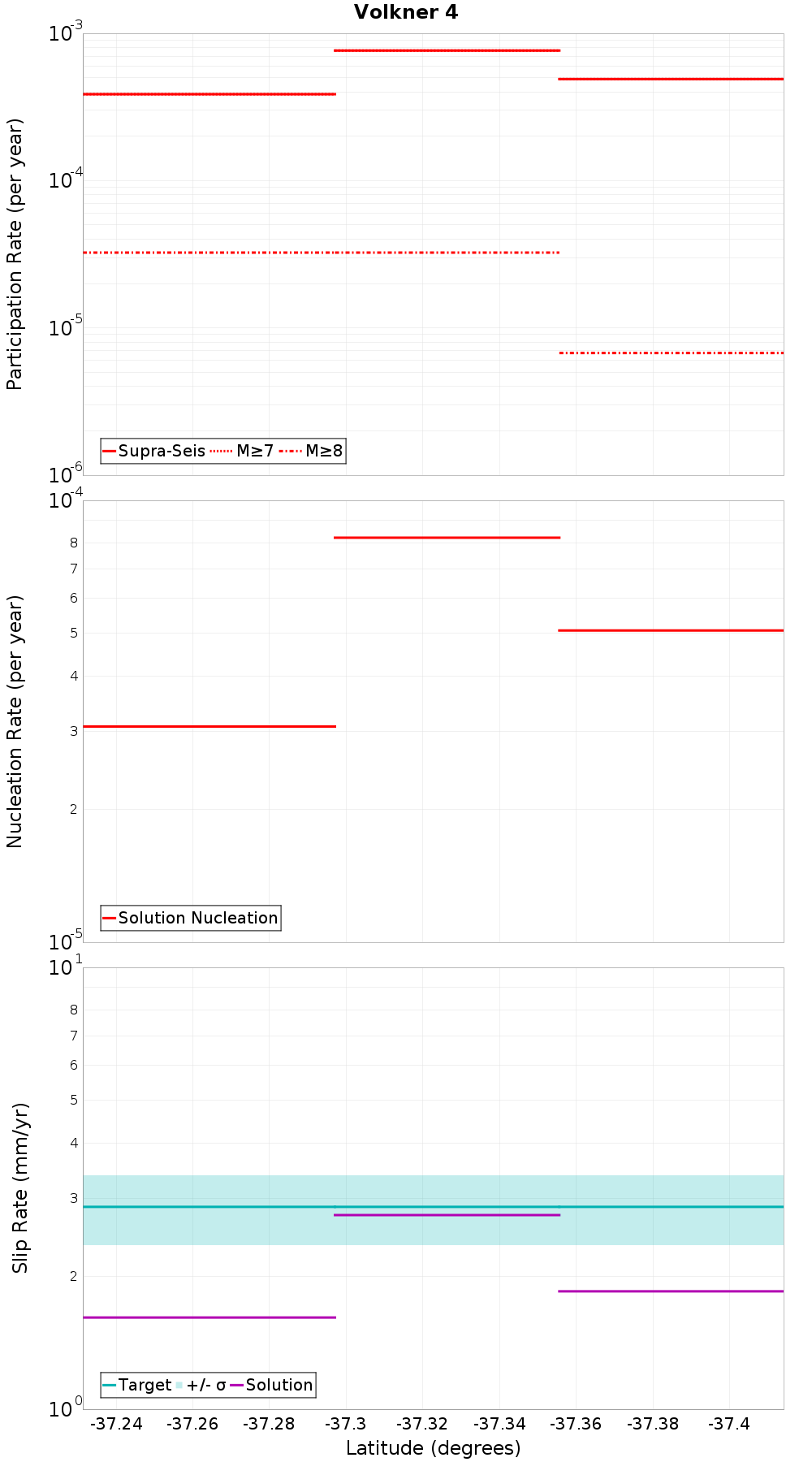

Along-Strike Values

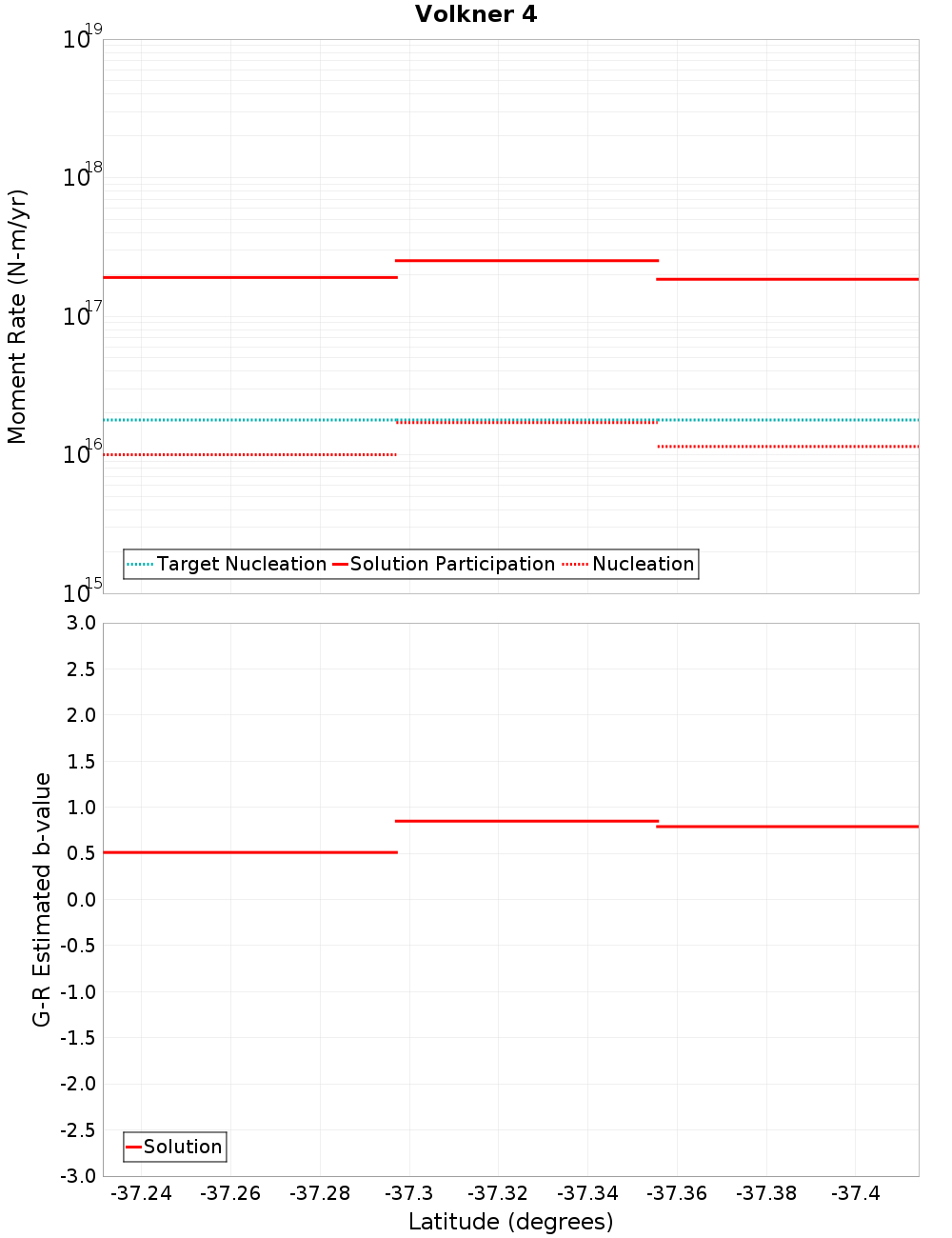

Moment-Rates and b-Values

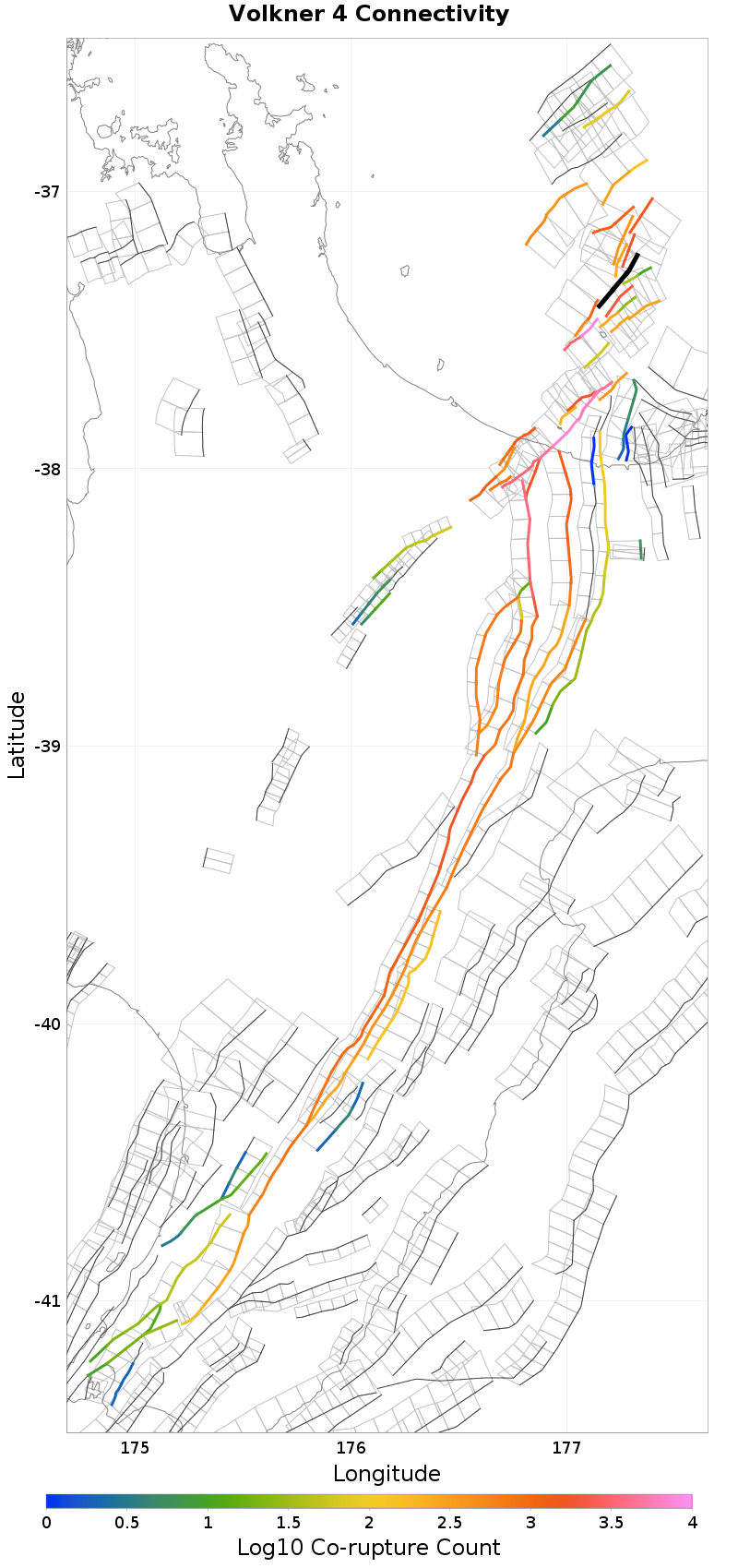

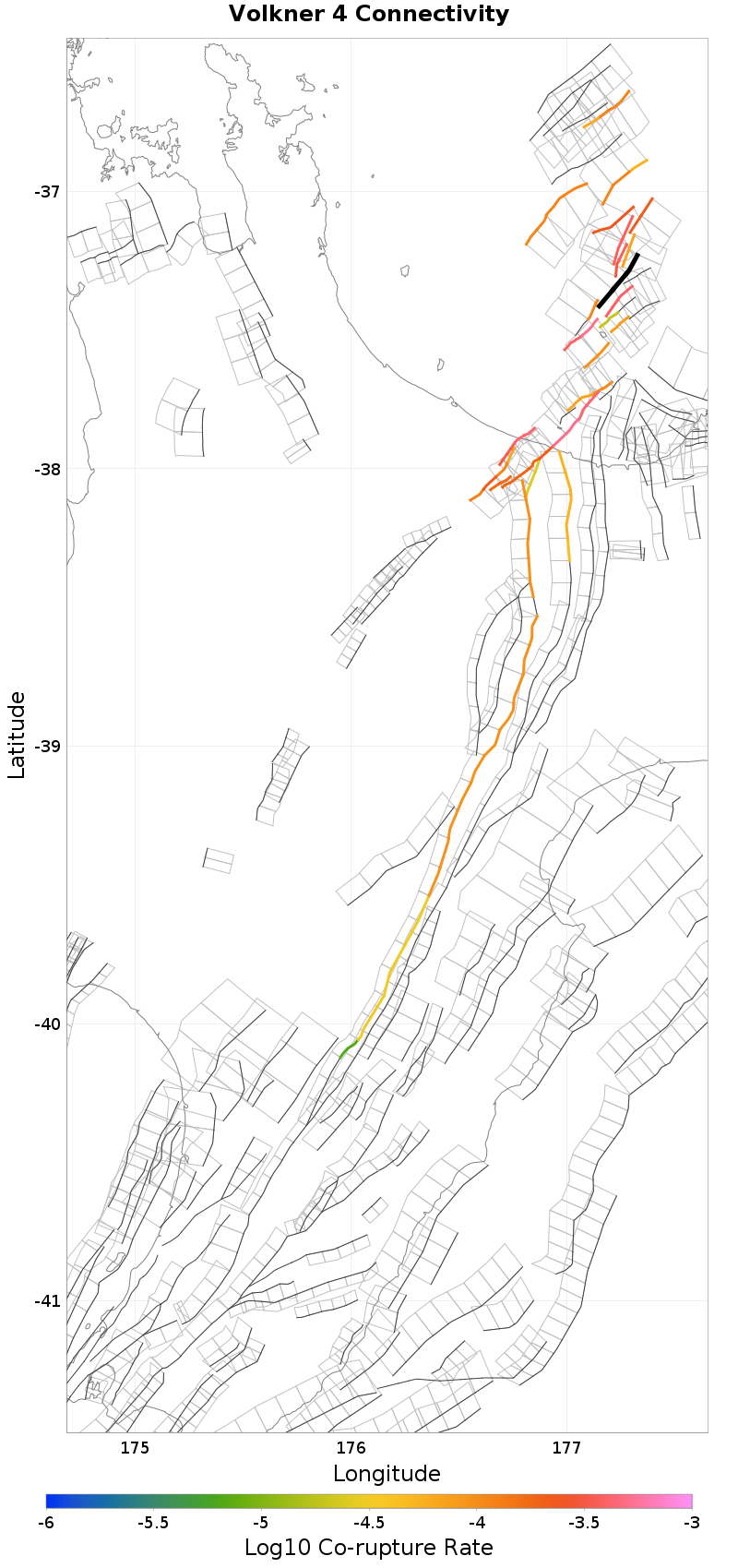

Connectivity
 |  |
|---|
Nearby Sections
Otara East 1, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.31 km |
| Min Rate-Weighted Dist | 0.31 km |
| Co-rupture Count | 2,004 |
| Co-rupture Rate | 6.903788E-5 |
Otara West 3, 0.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.37 km |
| Min Rate-Weighted Dist | 0.37 km |
| Co-rupture Count | 1,161 |
| Co-rupture Rate | 2.400031E-4 |
Volkner 3, 1.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.38 km |
| Min Rate-Weighted Dist | 1.38 km |
| Co-rupture Count | 1,031 |
| Co-rupture Rate | 1.1474276E-4 |
Otara West 1, 1.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.61 km |
| Min Rate-Weighted Dist | 1.61 km |
| Co-rupture Count | 292 |
| Co-rupture Rate | 3.7735977E-4 |
Te Arawa 3, 1.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 37 |
| Co-rupture Rate | 0.0 |
Te Arawa 2, 4.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.02 km |
| Min Rate-Weighted Dist | 4.02 km |
| Co-rupture Count | 2,125 |
| Co-rupture Rate | 3.895651E-4 |
Otara West 2, 4.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.57 km |
| Min Rate-Weighted Dist | 4.57 km |
| Co-rupture Count | 387 |
| Co-rupture Rate | 3.7735977E-4 |
Whakaari 4, 5.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.31 km |
| Min Rate-Weighted Dist | 5.31 km |
| Co-rupture Count | 7,645 |
| Co-rupture Rate | 5.1767577E-4 |
Otara East 2, 5.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.35 km |
| Min Rate-Weighted Dist | 5.35 km |
| Co-rupture Count | 1,411 |
| Co-rupture Rate | 2.1864368E-4 |
Tuakana 7, 5.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 372 |
| Co-rupture Rate | 1.1474276E-4 |
Te Arawa 1, 6.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 244 |
| Co-rupture Rate | 1.9228528E-5 |
Tuakana 6, 8.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 514 |
| Co-rupture Rate | 1.1474276E-4 |
Tuatoru 2, 10.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 291 |
| Co-rupture Rate | 0.0 |
Tuatoru 1, 11.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 281 |
| Co-rupture Rate | 7.681079E-5 |
Calypso 2, 12.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 56 |
| Co-rupture Rate | 9.603932E-5 |
Tauranga Trough East 2, 19.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 303 |
| Co-rupture Rate | 1.1474276E-4 |
