Solution Report: Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMzc5

Num Ruptures23,675
Num Single-Stranded Ruptures23,675 (100.00%)
Total Supra-Seis Rupture Rate0.025424035
Total Supra-Seis Recurrence Interval39.33 yrs
Total Moment Rate8.584868e19 N-m/yr
Deformation Model Total Moment Rate2.4763906e20 N-m/yr
Magnitude Range[7.05,9.71]
Length Range[29.64,2354.91] km
Rupture Section Count Range[1,452]

Table Of Contents

General Information

(top)

Test down-dip subsectioning rup set

Logic Tree Branch

(top)

LevelChoice
Fault Model(N/A)
Fault RegimeFault Regime
NZSHM22_SpatialSeisPDFNZSHM22_1346
Slip Along Rupture Model (Dsr)Uniform
Inversion ModelCharacteristic (Constrained)
NZSHM22_ScalingRelationshipNZSHM22_ScalingRelationship
NZSHM22_FaultPolyParametersNZSHM22_FaultPolyParameters
NZSHM22_MagBounds(N/A)
NZSHM22_SlipRateFactors(N/A)
NZSHM22_Regions(N/A)
NZSHM22_DeformationModelSBD_0_2A_HKR_MMIN7PT5_EXP_LTP3A

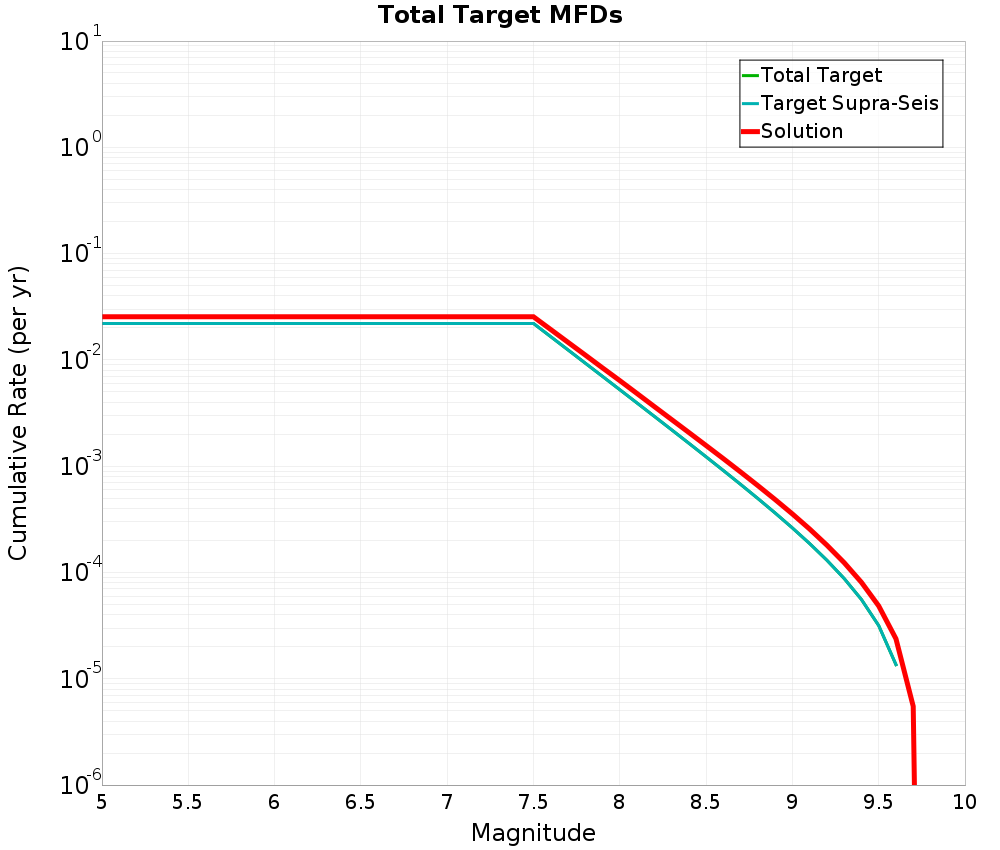

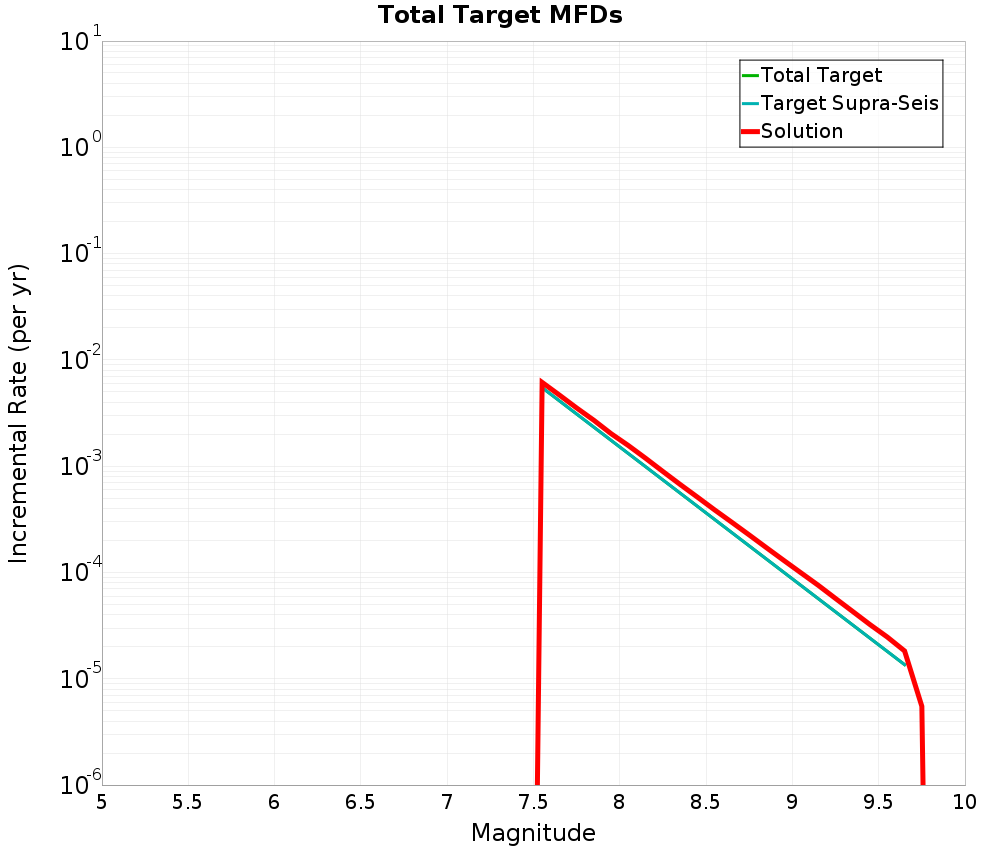

Solution MFDs

(top)

Incremental MFDsCumulative MFDs
Incremental PlotCumulative Plot

Simulated Annealing Energy

(top)

Iterations826,072,800
Time1 hour 0.4 mins
Iterations Per Sec.228,041
Perturbations2,438,656
# Worse Pertubations Kept32
Iterations Per Perturb.339
Total Energy1.97808986E9

Final Energies

(top)

Energy TypeFinal Energy (1 hour 0.4 mins)% of TotalAfter 30 mins
Total Energy1.97808986E91.97812864E9
Equality Energy1.97808986E9100.00%1.97812864E9
Entropy Energy0.00.00%0.0
Inequality Energy0.00.00%0.0
Normalized Slip Rate2.46022608E812.44%2.46045472E8
Unnormlized Slip Rate1.08483315E954.84%1.08488589E9
Rupture Rate Minimization0.00.00%0.0
Normalized MFD Equality6.4723411E832.72%6.4719738E8

Energy Progress

(top)

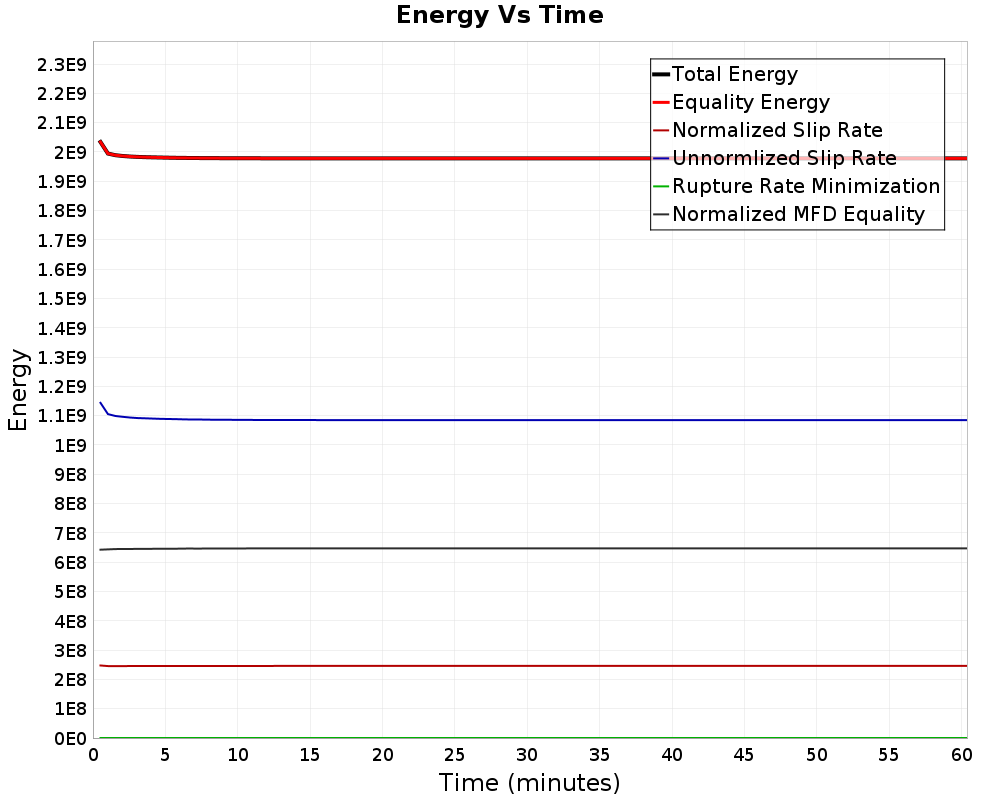

Energy vs Time

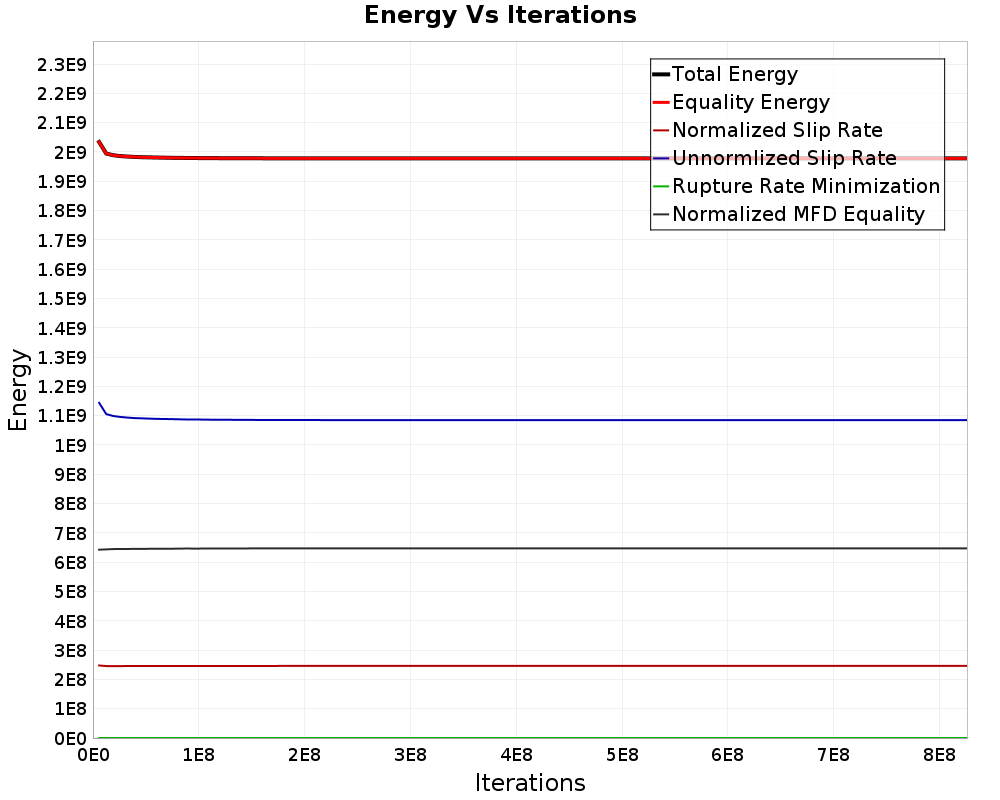

Energy vs Iterations

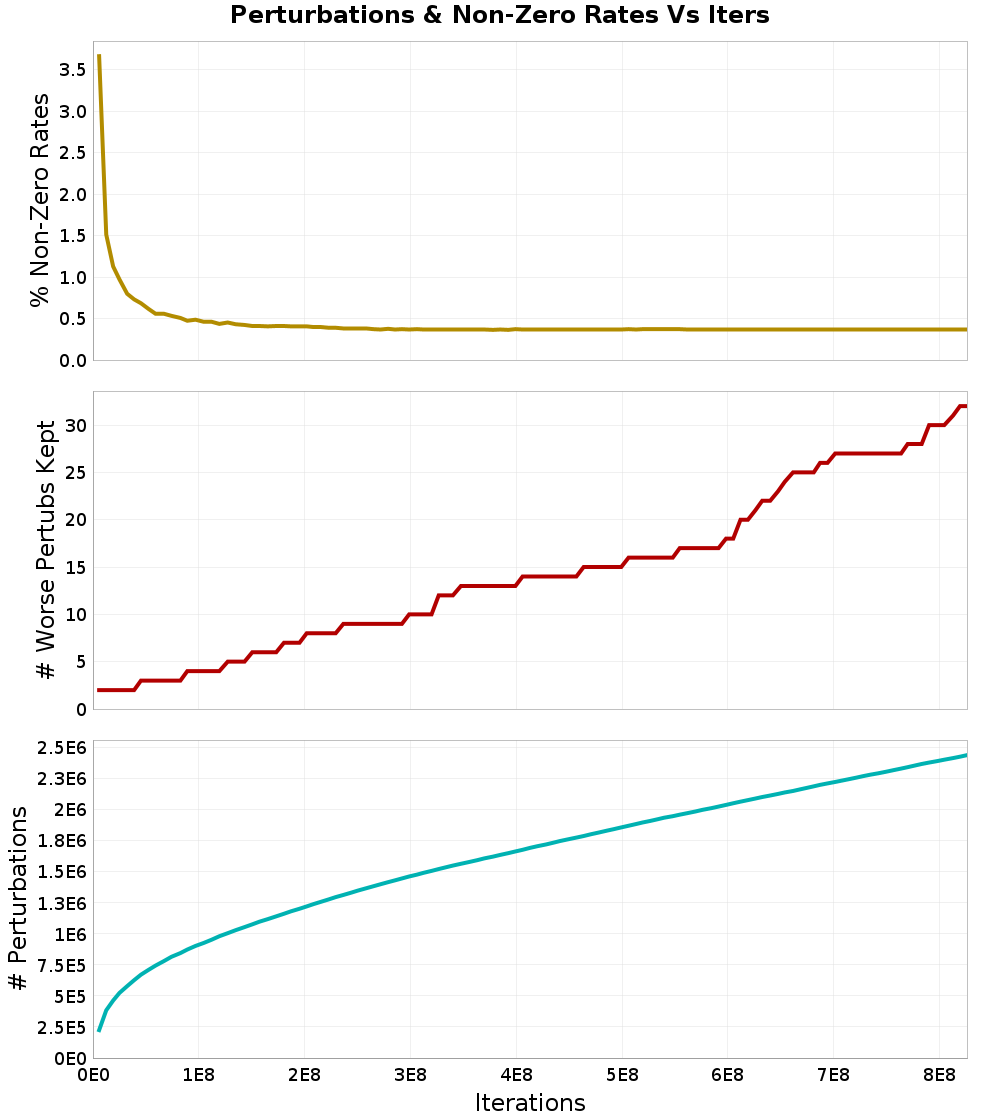

Perturbations

Rupture Rate Distribution

(top)

Non-zero ruptures87 (0.37%)
Avg. # perturbations per rupture103.00553
Avg. # perturbations per non-zero rupture28030.53

Rate Distribution

Cumulative Rate Distribution

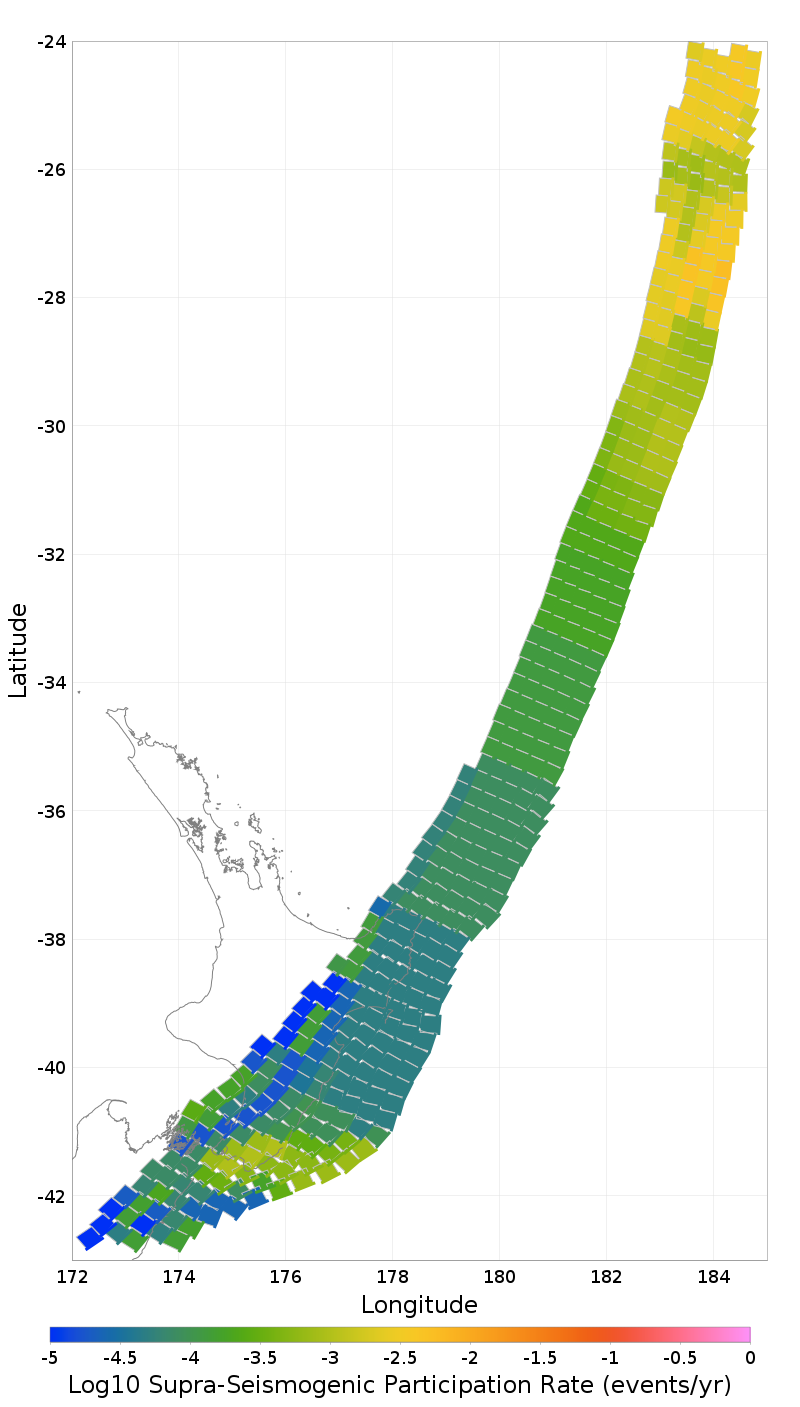

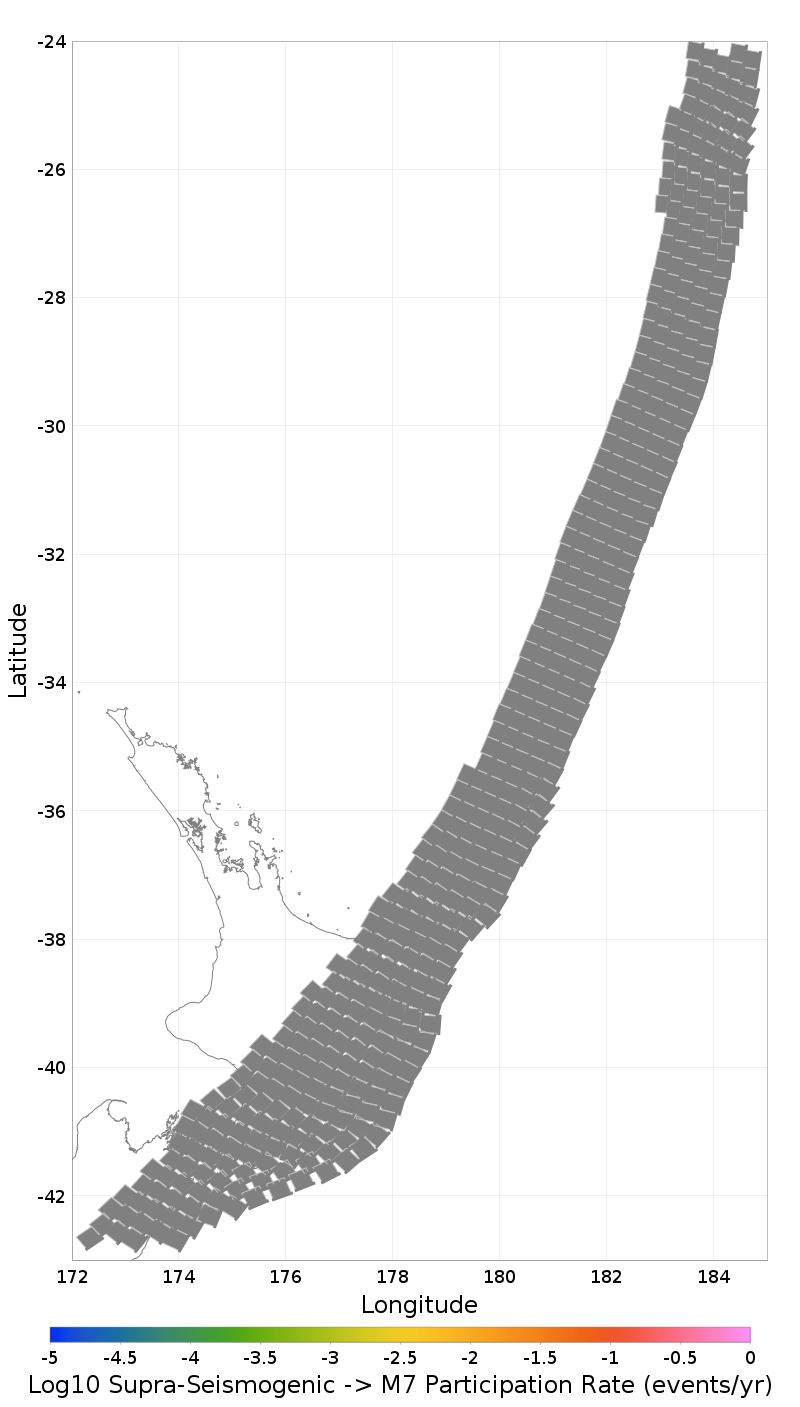

Participation Rates

(top)

Supra-Seismogenic

Range: M≤7
MapMap
Download GeoJSON Download GeoJSON

M≥7

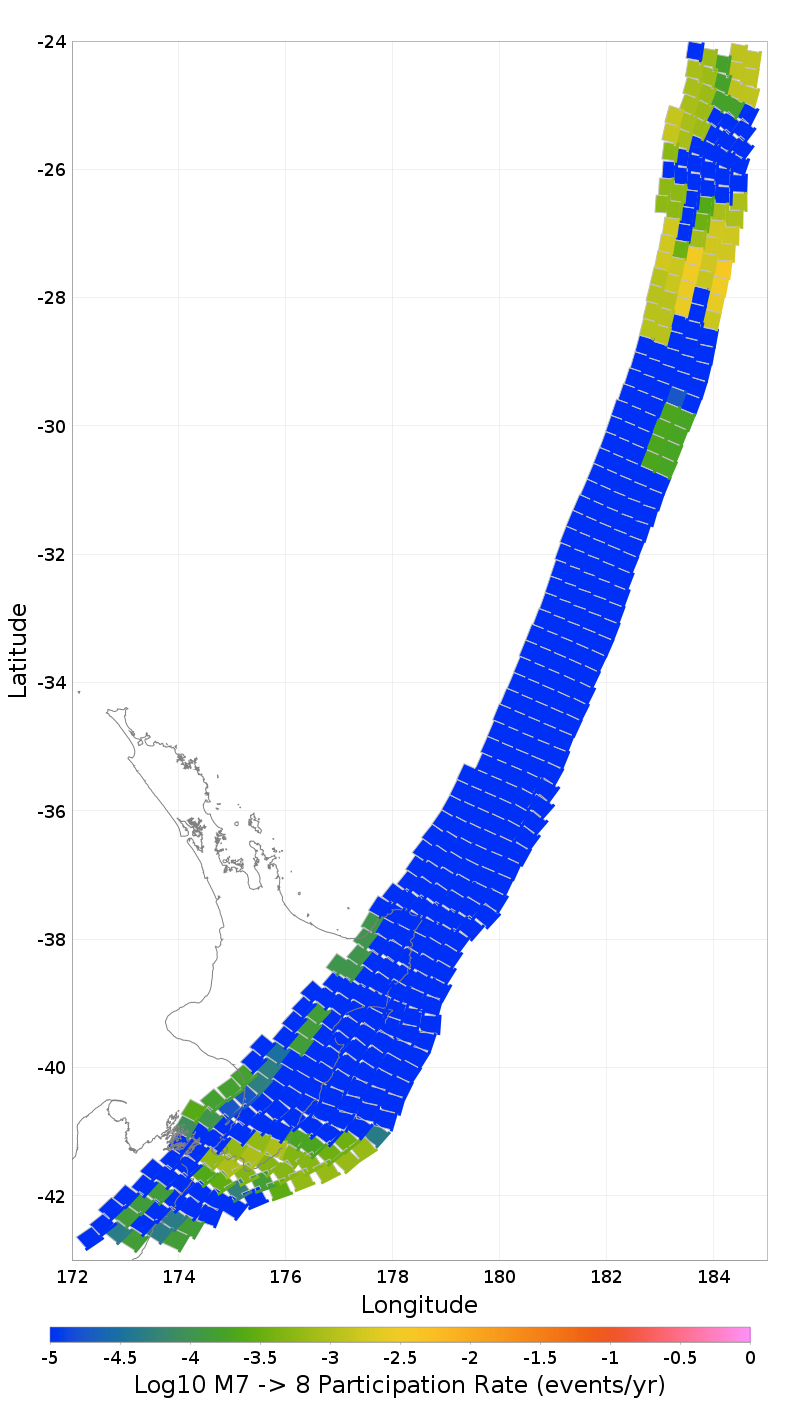

Range: M∈[7, 8]

MapMap
Download GeoJSON Download GeoJSON

M≥8

Range: M∈[8, 9]

MapMap
Download GeoJSON Download GeoJSON

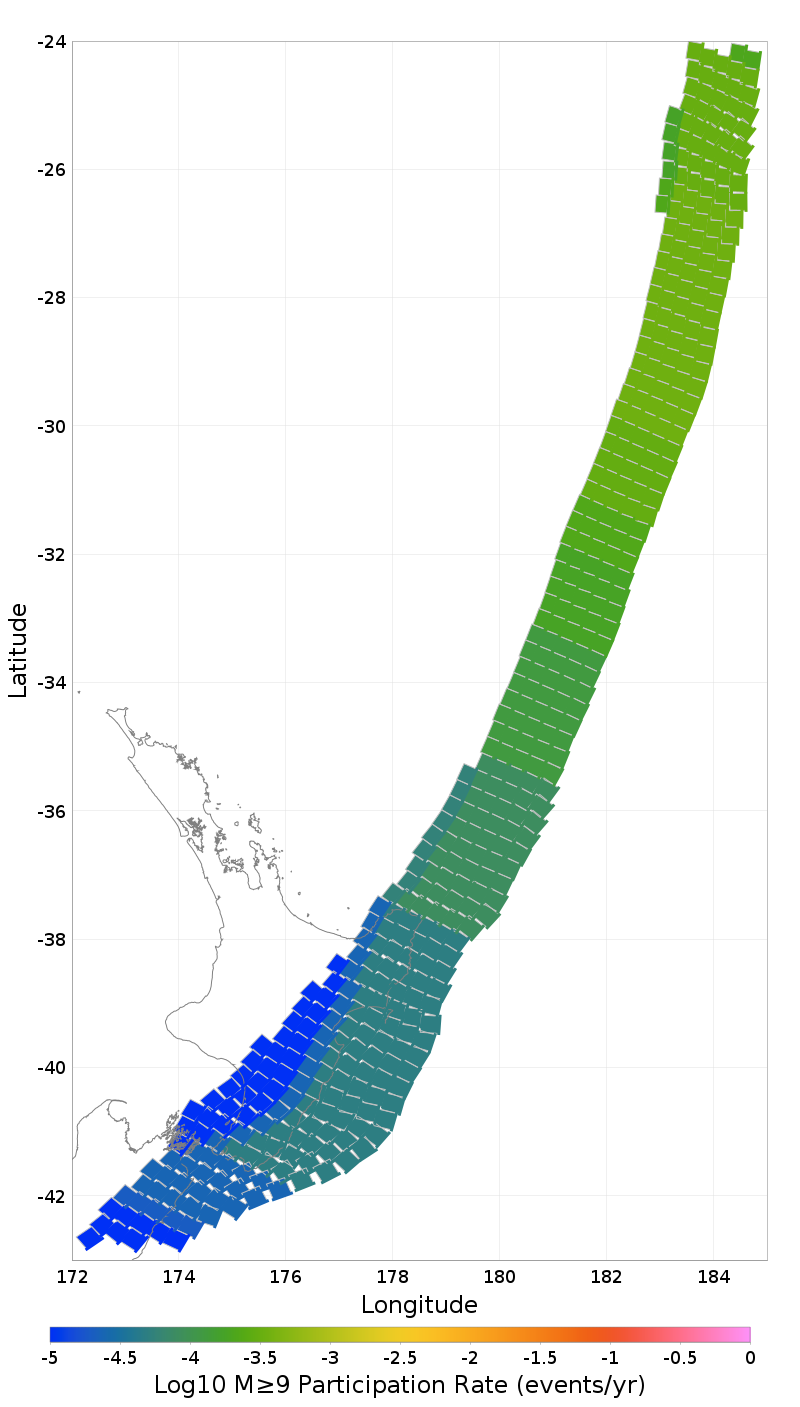

M≥9

Map
Download GeoJSON

Section b-values

(top)

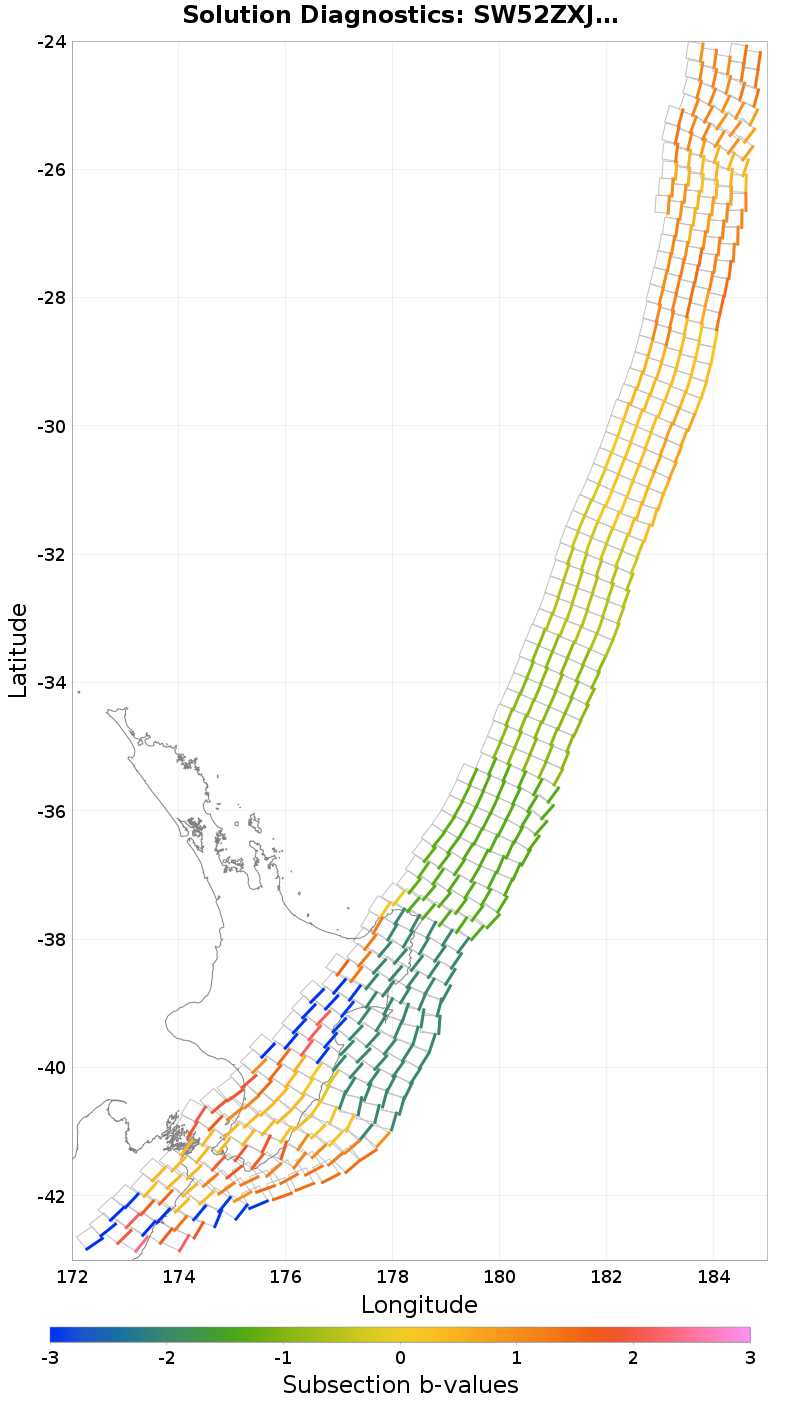

Subsection b-values

(top)

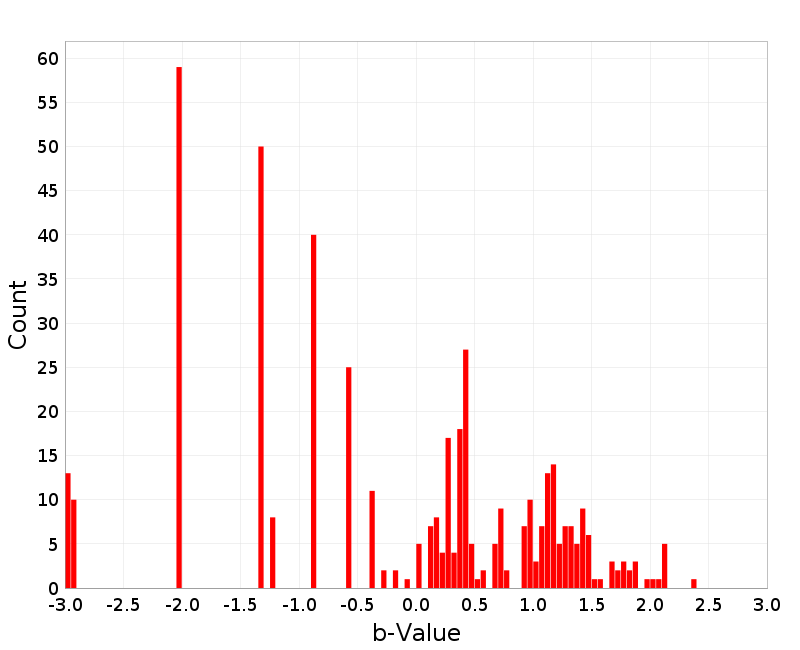

These plots estimate a Gutenberg-Richter b-value for each subsection and parent section nucleation MFD. This is a rough approximation, and is intended primarily for model comparisons.

Download b-value CSV file: sect_b_values.csv

Section b-values Plot

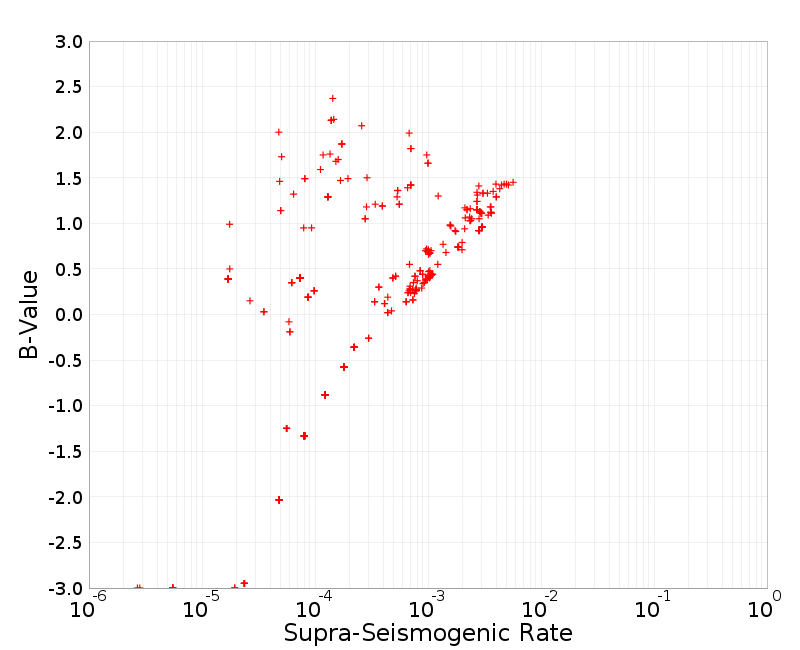

b-Value Distributionb-Value Rate-Dependence
HistogramScatter

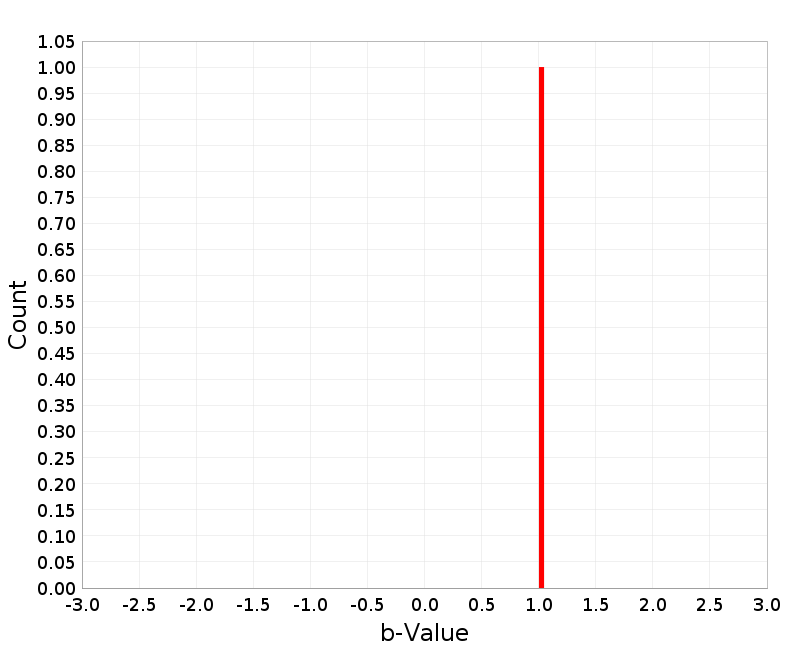

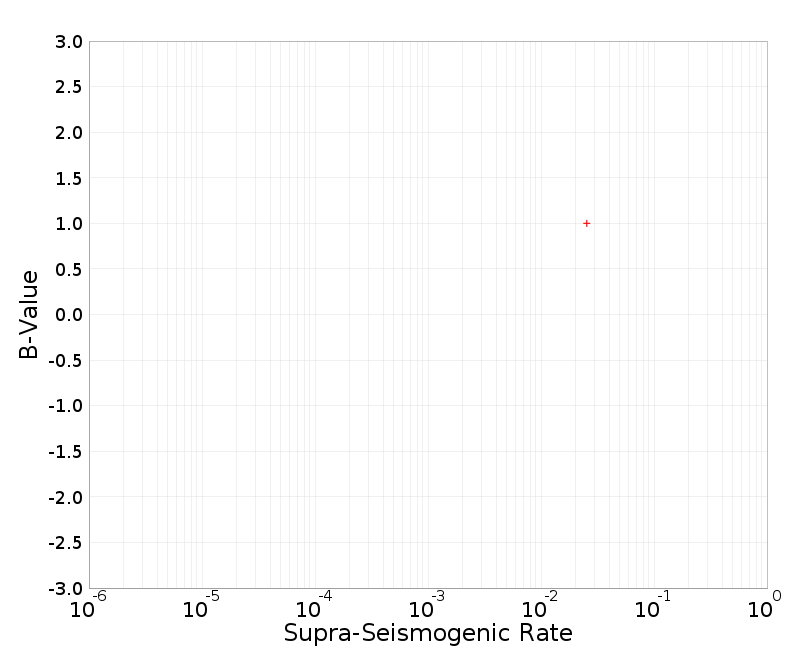

Parent Section b-values

(top)

Download b-value CSV file: parent_sect_b_values.csv

b-Value Distributionb-Value Rate-Dependence
HistogramScatter

Plausibility Configuration

(top)

Connection Strategy

(top)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMzc5
NameClosestSectPair: maxDist=5 km
Max Jump Dist5 km
Possible parent-section connectionsTotal: 0, Avg: 0.00, Range: [0,0]
Actual connections (after applying filters)Total: 0, Avg: NaN, Range: [2147483647,-2147483648]

Splays

(top)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMzc5
Max Allowed Splays0

Plausibility Filters

(top)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMzc5

Rupture Scalar Histograms

(top)

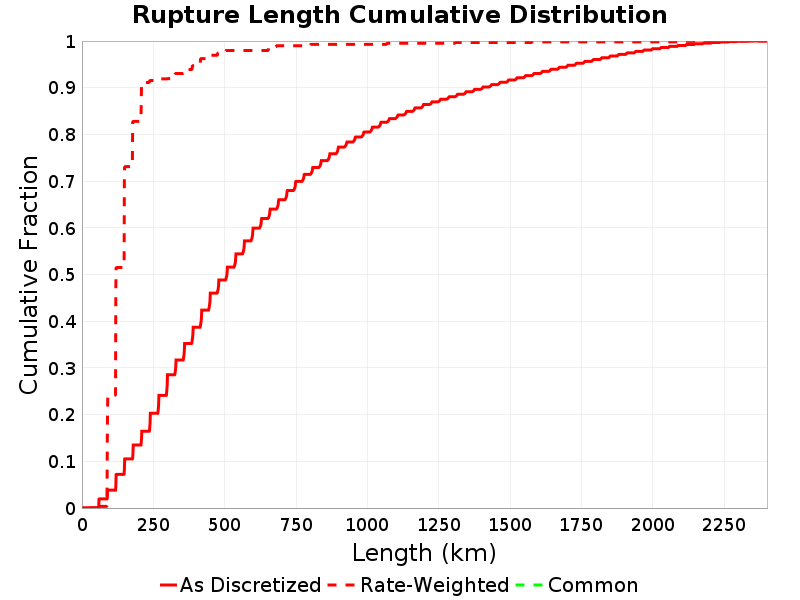

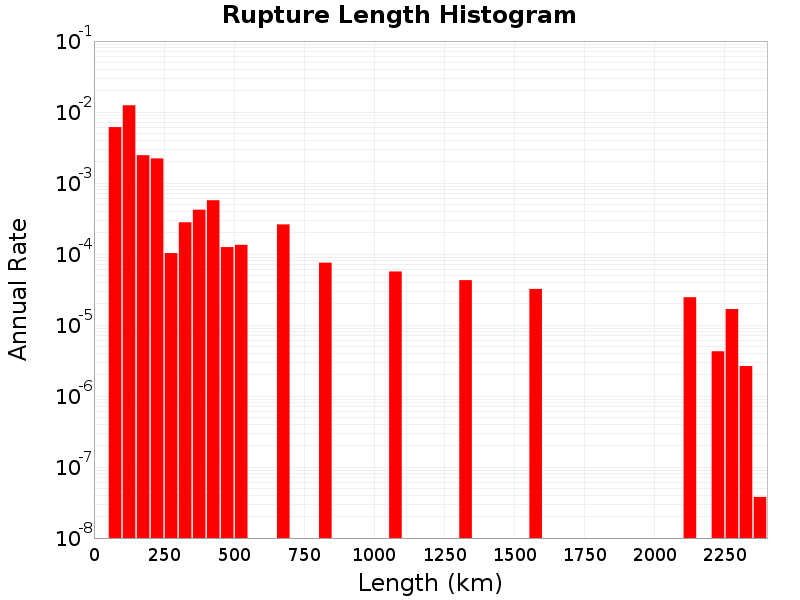

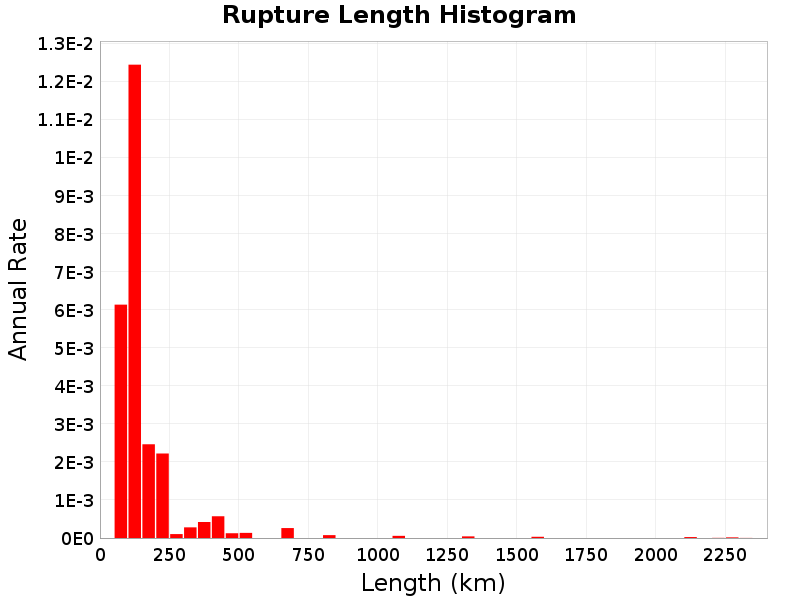

Rupture Length

(top)

Total length (km) of the rupture, not including jumps or gaps.

hist
hist
hist
hist

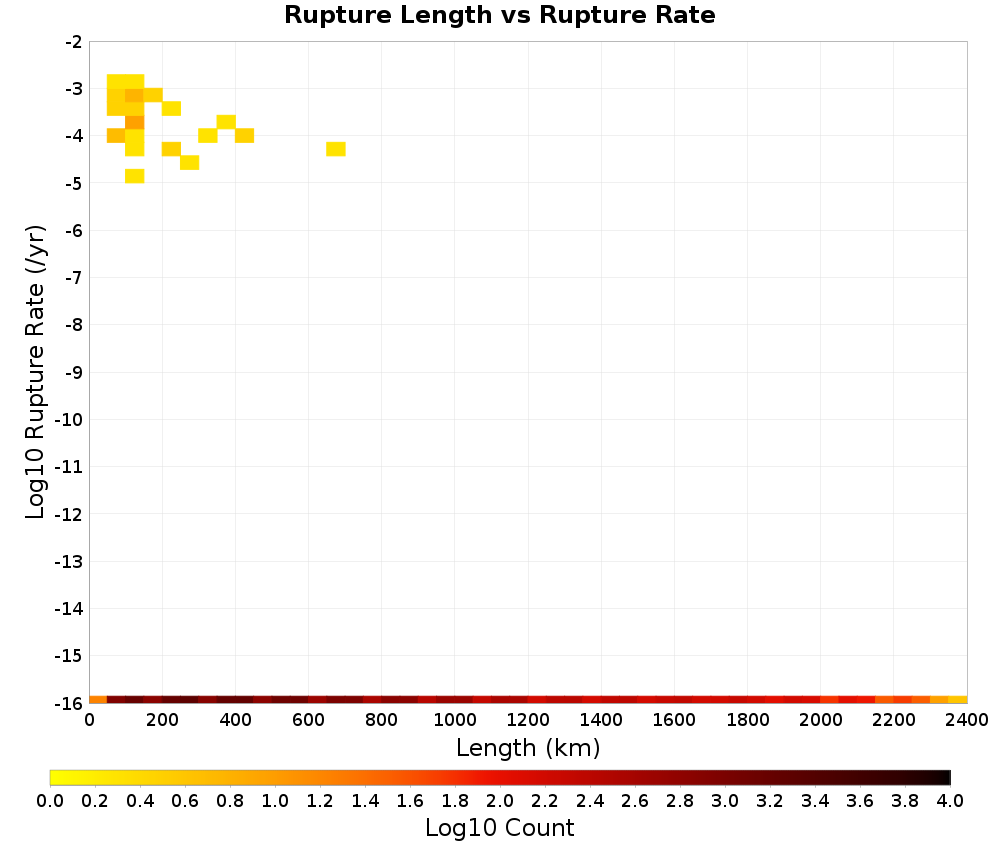

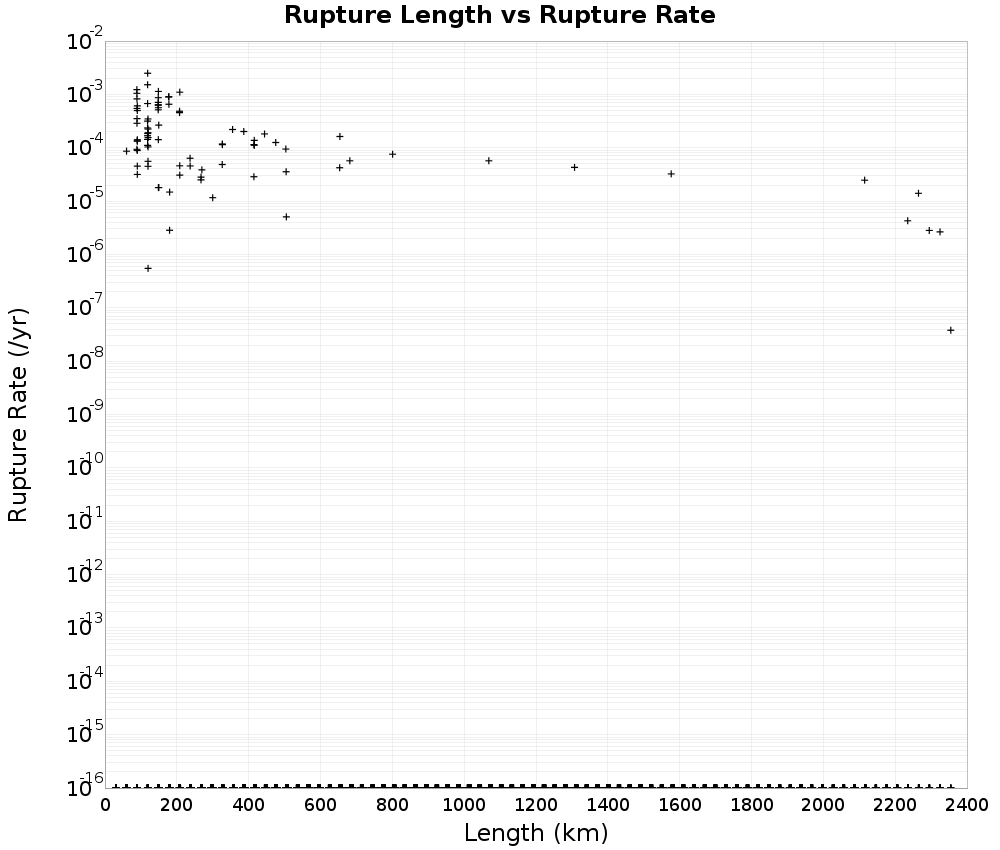

Rupture Length vs Rupture Rate

(top)

rate comparisonrate hist

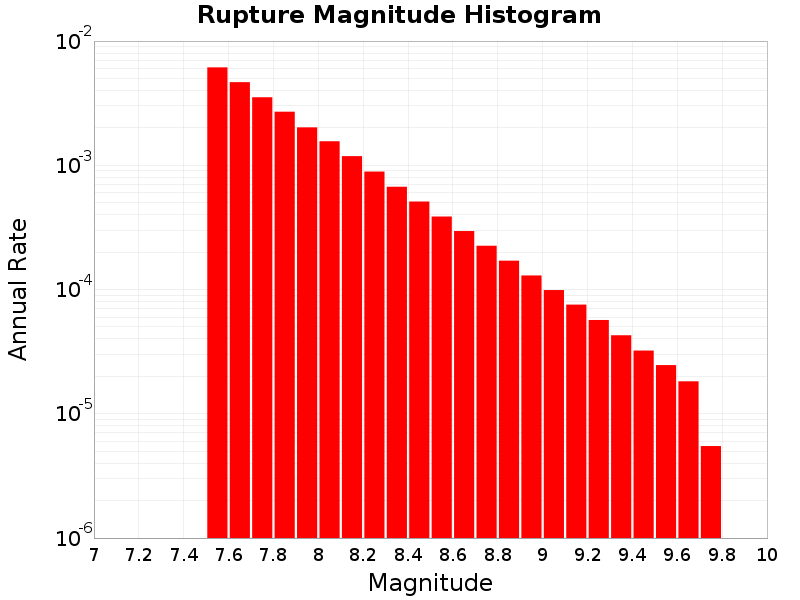

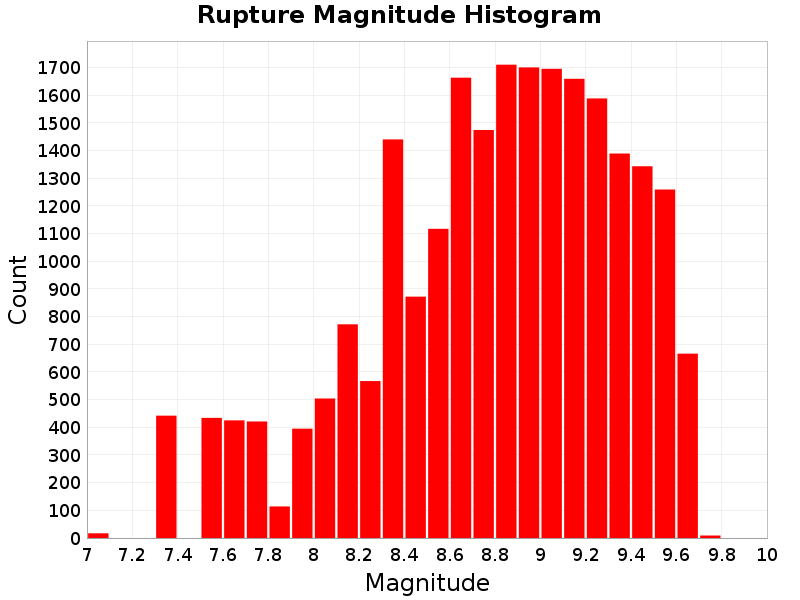

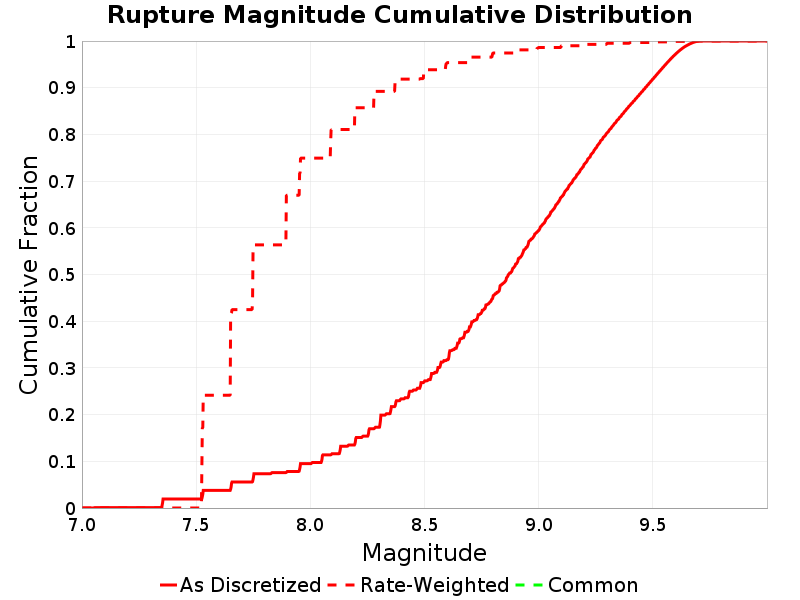

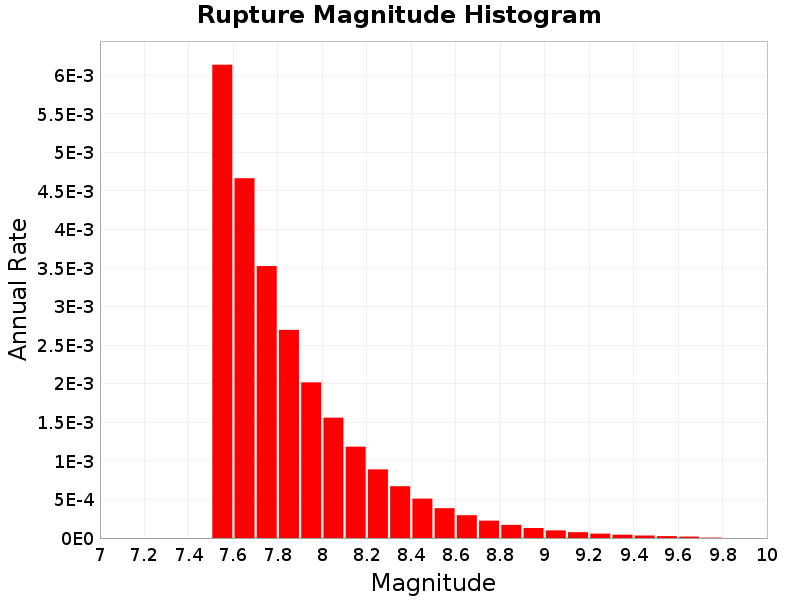

Rupture Magnitude

(top)

Magnitude of the rupture.

hist
hist
hist
hist

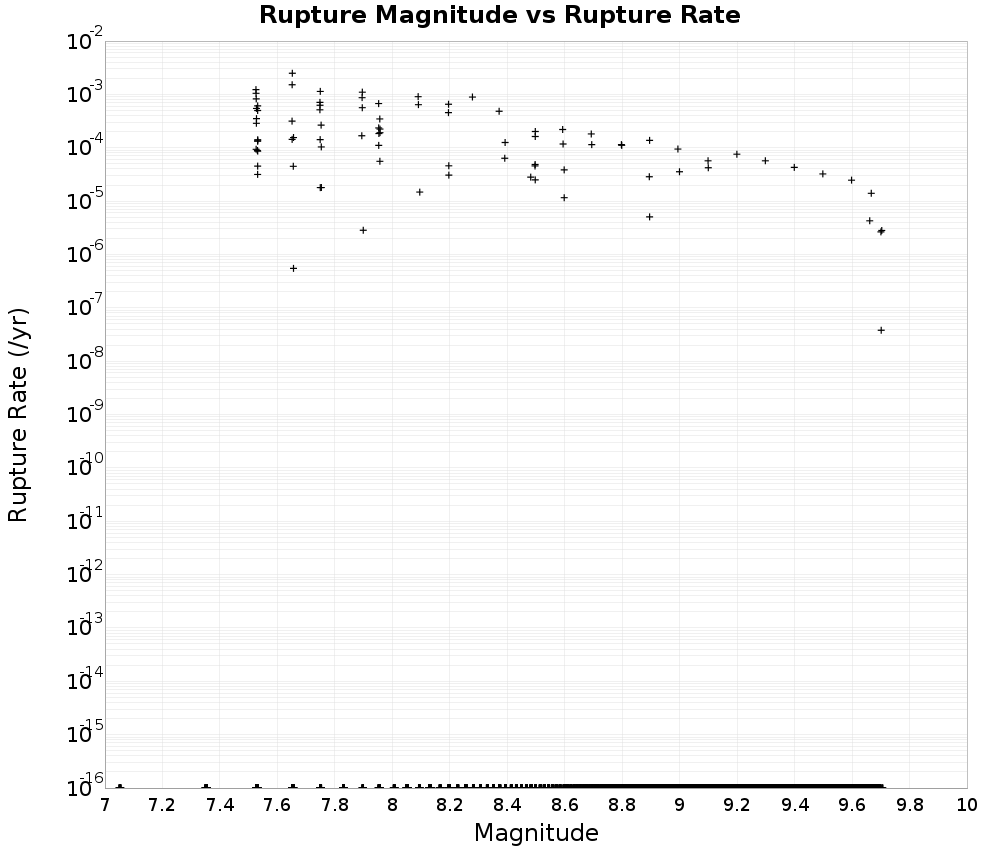

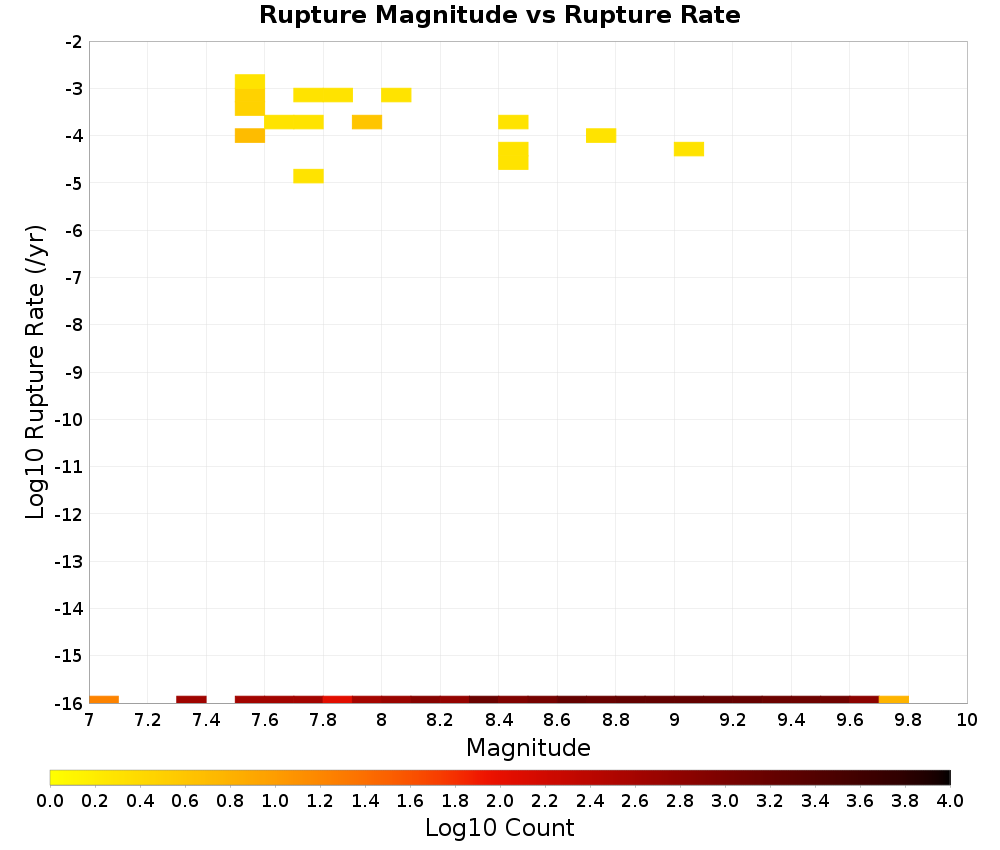

Rupture Magnitude vs Rupture Rate

(top)

rate comparisonrate hist

Maximum Jump Dist

(top)

The maximum jump distance in the rupture.

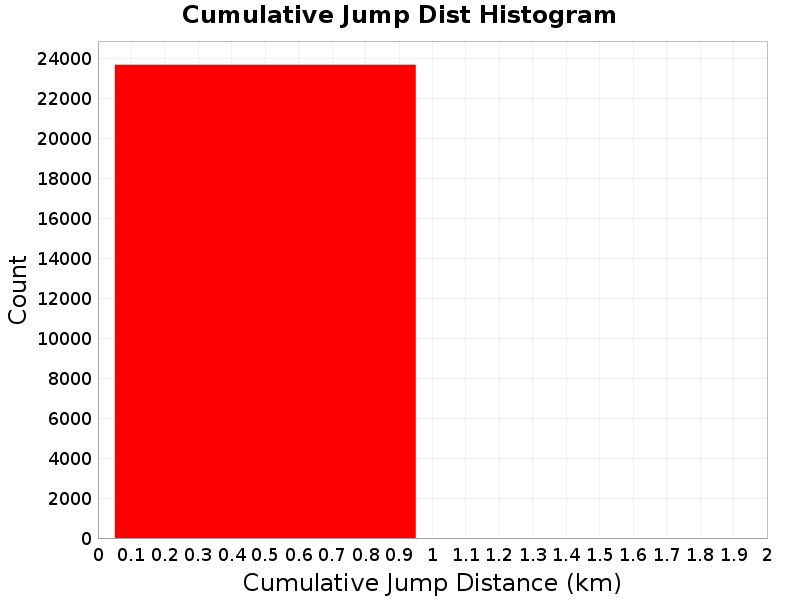

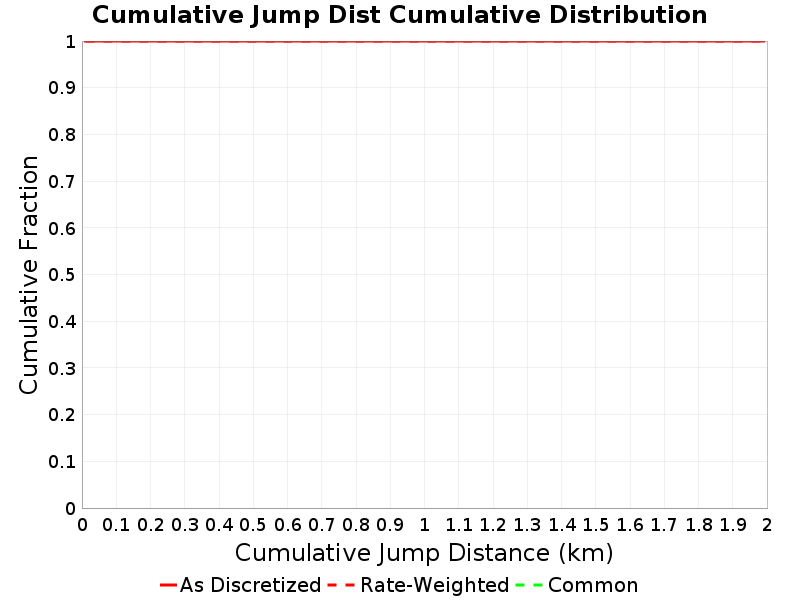

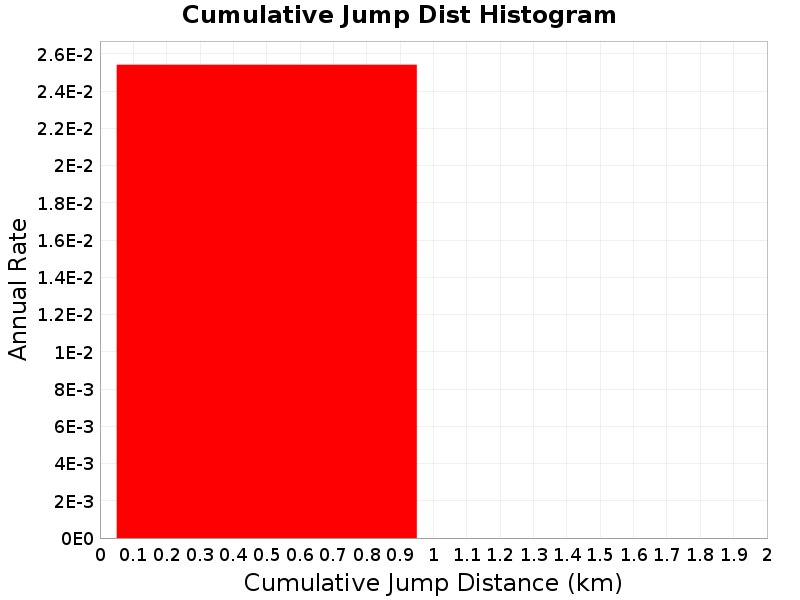

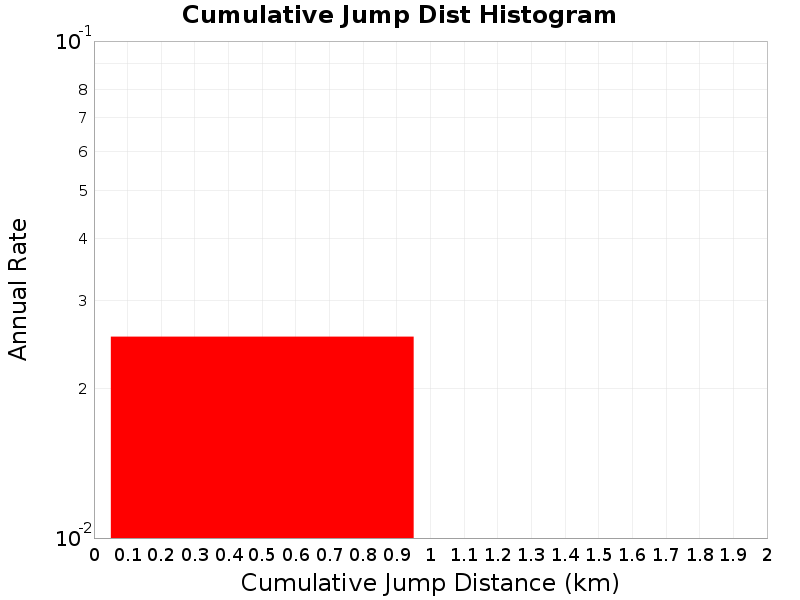

Cumulative Jump Dist

(top)

The total cumulative jump distance summed over all jumps in the rupture.

hist
hist
hist
hist

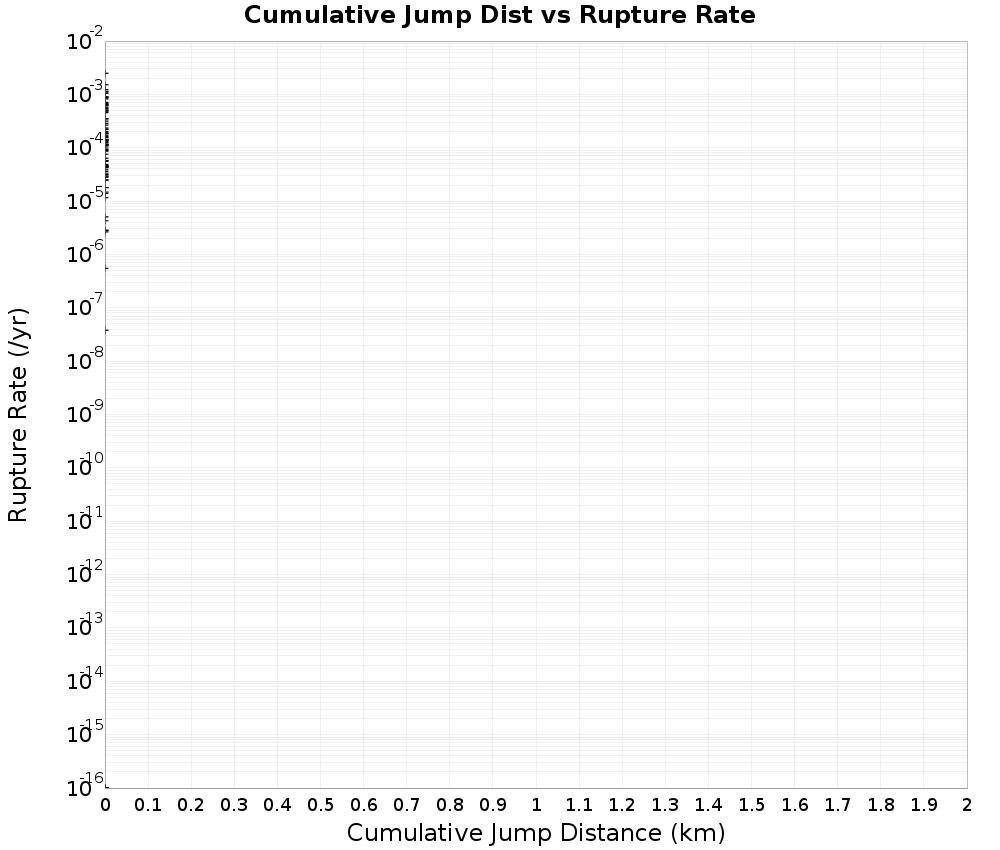

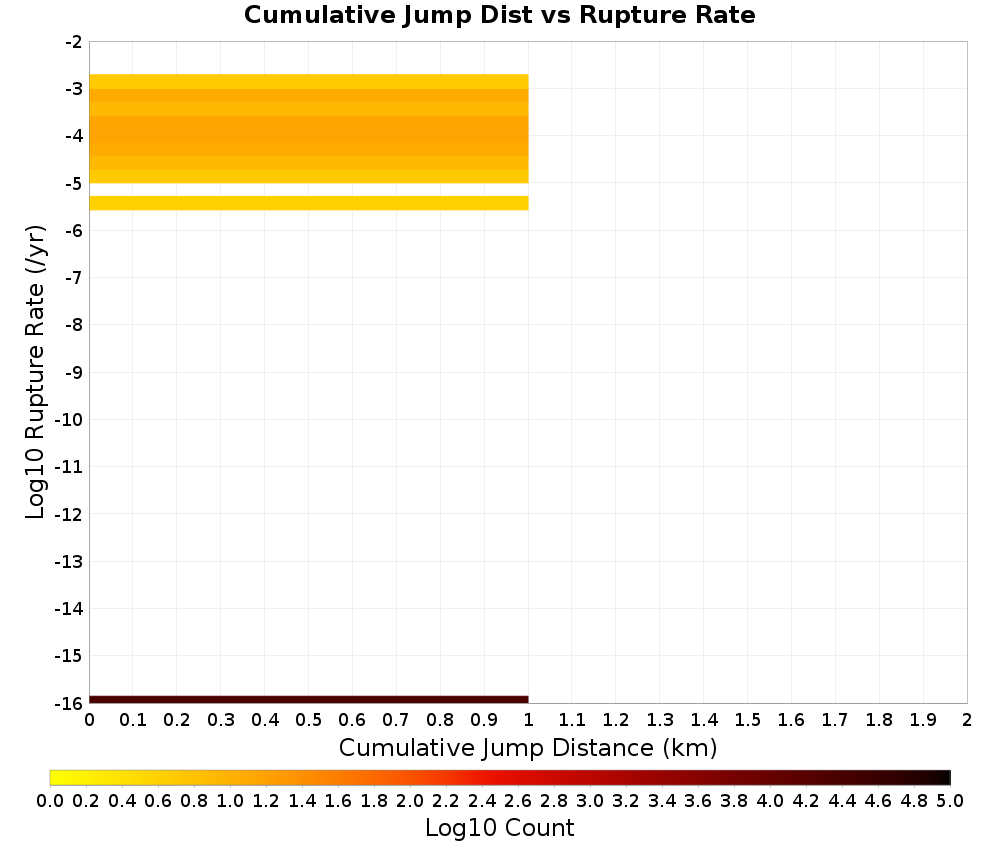

Cumulative Jump Dist vs Rupture Rate

(top)

rate comparisonrate hist

Cumulative Rake Change

(top)

Cumulative rake change for this rupture.

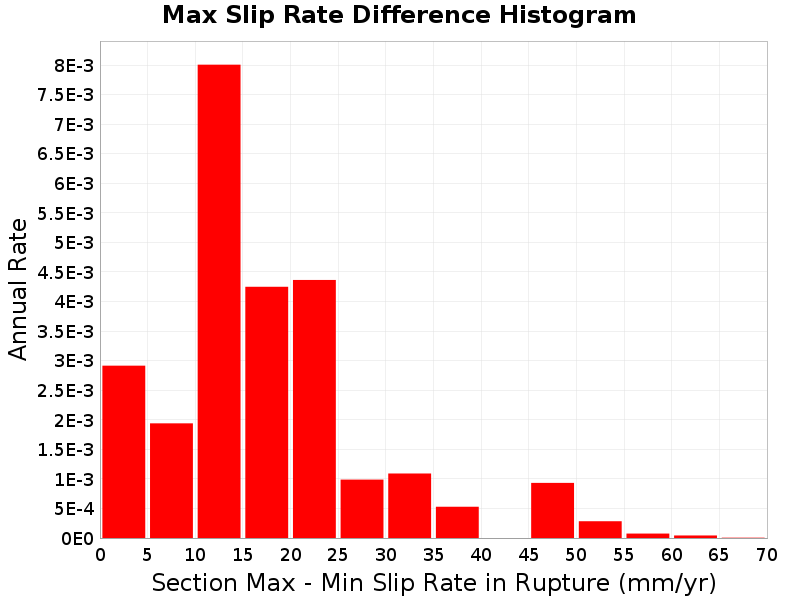

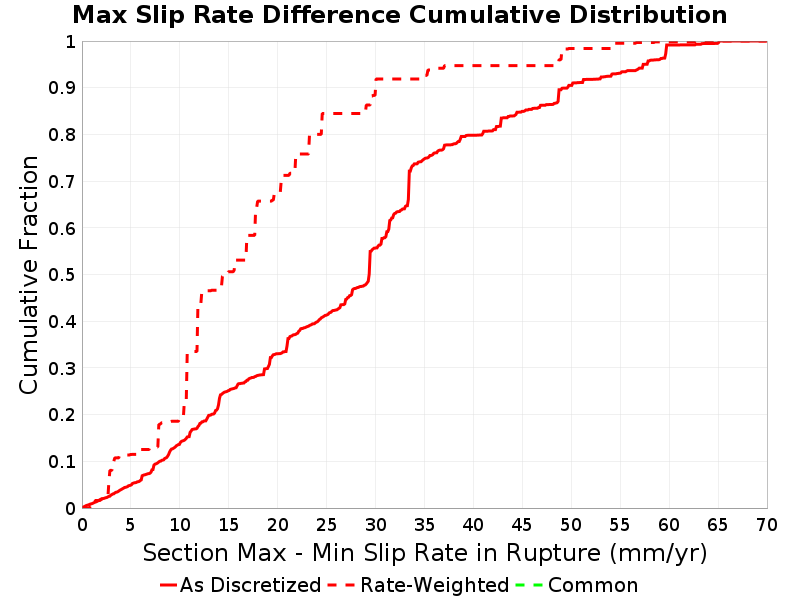

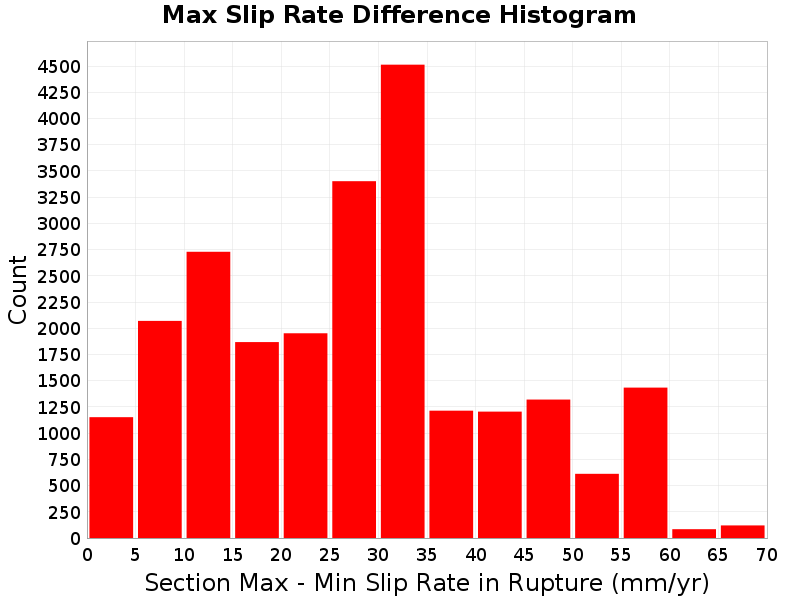

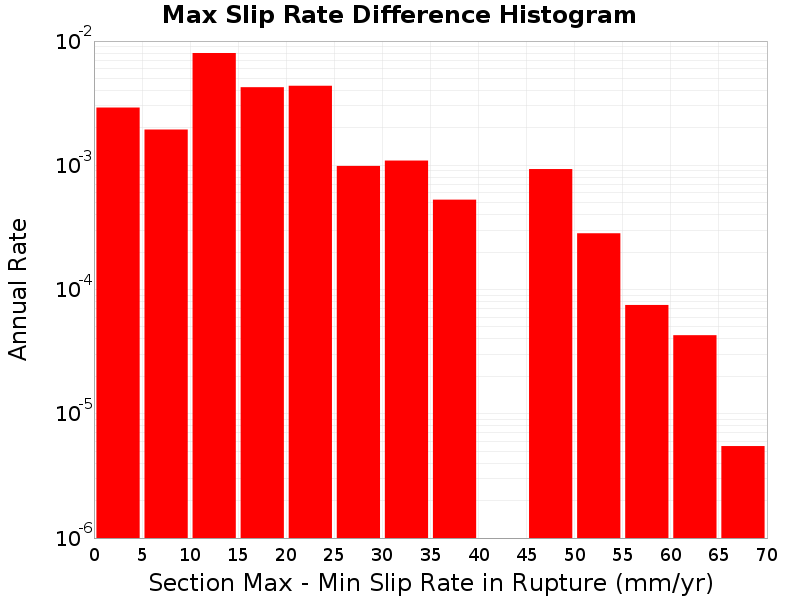

Max Slip Rate Difference

(top)

The difference between the slip rate of the sections with the highest and lowest slip rate in the rupture.

hist
hist
hist
hist

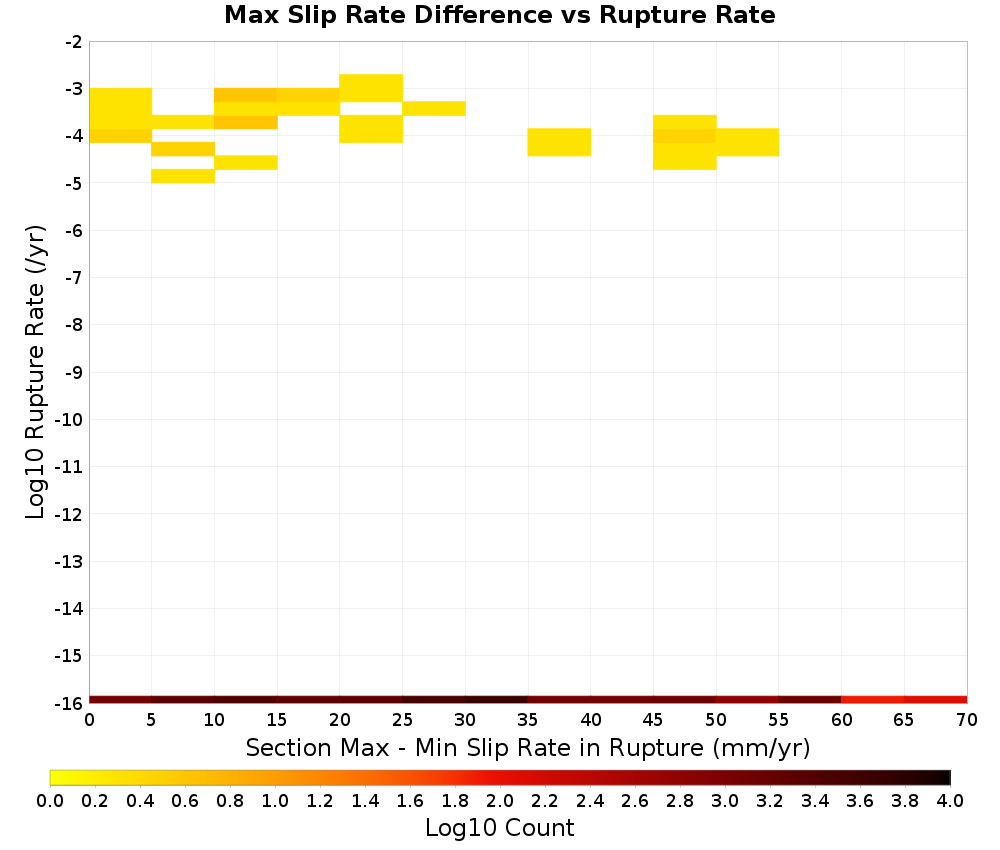

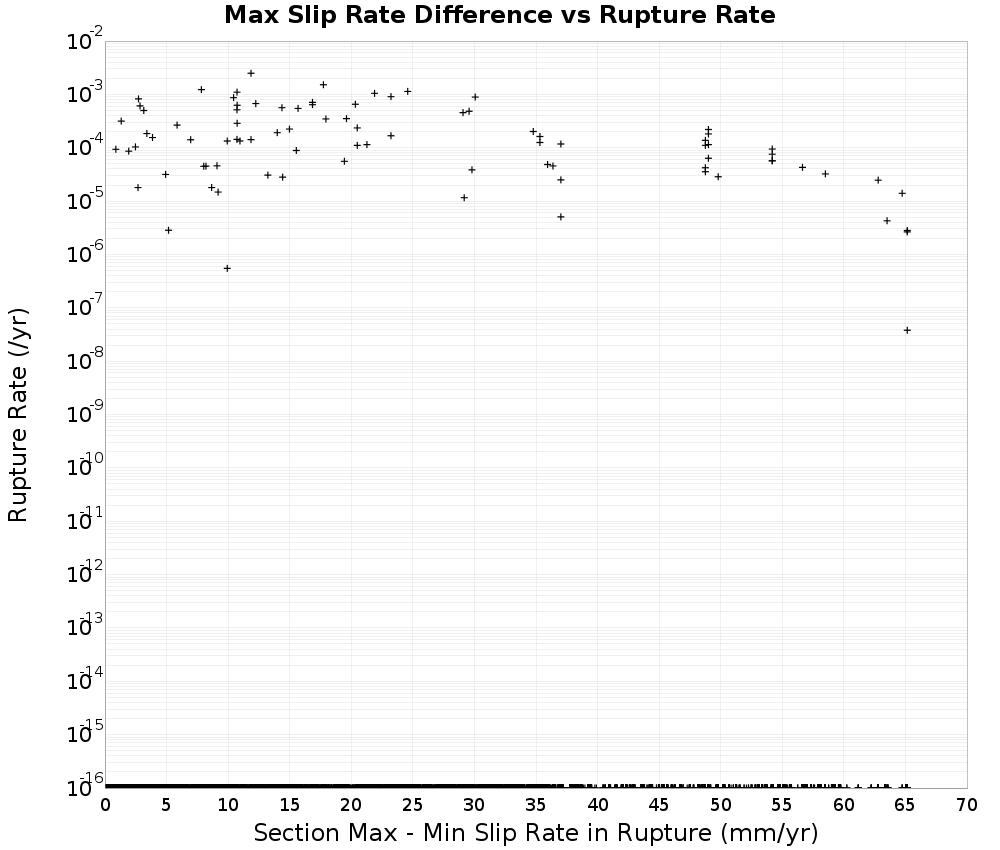

Max Slip Rate Difference vs Rupture Rate

(top)

rate comparisonrate hist

Attached Modules

(top)

List of all modules that have been attached to this Solution.

Note: Modules classes in the standard modules package, org.opensha.sha.earthquake.faultSysSolution.modules, have been shortened to omit the package name.

Rupture Set Modules

(top)

NameImplementing Class
Logic Tree Branchnz.cri.gns.NZSHM22.opensha.enumTreeBranches.NZSHM22_LogicTreeBranch
Single-Strand Cluster RupturesClusterRuptures$SingleStranded
Section Distance-Azimuth Calculatororg.opensha.sha.earthquake.faultSysSolution.ruptures.util.SectionDistanceAzimuthCalculator
Plausibility Configurationorg.opensha.sha.earthquake.faultSysSolution.ruptures.plausibility.PlausibilityConfiguration
Rupture Connection Searchorg.opensha.sha.earthquake.faultSysSolution.ruptures.util.RuptureConnectionSearch
Section Slip RatesSectSlipRates$Precomputed
Section AreasSectAreas$Precomputed
InfoInfoModule
Inversion Target MFDsInversionTargetMFDs$Precomputed
Precomputed Average SlipsAveSlipModule$Precomputed
Modified Section Minimum MagnitudesModSectMinMags$Precomputed
Uniform Slip Along RuptureSlipAlongRuptureModel$Uniform
OpenSHA Build InformationBuildInfoModule

Solution Modules

(top)

NameImplementing Class
Annealing Progressorg.opensha.sha.earthquake.faultSysSolution.inversion.sa.completion.AnnealingProgress
OpenSHA Build InformationBuildInfoModule

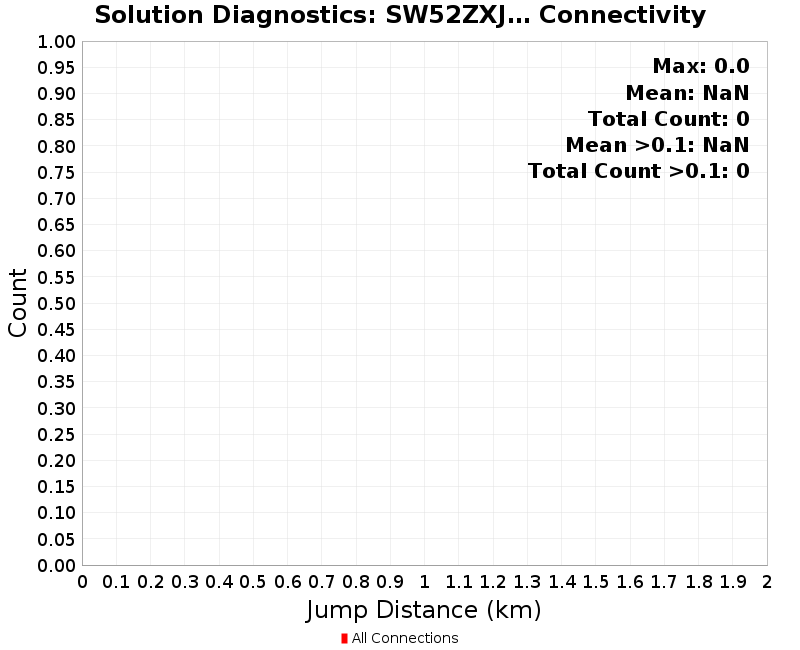

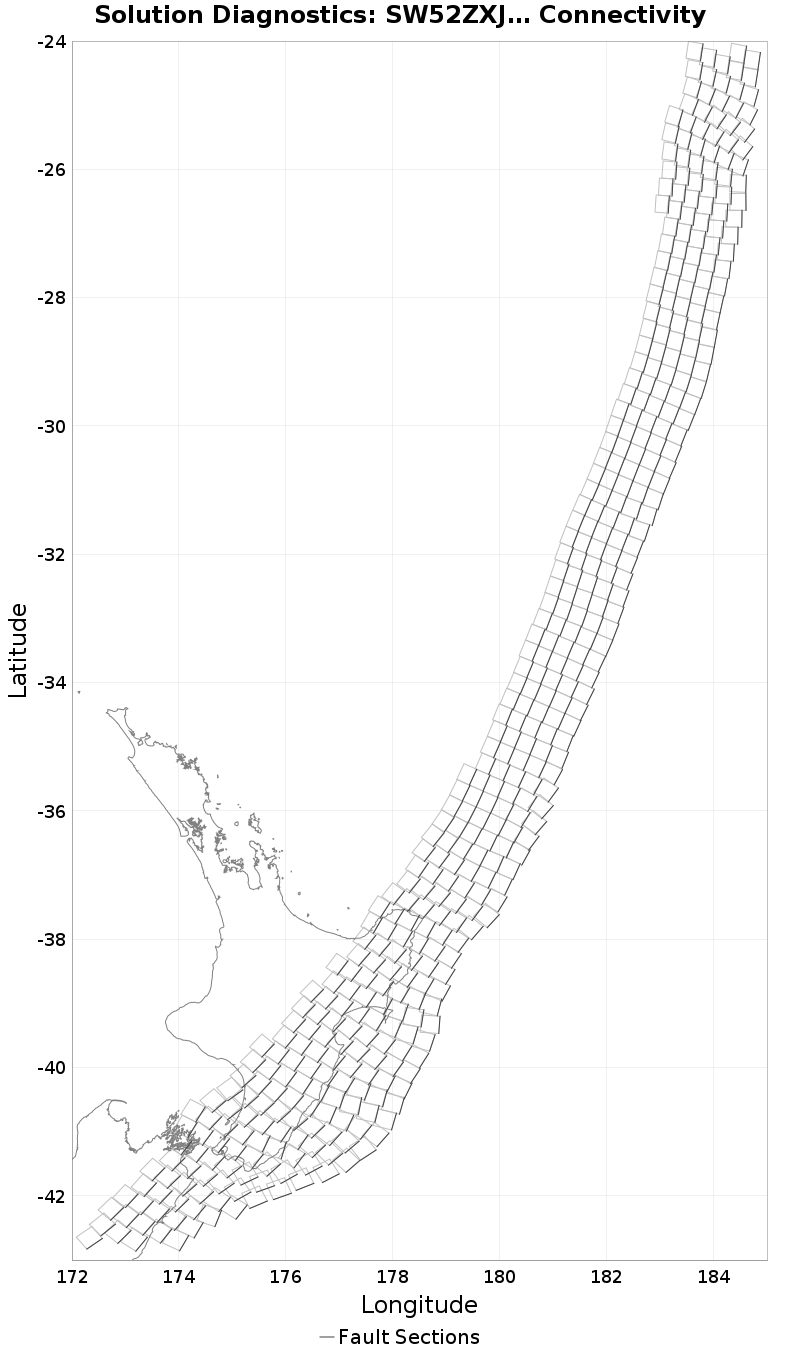

Fault Section Connections

(top)

plot
Download GeoJSON
plot
plot
plot

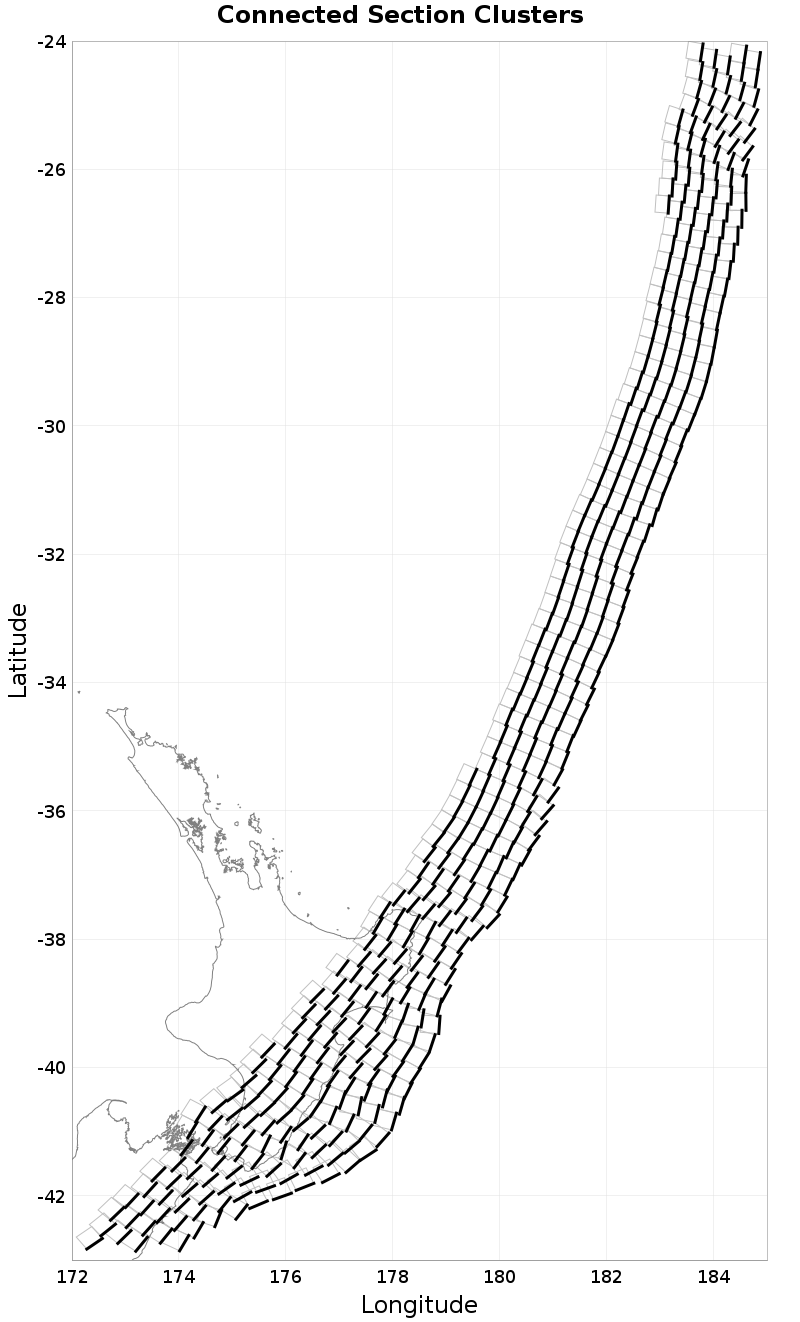

Connected Clusters

(top)

Connected clusters of fault sections, where all sections plotted in a given color connect with all other sections of the same color through ruptures. There may not be any single rupture that connects all such sections, but rather, chains of ruptures connect the sections. Only the first 10 clusters are plotted, with smaller clusters plotted in gray, and fully isolated faults plotted in black.

Primary clusters
Download GeoJSON
RankSectionsParent SectionsRuptures
1 isolated452 (100.00%)1 (100.00%)23,675 (100.00%)

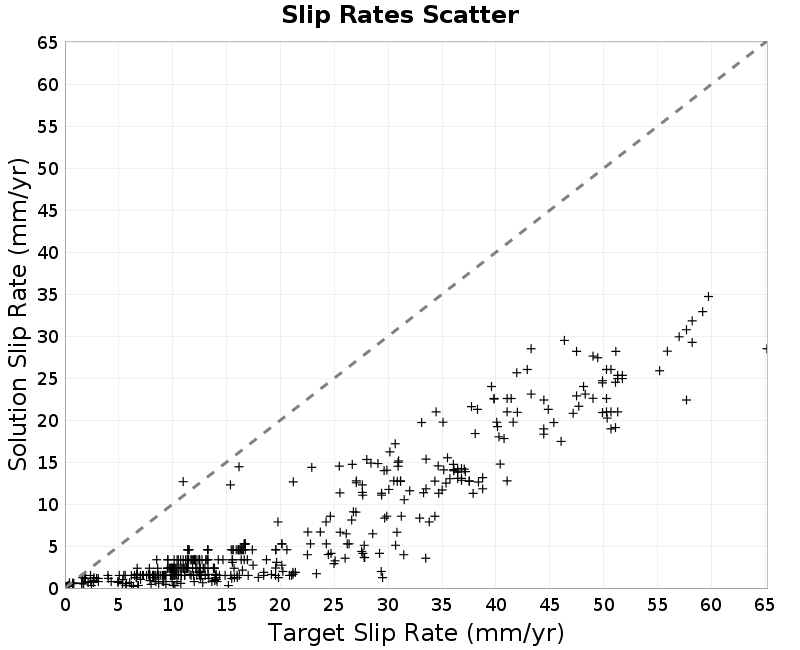

Slip Rates

(top)

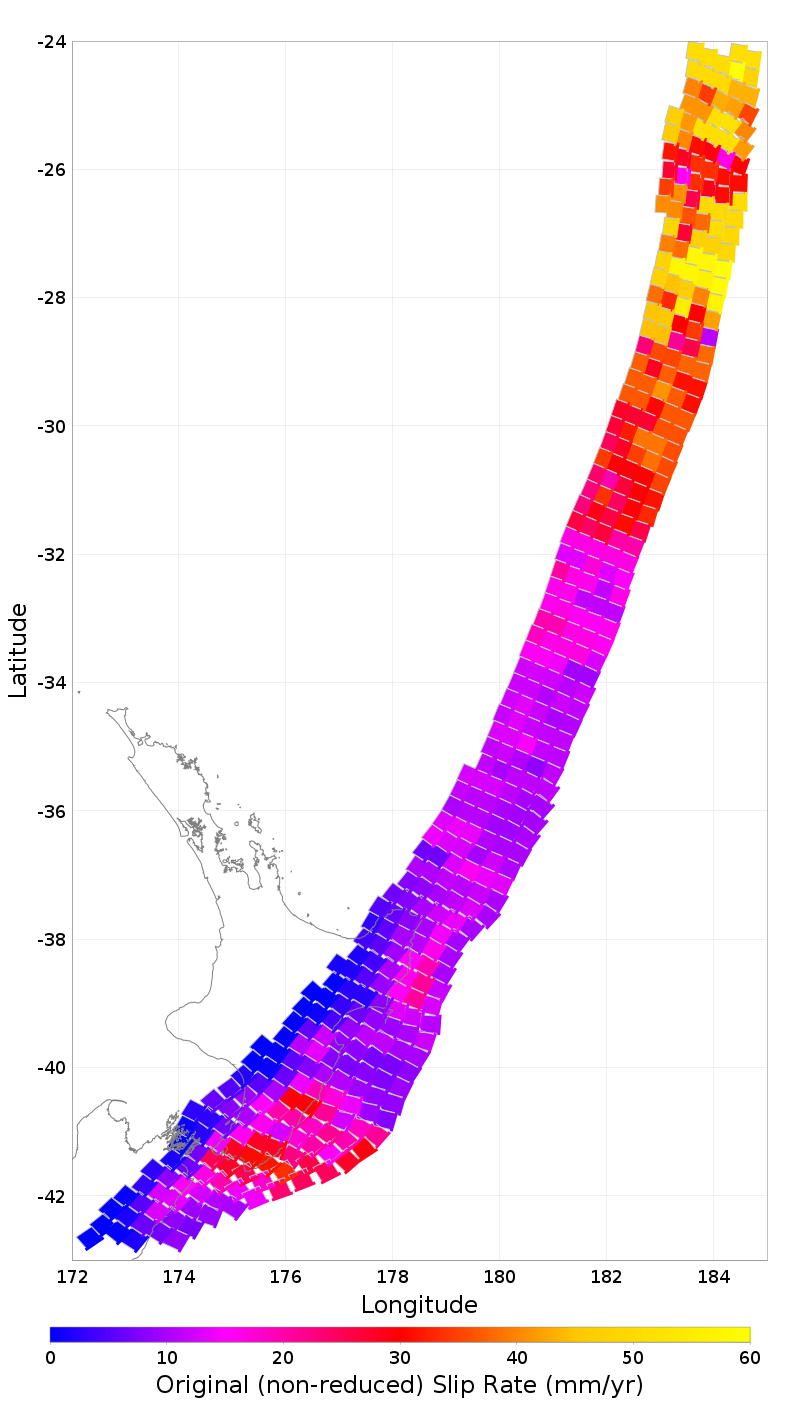

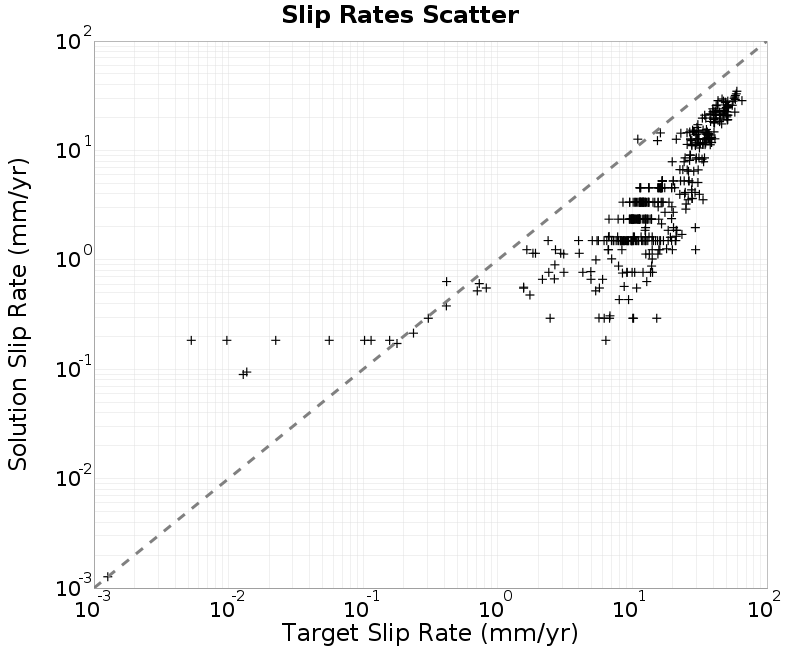

Linear Slip Rate Plots

(top)

MapMap
Download GeoJSON Download GeoJSON
MapMap
Download GeoJSON Download GeoJSON
MapMap
Download GeoJSON Download GeoJSON

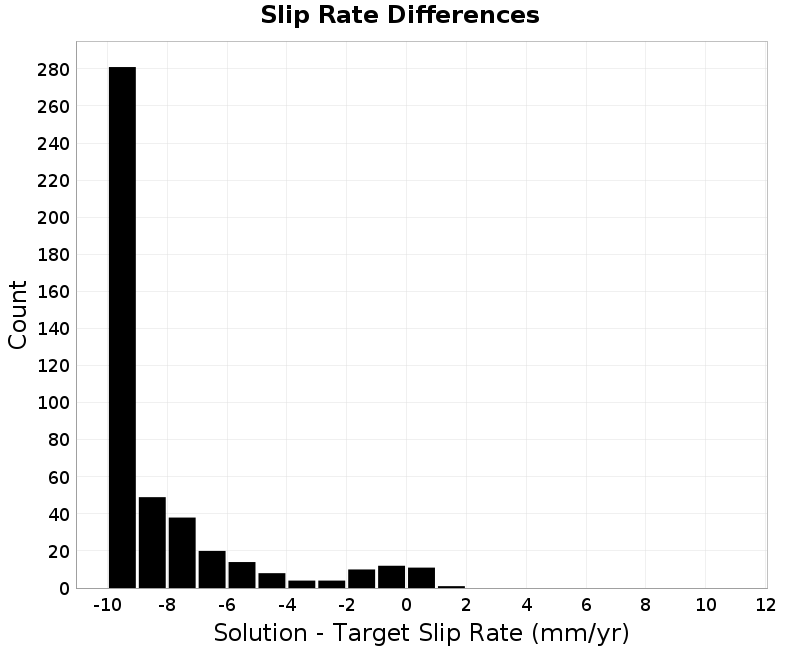

Diff histDiff hist

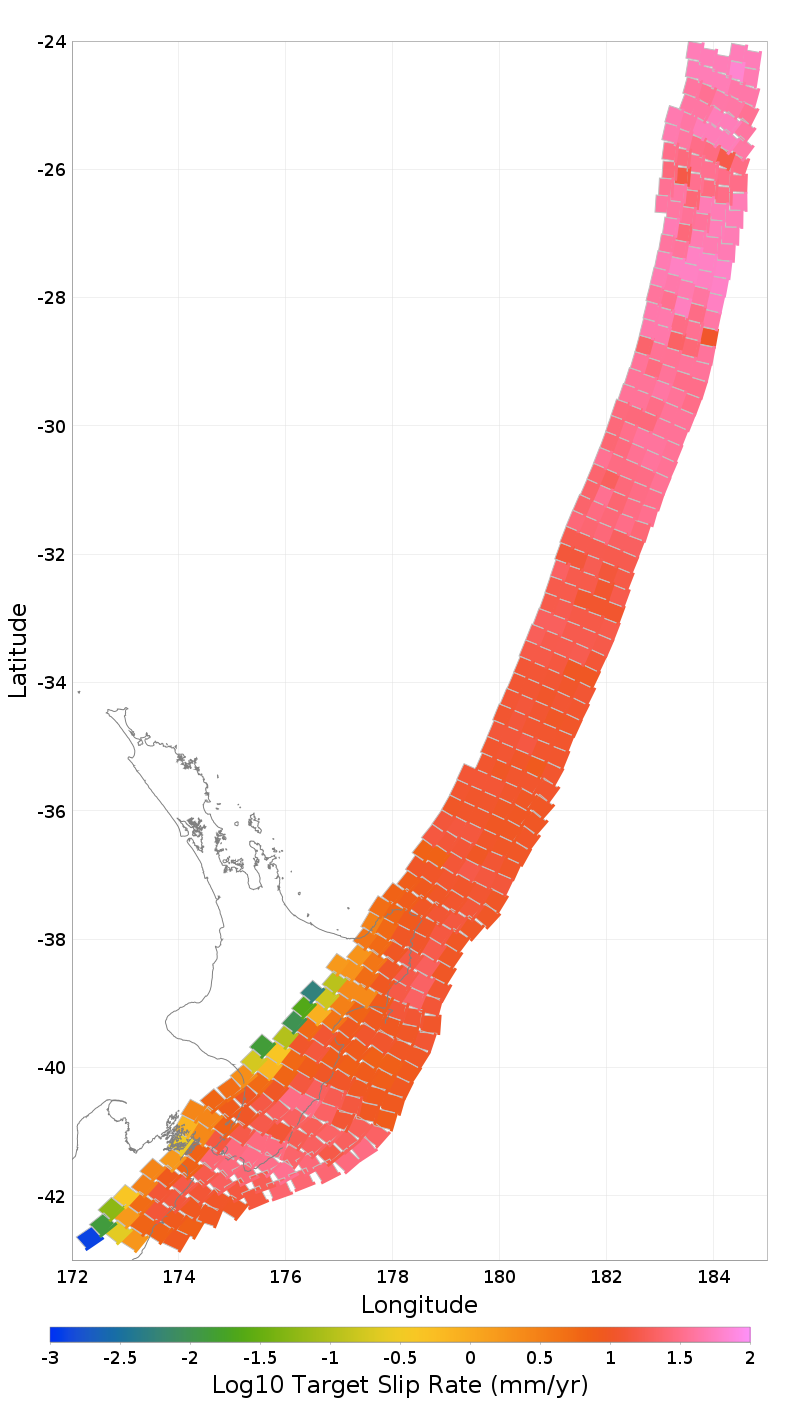

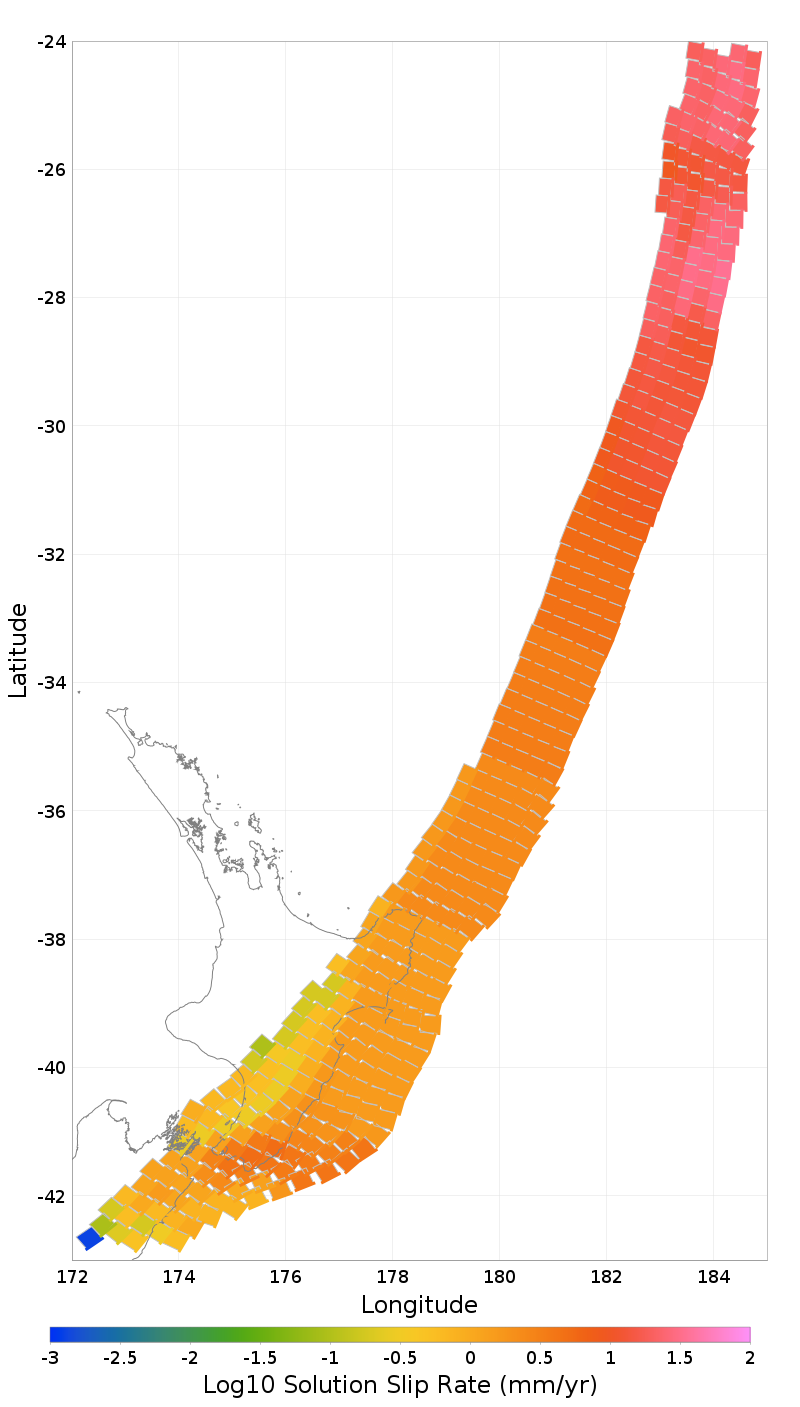

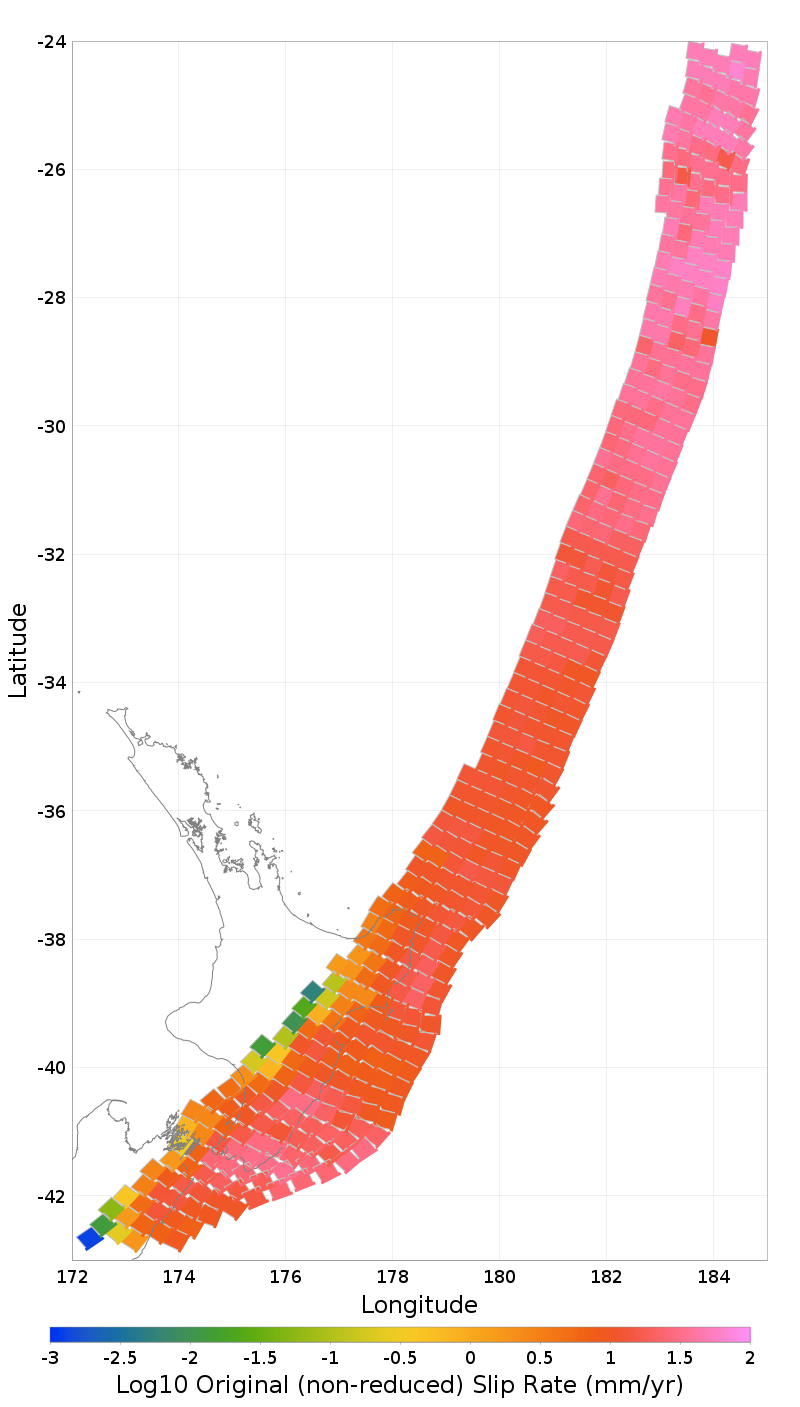

Log10 Slip Rate Plots

(top)

MapMap
Download GeoJSON Download GeoJSON
MapMap
Download GeoJSON Download GeoJSON
MapDiff hist
Download GeoJSON

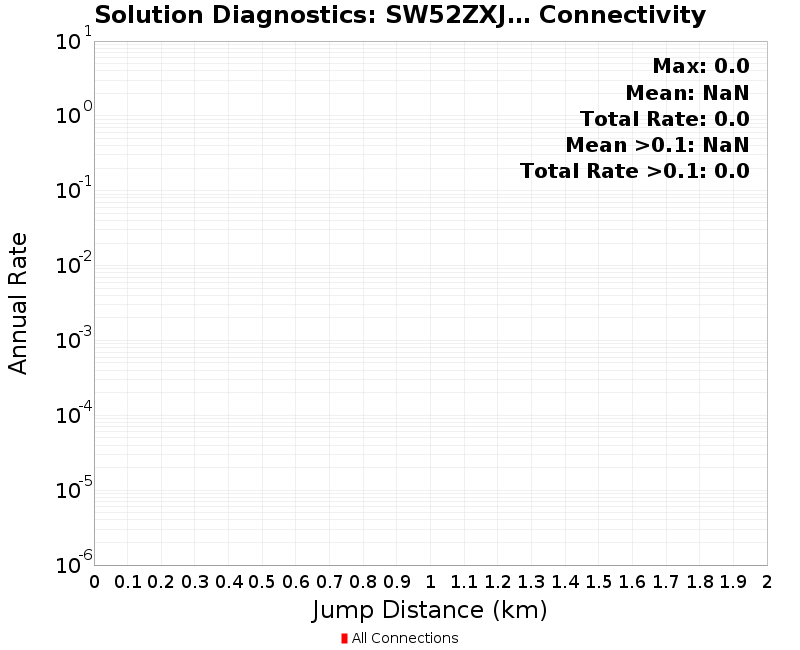

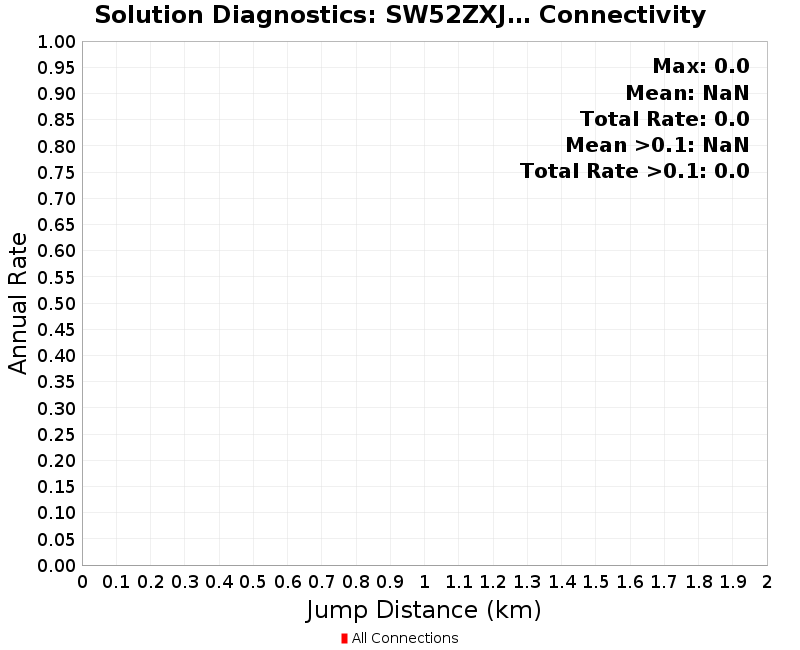

Jump Counts Over Distance

(top)

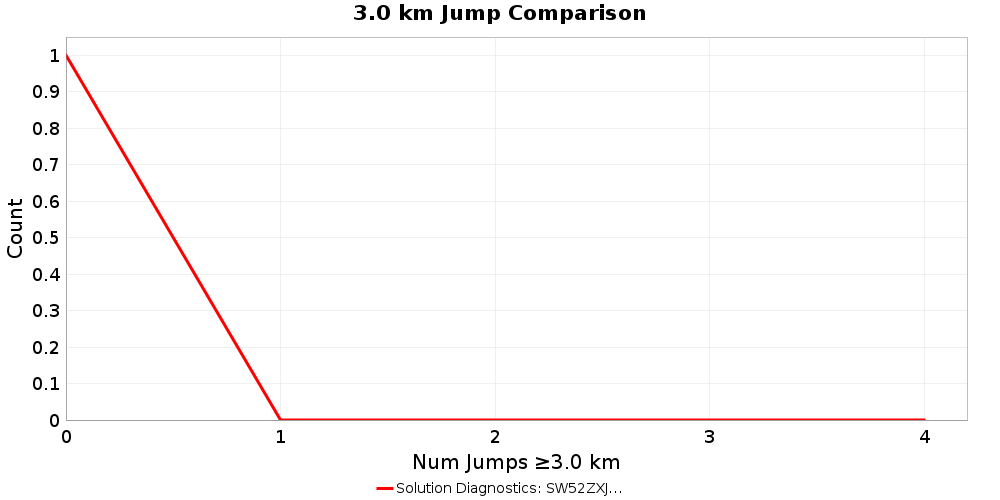

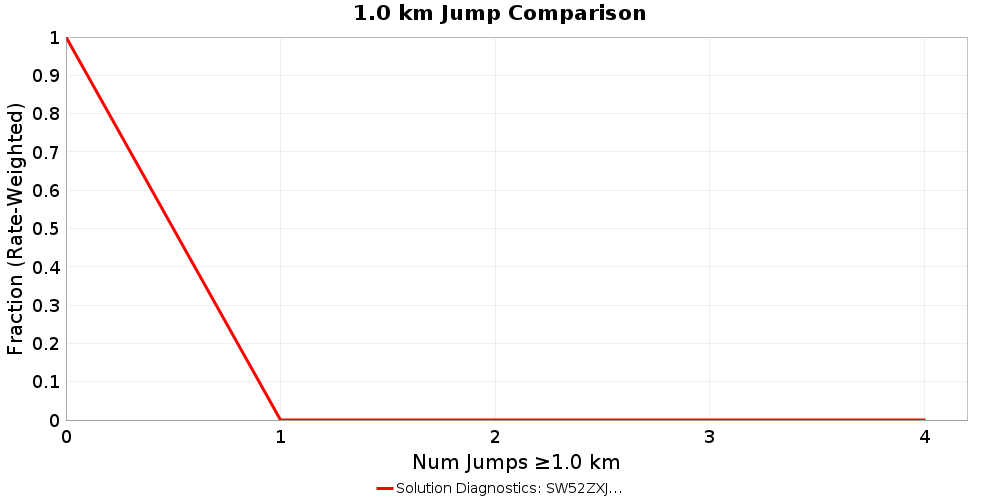

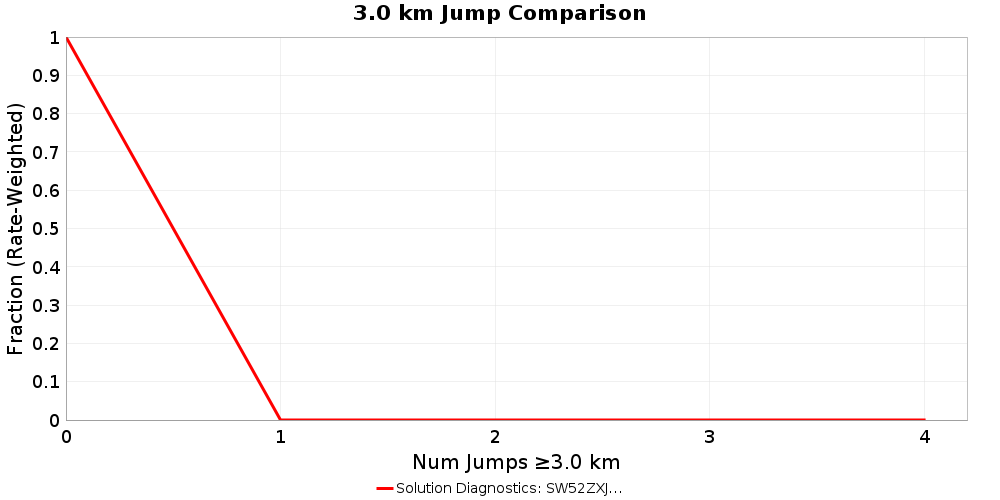

Supra-seismogenic Jump Counts

(top)

As DiscretizedRate Weighted
Plausibility FilterPlausibility Filter
Plausibility FilterPlausibility Filter
Plausibility FilterPlausibility Filter

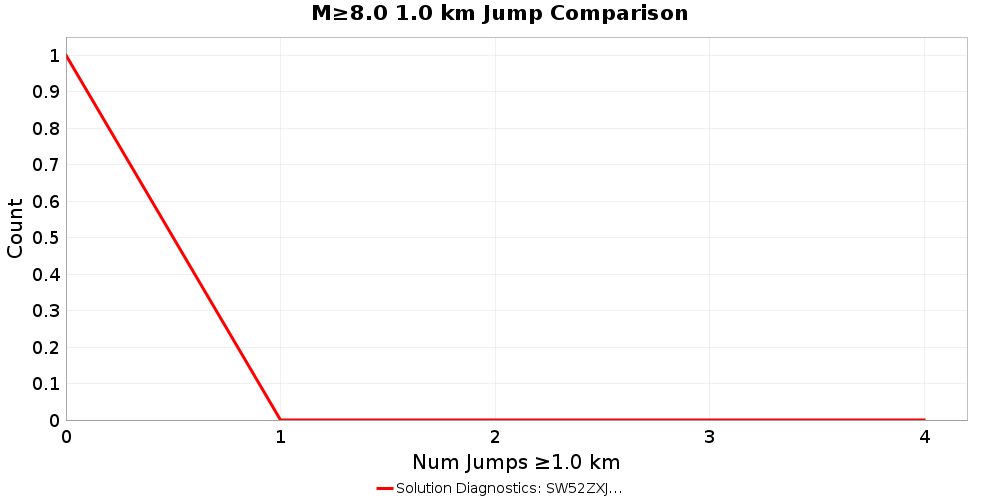

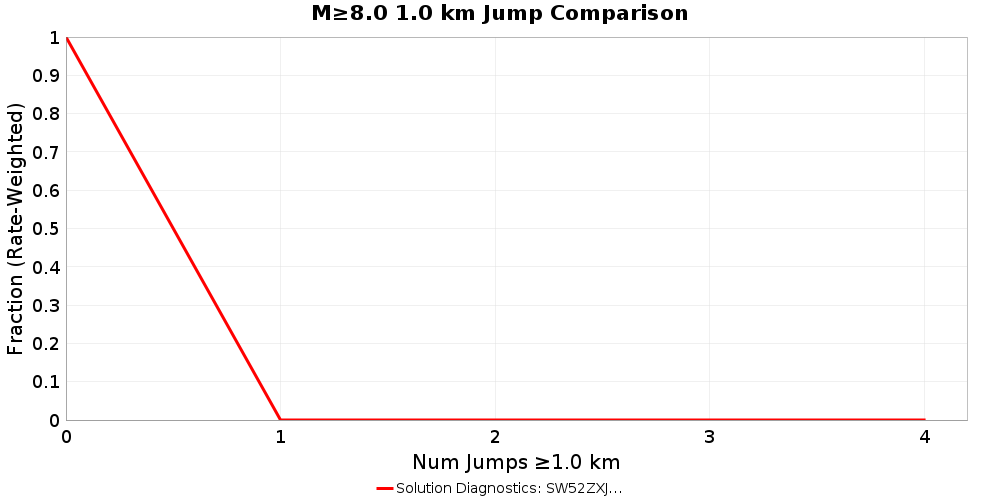

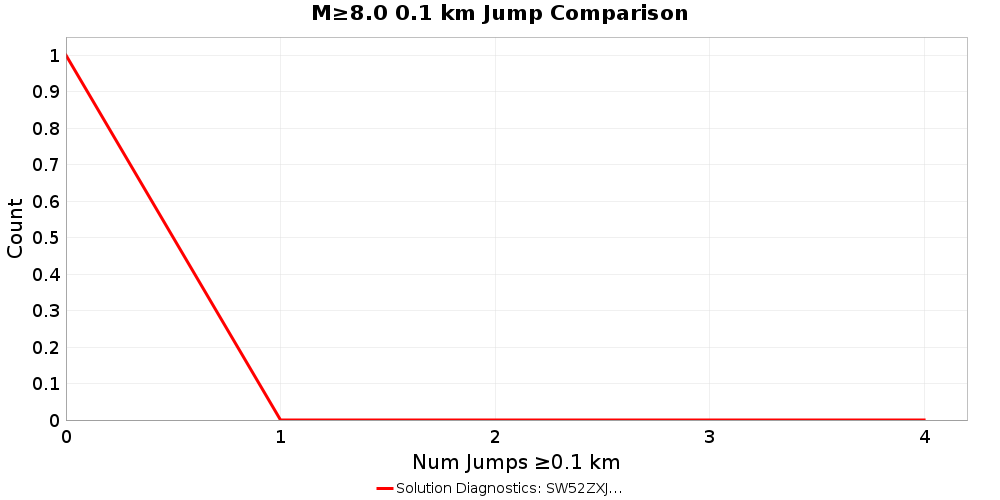

M≥8 Jump Counts

(top)

As DiscretizedRate Weighted
Plausibility FilterPlausibility Filter
Plausibility FilterPlausibility Filter
Plausibility FilterPlausibility Filter

Max Jump Distance Distribution

(top)

Max Jump Dist Plot

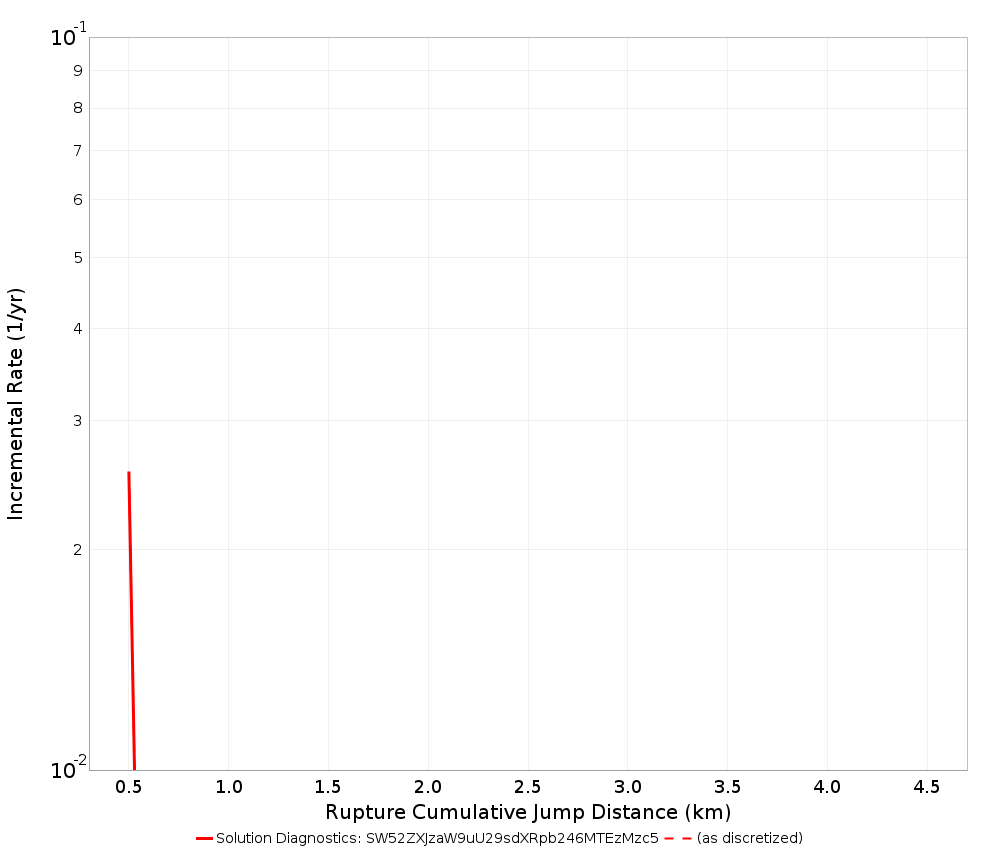

Cumulative Jump Distance Distribution

(top)

Cumulative Jump Dist Plot

Hazard Maps

(top)

Hazard map comparisons with a resolution of 1 degrees (260 sites). Hazard is computed with the ASK2014 GMPE, default site parameters, and supra-seismogenic fault sources only.

PGA Hazard Maps

(top)

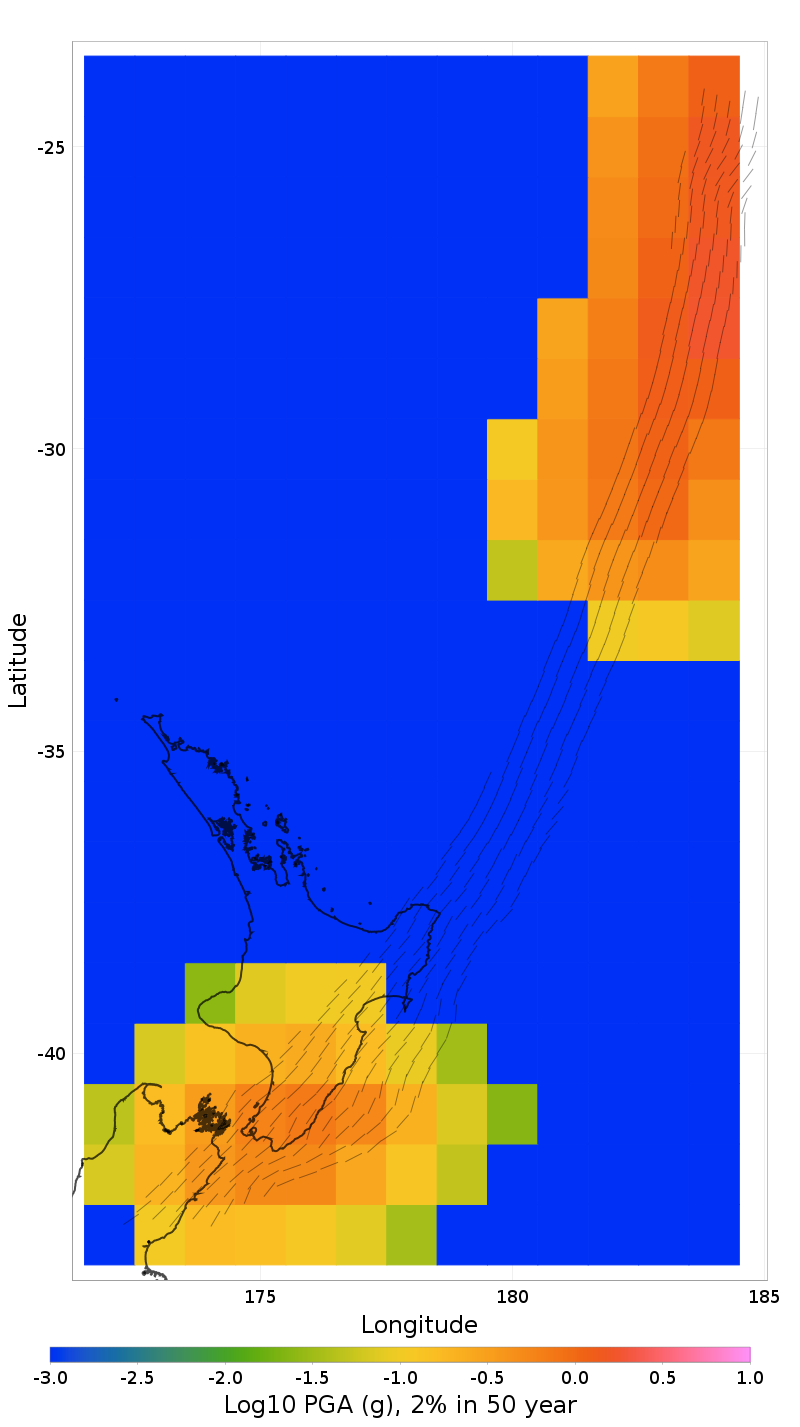

PGA, 2% in 50 year Hazard Maps

(top)

Hazard Map

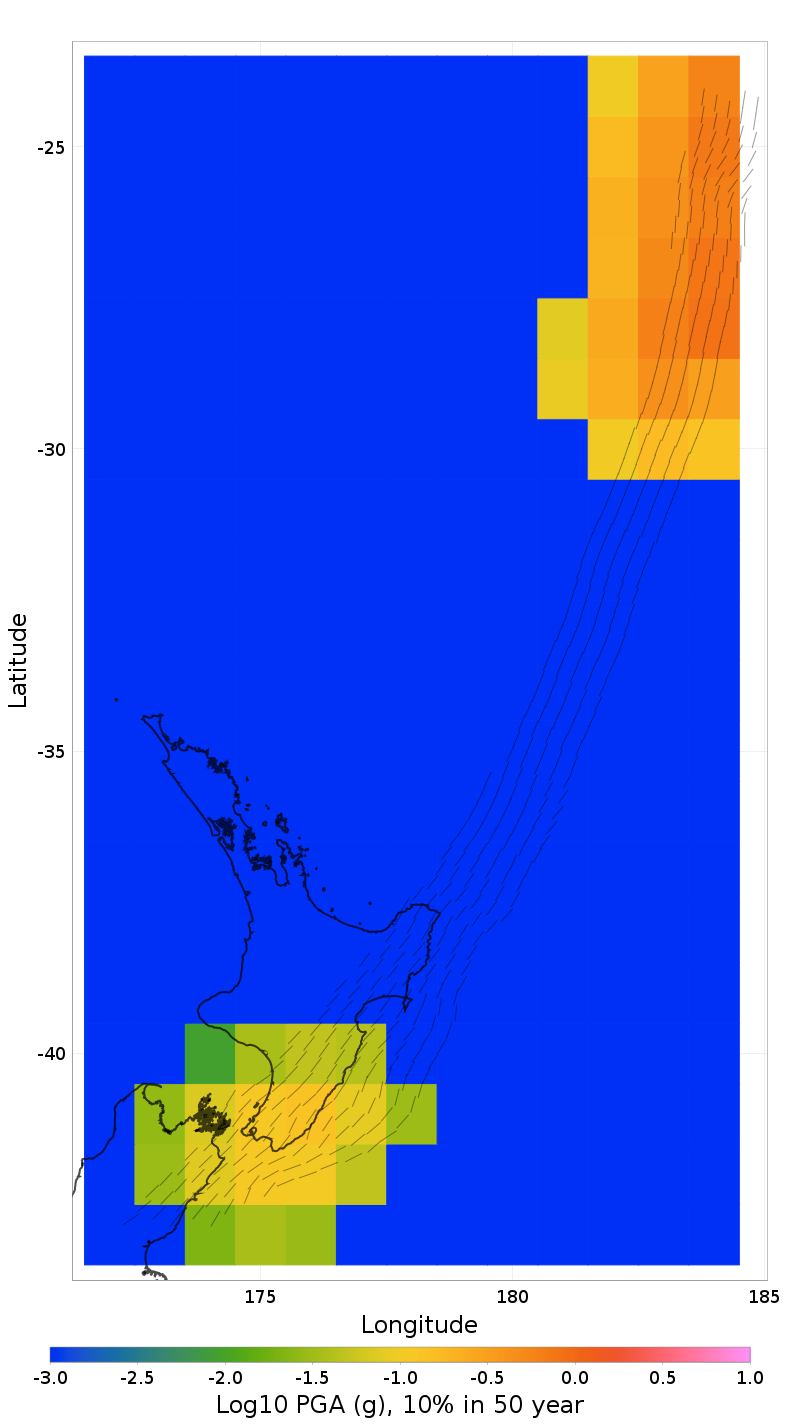

PGA, 10% in 50 year Hazard Maps

(top)

Hazard Map

1s SA Hazard Maps

(top)

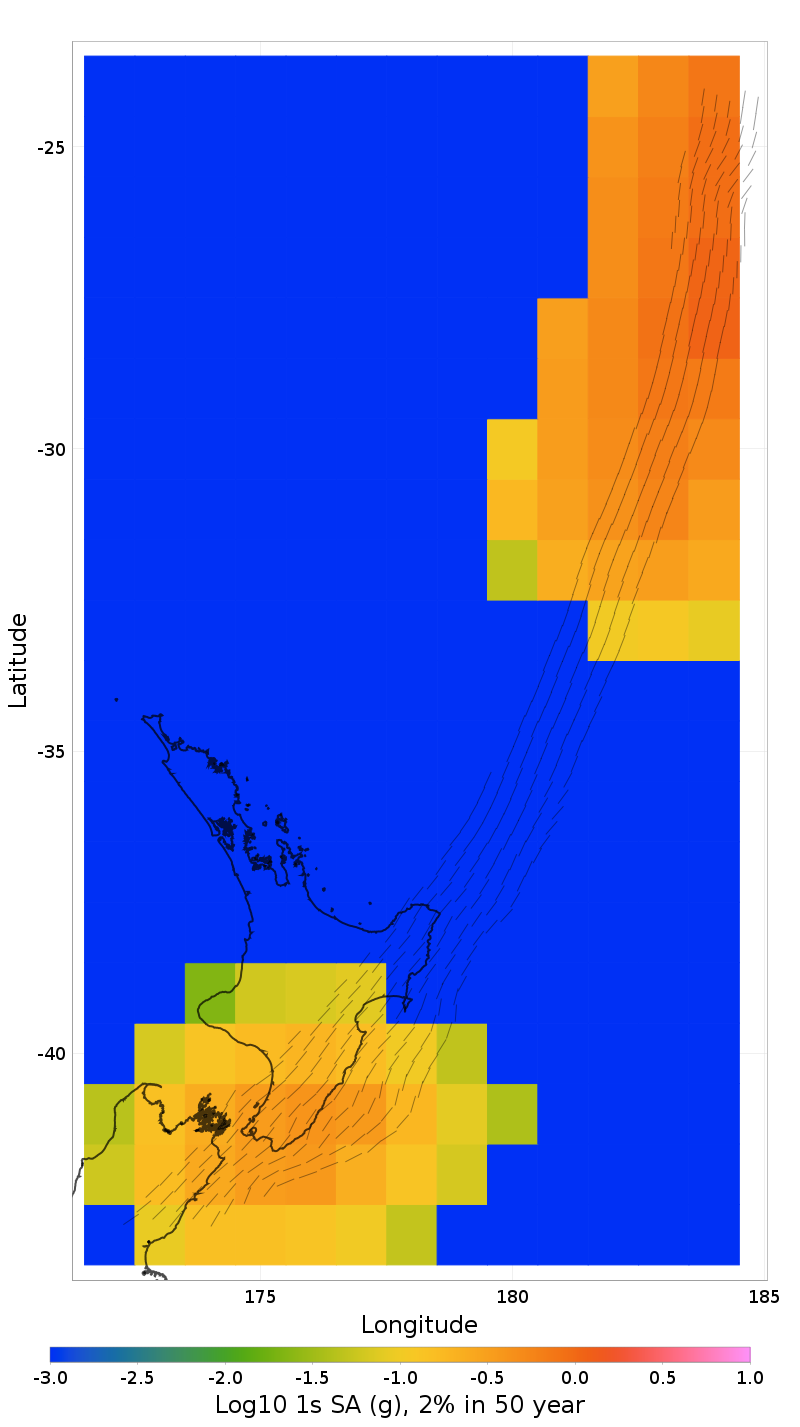

1s SA, 2% in 50 year Hazard Maps

(top)

Hazard Map

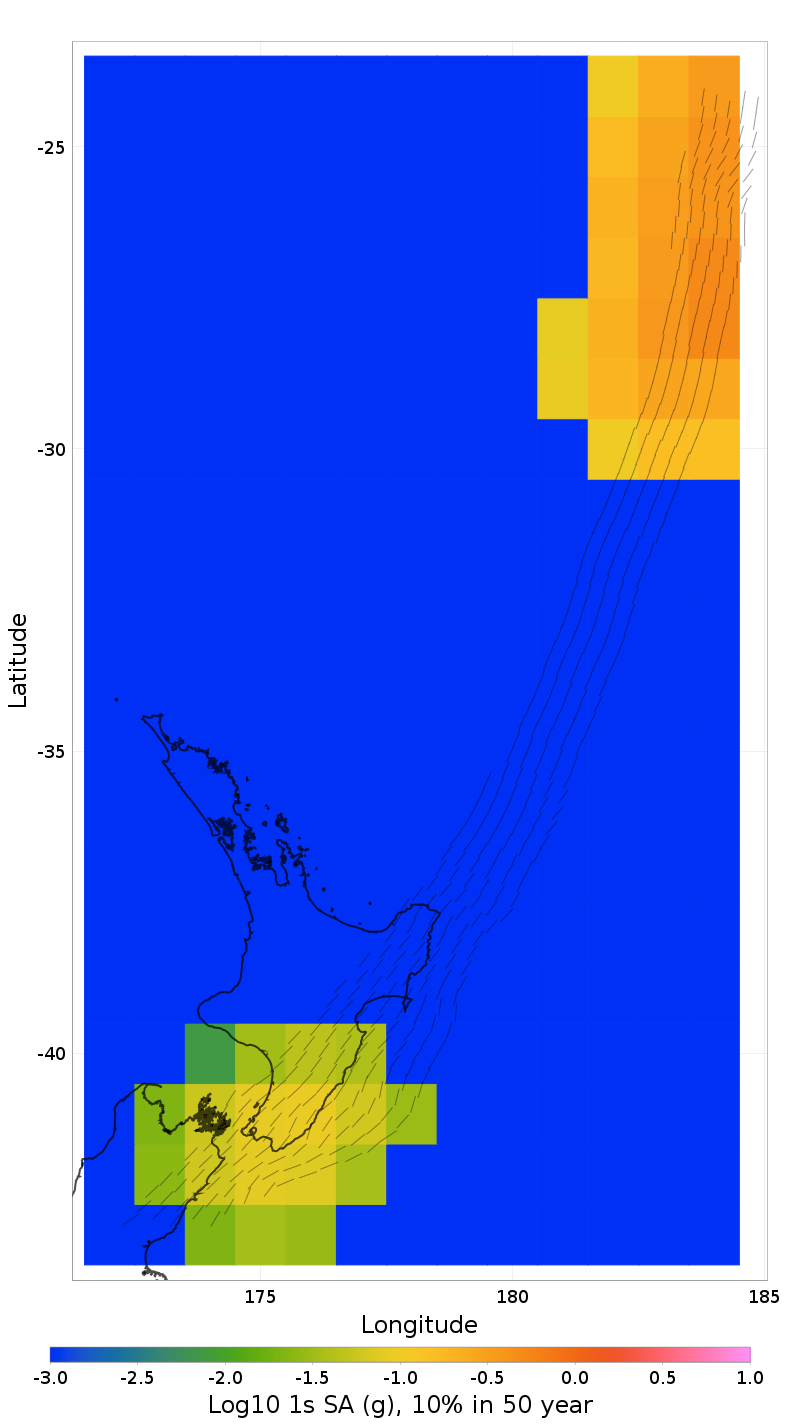

1s SA, 10% in 50 year Hazard Maps

(top)

Hazard Map

Parent Section Detail Pages

(top)

Fault Section
Hikurangi, Kermadec to Louisville ridge, 30km - with slip deficit smoothed near East Cape and locked near trench.
