Solution Report: Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTIyNjIuMFAyUFR4

Num Ruptures	997,545
Num Single-Stranded Ruptures	997,545 (100.00%)
Total Supra-Seis Rupture Rate	0.065679096
Total Supra-Seis Recurrence Interval	15.23 yrs
Total Moment Rate	2.0413704E19 N-m/yr
Deformation Model Total Moment Rate	3.174542E19 N-m/yr
Magnitude Range	[5.54,8.39]
Length Range	[1.86,1132.40] km
Rupture Section Count Range	[2,117]

General Information
Solution MFDs
Simulated Annealing Energy
Participation Rates
Plausibility Configuration
Rupture Scalar Histograms

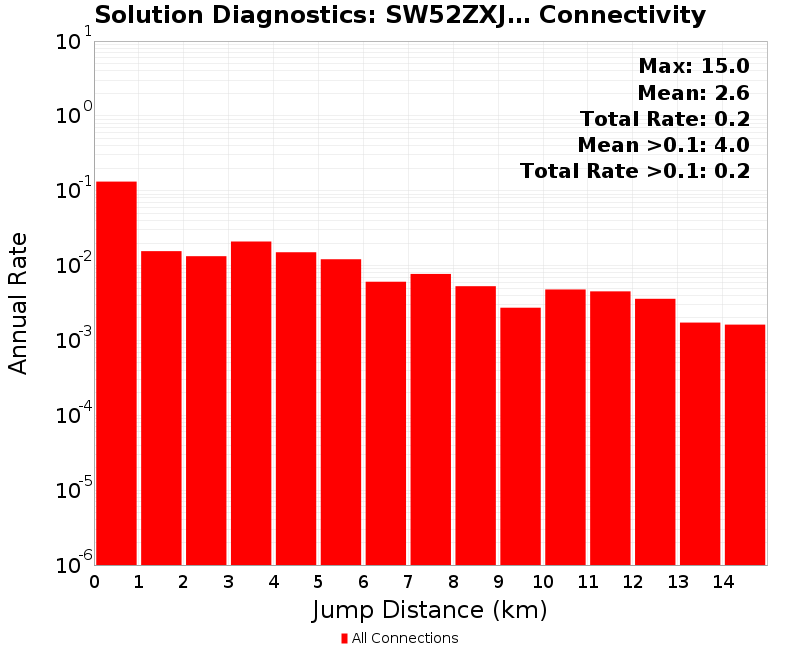

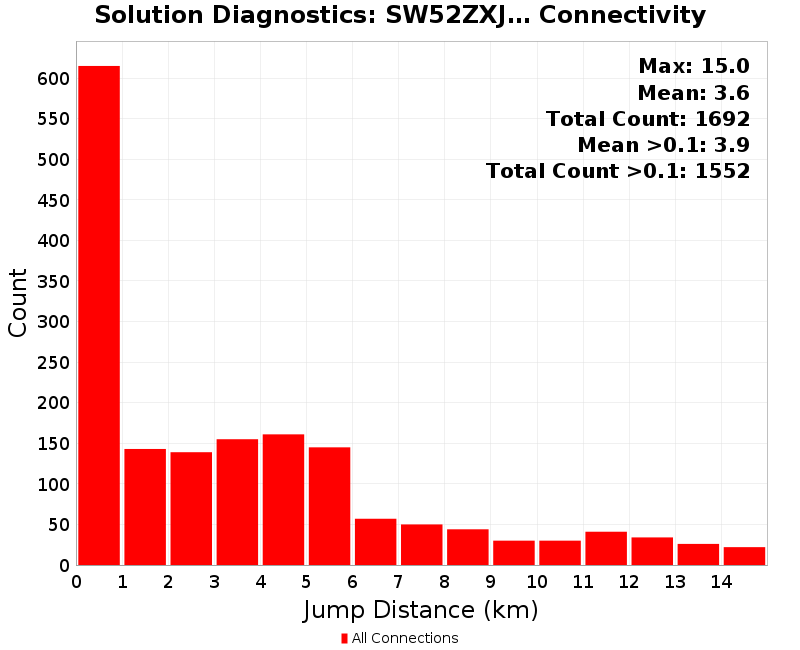

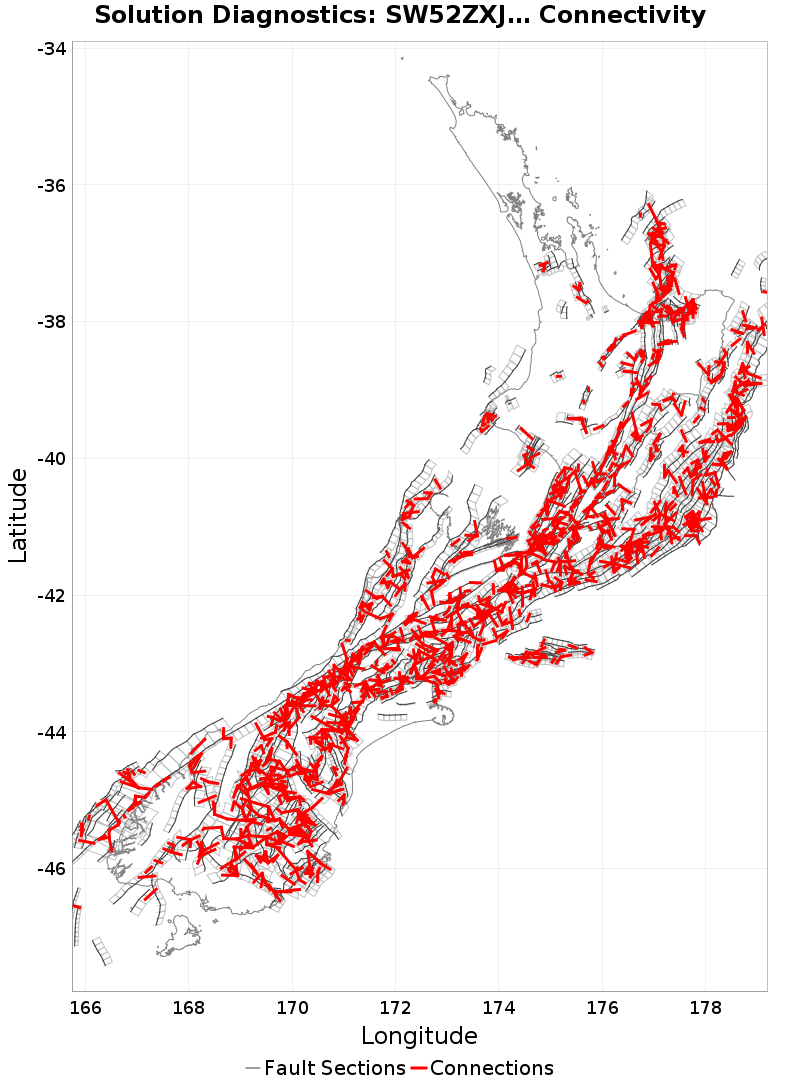

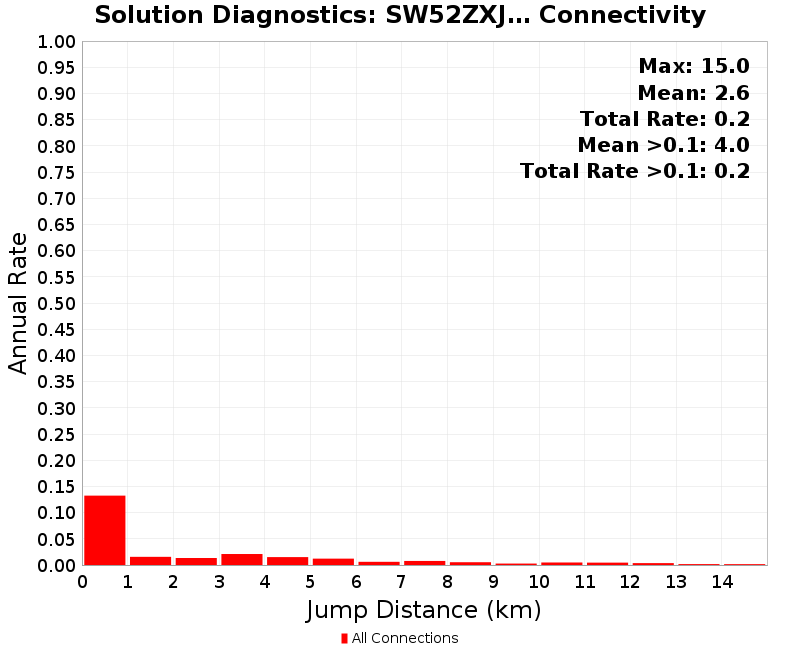

Fault Section Connections

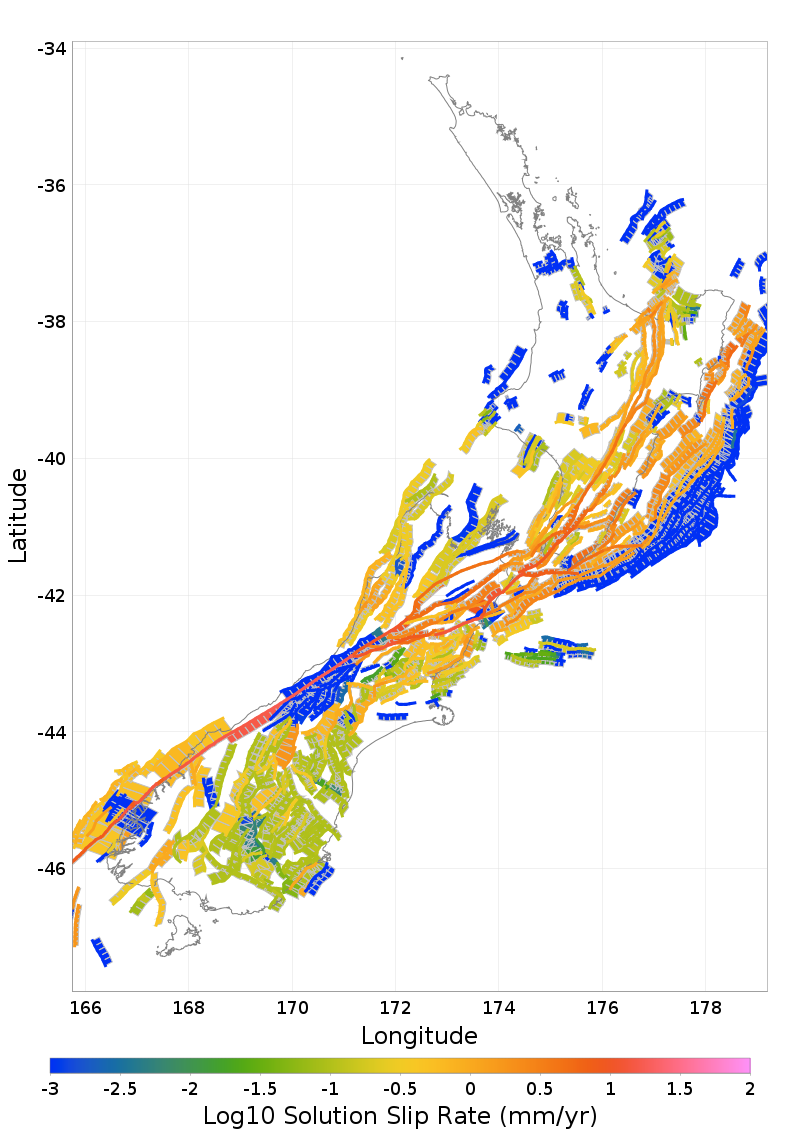

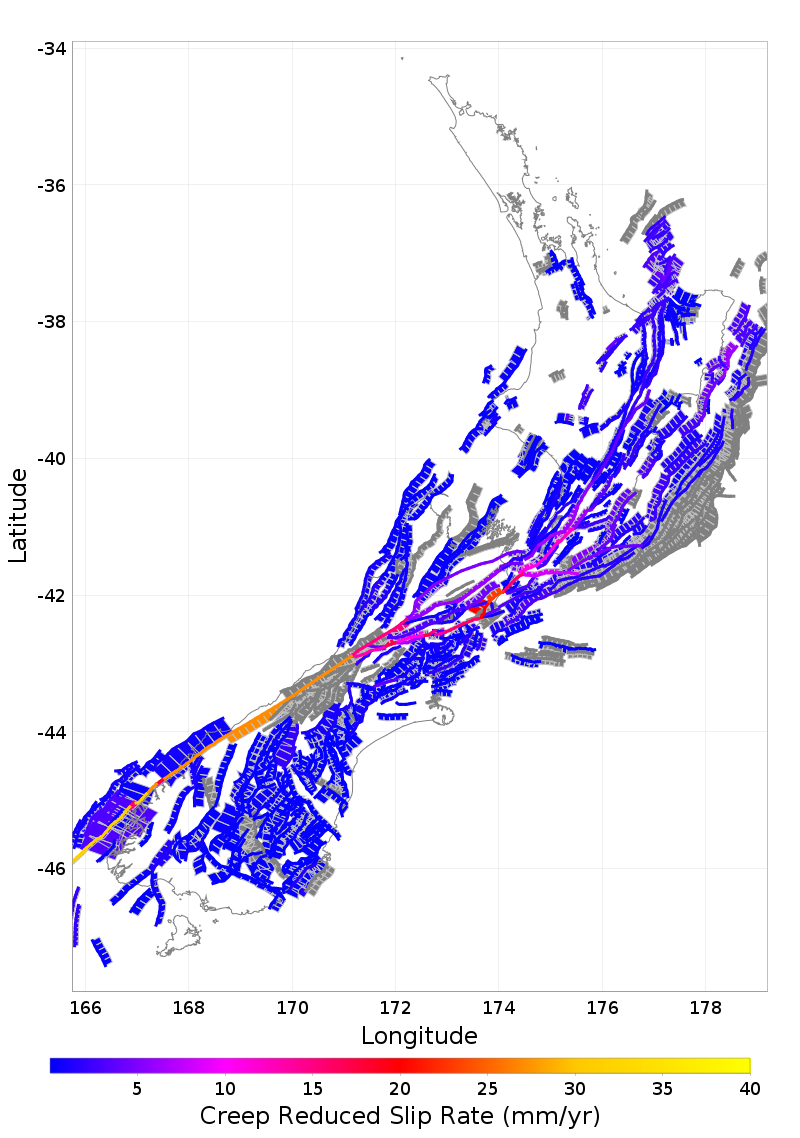

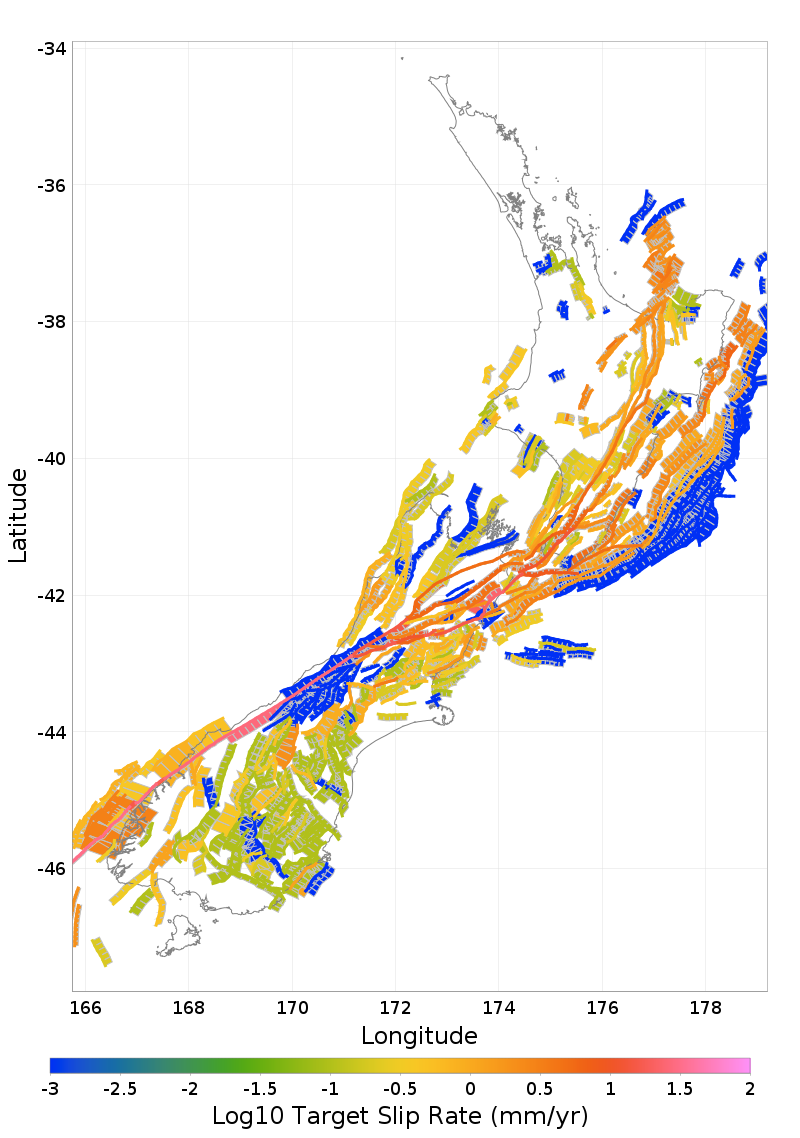

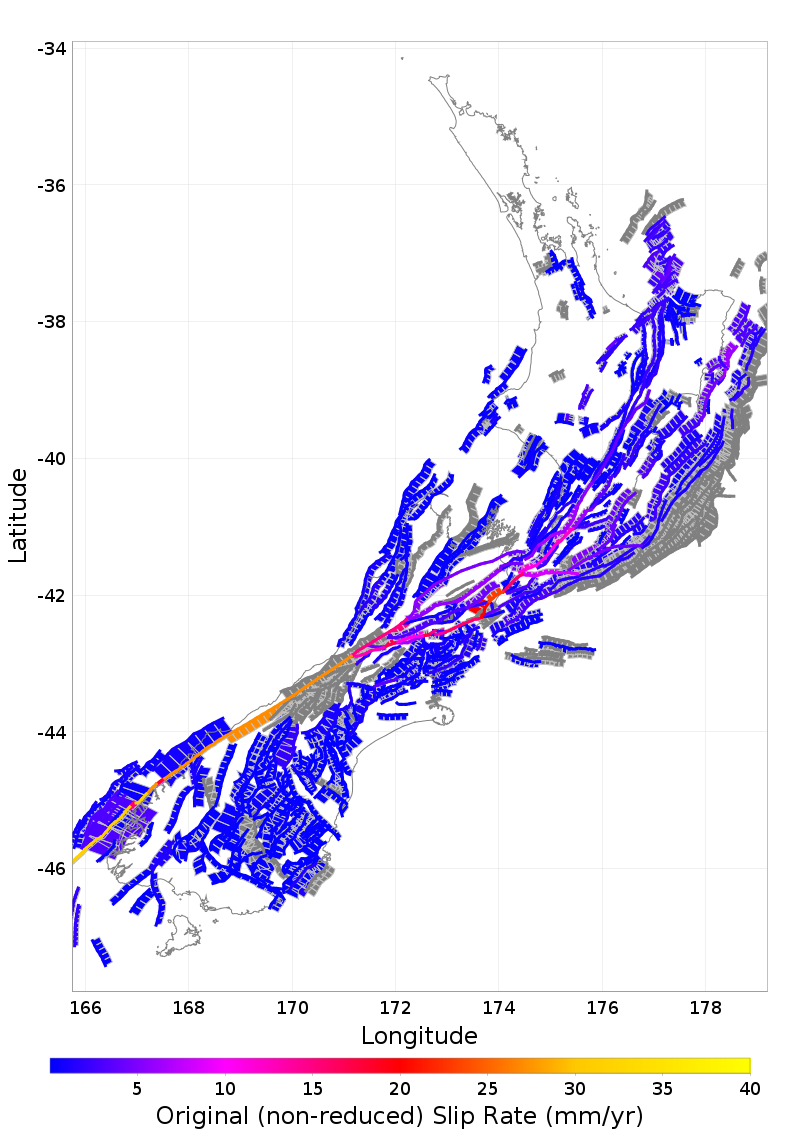

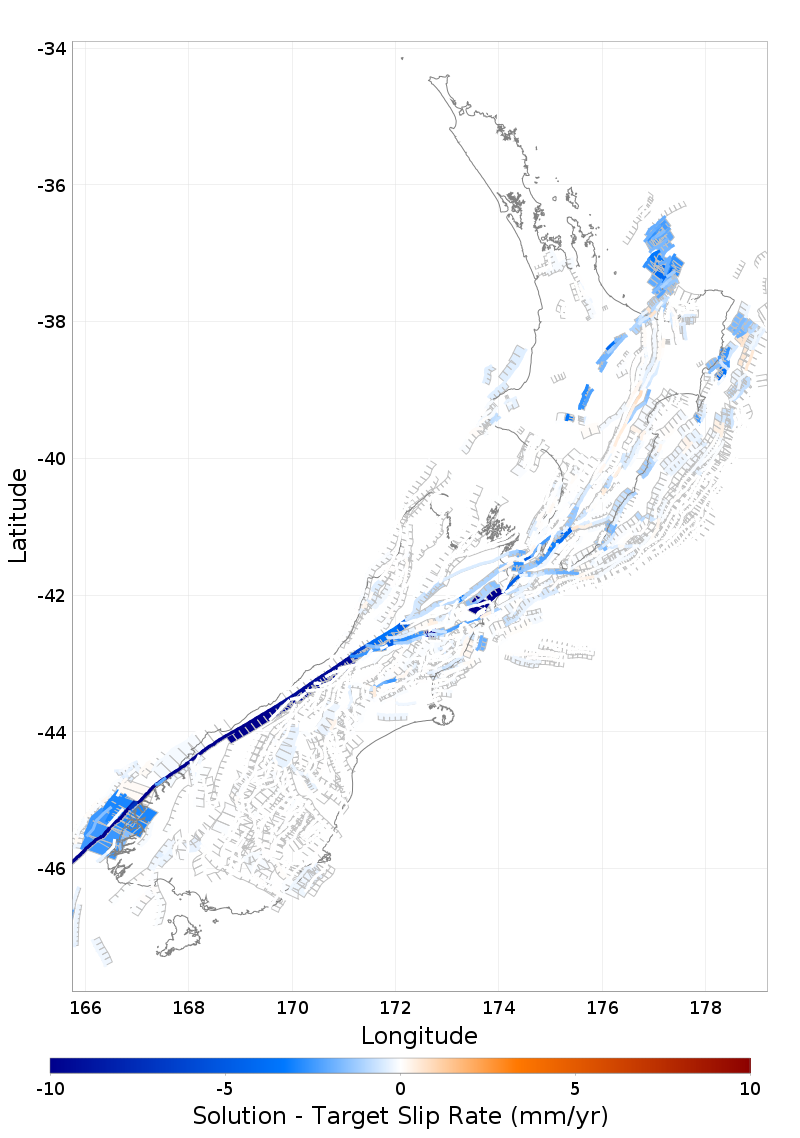

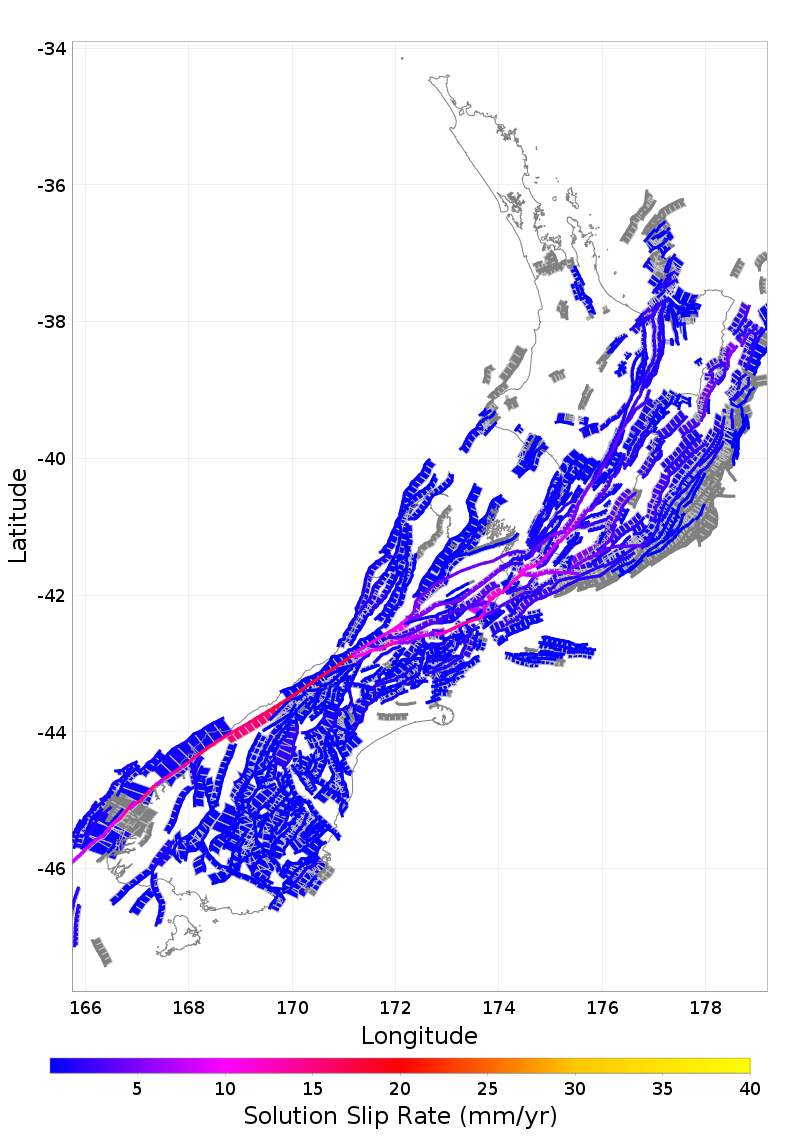

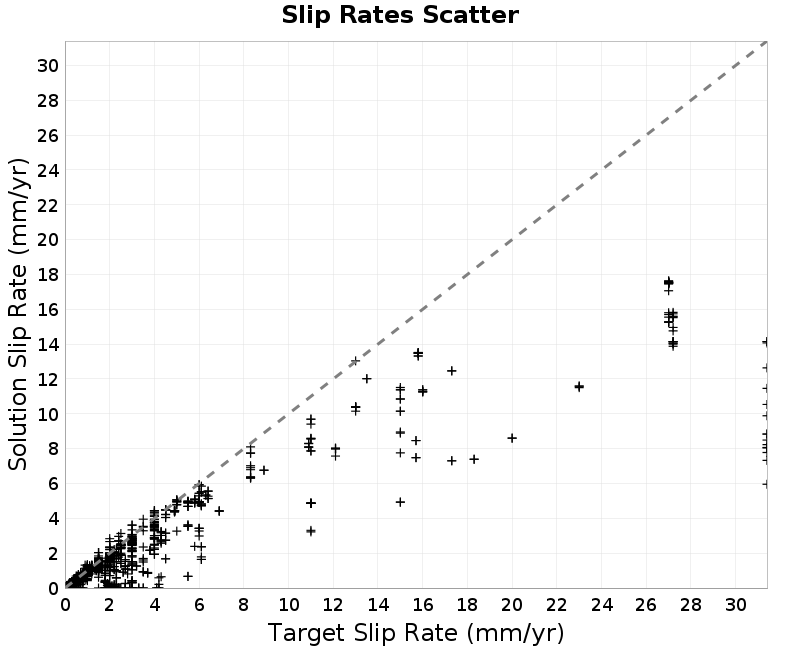

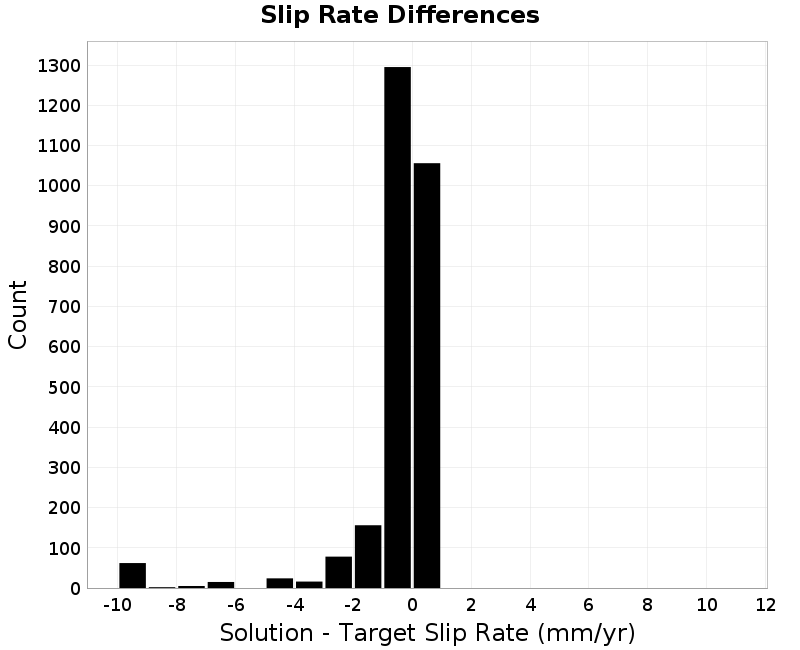

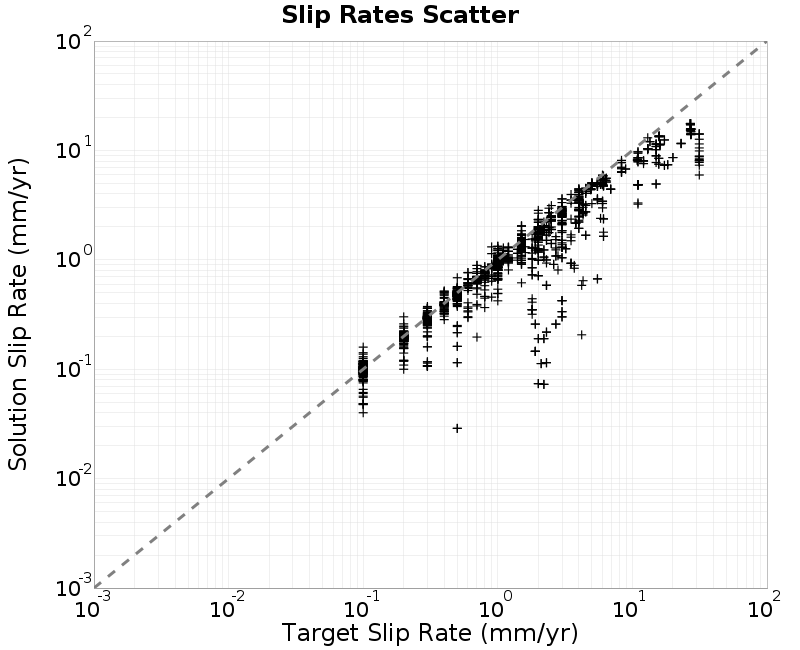

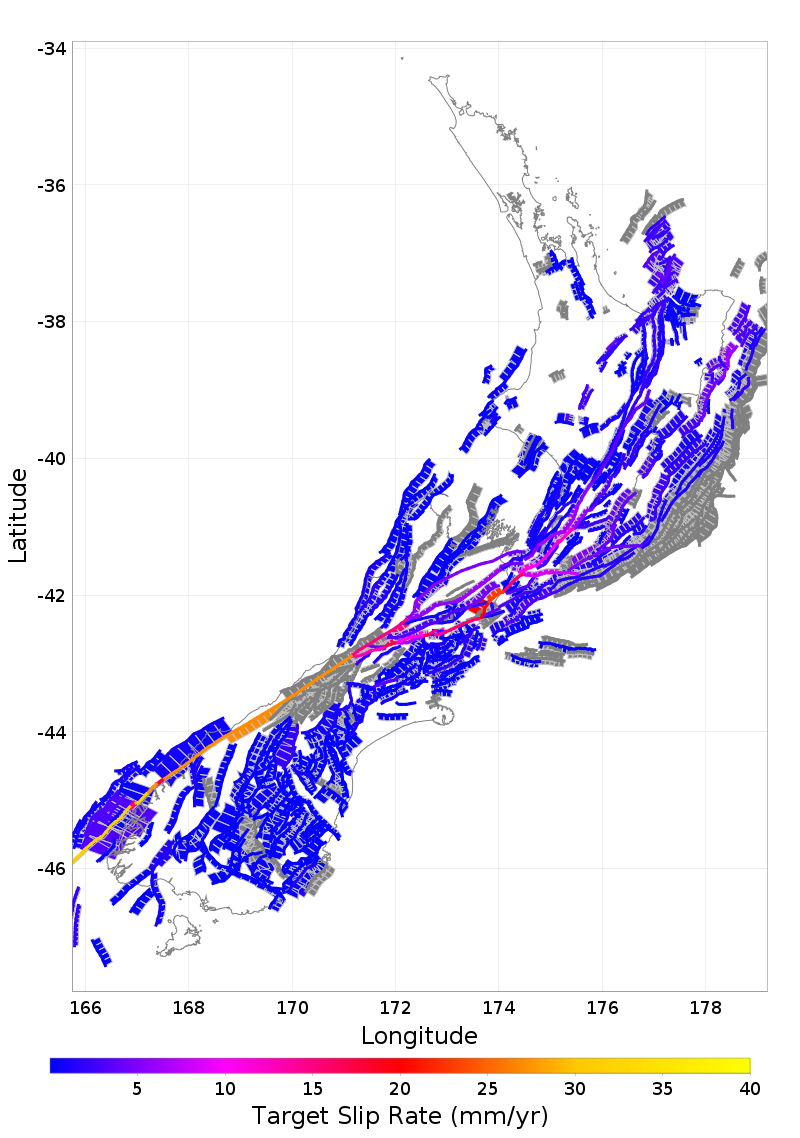

Slip Rates

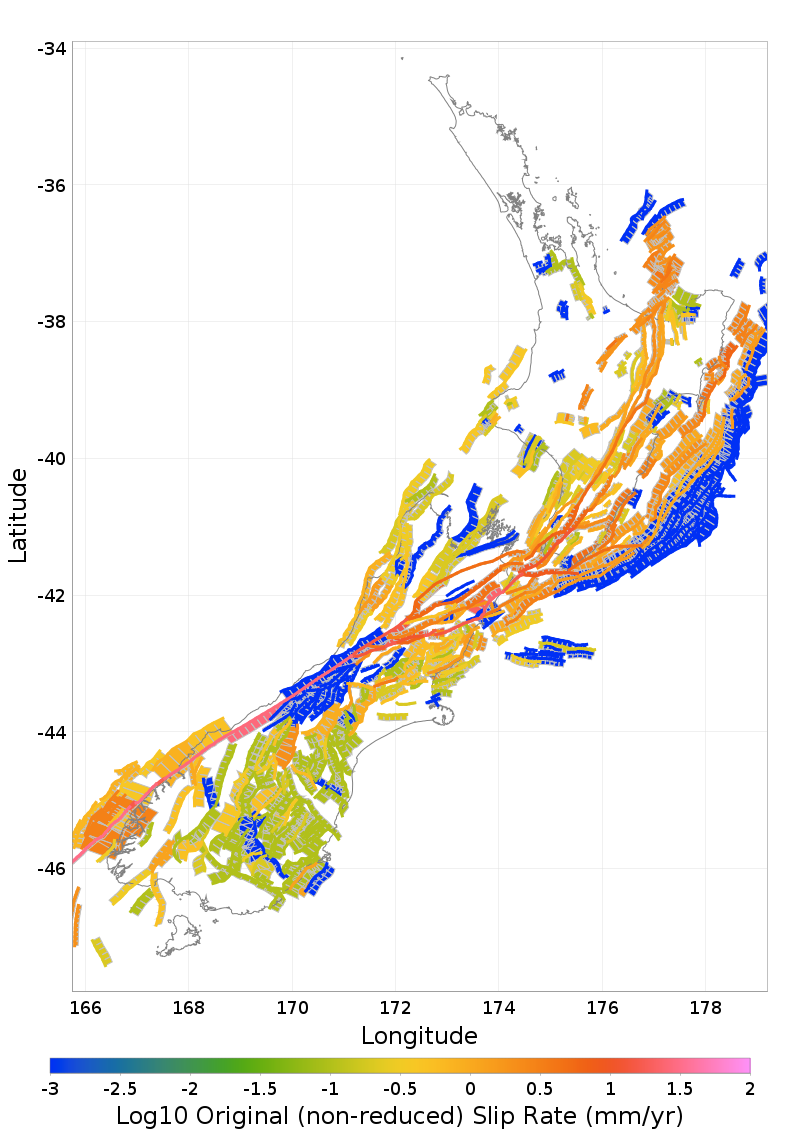

- Linear Slip Rate Plots
- Log10 Slip Rate Plots

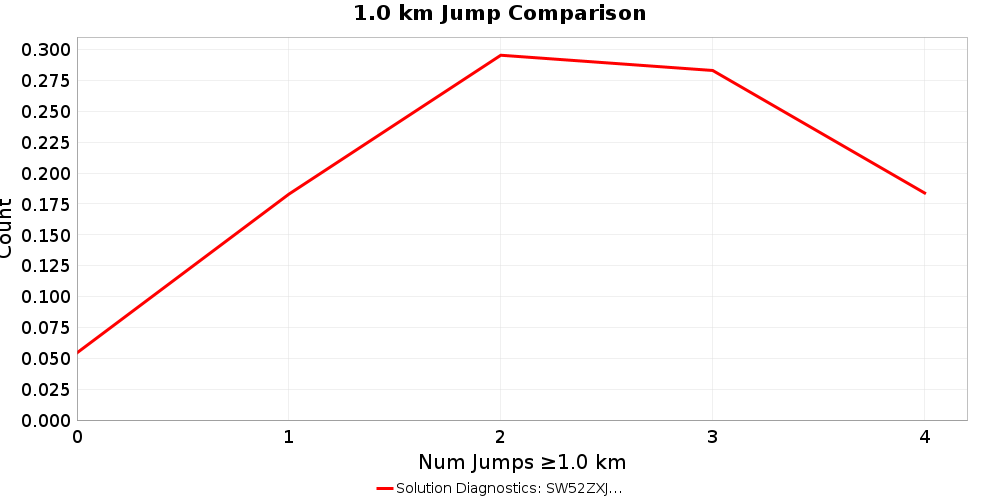

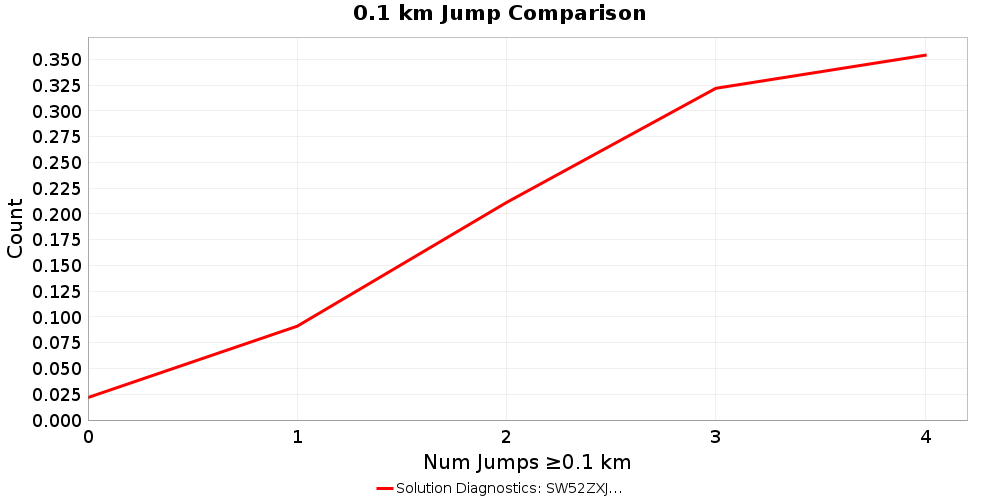

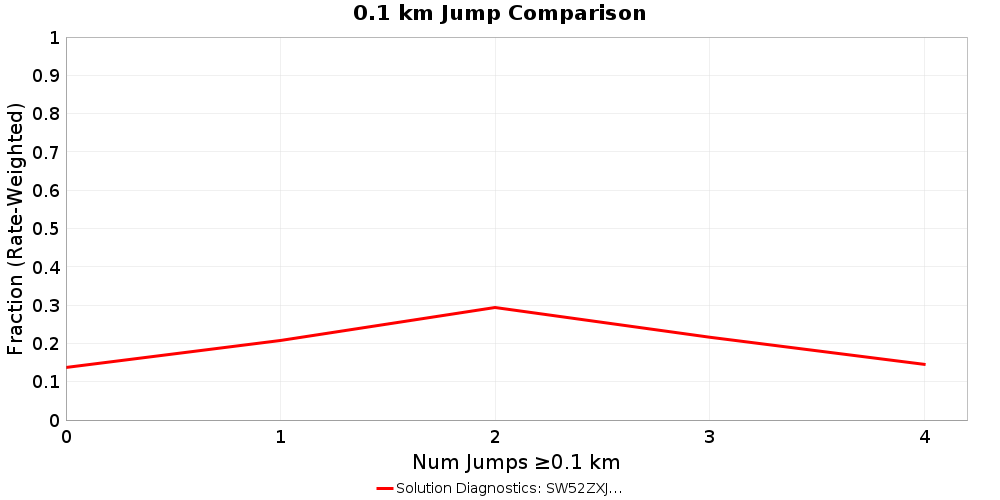

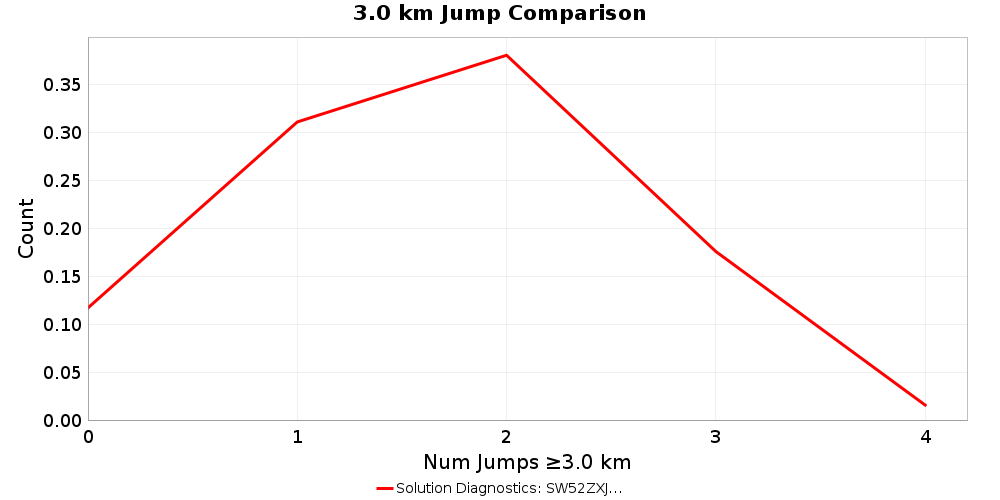

Jump Counts Over Distance

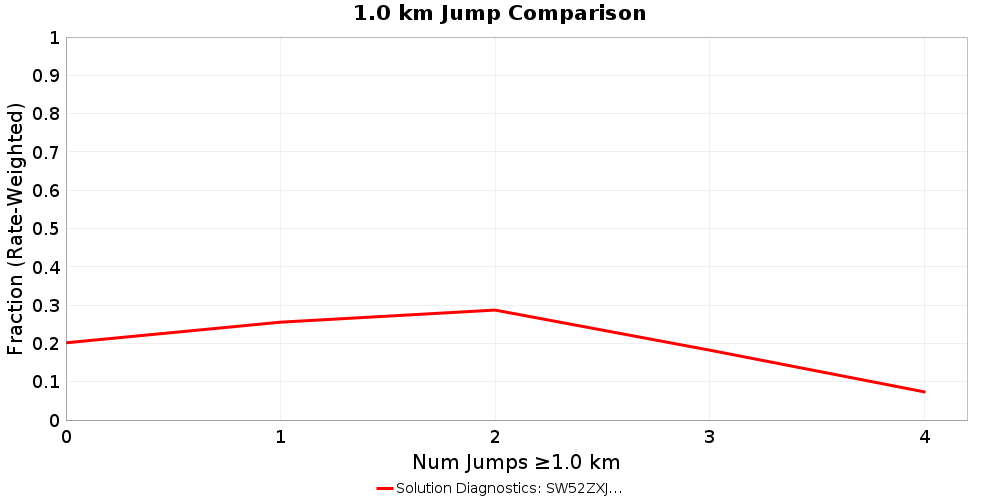

- Supra-seismogenic Jump Counts

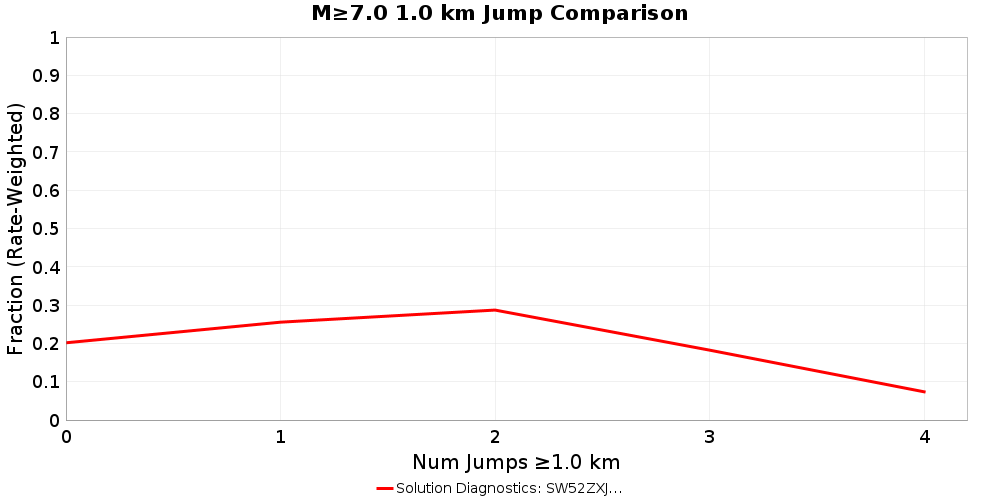

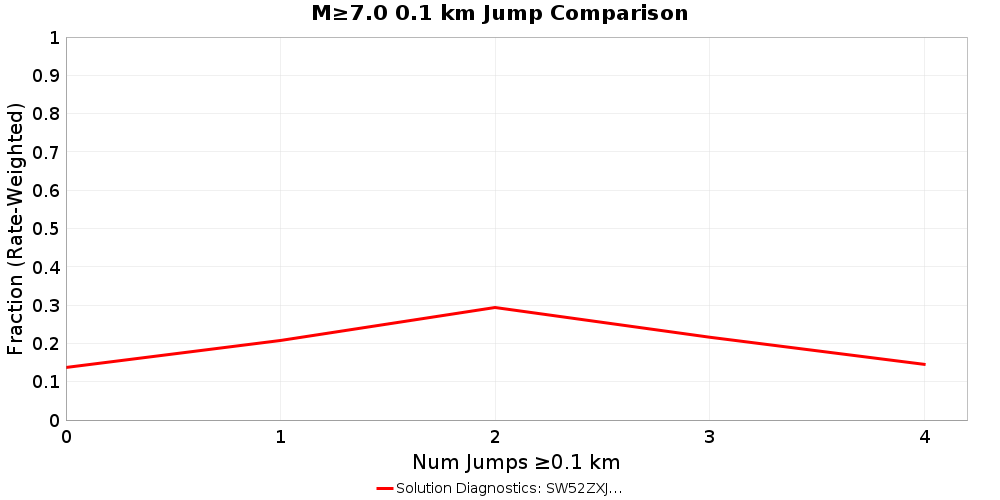

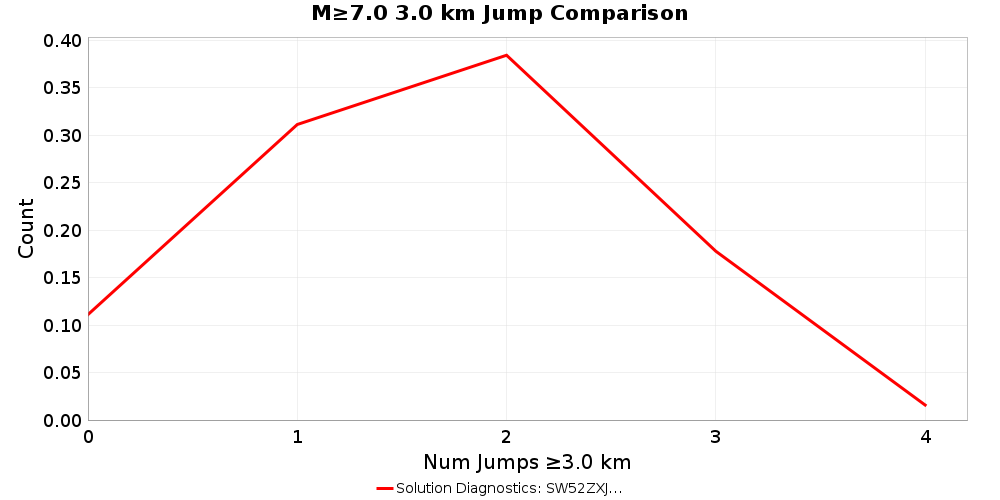

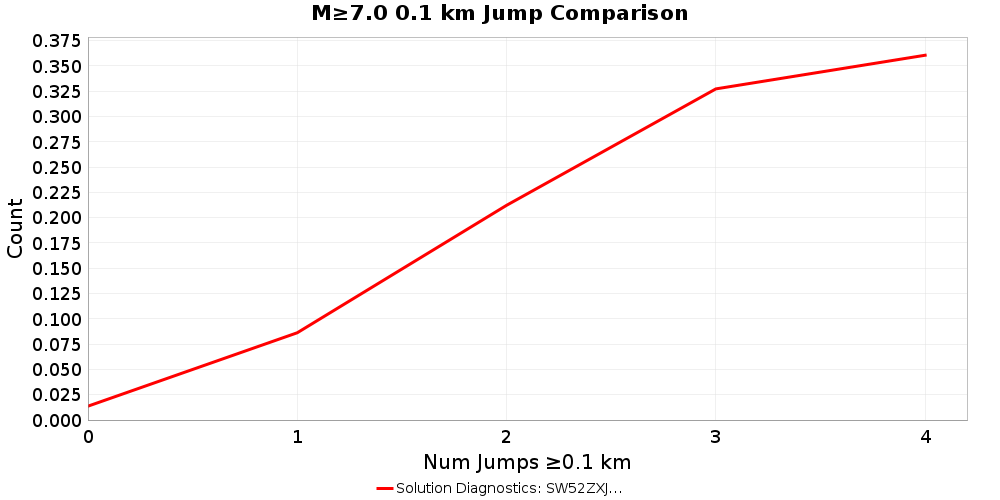

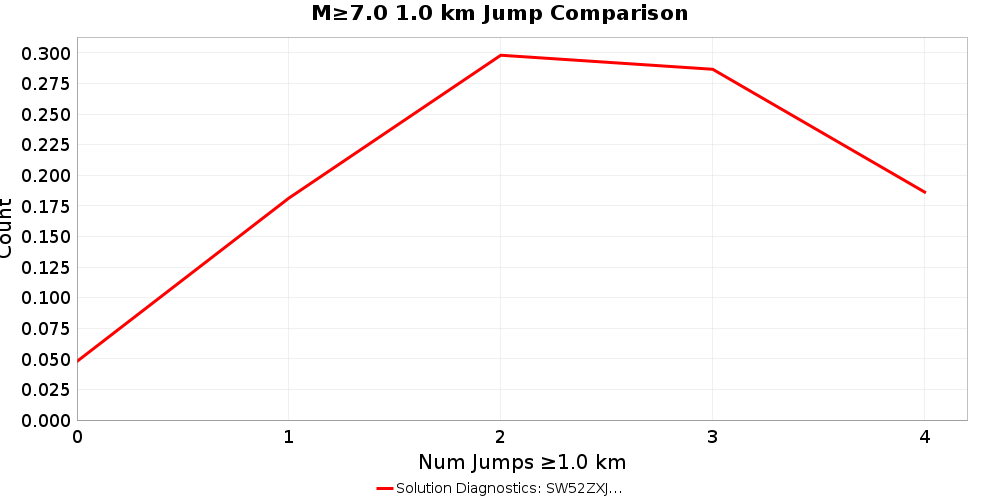

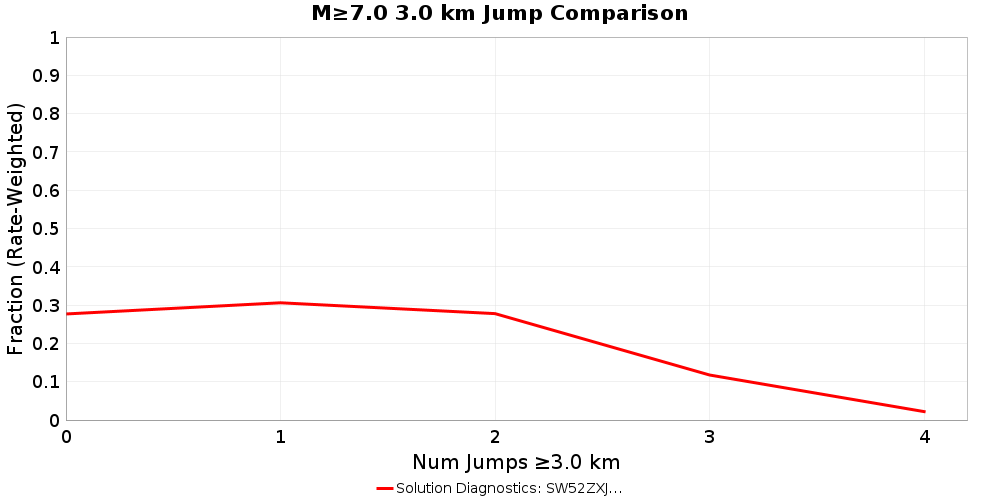

- M≥7 Jump Counts

General Information

(top)

Test down-dip subsectioning rup set

Solution MFDs

(top)

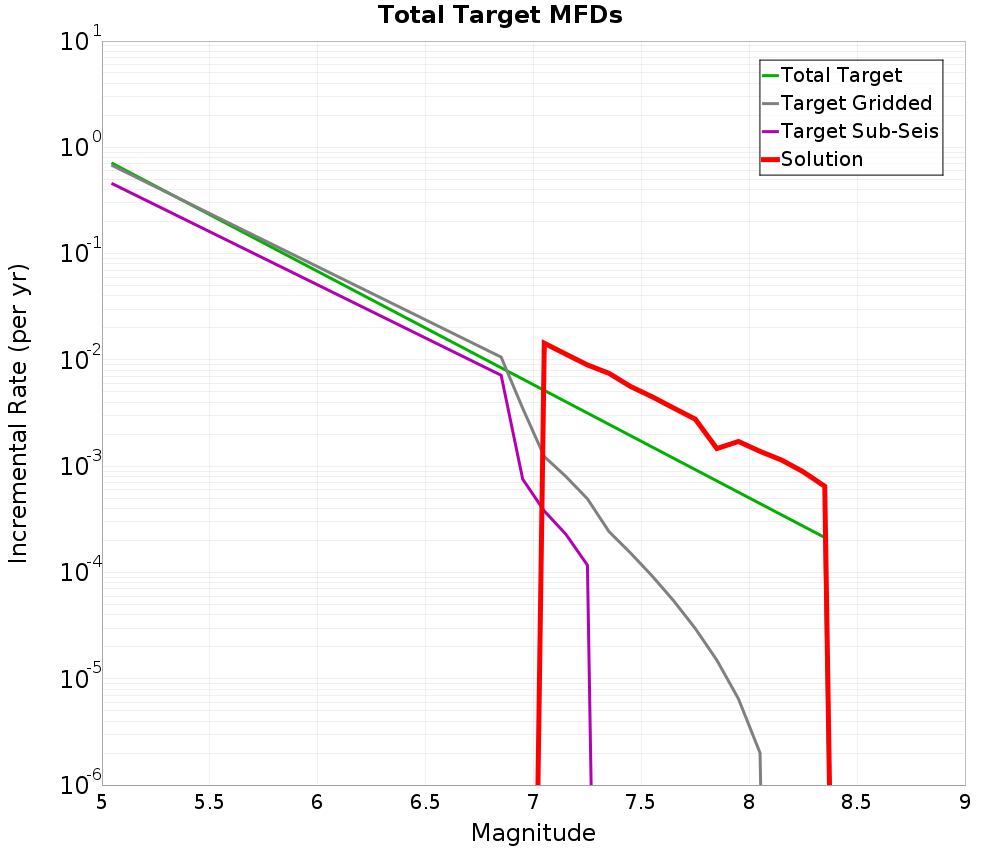

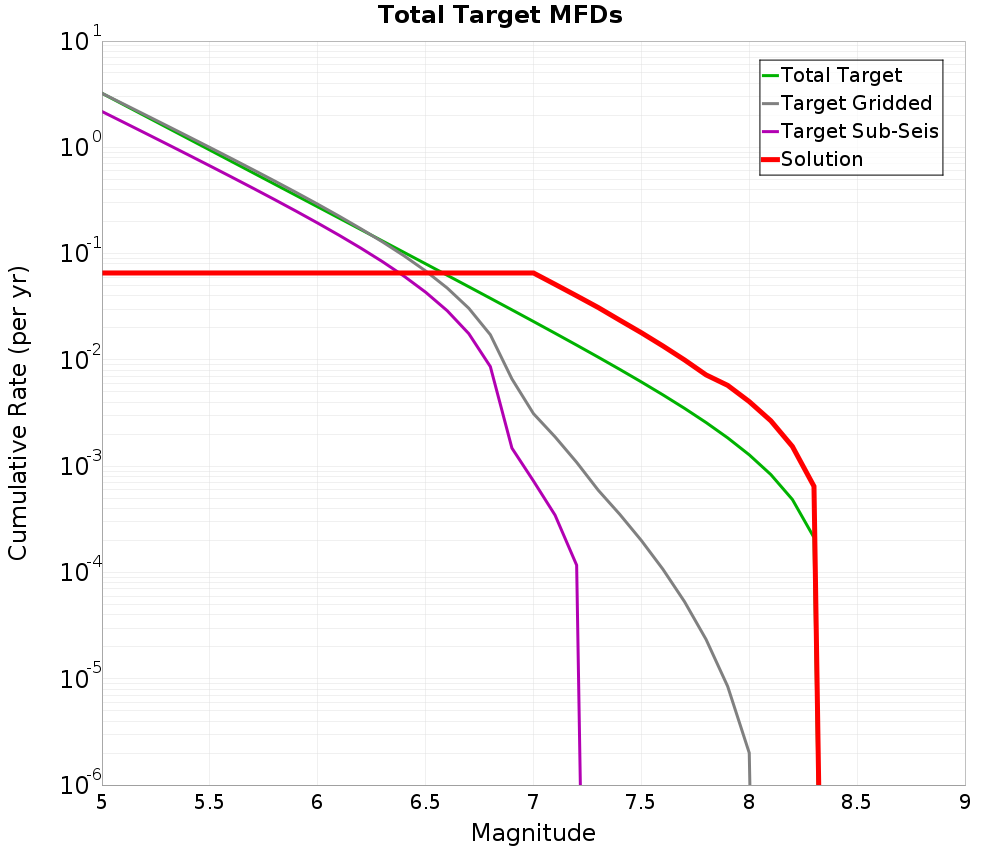

Total Target MFDs

(top)

Incremental MFDs	Cumulative MFDs

NZ RECTANGLE SANS TVZ Gridded Region

(top)

Incremental MFDs	Cumulative MFDs

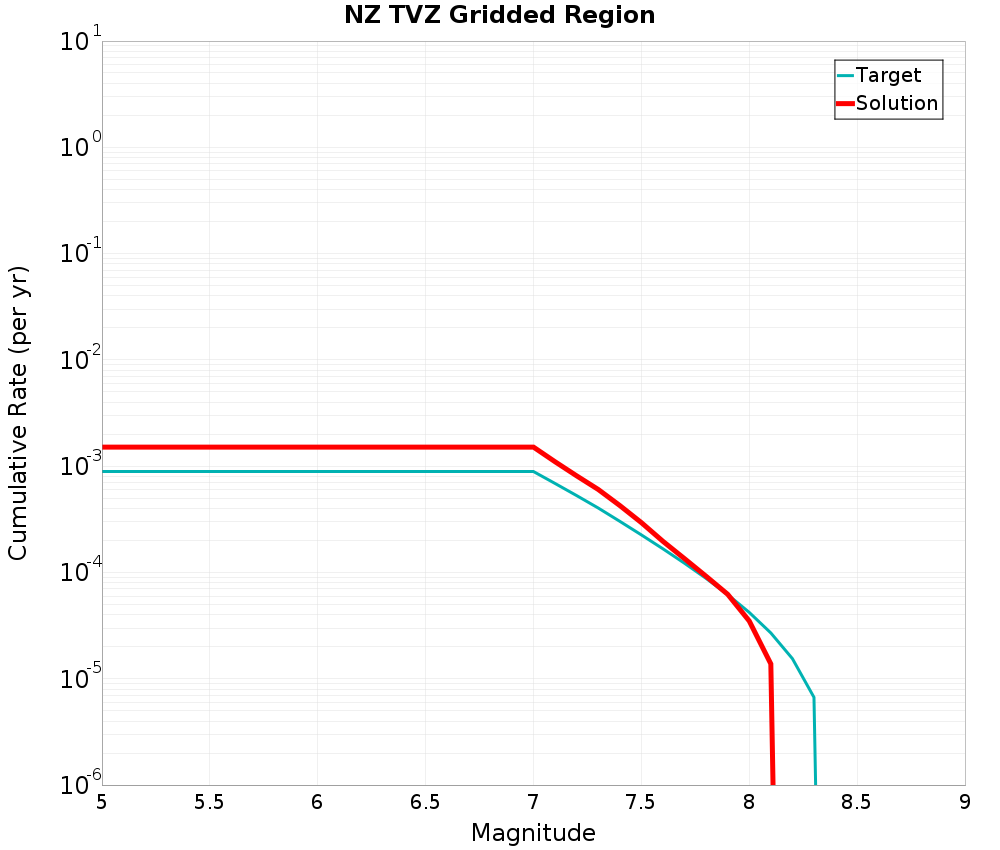

NZ TVZ Gridded Region

(top)

Incremental MFDs	Cumulative MFDs

Simulated Annealing Energy

(top)

Iterations: 208,710,456 (14,487 /sec)
Time: 4 hours 0.1 mins
Perturbations: 16,616,692
Total energy: 3.6340976E8

Final Energies

(top)

Energy Type	Final Energy (4 hours 0.1 mins)	% of Total	After 1 hour	2 hours	3 hours
Total Energy	3.6340976E8		3.7436592E8	3.68630816E8	3.65346016E8
Equality Energy	3.37094528E8	92.76%	3.48106528E8	3.4242912E8	3.39064256E8
Entropy Energy	0.0	0.00%	0.0	0.0	0.0
Inequality Energy	2.631523E7	7.24%	2.625937E7	2.6201696E7	2.6281742E7
Slip Rate	2.56718608E8	70.64%	2.65267968E8	2.61028608E8	2.58294704E8
Rupture Rate Minimization	0.0	0.00%	0.0	0.0	0.0
MFD Equality	8.0375936E7	22.12%	8.2838576E7	8.1400496E7	8.0769576E7
MFD Inequality	2.631523E7	7.24%	2.625937E7	2.6201696E7	2.6281742E7

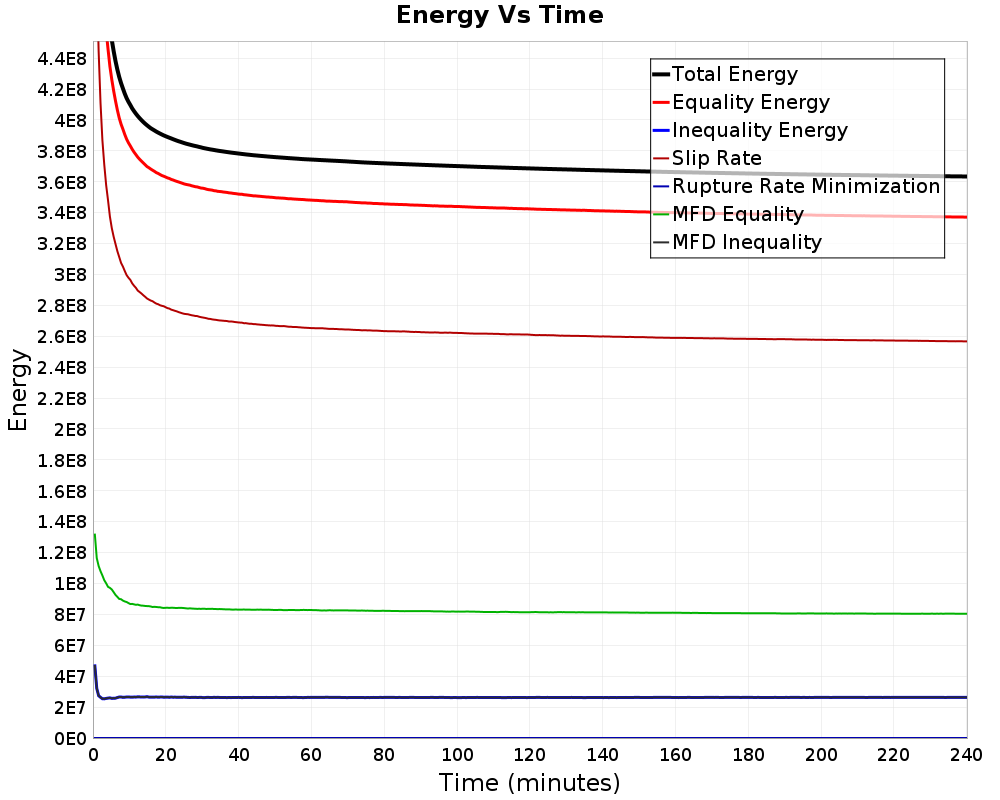

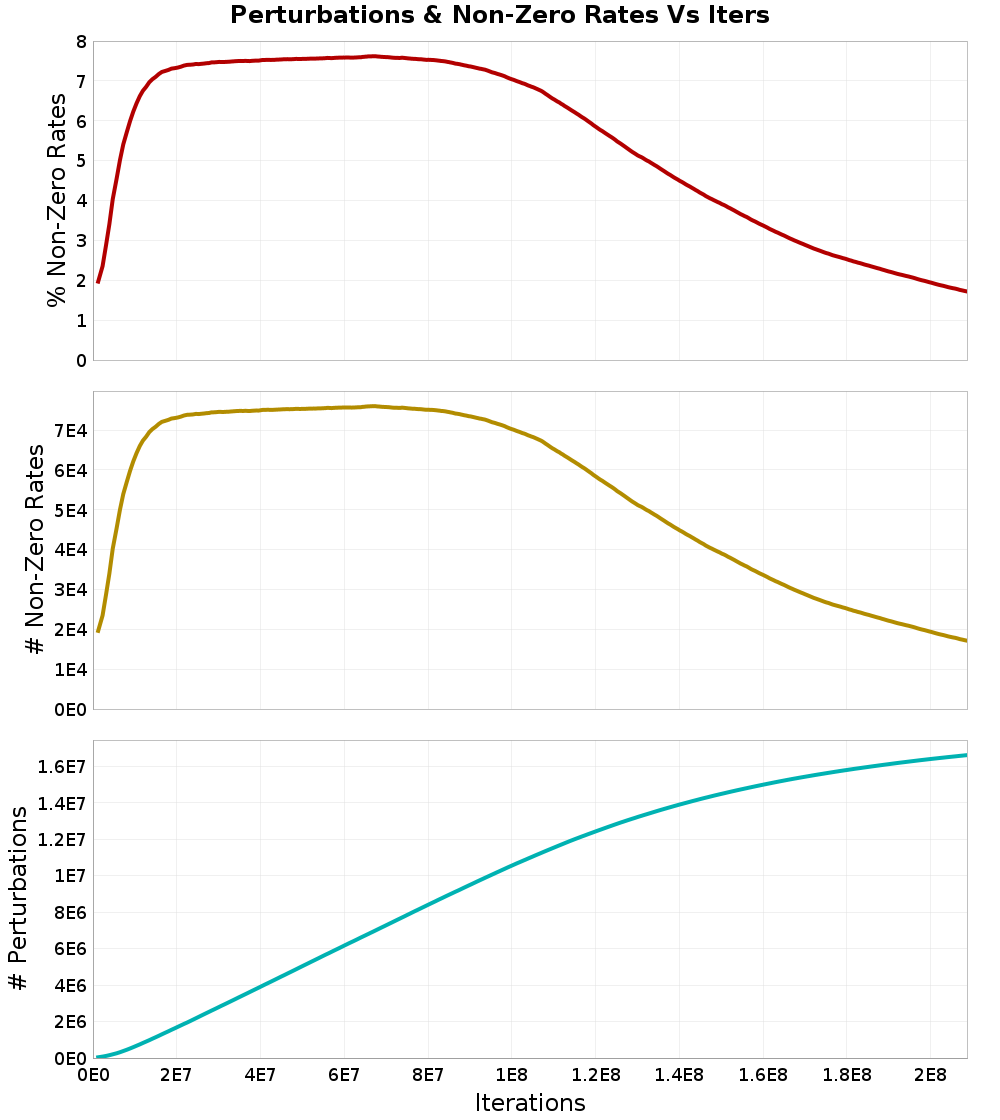

Energy Progress

(top)

Rate Distribution

(top)

Non-zero ruptures: 17,145 (1.72%)
Avg. # perturbations per rupture: 16.657587
Avg. # perturbations per perturbed rupture: 969.1859

Participation Rates

(top)

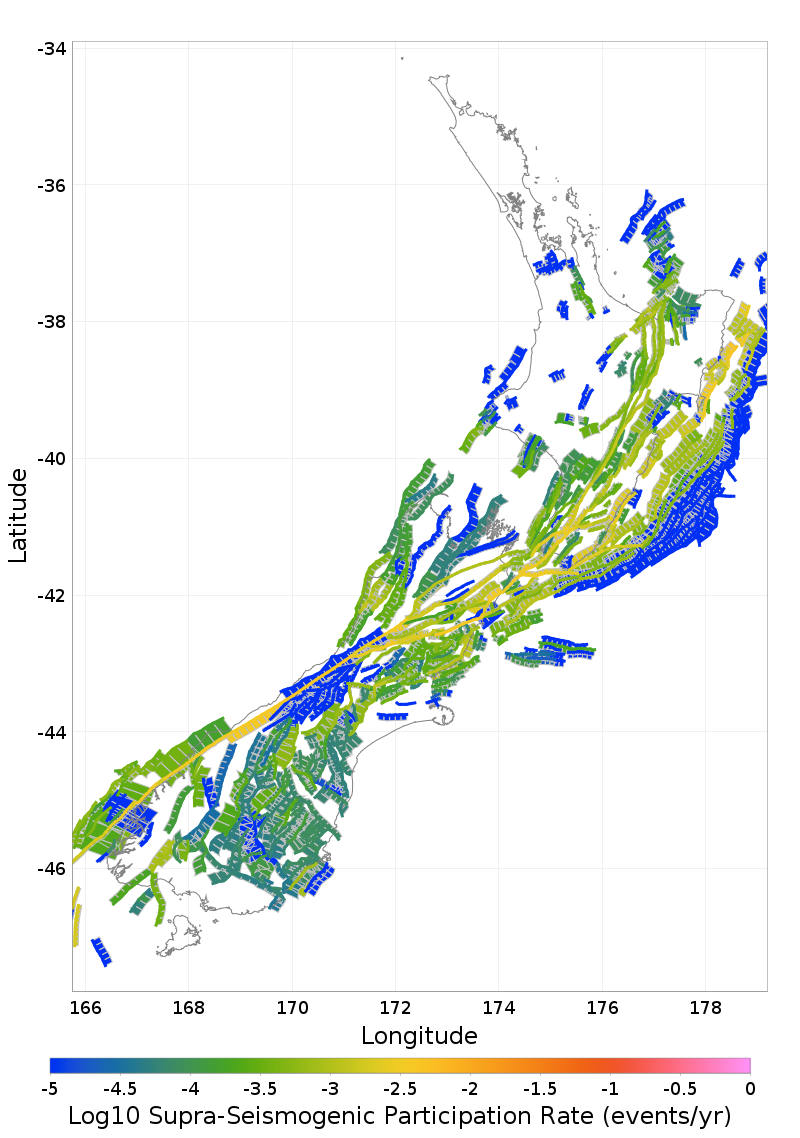

Supra-Seismogenic	Range: M≤6

Download GeoJSON	Download GeoJSON
M≥6	Range: M∈[6, 7]

Download GeoJSON	Download GeoJSON

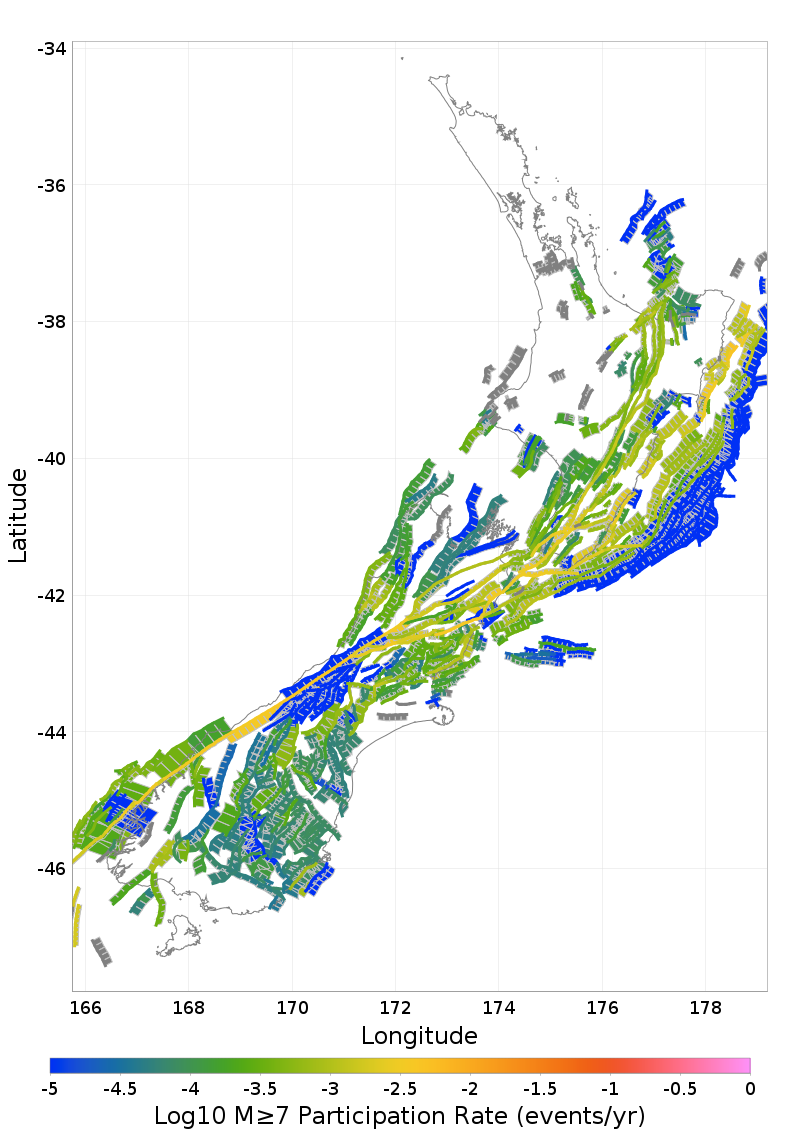

M≥7	Range: M∈[7, 8]

Download GeoJSON	Download GeoJSON

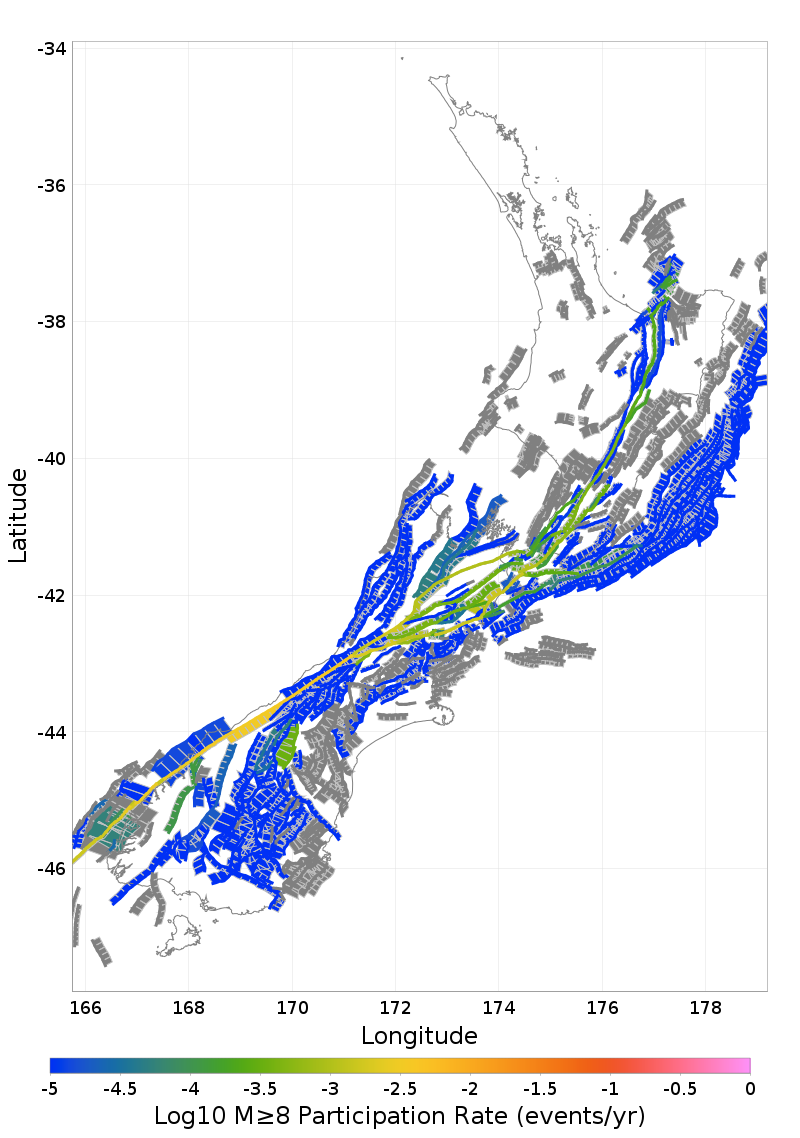

M≥8

Download GeoJSON

Plausibility Configuration

(top)

Connection Strategy

(top)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTIyNjIuMFAyUFR4
Name	Adaptive (r₀=6.0 km) Plausible (3 filters): maxDist=15 km, MultiEnds
Max Jump Dist	15 km
Possible parent-section connections	Total: 3146, Avg: 4.47, Range: [0,29]
Actual connections (after applying filters)	Total: 1692, Avg: 5.07, Range: [1,35]

Splays

(top)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTIyNjIuMFAyUFR4
Max Allowed Splays	0

Plausibility Filters

(top)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTIyNjIuMFAyUFR4

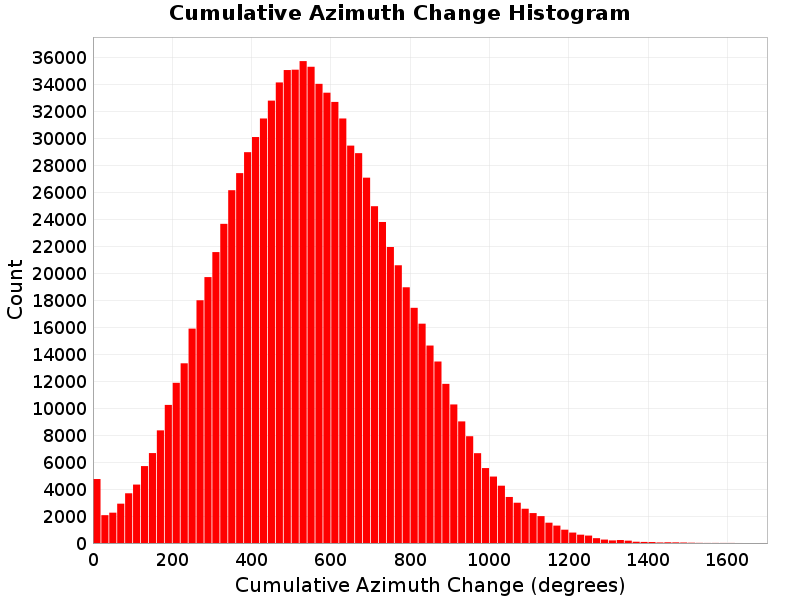

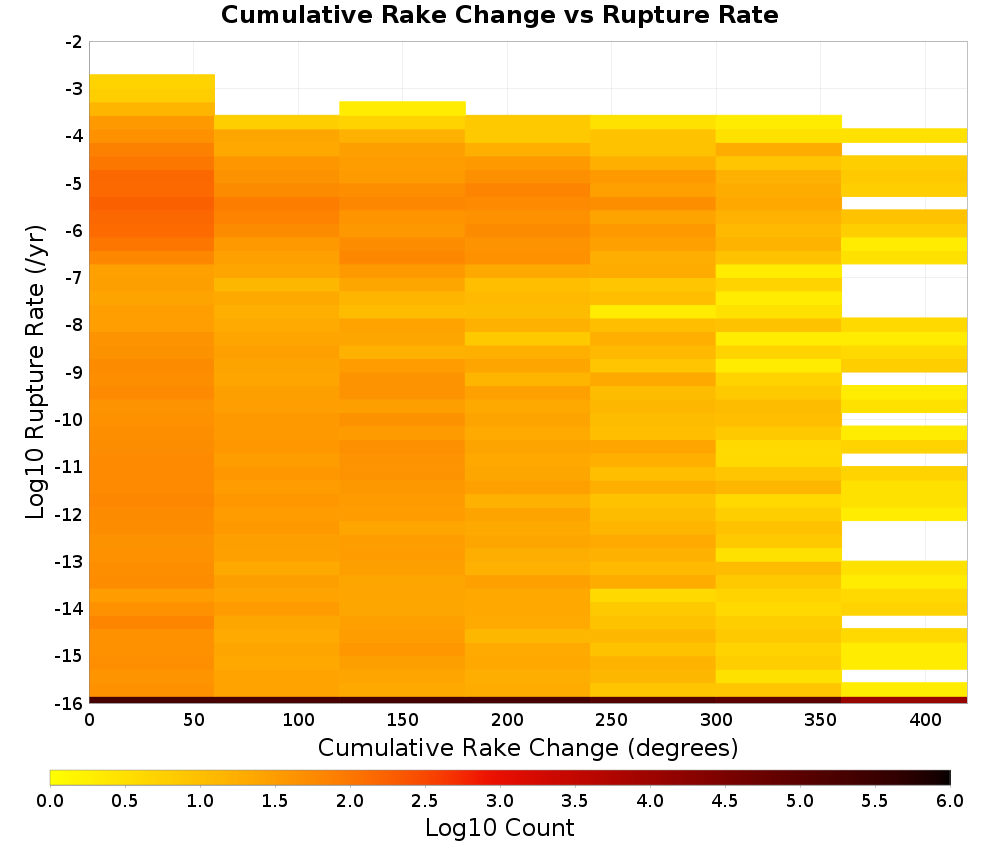

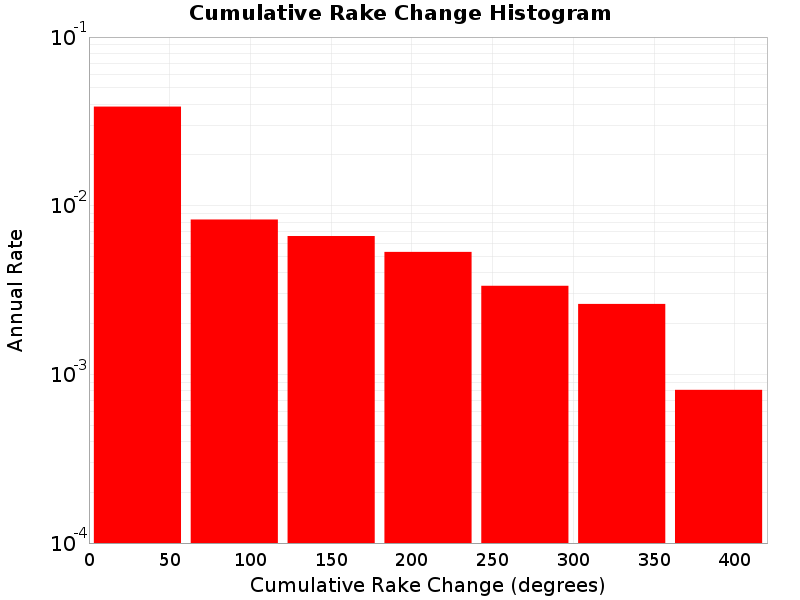

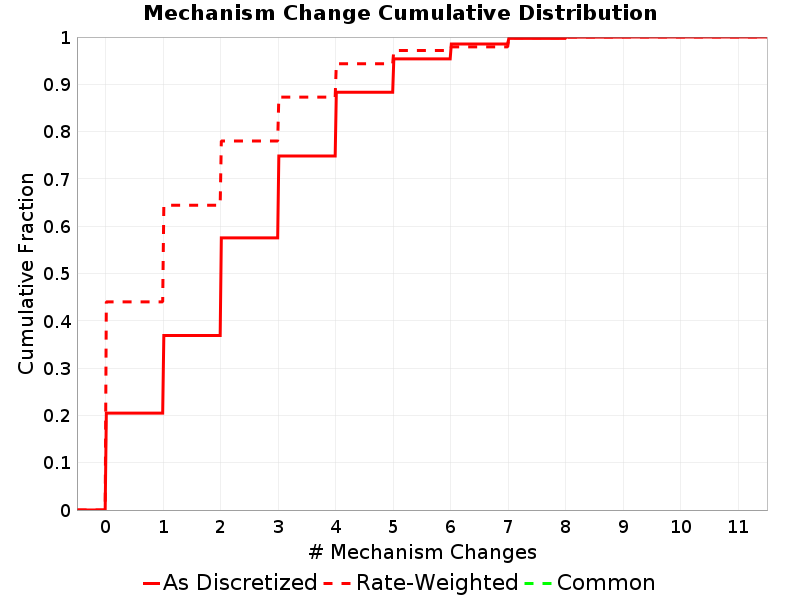

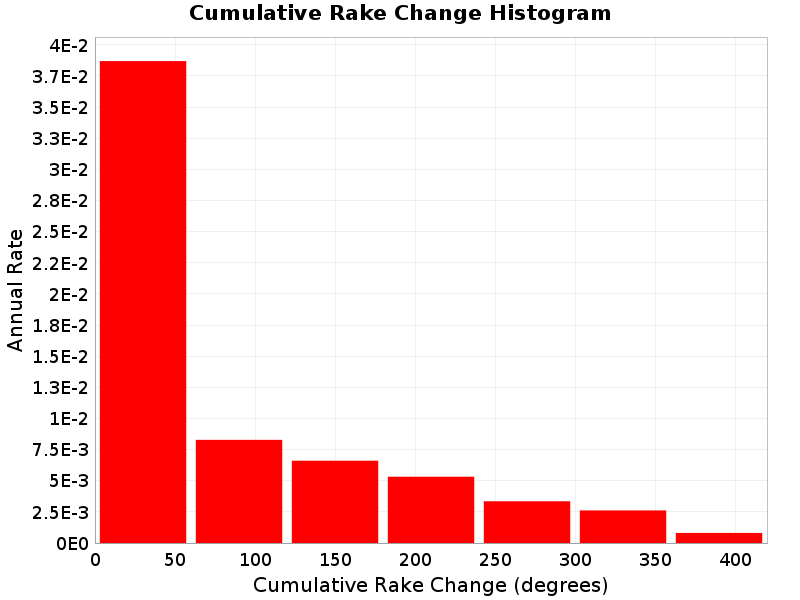

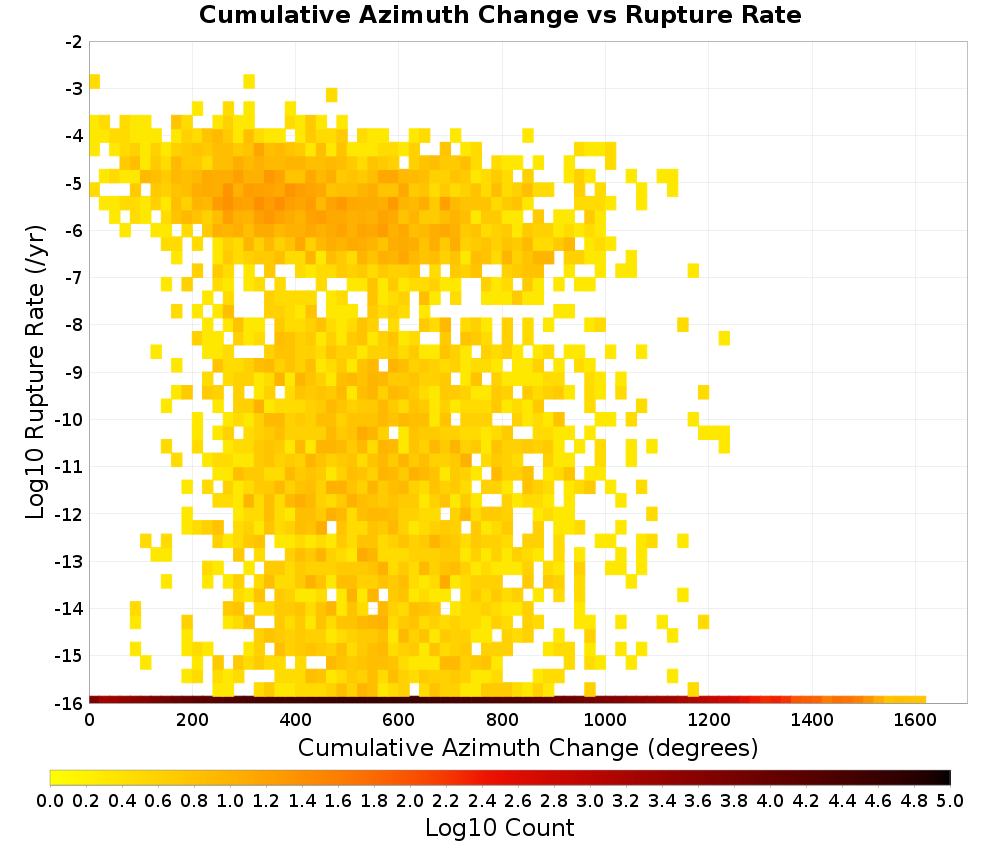

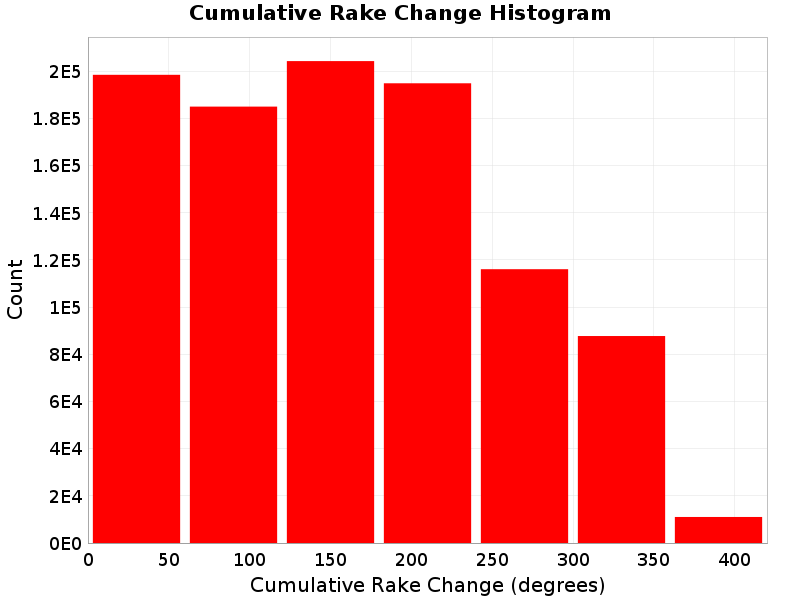

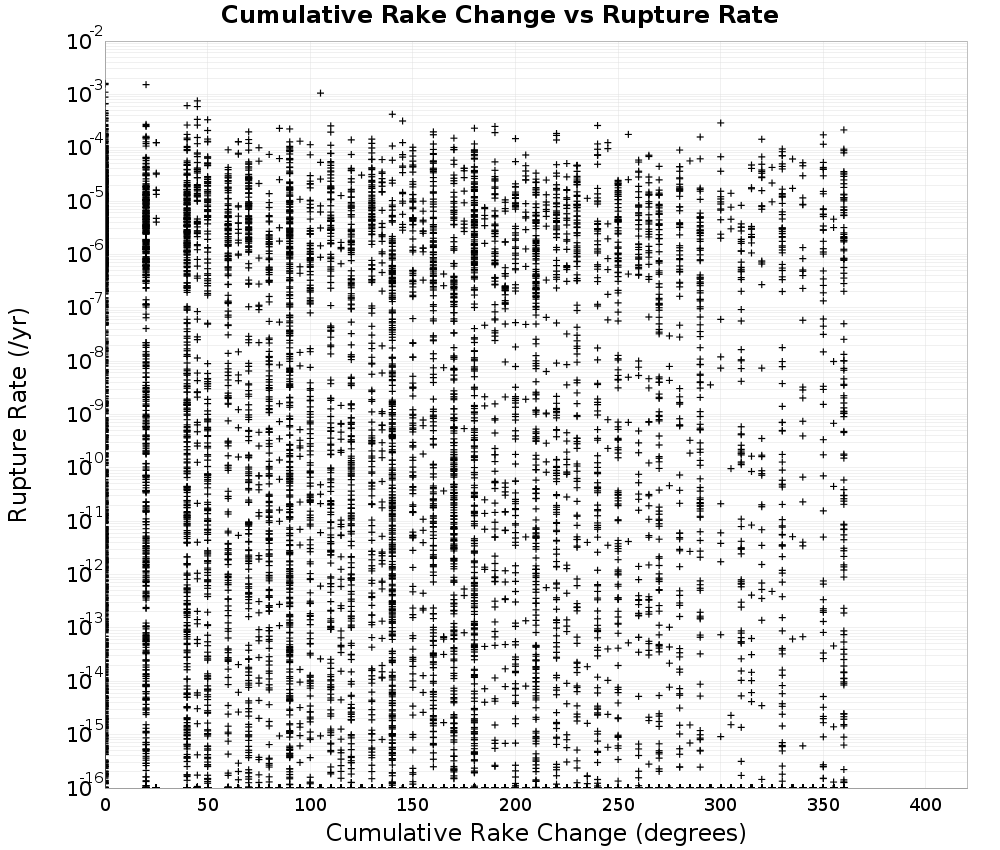

Cumulative Rake Change ≤360
Min Sections Per Parent
Net Rupture [[Sum [Num ≥0]]/Count]>0.75
No Indirect Connections
P(Rel Slip Rate (@incr.)) ≥0.05

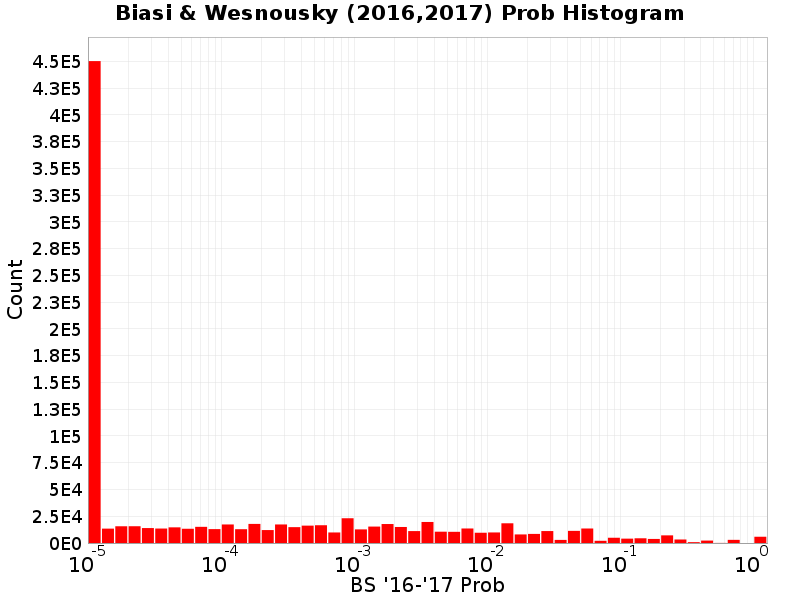

P(Shaw07 [R₀=3]) ≥0.001
Path [P(Rel CFF Sect, Fav15km) ≥0.01, P(CFF Sect Ratio, N=2, Fav15km) ≥0.5]

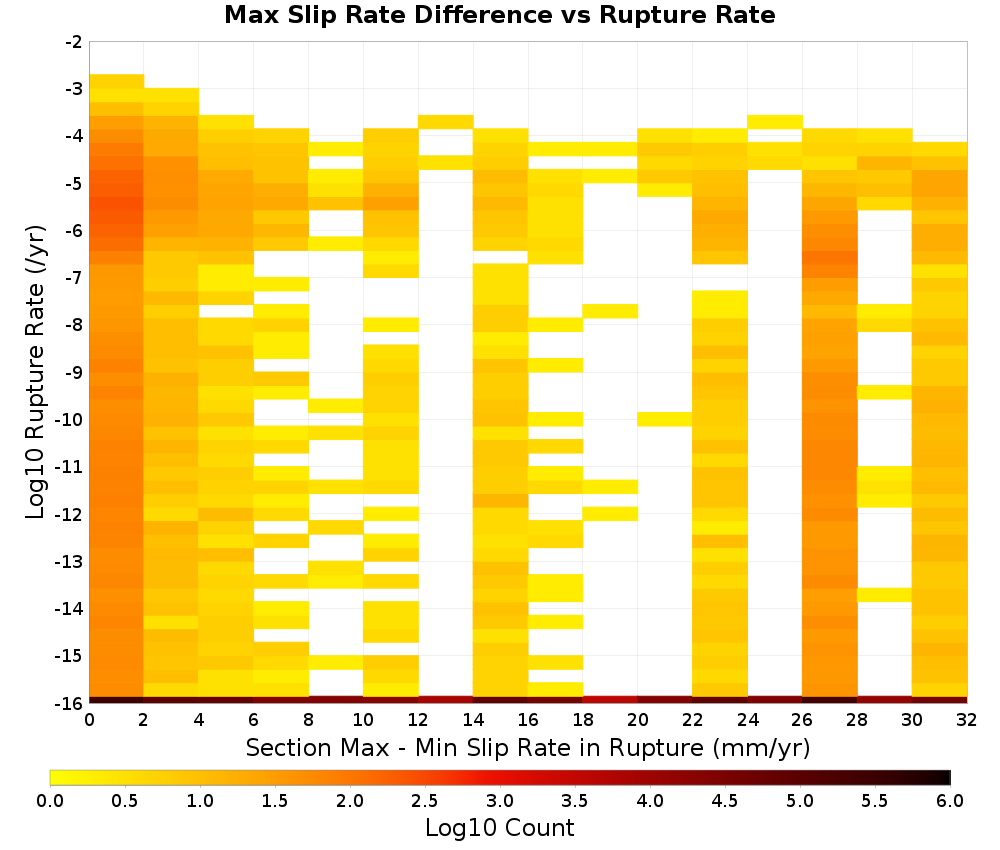

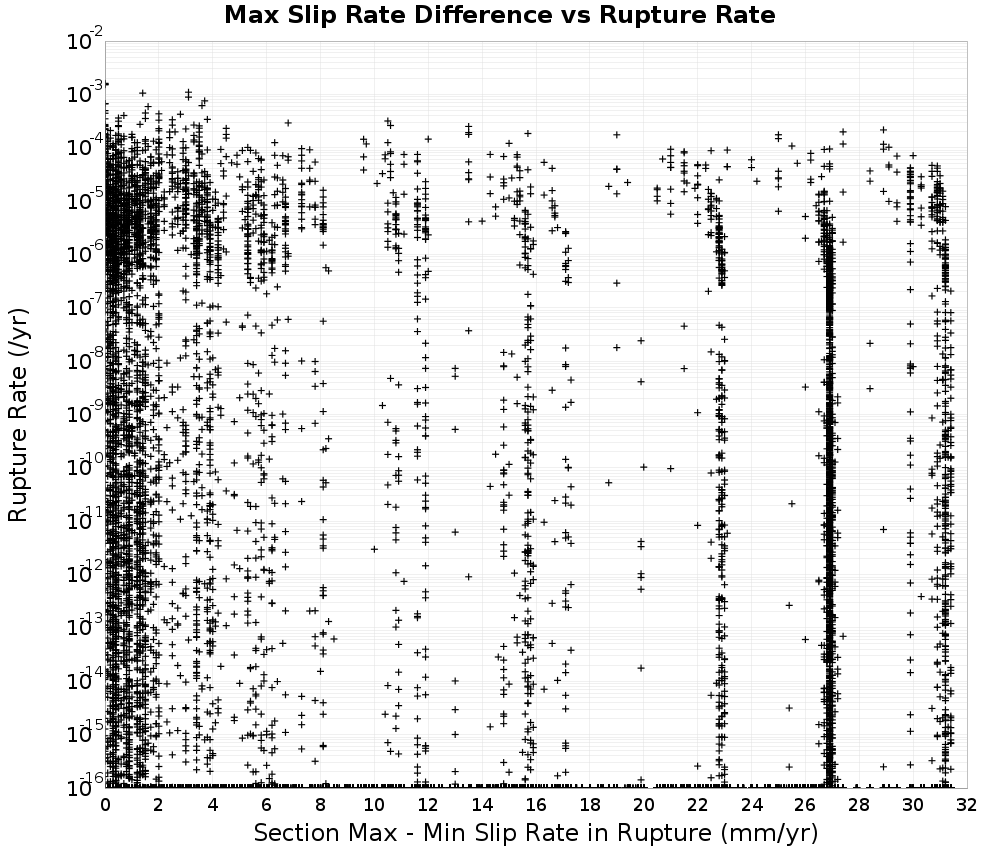

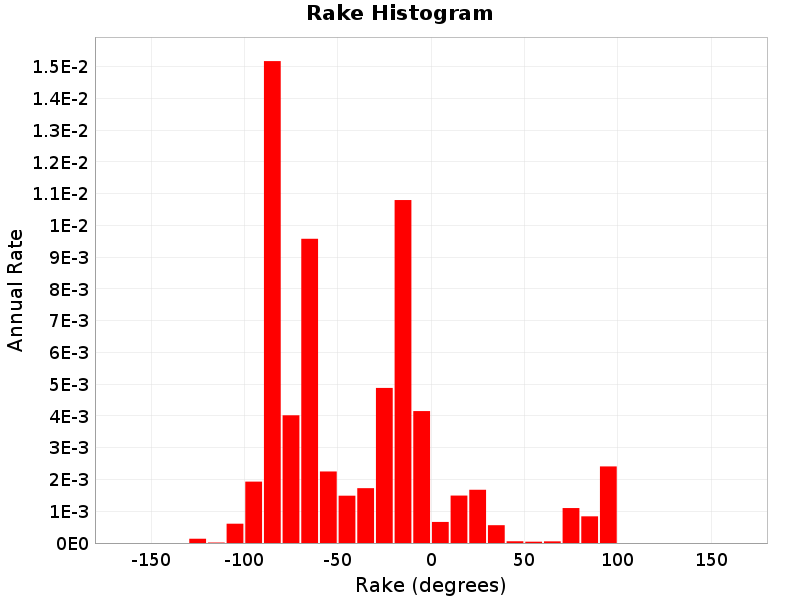

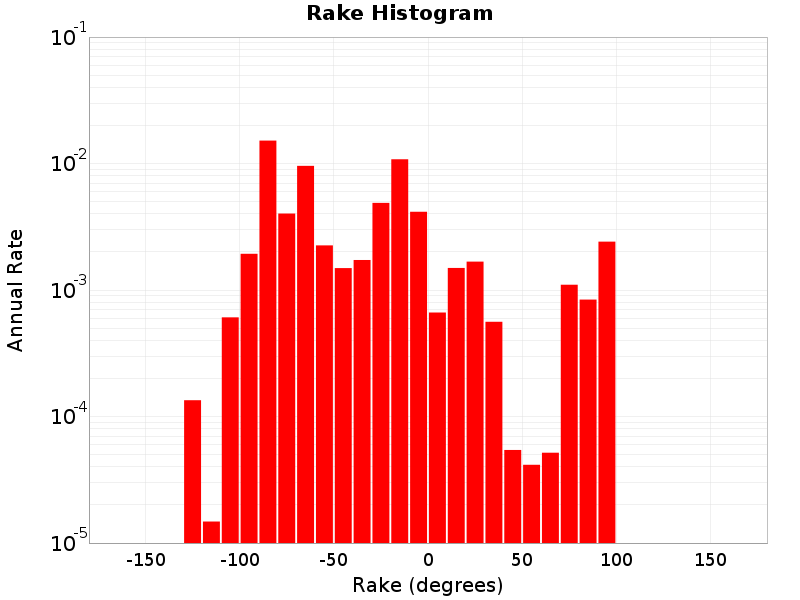

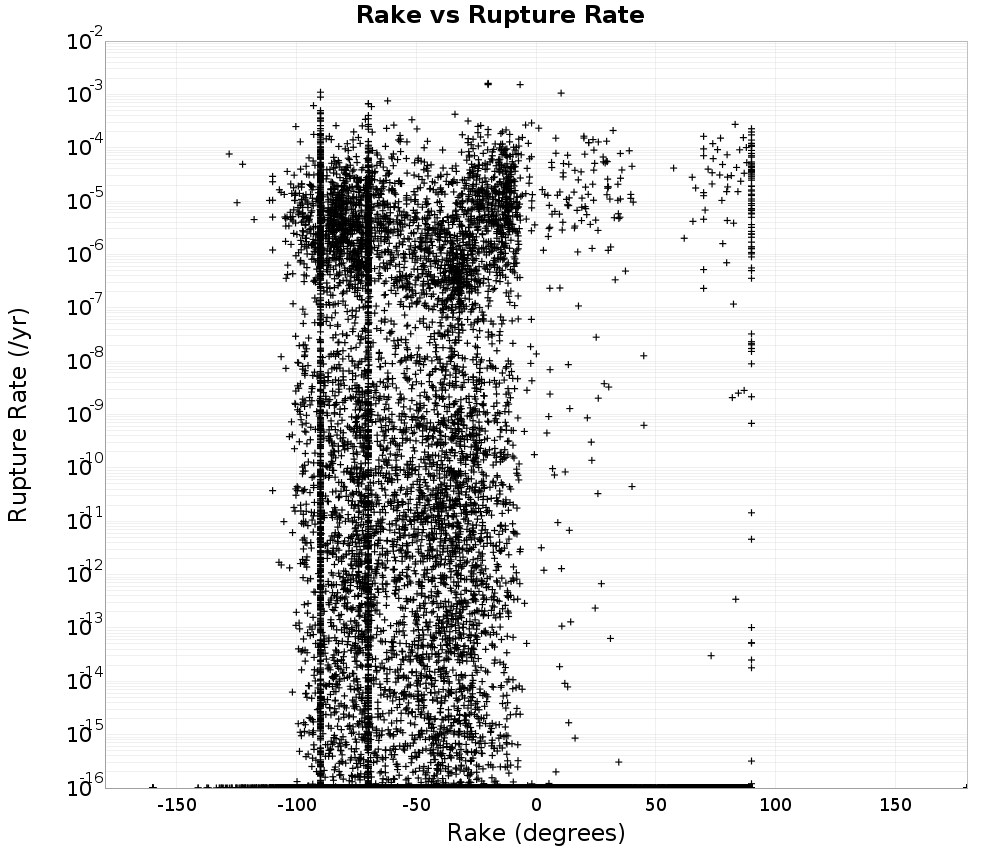

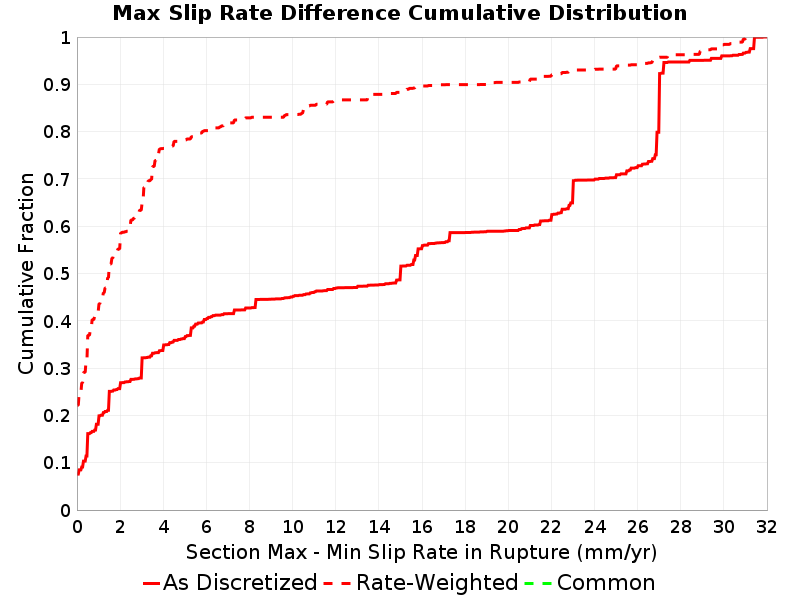

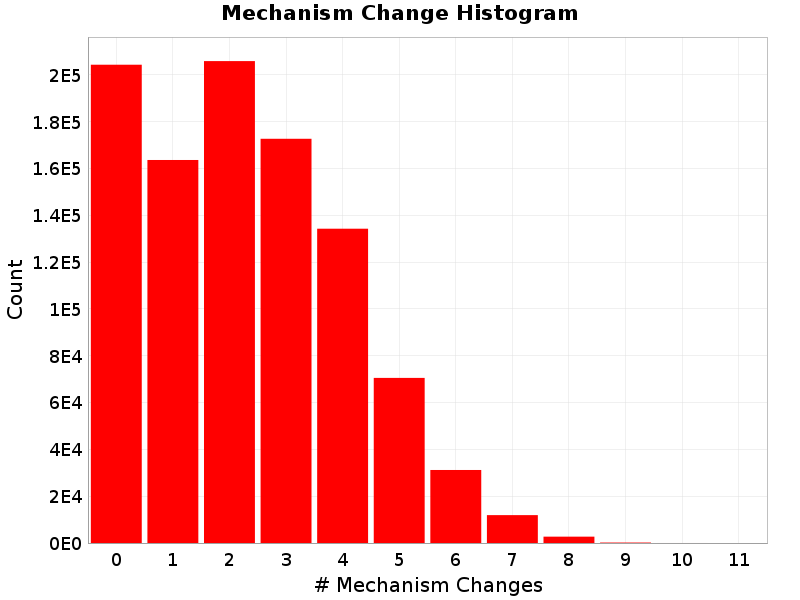

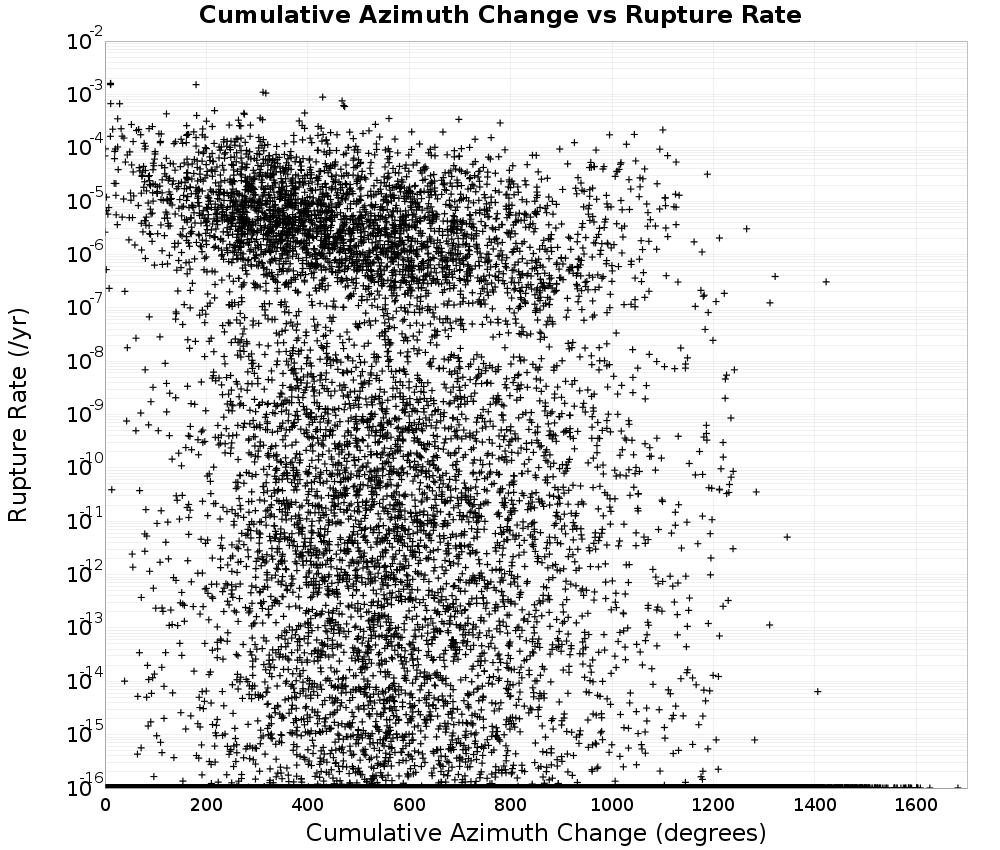

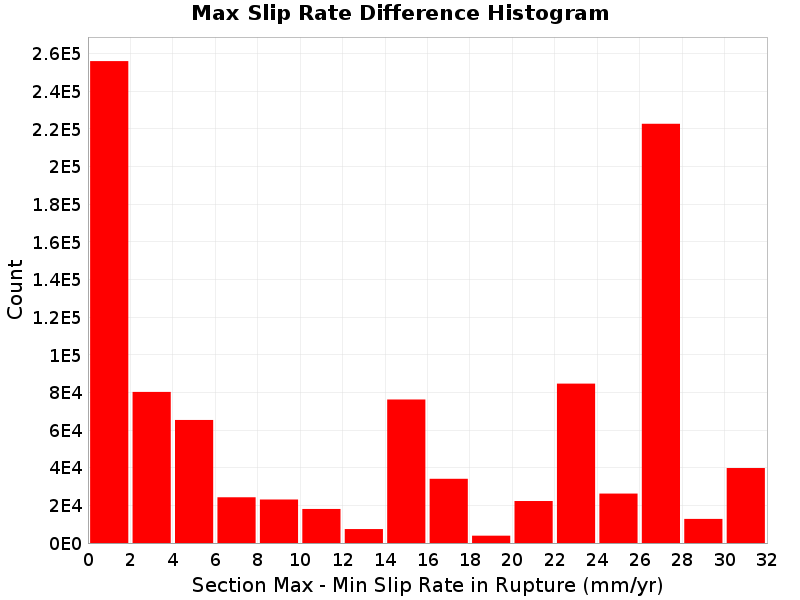

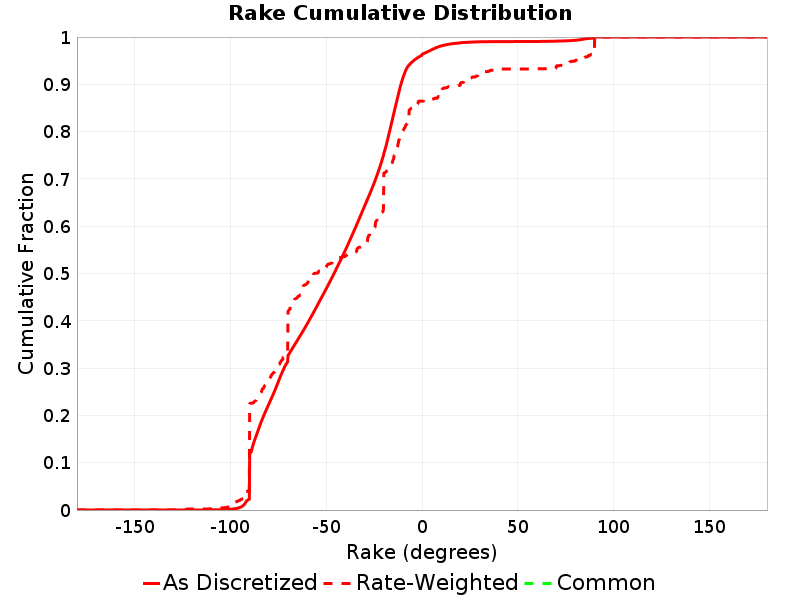

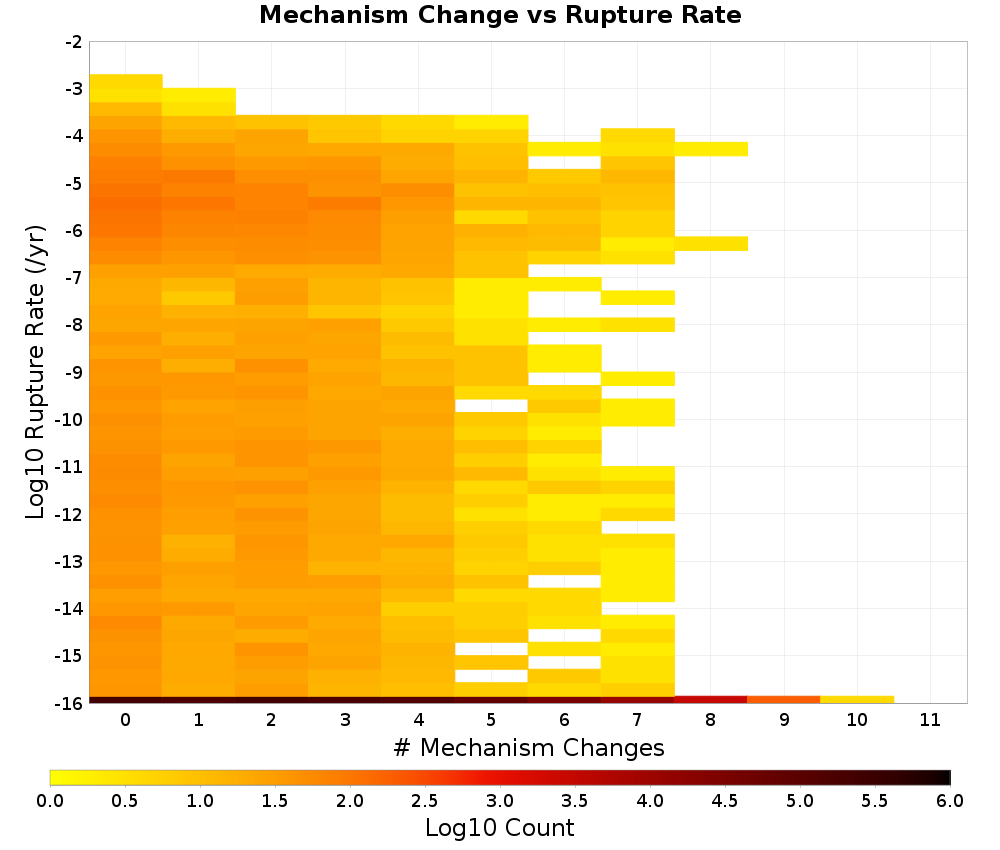

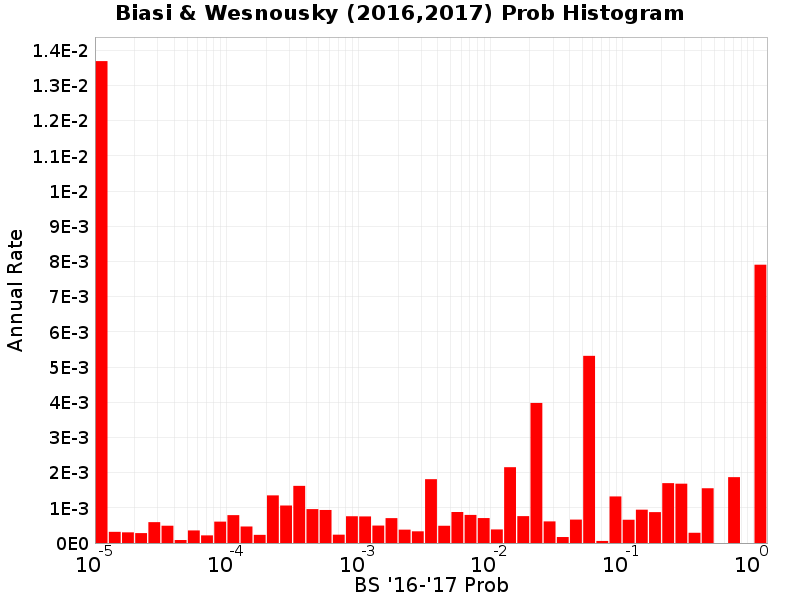

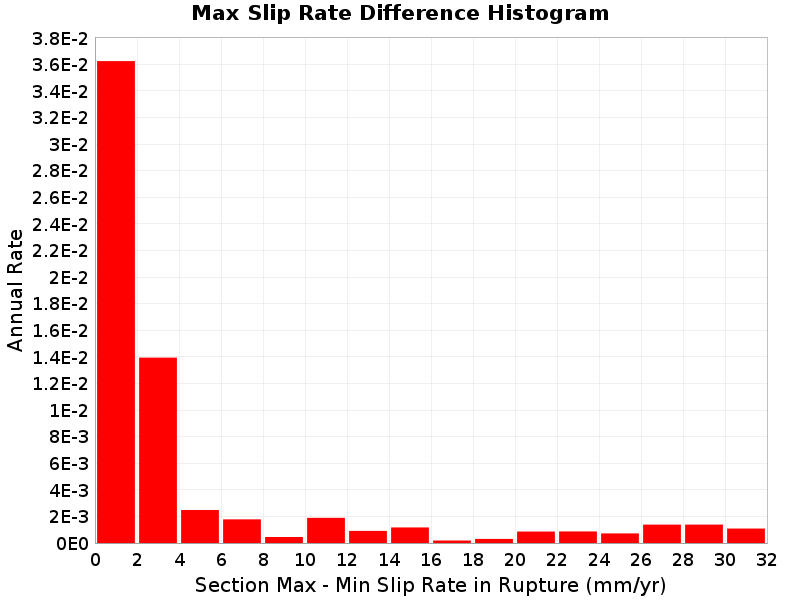

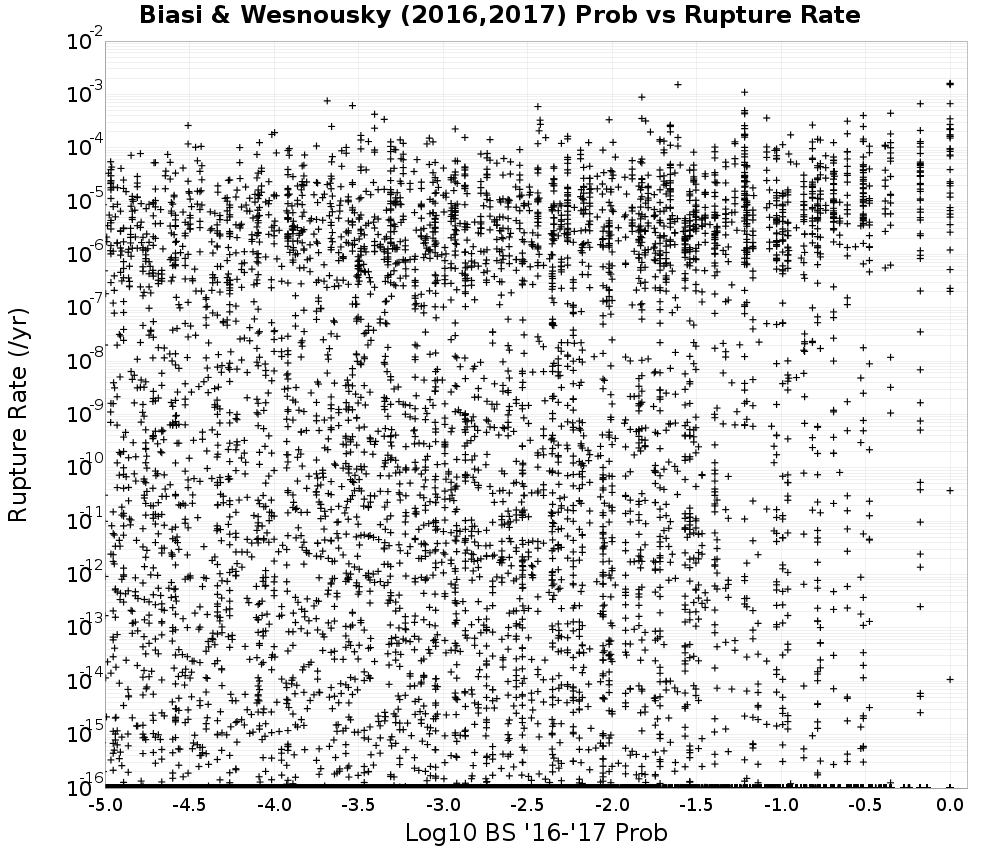

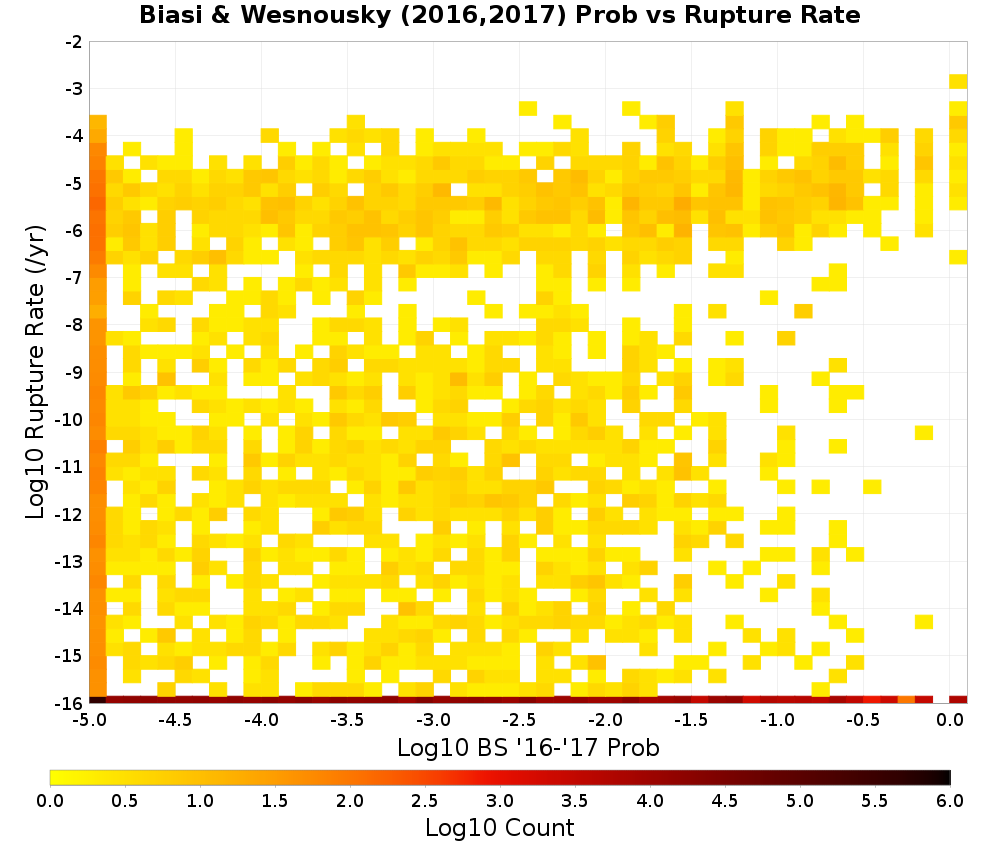

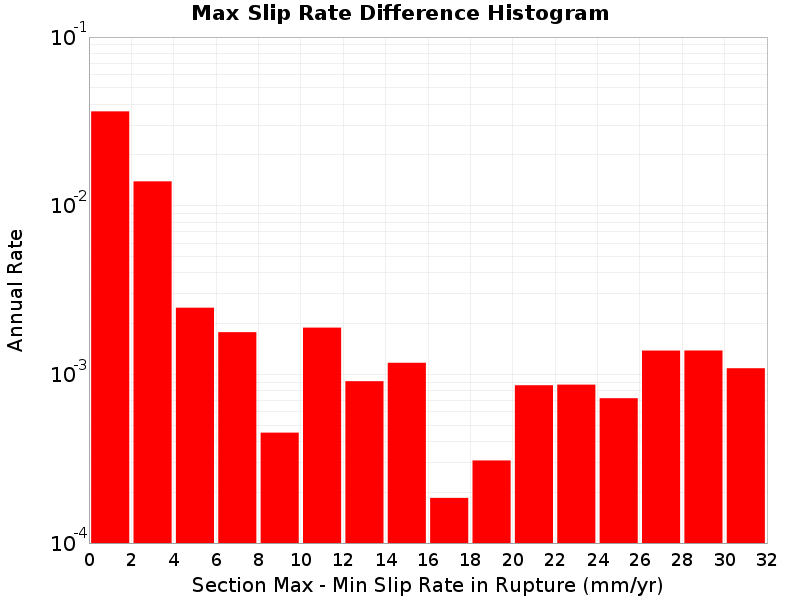

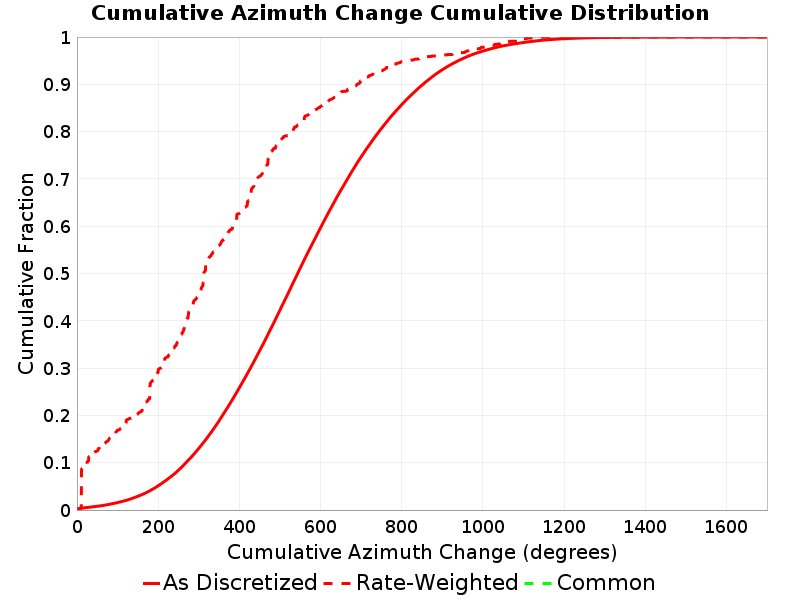

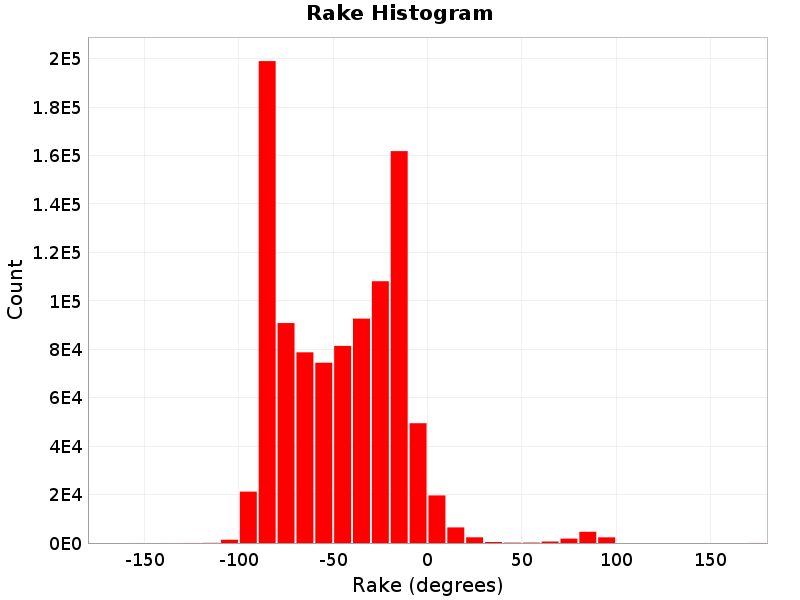

Rupture Scalar Histograms

(top)

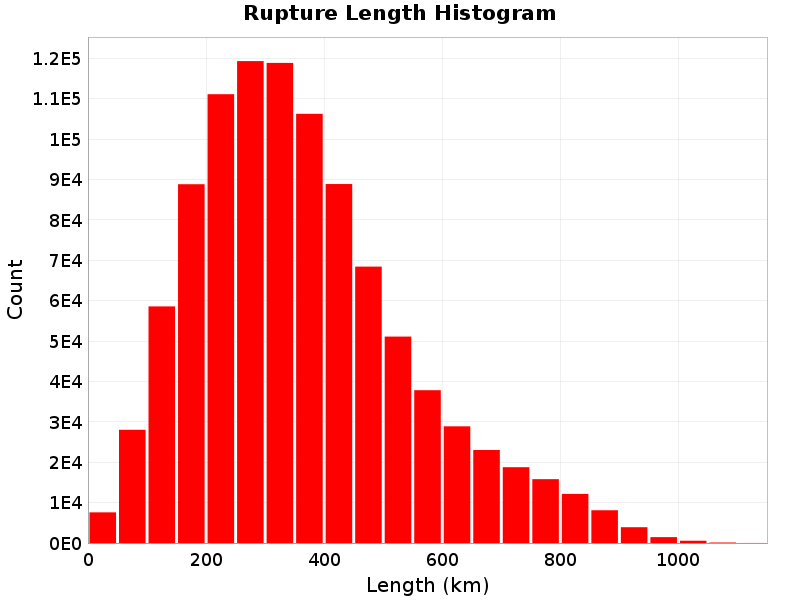

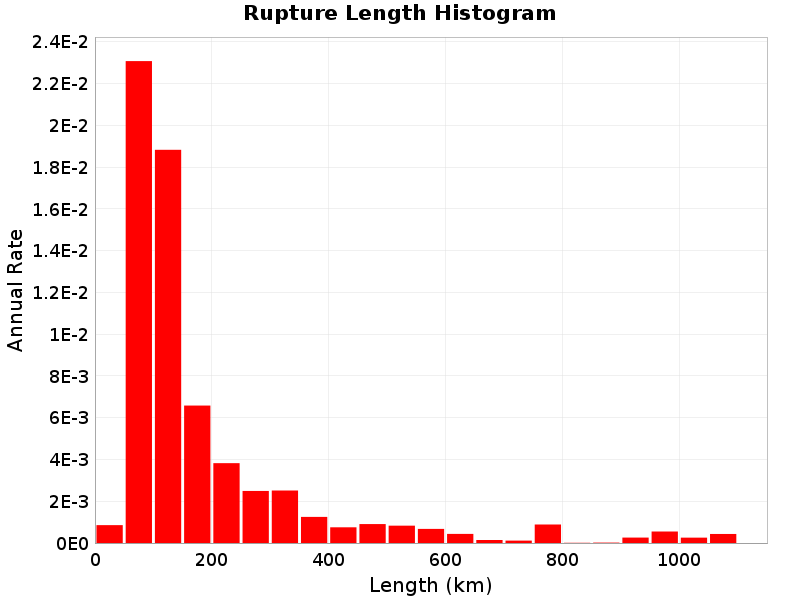

Rupture Length

(top)

Total length (km) of the rupture, not including jumps or gaps.

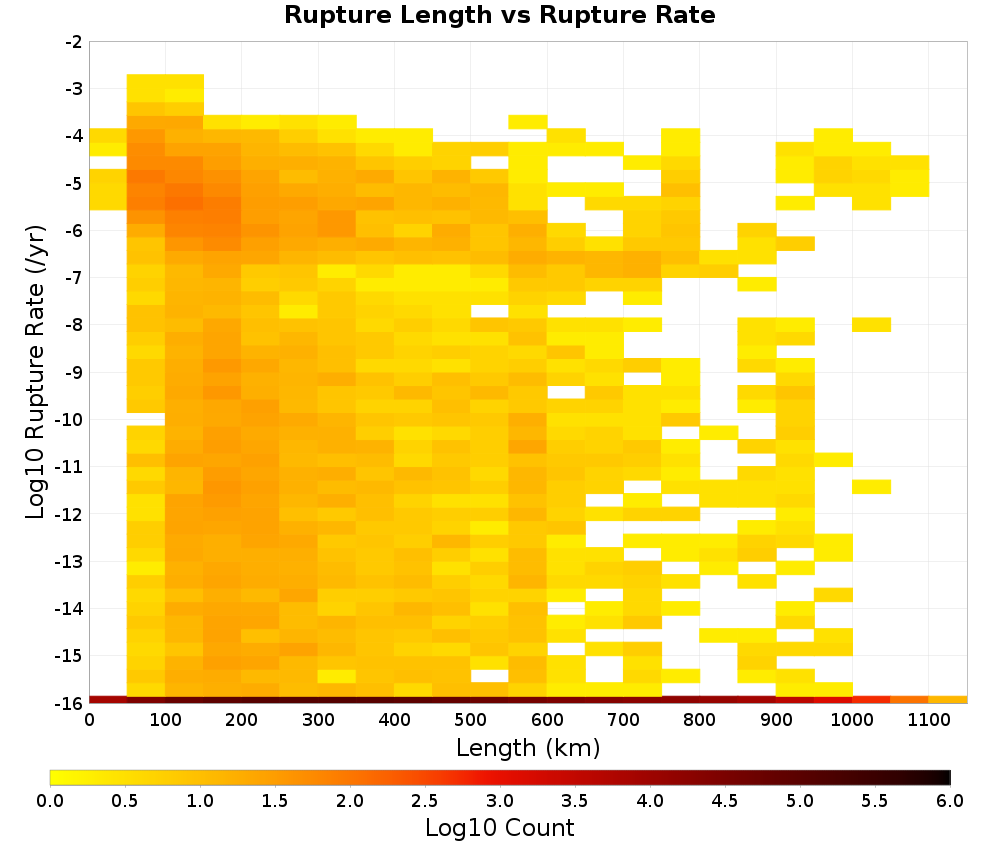

Rupture Length vs Rupture Rate

(top)

Rupture Magnitude

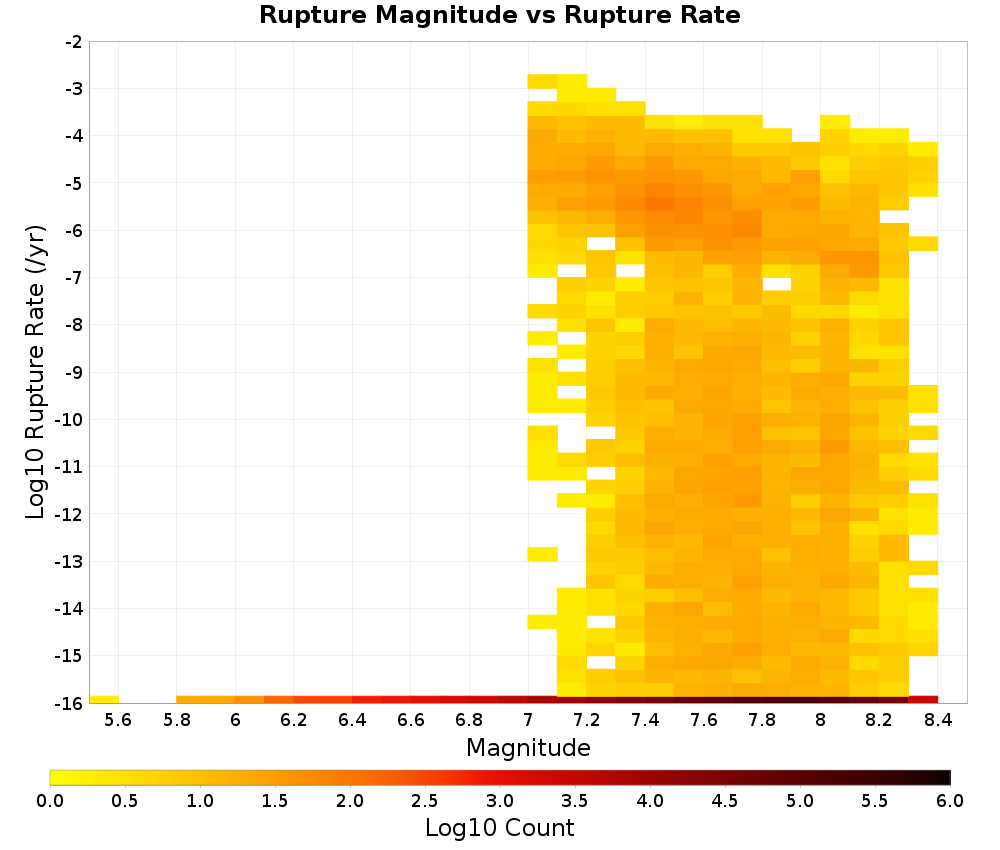

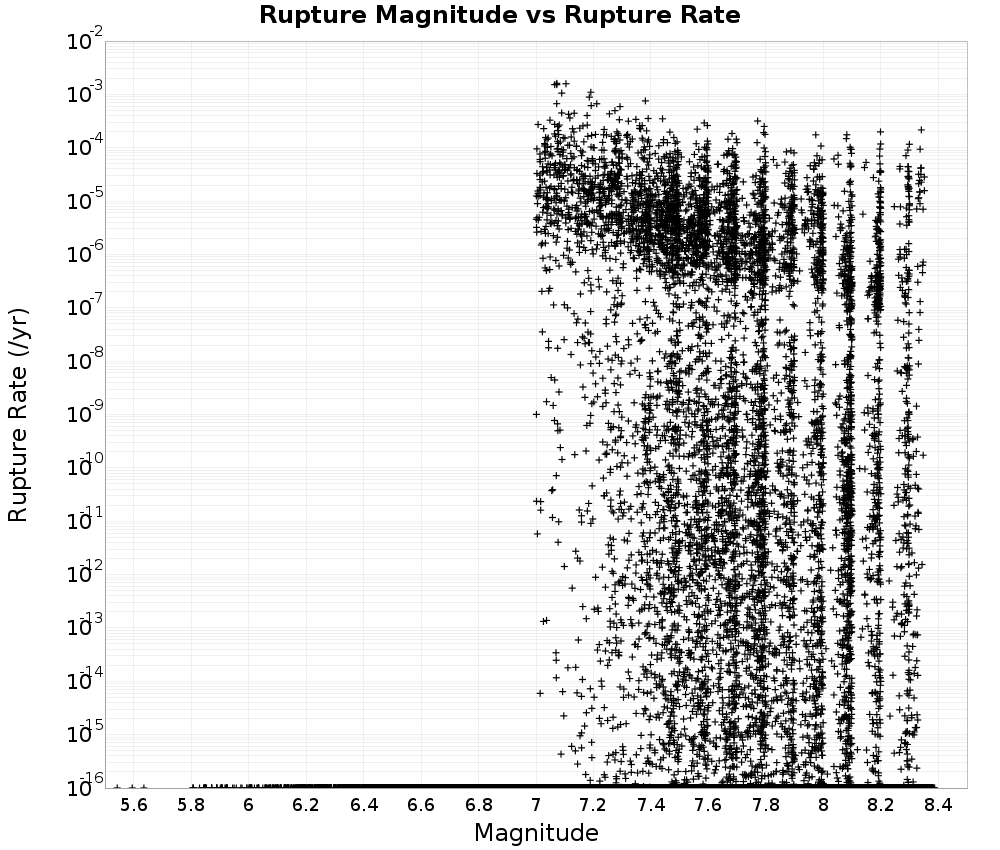

(top)

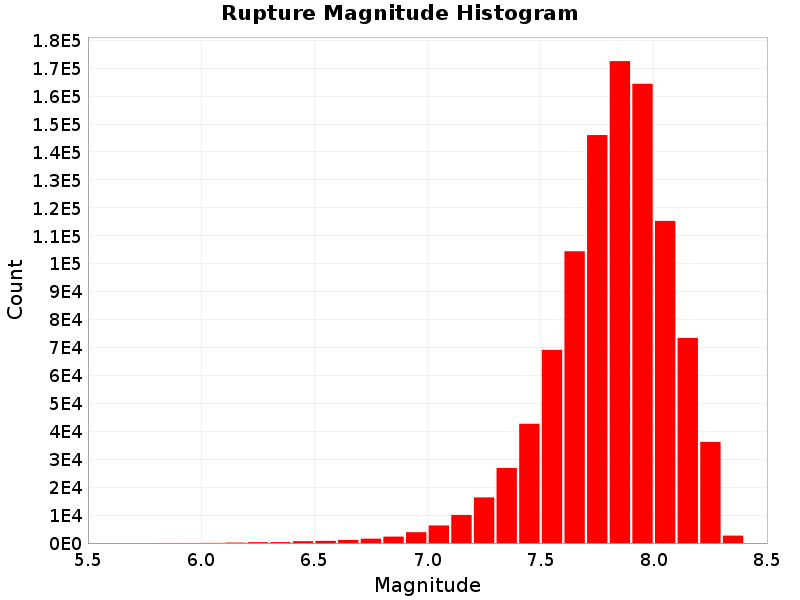

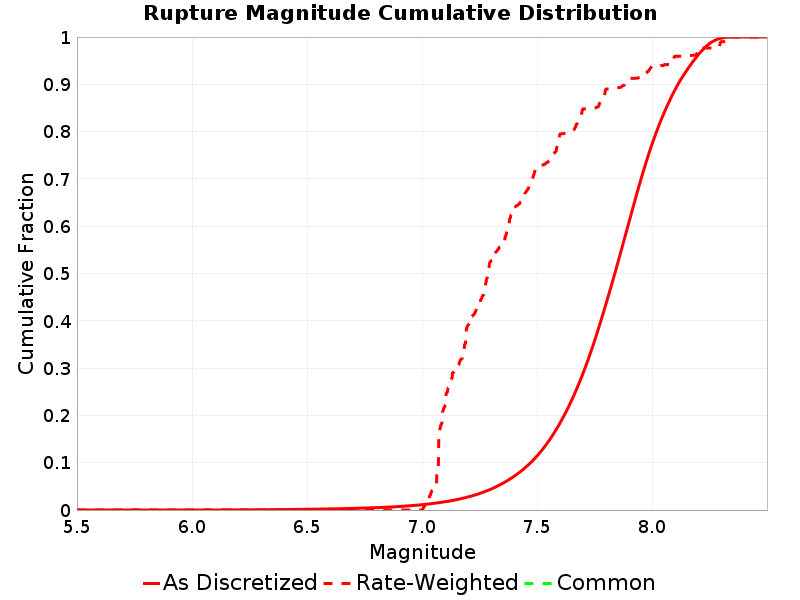

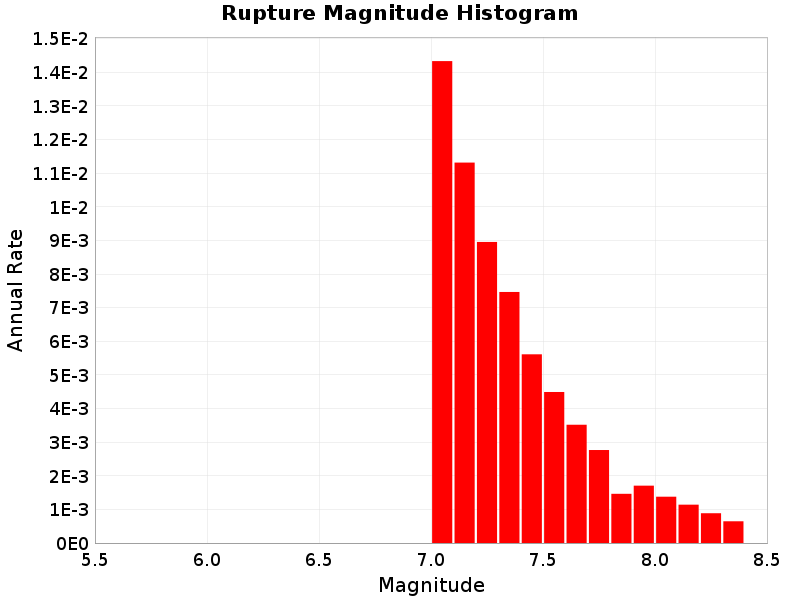

Magnitude of the rupture.

Rupture Magnitude vs Rupture Rate

(top)

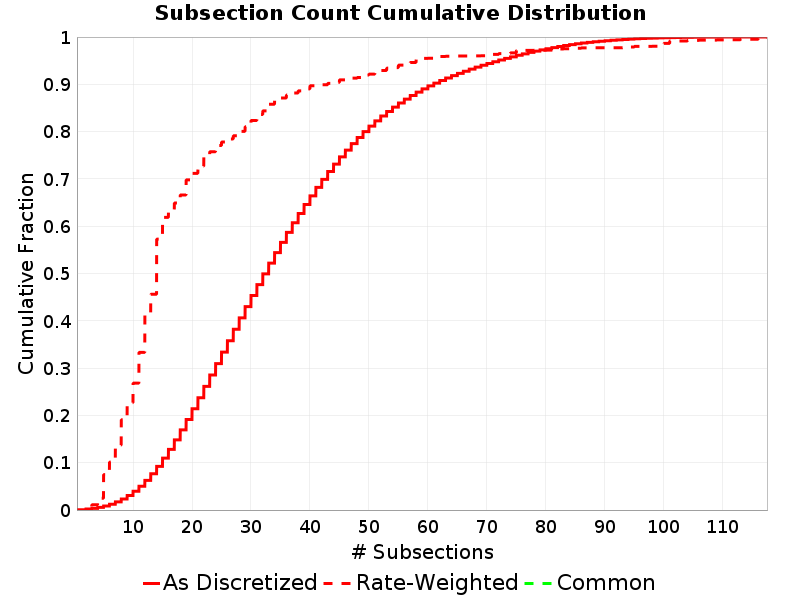

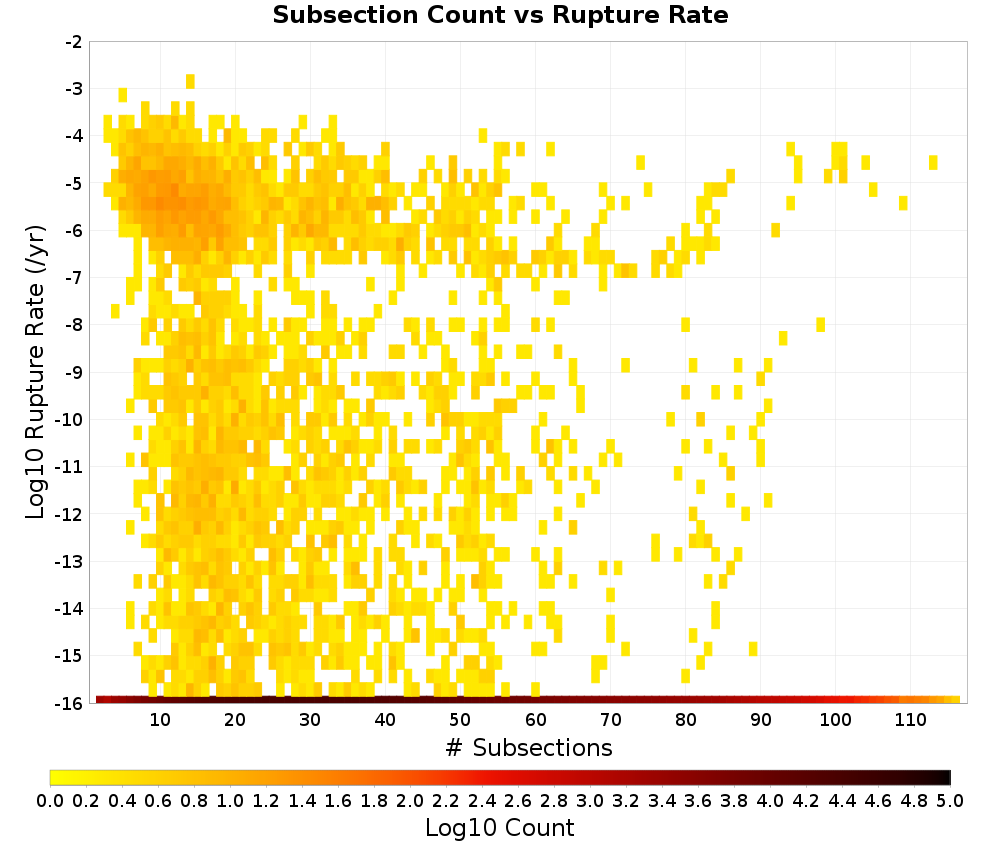

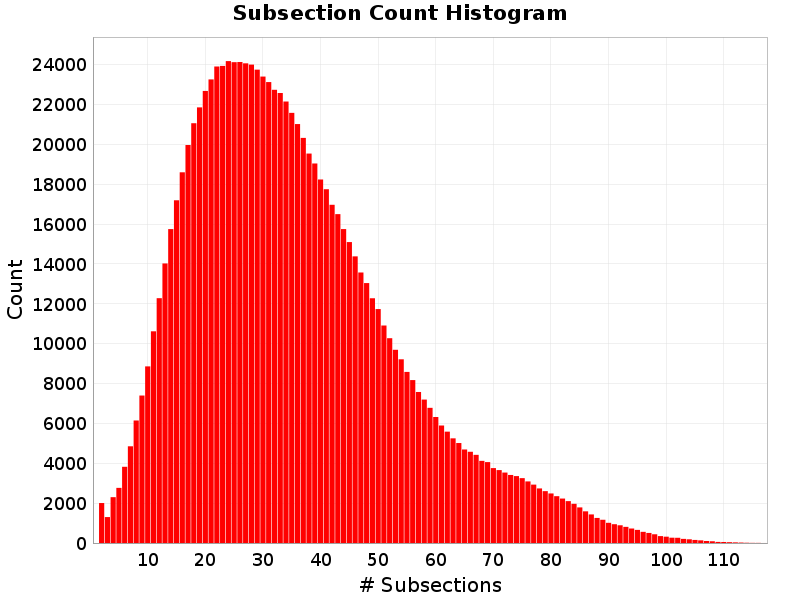

Subsection Count

(top)

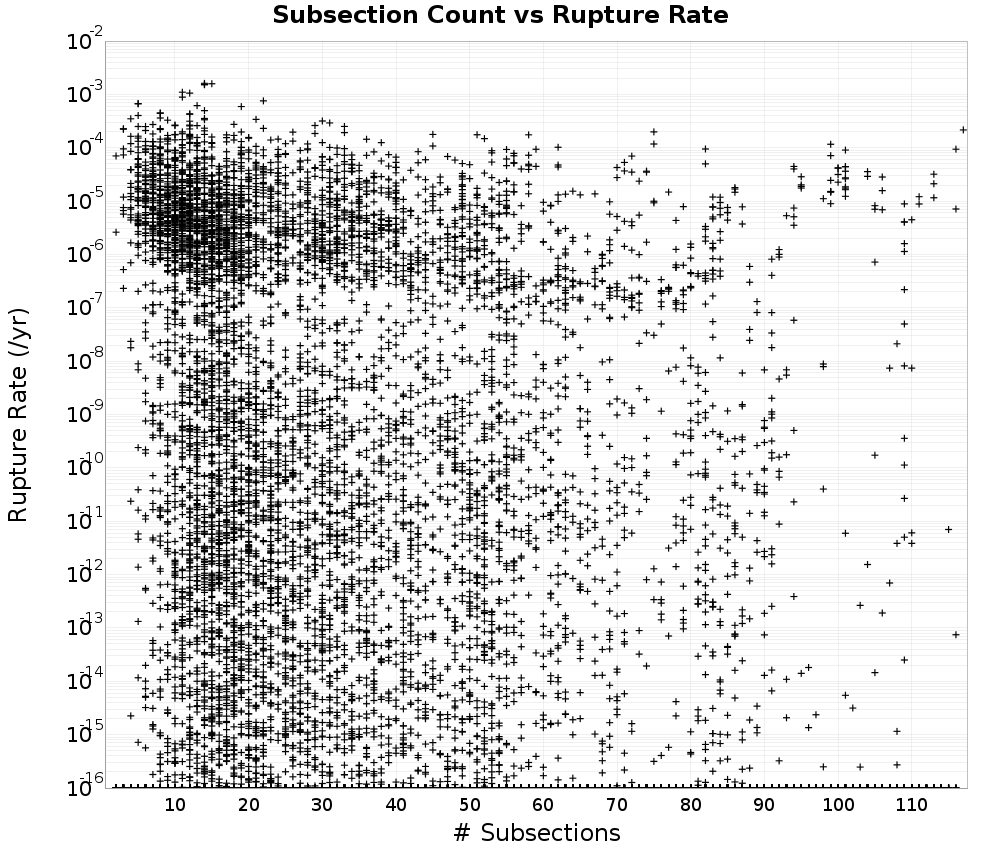

Total number of subsections involved in a rupture.

Subsection Count vs Rupture Rate

(top)

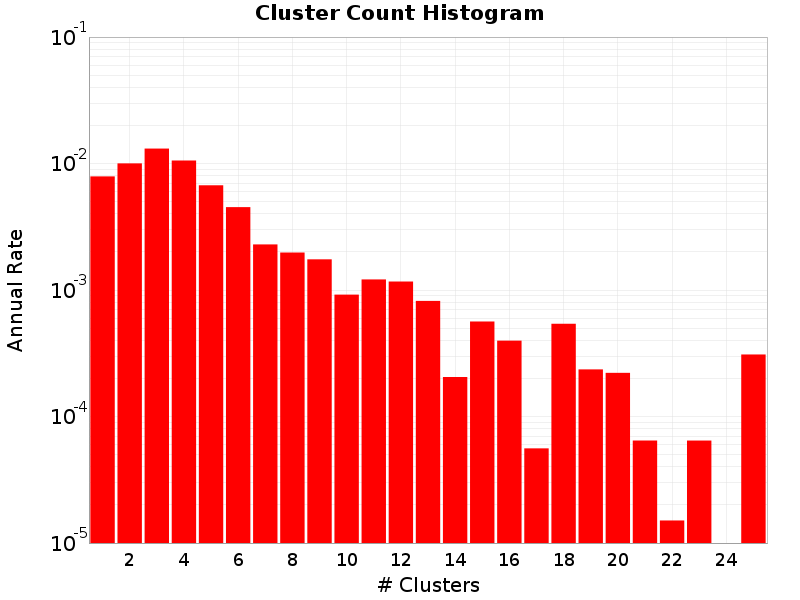

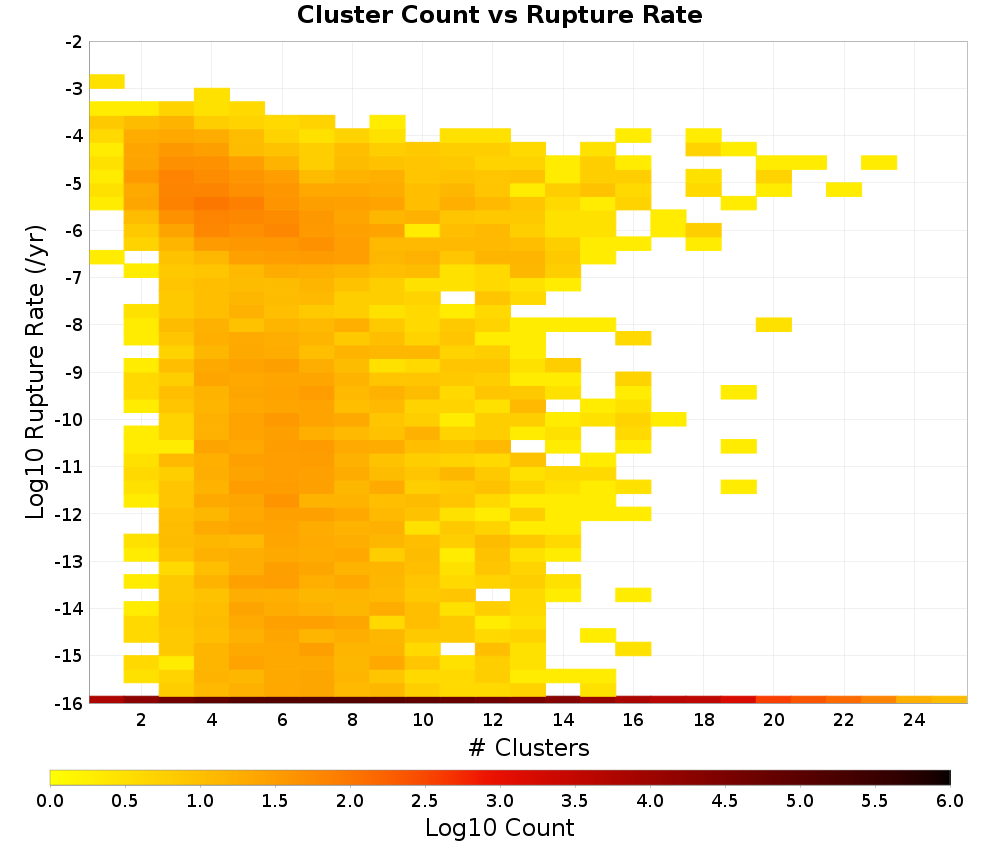

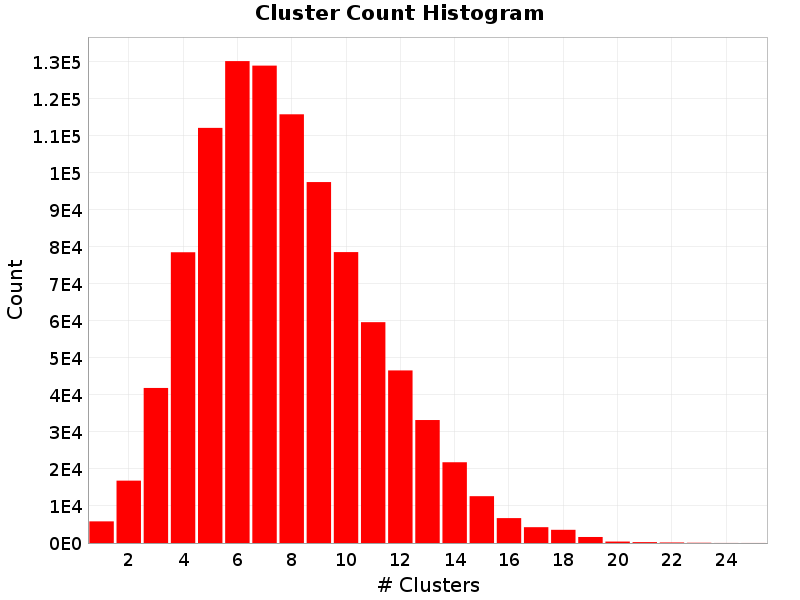

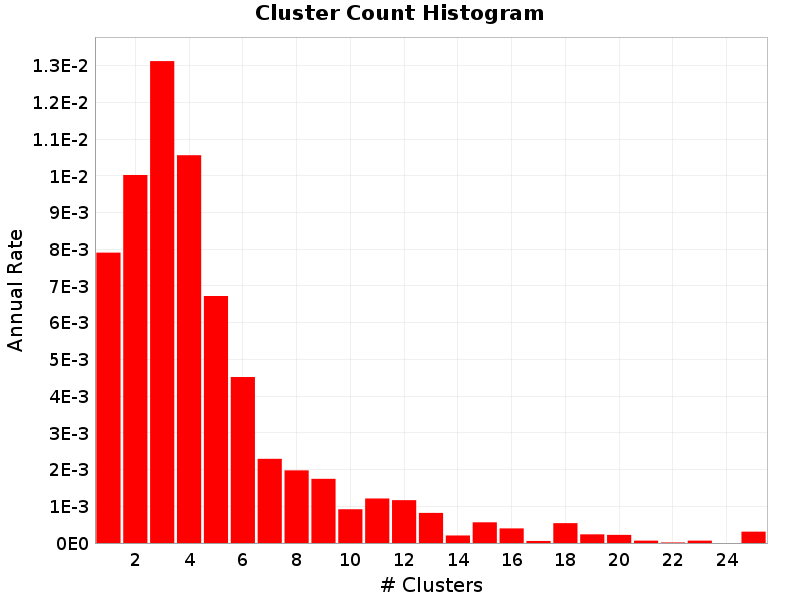

Cluster Count

(top)

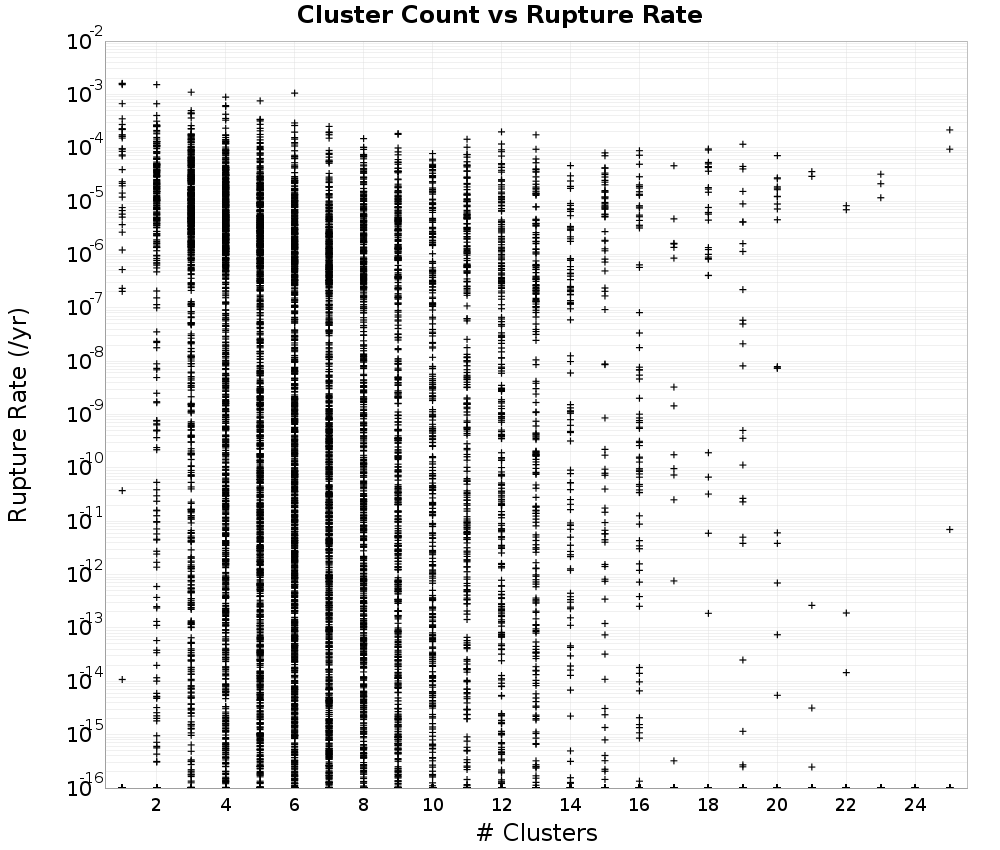

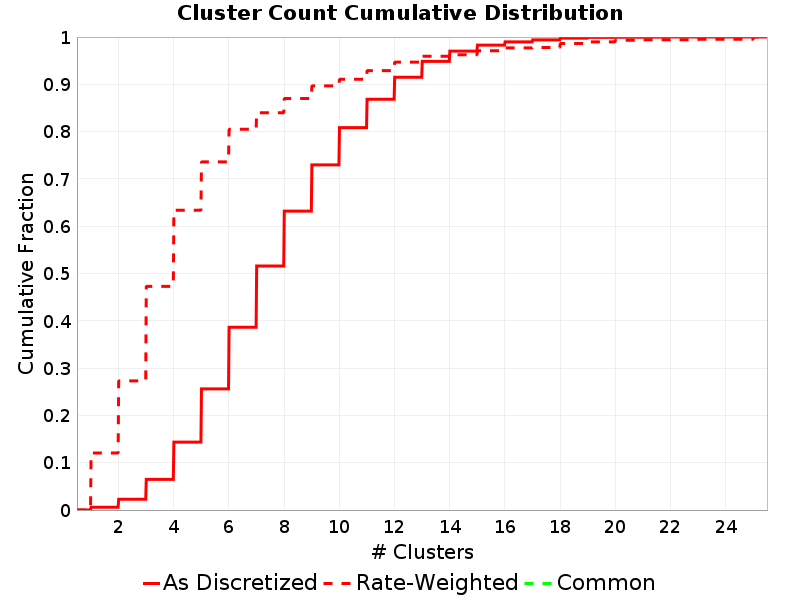

Total number of clusters (of contiguous subsections on the same parent fault section) a rupture.

Cluster Count vs Rupture Rate

(top)

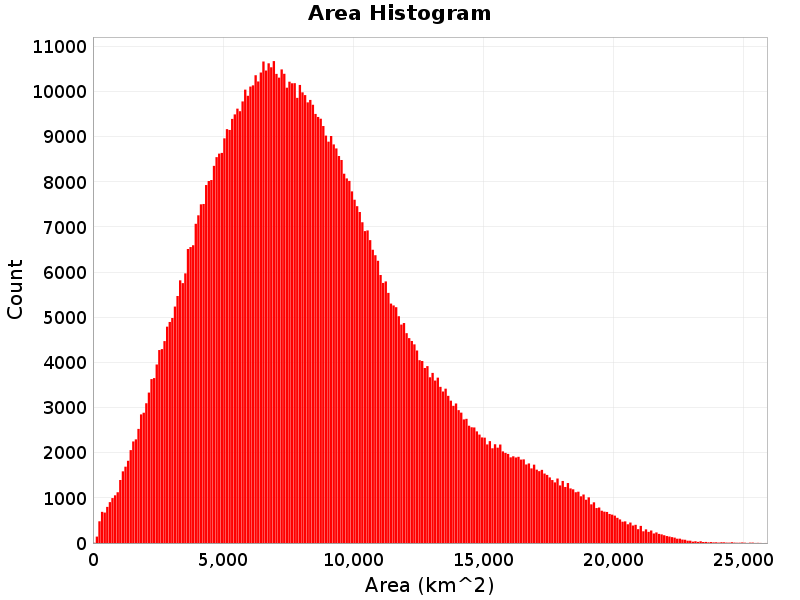

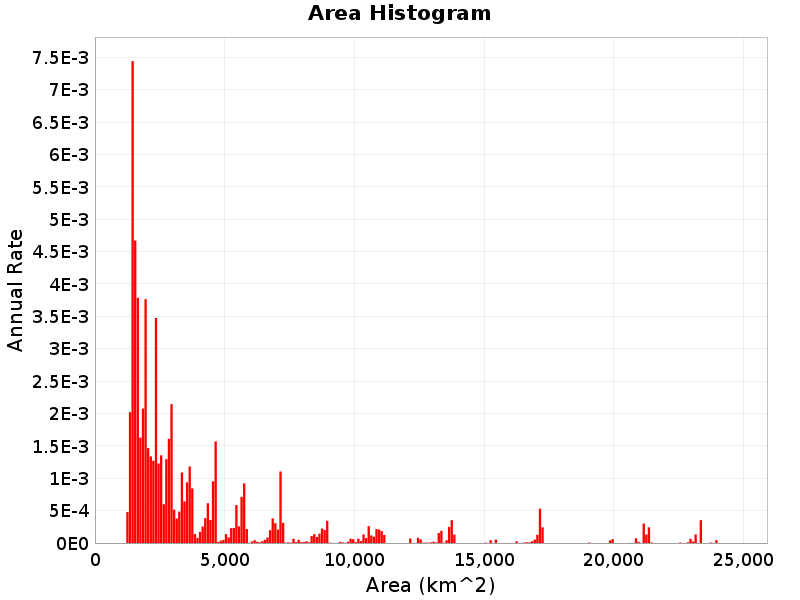

Area

(top)

Total area of the rupture (km^2).

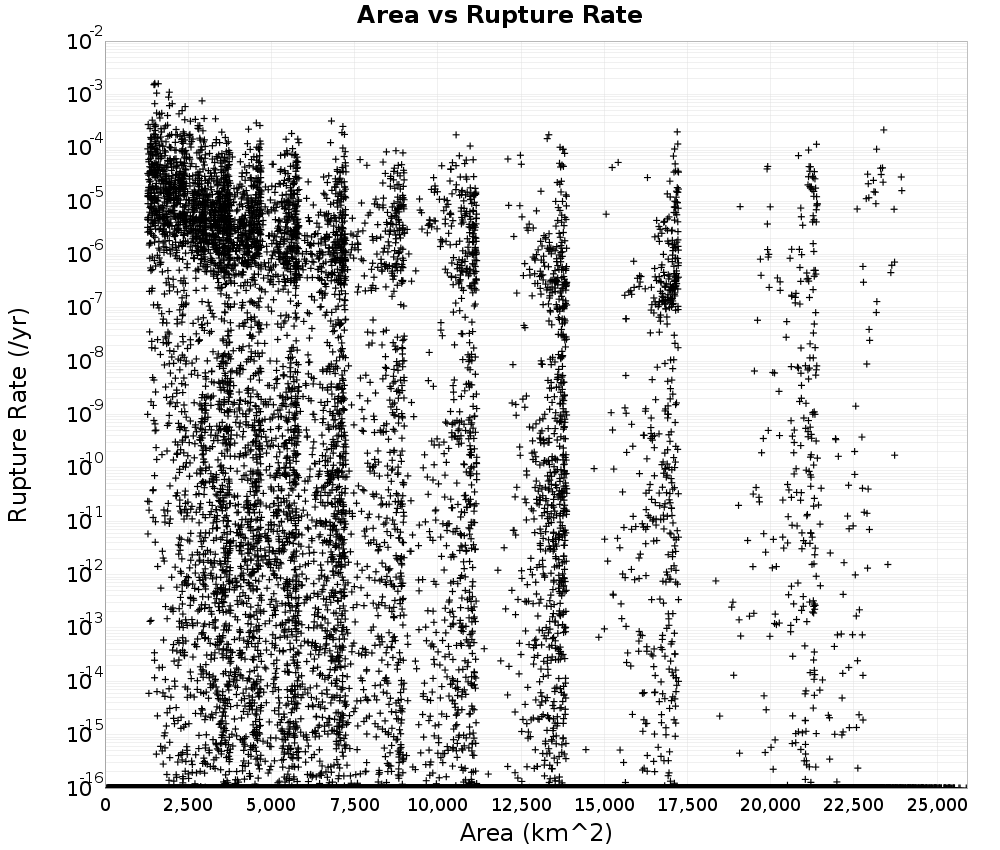

Area vs Rupture Rate

(top)

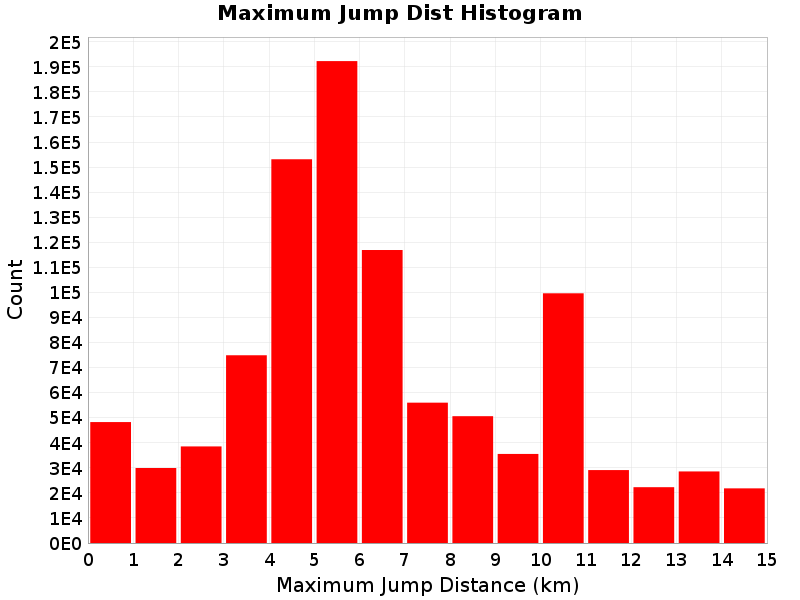

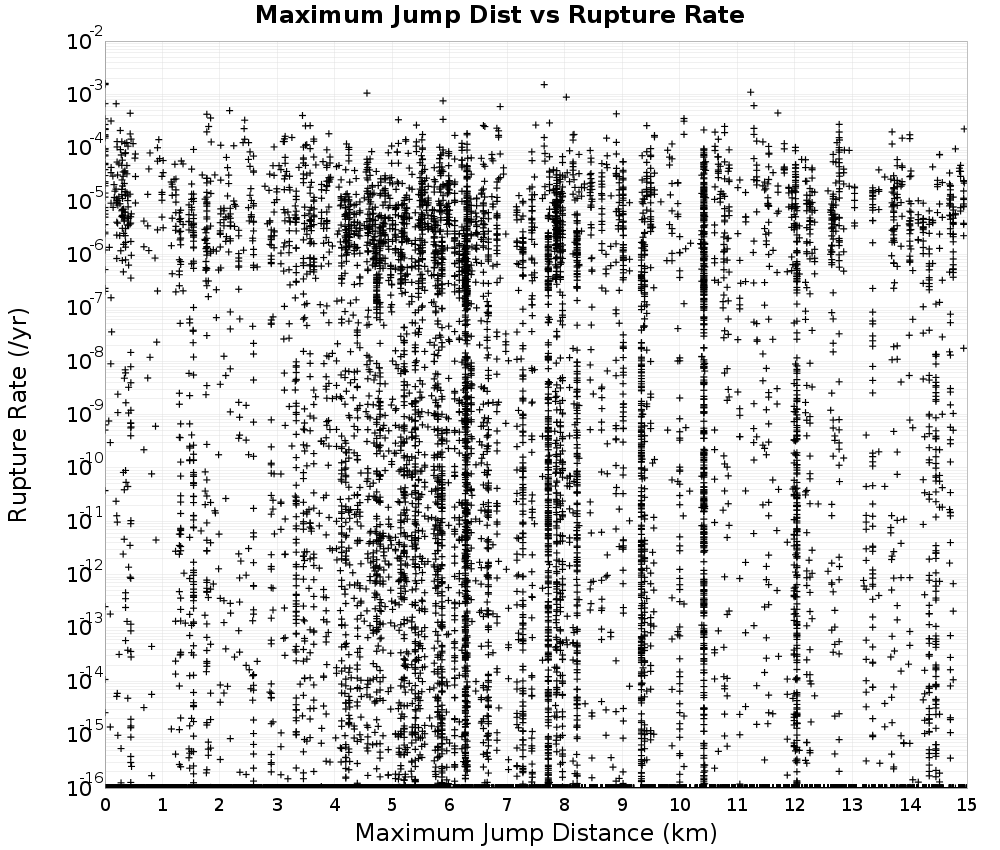

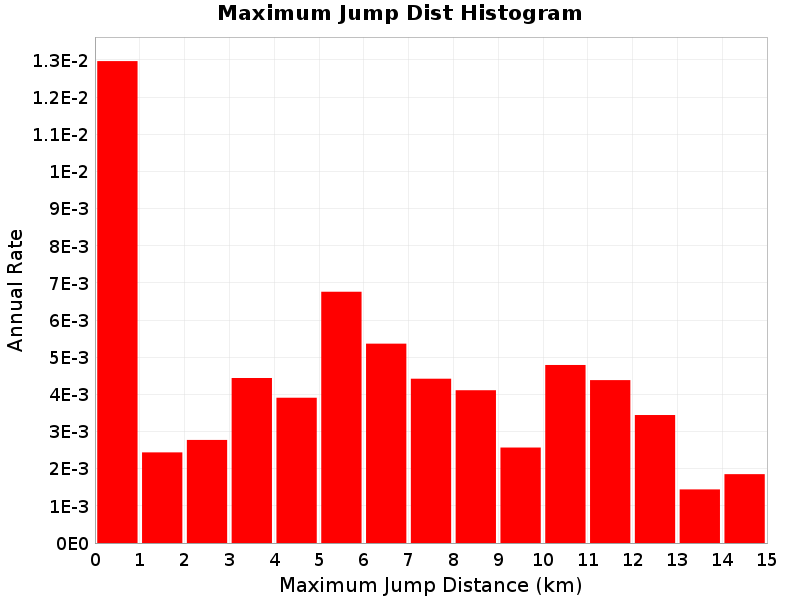

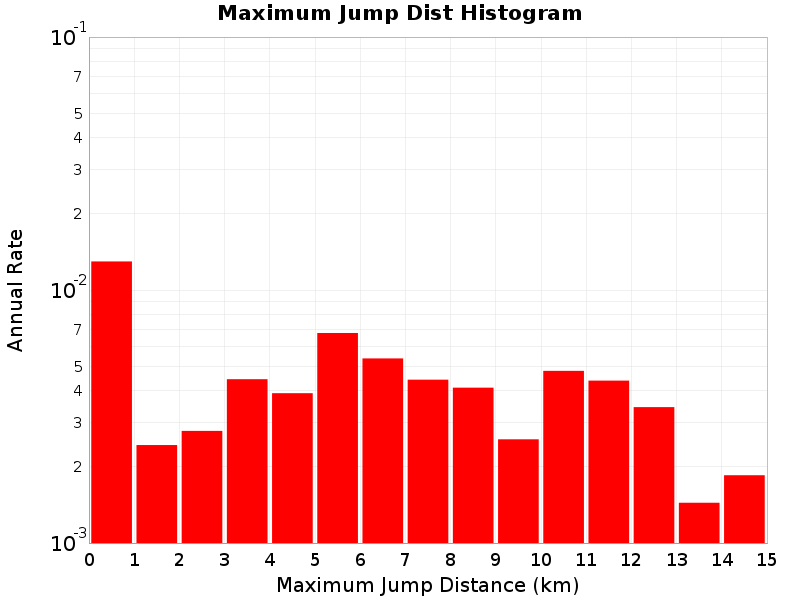

Maximum Jump Dist

(top)

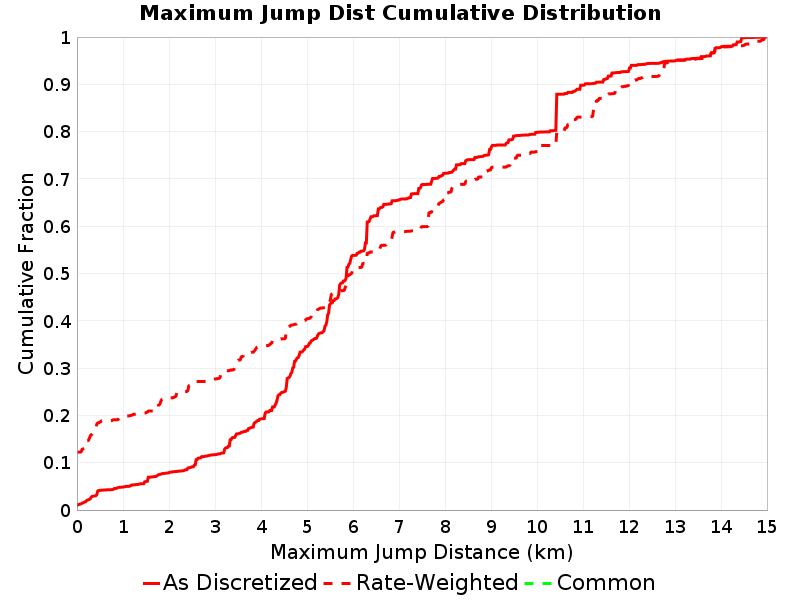

The maximum jump distance in the rupture.

Maximum Jump Dist vs Rupture Rate

(top)

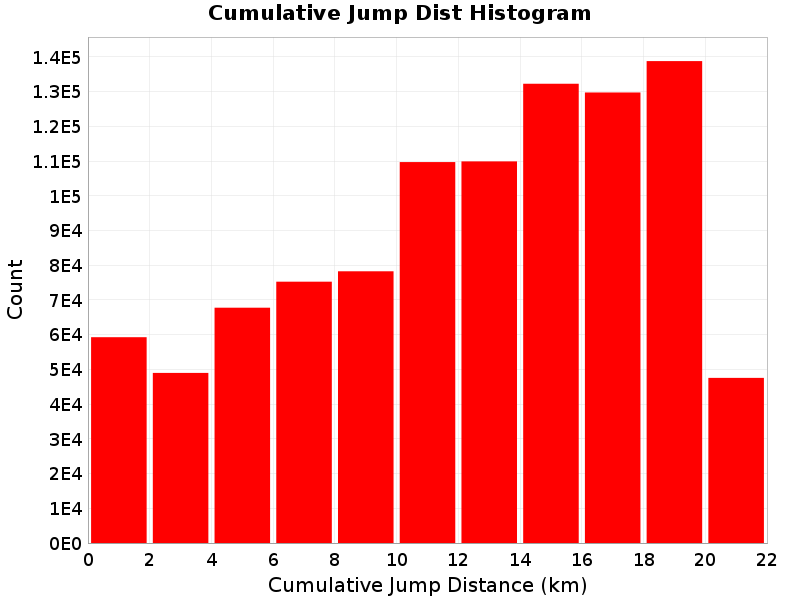

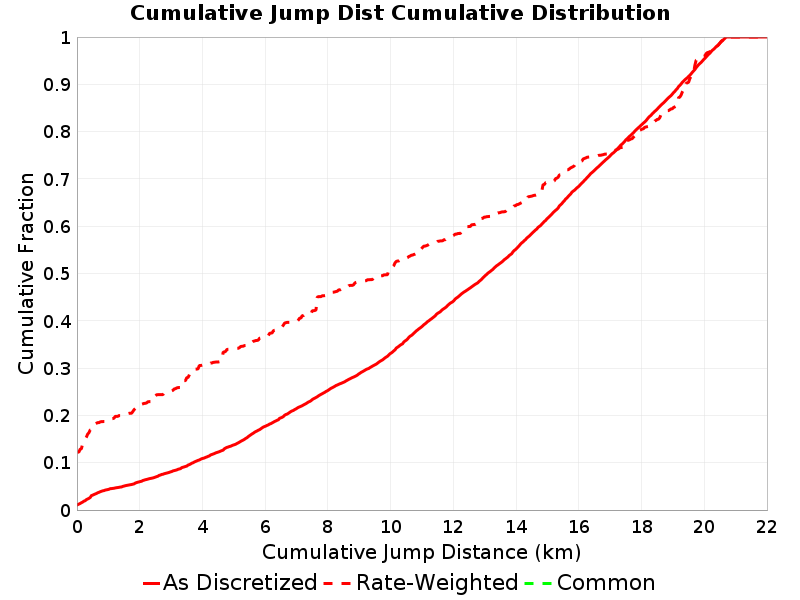

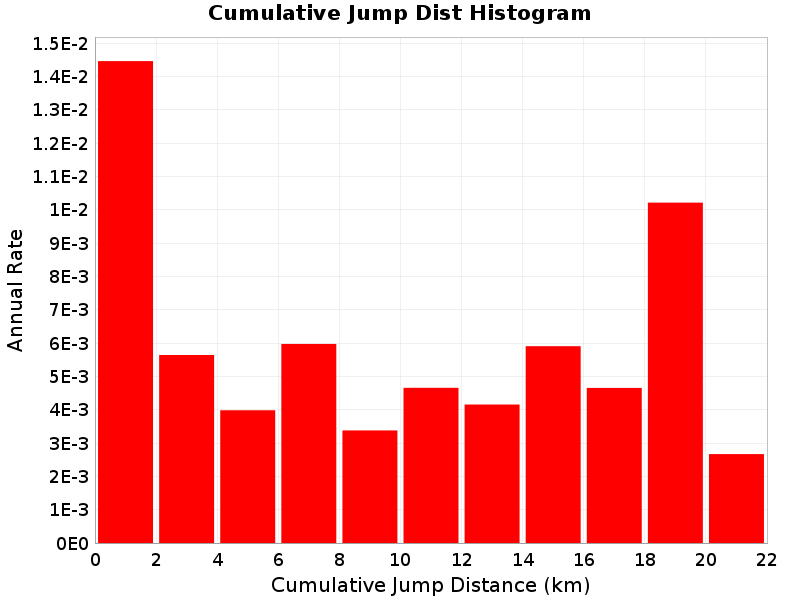

Cumulative Jump Dist

(top)

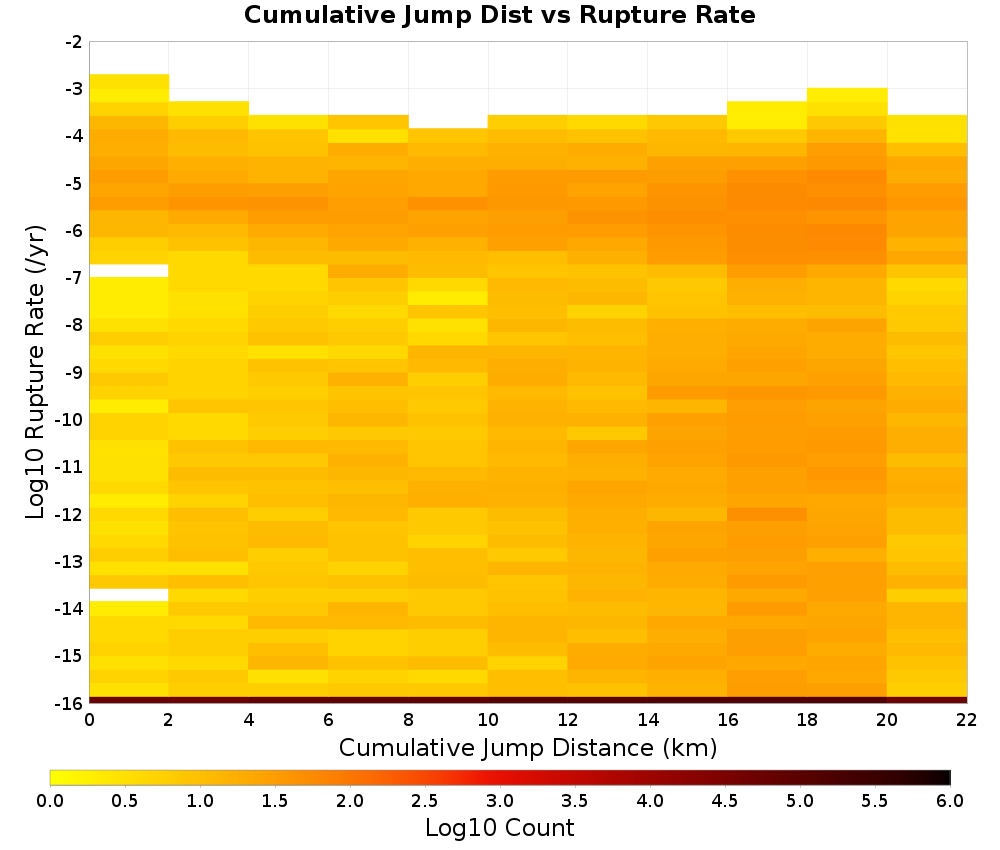

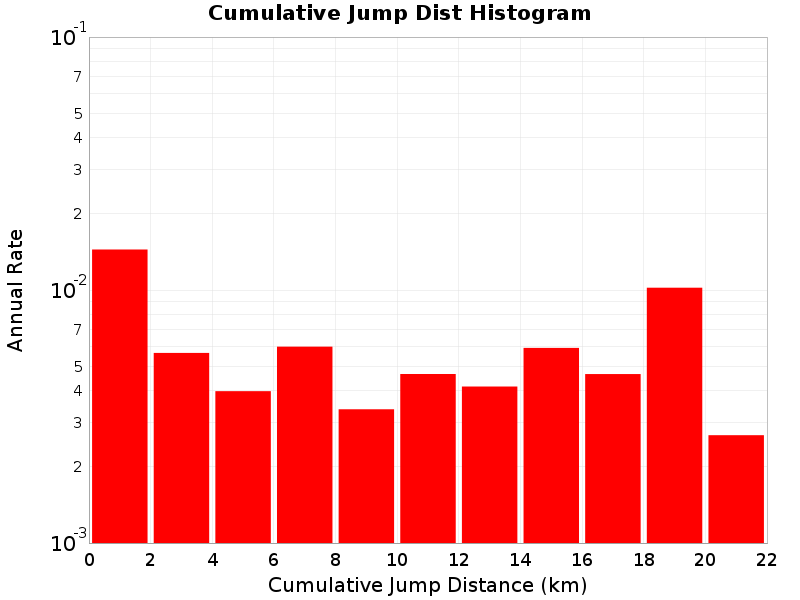

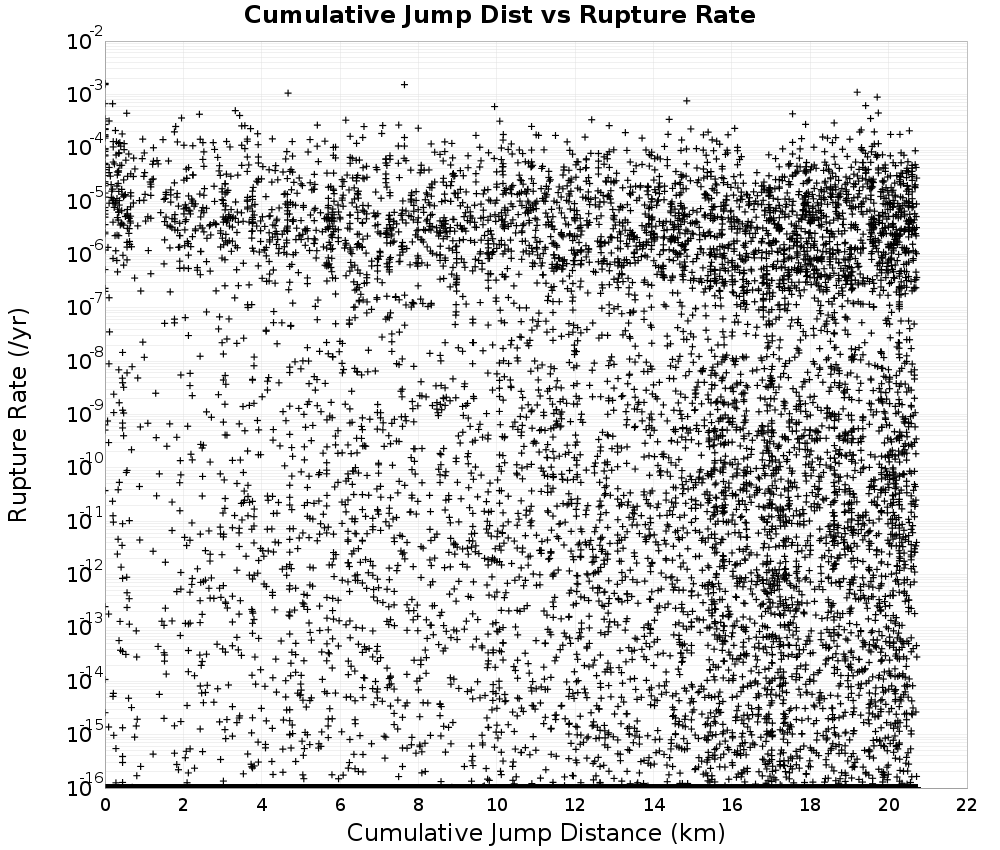

The total cumulative jump distance summed over all jumps in the rupture.

Cumulative Jump Dist vs Rupture Rate

(top)

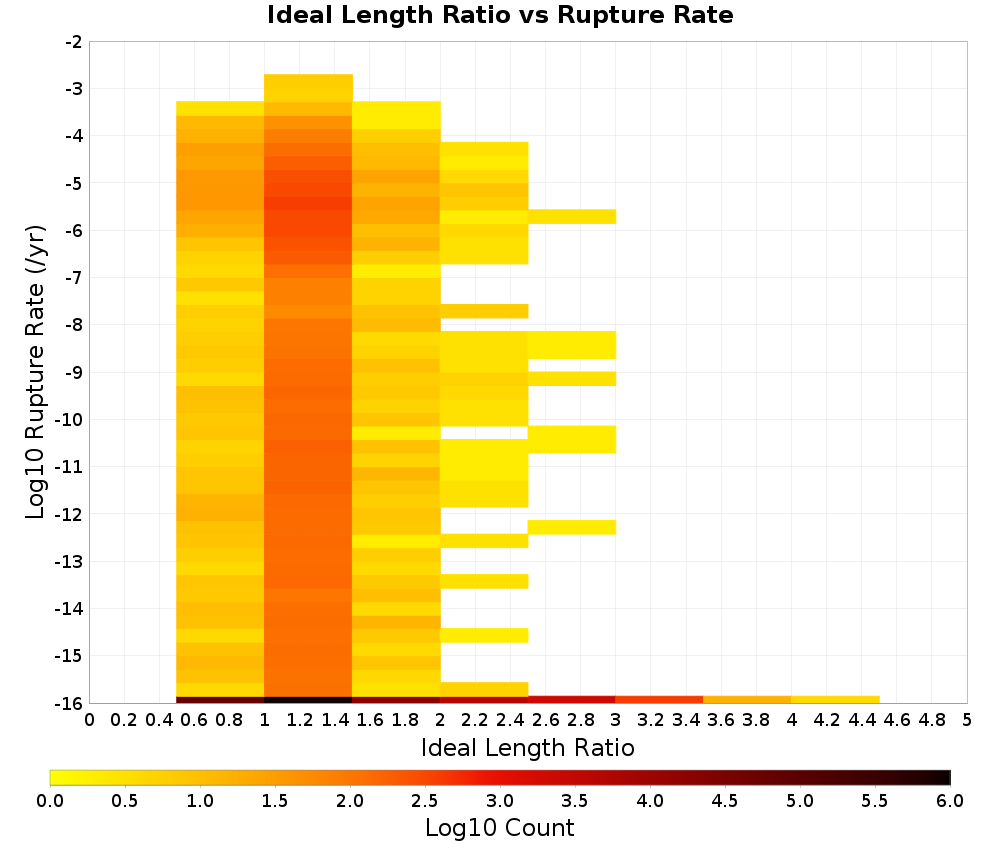

Ideal Length Ratio

(top)

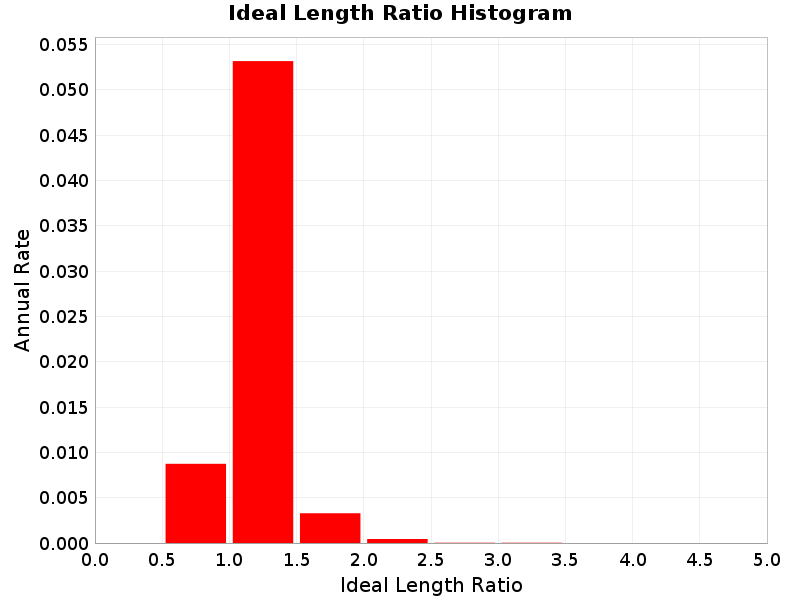

The ratio between the total length of this rupture and the 'idealized length,' which we define as the straight line distance between the furthest two subsections.

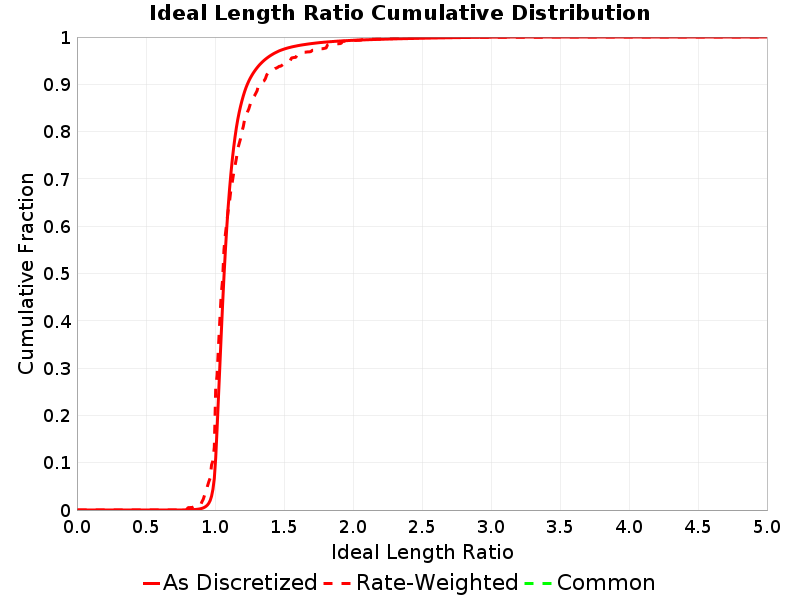

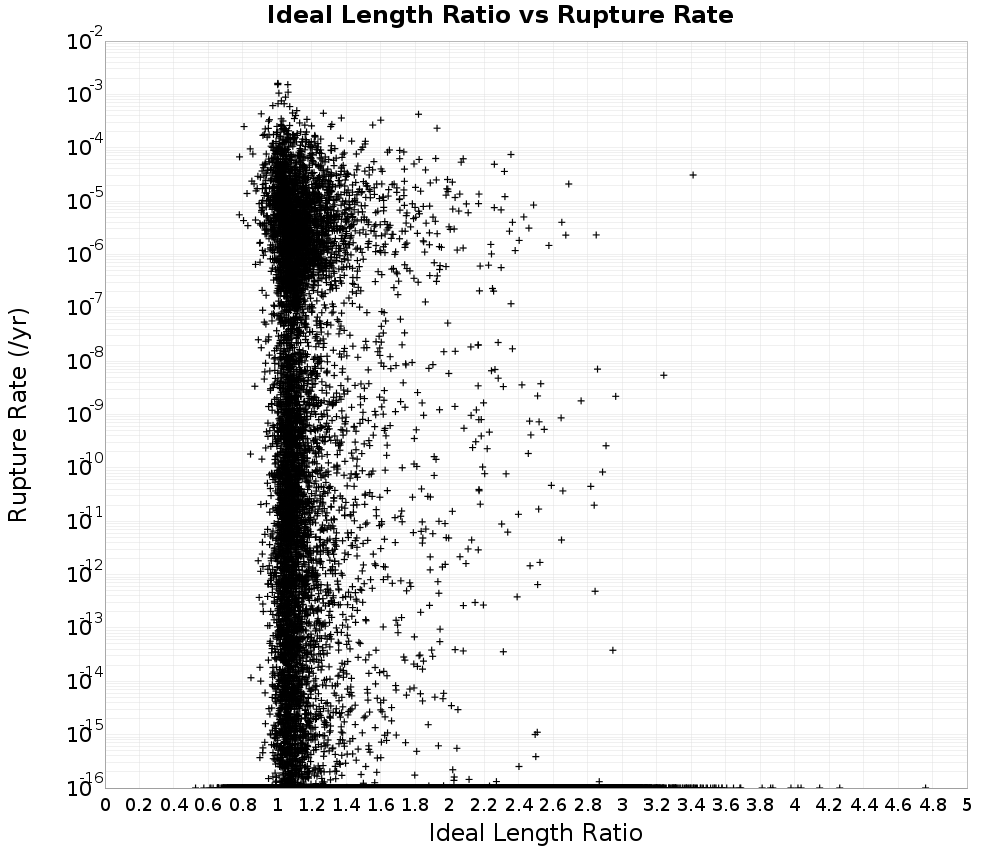

Ideal Length Ratio vs Rupture Rate

(top)

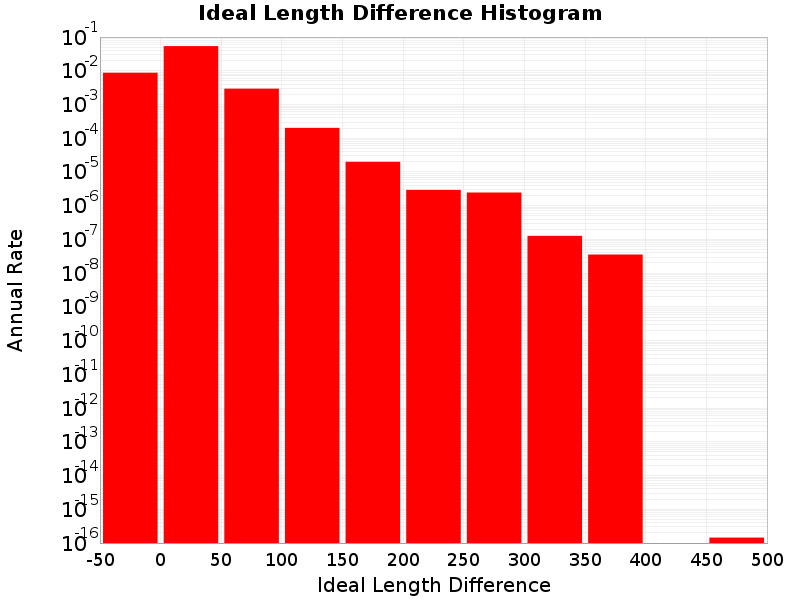

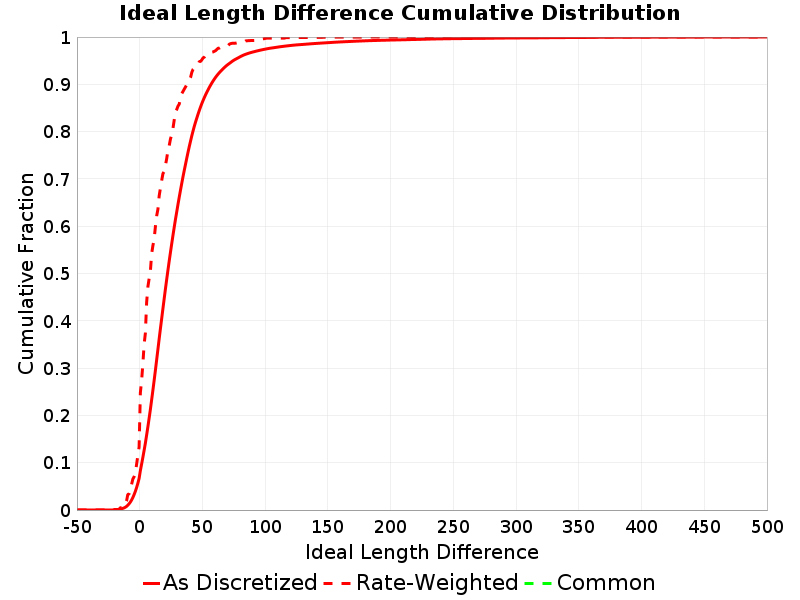

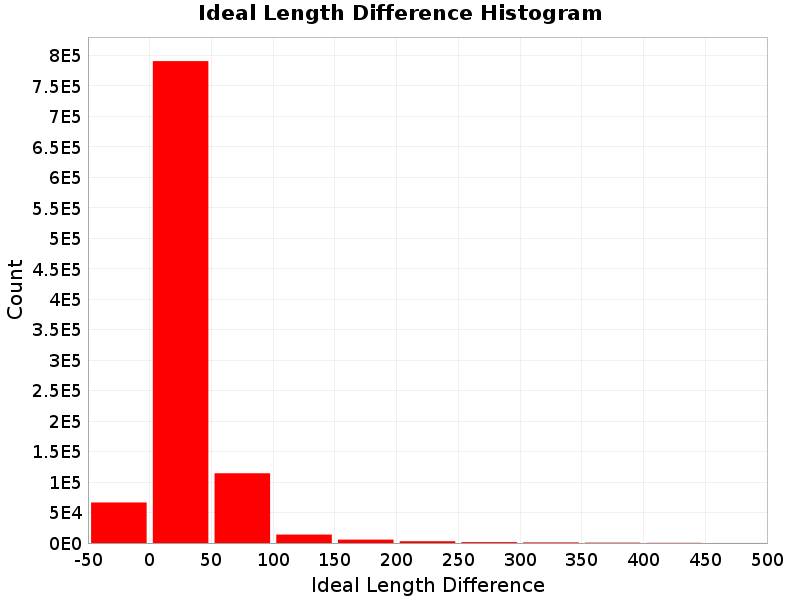

Ideal Length Difference

(top)

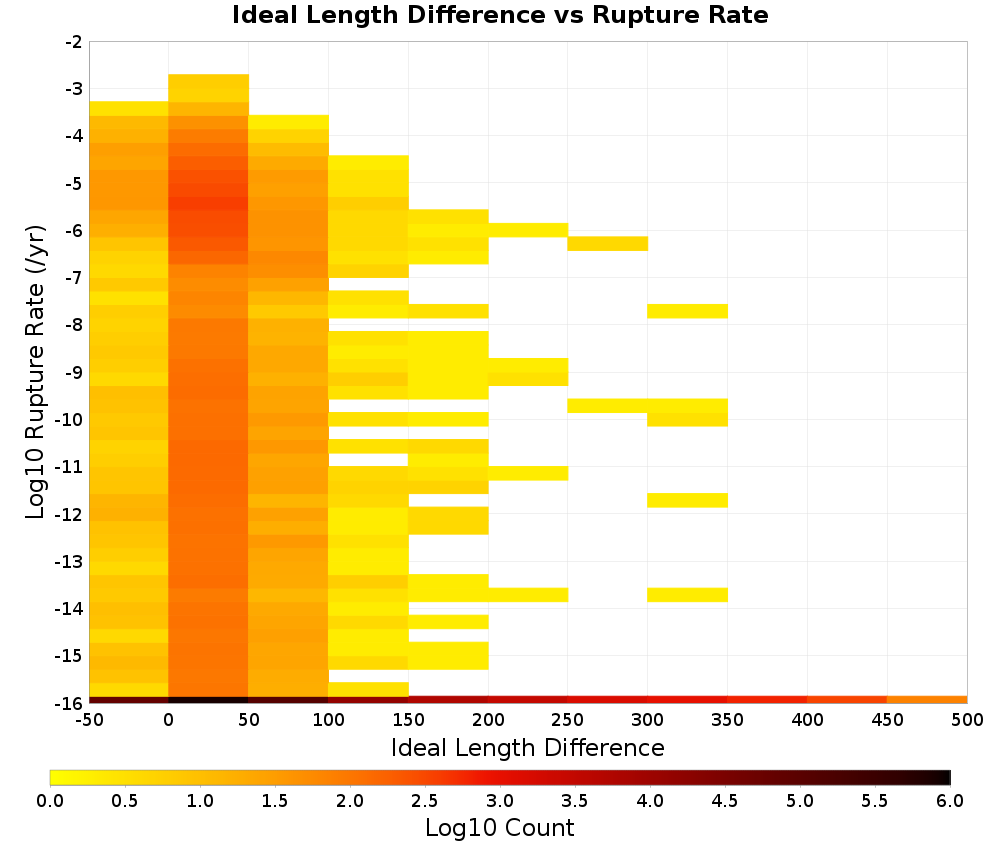

The difference between the total length of this rupture and the 'idealized length,' which we define as the straight line distance between the furthest two subsections.
