Solution Report: Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU2NTYuMGI0WU5j

Num Ruptures447,797
Num Single-Stranded Ruptures447,797 (100.00%)
Total Supra-Seis Rupture Rate0.057653412
Total Supra-Seis Recurrence Interval17.35 yrs
Total Moment Rate3.036042e19 N-m/yr
Deformation Model Total Moment Rate3.120471e19 N-m/yr
Magnitude Range[6.03,8.72]
Length Range[1.86,1132.40] km
Rupture Section Count Range[2,109]

Table Of Contents

General Information

(top)

Test down-dip subsectioning rup set

Logic Tree Branch

(top)

LevelChoice
Fault RegimeFault Regime
NZSHM22_SpatialSeisPDFNZSHM22_1346
Slip Along Rupture Model (Dsr)Uniform
NZSHM22_ScalingRelationshipNZSHM22_ScalingRelationship
NZSHM22_DeformationModelFault Model

Solution MFDs

(top)

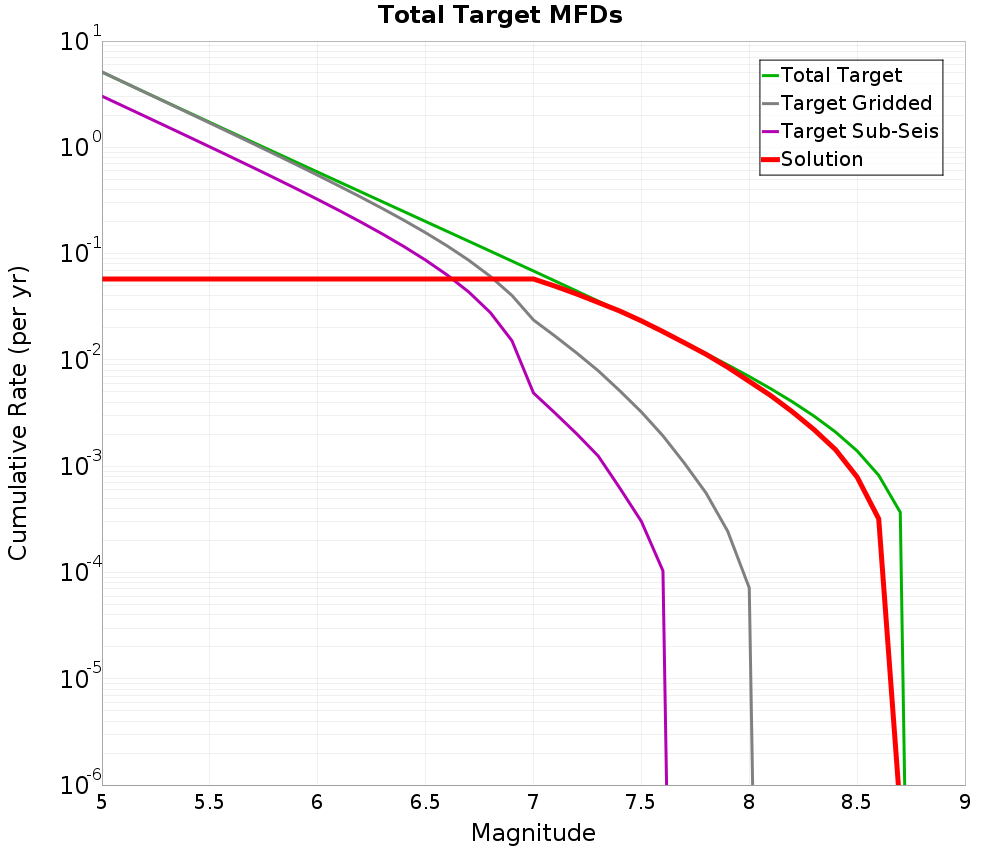

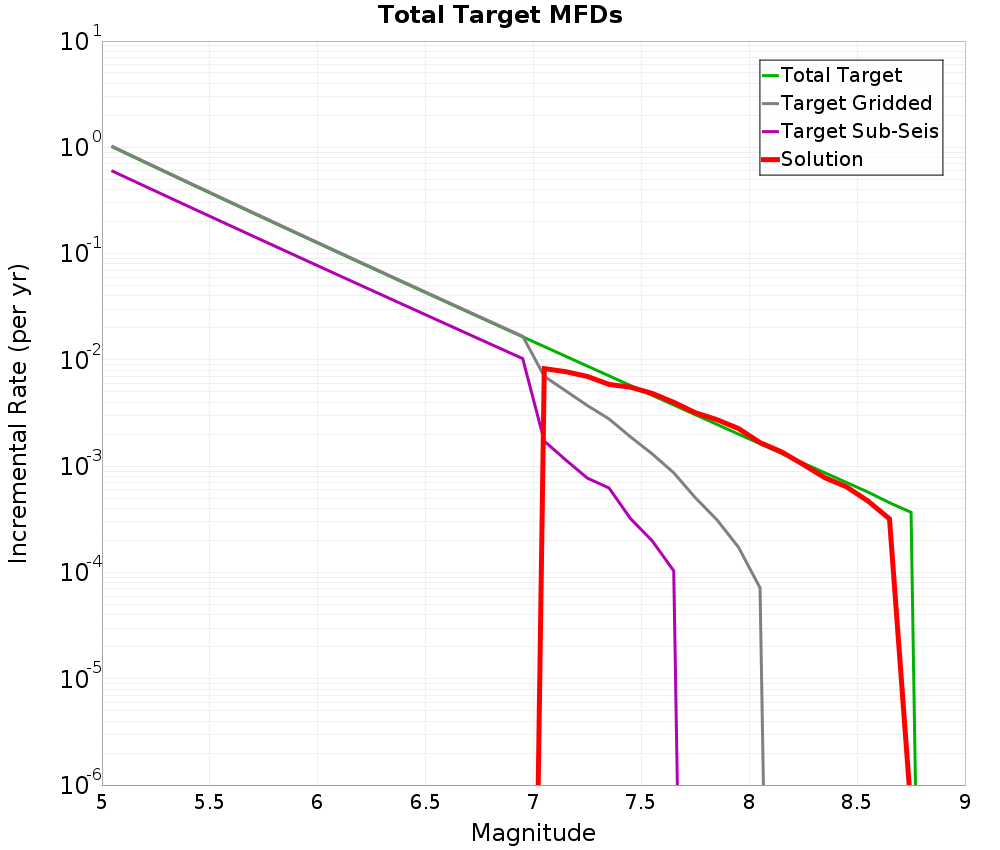

Total Target MFDs

(top)

Incremental MFDsCumulative MFDs
Incremental PlotCumulative Plot

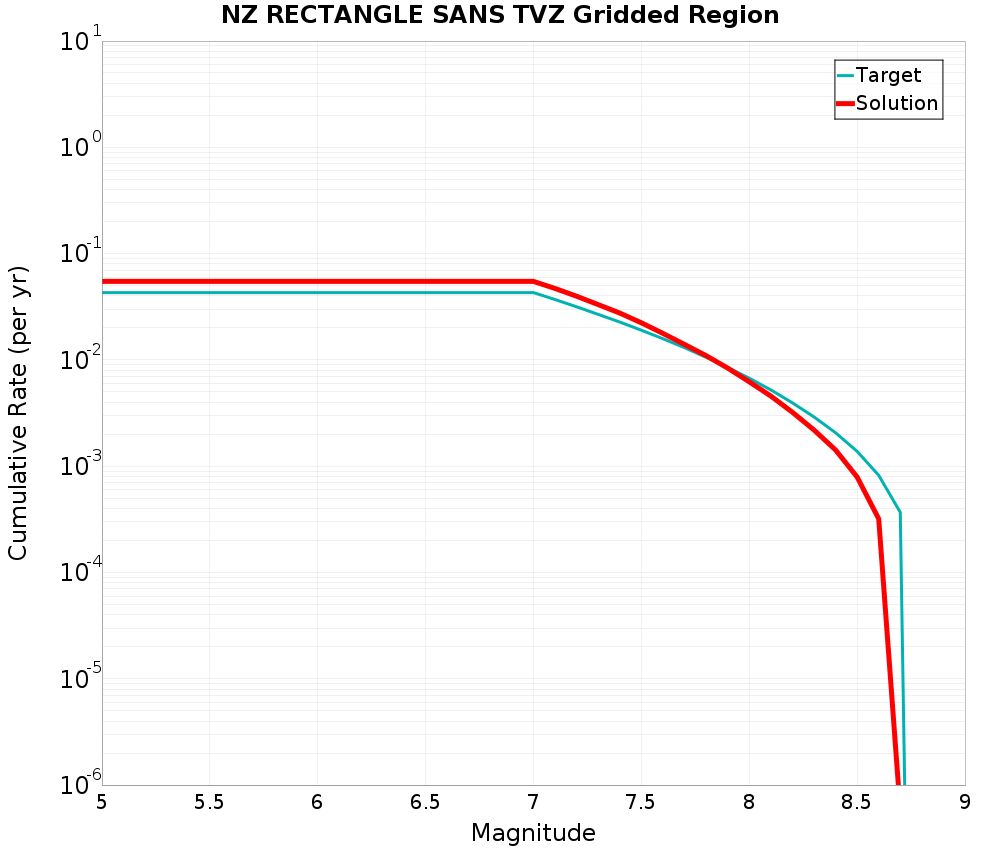

NZ RECTANGLE SANS TVZ Gridded Region

(top)

Incremental MFDsCumulative MFDs
Incremental PlotCumulative Plot

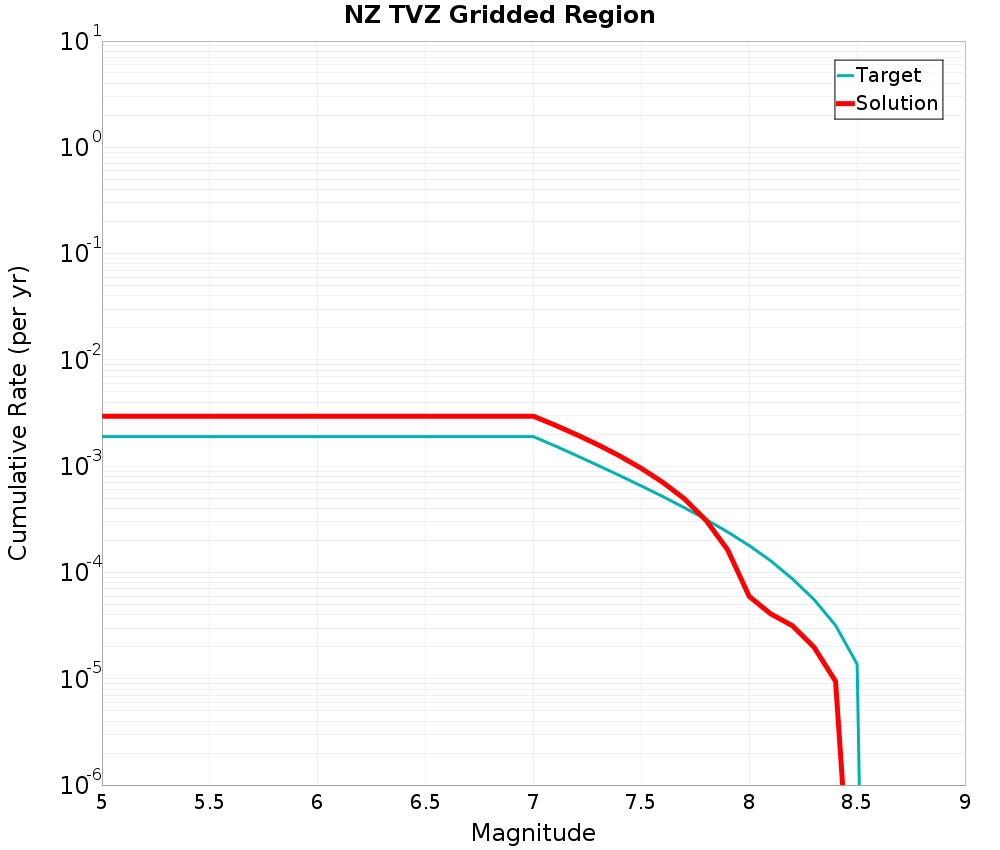

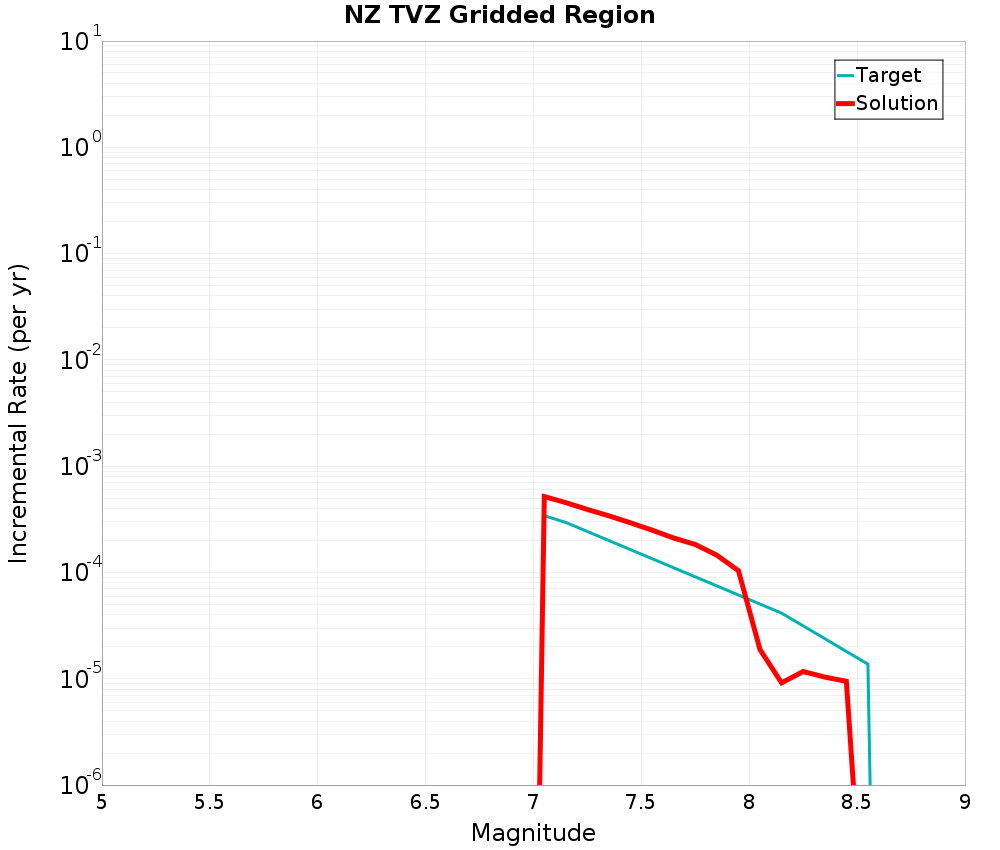

NZ TVZ Gridded Region

(top)

Incremental MFDsCumulative MFDs
Incremental PlotCumulative Plot

Simulated Annealing Energy

(top)

Iterations168,925,237
Time1 hour 0.4 mins
Iterations Per Sec.46,609
Perturbations12,687,141
Iterations Per Perturb.13.31
Total Energy1.11063644E10

Final Energies

(top)

Energy TypeFinal Energy (1 hour 0.4 mins)% of TotalAfter 30 mins
Total Energy1.11063644E101.14033213E10
Equality Energy1.11063644E10100.00%1.14033213E10
Entropy Energy0.00.00%0.0
Inequality Energy0.00.00%0.0
Normalized Slip Rate7.6967798E969.30%7.9353702E9
Unnormlized Slip Rate4894765.00.04%5287588.0
Paleoseismic Event Rate2.83174144E82.55%2.91677088E8
Laplacian Smoothing (49 parents)0.0180325170.00%0.019328056
Rupture Rate Minimization0.00.00%0.0
Normalized MFD Equality3.12151603E928.11%3.1709865E9

Energy Progress

(top)

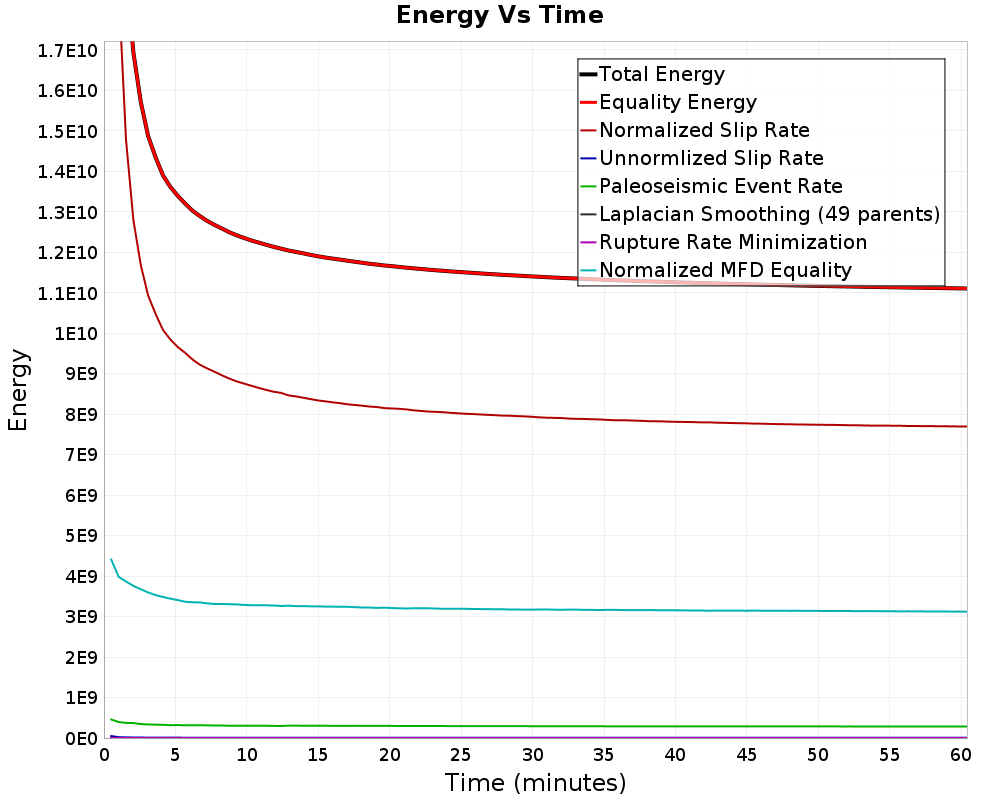

Energy vs Time

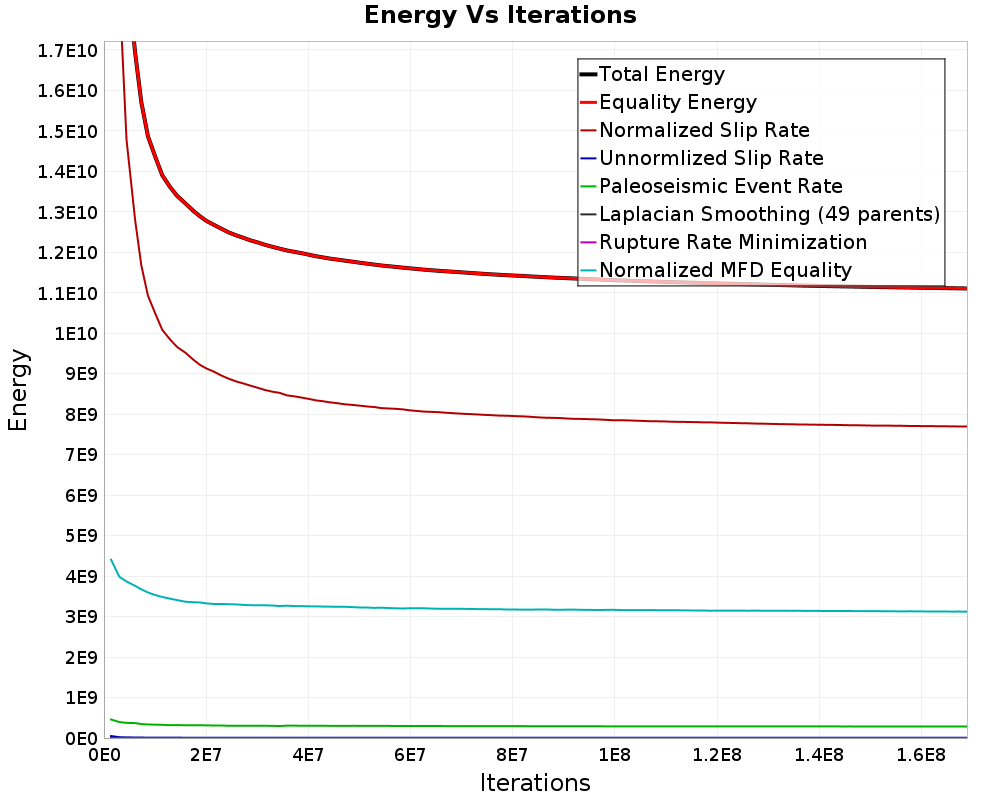

Energy vs Iterations

Perturbations

Rupture Rate Distribution

(top)

Non-zero ruptures24,006 (5.36%)
Avg. # perturbations per rupture28.33235
Avg. # perturbations per non-zero rupture528.4988

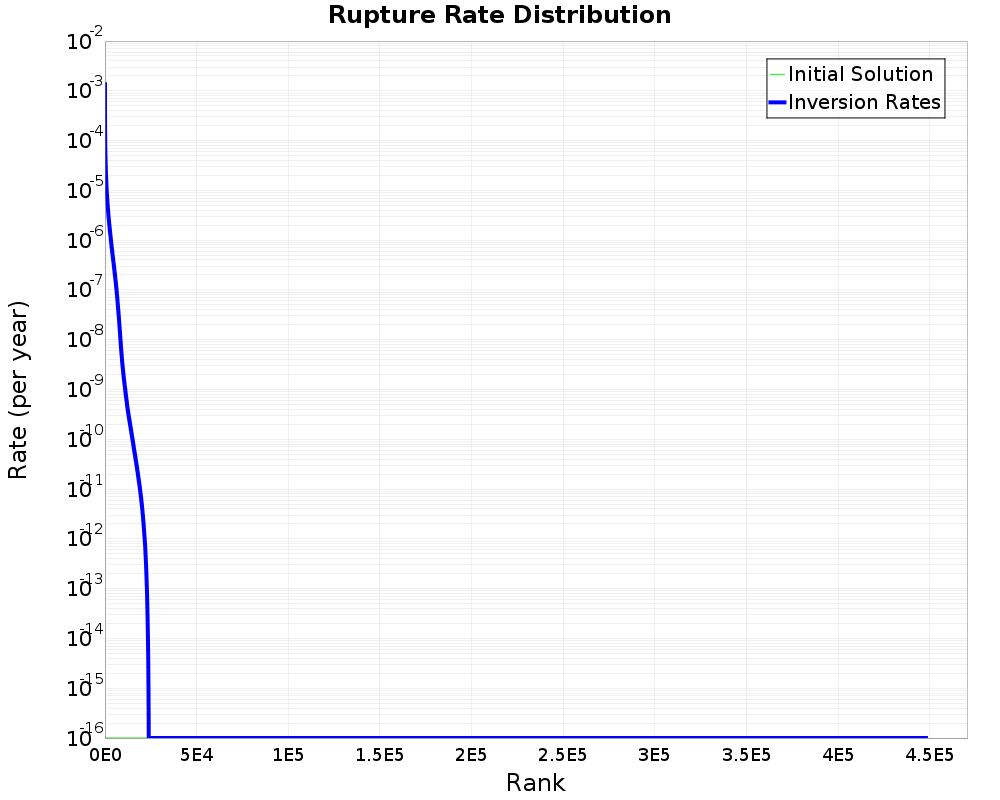

Rate Distribution

Cumulative Rate Distribution

Participation Rates

(top)

Supra-Seismogenic

Range: M≤7
MapMap
Download GeoJSON Download GeoJSON

M≥7

Range: M∈[7, 8]

MapMap
Download GeoJSON Download GeoJSON

M≥8

Map
Download GeoJSON

Plausibility Configuration

(top)

Connection Strategy

(top)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU2NTYuMGI0WU5j
NameAdaptive (r₀=6.0 km) Plausible (3 filters): maxDist=15 km, MultiEnds
Max Jump Dist15 km
Possible parent-section connectionsTotal: 2248, Avg: 3.99, Range: [0,16]
Actual connections (after applying filters)Total: 1205, Avg: 4.55, Range: [1,17]

Splays

(top)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU2NTYuMGI0WU5j
Max Allowed Splays0

Plausibility Filters

(top)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU2NTYuMGI0WU5j
Cumulative Rake Change ≤360
Min Sections Per Parent
Net Rupture [[Sum [Num ≥0]]/Count]>0.75
No Indirect Connections
P(Rel Slip Rate (@incr.)) ≥0.05
P(Shaw07 [R₀=3]) ≥0.001
Path [P(Rel CFF Sect, Fav15km) ≥0.01, P(CFF Sect Ratio, N=2, Fav15km) ≥0.5]

Rupture Scalar Histograms

(top)

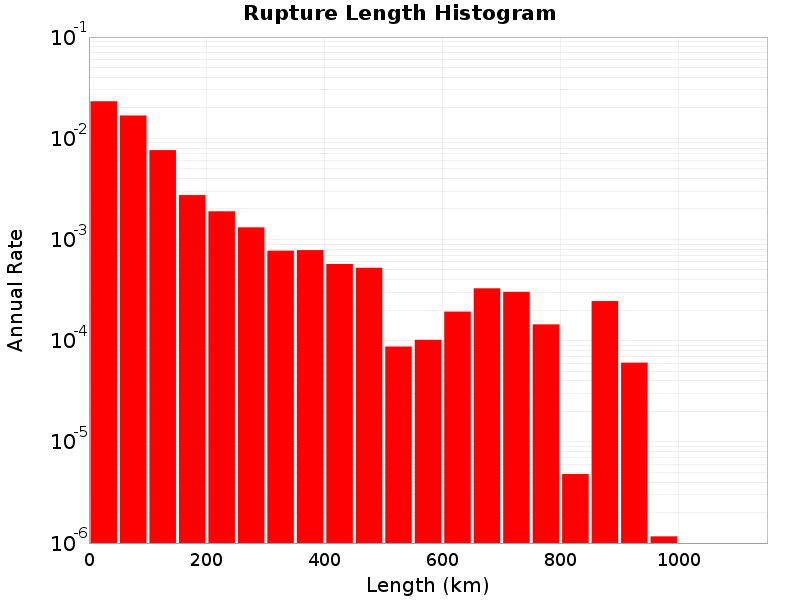

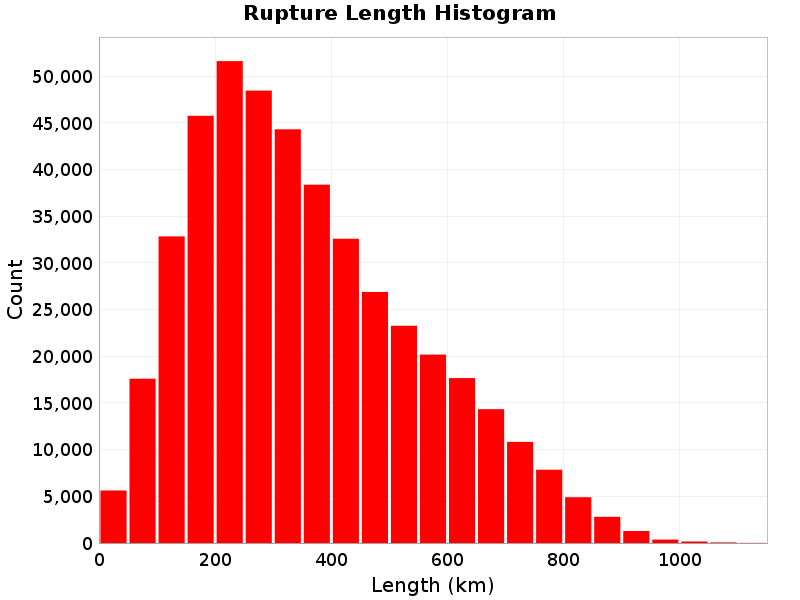

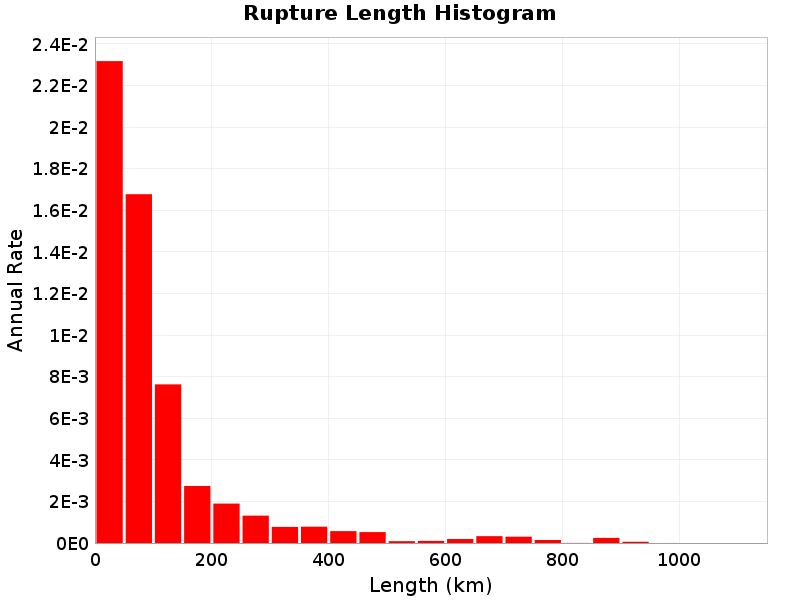

Rupture Length

(top)

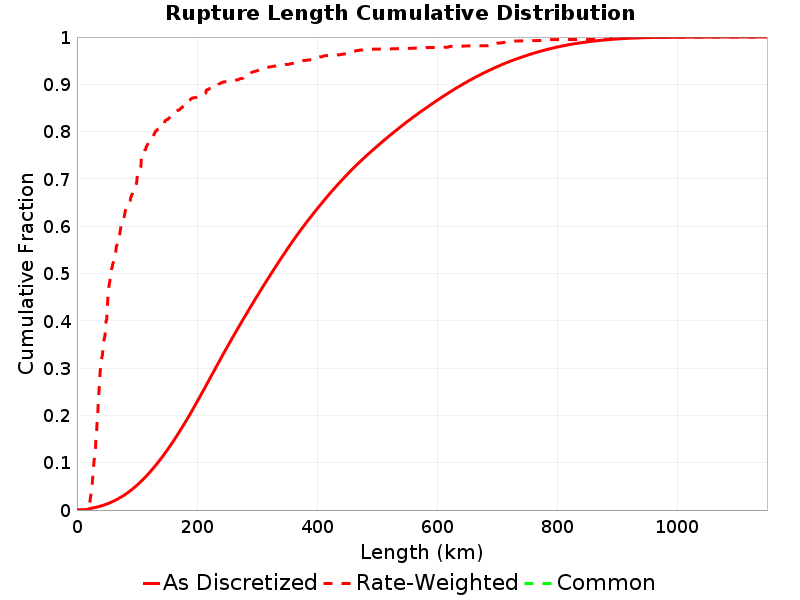

Total length (km) of the rupture, not including jumps or gaps.

hist
hist
hist
hist

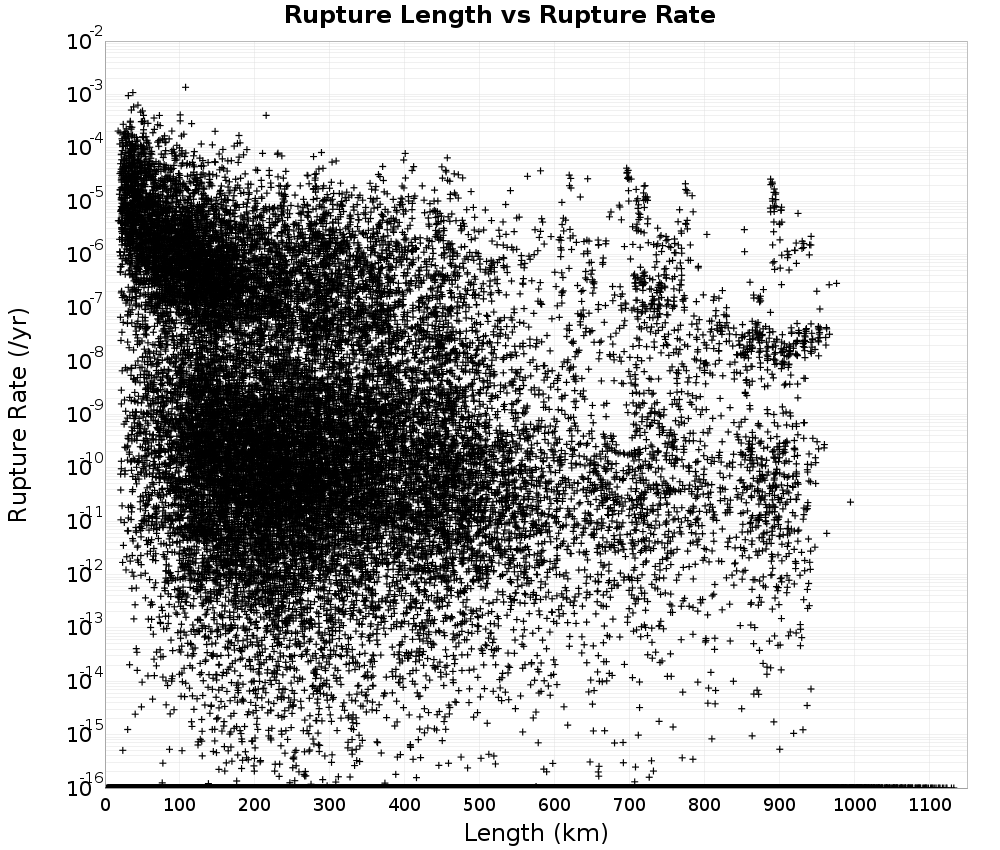

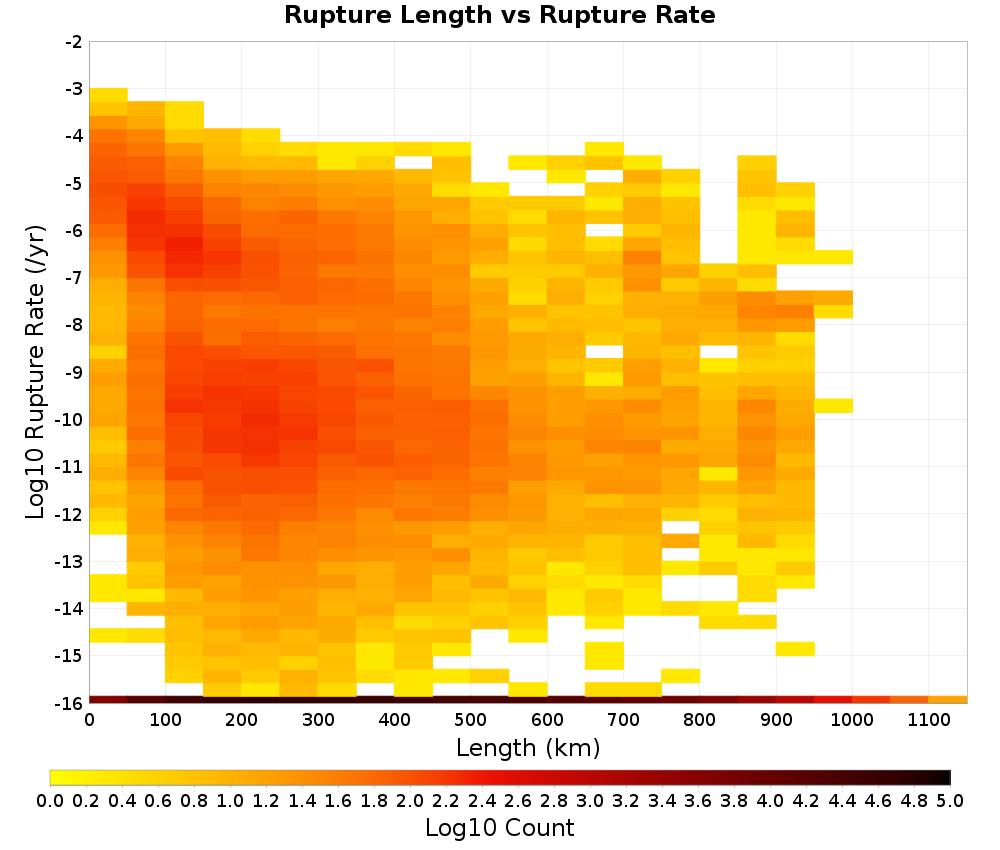

Rupture Length vs Rupture Rate

(top)

rate comparisonrate hist

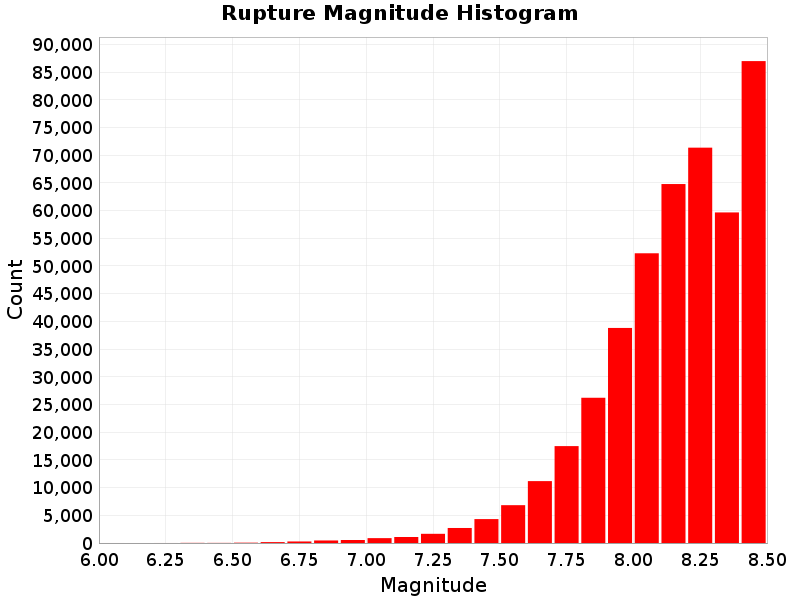

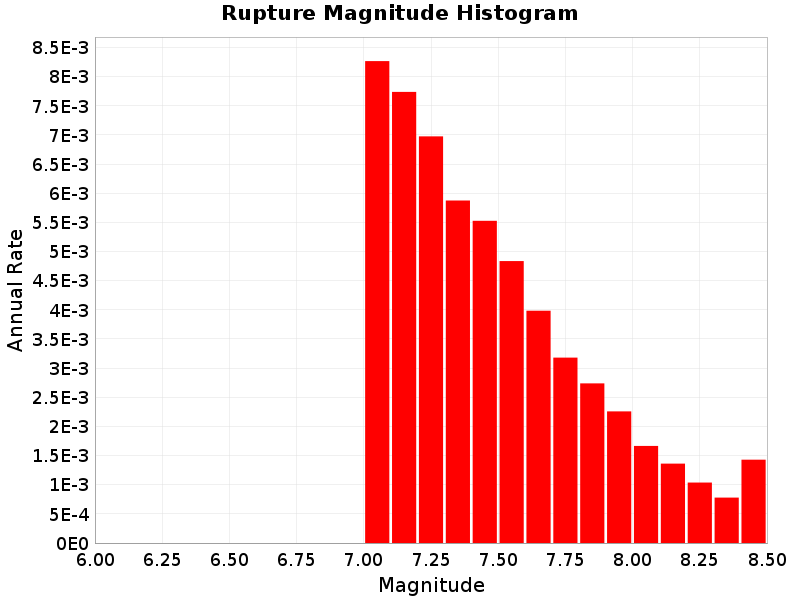

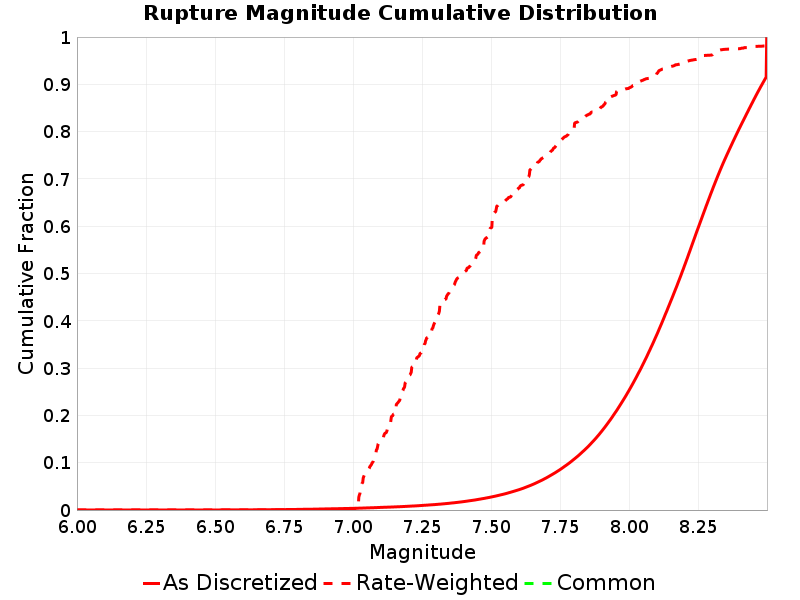

Rupture Magnitude

(top)

Magnitude of the rupture.

hist
hist
hist
hist

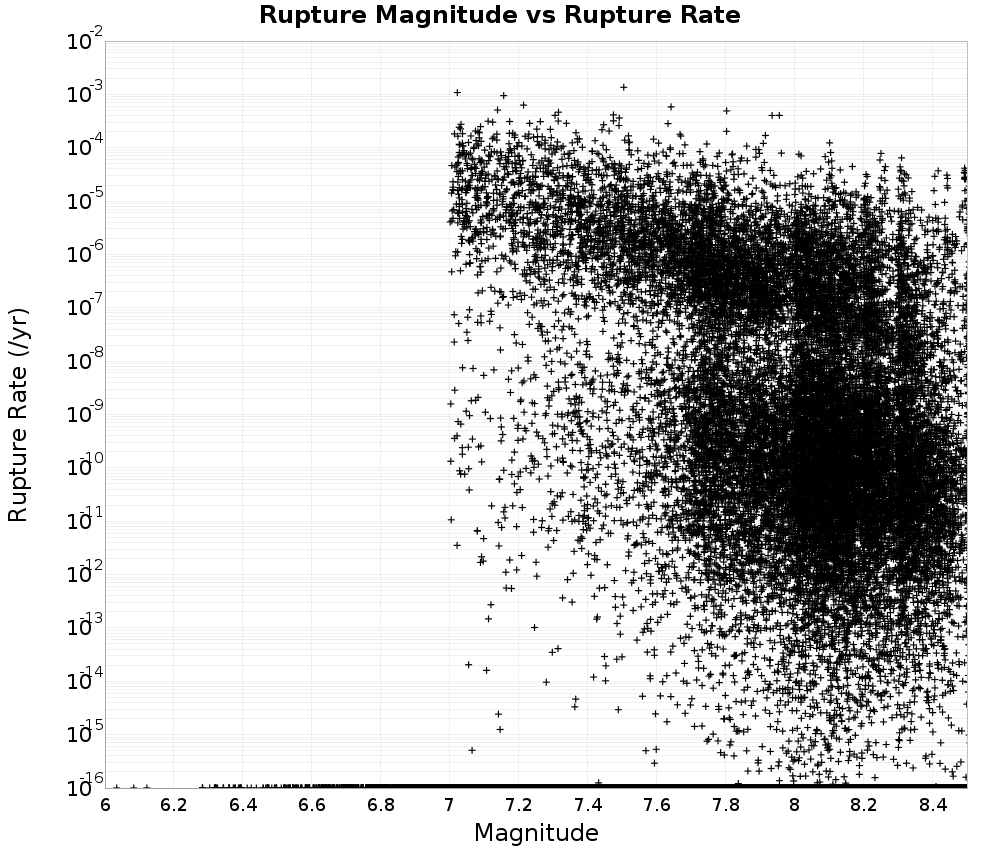

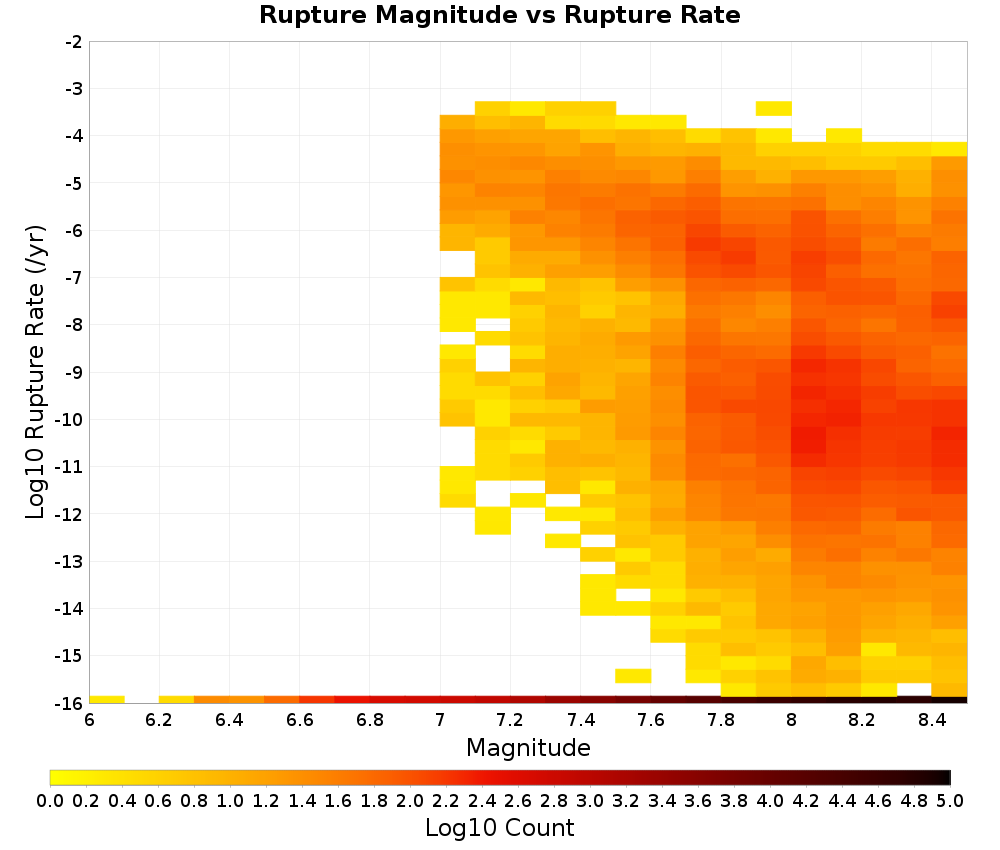

Rupture Magnitude vs Rupture Rate

(top)

rate comparisonrate hist

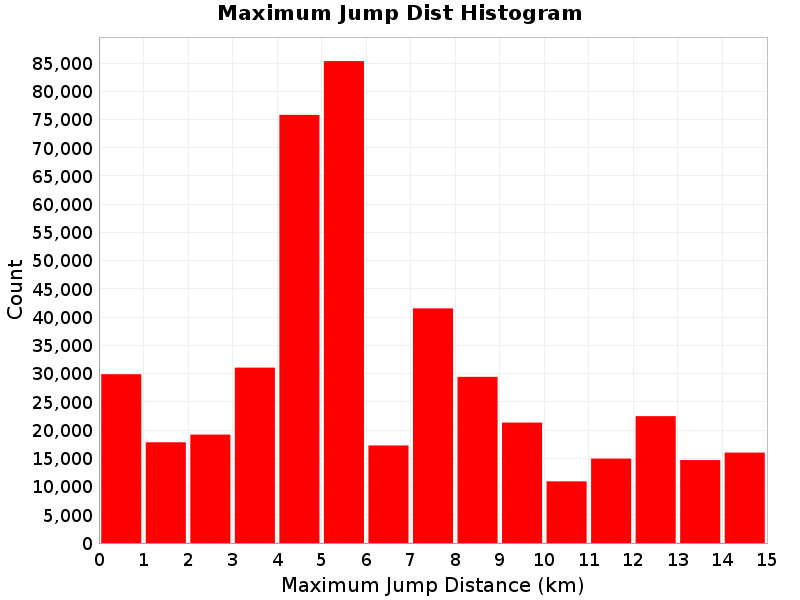

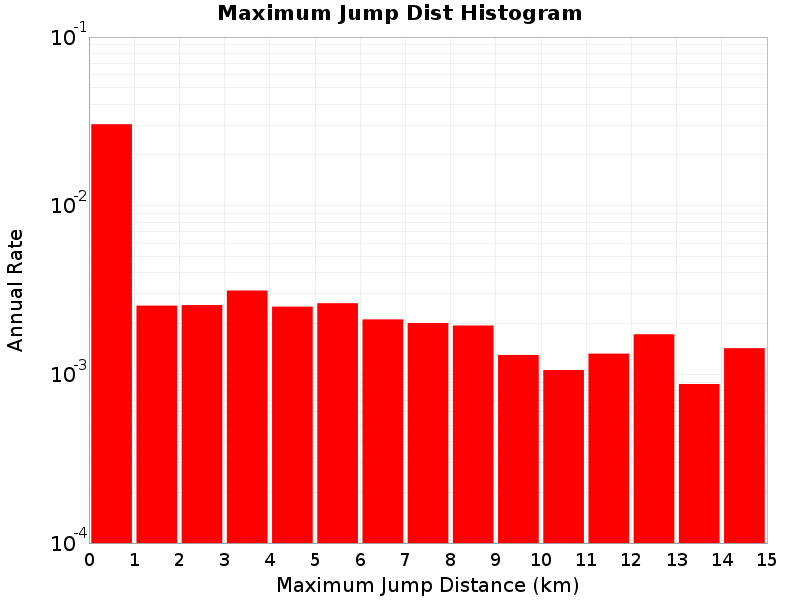

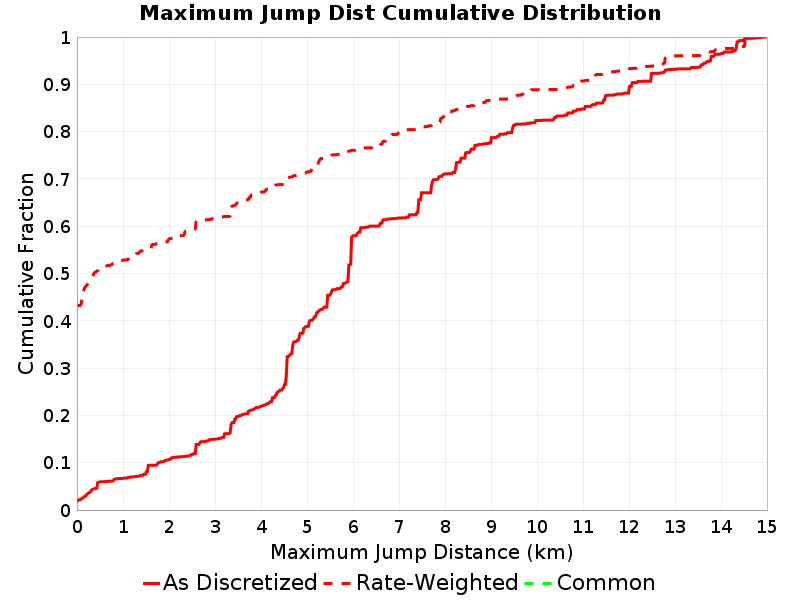

Maximum Jump Dist

(top)

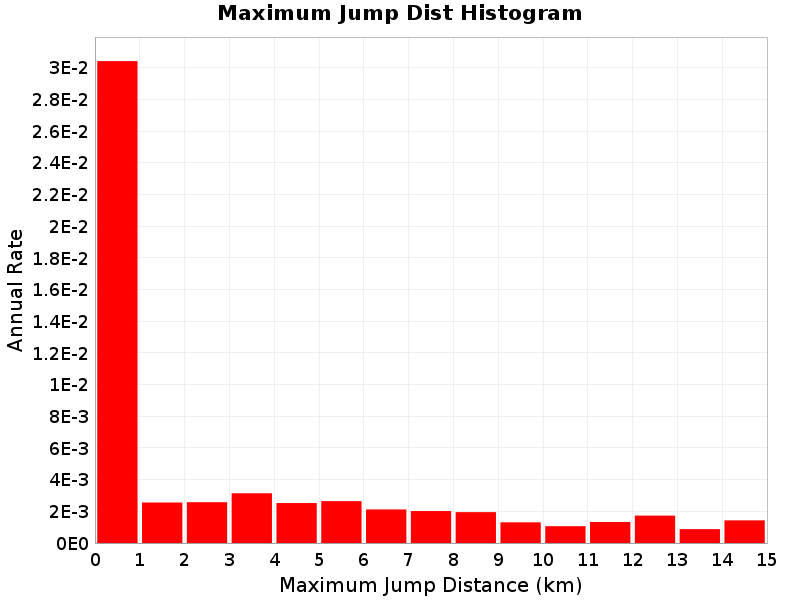

The maximum jump distance in the rupture.

hist
hist
hist
hist

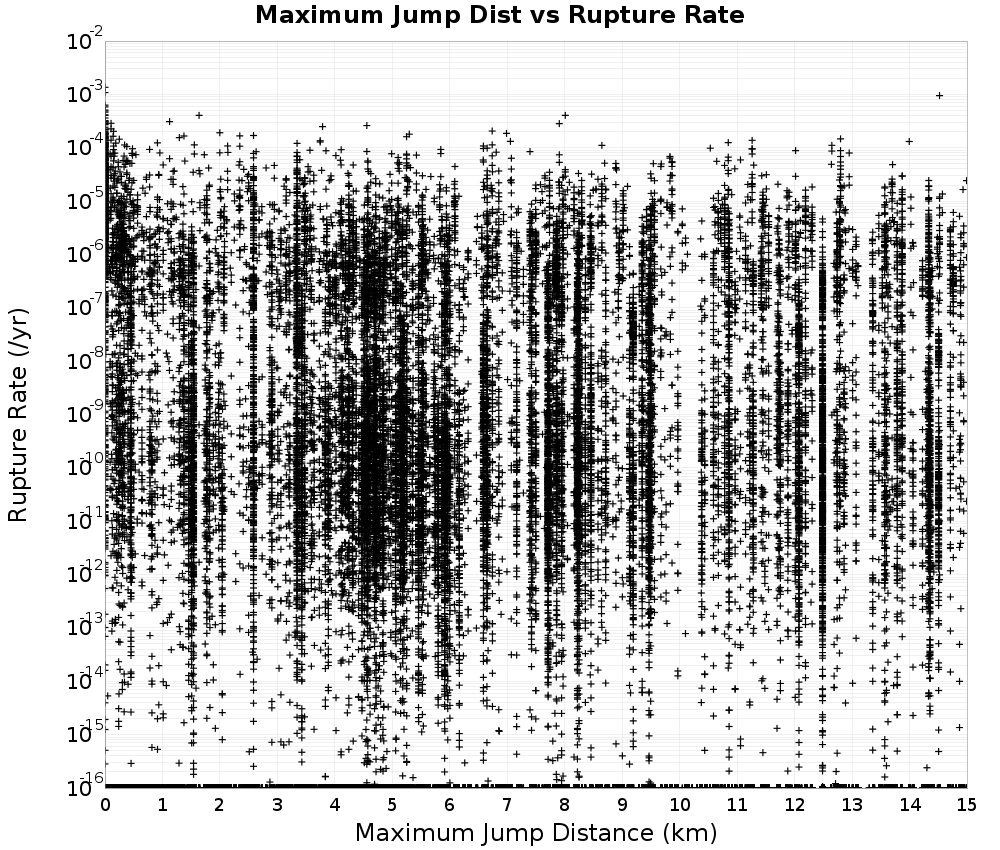

Maximum Jump Dist vs Rupture Rate

(top)

rate comparisonrate hist

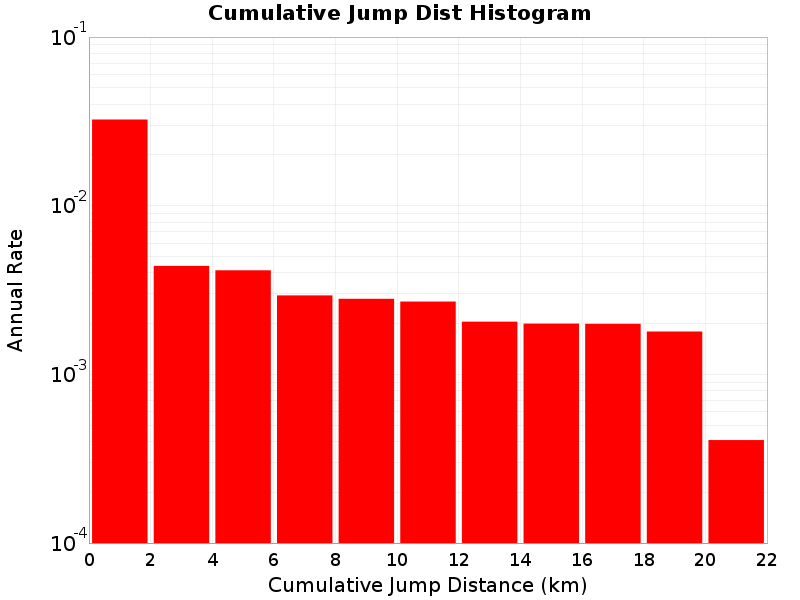

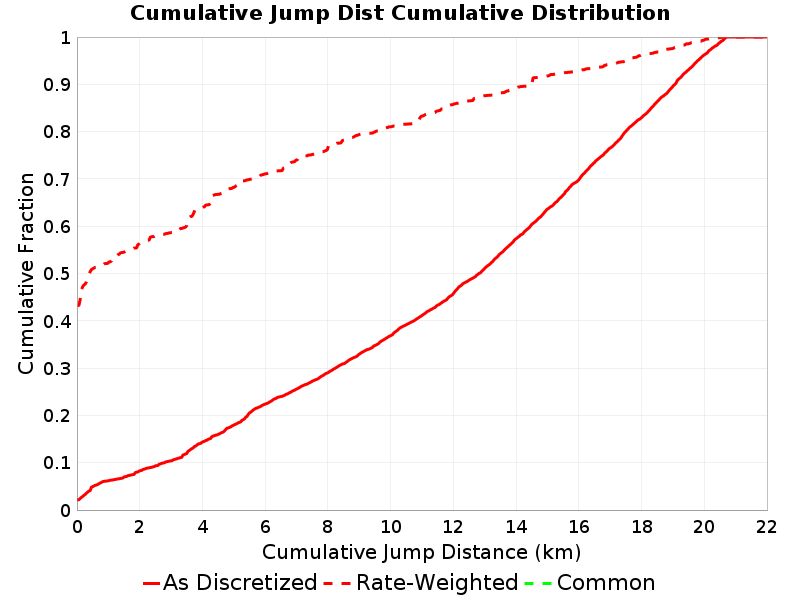

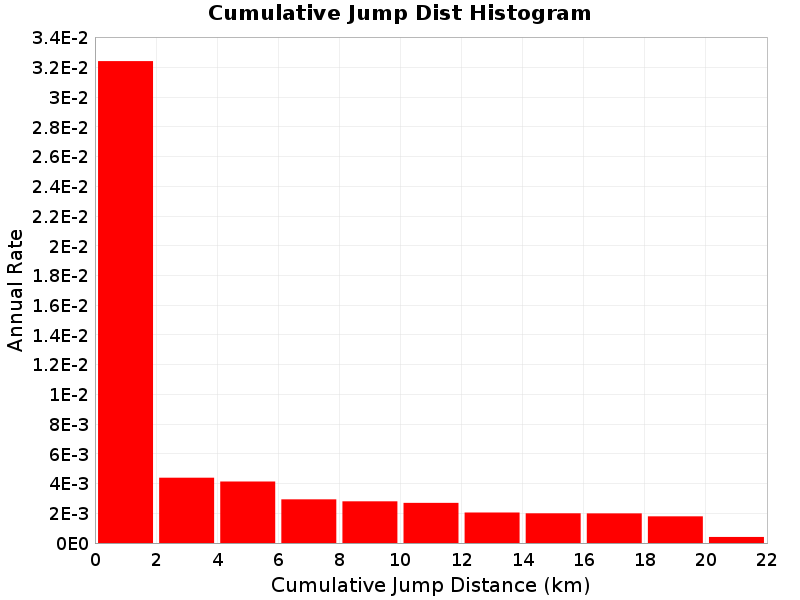

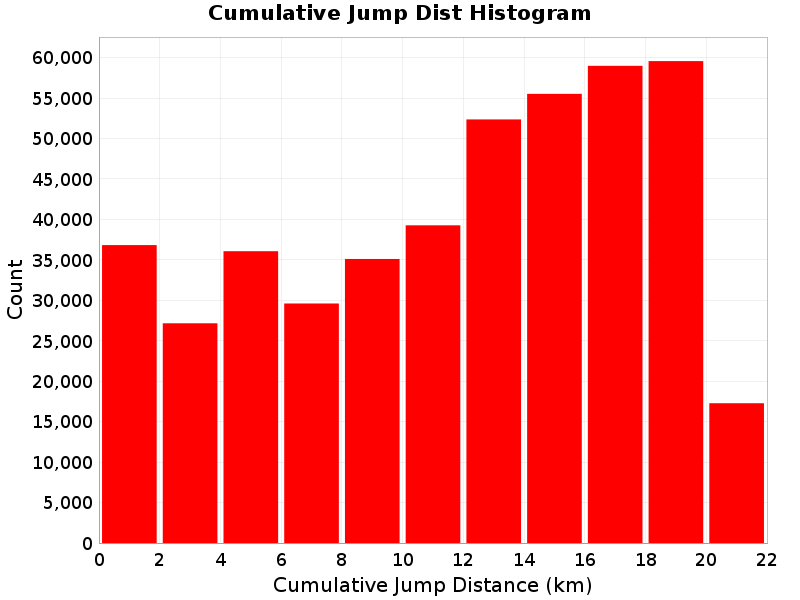

Cumulative Jump Dist

(top)

The total cumulative jump distance summed over all jumps in the rupture.

hist
hist
hist
hist

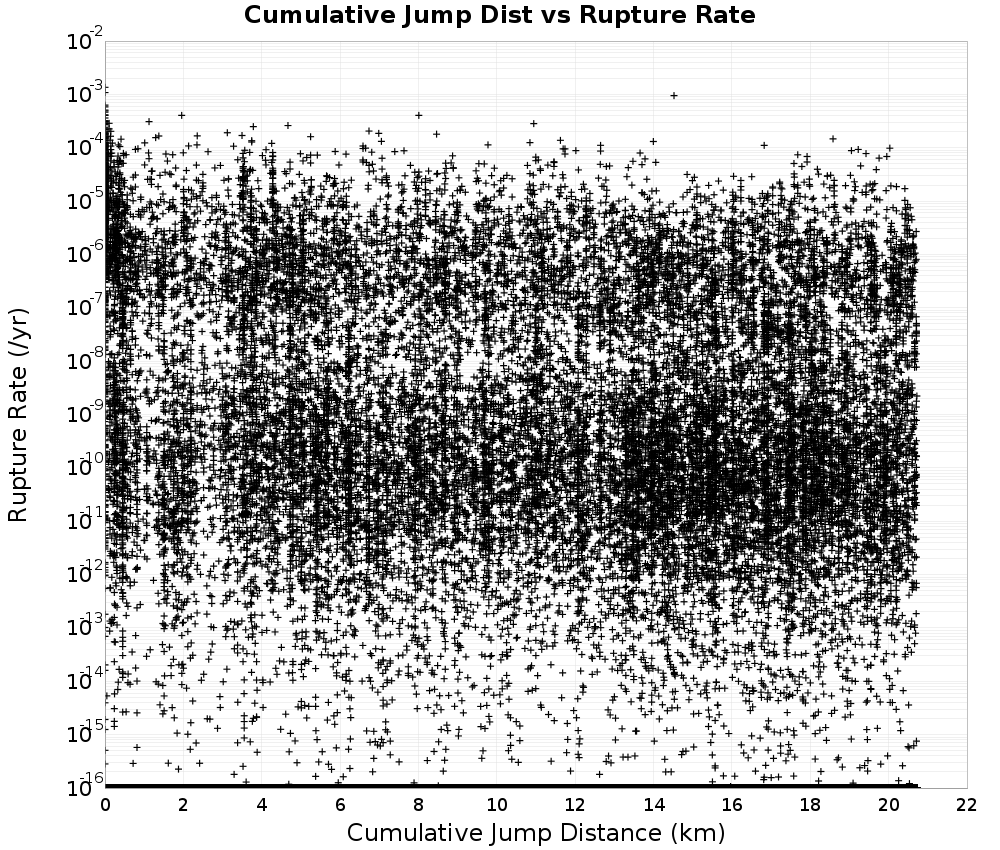

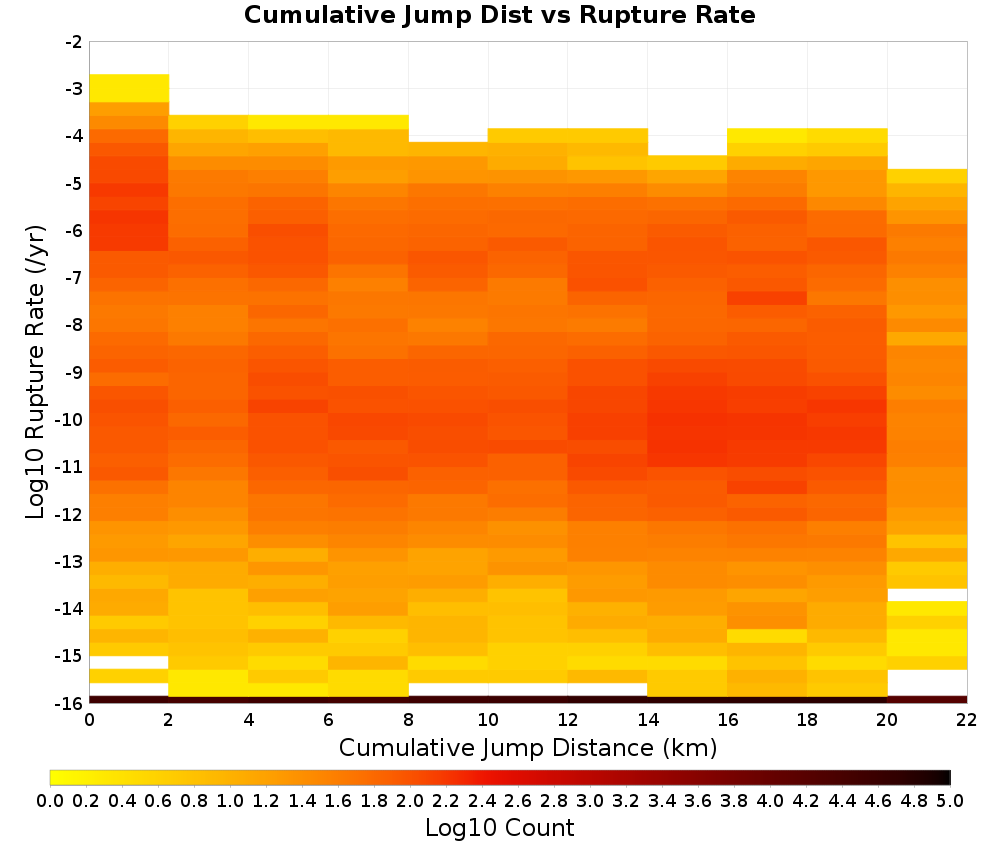

Cumulative Jump Dist vs Rupture Rate

(top)

rate comparisonrate hist

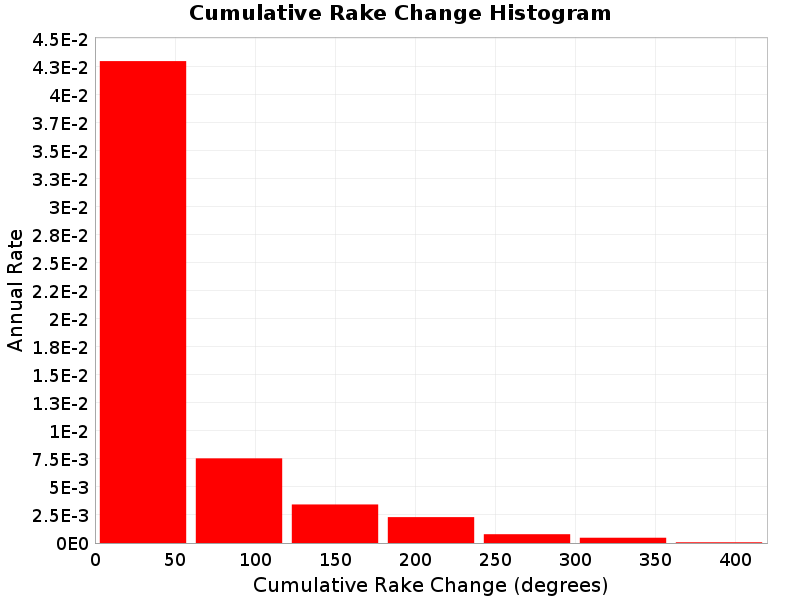

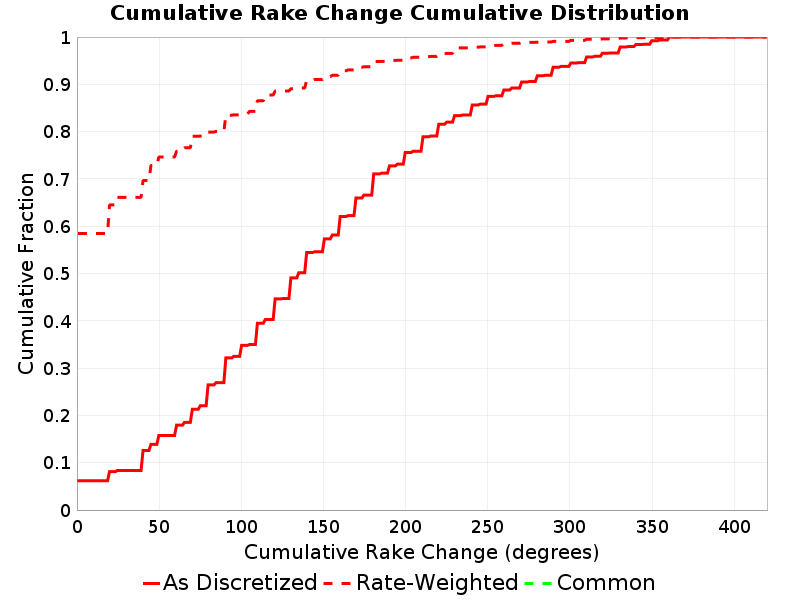

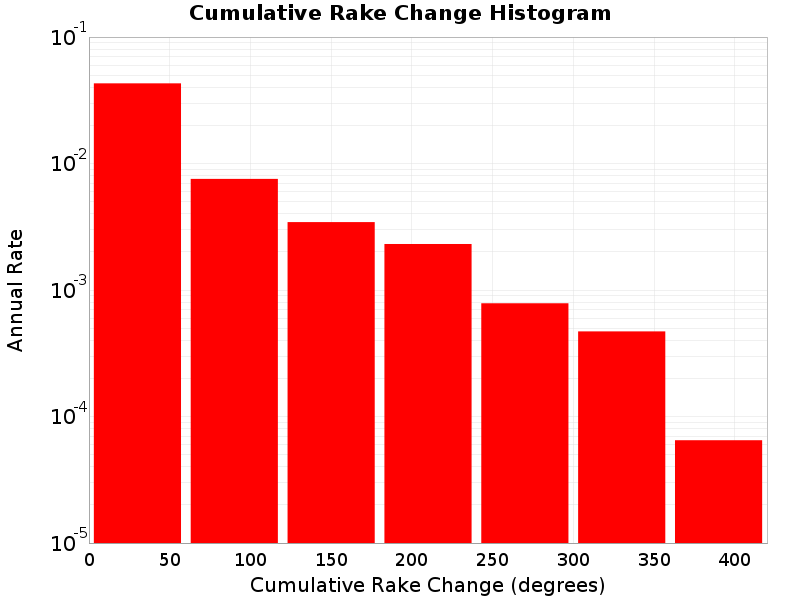

Cumulative Rake Change

(top)

Cumulative rake change for this rupture.

hist
hist
hist
hist

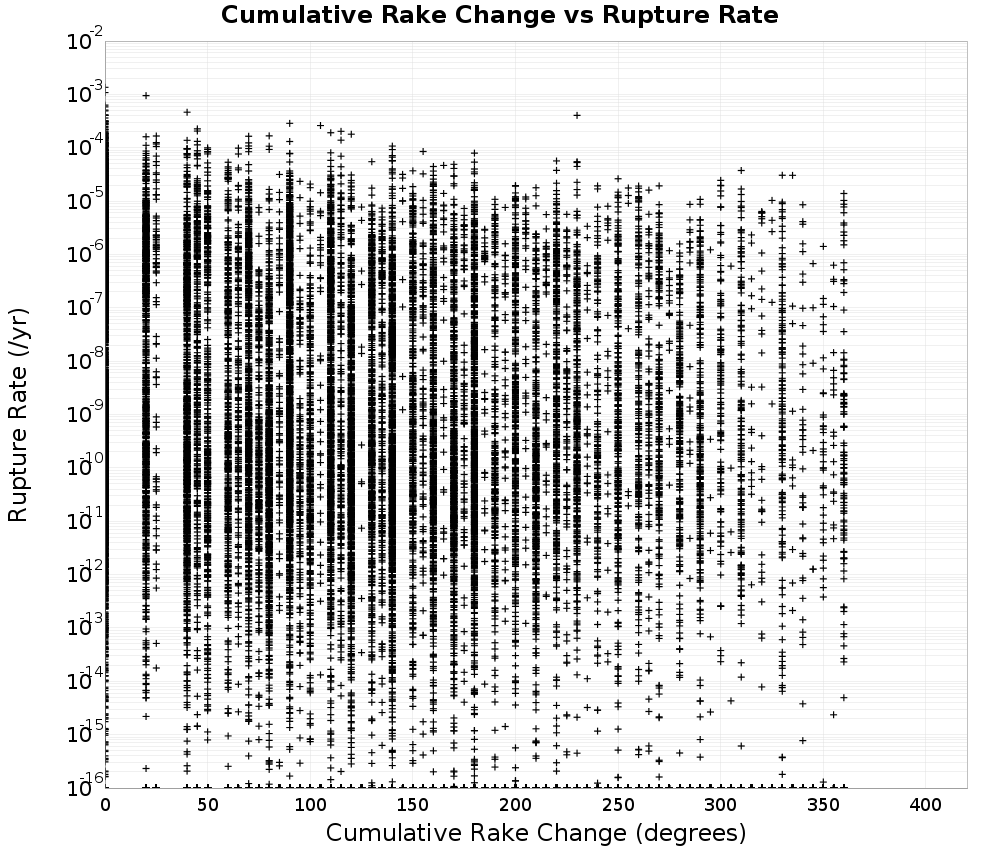

Cumulative Rake Change vs Rupture Rate

(top)

rate comparisonrate hist

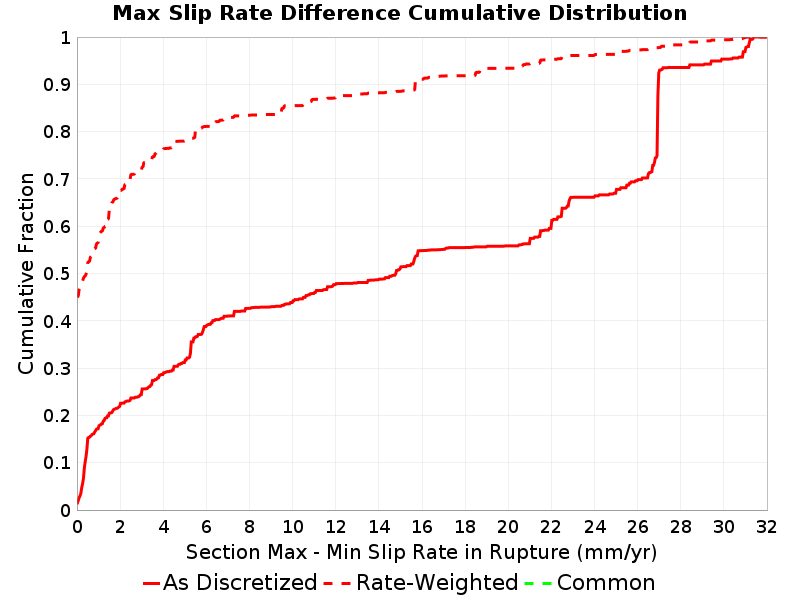

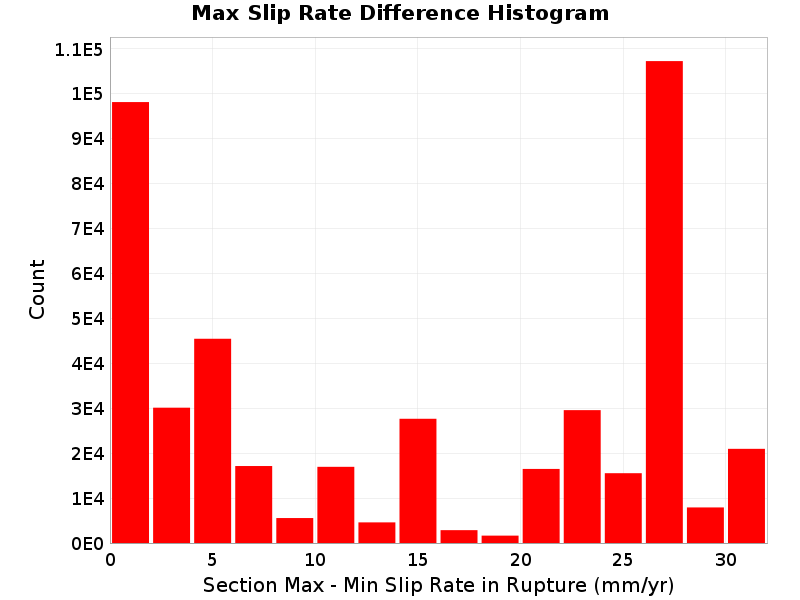

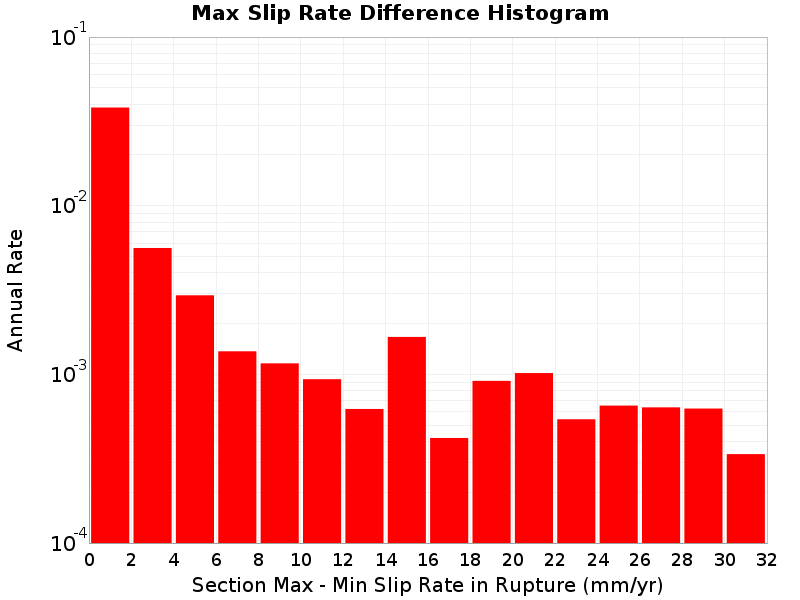

Max Slip Rate Difference

(top)

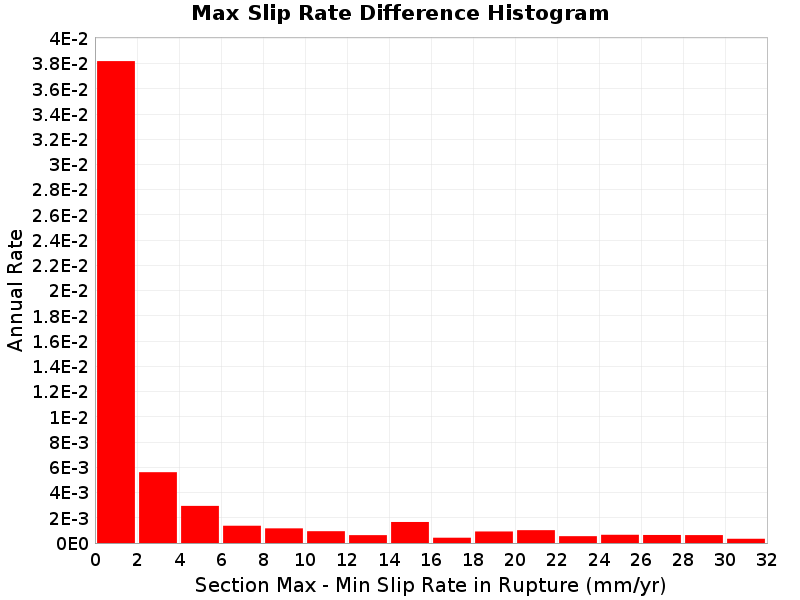

The difference between the slip rate of the sections with the highest and lowest slip rate in the rupture.

hist
hist
hist
hist

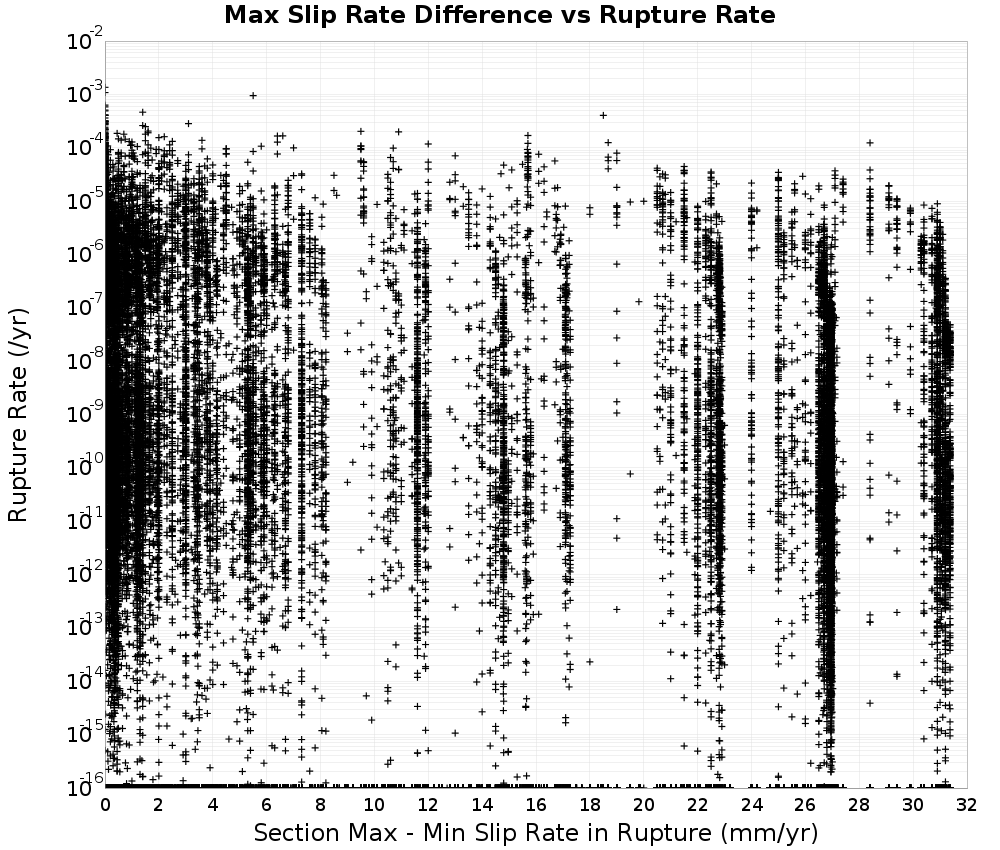

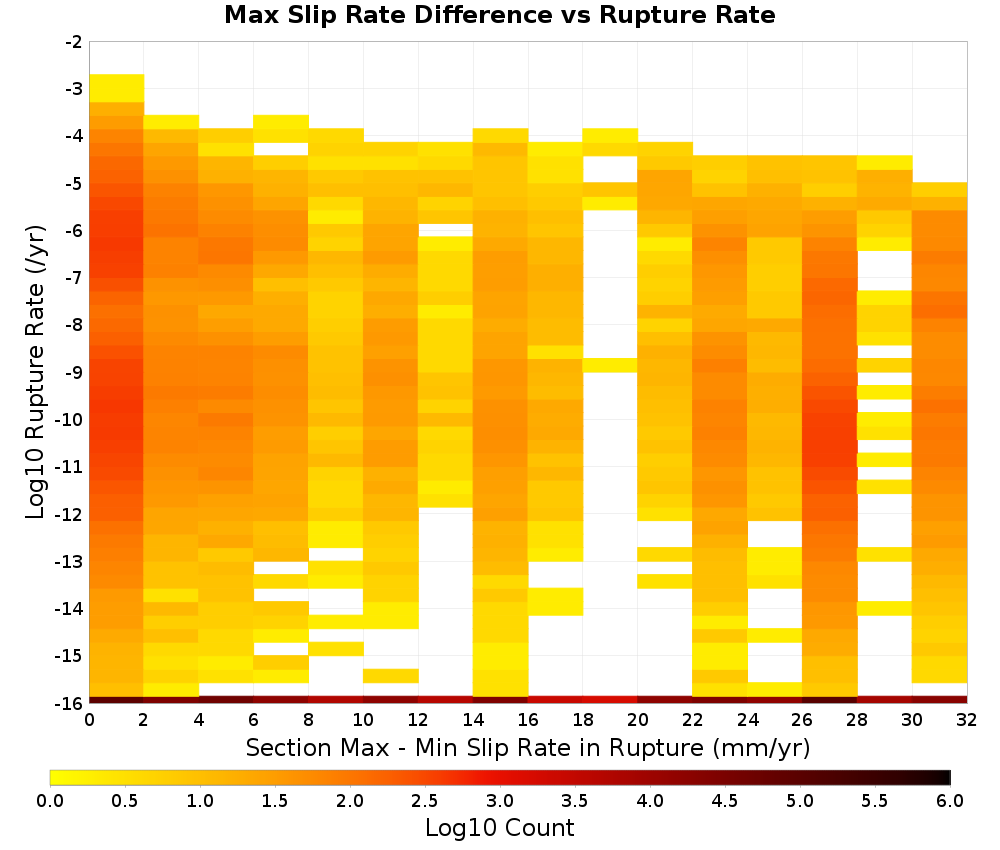

Max Slip Rate Difference vs Rupture Rate

(top)

rate comparisonrate hist

Attached Modules

(top)

List of all modules that have been attached to this Solution.

Note: Modules classes in the standard modules package, org.opensha.sha.earthquake.faultSysSolution.modules, have been shortened to omit the package name.

Rupture Set Modules

(top)

NameImplementing Class
Single-Strand Cluster RupturesClusterRuptures$SingleStranded
Plausibility Configurationorg.opensha.sha.earthquake.faultSysSolution.ruptures.plausibility.PlausibilityConfiguration
Polygon Fault Grid AssociationsPolygonFaultGridAssociations$Precomputed
Section Distance-Azimuth Calculatororg.opensha.sha.earthquake.faultSysSolution.ruptures.util.SectionDistanceAzimuthCalculator
Rupture Connection Searchorg.opensha.sha.earthquake.faultSysSolution.ruptures.util.RuptureConnectionSearch
Section Slip RatesSectSlipRates$Precomputed
Section AreasSectAreas$Precomputed
InfoInfoModule
Logic Tree Branchnz.cri.gns.NZSHM22.opensha.enumTreeBranches.NZSHM22_LogicTreeBranch
Inversion Target MFDsInversionTargetMFDs$Precomputed
Rupture Average SlipsAveSlipModule$Precomputed
Modified Section Minimum MagnitudesModSectMinMags$Precomputed
Uniform Slip Along RuptureSlipAlongRuptureModel$Uniform

Solution Modules

(top)

NameImplementing Class
Annealing Progressorg.opensha.sha.earthquake.faultSysSolution.inversion.sa.completion.AnnealingProgress
OpenSHA Build InformationBuildInfoModule
Sub-Seismogenic On-Fault MFDsSubSeismoOnFaultMFDs

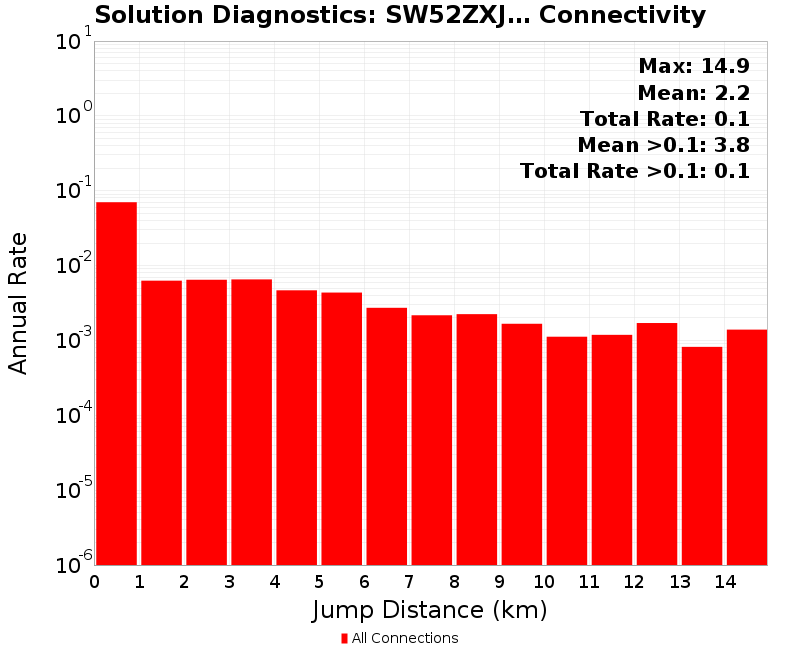

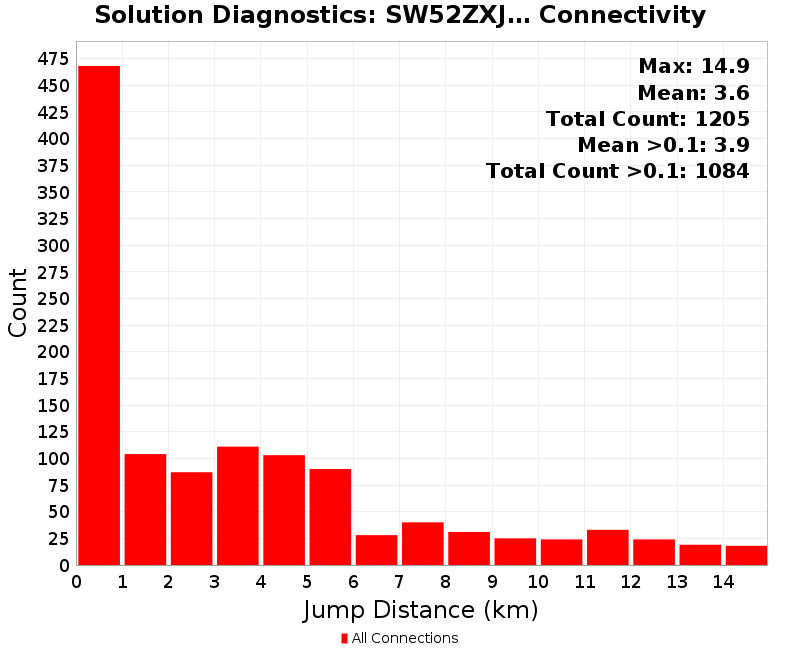

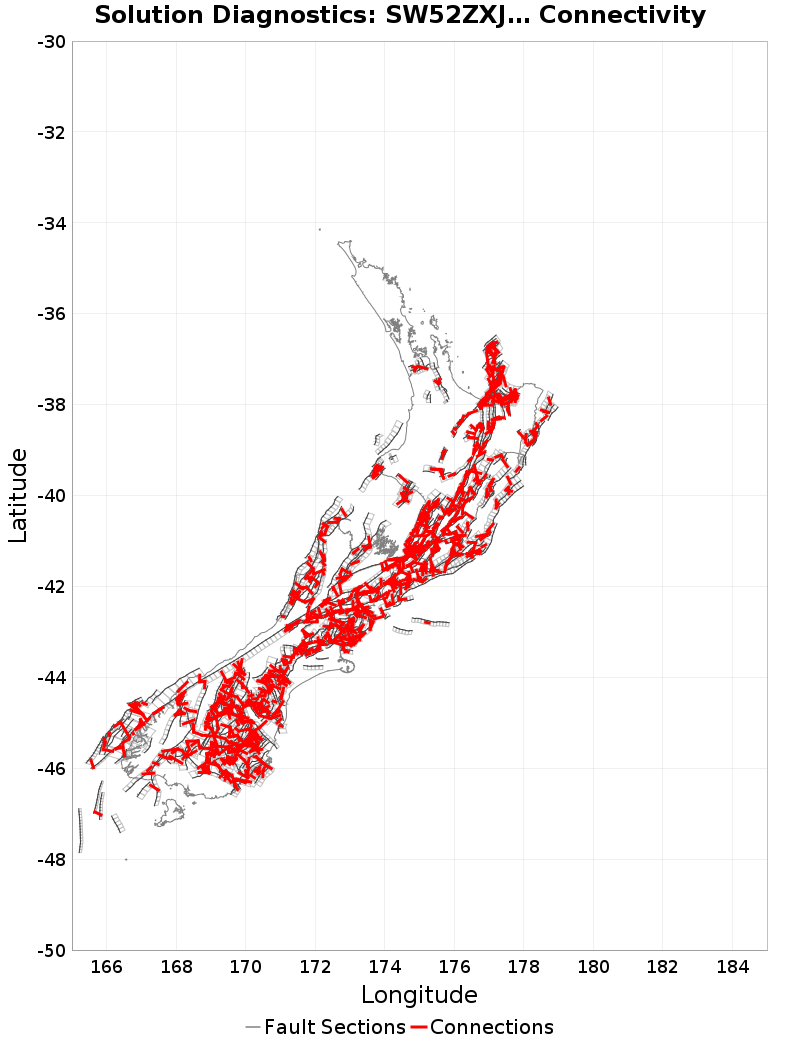

Fault Section Connections

(top)

plot
Download GeoJSON
plot
plot
plot

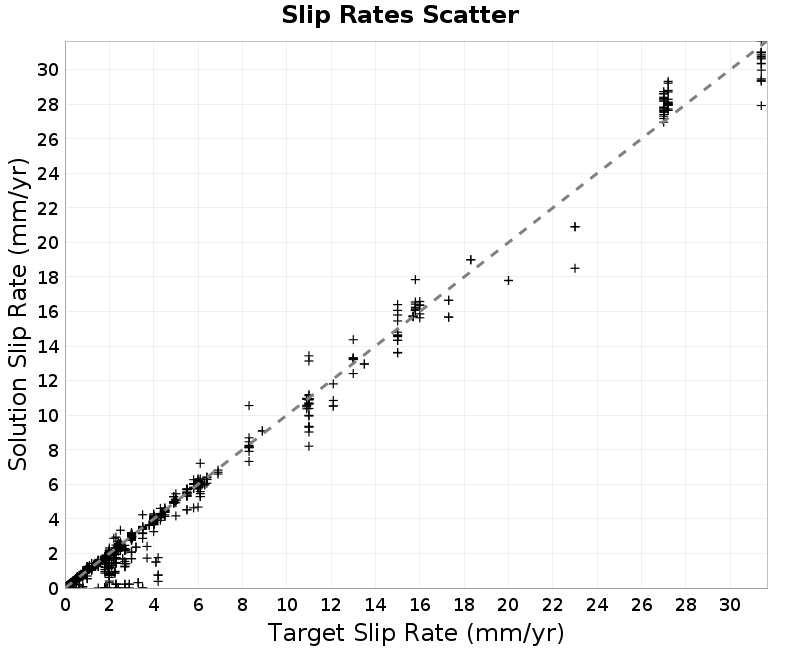

Slip Rates

(top)

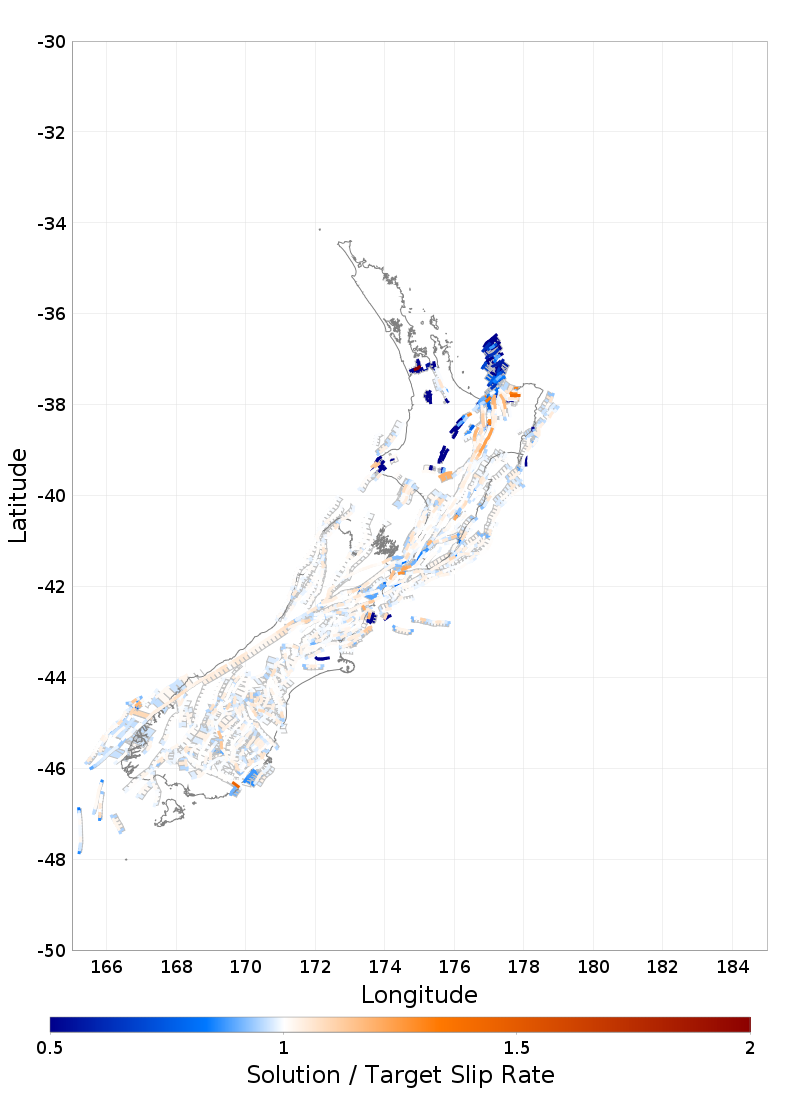

Linear Slip Rate Plots

(top)

MapMap
Download GeoJSON Download GeoJSON
MapMap
Download GeoJSON Download GeoJSON
MapMap
Download GeoJSON Download GeoJSON

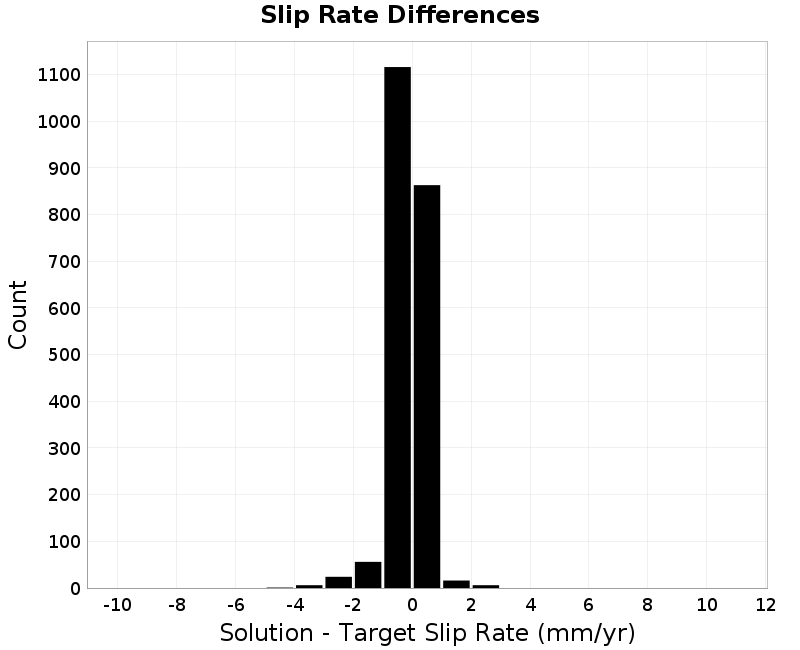

Diff histDiff hist

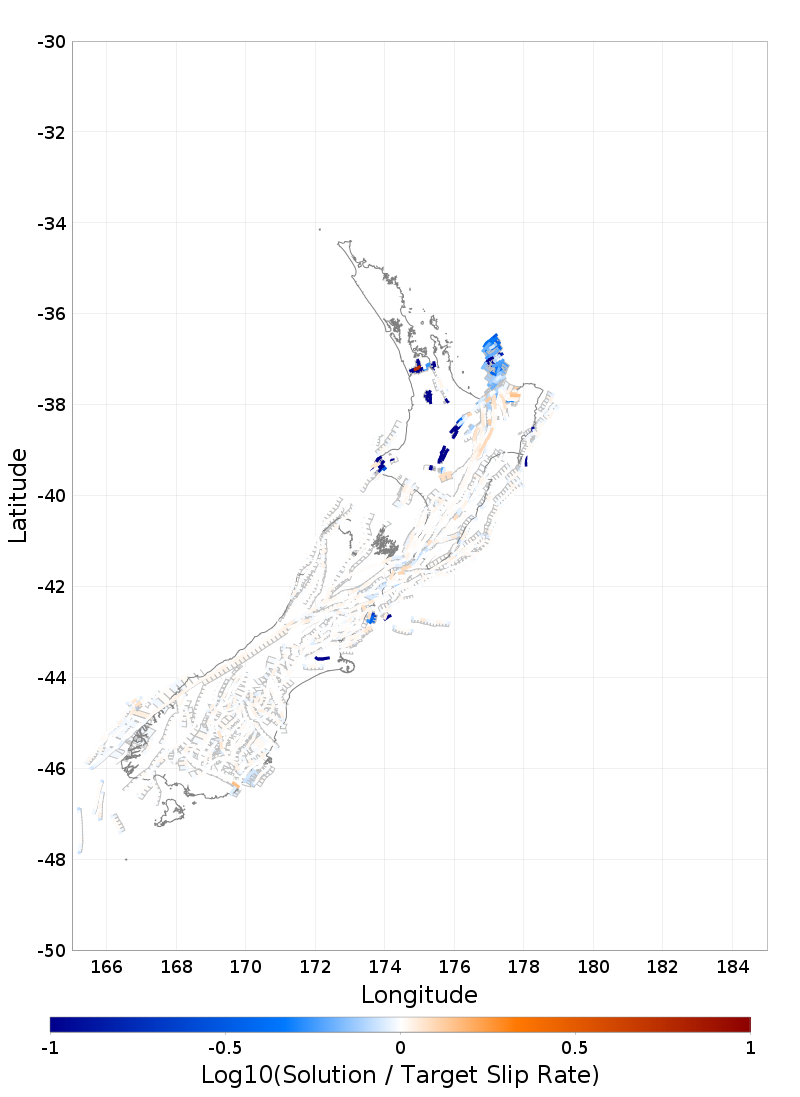

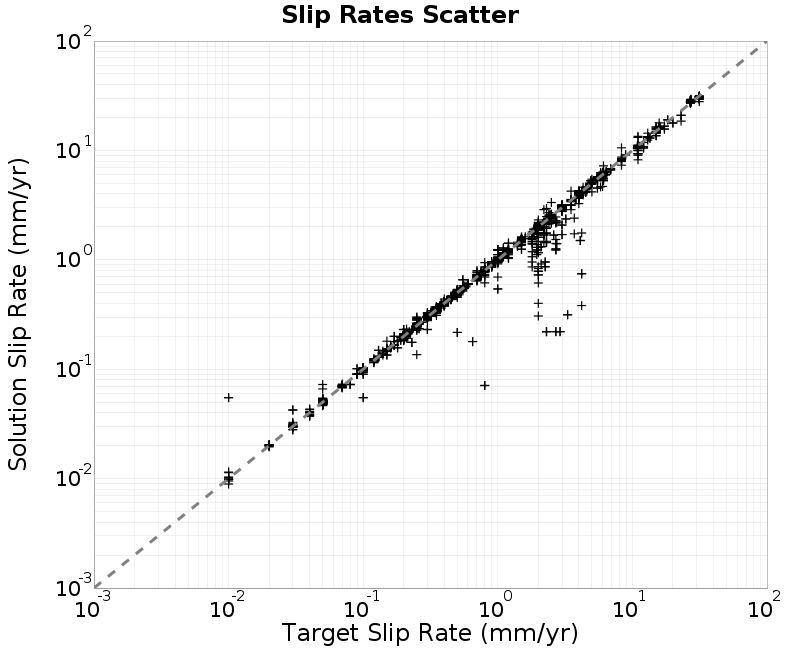

Log10 Slip Rate Plots

(top)

MapMap
Download GeoJSON Download GeoJSON
MapMap
Download GeoJSON Download GeoJSON
MapDiff hist
Download GeoJSON

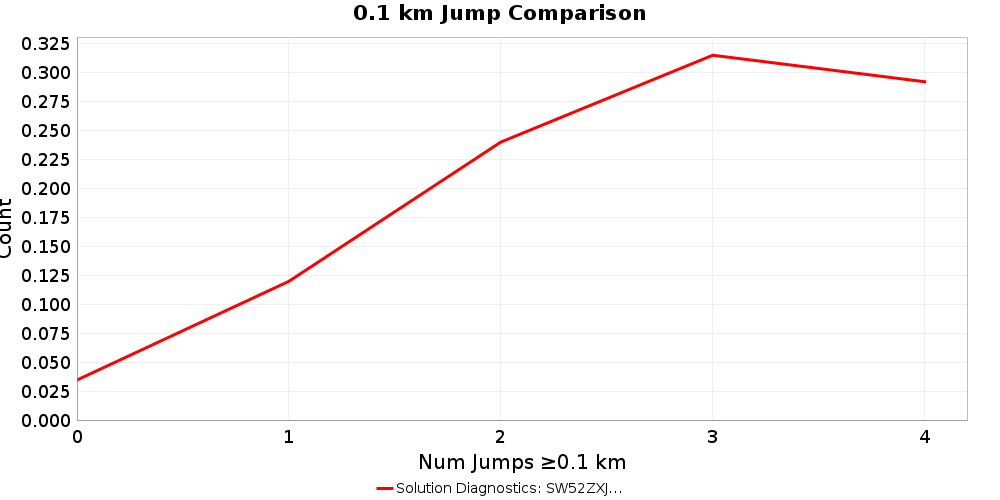

Jump Counts Over Distance

(top)

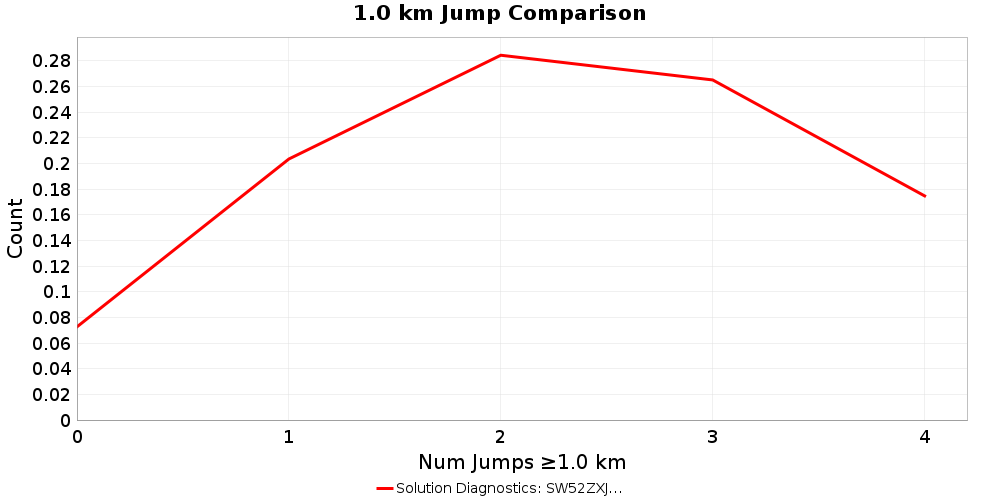

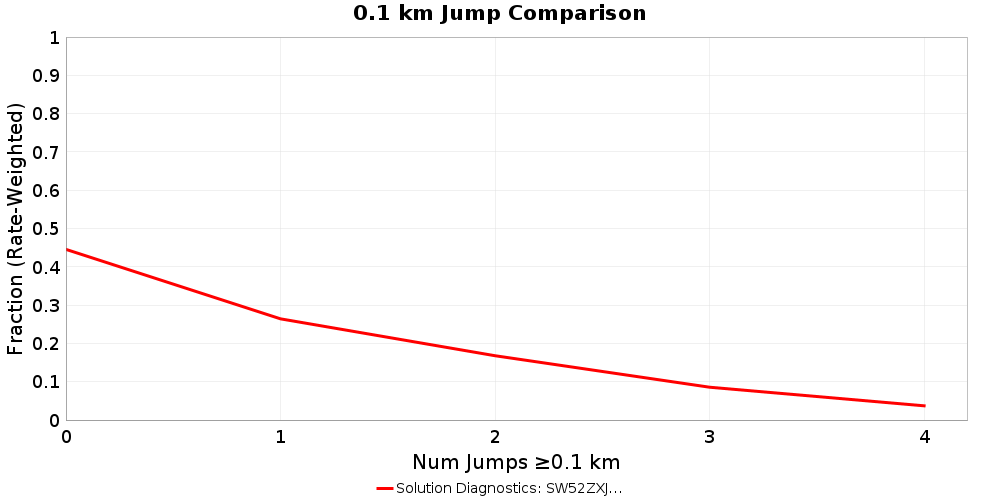

Supra-seismogenic Jump Counts

(top)

As DiscretizedRate Weighted
Plausibility FilterPlausibility Filter
Plausibility FilterPlausibility Filter
Plausibility FilterPlausibility Filter

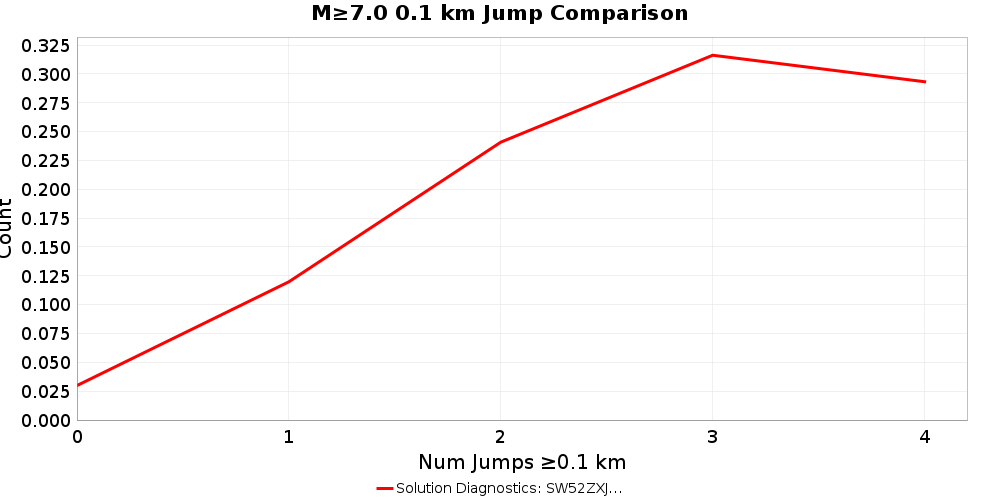

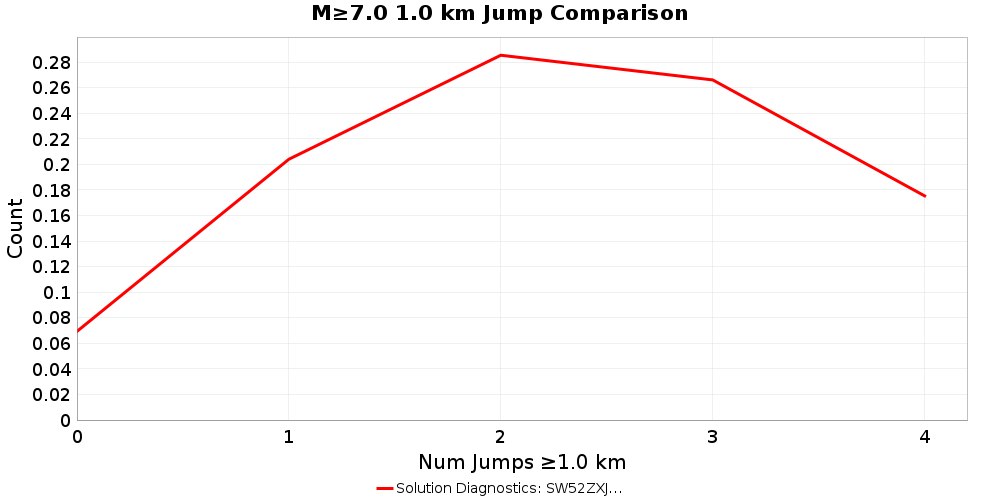

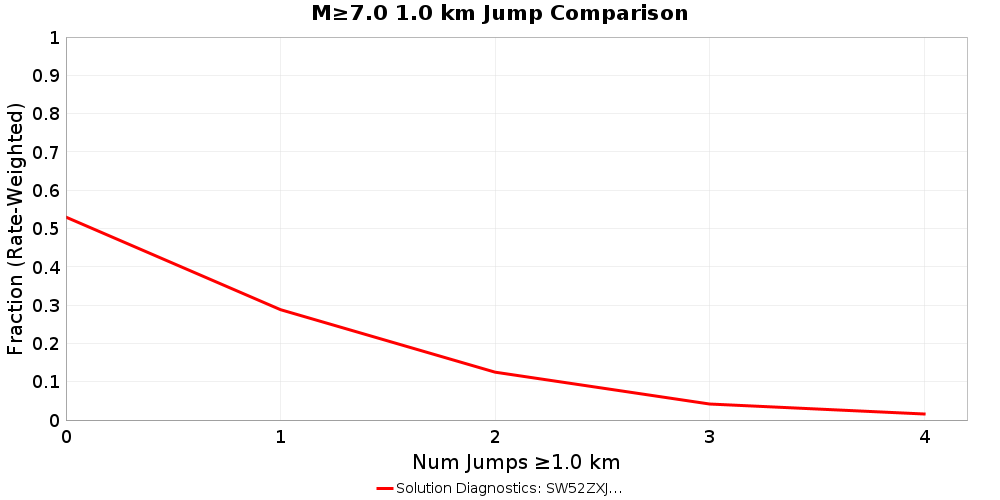

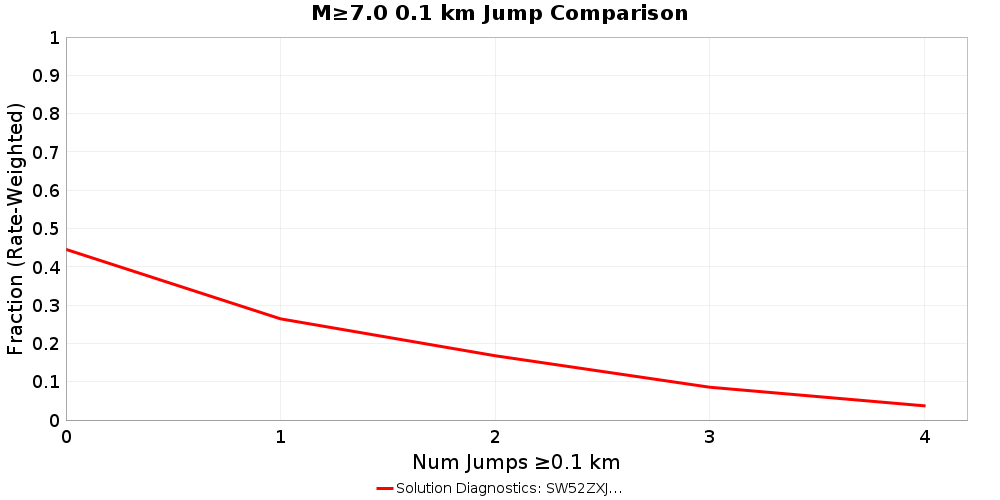

M≥7 Jump Counts

(top)

As DiscretizedRate Weighted
Plausibility FilterPlausibility Filter
Plausibility FilterPlausibility Filter
Plausibility FilterPlausibility Filter

Hazard Maps

(top)

Hazard map comparisons with a resolution of 1 degrees (400 sites). Hazard is computed with the ASK2014 GMPE, default site parameters, and supra-seismogenic fault sources only.

PGA Hazard Maps

(top)

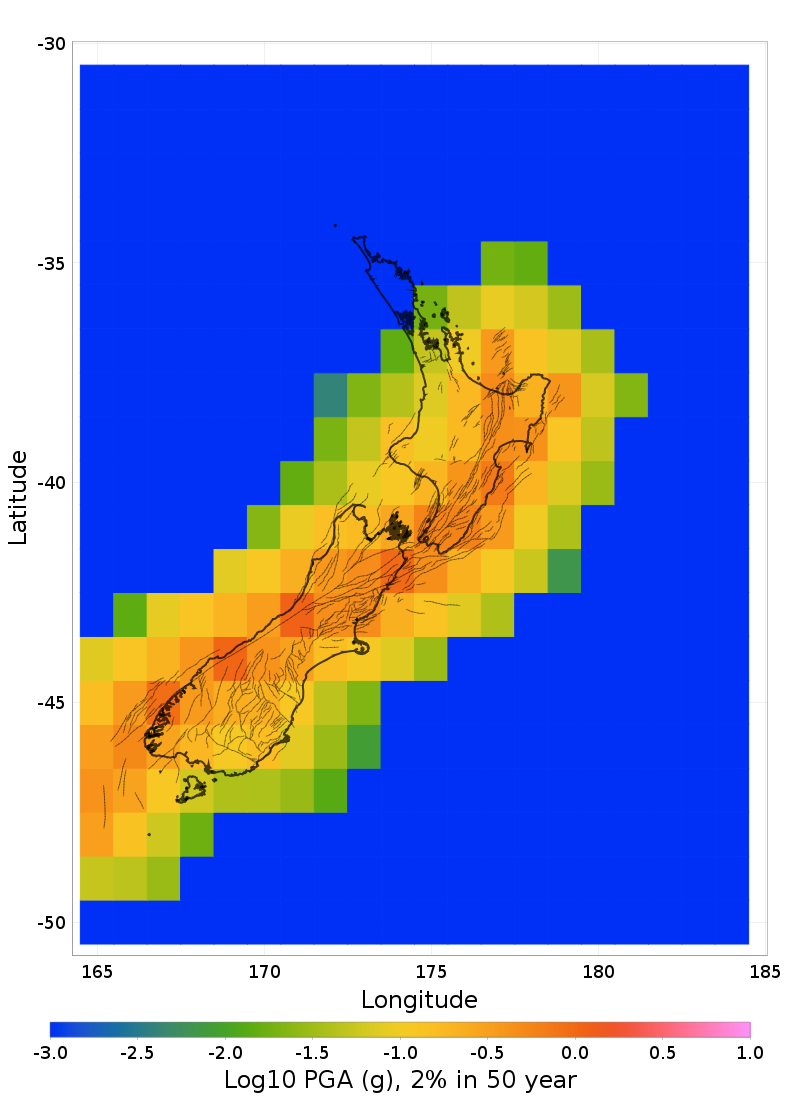

PGA, 2% in 50 year Hazard Maps

(top)

Hazard Map

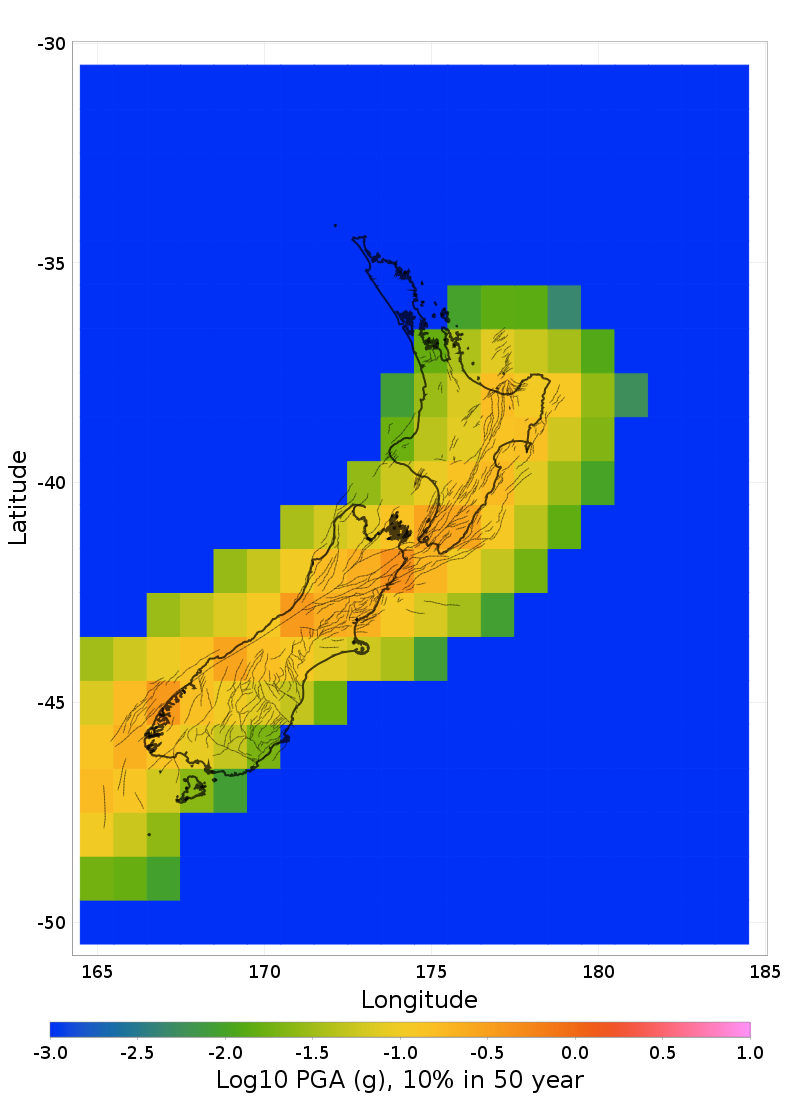

PGA, 10% in 50 year Hazard Maps

(top)

Hazard Map

1s SA Hazard Maps

(top)

1s SA, 2% in 50 year Hazard Maps

(top)

Hazard Map

1s SA, 10% in 50 year Hazard Maps

(top)

Hazard Map

Fault Segmentation

(top)

The following plots show implied segmentation from the rates of this fault system solution.

NOTE: Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU2NTYuMGI0WU5j has multiple jumping points between parent sections. We consolidate all jumps to occur at a single jumping point (with the highest jumping rate) and average quantities on either side of the jump (participation/slip rates)

Supra-Seismogenic Fault Segmentation

(top)

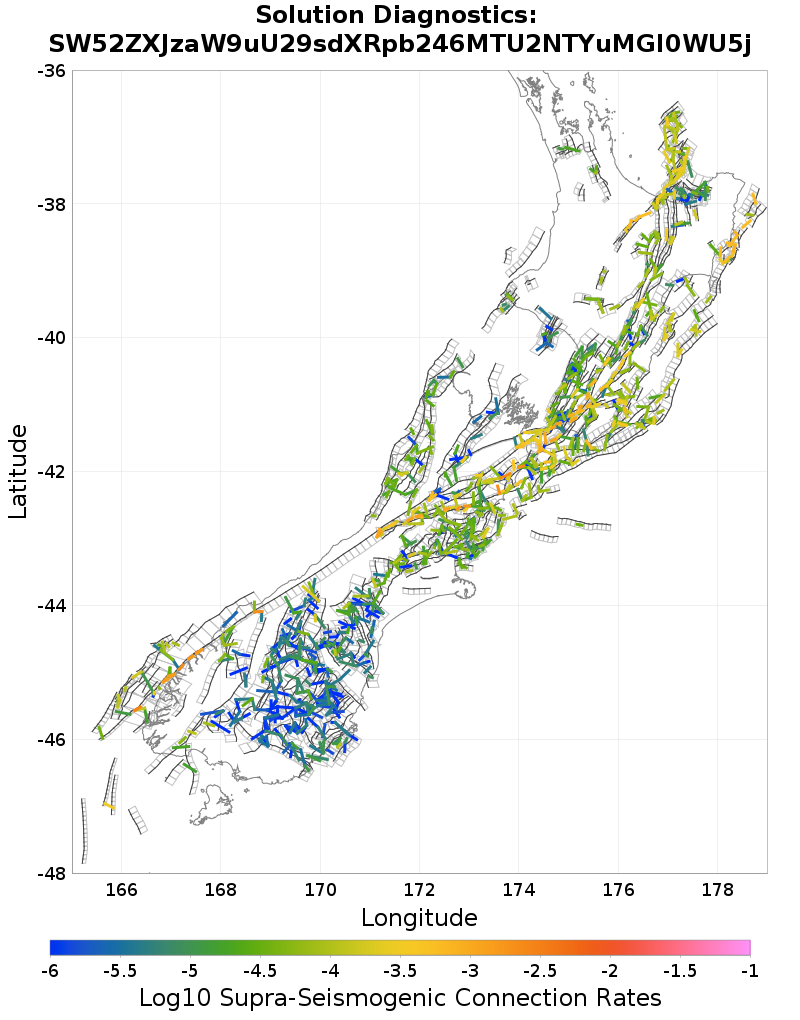

Connection Rates

This shows the rate at which each connection is taken.

Rates

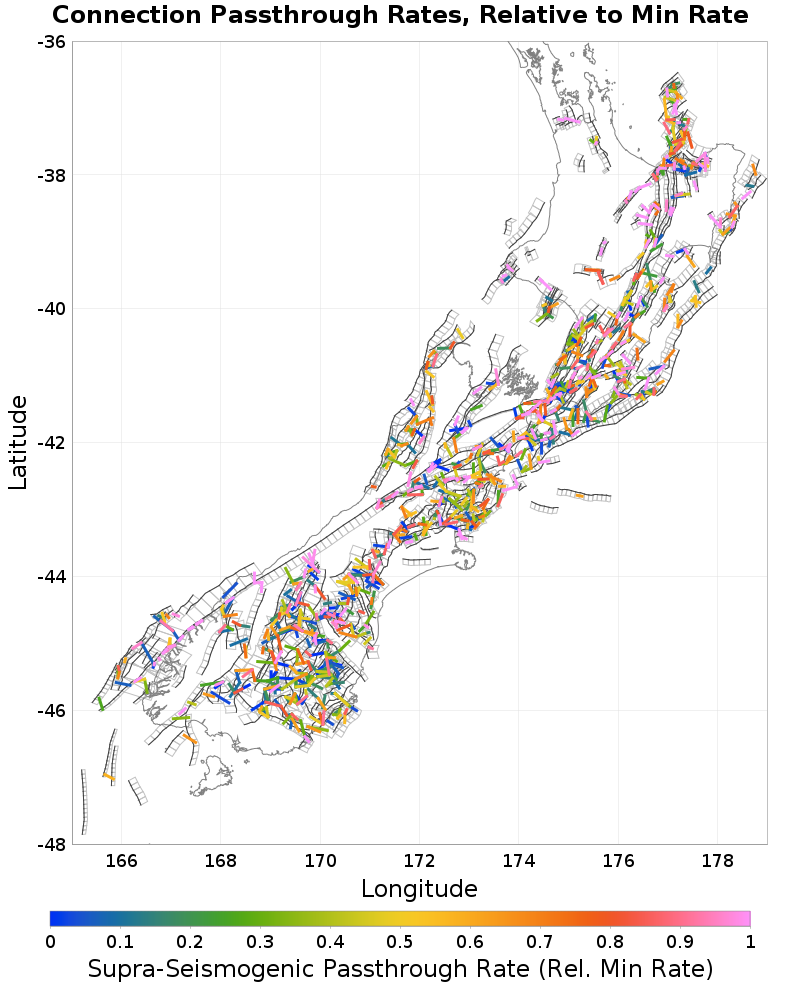

Connection Passthrough Rates

(top)

Passthrough rates refer to the ratio of the jumping rate to the rates on either side of the jump. The denominator of that ratio can be either the minimum, maximum, or average of the subsection rates on either side of the jump. Each choice of denomiator is plotted separately.

Rates

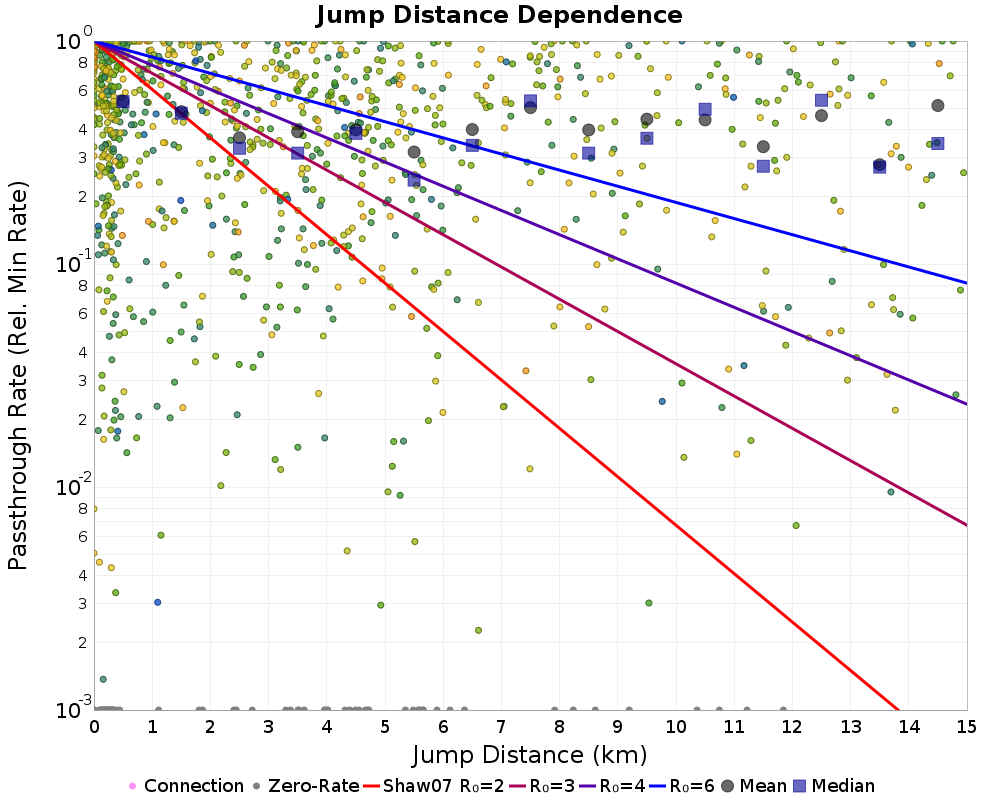

Connection Passthrough Rates vs Shaw 2007

(top)

This plots passthrough rates versus various the distance relationship established in Shaw (2007).

LinearLog10
RatesRates

Connection Passthrough Rates vs Scalars

(top)

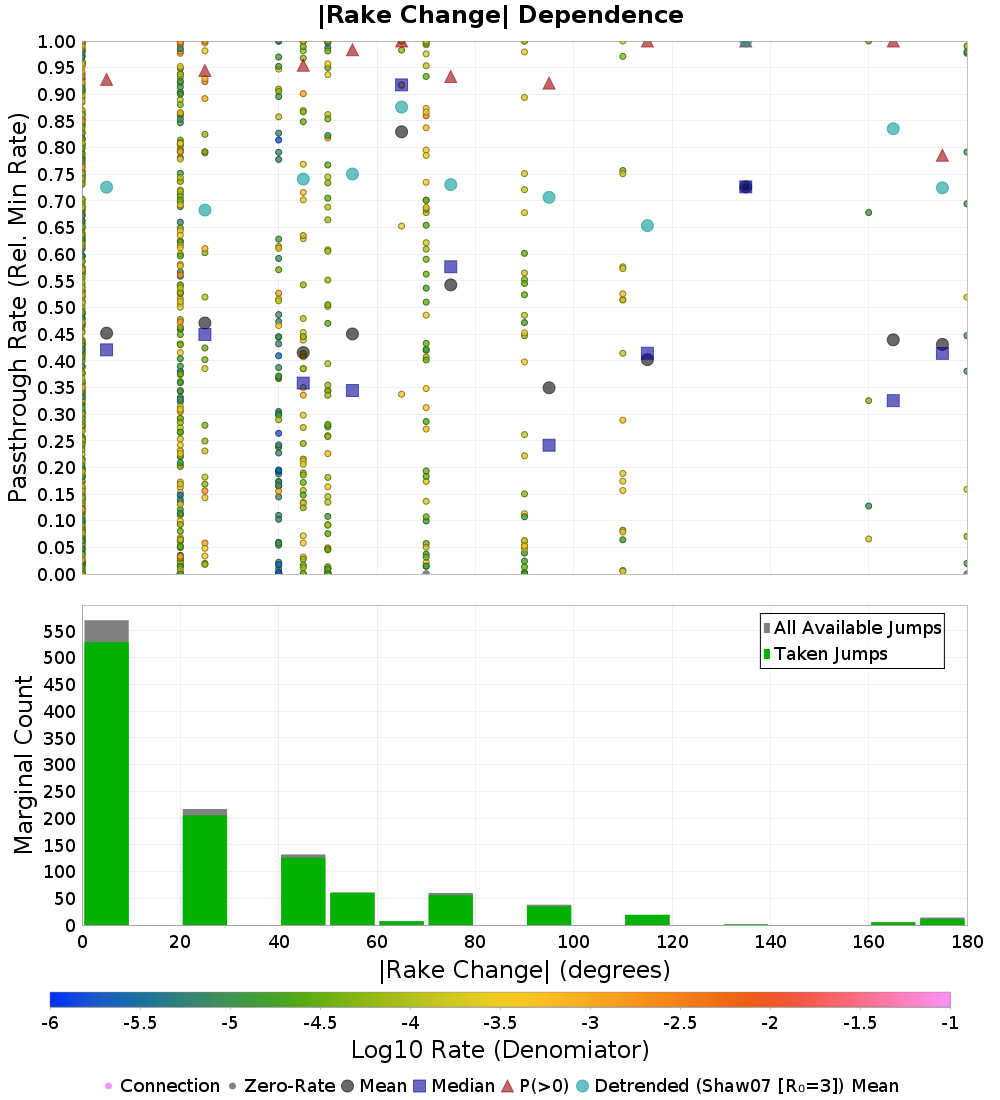

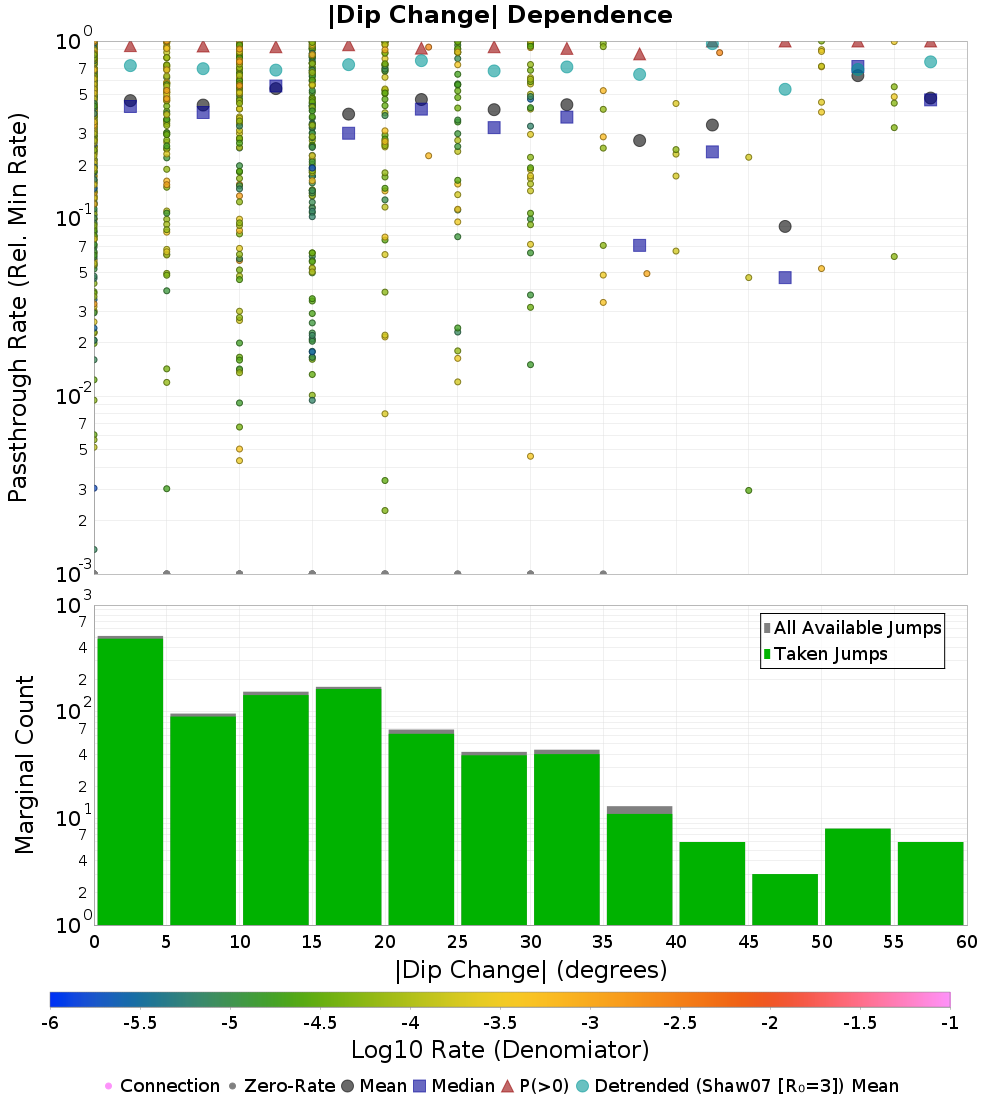

This plots passthrough rates versus various scalar values (for each rate combiniation type).

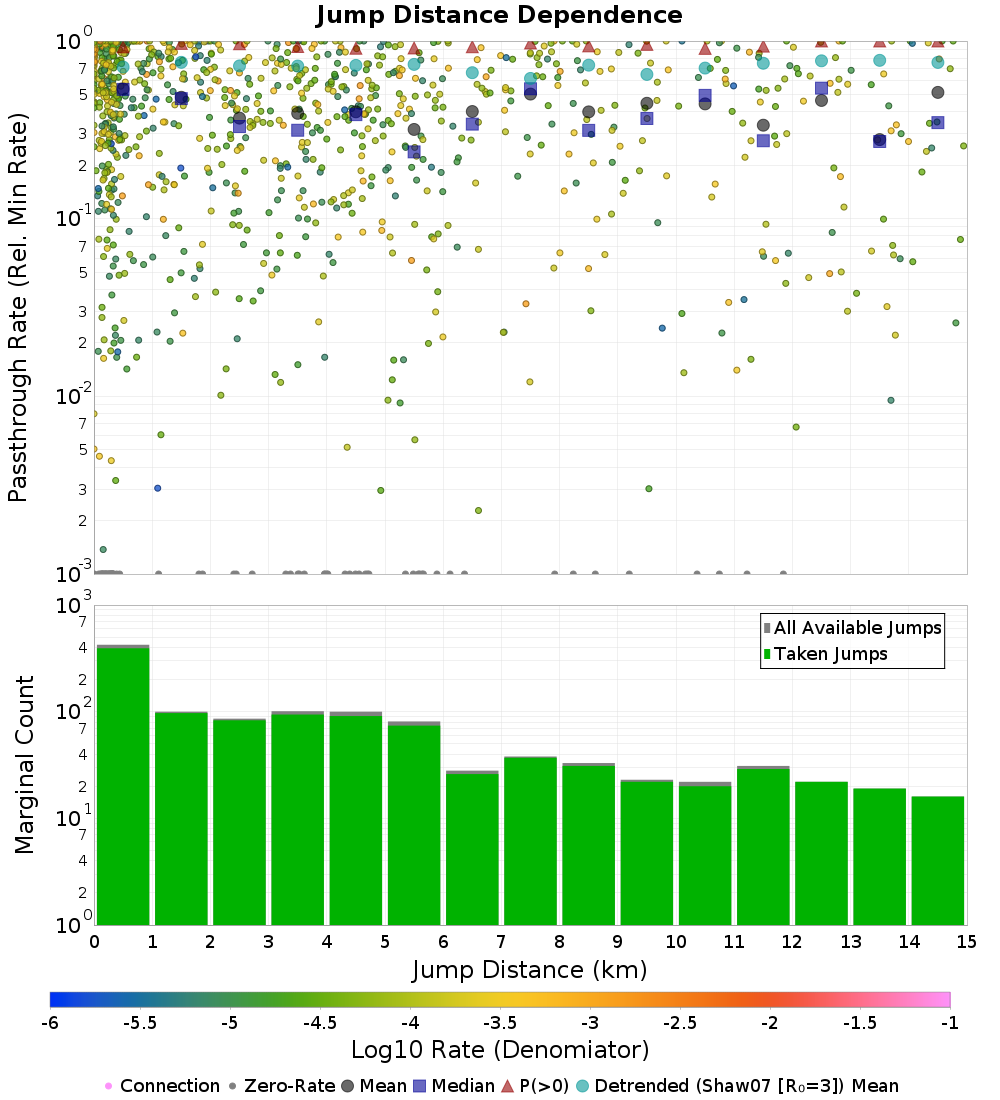

Jump Distance (km)Jump Distance (km) (Log10 Rates)
RatesRates
|Slip Rate Change| (mm/yr)|Slip Rate Change| (mm/yr) (Log10 Rates)
RatesRates
Slip Rate Ratio (mm/yr)Slip Rate Ratio (mm/yr) (Log10 Rates)
RatesRates
|Dip Change| (degrees)|Dip Change| (degrees) (Log10 Rates)
RatesRates

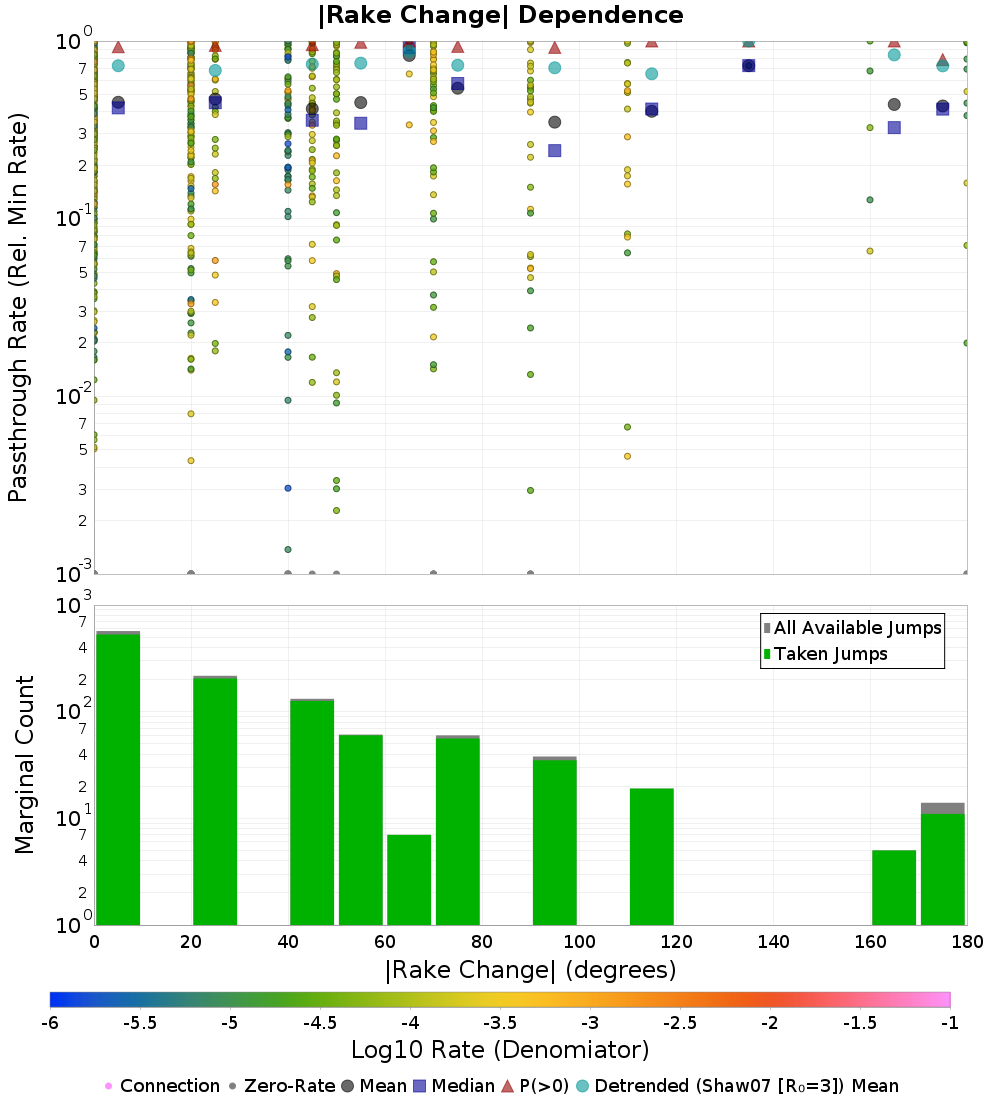

|Rake Change| (degrees)|Rake Change| (degrees) (Log10 Rates)
RatesRates

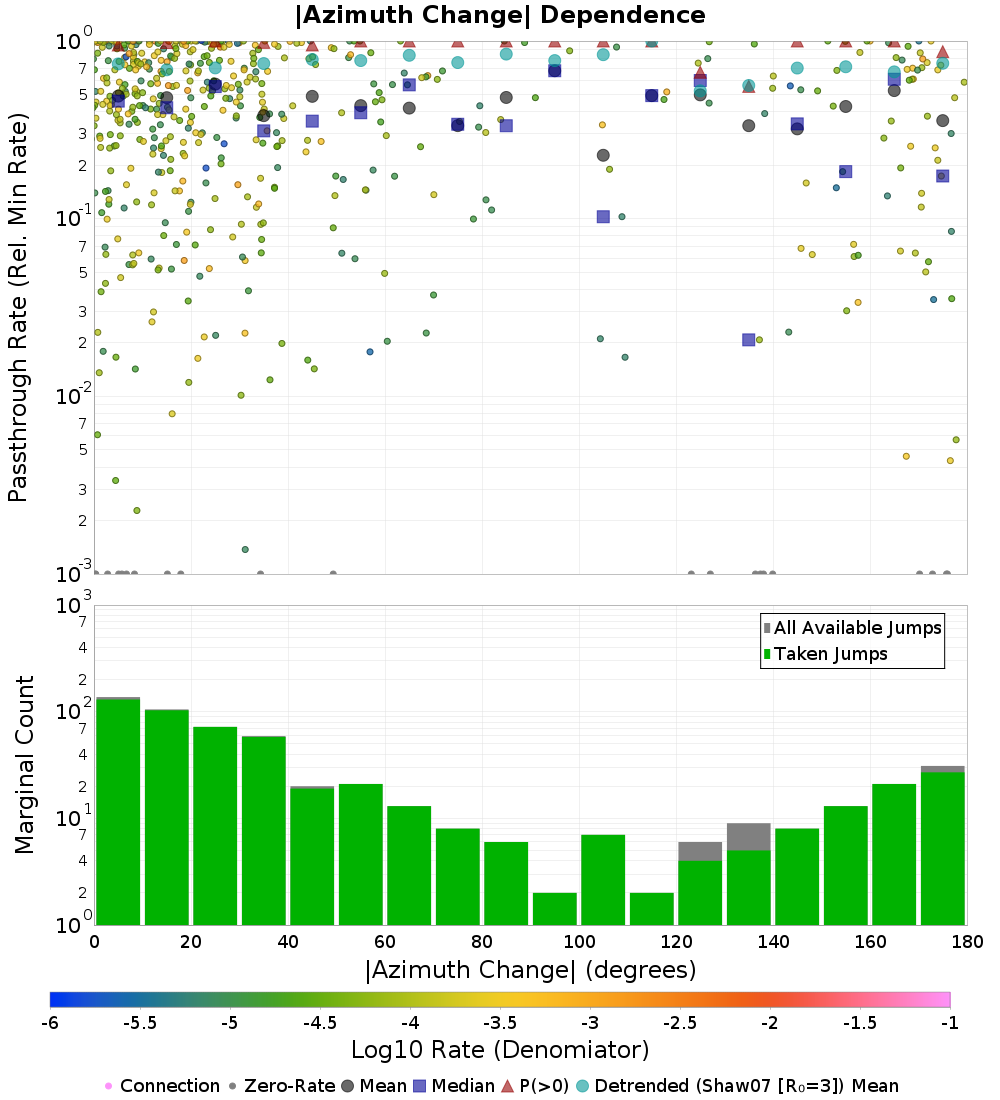

|Azimuth Change| (degrees)|Azimuth Change| (degrees) (Log10 Rates)
RatesRates

M≥7.0 Fault Segmentation

(top)

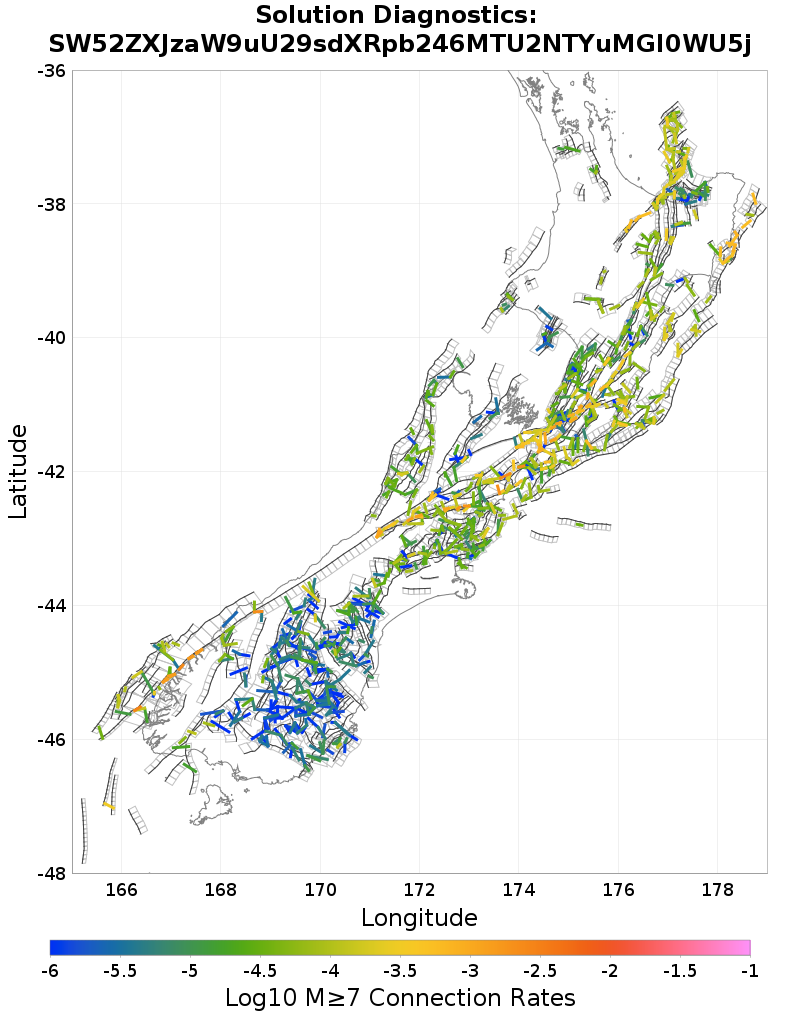

Connection Rates

This shows the rate at which each connection is taken.

Rates

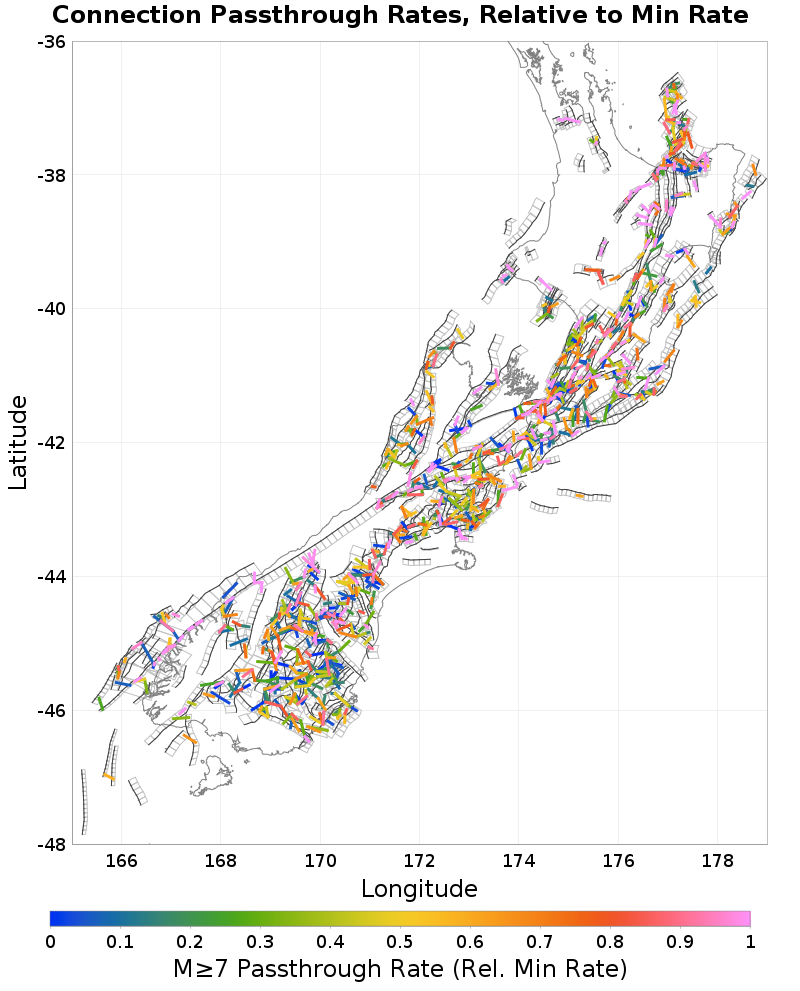

Connection Passthrough Rates

(top)

Passthrough rates refer to the ratio of the jumping rate to the rates on either side of the jump. The denominator of that ratio can be either the minimum, maximum, or average of the subsection rates on either side of the jump. Each choice of denomiator is plotted separately.

Rates

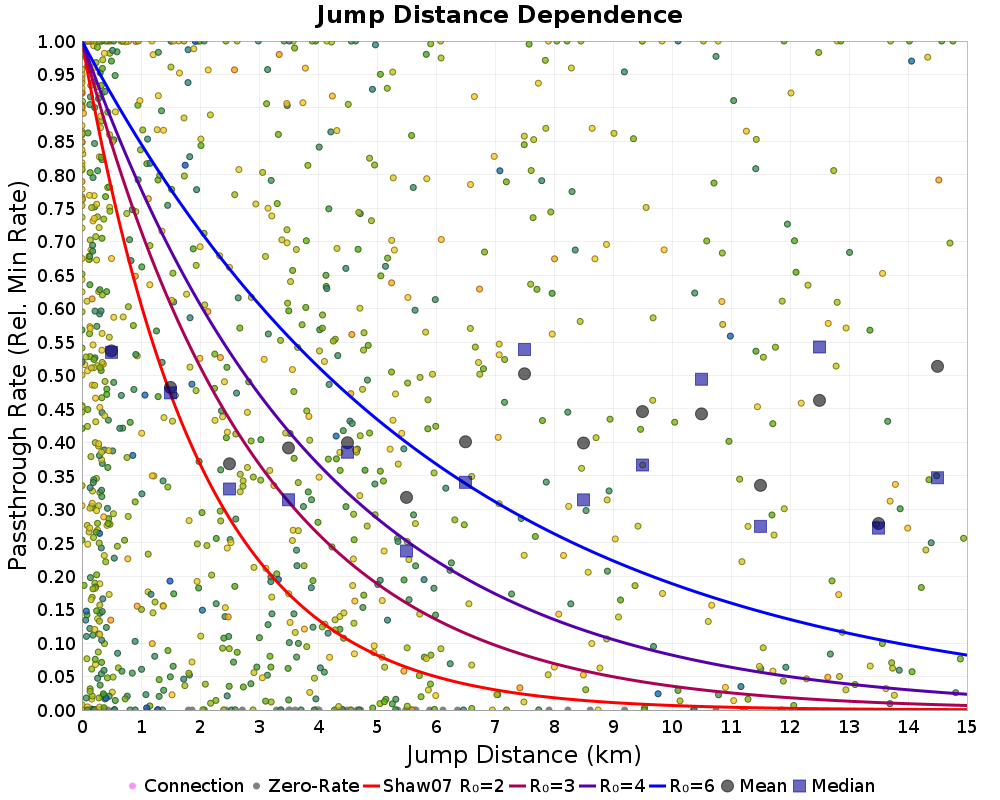

Connection Passthrough Rates vs Shaw 2007

(top)

This plots passthrough rates versus various the distance relationship established in Shaw (2007).

LinearLog10
RatesRates

Connection Passthrough Rates vs Scalars

(top)

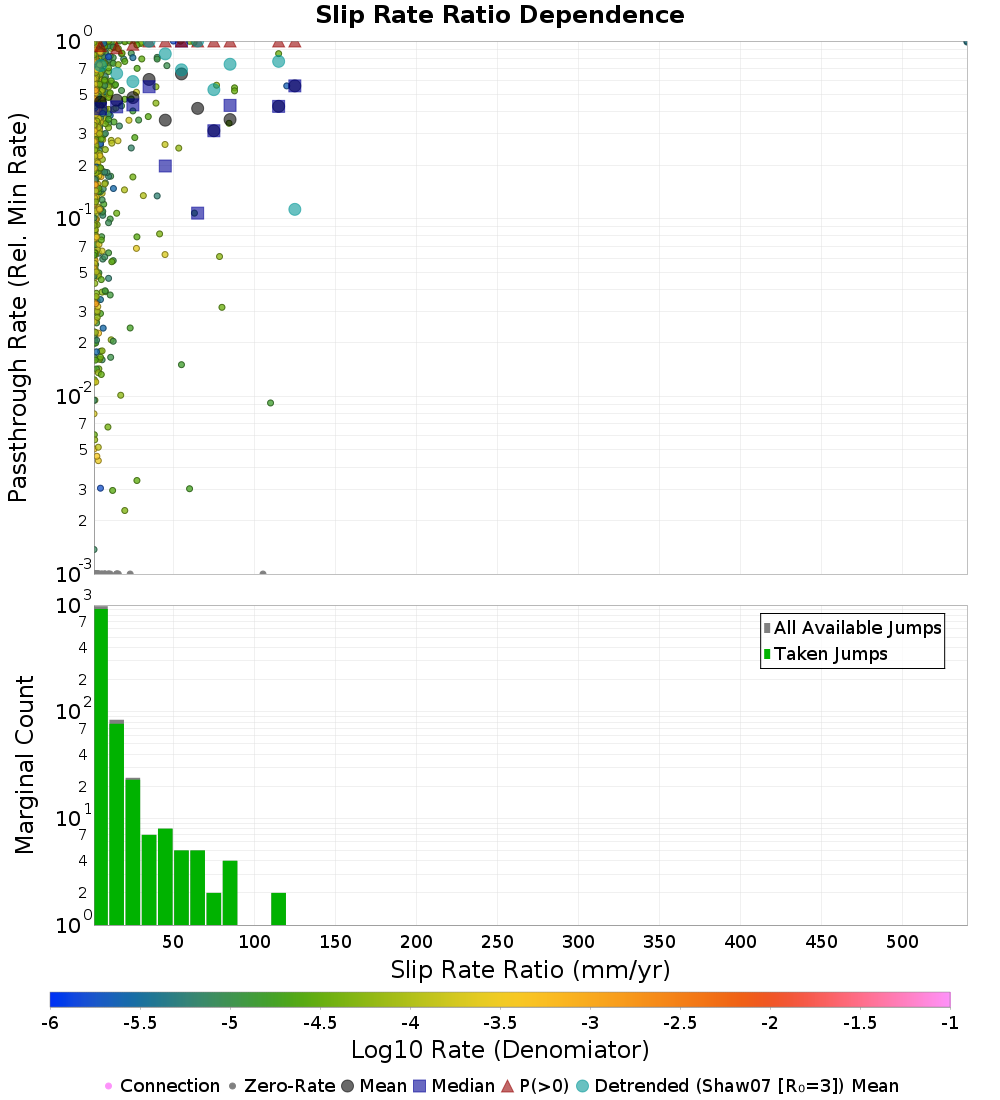

This plots passthrough rates versus various scalar values (for each rate combiniation type).

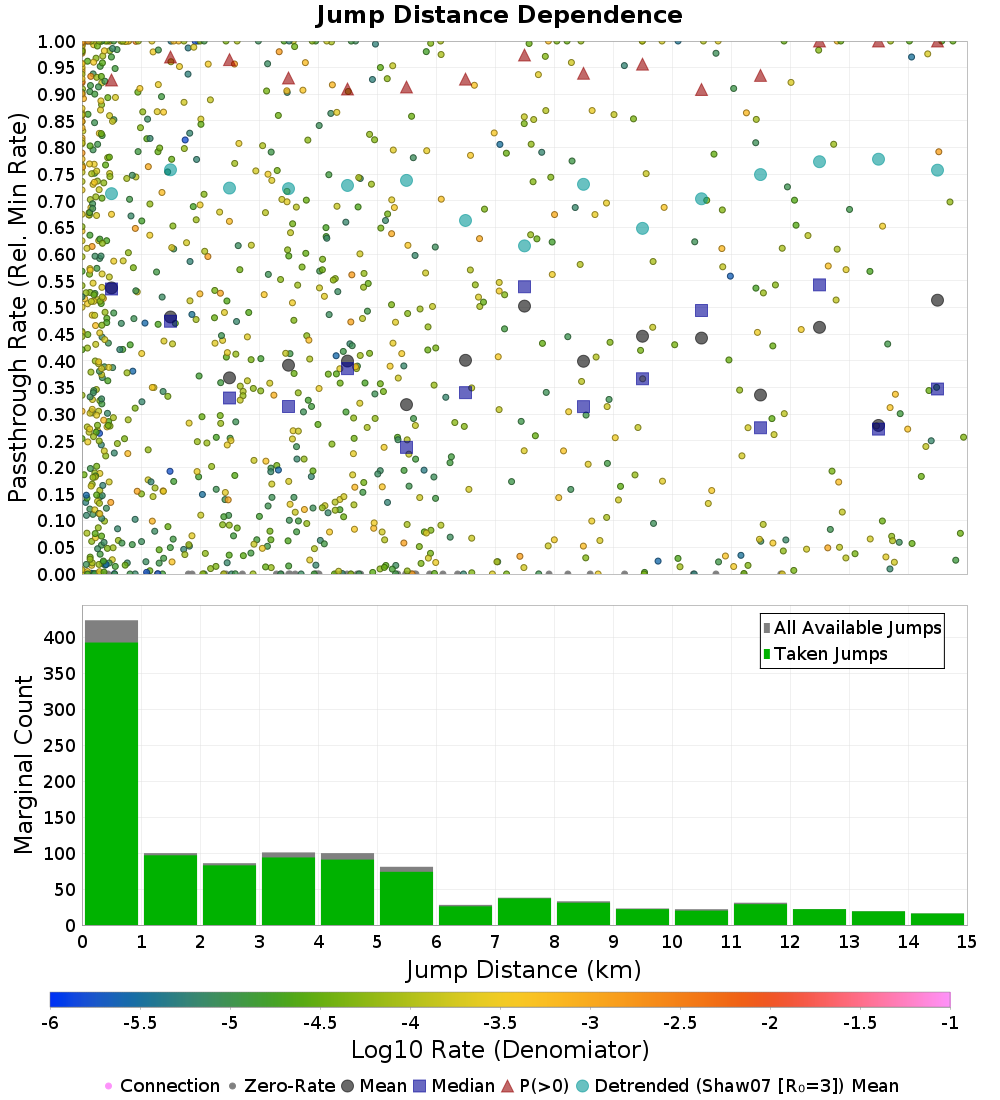

Jump Distance (km)Jump Distance (km) (Log10 Rates)
RatesRates
|Slip Rate Change| (mm/yr)|Slip Rate Change| (mm/yr) (Log10 Rates)
RatesRates

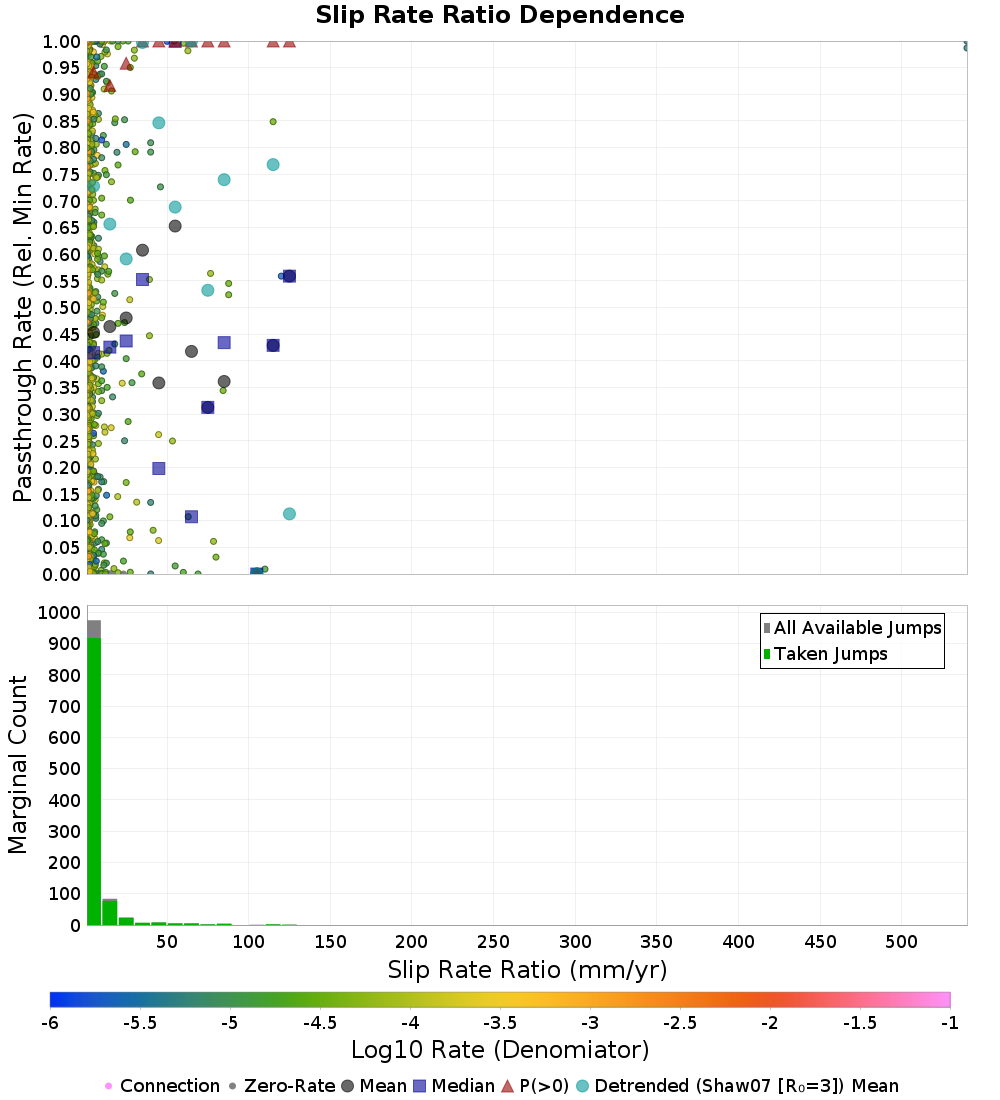

Slip Rate Ratio (mm/yr)Slip Rate Ratio (mm/yr) (Log10 Rates)
RatesRates
|Dip Change| (degrees)|Dip Change| (degrees) (Log10 Rates)
RatesRates
|Rake Change| (degrees)|Rake Change| (degrees) (Log10 Rates)
RatesRates

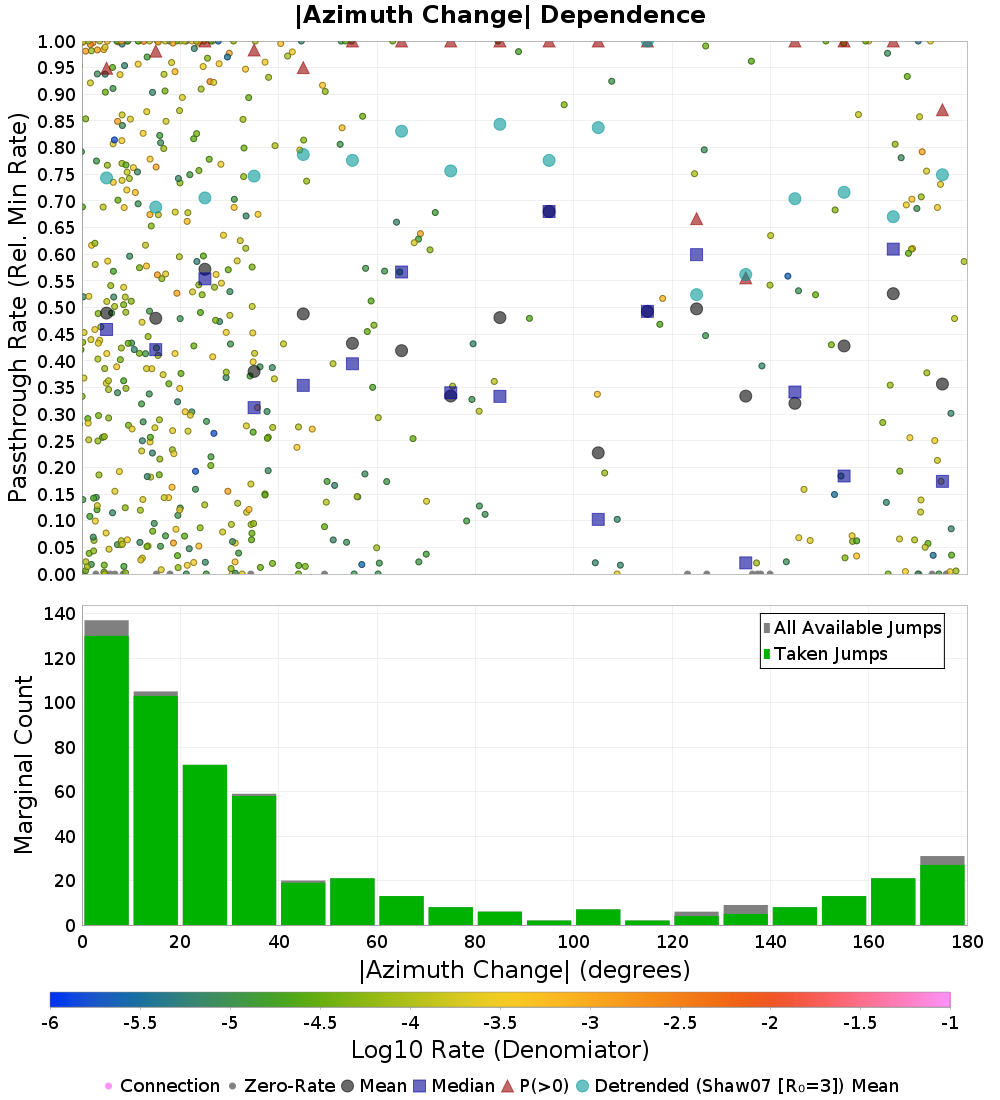

|Azimuth Change| (degrees)|Azimuth Change| (degrees) (Log10 Rates)
RatesRates

Magnitude Connection Rate Comparisons

(top)

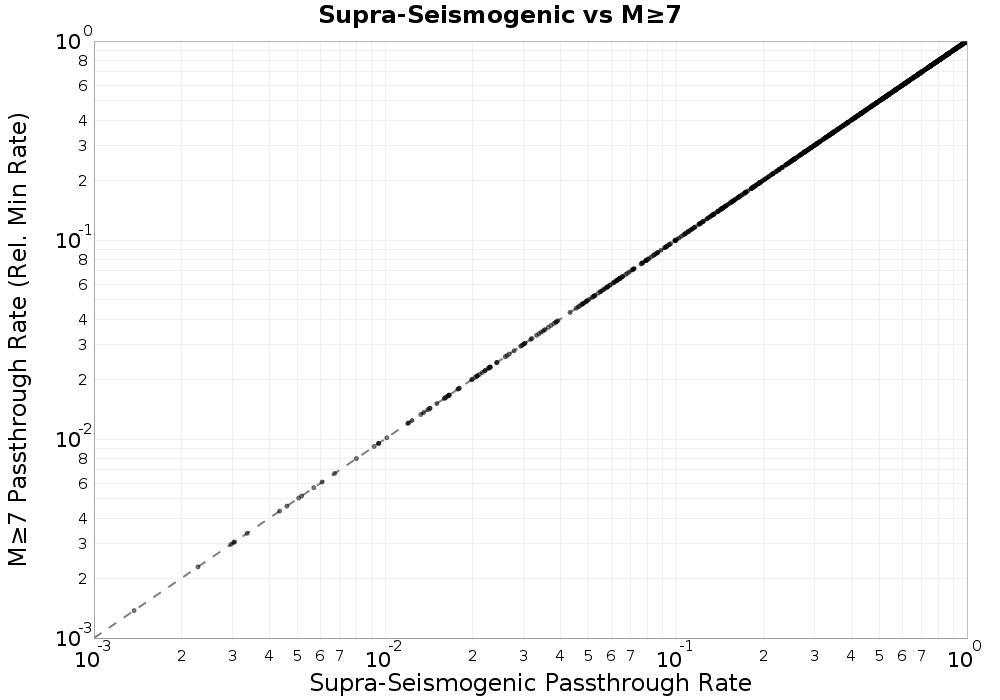

This comapres Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU2NTYuMGI0WU5j passthrough rates across magniutdes (and also for each rate combiniation type). Linear on the left, log10 on the right.

Linear Passthrough RatesLog10 Passthrough Rates
ScatterScatter
