Kohaihai Details

Property	Value
Rupture Count	2,169
Ruptures Above Sect Min Mag	2,167
Ruptures w/ Nonzero Rates	217
Magnitude Range	[7.06, 8.56]
Length Range	[23, 816] km
Total Rate	6.659971E-5 /yr
Multi-Fault Rate	5.407043E-5 /yr (81.19%)
Directly-Connected Faults	3
All Co-Rupturing Faults	39

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

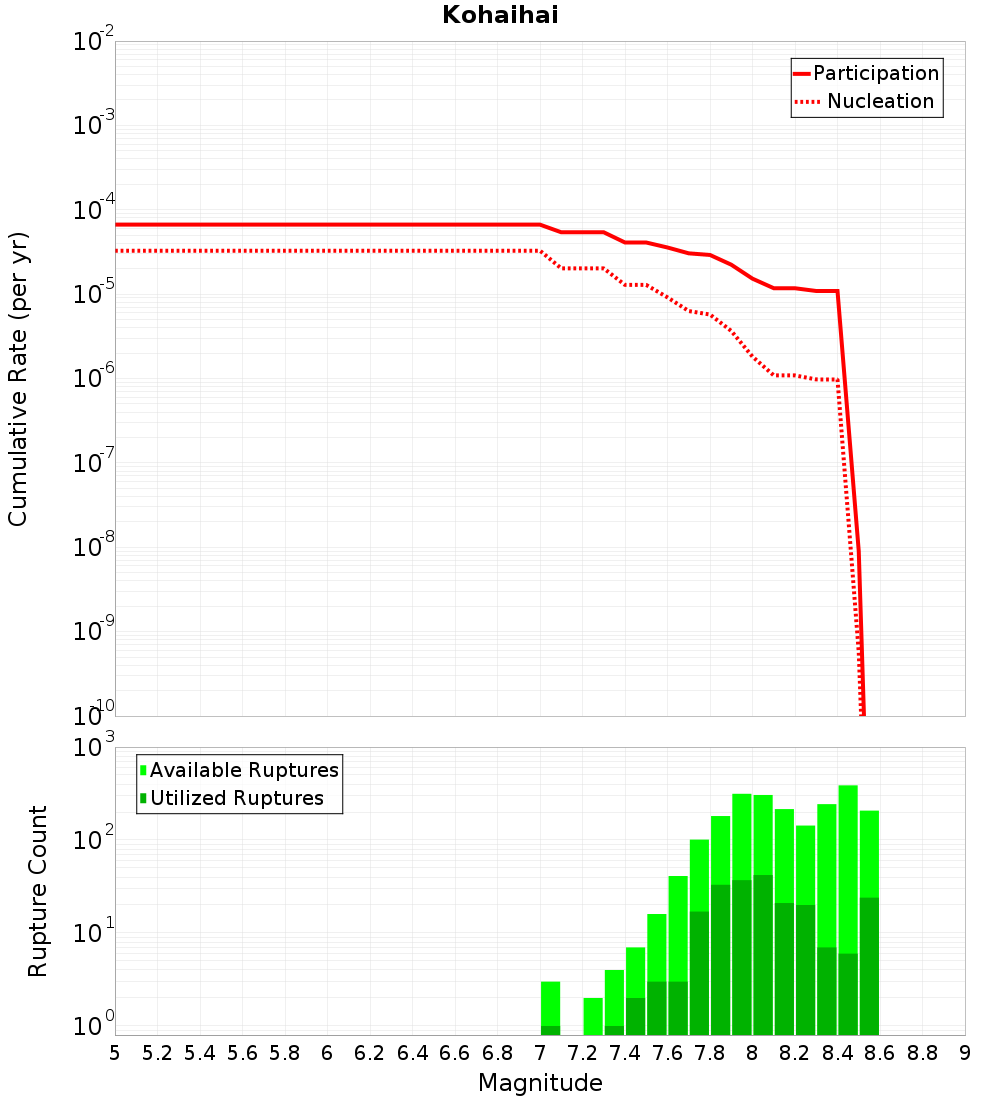

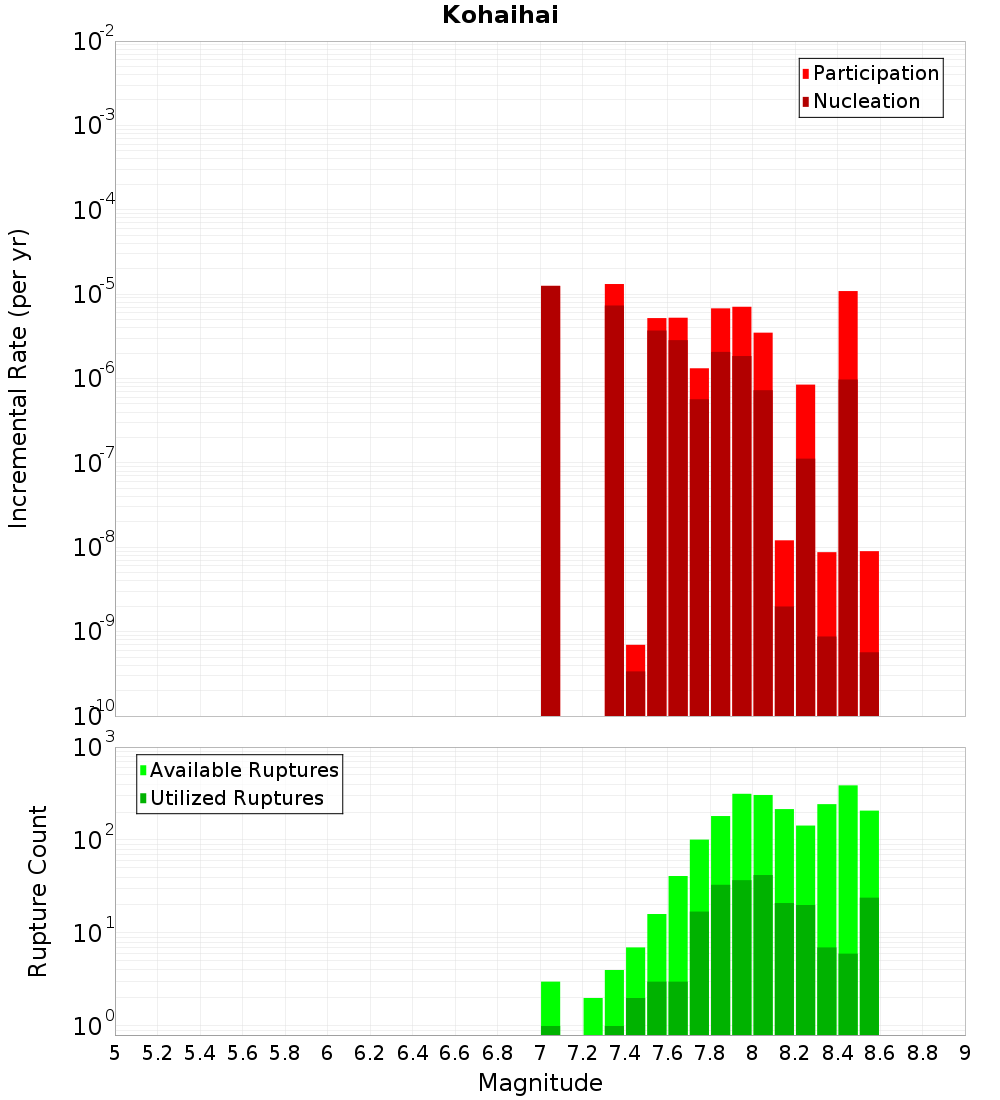

Magnitude-Frequency Distribution

Incremental	Cumulative

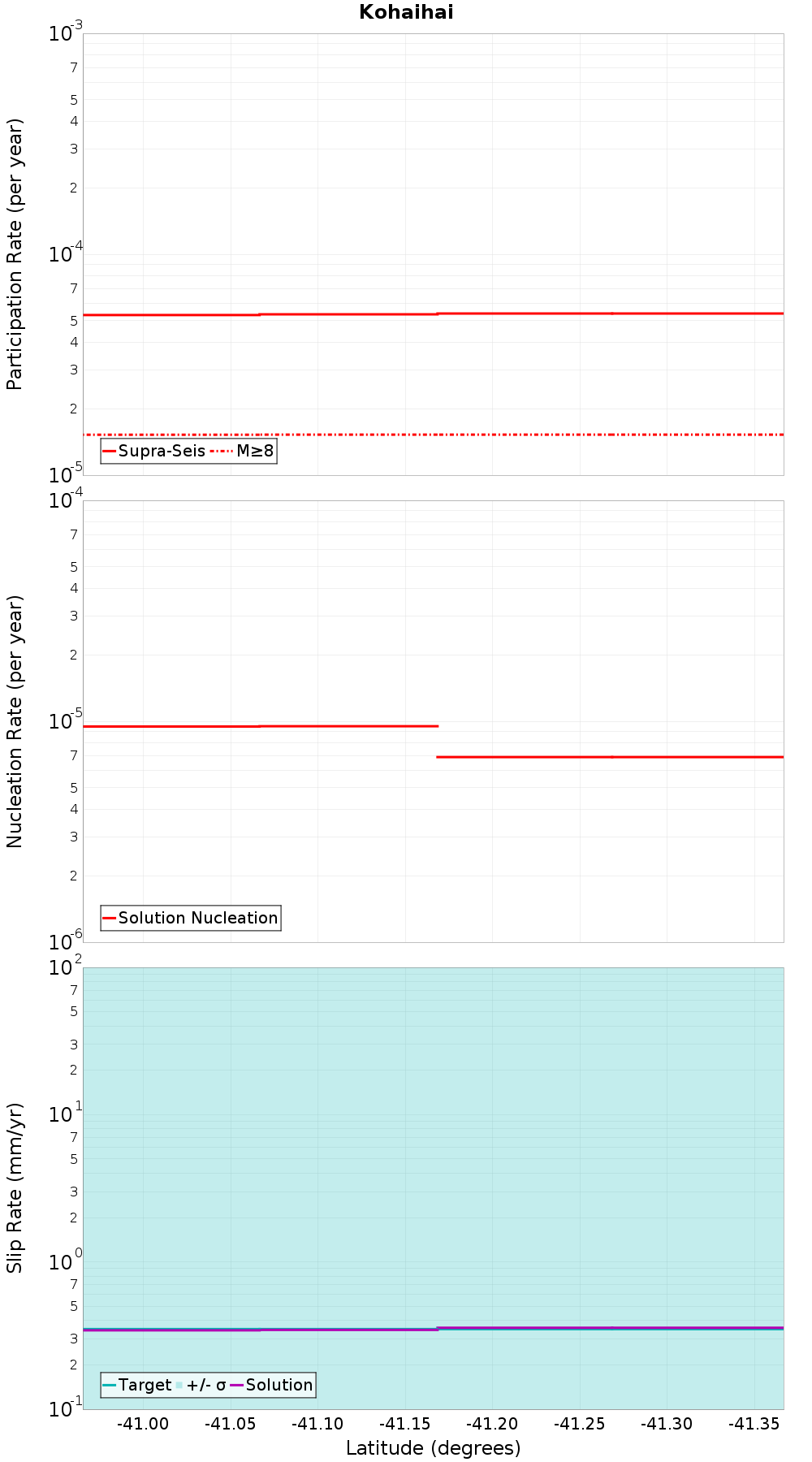

Along-Strike Values

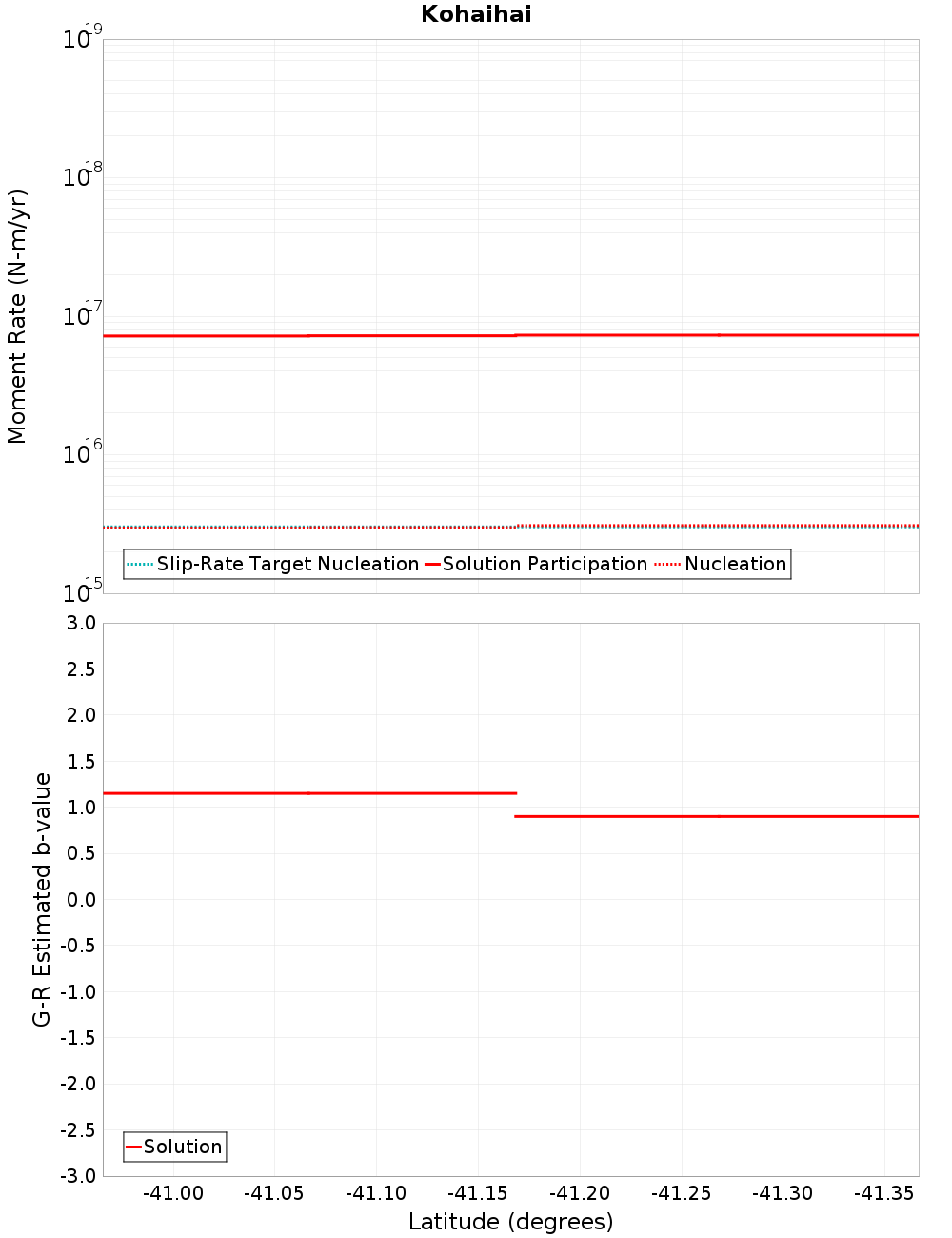

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kohaihai South, 1.73 km away
White Creek, 2.2 km away
Kongahau, 5.29 km away
Wakamarama, 9.33 km away
Cape Foulwind 4, 11.38 km away
Kahurangi, 11.7 km away

Kohaihai South, 1.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	true
Directly Connected?	true
Co-rupture Count	668
Co-rupture Rate	3.8536597E-5

White Creek, 2.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	true
Directly Connected?	true
Co-rupture Count	2,065
Co-rupture Rate	2.9602274E-5

Kongahau, 5.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	true
Directly Connected?	true
Co-rupture Count	630
Co-rupture Rate	1.0316377E-5

Wakamarama, 9.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	true
Directly Connected?	false
Co-rupture Count	288
Co-rupture Rate	4.4401713E-6

Cape Foulwind 4, 11.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kahurangi, 11.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	true
Directly Connected?	false
Co-rupture Count	108
Co-rupture Rate	4.2487063E-6
