Waihemo Details

Property	Value
Rupture Count	1,313
Ruptures Above Sect Min Mag	1,305
Ruptures w/ Nonzero Rates	130
Magnitude Range	[6.91, 8.26]
Length Range	[20, 312] km
Total Rate	6.0525395E-5 /yr
Multi-Fault Rate	1.8765488E-5 /yr (31.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	39

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

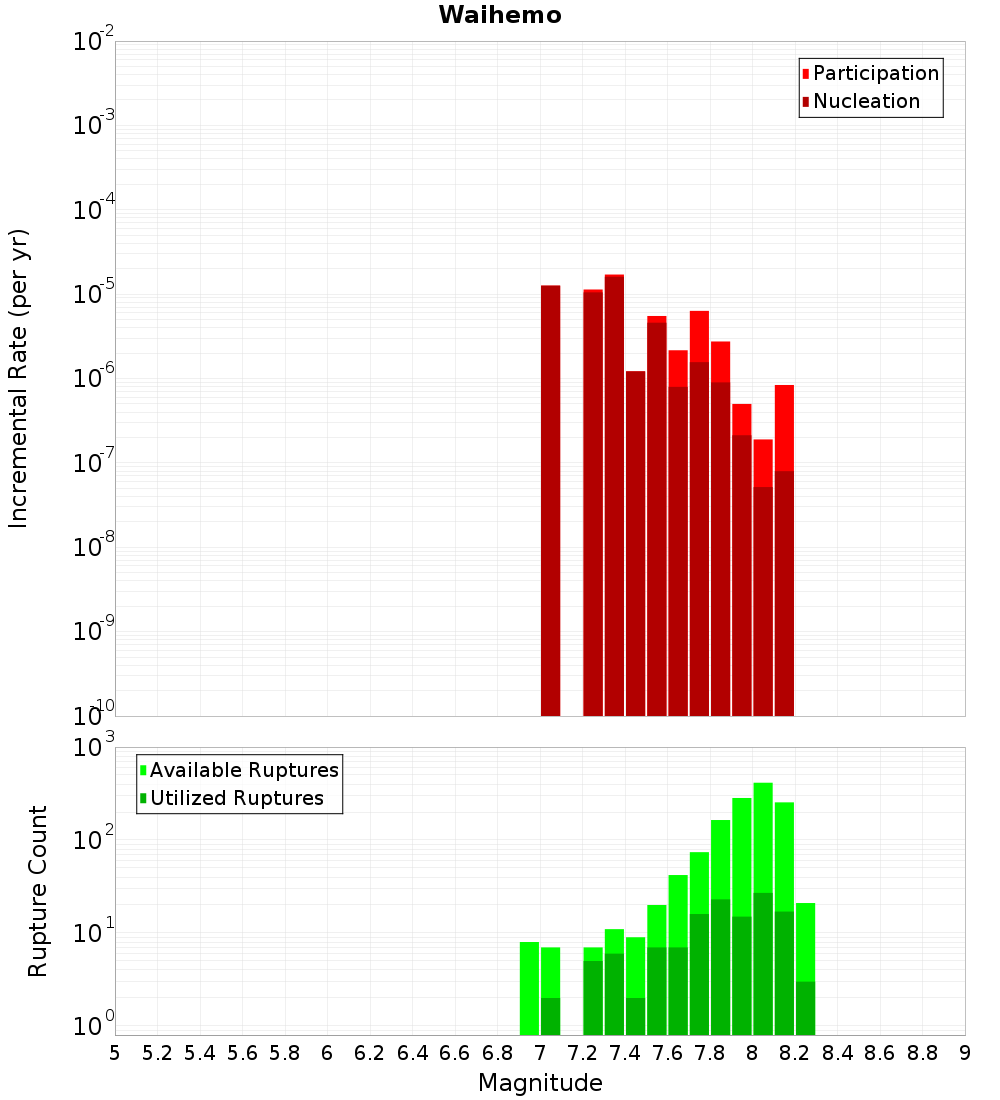

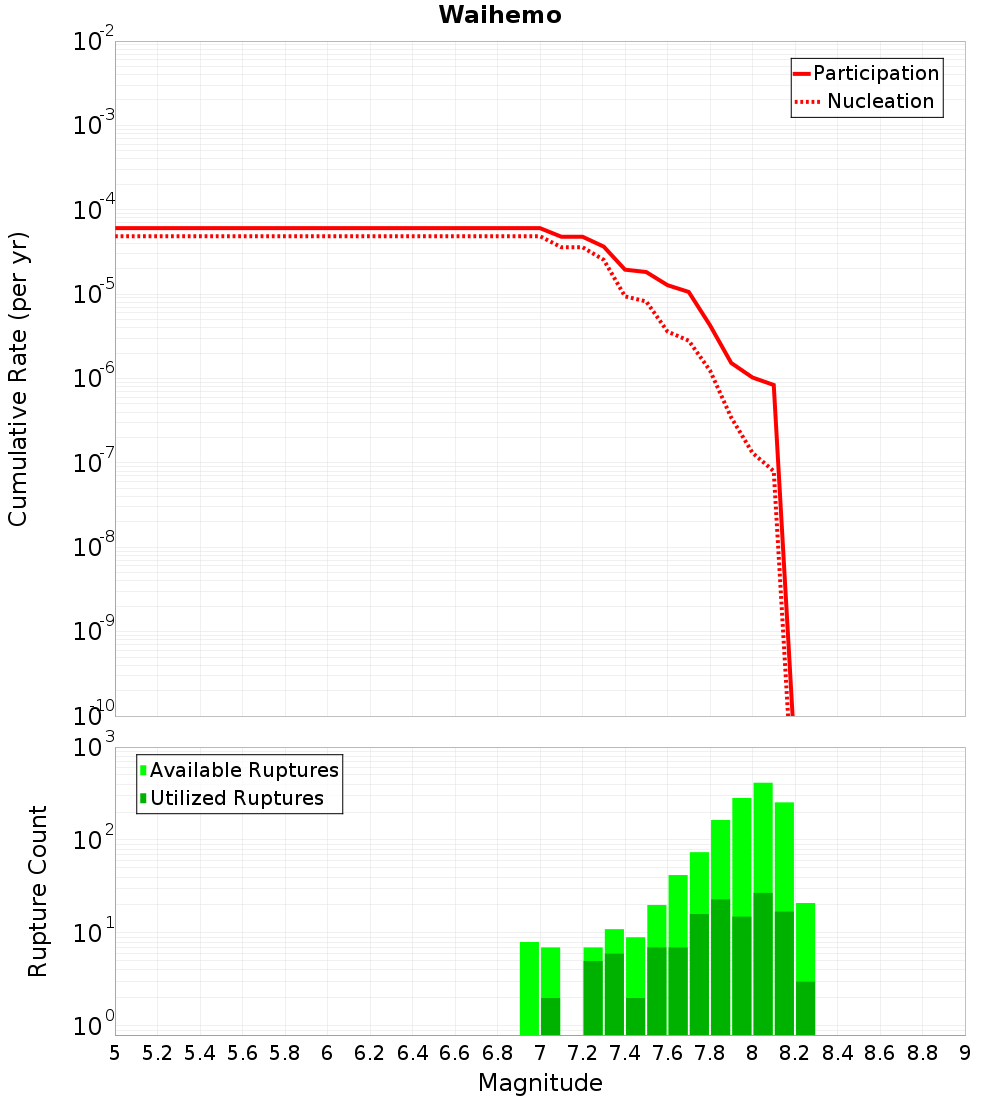

Magnitude-Frequency Distribution

Incremental	Cumulative

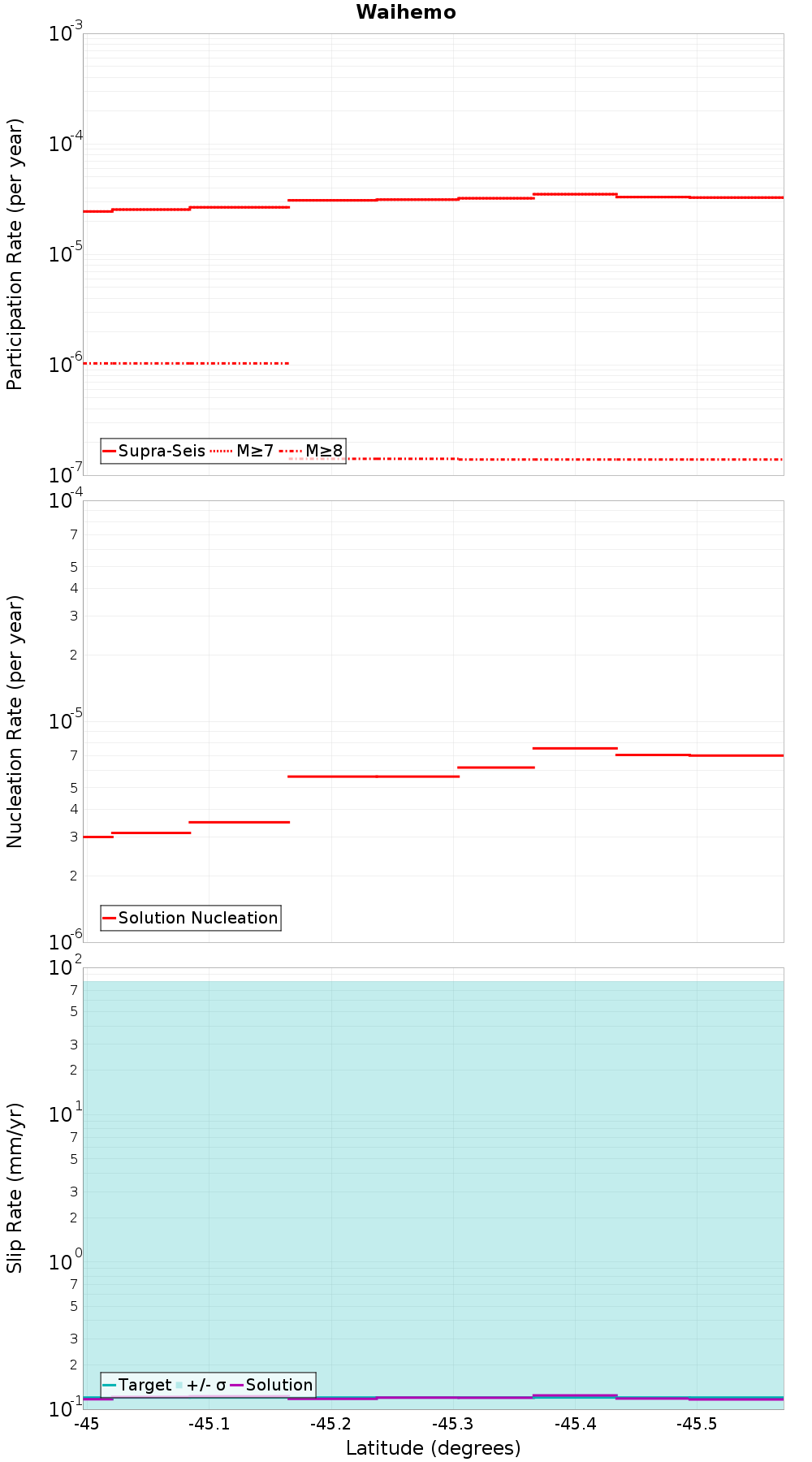

Along-Strike Values

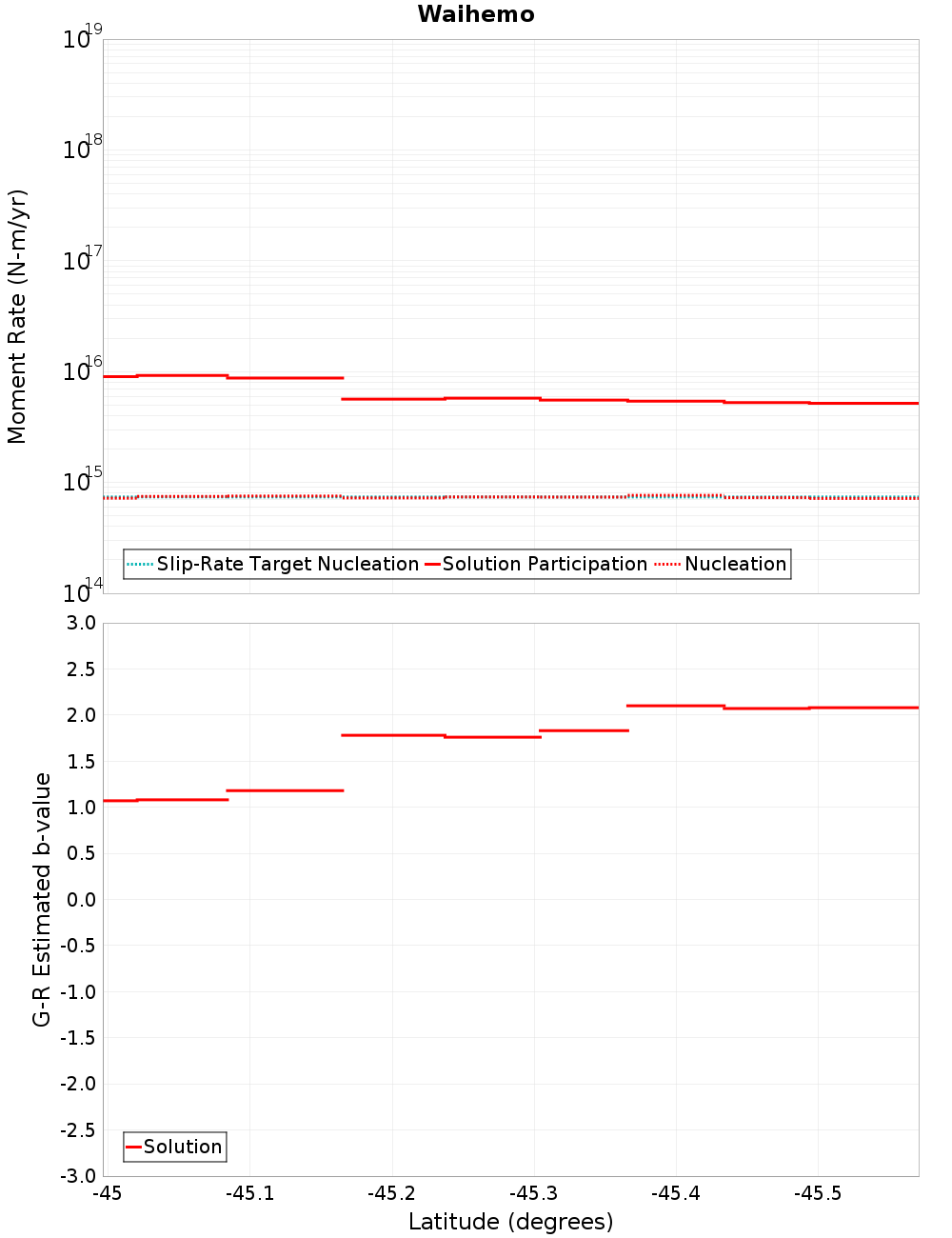

Moment-Rates and b-Values

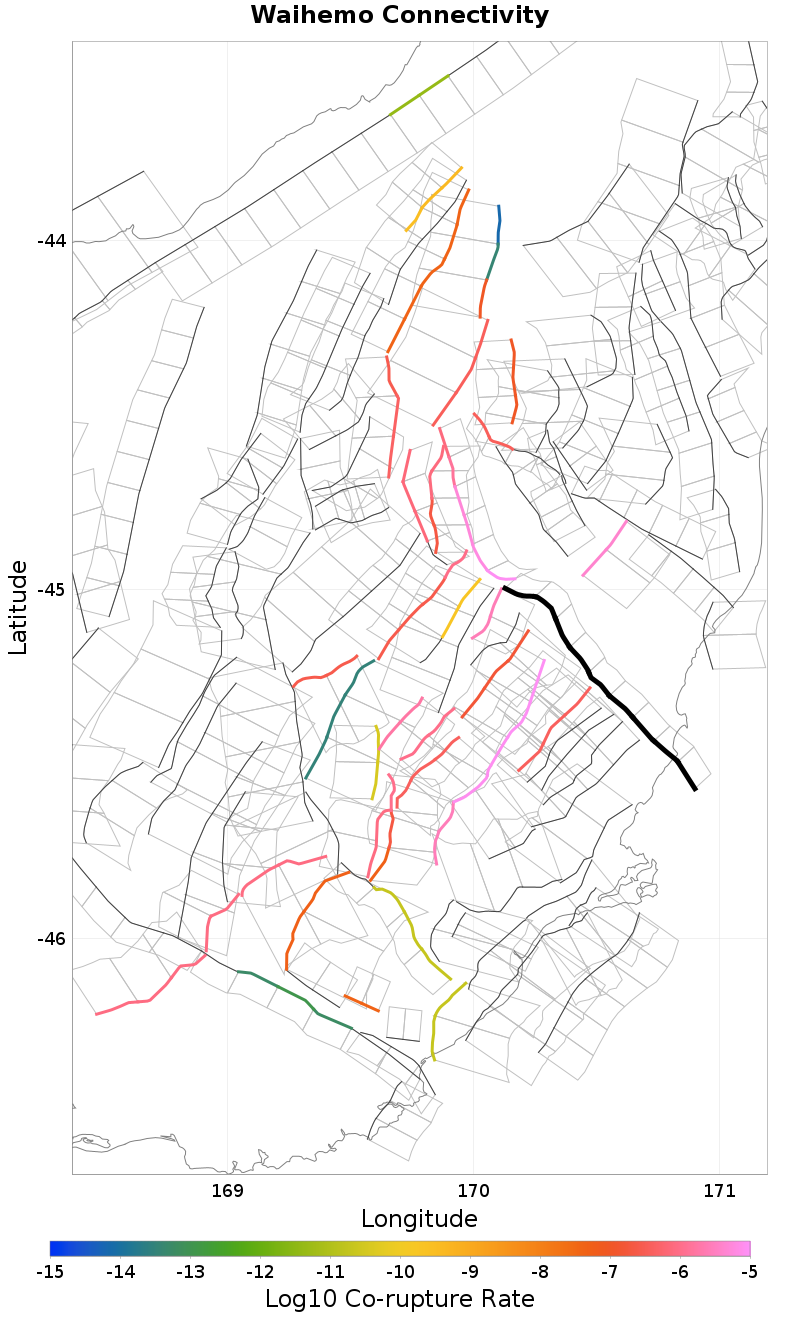

Connectivity

Nearby Sections

Fault Section
Cross Eden, 1.13 km away
Hawkdun, 1.35 km away
Horse Flat, 2.81 km away
Flat Stream - Glenpark, 3.2 km away
Dunback Hill, 3.36 km away
Gimmerburn, 3.59 km away
Murphys Creek, 3.71 km away
Billys Ridge, 4.71 km away
Ranfurly, 5.63 km away
Waipiata, 7.68 km away
Garibaldi, 8.5 km away
Hyde North, 9.13 km away
Awahokomo, 12.83 km away
Black Hill, 13.3 km away

Cross Eden, 1.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	2.5532806E-6

Hawkdun, 1.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	true
Directly Connected?	true
Co-rupture Count	1,049
Co-rupture Rate	8.691137E-6

Horse Flat, 2.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	3.7996924E-7

Flat Stream - Glenpark, 3.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dunback Hill, 3.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Gimmerburn, 3.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Murphys Creek, 3.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Billys Ridge, 4.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ranfurly, 5.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waipiata, 7.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	1.5977014E-7

Garibaldi, 8.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	true
Directly Connected?	false
Co-rupture Count	22
Co-rupture Rate	1.8731791E-10

Hyde North, 9.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	true
Directly Connected?	true
Co-rupture Count	1,027
Co-rupture Rate	8.9811565E-6

Awahokomo, 12.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Black Hill, 13.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MTguMEJSODlD
Connected?	true
Directly Connected?	true
Co-rupture Count	9
Co-rupture Rate	4.1169596E-6
