Hyde North Details

PropertyValue
Rupture Count2,693
Ruptures Above Sect Min Mag2,691
Ruptures w/ Nonzero Rates175
Magnitude Range[7.19, 8.25]
Length Range[28, 316] km
Total Rate5.888215E-5 /yr
Multi-Fault Rate3.5414625E-5 /yr (60.14%)
Directly-Connected Faults10
All Co-Rupturing Faults40

Table Of Contents

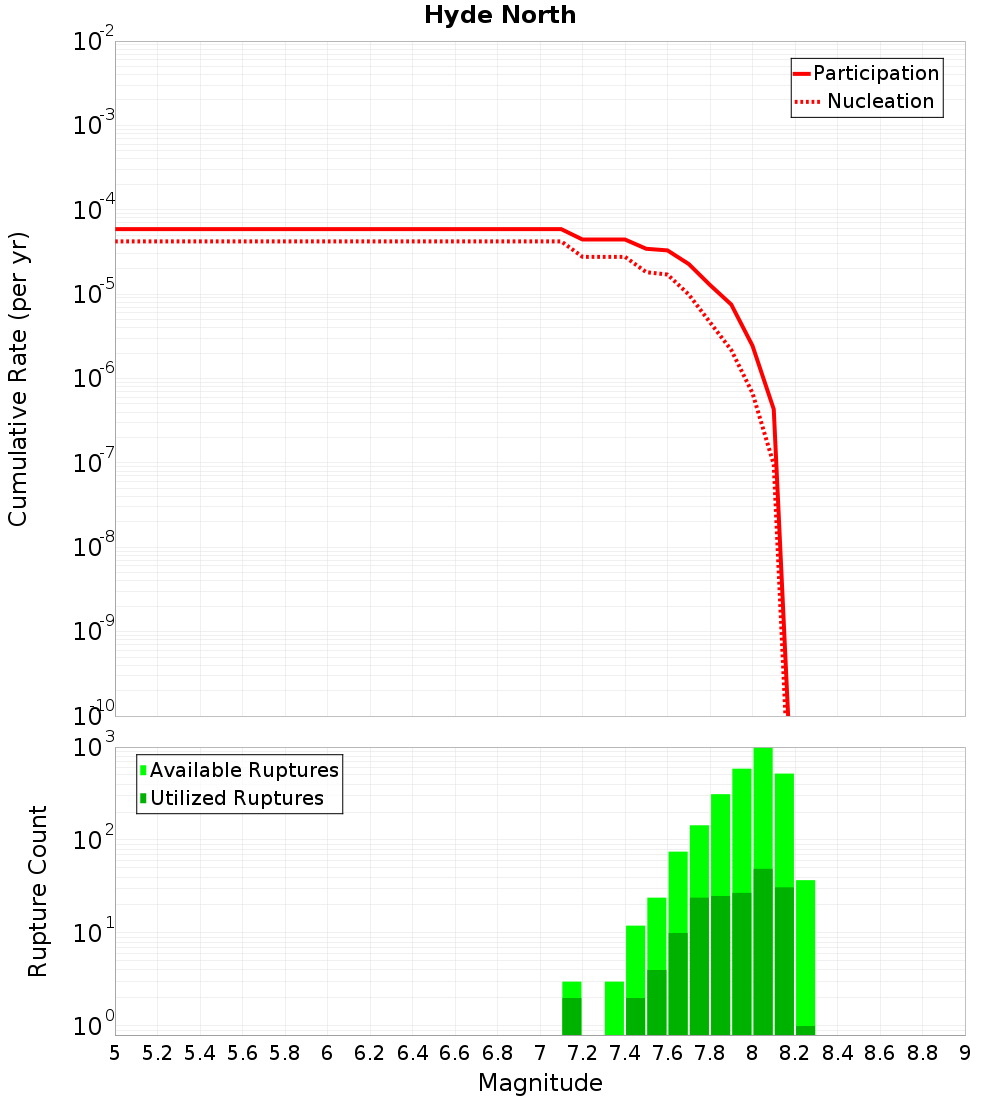

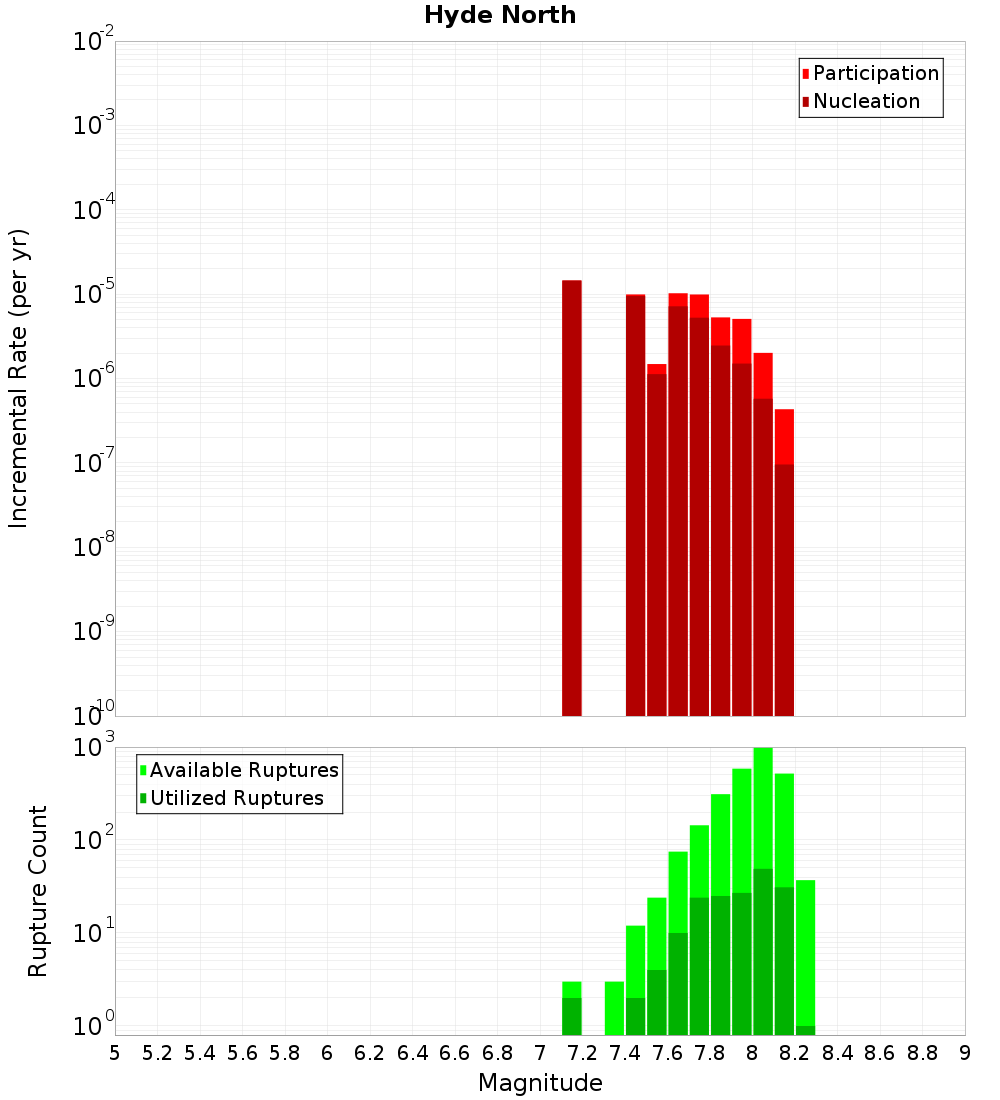

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

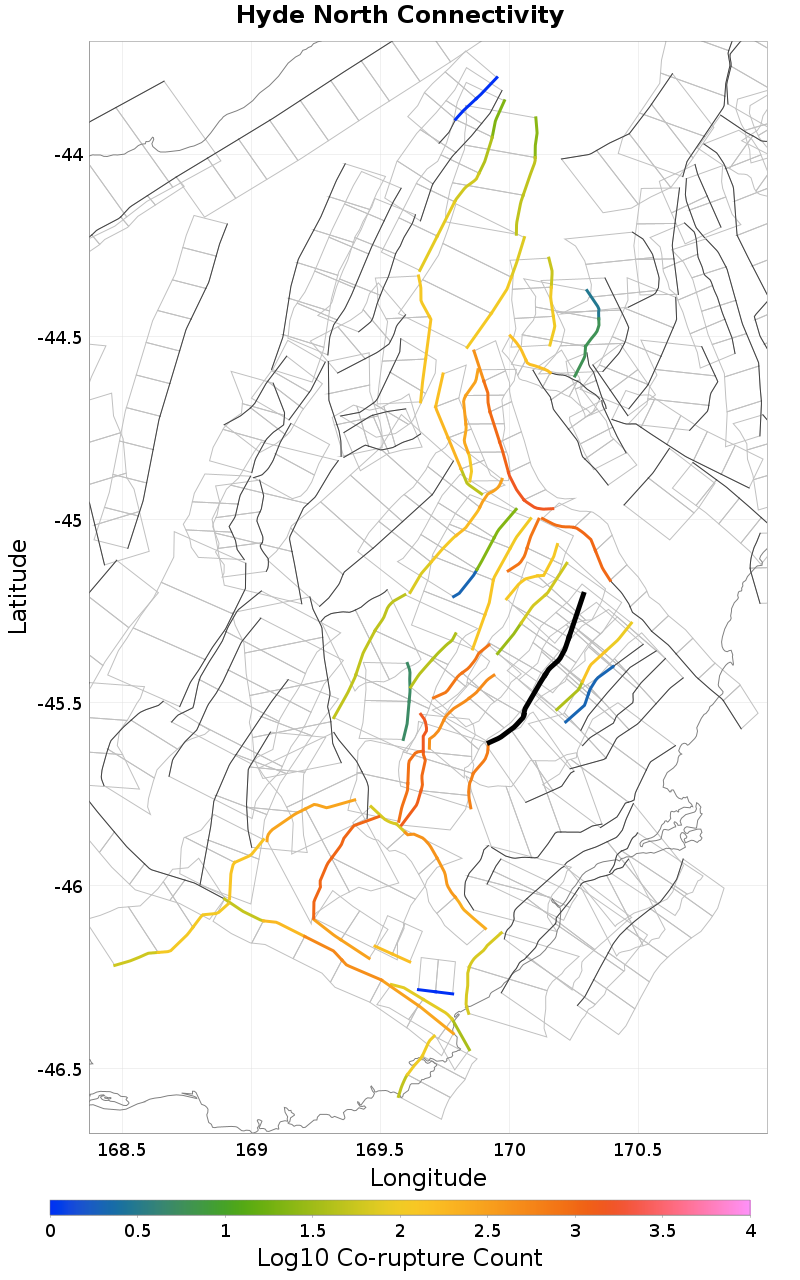

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Pylap, 0.03 km awayLittle Valley, 4.06 km away
Ranfurly, 0.06 km awayHorse Flat, 5.99 km away
Logan Burn, 0.07 km awayBillys Ridge, 9.04 km away
Cross Eden, 0.18 km awayWaihemo, 9.13 km away
Long Valley, 0.25 km awayMurphys Creek, 12.4 km away
Hyde South - The Twins, 0.33 km awayNichols Rock, 13.72 km away
Beaumont River, 0.34 km awayDunback Hill, 14.52 km away
Waipiata, 0.42 km awayFlat Stream - Glenpark, 14.79 km away

Pylap, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count817
Co-rupture Rate7.8479405E-7

Ranfurly, 0.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count117
Co-rupture Rate5.6188185E-7

Logan Burn, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count492
Co-rupture Rate1.4642496E-11

Cross Eden, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count777
Co-rupture Rate4.036093E-6

Long Valley, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate1.07386795E-5

Hyde South - The Twins, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count682
Co-rupture Rate1.0121386E-5

Beaumont River, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count1,900
Co-rupture Rate7.2064754E-6

Waipiata, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count62
Co-rupture Rate1.1556641E-5

Little Valley, 4.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate2.7579427E-14

Horse Flat, 5.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count130
Co-rupture Rate9.64296E-7

Billys Ridge, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Waihemo, 9.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count1,027
Co-rupture Rate7.095471E-6

Murphys Creek, 12.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 13.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunback Hill, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Flat Stream - Glenpark, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
