Makuri - Waewaepa Details

Property	Value
Rupture Count	4,039
Ruptures Above Sect Min Mag	4,036
Ruptures w/ Nonzero Rates	107
Magnitude Range	[6.77, 8.59]
Length Range	[16, 893] km
Total Rate	5.3513894E-4 /yr
Multi-Fault Rate	5.3513894E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	83

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

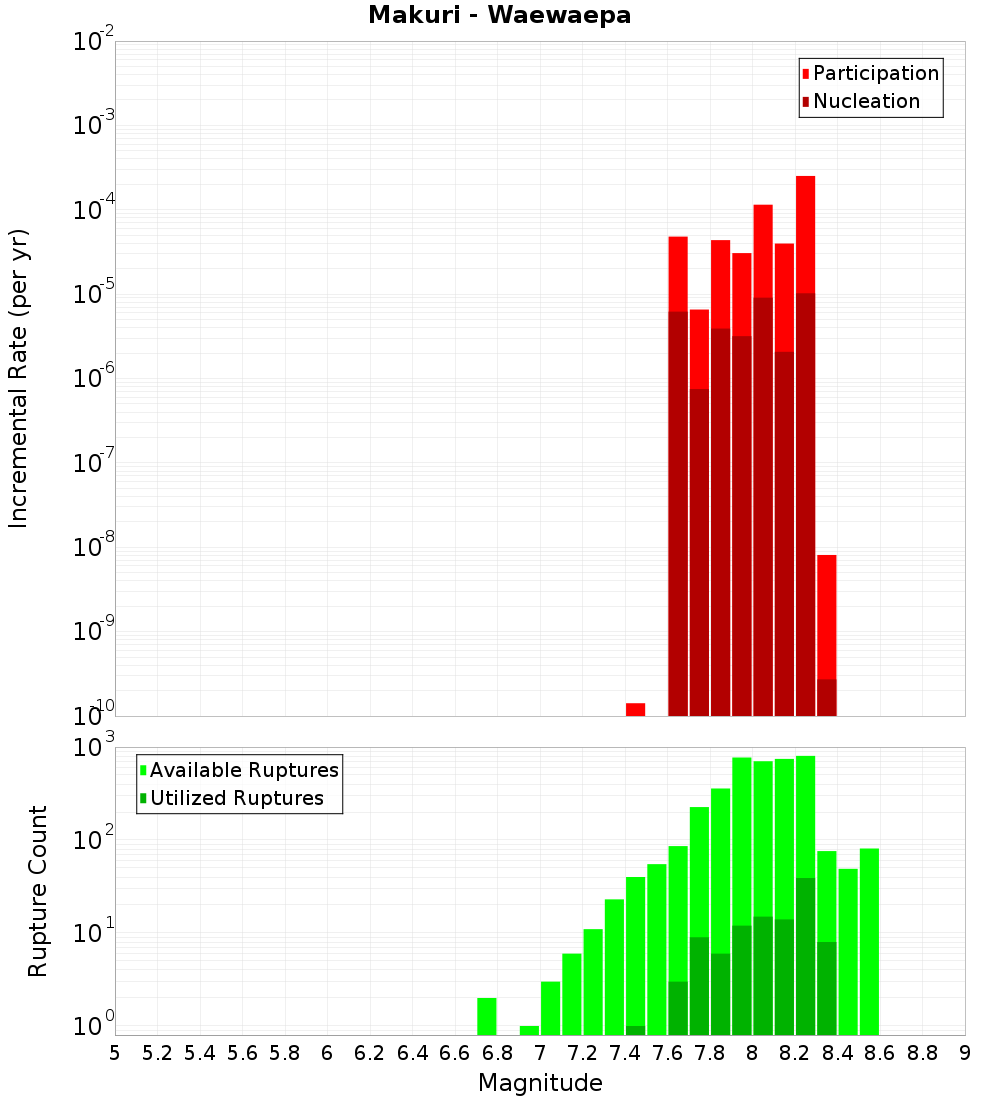

Magnitude-Frequency Distribution

Incremental	Cumulative

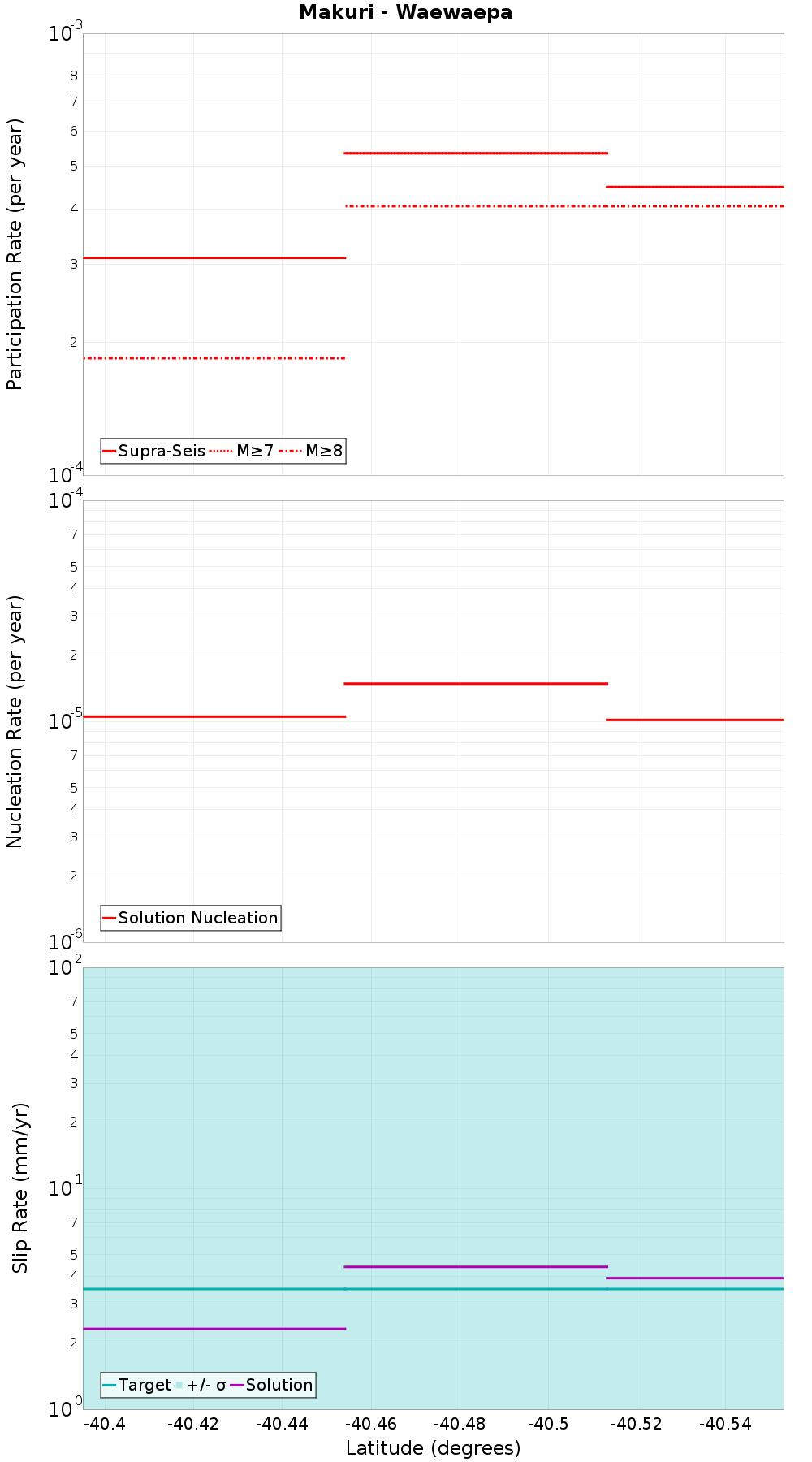

Along-Strike Values

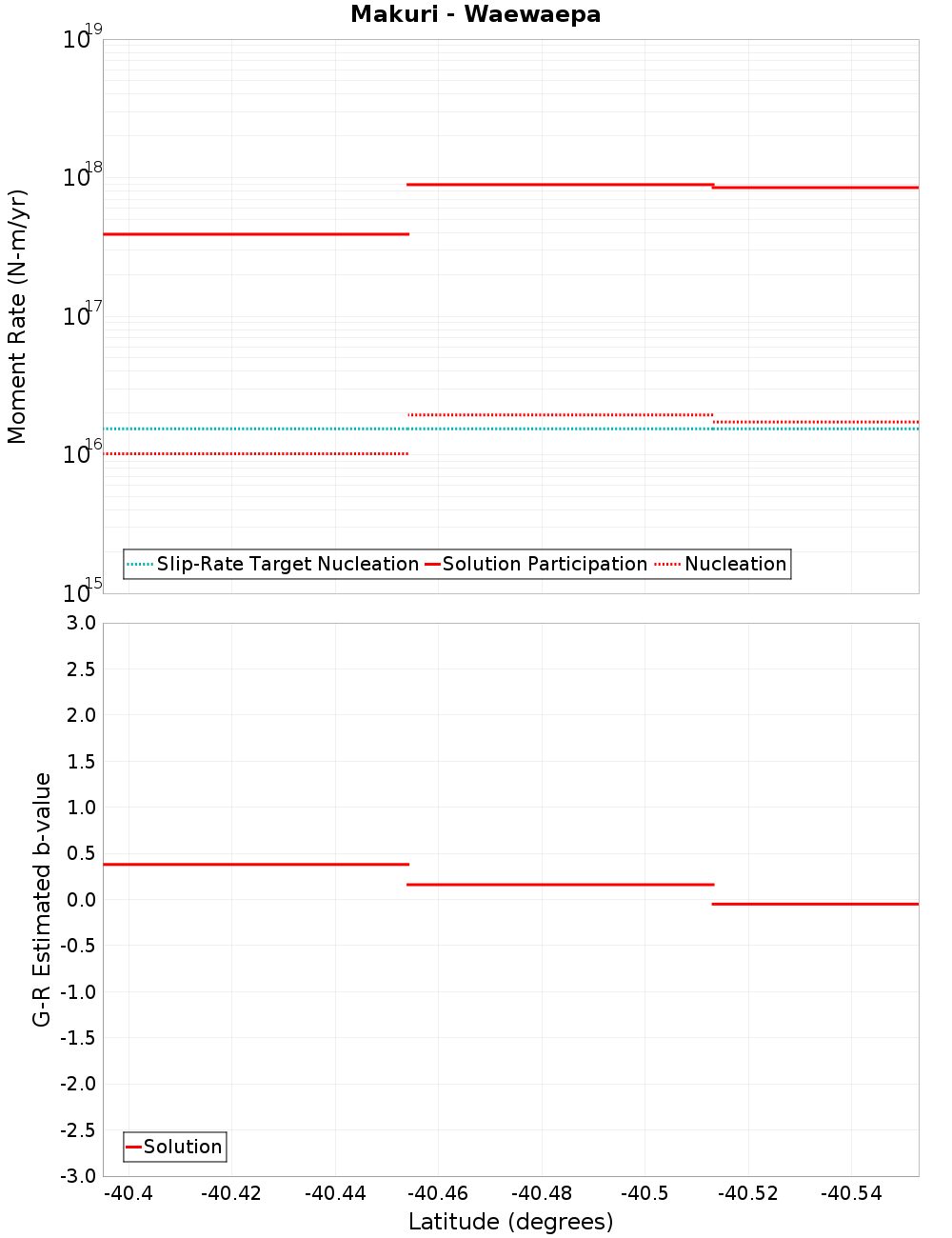

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waewaepa, 0 km away
Alfredton North, 0.29 km away
Pa Valley, 1.73 km away
Saunders Road, 6 km away
Waipukaka, 8.28 km away
Maunga, 9.19 km away
Pahiatua, 12.67 km away
Pongaroa - Weber, 12.83 km away

Waewaepa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	true
Directly Connected?	true
Co-rupture Count	1,611
Co-rupture Rate	3.113762E-4

Alfredton North, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	true
Directly Connected?	true
Co-rupture Count	2,266
Co-rupture Rate	2.8177013E-4

Pa Valley, 1.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	true
Directly Connected?	true
Co-rupture Count	1,714
Co-rupture Rate	1.6686198E-4

Saunders Road, 6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waipukaka, 8.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maunga, 9.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahiatua, 12.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pongaroa - Weber, 12.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
