North Canterbury Shelf 11 Details

Property	Value
Rupture Count	346
Ruptures Above Sect Min Mag	343
Ruptures w/ Nonzero Rates	47
Magnitude Range	[6.69, 8.15]
Length Range	[14, 323] km
Total Rate	8.0454556E-5 /yr
Multi-Fault Rate	8.0454556E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	25

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

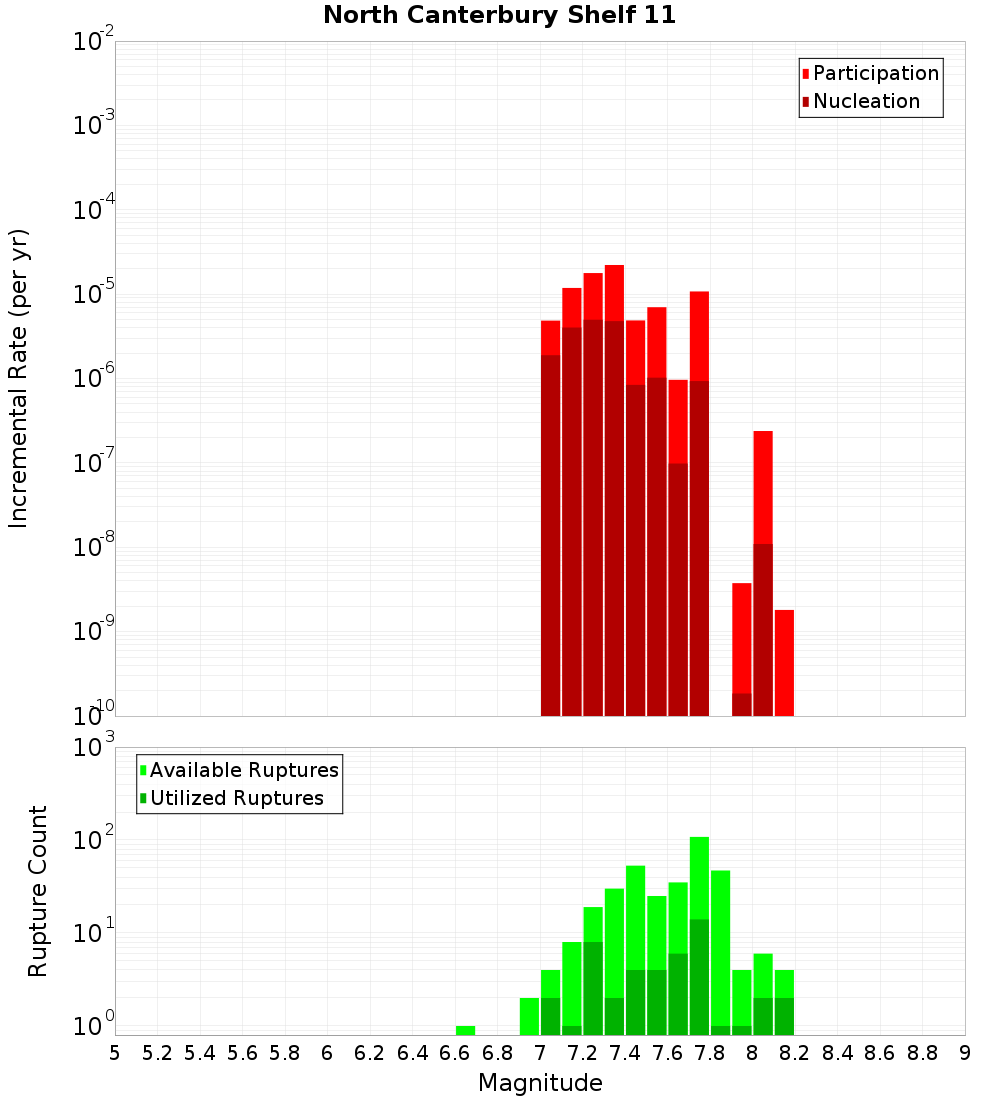

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

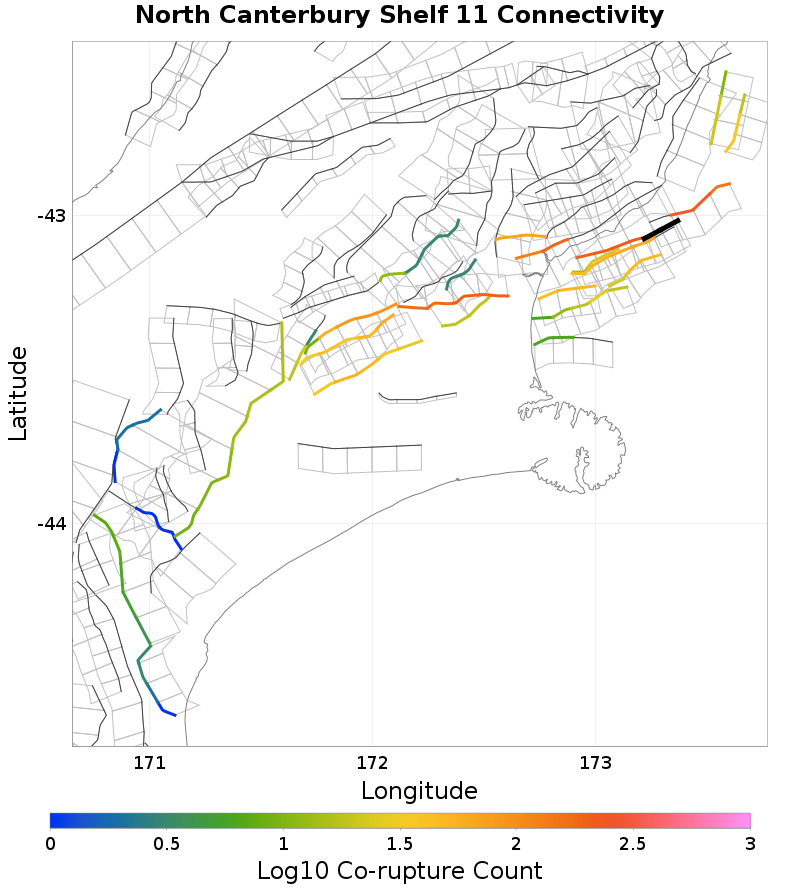

Connectivity

Nearby Sections

Fault Section
Motunau, 0.14 km away
Leithfield - NCVI - NCVII, 1.13 km away
Point Gibson, 2.05 km away
North Canterbury Shelf 4, 5.86 km away
AmberBlyth, 7.7 km away
North Canterbury Shelf 2, 9.96 km away
OmihiLwrHuru, 11.78 km away

Motunau, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	true
Directly Connected?	true
Co-rupture Count	230
Co-rupture Rate	5.0336967E-5

Leithfield - NCVI - NCVII, 1.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	true
Directly Connected?	true
Co-rupture Count	66
Co-rupture Rate	1.3813678E-5

Point Gibson, 2.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	true
Directly Connected?	true
Co-rupture Count	234
Co-rupture Rate	4.5152374E-6

North Canterbury Shelf 4, 5.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	true
Directly Connected?	true
Co-rupture Count	46
Co-rupture Rate	2.1832599E-5

AmberBlyth, 7.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	true
Directly Connected?	false
Co-rupture Count	192
Co-rupture Rate	2.8723021E-5

North Canterbury Shelf 2, 9.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	9.787287E-6

OmihiLwrHuru, 11.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
