Takapu Details
| Property | Value |
|---|---|
| Rupture Count | 24 |
| Ruptures Above Sect Min Mag | 19 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.90, 7.72] |
| Length Range | [19, 86] km |
| Total Rate | 4.7118656E-6 /yr |
| Multi-Fault Rate | 2.0574487E-6 /yr (43.67%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

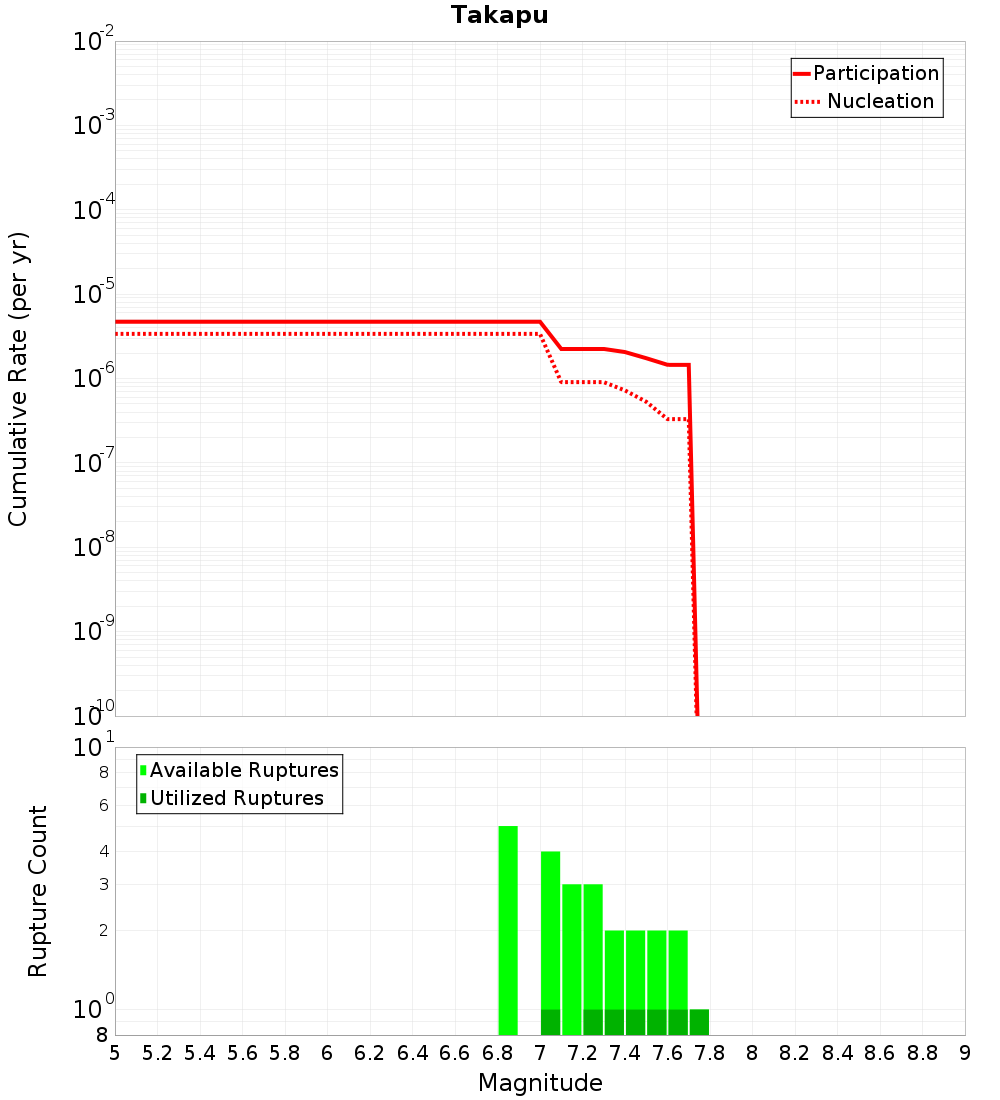

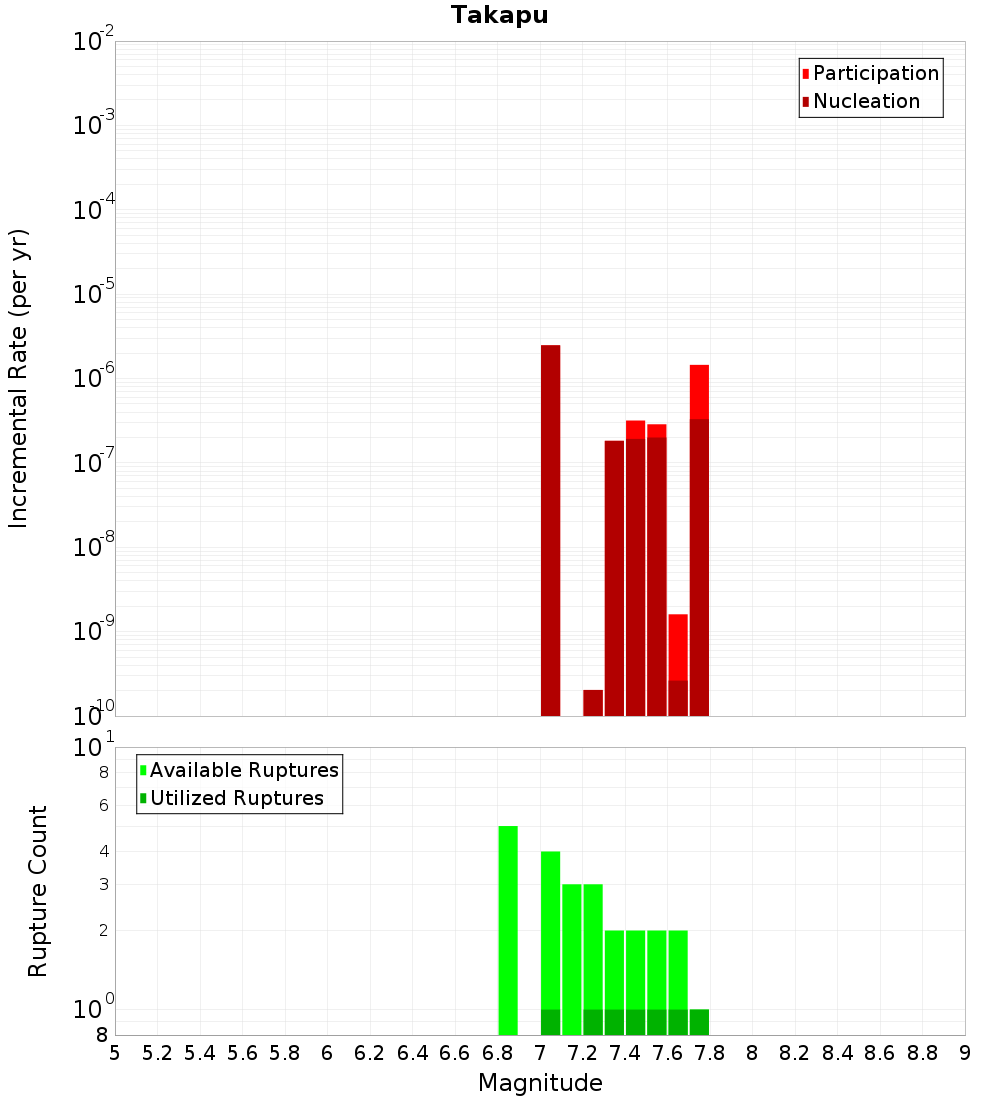

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

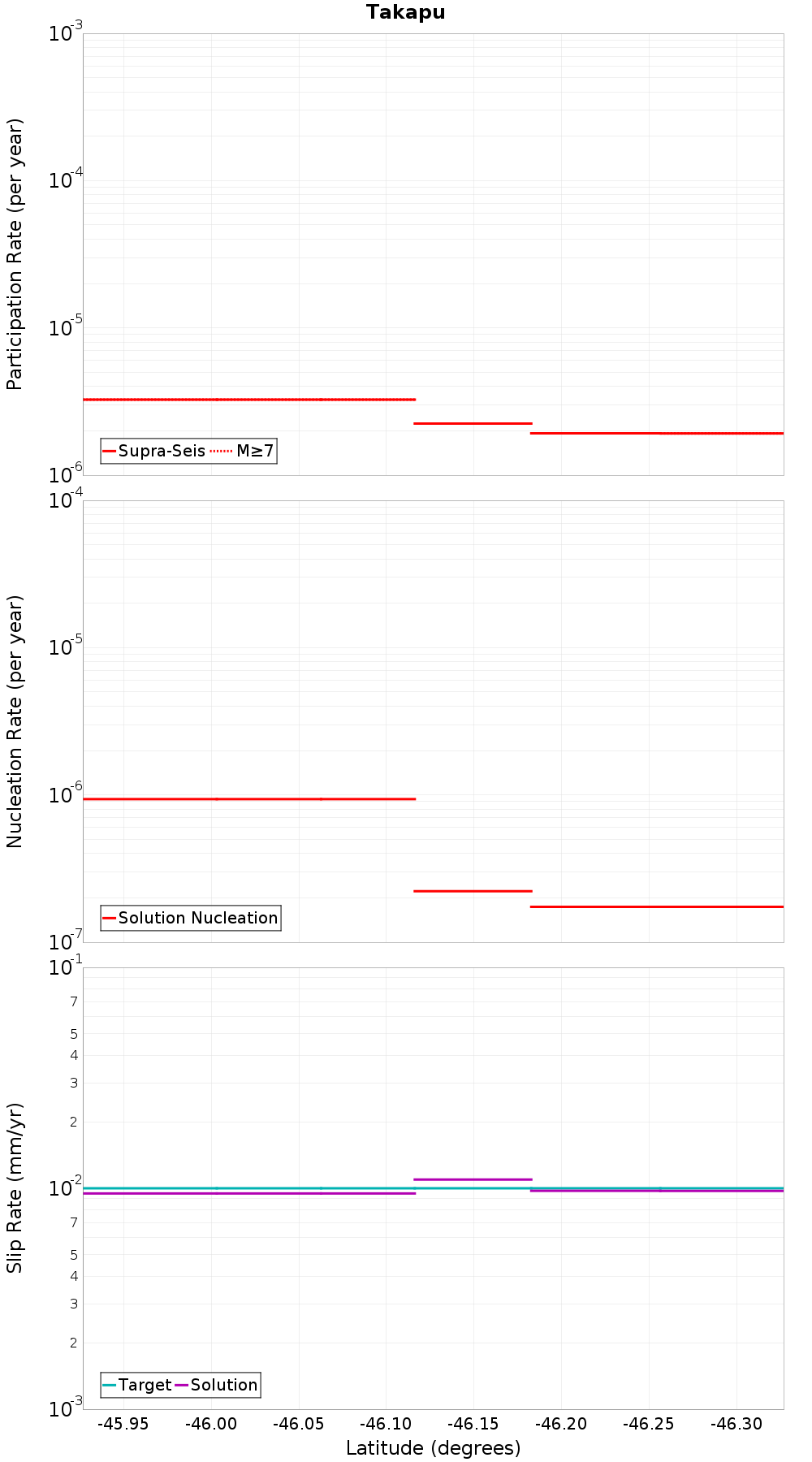

Along-Strike Values
Moment-Rates and b-Values

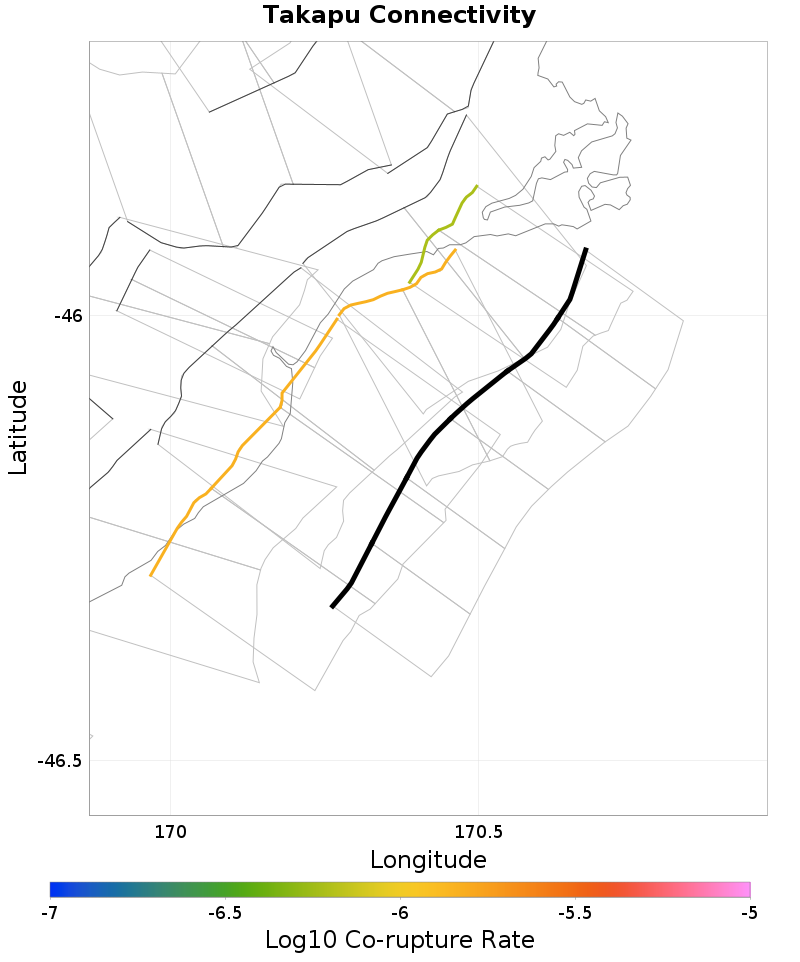

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Green Island, 10.64 km away |
| Kaikorai, 11.17 km away |
| Akatore, 12.82 km away |
Green Island, 10.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 1.4529774E-6 |
Kaikorai, 11.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 6.044713E-7 |
Akatore, 12.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.4529774E-6 |
