Wairarapa: 2 Details

PropertyValue
Rupture Count31,187
Ruptures Above Sect Min Mag31,182
Ruptures w/ Nonzero Rates720
Magnitude Range[6.81, 8.60]
Length Range[18, 925] km
Total Rate0.001545263 /yr
Multi-Fault Rate0.001545263 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults152

Table Of Contents

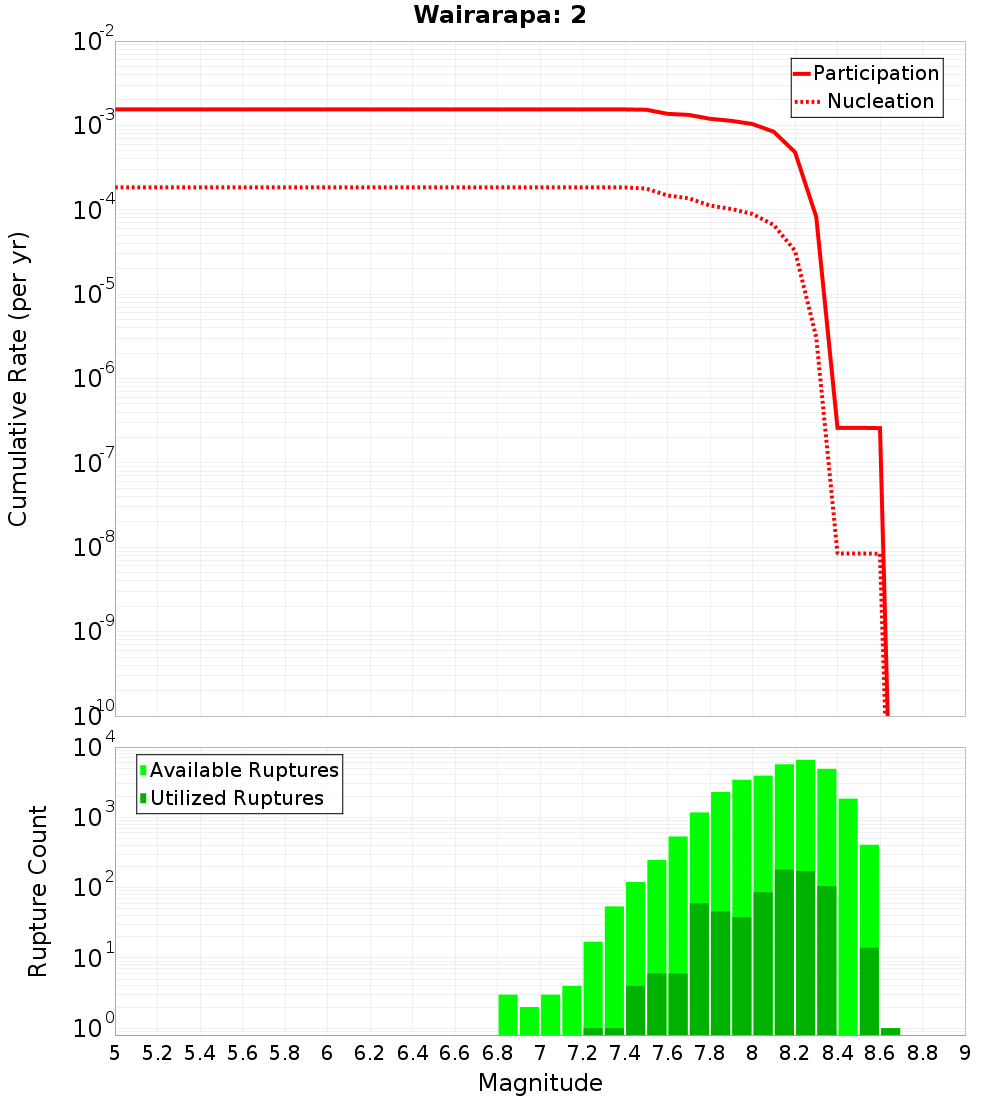

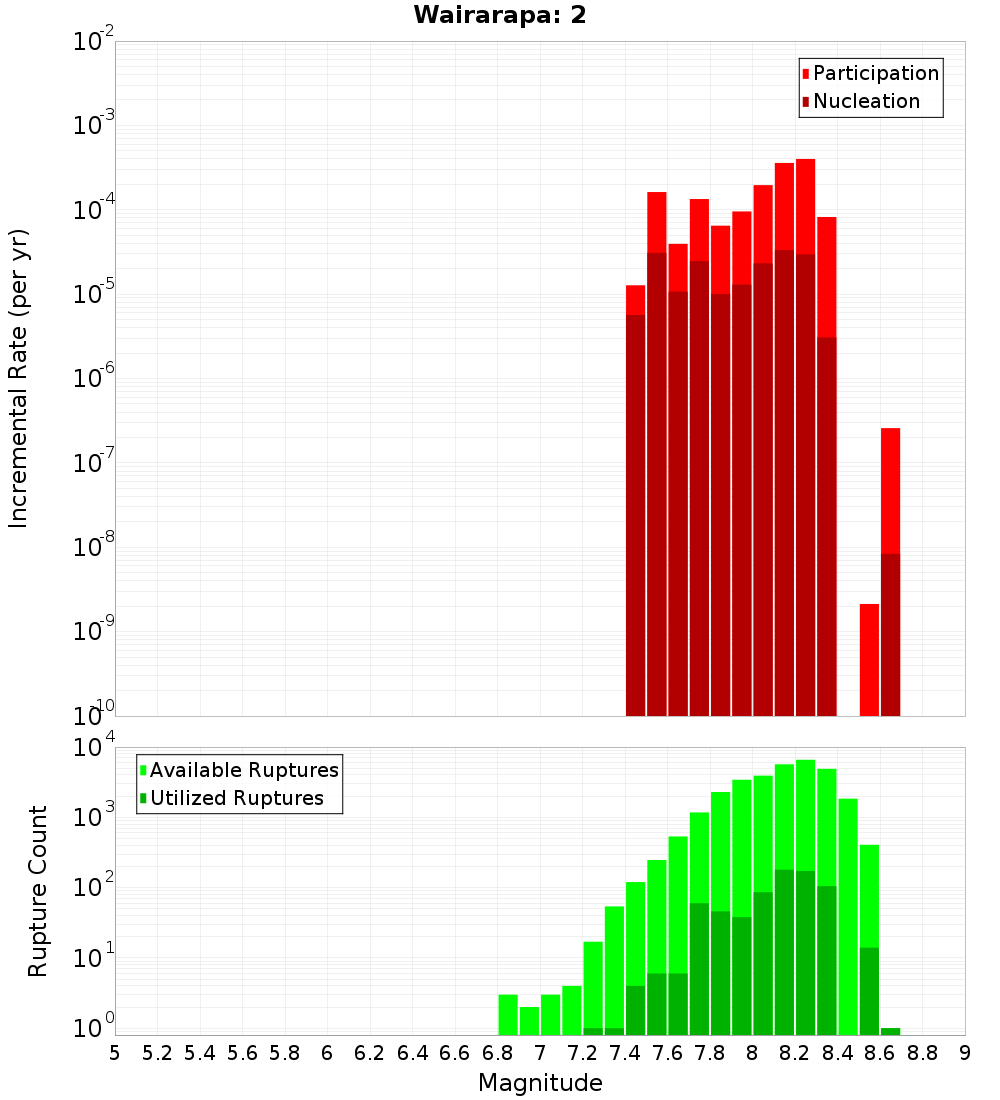

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

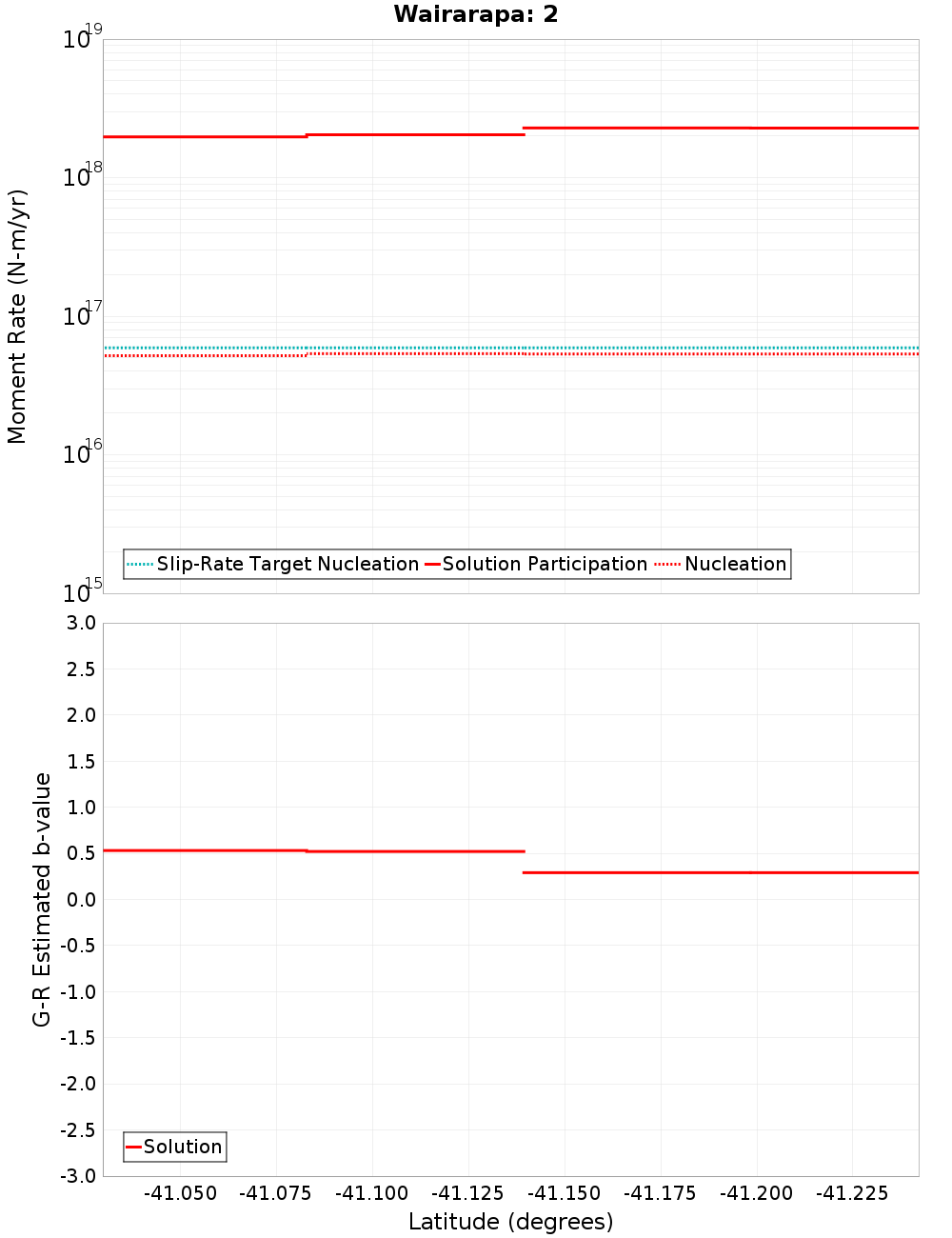

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 1, 0 km awayBidwill, 7.72 km away
Wairarapa: 3, 0.03 km awayMartinborough, 9.66 km away
Carterton, 0.05 km awayWhitemans Valley, 10.22 km away
Wellington Hutt Valley: 5, 0.33 km awayMokonui Southwest, 12.05 km away
Wharekauhau, 1.38 km awayAkatarawa, 12.78 km away
Wellington Hutt Valley: 4, 3.98 km awayMoonshine, 13.37 km away
Masterton, 5.7 km awayOtaraia, 13.88 km away
Wellington: Tararua 2, 6.35 km awayWellington: Tararua 3, 14.29 km away
Wellington: Tararua 1, 6.52 km away

Wairarapa: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count23,875
Co-rupture Rate0.0010826945

Wairarapa: 3, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count12,790
Co-rupture Rate7.600667E-4

Carterton, 0.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count3,476
Co-rupture Rate2.9405748E-4

Wellington Hutt Valley: 5, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count3,499
Co-rupture Rate2.6234455E-4

Wharekauhau, 1.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count6,003
Co-rupture Rate3.030424E-4

Wellington Hutt Valley: 4, 3.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?false
Co-rupture Count508
Co-rupture Rate2.3494638E-4

Masterton, 5.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate1.6738864E-4

Wellington: Tararua 2, 6.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?true
Co-rupture Count13,579
Co-rupture Rate1.1601647E-4

Wellington: Tararua 1, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Bidwill, 7.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?false
Co-rupture Count202
Co-rupture Rate1.3831645E-6

Martinborough, 9.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?false
Co-rupture Count72
Co-rupture Rate1.7160191E-7

Whitemans Valley, 10.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?false
Co-rupture Count80
Co-rupture Rate2.0410694E-6

Mokonui Southwest, 12.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?false
Co-rupture Count318
Co-rupture Rate2.985176E-5

Akatarawa, 12.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonshine, 13.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?false
Co-rupture Count72
Co-rupture Rate0.0

Otaraia, 13.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?false
Co-rupture Count168
Co-rupture Rate1.2850942E-6

Wellington: Tararua 3, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4MzUuMEJMS2Nn
Connected?true
Directly Connected?false
Co-rupture Count14,347
Co-rupture Rate1.1602497E-4
