Te Whaiti South Details

PropertyValue
Rupture Count7,613
Ruptures Above Sect Min Mag7,608
Ruptures w/ Nonzero Rates16
Magnitude Range[6.95, 8.52]
Length Range[20, 713] km
Total Rate2.6052372E-4 /yr
Multi-Fault Rate2.3979374E-4 /yr (92.04%)
Directly-Connected Faults7
All Co-Rupturing Faults98

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

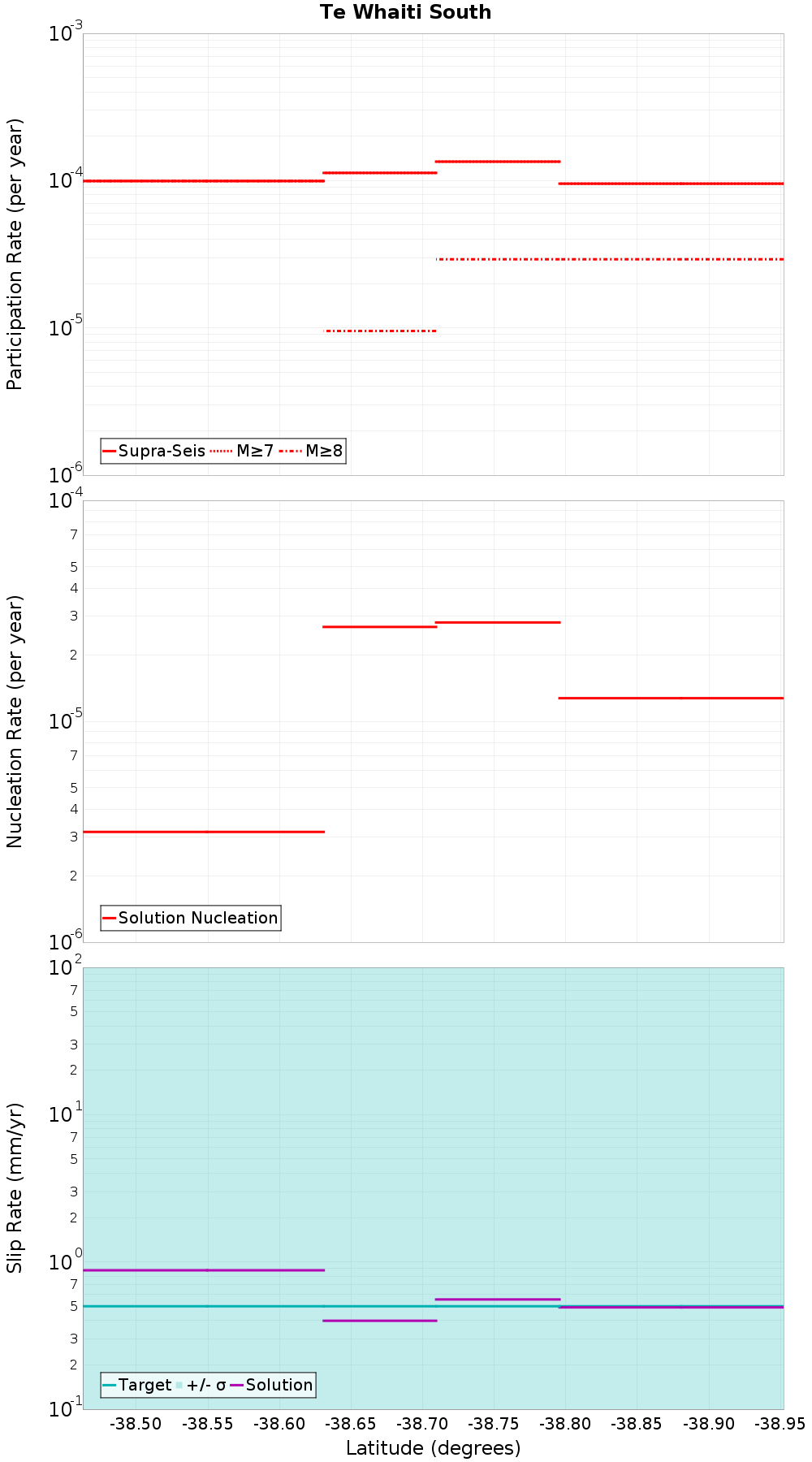

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

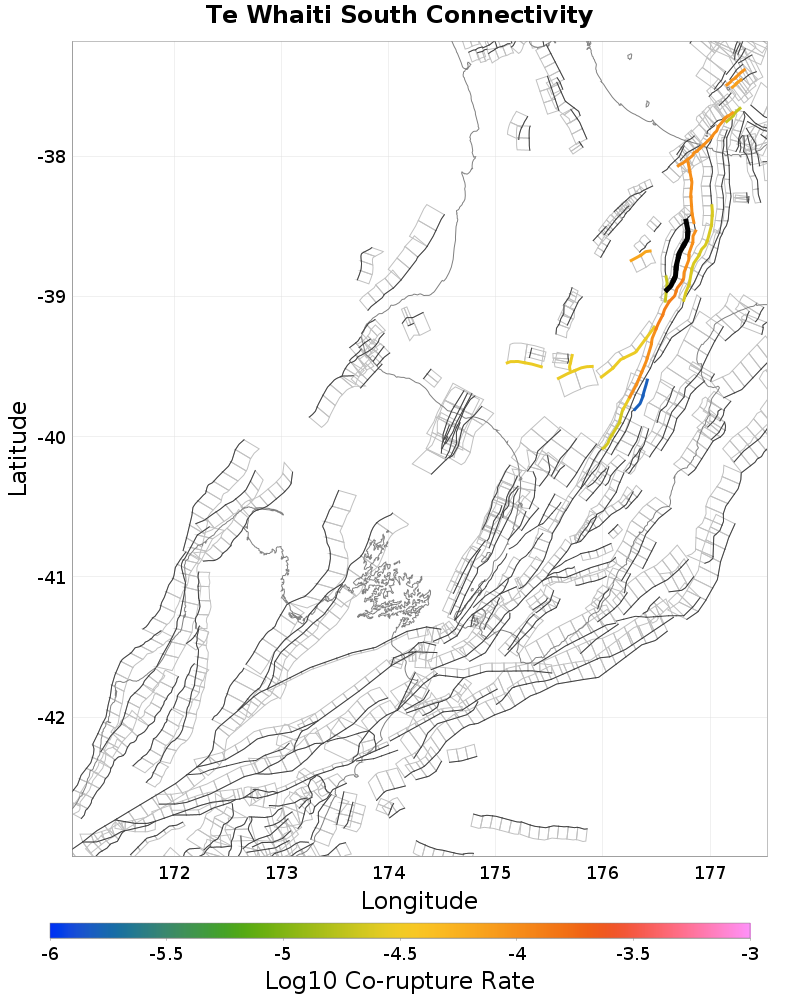

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Whaiti North, 0 km away
Wheao: North, 0 km away
Wheao: South, 0.44 km away
Waiohau: South, 0.76 km away
Waiohau: North, 1.94 km away
Ruahine: North, 9.06 km away
Whakatane: South, 11.9 km away
Kaingaroa 1, 13.7 km away
Waimana: South, 14.57 km away
Whakatane: North, 14.65 km away

Te Whaiti North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp
Connected?true
Directly Connected?true
Co-rupture Count697
Co-rupture Rate0.0

Wheao: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp
Connected?true
Directly Connected?true
Co-rupture Count477
Co-rupture Rate0.0

Wheao: South, 0.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp
Connected?true
Directly Connected?true
Co-rupture Count608
Co-rupture Rate1.9601246E-5

Waiohau: South, 0.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp
Connected?true
Directly Connected?true
Co-rupture Count6,625
Co-rupture Rate1.2851713E-4

Waiohau: North, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp
Connected?true
Directly Connected?true
Co-rupture Count2,295
Co-rupture Rate9.9308614E-5

Ruahine: North, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp
Connected?true
Directly Connected?false
Co-rupture Count7,110
Co-rupture Rate1.2851713E-4

Whakatane: South, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp
Connected?true
Directly Connected?true
Co-rupture Count186
Co-rupture Rate2.375855E-5

Kaingaroa 1, 13.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate6.791681E-5

Waimana: South, 14.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakatane: North, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate2.3475017E-5
