Waikaka Details
| Property | Value |
|---|---|
| Rupture Count | 6,880 |
| Ruptures Above Sect Min Mag | 6,880 |
| Ruptures w/ Nonzero Rates | 188 |
| Magnitude Range | [7.18, 8.69] |
| Length Range | [23, 893] km |
| Total Rate | 7.750426E-6 /yr |
| Multi-Fault Rate | 7.750426E-6 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 97 |
Table Of Contents

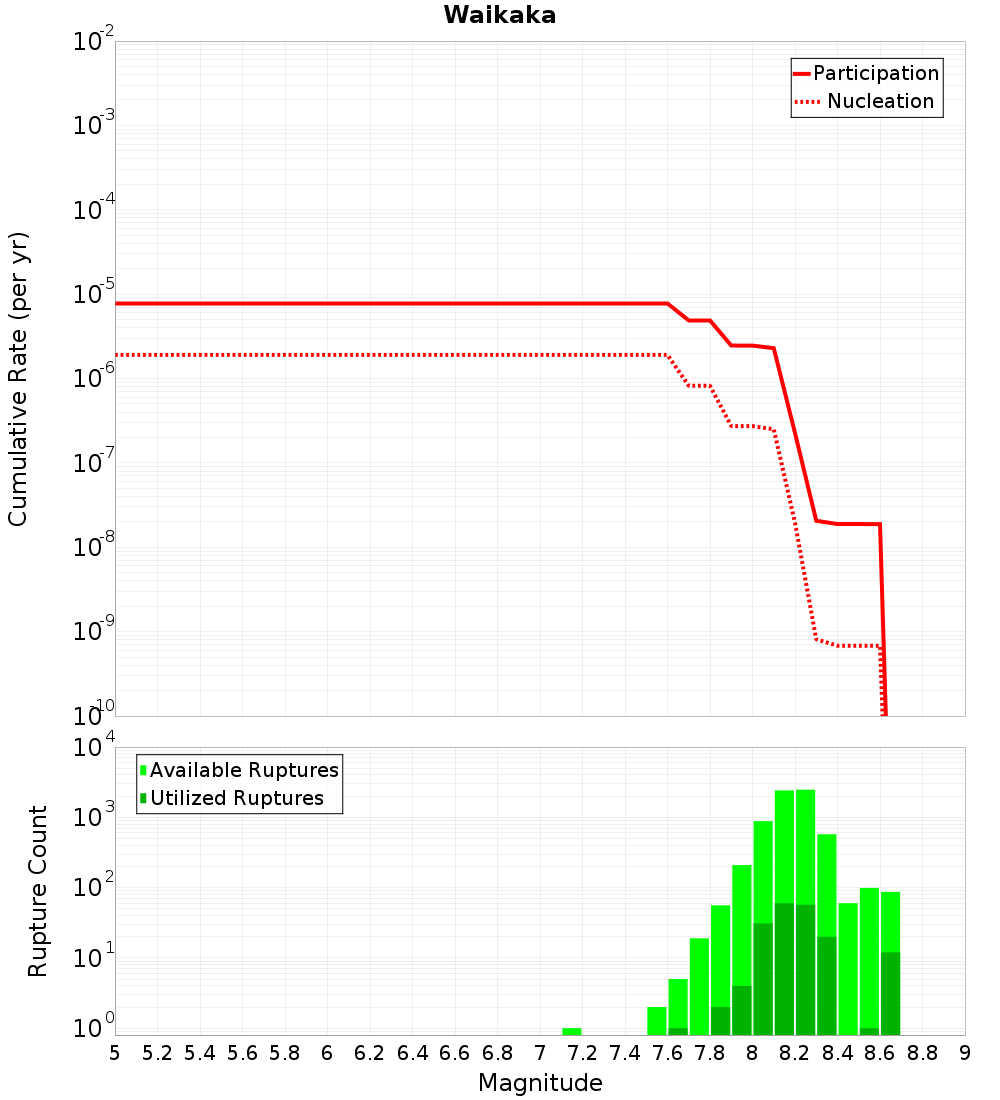

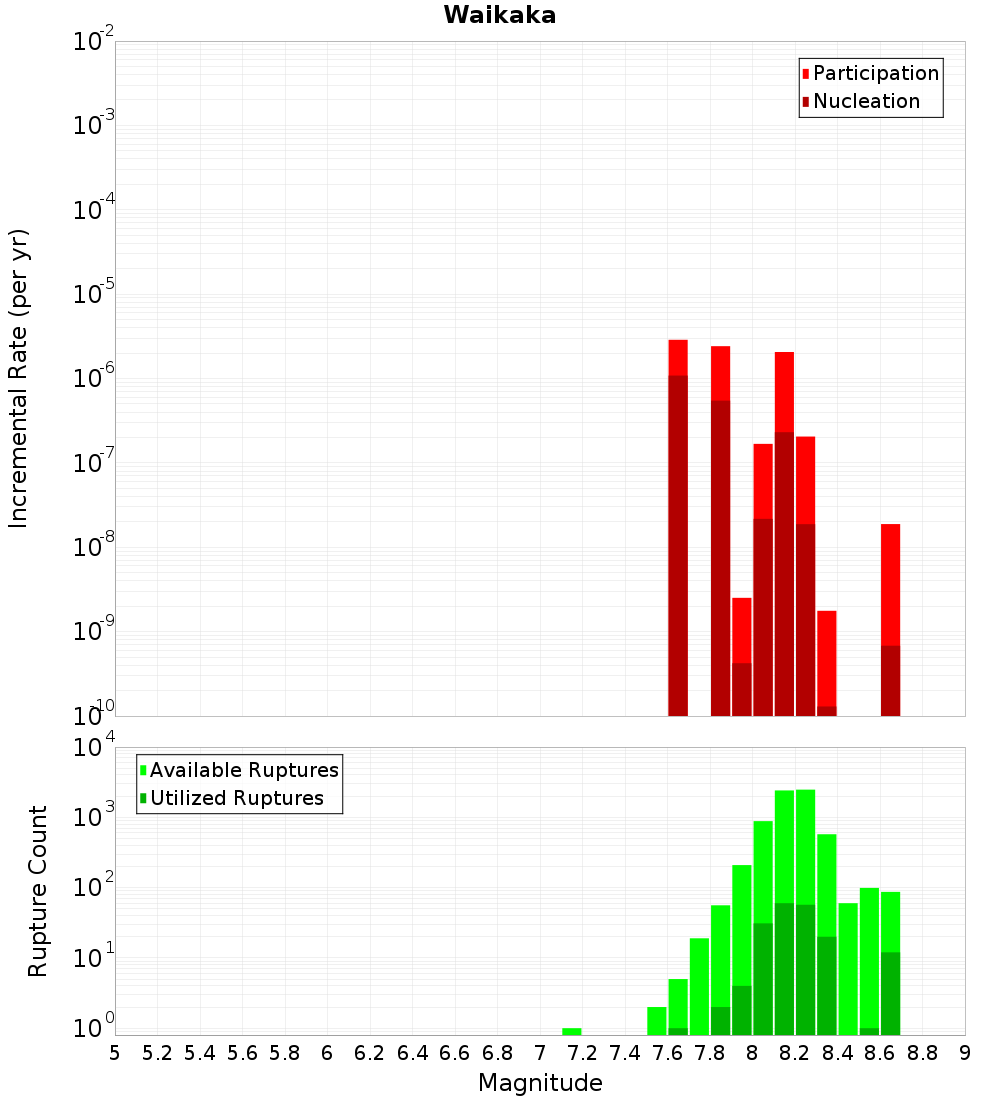

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

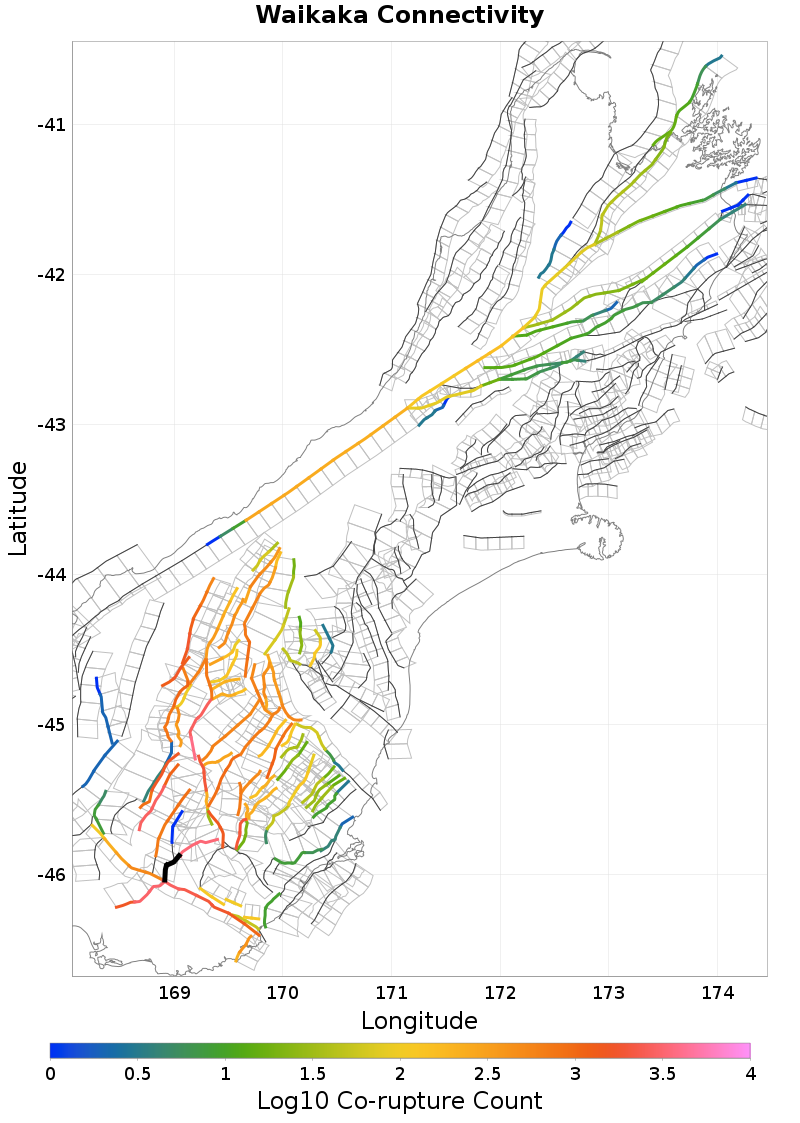

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Waikaia, 0.04 km away |
| Wendon Valley, 0.19 km away |
| Hedgehope, 0.32 km away |
| Hillfoot, 0.9 km away |
| Spylaw, 1.11 km away |
| Hokonui, 1.27 km away |
| Garvie, 4.17 km away |
| Mid Dome, 12.5 km away |
Waikaia, 0.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 907 |
| Co-rupture Rate | 5.1482585E-10 |
Wendon Valley, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Hedgehope, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,082 |
| Co-rupture Rate | 4.4939534E-6 |
Hillfoot, 0.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,756 |
| Co-rupture Rate | 2.690173E-7 |
Spylaw, 1.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,362 |
| Co-rupture Rate | 7.4350205E-6 |
Hokonui, 1.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 537 |
| Co-rupture Rate | 2.4132518E-7 |
Garvie, 4.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,780 |
| Co-rupture Rate | 3.149953E-7 |
Mid Dome, 12.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDYuMDhCYWFp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
