Lachlan 1 & 2 Details
| Property | Value |
|---|---|
| Rupture Count | 462 |
| Ruptures Above Sect Min Mag | 455 |
| Ruptures w/ Nonzero Rates | 26 |
| Magnitude Range | [6.82, 7.96] |
| Length Range | [18, 250] km |
| Total Rate | 7.883408E-4 /yr |
| Multi-Fault Rate | 1.1184728E-4 /yr (14.19%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

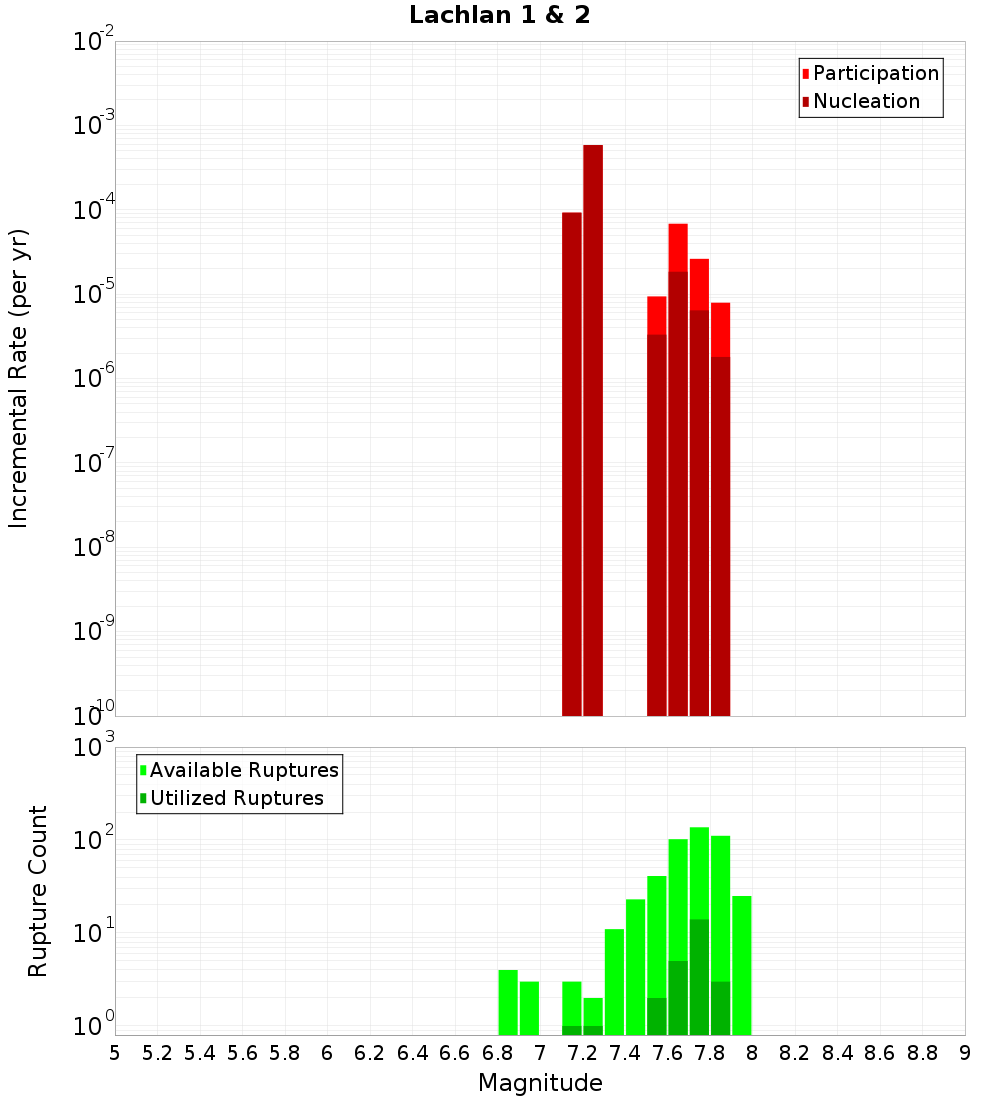

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

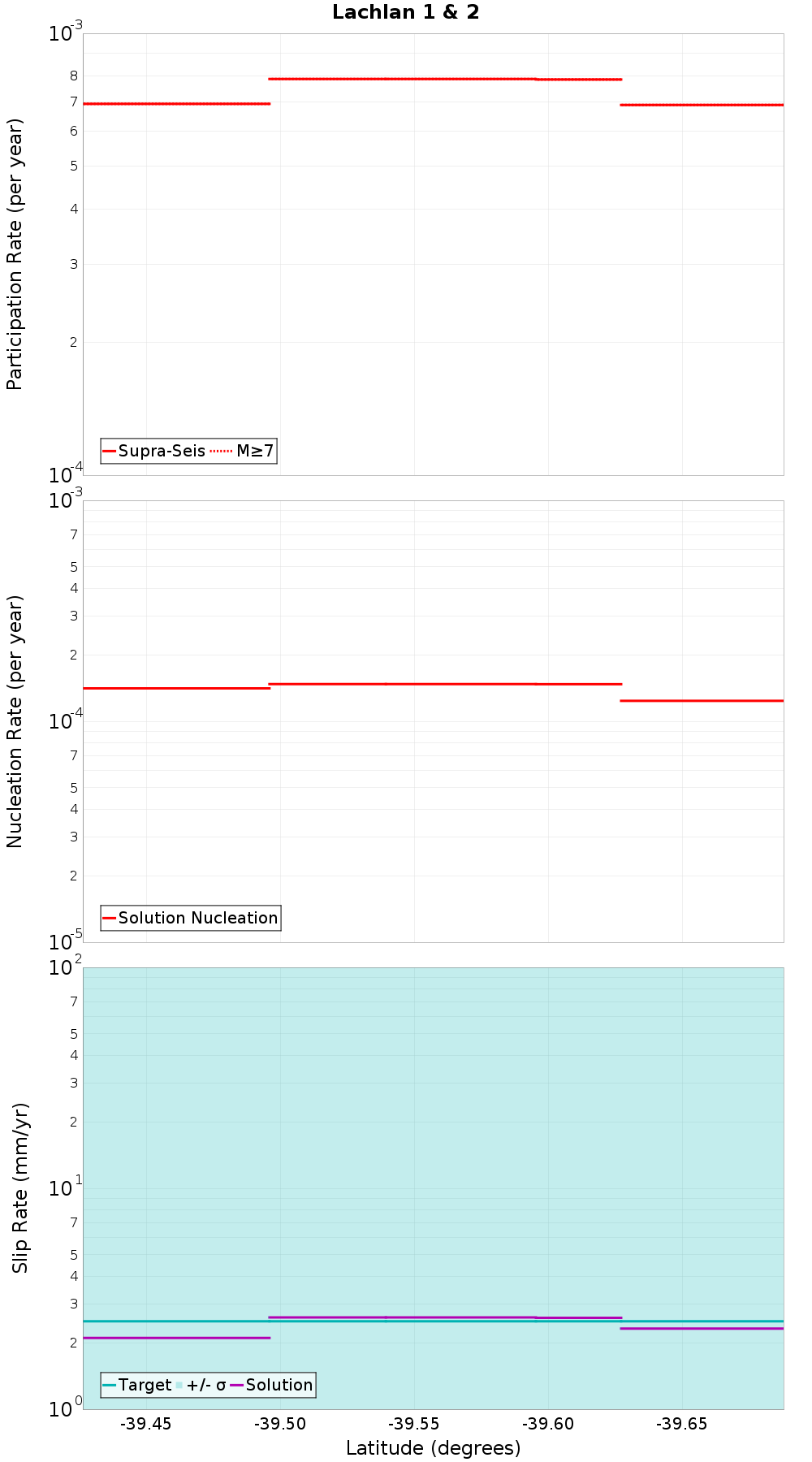

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Lachlan 3, 0.51 km away |
| Mahia 2, 7.45 km away |
| Motuokura North, 10.61 km away |
| Kidnappers Ridge, 10.9 km away |
Lachlan 3, 0.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDguMGRaWmNv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 348 |
| Co-rupture Rate | 9.585542E-5 |
Mahia 2, 7.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDguMGRaWmNv | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motuokura North, 10.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDguMGRaWmNv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 380 |
| Co-rupture Rate | 2.8829138E-5 |
Kidnappers Ridge, 10.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NDguMGRaWmNv | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
