Clarence: Northeast Details

Property	Value
Rupture Count	4,839
Ruptures Above Sect Min Mag	4,834
Ruptures w/ Nonzero Rates	499
Magnitude Range	[6.94, 8.63]
Length Range	[21, 862] km
Total Rate	8.2869624E-4 /yr
Multi-Fault Rate	8.2868006E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	106

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

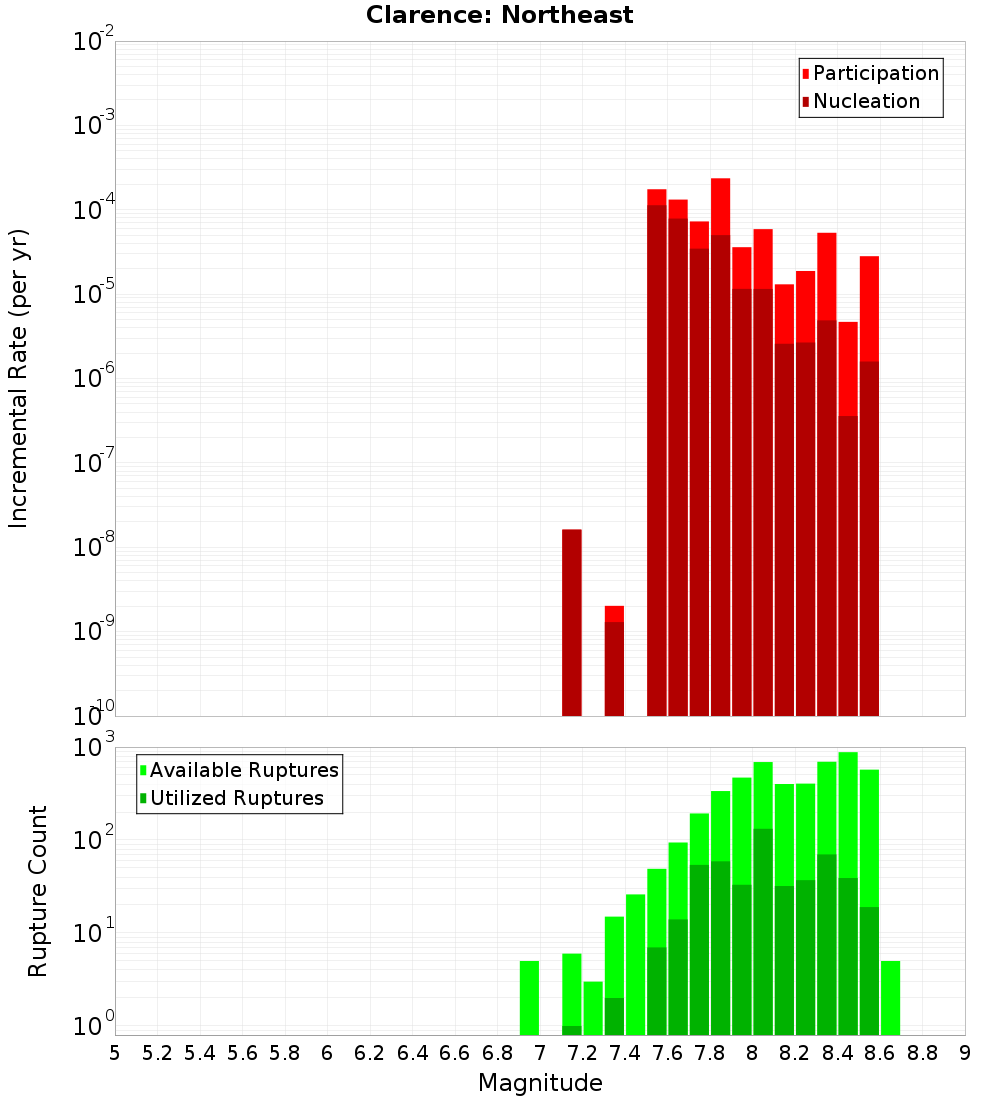

Magnitude-Frequency Distribution

Incremental	Cumulative

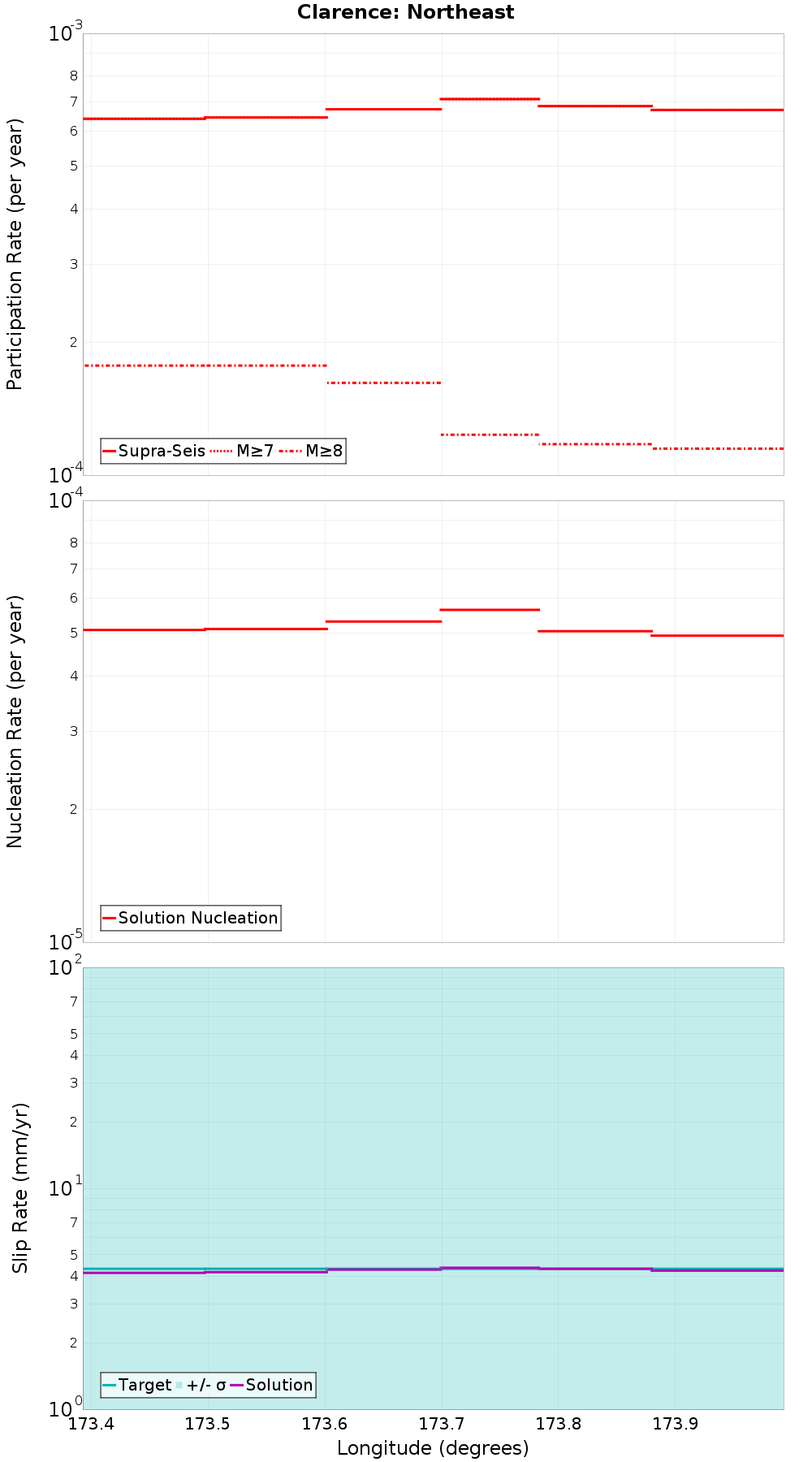

Along-Strike Values

Moment-Rates and b-Values

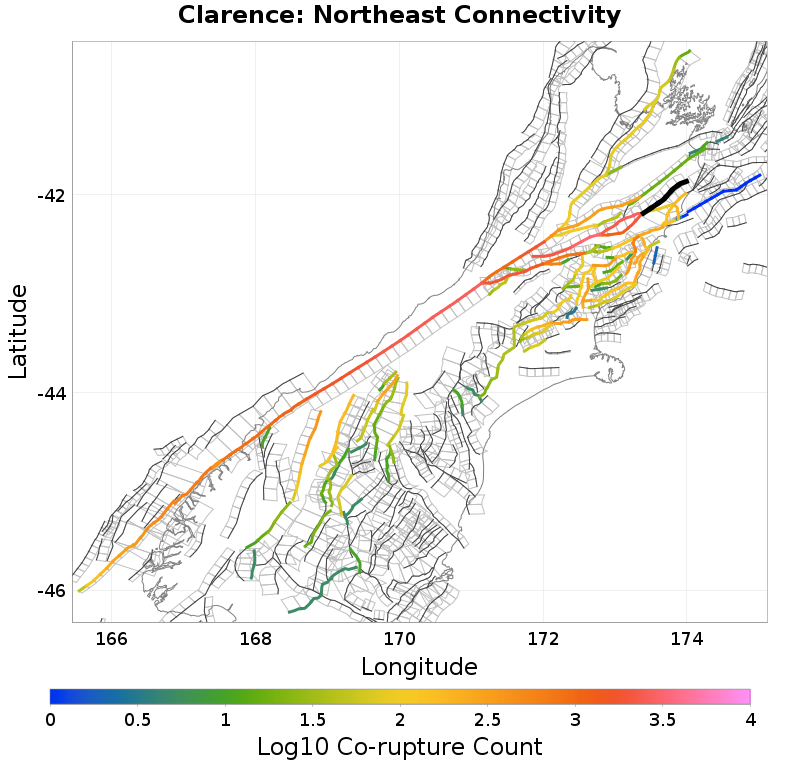

Connectivity

Nearby Sections

Fault Section
Elliott, 0.01 km away
Clarence: Central, 0.09 km away
Fidget, 0.64 km away
Jordan, 0.78 km away
Needles East 2, 8.38 km away
Awatere: Northeast 1, 9.18 km away
Kekerengu 1, 10.43 km away
London Hill, 10.86 km away
Awatere: Southwest, 11.07 km away
Papatea, 11.87 km away
Needles, 11.97 km away

Elliott, 0.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTAuMENoUTk5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,930
Co-rupture Rate	7.55971E-5

Clarence: Central, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTAuMENoUTk5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,701
Co-rupture Rate	1.6407728E-4

Fidget, 0.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTAuMENoUTk5
Connected?	true
Directly Connected?	true
Co-rupture Count	88
Co-rupture Rate	7.120362E-8

Jordan, 0.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTAuMENoUTk5
Connected?	true
Directly Connected?	true
Co-rupture Count	151
Co-rupture Rate	4.2264236E-4

Needles East 2, 8.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTAuMENoUTk5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awatere: Northeast 1, 9.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTAuMENoUTk5
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	1.381476E-5

Kekerengu 1, 10.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTAuMENoUTk5
Connected?	true
Directly Connected?	true
Co-rupture Count	182
Co-rupture Rate	4.055536E-4

London Hill, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTAuMENoUTk5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awatere: Southwest, 11.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTAuMENoUTk5
Connected?	true
Directly Connected?	false
Co-rupture Count	326
Co-rupture Rate	5.871374E-5

Papatea, 11.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTAuMENoUTk5
Connected?	true
Directly Connected?	true
Co-rupture Count	189
Co-rupture Rate	1.2994258E-4

Needles, 11.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTAuMENoUTk5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
