Kotare - Moutuhora Details

PropertyValue
Rupture Count53
Ruptures Above Sect Min Mag50
Ruptures w/ Nonzero Rates15
Magnitude Range[7.05, 8.37]
Length Range[22, 470] km
Total Rate2.3336019E-4 /yr
Multi-Fault Rate9.503606E-5 /yr (40.73%)
Directly-Connected Faults5
All Co-Rupturing Faults16

Table Of Contents

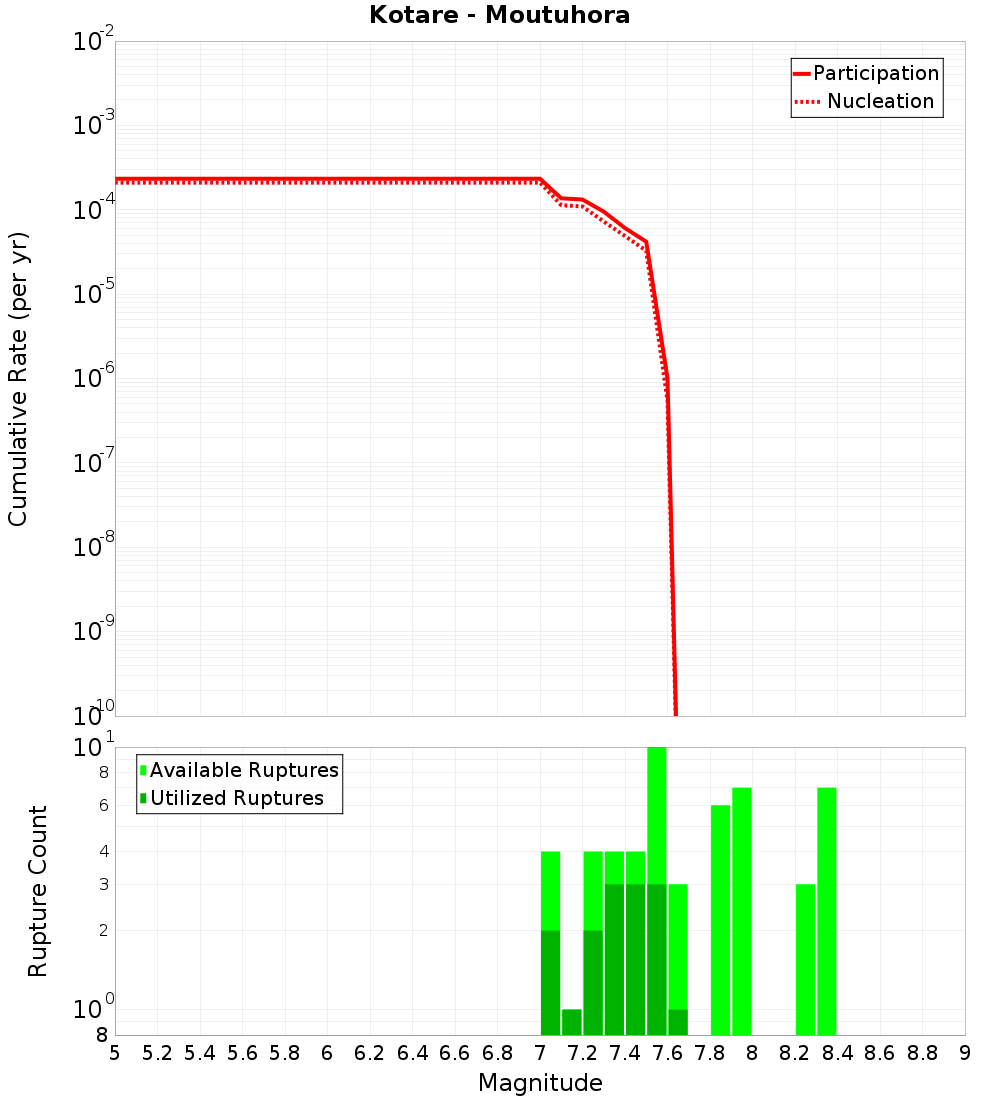

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

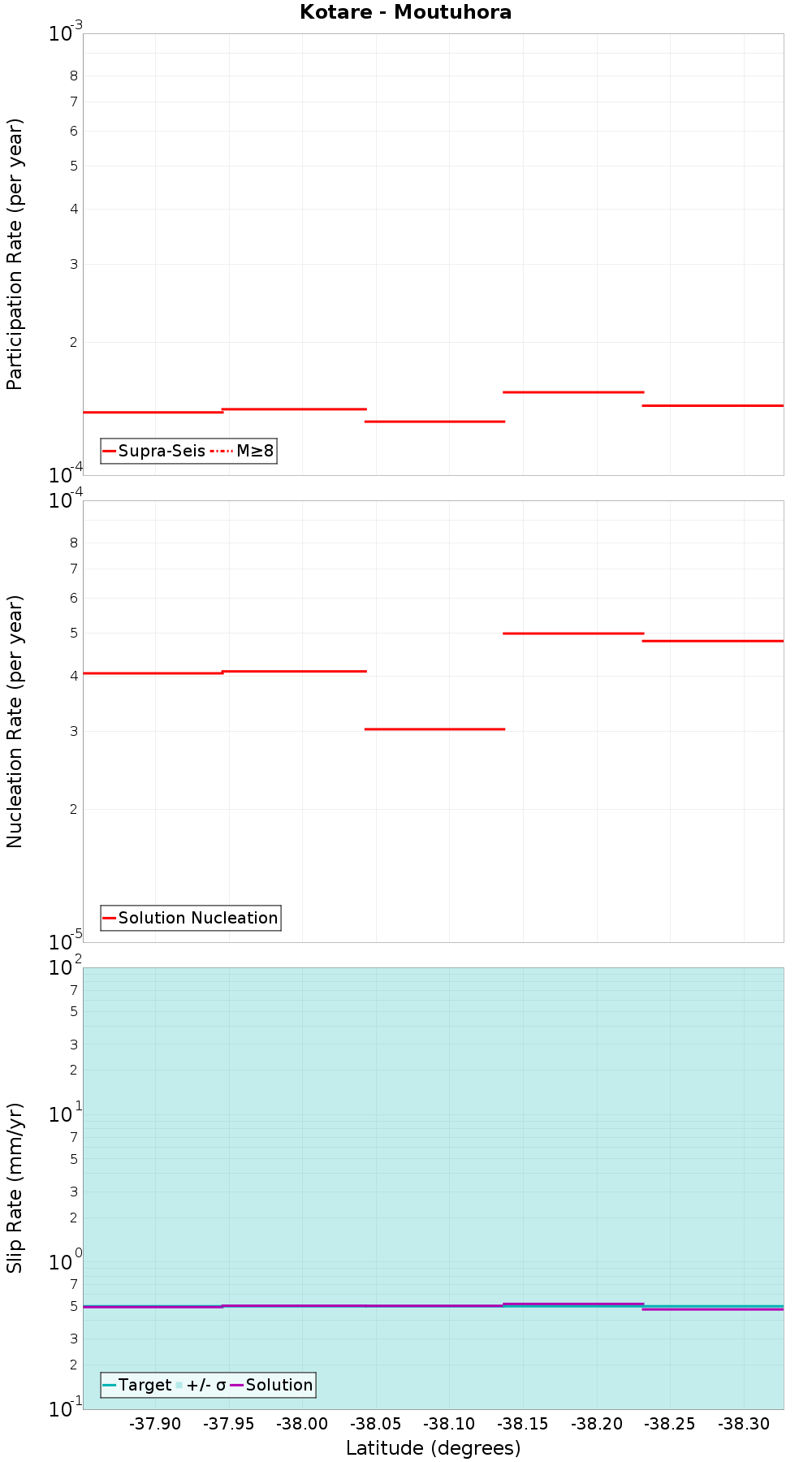

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ohae 2, 0.13 km away
Opotiki 2, 0.14 km away
Ohae 1, 0.17 km away
Tirohanga, 0.29 km away
Opape 1, 2.38 km away
Opotiki 3, 6.08 km away
Raukumara 9, 7.8 km away
Raukumara 16, 8.71 km away
Wairata, 9.2 km away
Ohae 3, 10.99 km away
Motu, 13.58 km away
Waimanawa - Waikaremoana, 14.48 km away

Ohae 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 2, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate7.328731E-5

Ohae 1, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate1.29478E-6

Tirohanga, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 2.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?true
Co-rupture Count18
Co-rupture Rate0.0

Opotiki 3, 6.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate1.0988097E-5

Raukumara 9, 7.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate1.0471419E-5

Raukumara 16, 8.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairata, 9.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 3, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Motu, 13.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimanawa - Waikaremoana, 14.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
