Whitemans Valley Details

PropertyValue
Rupture Count5,613
Ruptures Above Sect Min Mag5,611
Ruptures w/ Nonzero Rates694
Magnitude Range[6.93, 8.46]
Length Range[18, 640] km
Total Rate1.3499356E-5 /yr
Multi-Fault Rate1.3366042E-5 /yr (99.01%)
Directly-Connected Faults8
All Co-Rupturing Faults128

Table Of Contents

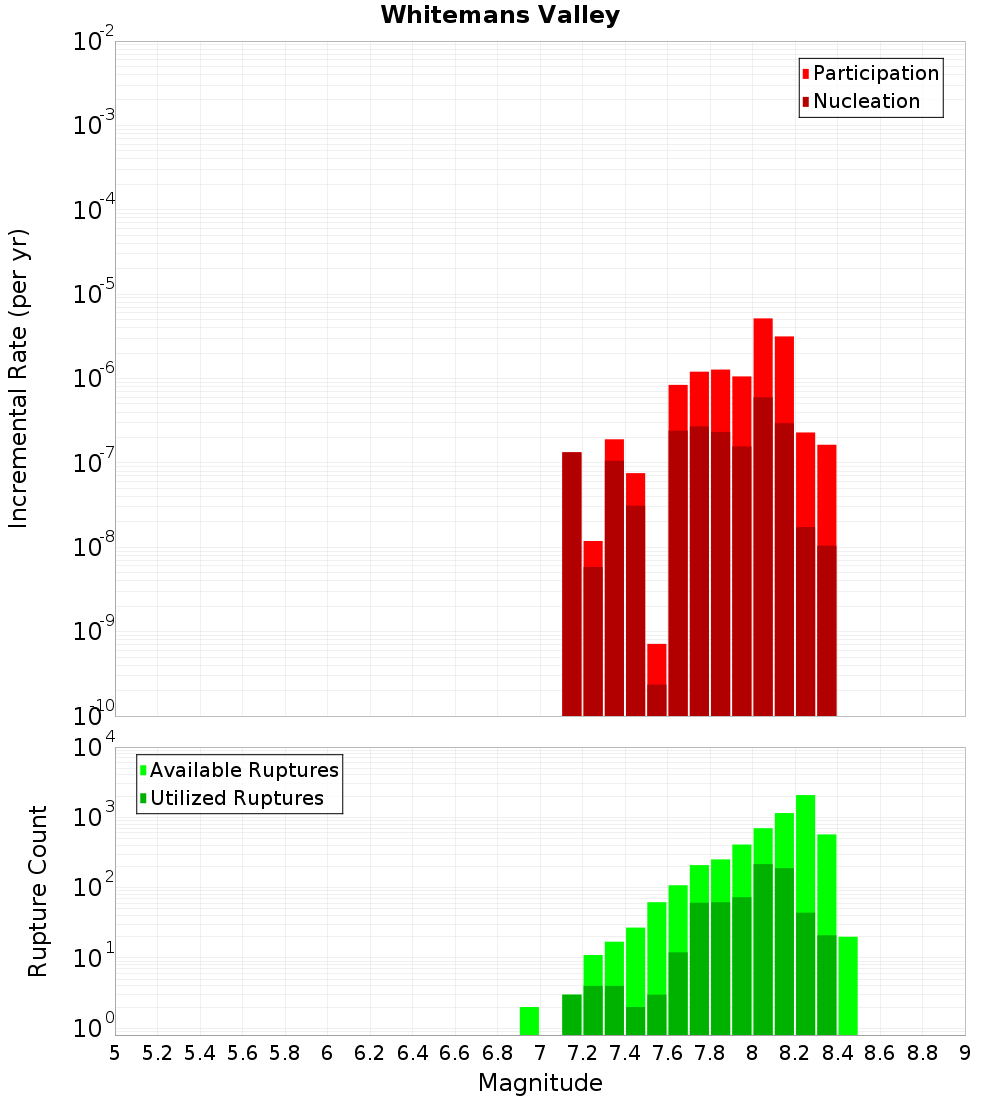

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

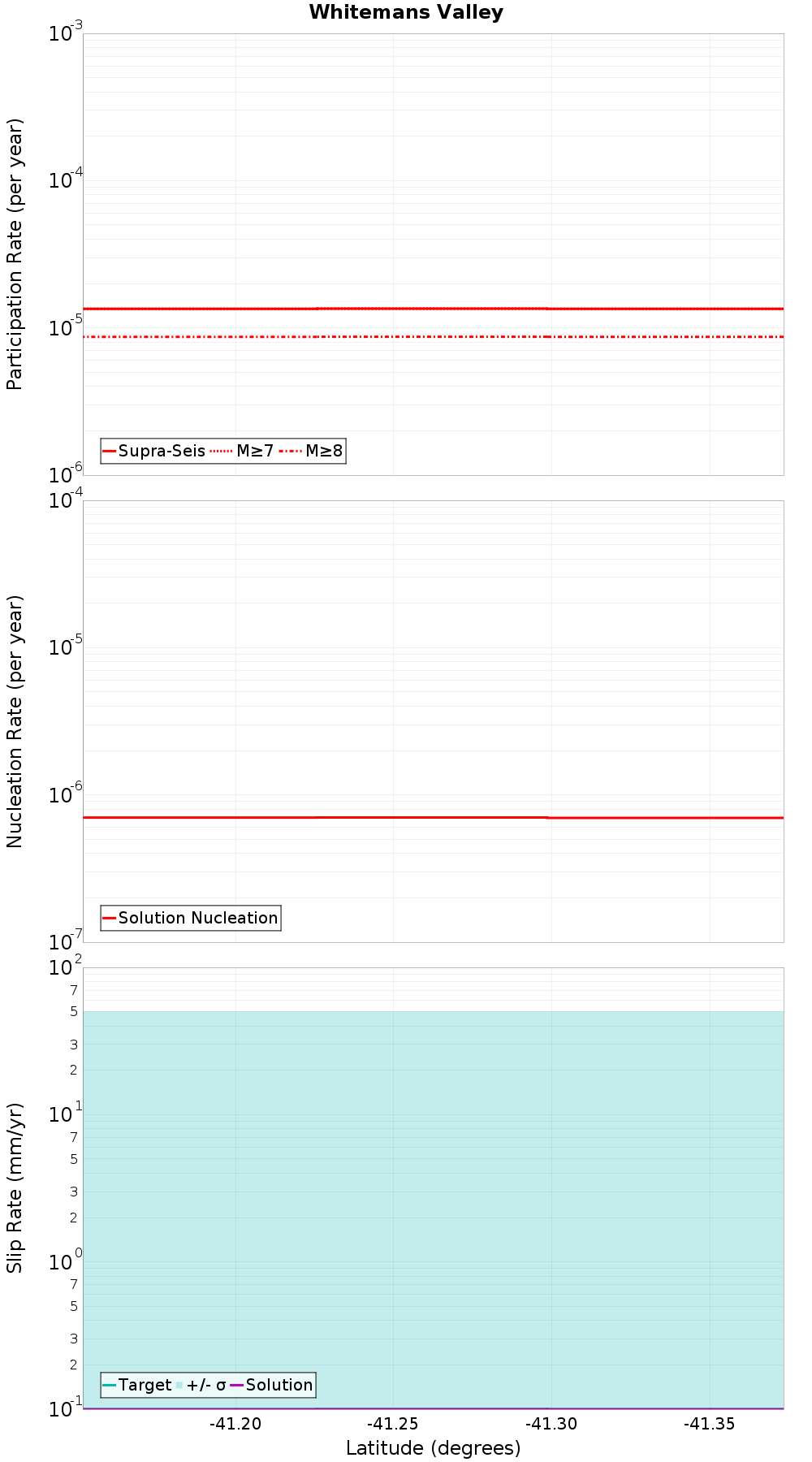

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

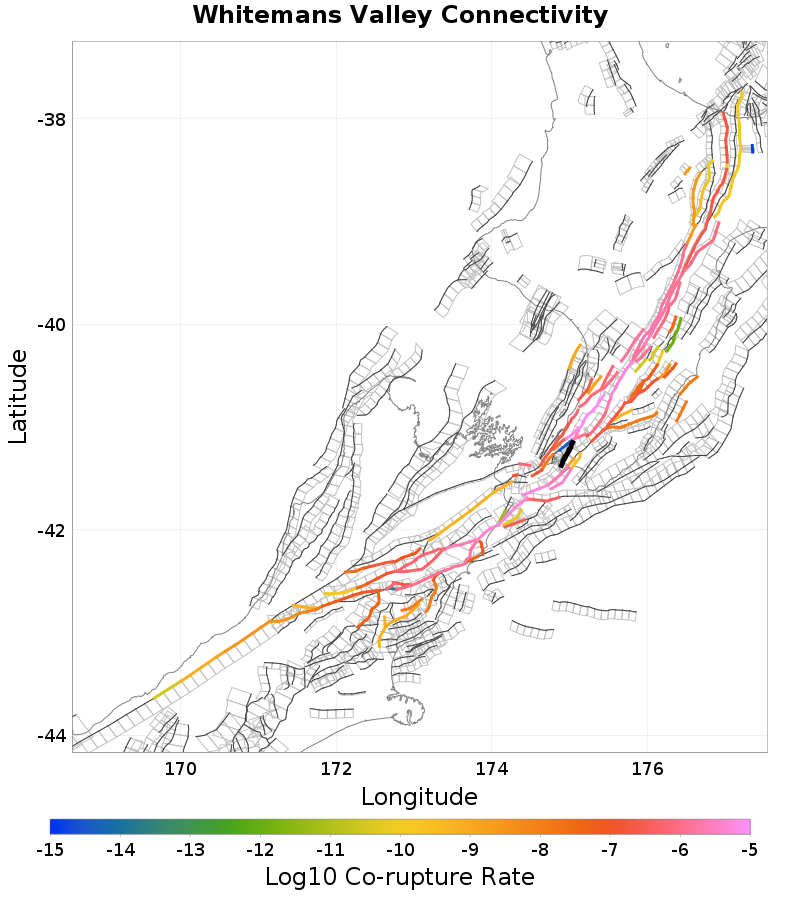

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wellington Hutt Valley: 4, 0.09 km away
Moonshine, 0.2 km away
Aotea - Evans Bay, 0.45 km away
Wellington Hutt Valley: 3, 1.35 km away
Wellington Hutt Valley: 5, 2.4 km away
Ohariu, 2.44 km away
Akatarawa, 3.01 km away
Wharekauhau, 3.03 km away
Wairarapa: 1, 5.26 km away
Pukerua - Shepherds Gully: 3, 6.29 km away
Wellington Hutt Valley: 2, 8.91 km away
Pukerua - Shepherds Gully: 2, 9.44 km away
Pukerua - Shepherds Gully: 1, 9.8 km away
Wairarapa: 2, 10.22 km away

Wellington Hutt Valley: 4, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate4.3164816E-15

Moonshine, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?true
Co-rupture Count2,162
Co-rupture Rate6.5738514E-6

Aotea - Evans Bay, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 3, 1.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate1.1553364E-8

Wellington Hutt Valley: 5, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?true
Co-rupture Count1,264
Co-rupture Rate1.2805488E-6

Ohariu, 2.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?true
Co-rupture Count177
Co-rupture Rate5.8562944E-7

Akatarawa, 3.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?true
Co-rupture Count2,181
Co-rupture Rate3.4494744E-6

Wharekauhau, 3.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?true
Co-rupture Count731
Co-rupture Rate4.1575663E-6

Wairarapa: 1, 5.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?true
Co-rupture Count323
Co-rupture Rate2.0678697E-6

Pukerua - Shepherds Gully: 3, 6.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 8.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate1.1457126E-8

Pukerua - Shepherds Gully: 2, 9.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 1, 9.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 2, 10.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NTMuMExSTGdV
Connected?true
Directly Connected?false
Co-rupture Count80
Co-rupture Rate2.3095336E-7
