Flaxmore - Waimea - Tahunanui Details

Property	Value
Rupture Count	9,537
Ruptures Above Sect Min Mag	9,530
Ruptures w/ Nonzero Rates	1,345
Magnitude Range	[7.05, 8.66]
Length Range	[23, 971] km
Total Rate	6.0899794E-5 /yr
Multi-Fault Rate	2.9213506E-5 /yr (47.97%)
Directly-Connected Faults	7
All Co-Rupturing Faults	71

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

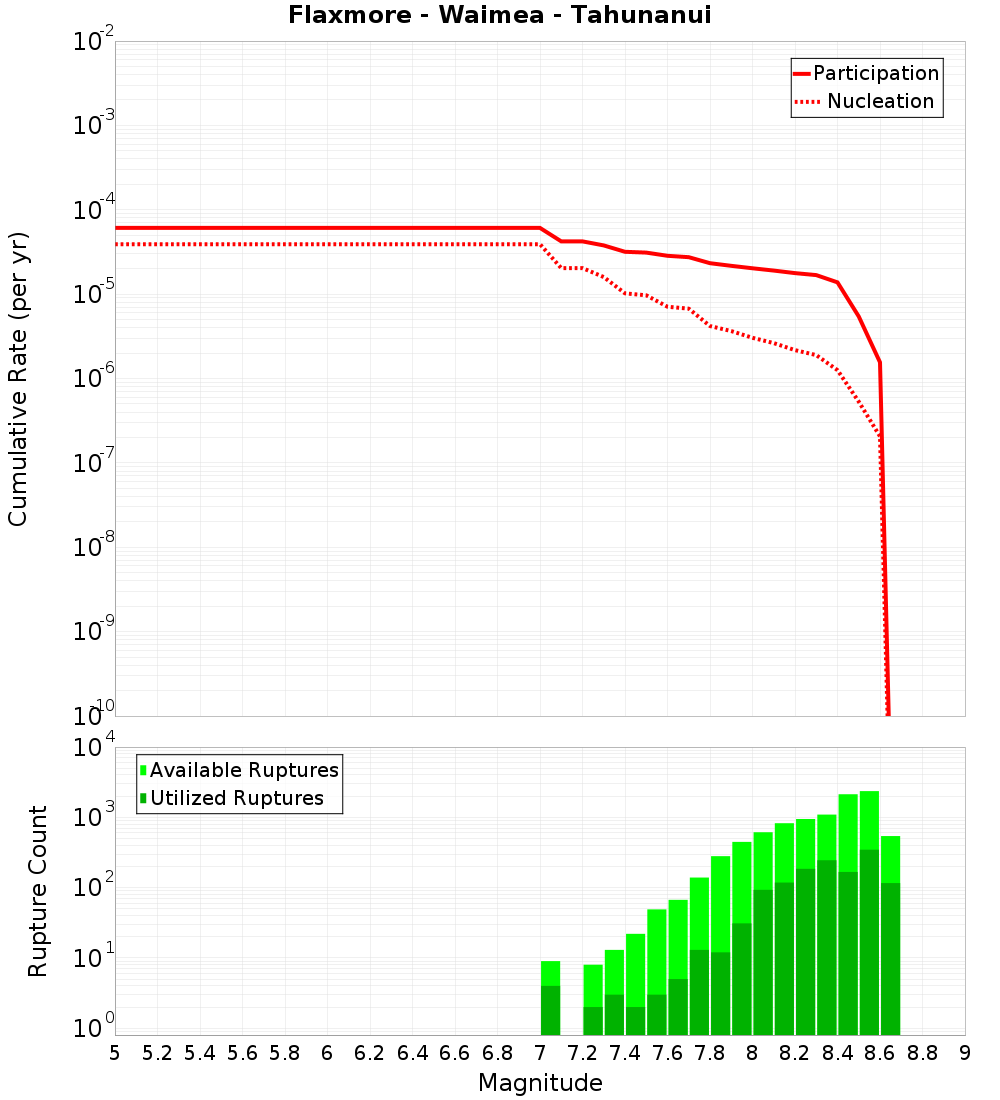

Magnitude-Frequency Distribution

Incremental	Cumulative

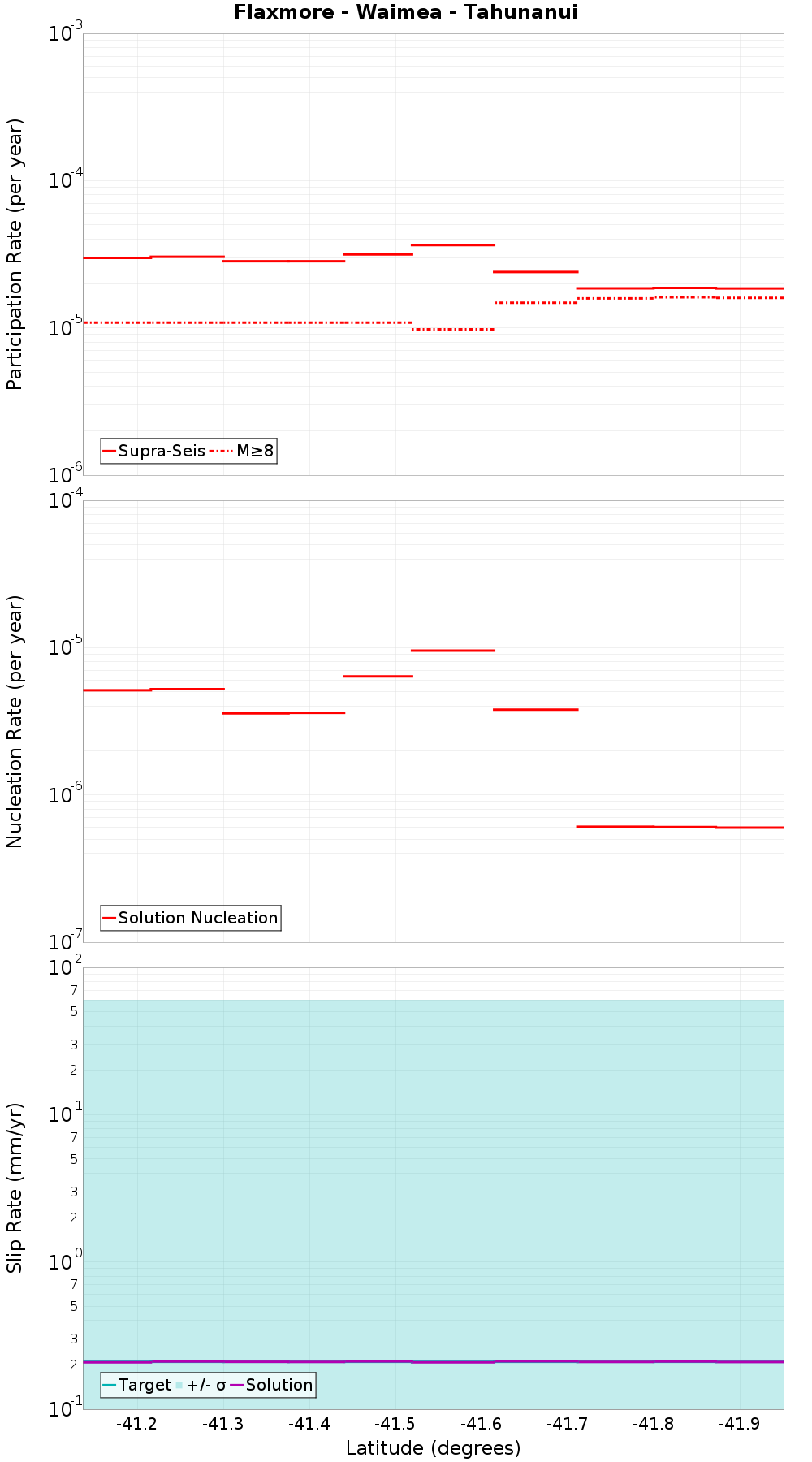

Along-Strike Values

Moment-Rates and b-Values

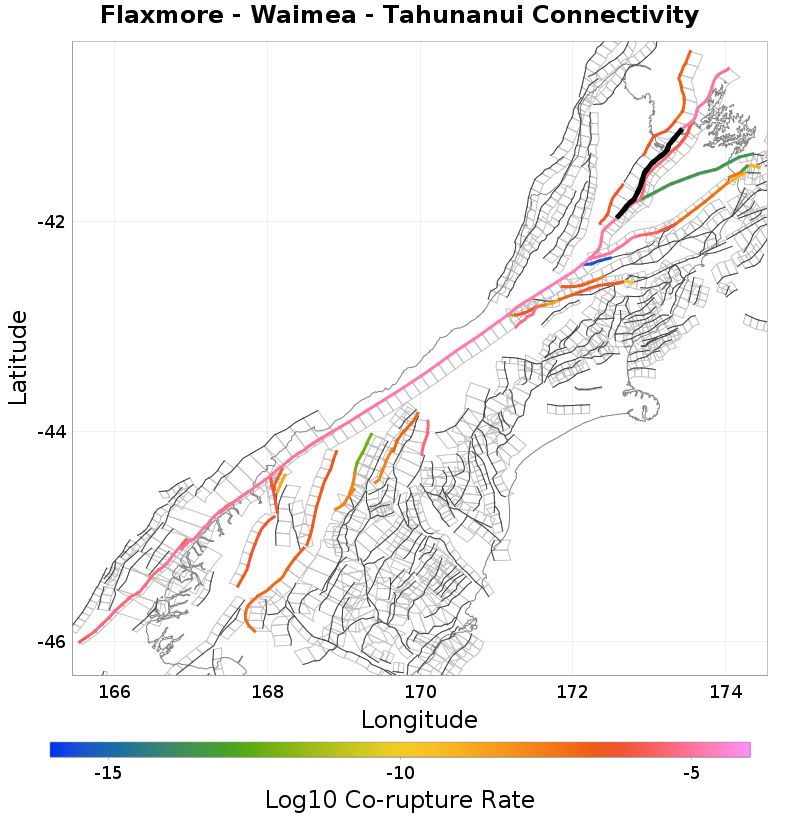

Connectivity

Nearby Sections

Fault Section
Waimea Offshore, 0 km away
Wairau, 0.17 km away
Alpine: Springs Junction to Tophouse, 0.45 km away
Whangamoa, 2.28 km away
Tutaki, 2.49 km away
Surville, 8.79 km away
Ruby Bay - Moutere, 9.4 km away
Awatere: Southwest, 12.08 km away

Waimea Offshore, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NjguMFkyZ29Y
Connected?	true
Directly Connected?	true
Co-rupture Count	4,756
Co-rupture Rate	1.2598884E-5

Wairau, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NjguMFkyZ29Y
Connected?	true
Directly Connected?	true
Co-rupture Count	136
Co-rupture Rate	3.06476E-14

Alpine: Springs Junction to Tophouse, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NjguMFkyZ29Y
Connected?	true
Directly Connected?	true
Co-rupture Count	5,883
Co-rupture Rate	1.0504435E-5

Whangamoa, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NjguMFkyZ29Y
Connected?	true
Directly Connected?	true
Co-rupture Count	4,716
Co-rupture Rate	5.653867E-6

Tutaki, 2.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NjguMFkyZ29Y
Connected?	true
Directly Connected?	true
Co-rupture Count	191
Co-rupture Rate	4.1043825E-7

Surville, 8.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NjguMFkyZ29Y
Connected?	true
Directly Connected?	false
Co-rupture Count	130
Co-rupture Rate	5.0876076E-7

Ruby Bay - Moutere, 9.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NjguMFkyZ29Y
Connected?	true
Directly Connected?	true
Co-rupture Count	36
Co-rupture Rate	3.4065133E-7

Awatere: Southwest, 12.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4NjguMFkyZ29Y
Connected?	true
Directly Connected?	true
Co-rupture Count	3,354
Co-rupture Rate	1.2222005E-5
