Te Anau Details
| Property | Value |
|---|---|
| Rupture Count | 2,802 |
| Ruptures Above Sect Min Mag | 2,798 |
| Ruptures w/ Nonzero Rates | 107 |
| Magnitude Range | [7.11, 8.61] |
| Length Range | [24, 837] km |
| Total Rate | 5.421011E-5 /yr |
| Multi-Fault Rate | 5.4203418E-5 /yr (99.99%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 60 |
Table Of Contents

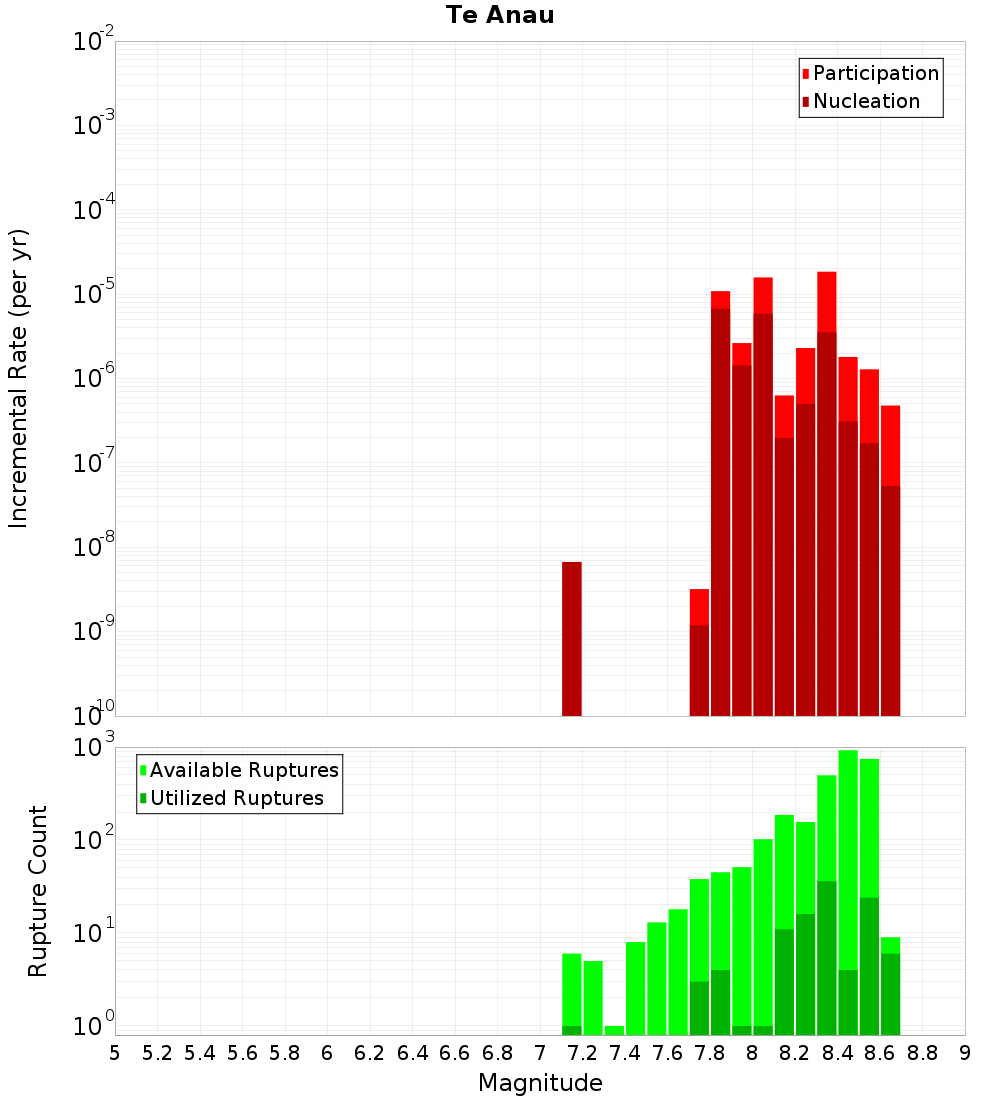

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Livingstone, 3.81 km away |
| Darran, 4.51 km away |
Livingstone, 3.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODAuMEZxN21v | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 18 |
| Co-rupture Rate | 7.763451E-6 |
Darran, 4.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODAuMEZxN21v | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,763 |
| Co-rupture Rate | 4.6439967E-5 |
