Poroutawhao Details

PropertyValue
Rupture Count310
Ruptures Above Sect Min Mag310
Ruptures w/ Nonzero Rates73
Magnitude Range[7.25, 8.08]
Length Range[27, 220] km
Total Rate4.0556948E-5 /yr
Multi-Fault Rate4.0556948E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults33

Table Of Contents

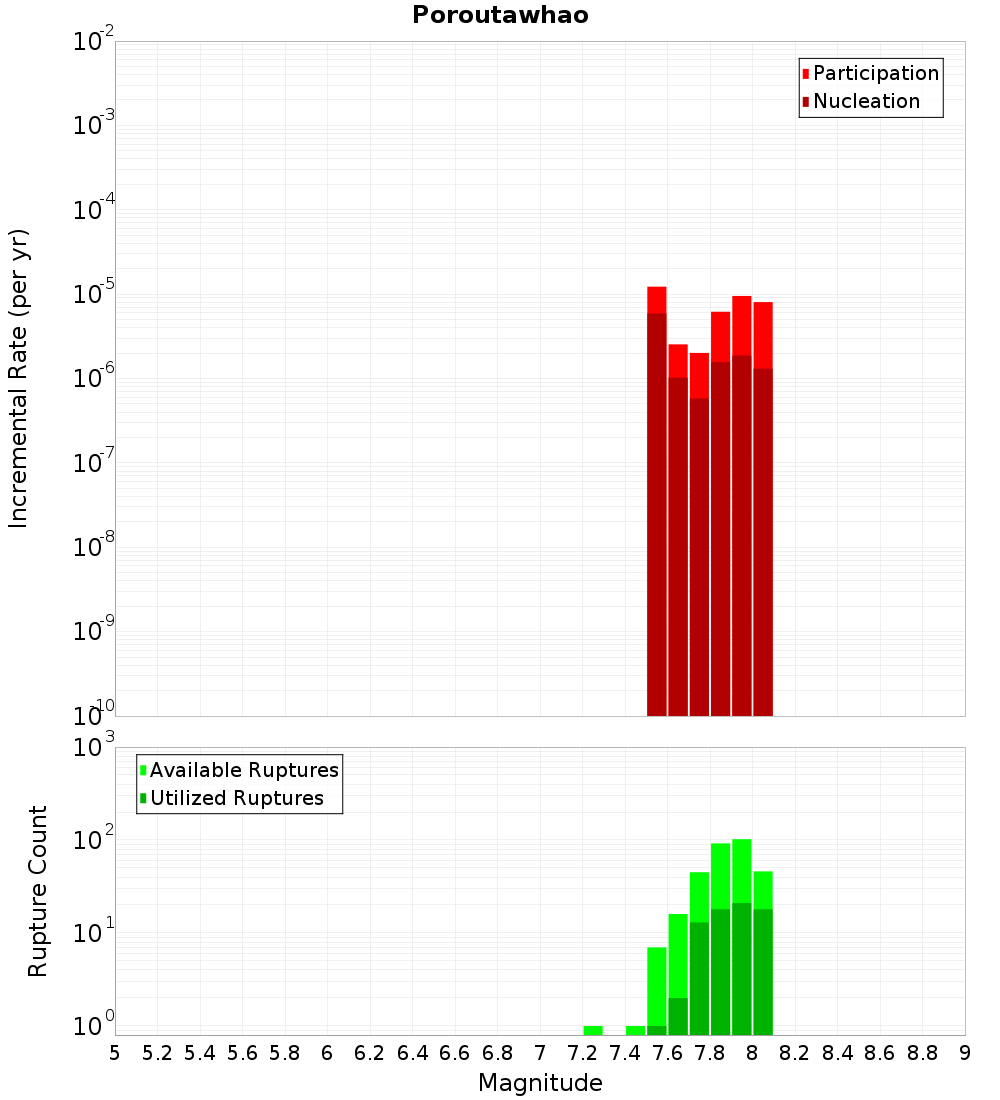

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

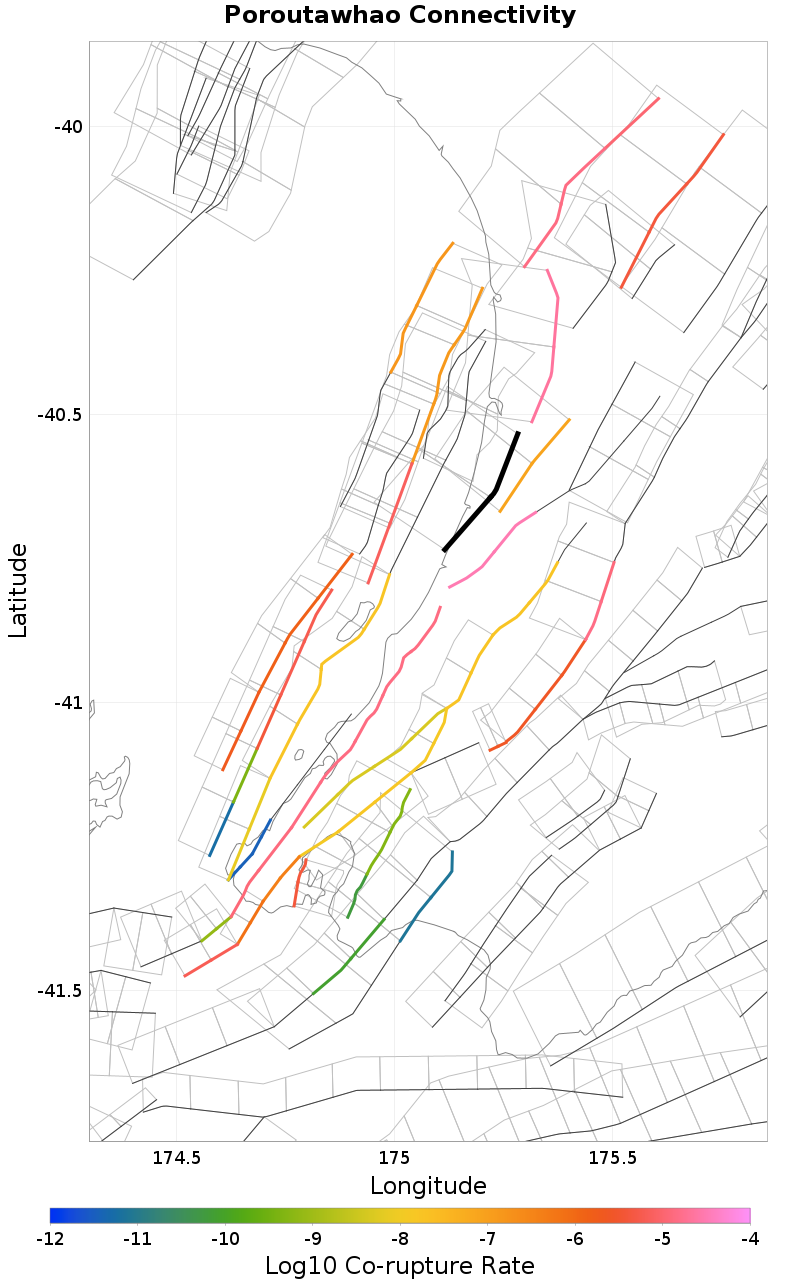

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mascarin, 0.23 km away
Rangitikei Offshore 1, 0.44 km away
Himatangi, 1.52 km away
Levin Anticline, 2.59 km away
Otaheke North, 4.09 km away
Onepoto, 5.72 km away
Fisherman 3, 6.43 km away
Northern Ohariu, 6.82 km away
Otaheke South, 10.02 km away
Ohariu, 11.17 km away
Fisherman 2, 12.07 km away
Tokomaru, 13.21 km away

Mascarin, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODAuMGNFS1ZU
Connected?true
Directly Connected?true
Co-rupture Count130
Co-rupture Rate1.5033883E-7

Rangitikei Offshore 1, 0.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODAuMGNFS1ZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Himatangi, 1.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODAuMGNFS1ZU
Connected?true
Directly Connected?true
Co-rupture Count104
Co-rupture Rate2.2074497E-5

Levin Anticline, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODAuMGNFS1ZU
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate8.229563E-8

Otaheke North, 4.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODAuMGNFS1ZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Onepoto, 5.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODAuMGNFS1ZU
Connected?true
Directly Connected?true
Co-rupture Count105
Co-rupture Rate7.3765377E-6

Fisherman 3, 6.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODAuMGNFS1ZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 6.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODAuMGNFS1ZU
Connected?true
Directly Connected?true
Co-rupture Count210
Co-rupture Rate3.08556E-5

Otaheke South, 10.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODAuMGNFS1ZU
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate1.7725817E-8

Ohariu, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODAuMGNFS1ZU
Connected?true
Directly Connected?false
Co-rupture Count141
Co-rupture Rate1.3749897E-5

Fisherman 2, 12.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODAuMGNFS1ZU
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate1.4105094E-6

Tokomaru, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODAuMGNFS1ZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
