Lyell South Details

Property	Value
Rupture Count	2,183
Ruptures Above Sect Min Mag	2,178
Ruptures w/ Nonzero Rates	504
Magnitude Range	[6.90, 8.56]
Length Range	[19, 814] km
Total Rate	1.2977757E-4 /yr
Multi-Fault Rate	1.0670931E-4 /yr (82.22%)
Directly-Connected Faults	4
All Co-Rupturing Faults	32

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

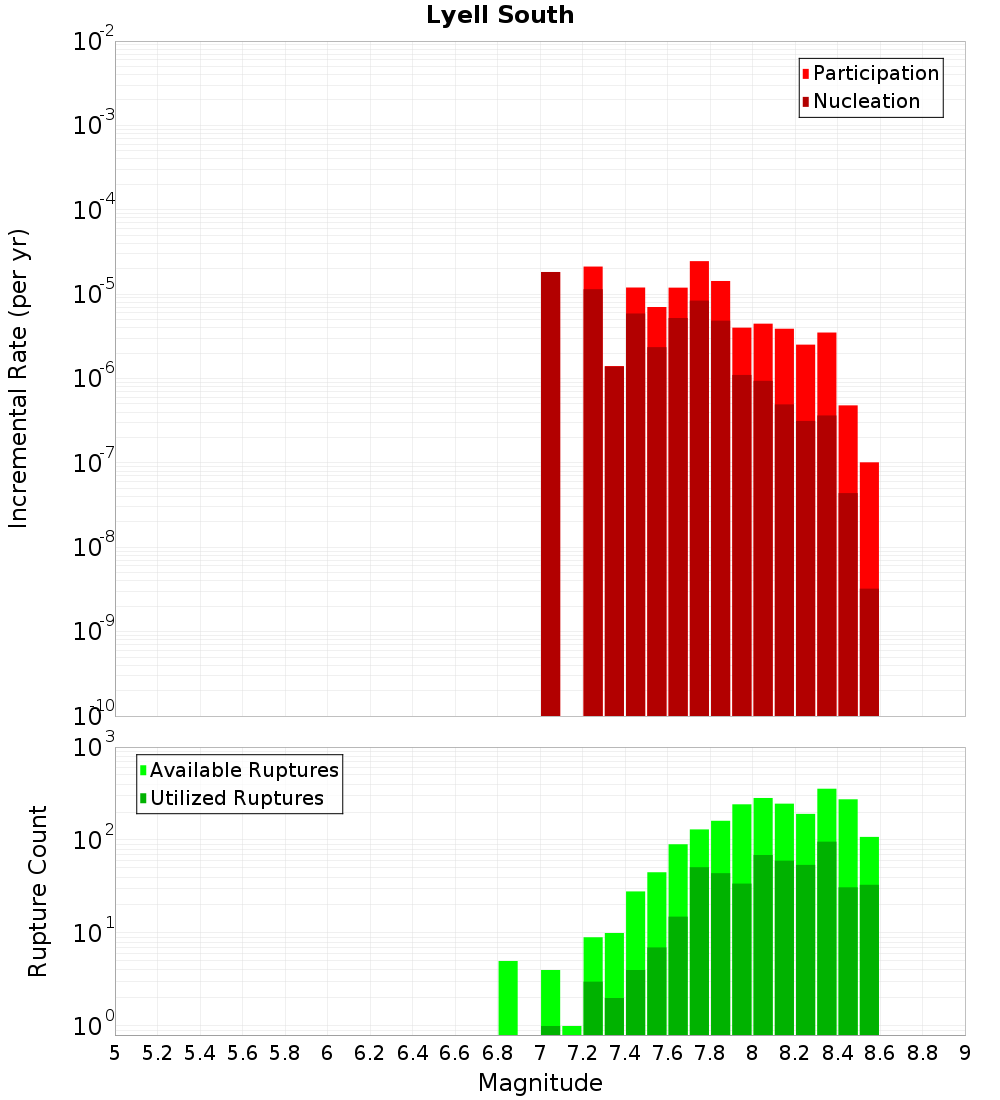

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

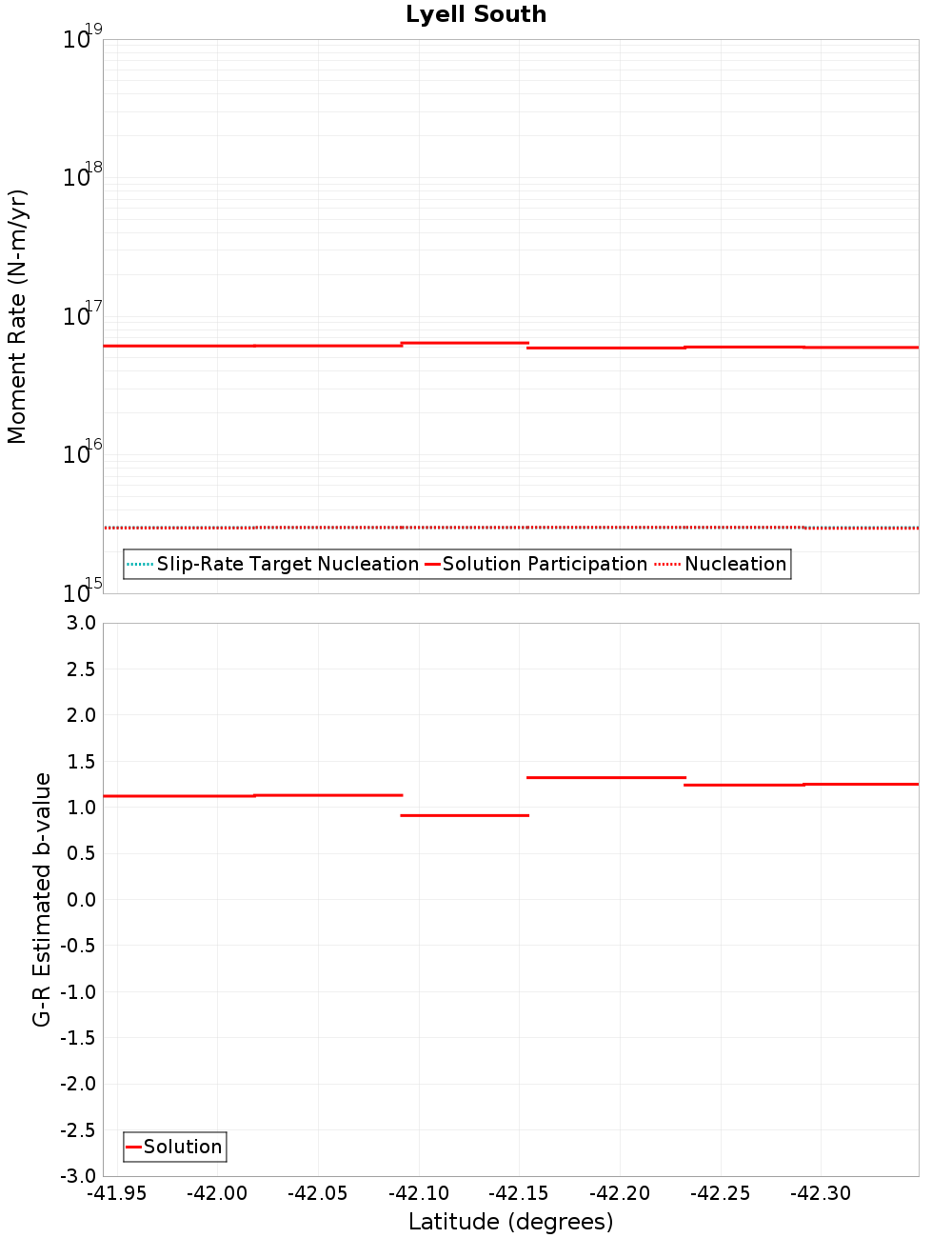

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Lyell, 1.51 km away
White Creek, 6.32 km away
Maimai: North, 7.01 km away
White Creek - buried, 7.39 km away
Inangahua, 9 km away
Maimai, 9.15 km away
Maimai: South, 11.15 km away

Lyell, 1.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODEuMGVYODRO
Connected?	true
Directly Connected?	true
Co-rupture Count	1,377
Co-rupture Rate	8.239817E-5

White Creek, 6.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODEuMGVYODRO
Connected?	true
Directly Connected?	true
Co-rupture Count	1,891
Co-rupture Rate	4.7171452E-5

Maimai: North, 7.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODEuMGVYODRO
Connected?	true
Directly Connected?	true
Co-rupture Count	131
Co-rupture Rate	1.564149E-5

White Creek - buried, 7.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODEuMGVYODRO
Connected?	true
Directly Connected?	false
Co-rupture Count	1,318
Co-rupture Rate	1.3741265E-5

Inangahua, 9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODEuMGVYODRO
Connected?	true
Directly Connected?	false
Co-rupture Count	249
Co-rupture Rate	9.151026E-6

Maimai, 9.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODEuMGVYODRO
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	1.4265346E-6

Maimai: South, 11.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODEuMGVYODRO
Connected?	true
Directly Connected?	true
Co-rupture Count	71
Co-rupture Rate	2.304497E-5
