Rapuwai Details
| Property | Value |
|---|---|
| Rupture Count | 501 |
| Ruptures Above Sect Min Mag | 499 |
| Ruptures w/ Nonzero Rates | 128 |
| Magnitude Range | [6.98, 8.24] |
| Length Range | [20, 400] km |
| Total Rate | 1.1950034E-5 /yr |
| Multi-Fault Rate | 1.1948309E-5 /yr (99.99%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 45 |
Table Of Contents

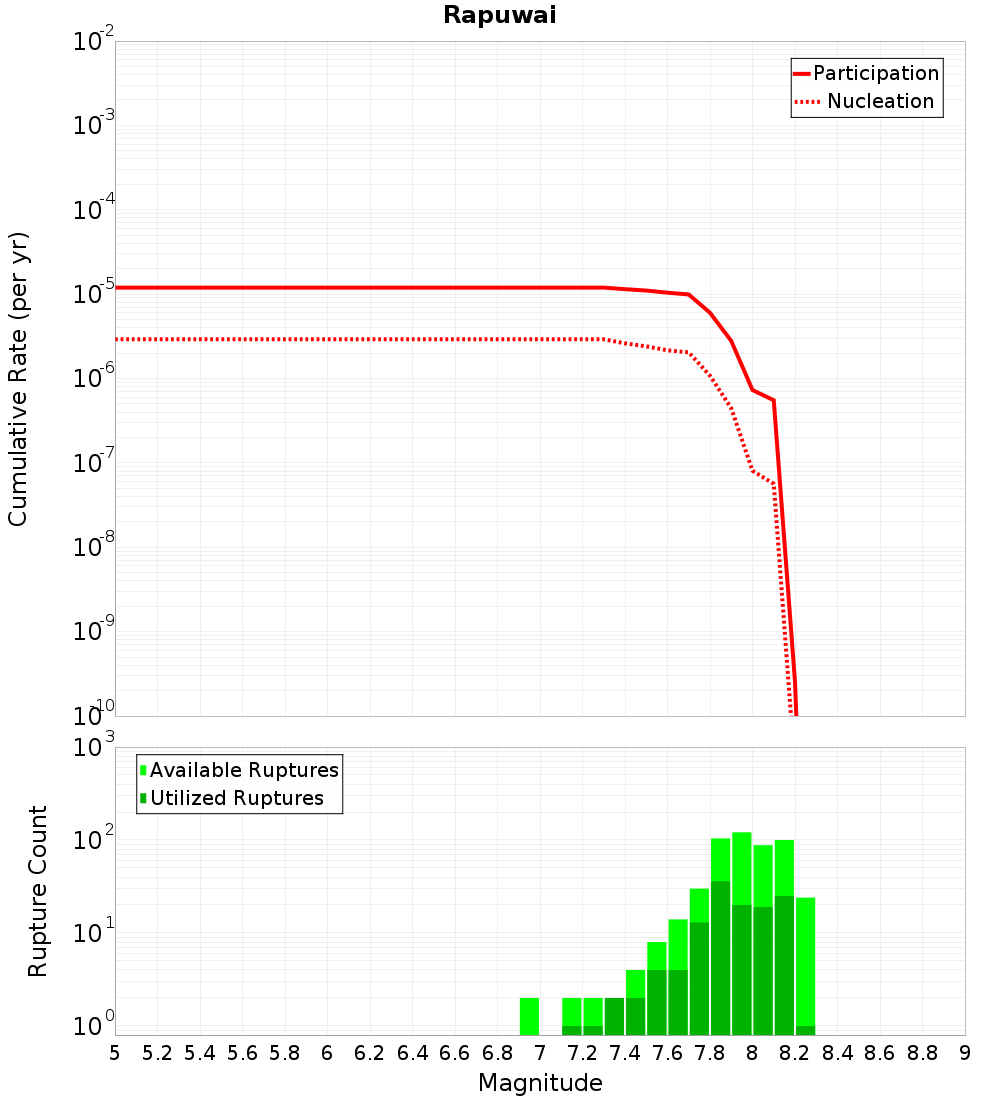

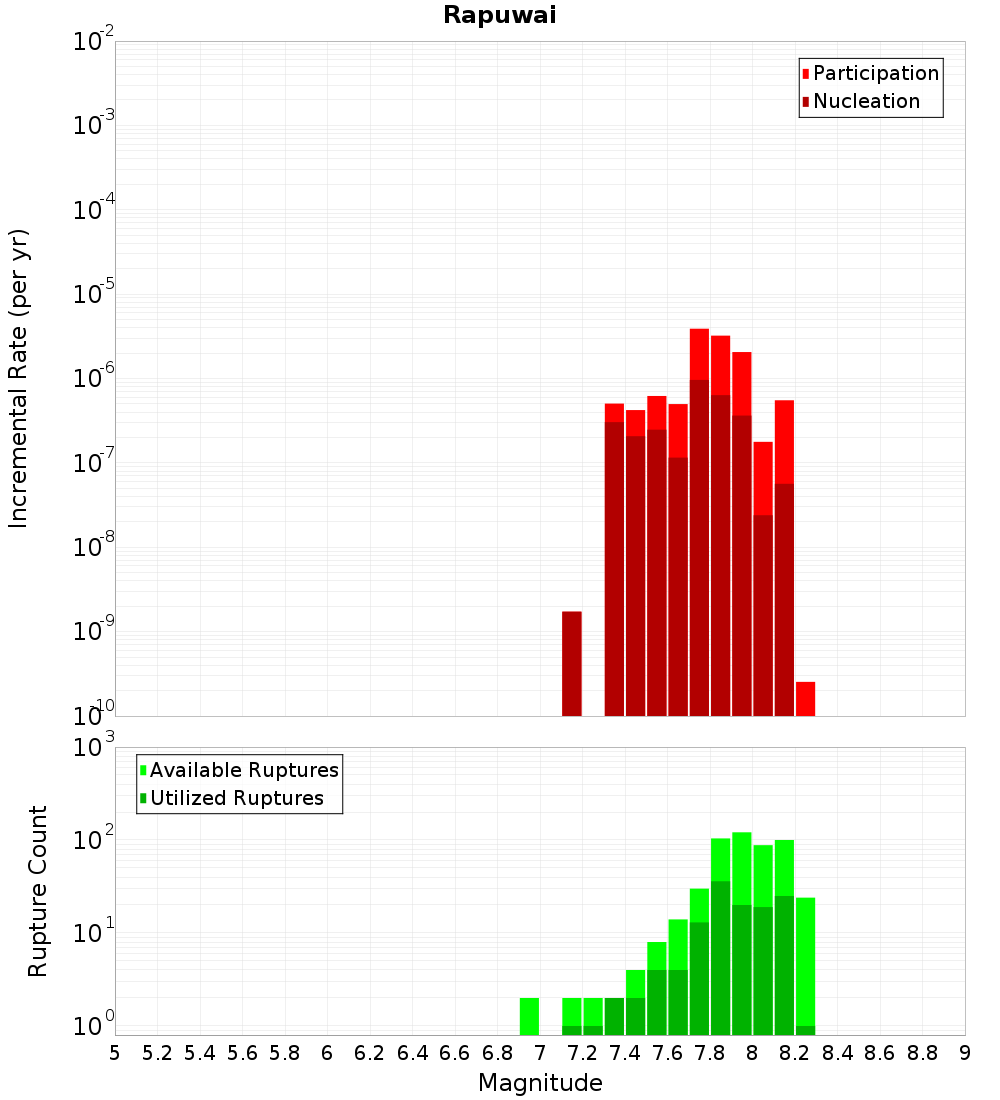

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

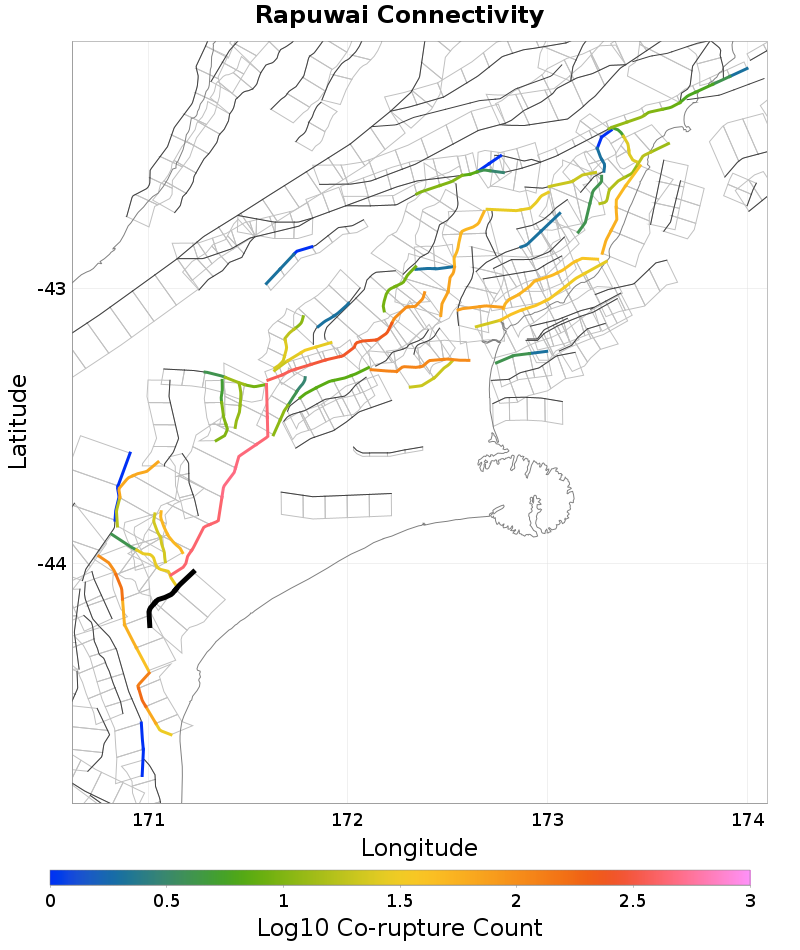

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Sugarloaf, 0.81 km away |
| Hutt Peel, 4.18 km away |
| Brothers, 4.62 km away |
| Maungati, 6.24 km away |
| Edith, 8.93 km away |
| Catherine, 10.69 km away |
| Albury, 14.9 km away |
Sugarloaf, 0.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODMuMDVMWW5M | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 28 |
| Co-rupture Rate | 1.2484813E-6 |
Hutt Peel, 4.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODMuMDVMWW5M | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 481 |
| Co-rupture Rate | 9.954574E-6 |
Brothers, 4.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODMuMDVMWW5M | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 155 |
| Co-rupture Rate | 4.9898557E-7 |
Maungati, 6.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODMuMDVMWW5M | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 173 |
| Co-rupture Rate | 2.8286297E-6 |
Edith, 8.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODMuMDVMWW5M | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 50 |
| Co-rupture Rate | 1.8921016E-6 |
Catherine, 10.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODMuMDVMWW5M | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 22 |
| Co-rupture Rate | 1.2482222E-6 |
Albury, 14.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODMuMDVMWW5M | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
