Hope: Taramakau Details

Property	Value
Rupture Count	3,941
Ruptures Above Sect Min Mag	3,936
Ruptures w/ Nonzero Rates	154
Magnitude Range	[6.78, 8.53]
Length Range	[16, 716] km
Total Rate	6.024352E-4 /yr
Multi-Fault Rate	4.8250364E-4 /yr (80.09%)
Directly-Connected Faults	3
All Co-Rupturing Faults	116

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

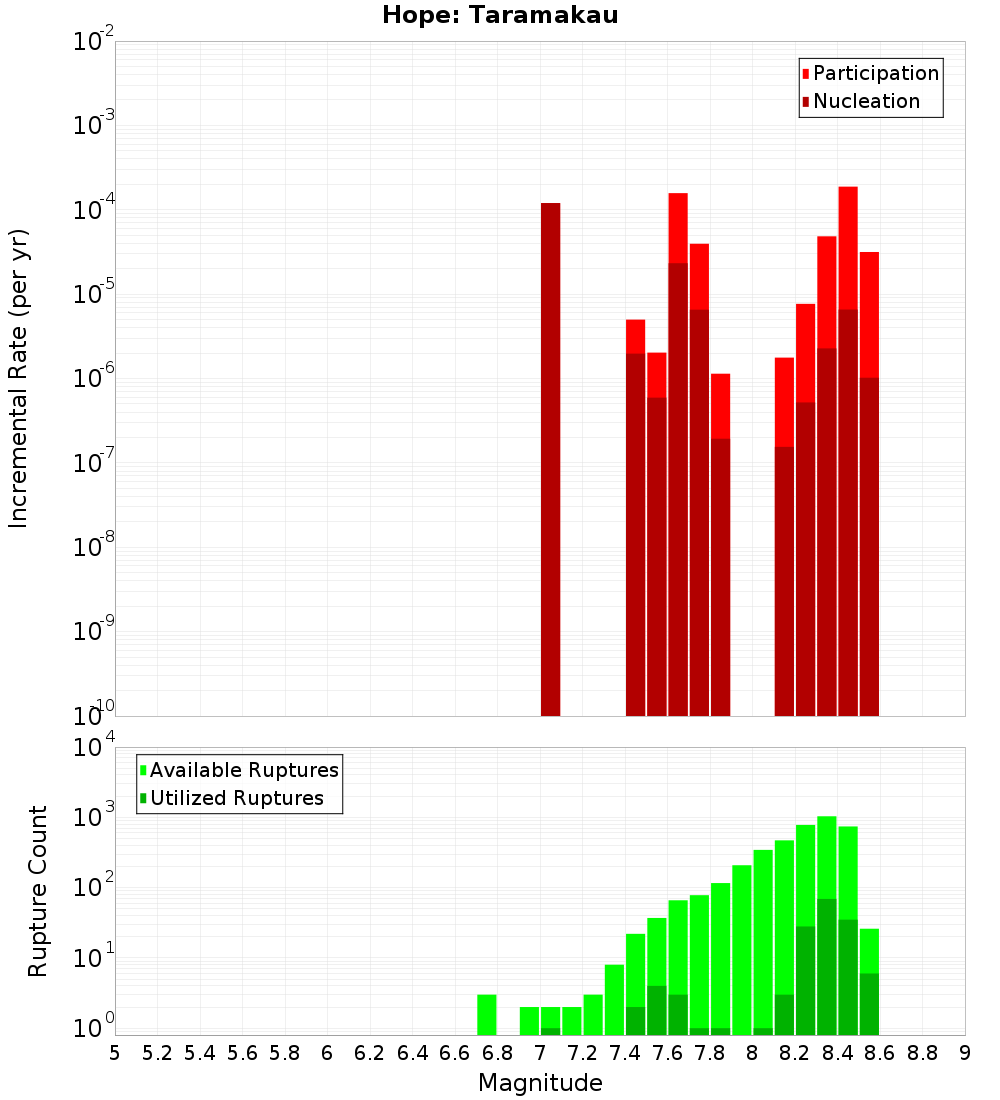

Magnitude-Frequency Distribution

Incremental	Cumulative

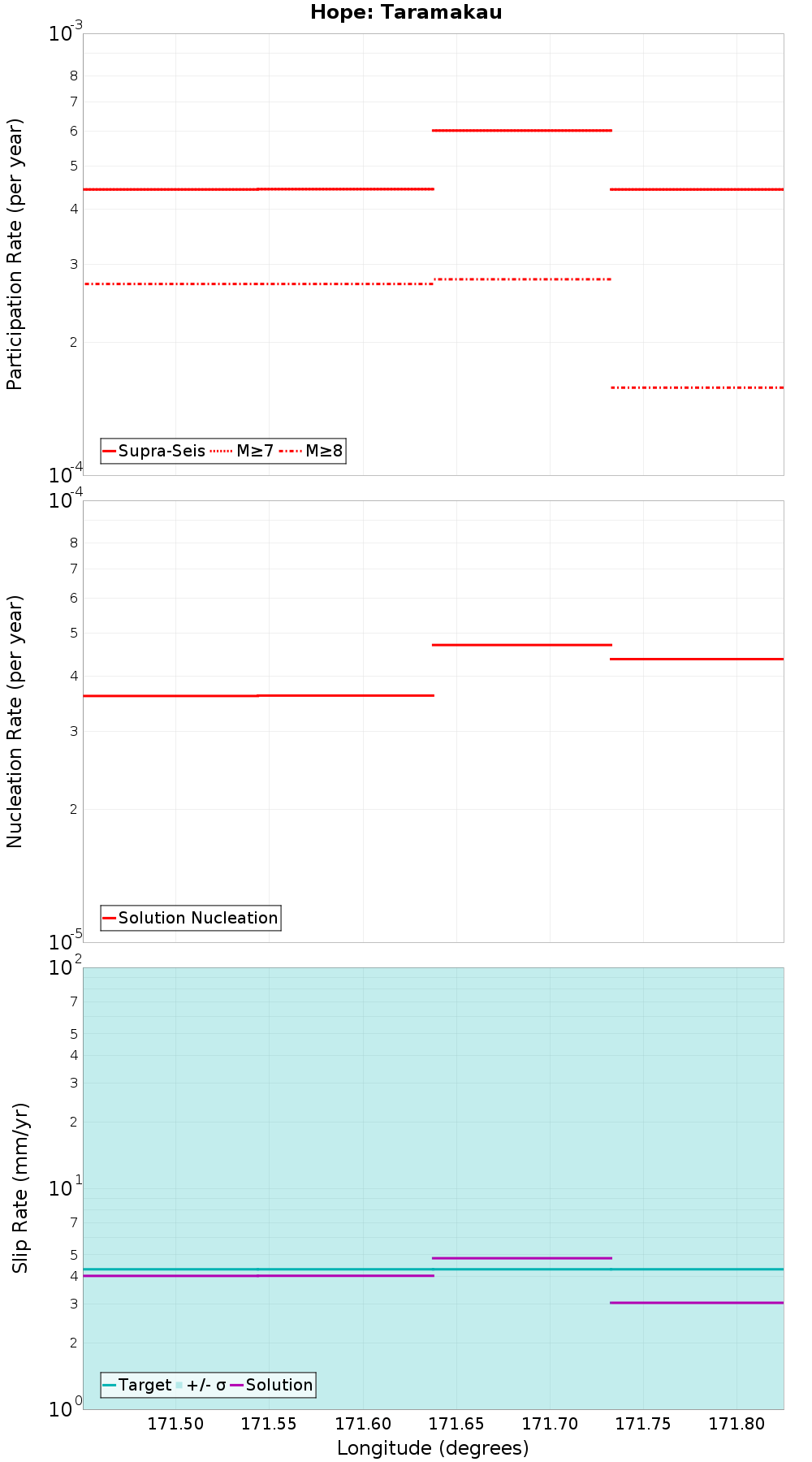

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hope: Hurunui, 0 km away
Kelly, 0 km away
Alpine: Kaniere to Springs Junction, 0.23 km away
Browning Pass, 0.25 km away
Poulter, 7.5 km away
Clarence: Southwest, 13.86 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away

Hope: Hurunui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODguMDNORjd5
Connected?	true
Directly Connected?	false
Co-rupture Count	1,721
Co-rupture Rate	3.1100702E-4

Kelly, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODguMDNORjd5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,576
Co-rupture Rate	3.176201E-4

Alpine: Kaniere to Springs Junction, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODguMDNORjd5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,961
Co-rupture Rate	3.1148715E-4

Browning Pass, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODguMDNORjd5
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Poulter, 7.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODguMDNORjd5
Connected?	true
Directly Connected?	true
Co-rupture Count	989
Co-rupture Rate	8.8922985E-5

Clarence: Southwest, 13.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODguMDNORjd5
Connected?	true
Directly Connected?	false
Co-rupture Count	172
Co-rupture Rate	1.0100254E-12

Kakapo, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODguMDNORjd5
Connected?	true
Directly Connected?	false
Co-rupture Count	1,146
Co-rupture Rate	1.16311945E-4

Hope: Hope River, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4ODguMDNORjd5
Connected?	true
Directly Connected?	false
Co-rupture Count	848
Co-rupture Rate	2.0684215E-4
