Awatere: Northeast 1 Details

Property	Value
Rupture Count	19,862
Ruptures Above Sect Min Mag	19,855
Ruptures w/ Nonzero Rates	575
Magnitude Range	[6.99, 8.68]
Length Range	[22, 1,082] km
Total Rate	7.680685E-4 /yr
Multi-Fault Rate	7.680585E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	157

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

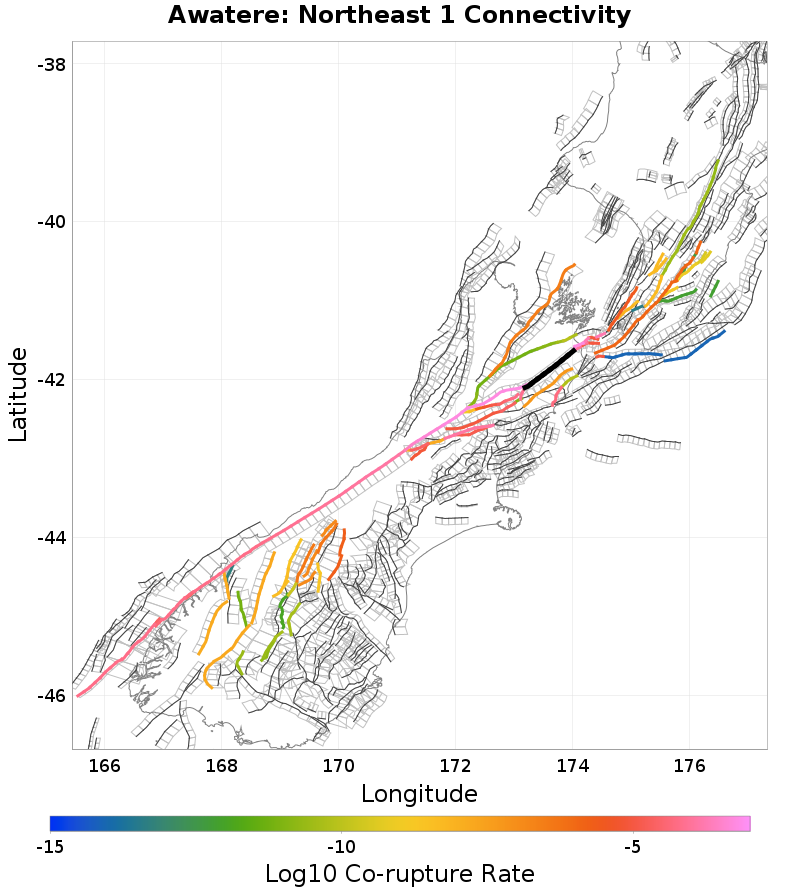

Connectivity

Nearby Sections

Fault Section
Barefell, 0 km away
Vernon 1, 0 km away
Awatere: Northeast 2, 0 km away
Awatere: Southwest, 0.1 km away
Vernon 2, 4.62 km away
Elliott, 9.09 km away
Clarence: Northeast, 9.18 km away
Clarence: Central, 10.17 km away
Wairau, 11.05 km away
Jordan, 12.64 km away
Fowlers, 14.06 km away

Barefell, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4OTUuMFBlMjlz
Connected?	true
Directly Connected?	true
Co-rupture Count	2,405
Co-rupture Rate	7.0783346E-5

Vernon 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4OTUuMFBlMjlz
Connected?	true
Directly Connected?	true
Co-rupture Count	362
Co-rupture Rate	4.8929703E-4

Awatere: Northeast 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4OTUuMFBlMjlz
Connected?	true
Directly Connected?	true
Co-rupture Count	10,284
Co-rupture Rate	9.5469884E-5

Awatere: Southwest, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4OTUuMFBlMjlz
Connected?	true
Directly Connected?	true
Co-rupture Count	14,826
Co-rupture Rate	5.833534E-4

Vernon 2, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4OTUuMFBlMjlz
Connected?	true
Directly Connected?	true
Co-rupture Count	2,269
Co-rupture Rate	5.412761E-4

Elliott, 9.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4OTUuMFBlMjlz
Connected?	true
Directly Connected?	true
Co-rupture Count	32
Co-rupture Rate	5.2215615E-8

Clarence: Northeast, 9.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4OTUuMFBlMjlz
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	5.2215615E-8

Clarence: Central, 10.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4OTUuMFBlMjlz
Connected?	true
Directly Connected?	false
Co-rupture Count	556
Co-rupture Rate	2.1167549E-5

Wairau, 11.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4OTUuMFBlMjlz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,606
Co-rupture Rate	8.100085E-11

Jordan, 12.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4OTUuMFBlMjlz
Connected?	true
Directly Connected?	true
Co-rupture Count	214
Co-rupture Rate	4.6049514E-5

Fowlers, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU4OTUuMFBlMjlz
Connected?	true
Directly Connected?	false
Co-rupture Count	2,348
Co-rupture Rate	5.6070556E-5
