Hyde South - The Twins Details

PropertyValue
Rupture Count2,281
Ruptures Above Sect Min Mag2,281
Ruptures w/ Nonzero Rates288
Magnitude Range[7.12, 8.37]
Length Range[21, 397] km
Total Rate2.2332164E-5 /yr
Multi-Fault Rate2.2332164E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults43

Table Of Contents

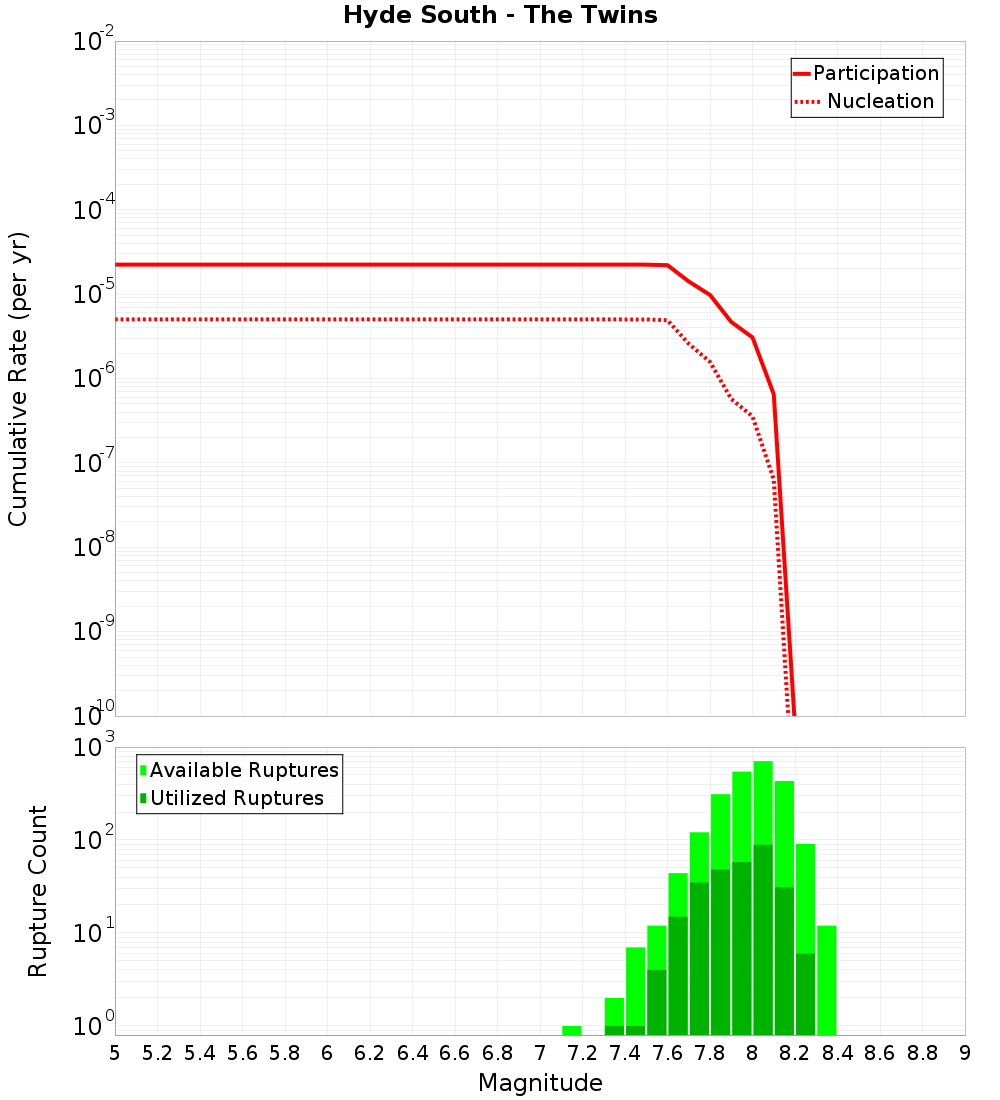

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

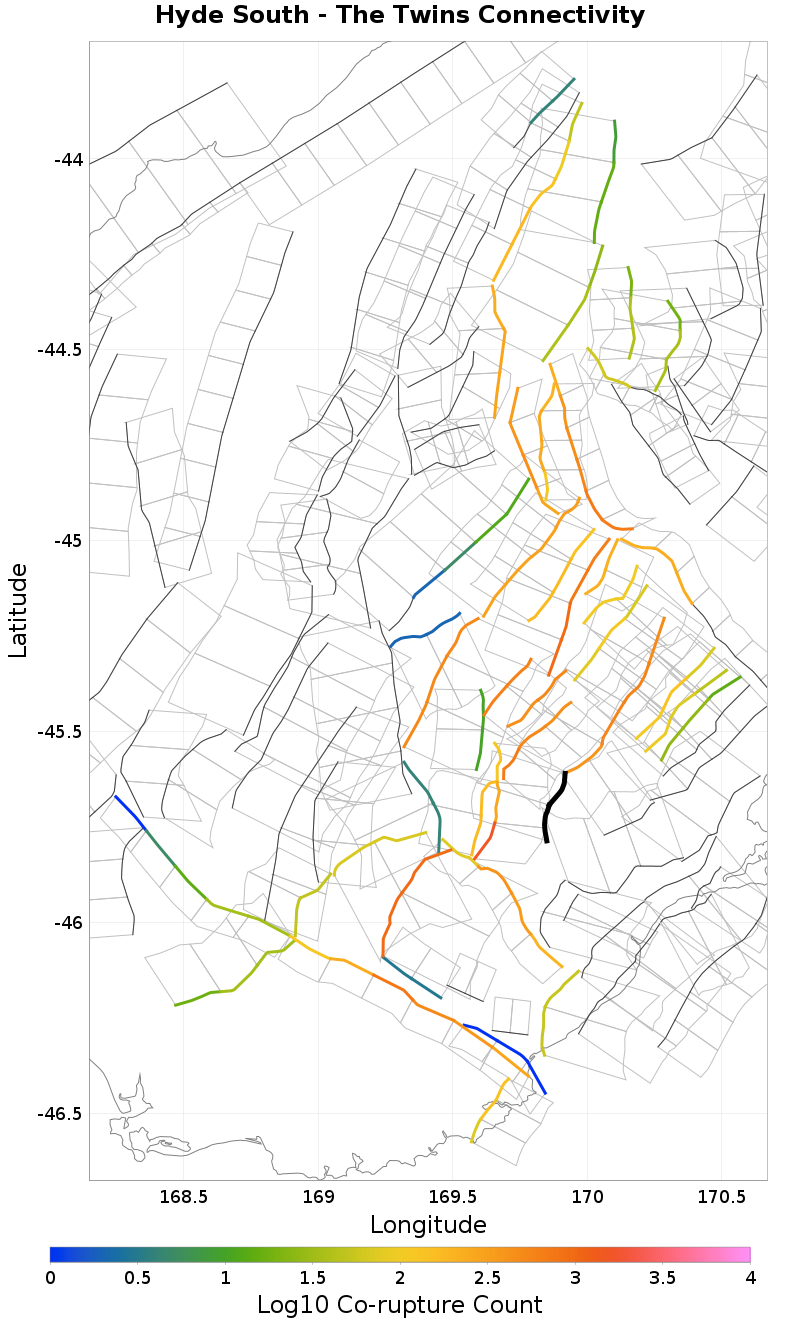

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Logan Burn, 0.19 km away
Hyde North, 0.33 km away
Beaumont River, 0.34 km away
Little Valley, 0.77 km away
Pylap, 4.96 km away
Long Valley, 5.35 km away
Backbone, 6.59 km away
Maungatua - North Taieri, 9.58 km away
Lake Onslow, 11.72 km away
Waitahuna 1, 12.65 km away
Nichols Rock, 12.84 km away
Blue Mountain, 12.86 km away
Tuapeka, 14.98 km away

Logan Burn, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?true
Directly Connected?true
Co-rupture Count699
Co-rupture Rate2.7891283E-6

Hyde North, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?true
Directly Connected?true
Co-rupture Count682
Co-rupture Rate1.0690144E-5

Beaumont River, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?true
Directly Connected?true
Co-rupture Count1,582
Co-rupture Rate3.1874215E-6

Little Valley, 0.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?true
Directly Connected?true
Co-rupture Count521
Co-rupture Rate3.9499236E-7

Pylap, 4.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?true
Directly Connected?true
Co-rupture Count535
Co-rupture Rate3.5388084E-6

Long Valley, 5.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?true
Directly Connected?true
Co-rupture Count615
Co-rupture Rate6.295466E-6

Backbone, 6.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?true
Directly Connected?false
Co-rupture Count172
Co-rupture Rate2.5306704E-7

Maungatua - North Taieri, 9.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lake Onslow, 11.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate1.5910197E-17

Waitahuna 1, 12.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 12.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Mountain, 12.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?true
Directly Connected?false
Co-rupture Count981
Co-rupture Rate2.7258802E-6

Tuapeka, 14.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?true
Directly Connected?false
Co-rupture Count418
Co-rupture Rate4.4694715E-7
