Kongahau Details

Property	Value
Rupture Count	5,422
Ruptures Above Sect Min Mag	5,416
Ruptures w/ Nonzero Rates	1,298
Magnitude Range	[7.05, 8.26]
Length Range	[23, 404] km
Total Rate	1.4216574E-4 /yr
Multi-Fault Rate	1.0573739E-4 /yr (74.38%)
Directly-Connected Faults	9
All Co-Rupturing Faults	20

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

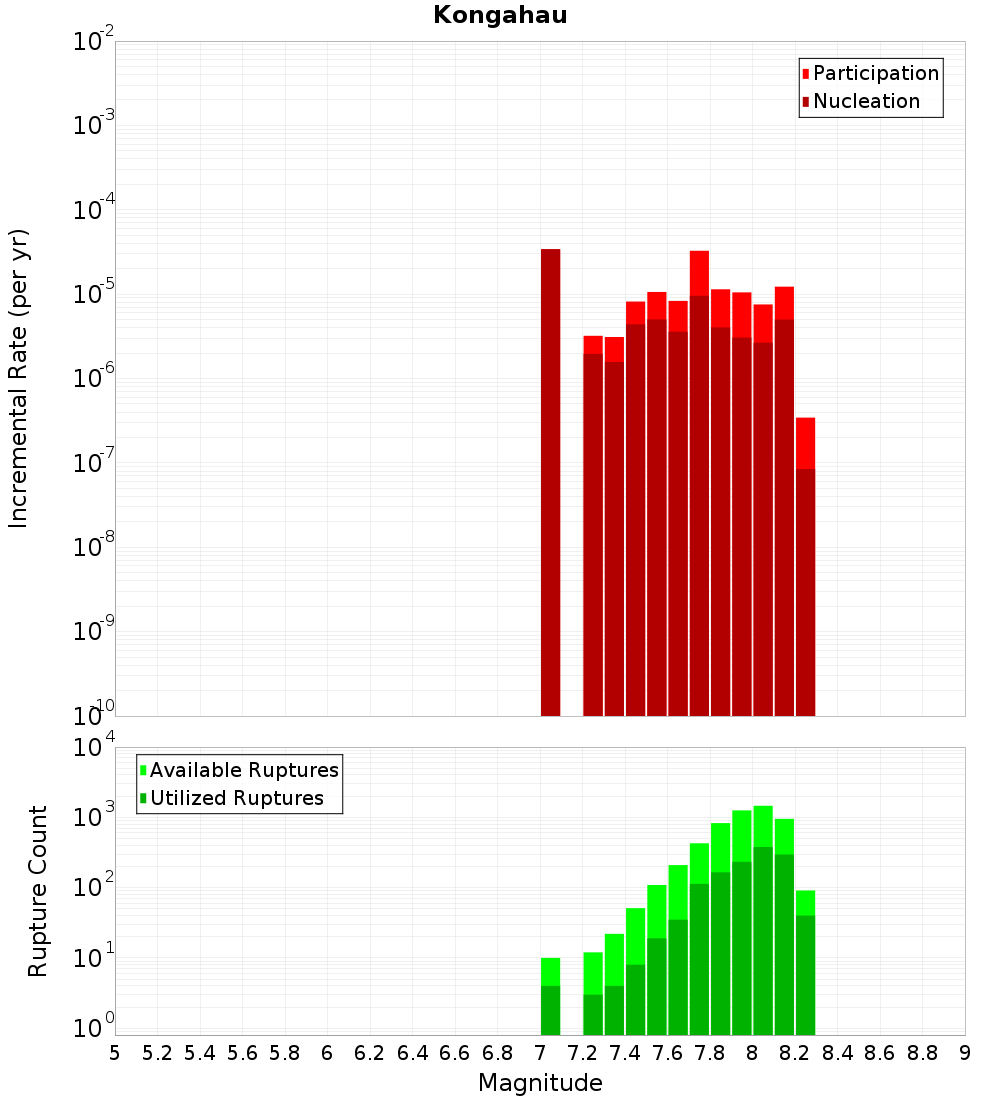

Magnitude-Frequency Distribution

Incremental	Cumulative

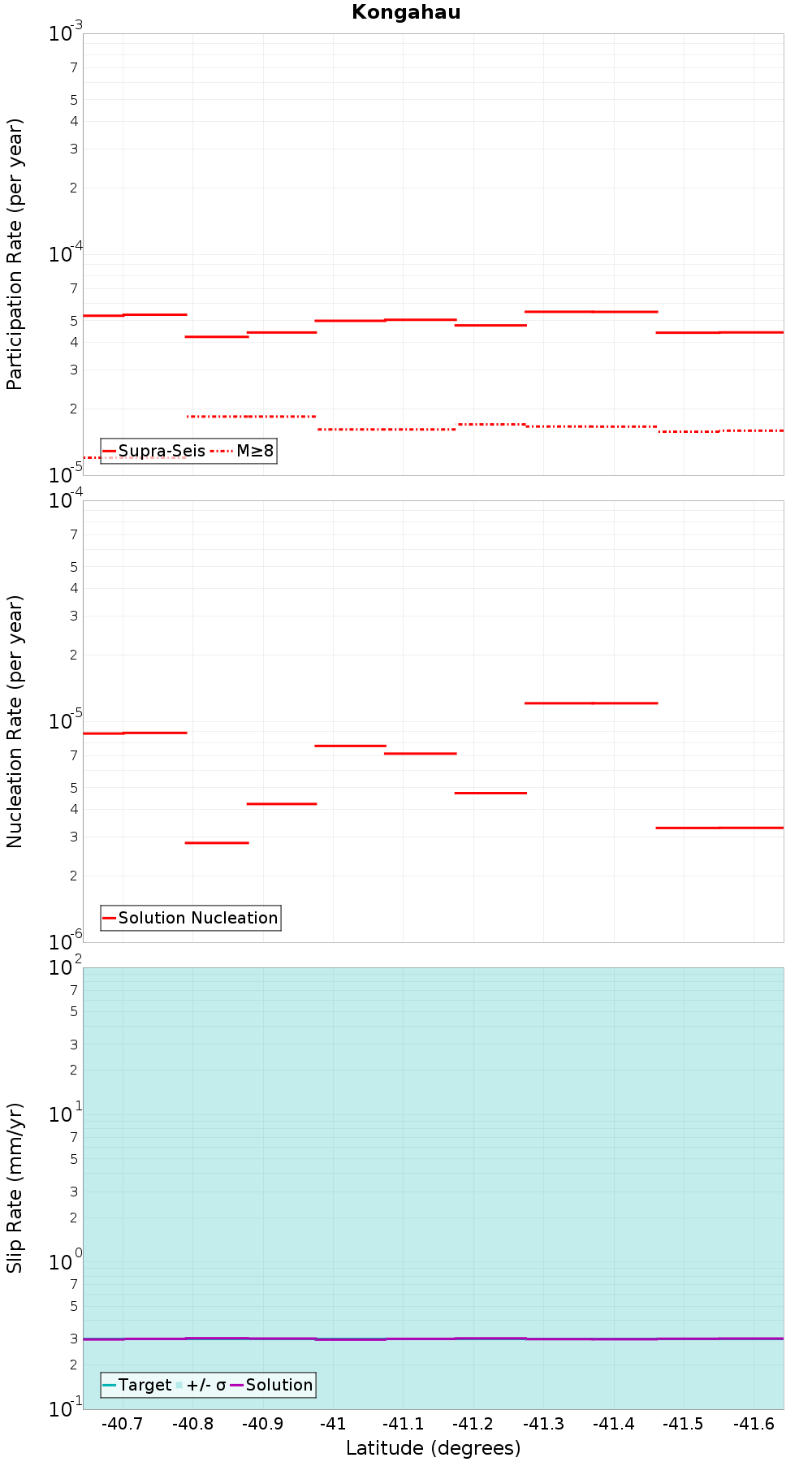

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kahurangi, 0.31 km away
Wakamarama, 0.44 km away
Cape Foulwind 4, 1.15 km away
Inangahua, 1.46 km away
Paparoa West: North, 1.54 km away
Farewell, 3.83 km away
Kohaihai, 5.29 km away
Kohaihai South, 7.34 km away
Cape Foulwind 2, 8.54 km away
White Creek, 11.75 km away

Kahurangi, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	true
Co-rupture Count	599
Co-rupture Rate	2.1441996E-5

Wakamarama, 0.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	true
Co-rupture Count	1,374
Co-rupture Rate	2.4175006E-5

Cape Foulwind 4, 1.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	true
Co-rupture Count	72
Co-rupture Rate	1.9596187E-6

Inangahua, 1.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	true
Co-rupture Count	2,350
Co-rupture Rate	2.2015114E-5

Paparoa West: North, 1.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	true
Co-rupture Count	1,462
Co-rupture Rate	2.0463773E-5

Farewell, 3.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	true
Co-rupture Count	876
Co-rupture Rate	4.2942183E-6

Kohaihai, 5.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	true
Co-rupture Count	630
Co-rupture Rate	1.4418765E-5

Kohaihai South, 7.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	false
Co-rupture Count	235
Co-rupture Rate	2.8766966E-5

Cape Foulwind 2, 8.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	true
Co-rupture Count	294
Co-rupture Rate	4.2135325E-6

White Creek, 11.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	true
Co-rupture Count	1,367
Co-rupture Rate	2.969775E-5
