Tukituki Thrust Details

Property	Value
Rupture Count	316
Ruptures Above Sect Min Mag	310
Ruptures w/ Nonzero Rates	106
Magnitude Range	[6.87, 8.14]
Length Range	[19, 293] km
Total Rate	5.029463E-4 /yr
Multi-Fault Rate	2.7437301E-4 /yr (54.55%)
Directly-Connected Faults	5
All Co-Rupturing Faults	22

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

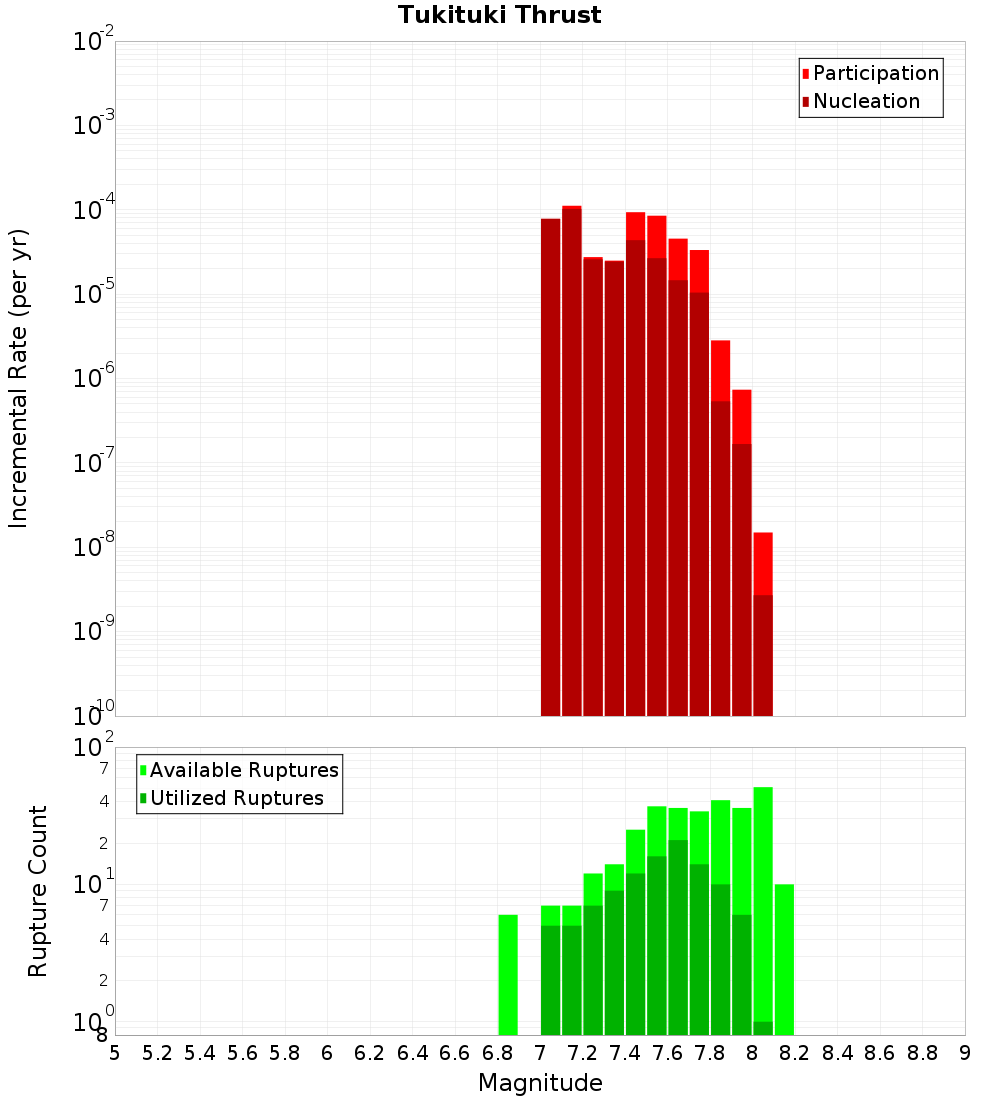

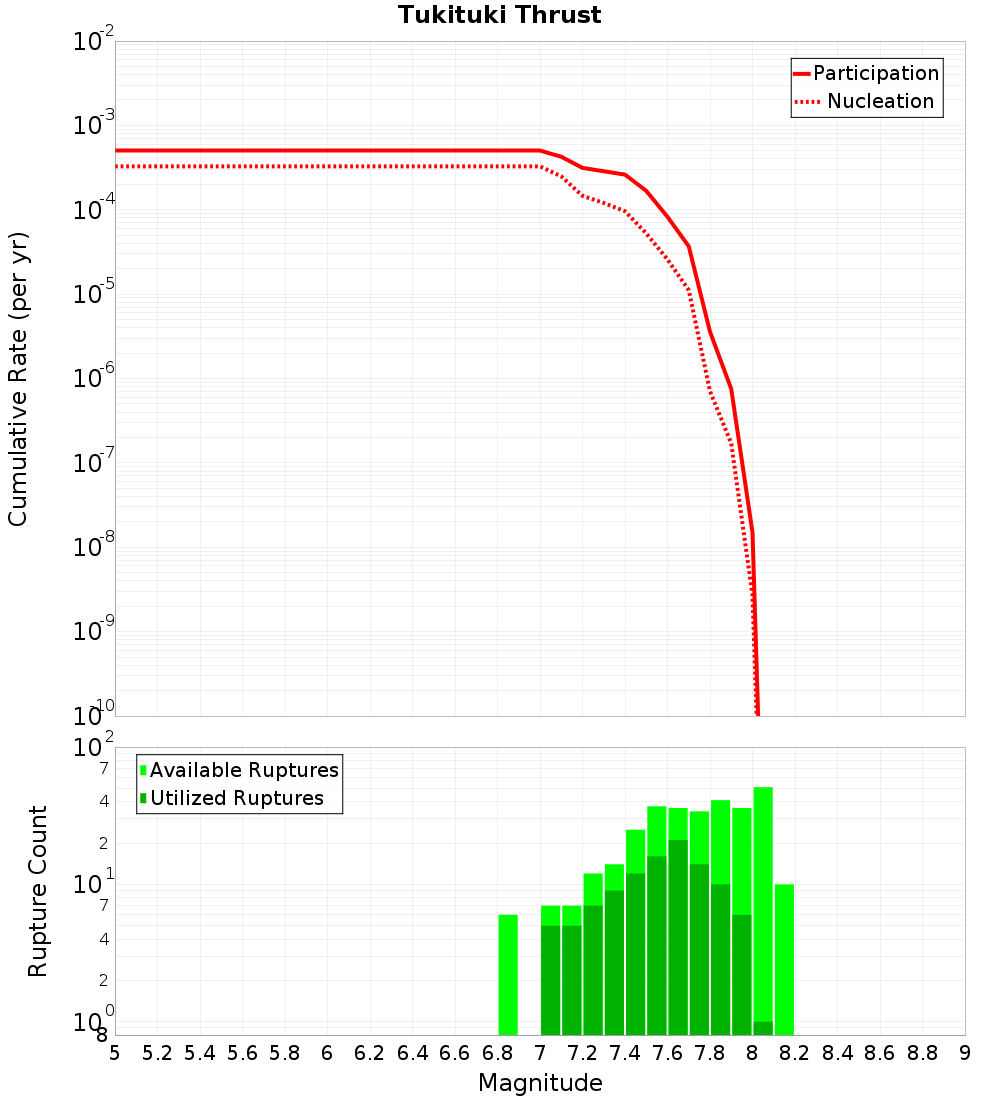

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hawke Bay 8, 2 km away
Waipukurau - Poukawa, 3.57 km away
Awanui, 3.57 km away
Clear Hills - Waikopiro, 7.68 km away
Oruawharo - Mangatoro, 9.21 km away
Te Heka, 11.15 km away
Kidnappers Ridge, 11.24 km away
Waimarama 1 & 2, 13.06 km away

Hawke Bay 8, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	true
Co-rupture Count	22
Co-rupture Rate	5.417464E-5

Waipukurau - Poukawa, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	true
Co-rupture Count	39
Co-rupture Rate	1.4558161E-4

Awanui, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	true
Co-rupture Count	216
Co-rupture Rate	8.5844775E-5

Clear Hills - Waikopiro, 7.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	true
Co-rupture Count	51
Co-rupture Rate	1.6356591E-5

Oruawharo - Mangatoro, 9.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	false
Co-rupture Count	25
Co-rupture Rate	5.9400198E-5

Te Heka, 11.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	true
Directly Connected?	true
Co-rupture Count	44
Co-rupture Rate	8.085454E-6

Kidnappers Ridge, 11.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimarama 1 & 2, 13.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTIuMEtRNjhF
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
