Tuapeka Details

PropertyValue
Rupture Count4,722
Ruptures Above Sect Min Mag4,721
Ruptures w/ Nonzero Rates60
Magnitude Range[7.18, 8.66]
Length Range[27, 859] km
Total Rate8.713622E-6 /yr
Multi-Fault Rate5.7269403E-6 /yr (65.72%)
Directly-Connected Faults4
All Co-Rupturing Faults87

Table Of Contents

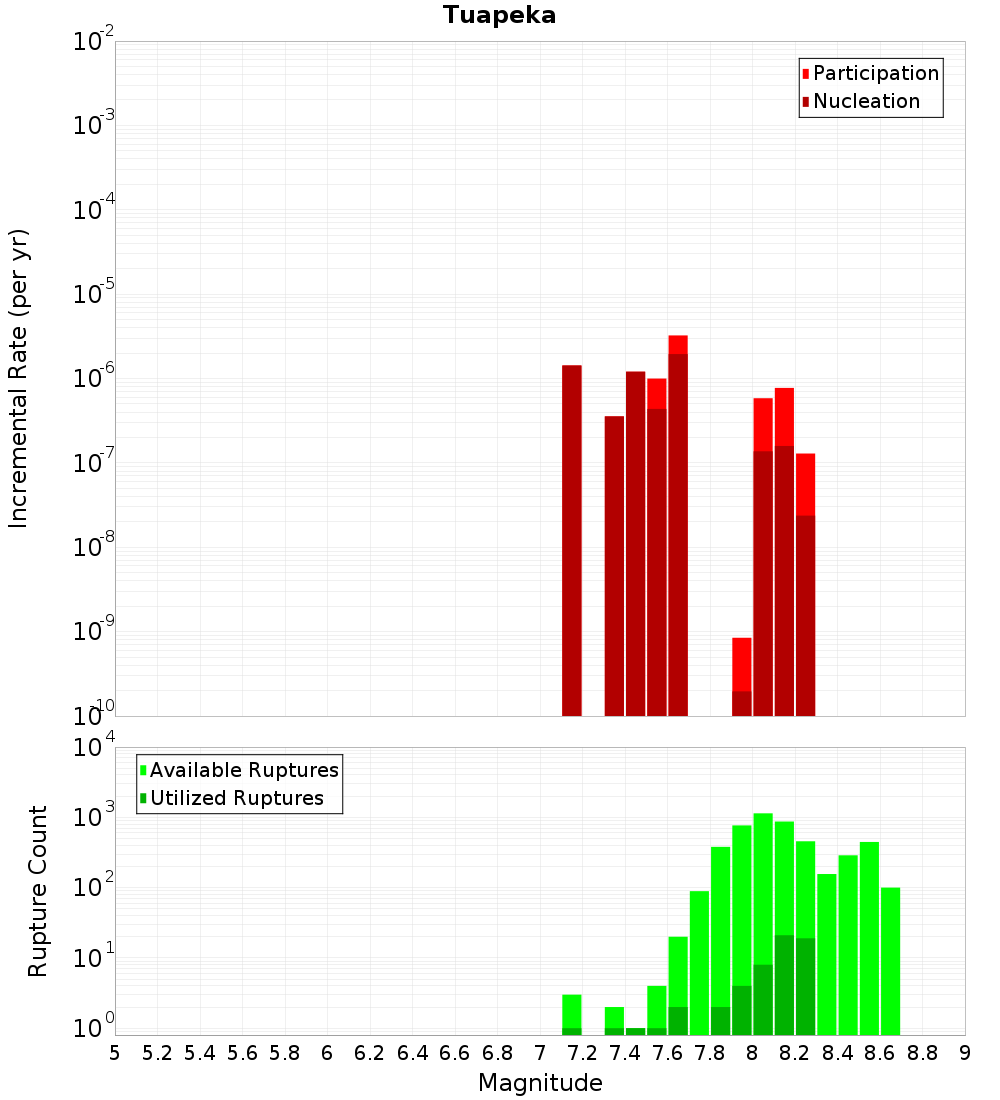

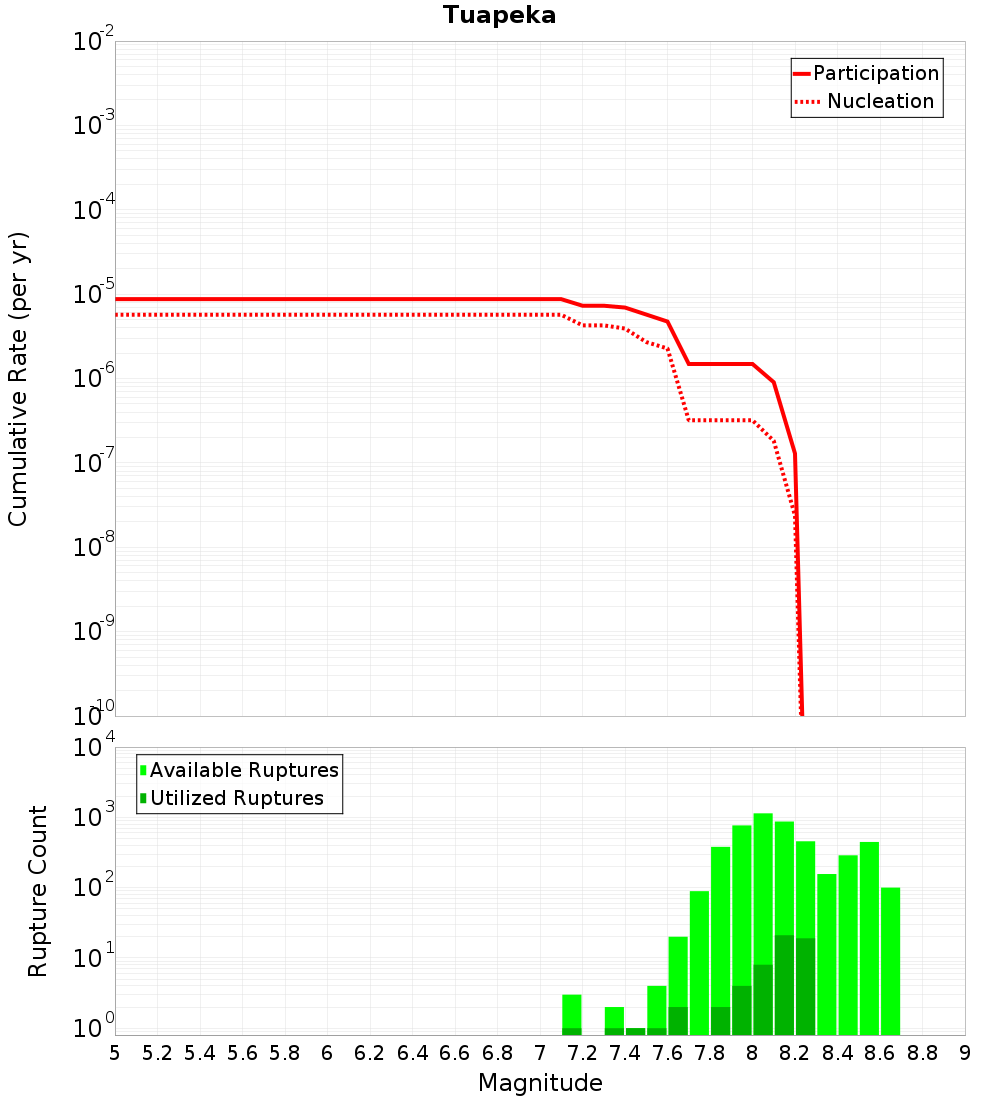

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

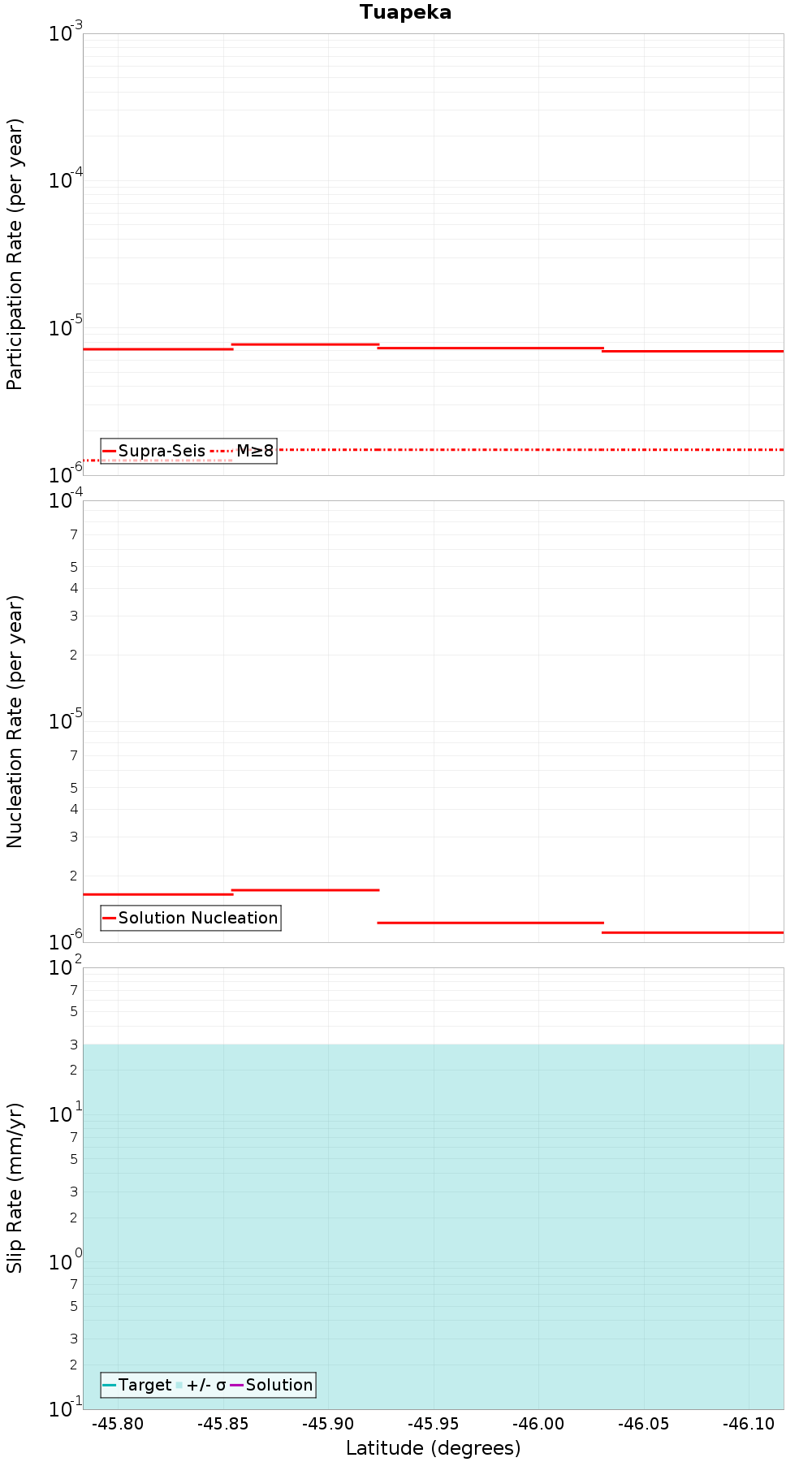

Along-Strike Values

(top)

Along-strike plot

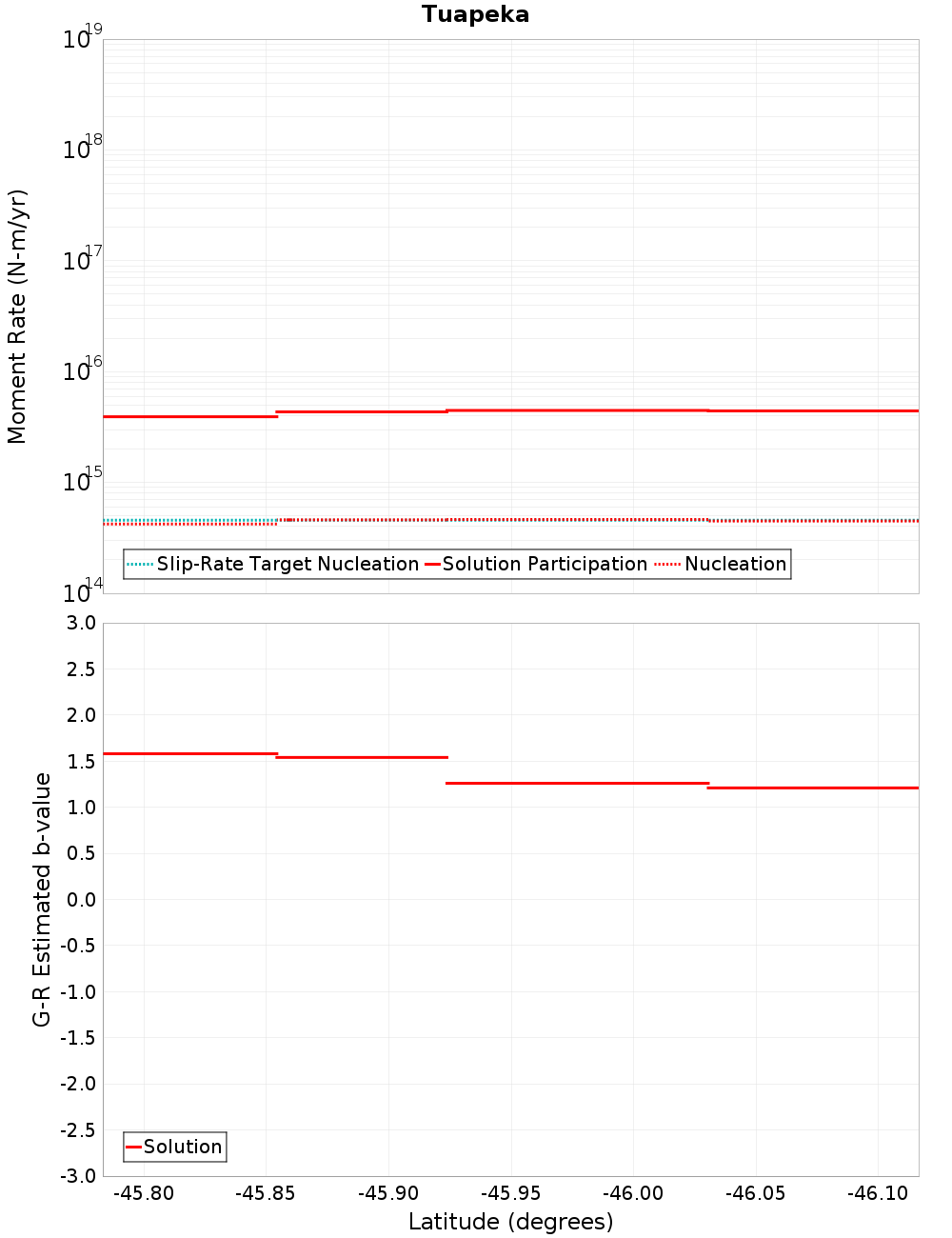

Moment-Rates and b-Values

(top)

Along-strike plot

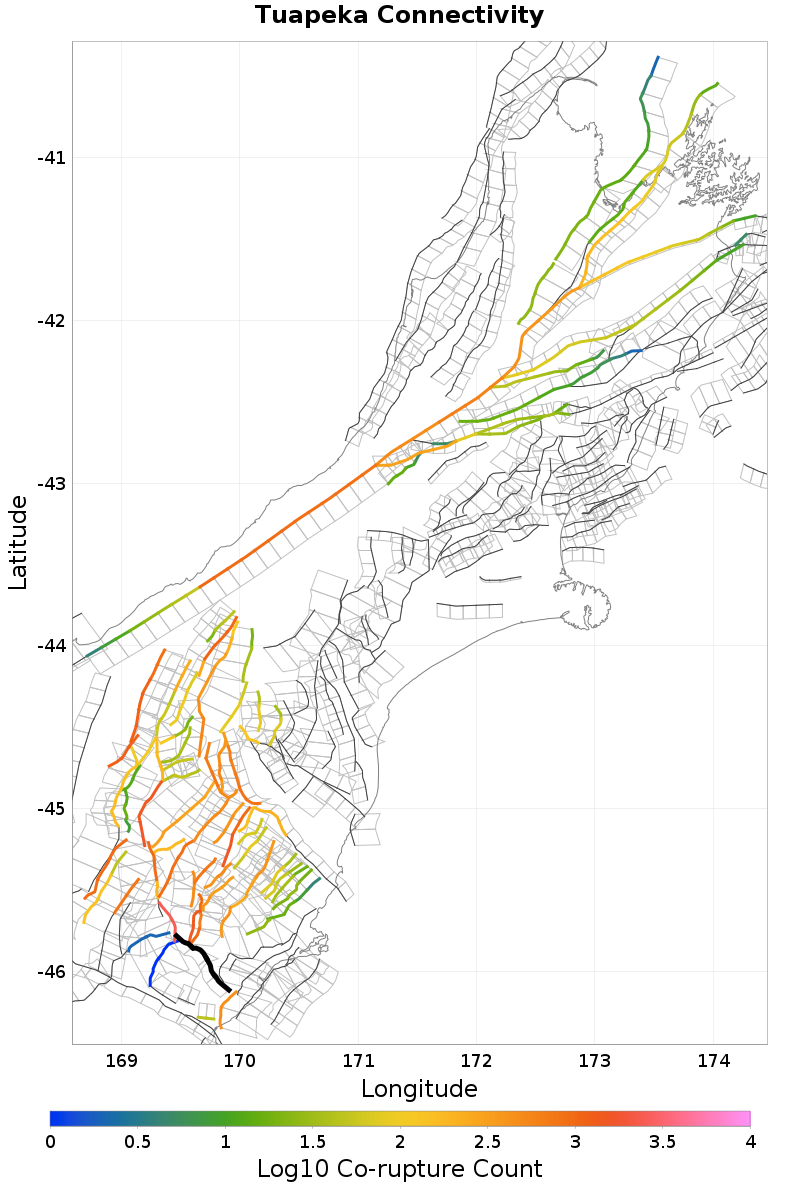

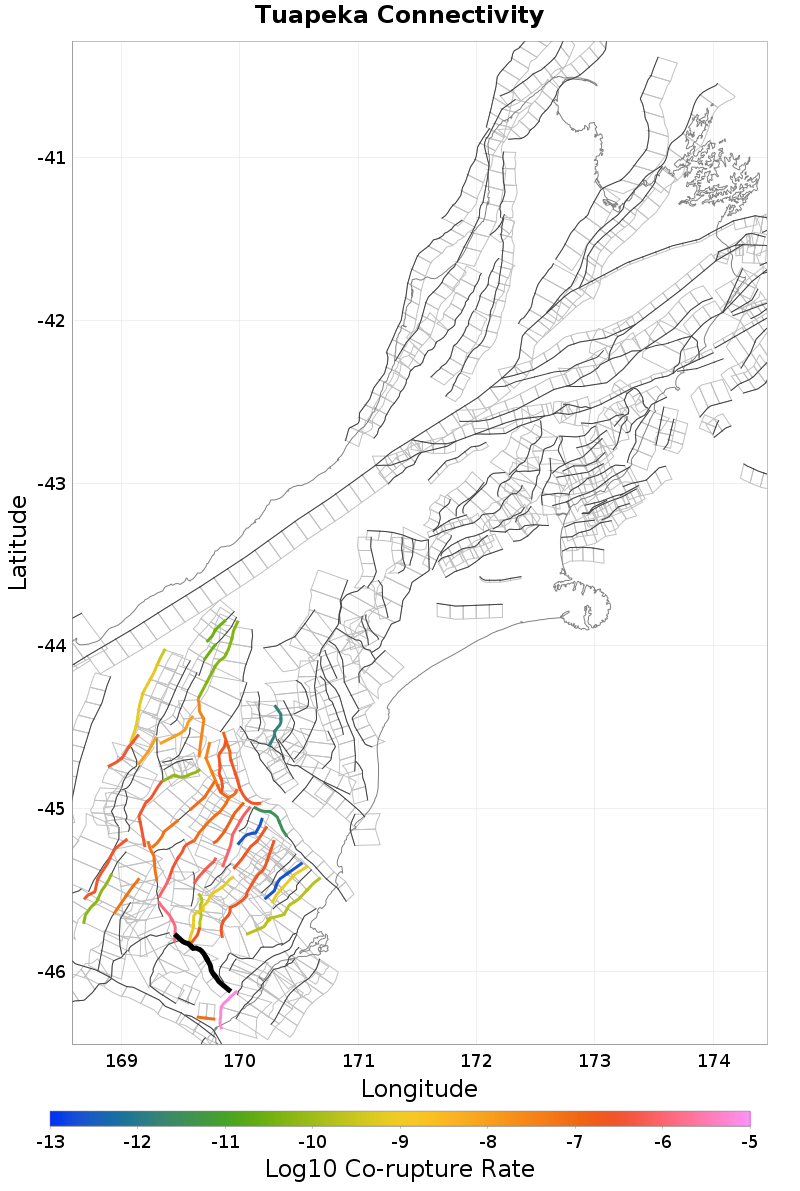

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Blue Mountain, 0.23 km away
Beaumont River, 0.91 km away
Backbone, 1.03 km away
Teviot, 1.07 km away
Waitahuna 1, 1.92 km away
Spylaw, 2.17 km away
Titri South, 4.19 km away
Titri Central, 6.22 km away
Otanomomo, 6.25 km away
Clifton, 6.7 km away
Waitahuna 2, 10.05 km away
Akatore, 14.57 km away
Beacon Hill, 14.81 km away
Hyde South - The Twins, 14.98 km away

Blue Mountain, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTQuMHpCbk5h
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Beaumont River, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTQuMHpCbk5h
Connected?true
Directly Connected?true
Co-rupture Count1,261
Co-rupture Rate2.2725615E-7

Backbone, 1.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTQuMHpCbk5h
Connected?true
Directly Connected?true
Co-rupture Count1,429
Co-rupture Rate7.598487E-10

Teviot, 1.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTQuMHpCbk5h
Connected?true
Directly Connected?true
Co-rupture Count2,460
Co-rupture Rate1.2597612E-6

Waitahuna 1, 1.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTQuMHpCbk5h
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Spylaw, 2.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTQuMHpCbk5h
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Titri South, 4.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTQuMHpCbk5h
Connected?true
Directly Connected?true
Co-rupture Count460
Co-rupture Rate5.7268094E-6

Titri Central, 6.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTQuMHpCbk5h
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otanomomo, 6.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTQuMHpCbk5h
Connected?true
Directly Connected?false
Co-rupture Count46
Co-rupture Rate8.525278E-8

Clifton, 6.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTQuMHpCbk5h
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 2, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTQuMHpCbk5h
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akatore, 14.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTQuMHpCbk5h
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Beacon Hill, 14.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTQuMHpCbk5h
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hyde South - The Twins, 14.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MTQuMHpCbk5h
Connected?true
Directly Connected?false
Co-rupture Count418
Co-rupture Rate2.2707525E-7
