Kaiwara North Details

Property	Value
Rupture Count	6,647
Ruptures Above Sect Min Mag	6,647
Ruptures w/ Nonzero Rates	545
Magnitude Range	[7.13, 8.39]
Length Range	[25, 560] km
Total Rate	8.971212E-5 /yr
Multi-Fault Rate	8.971212E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	91

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

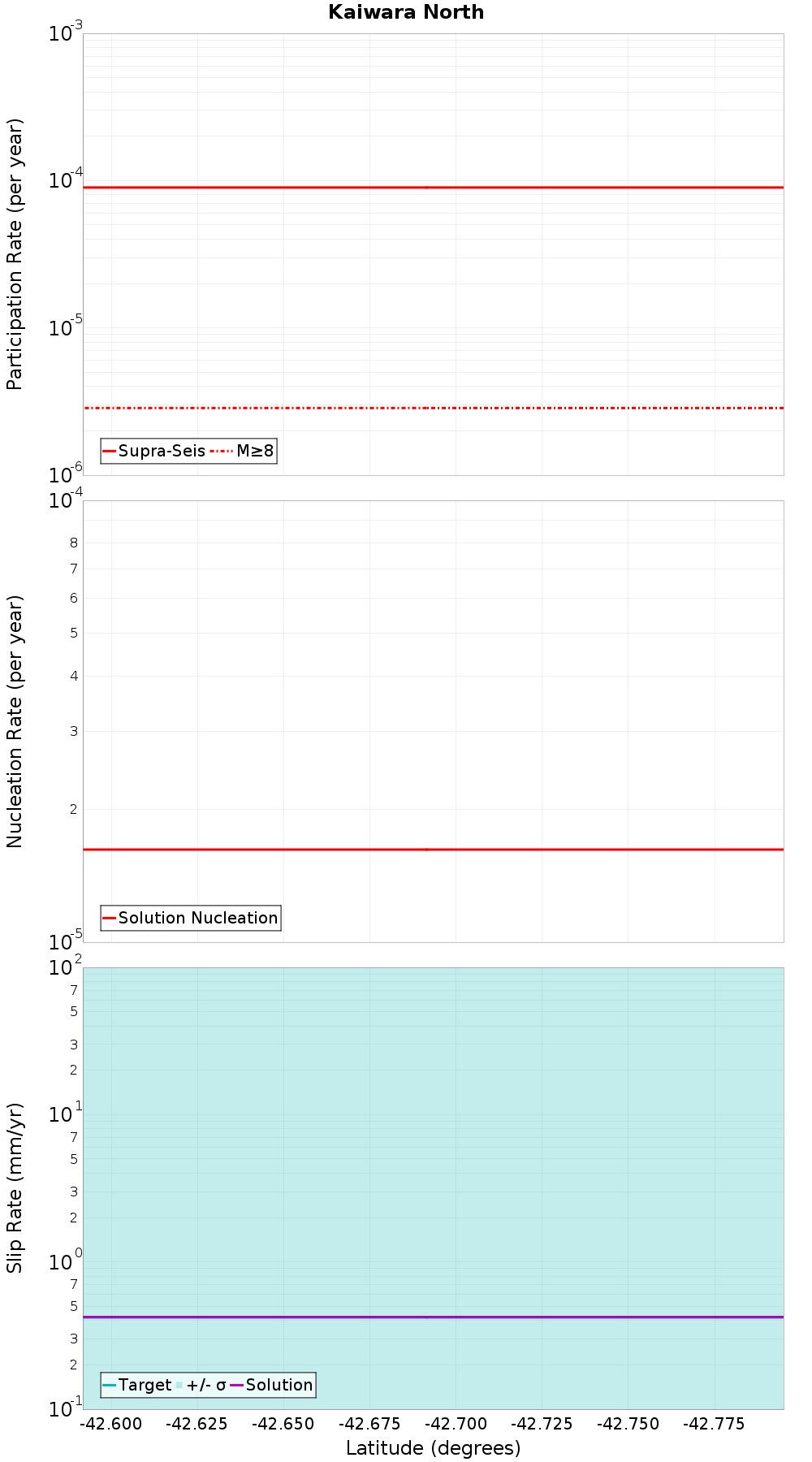

Along-Strike Values

Moment-Rates and b-Values

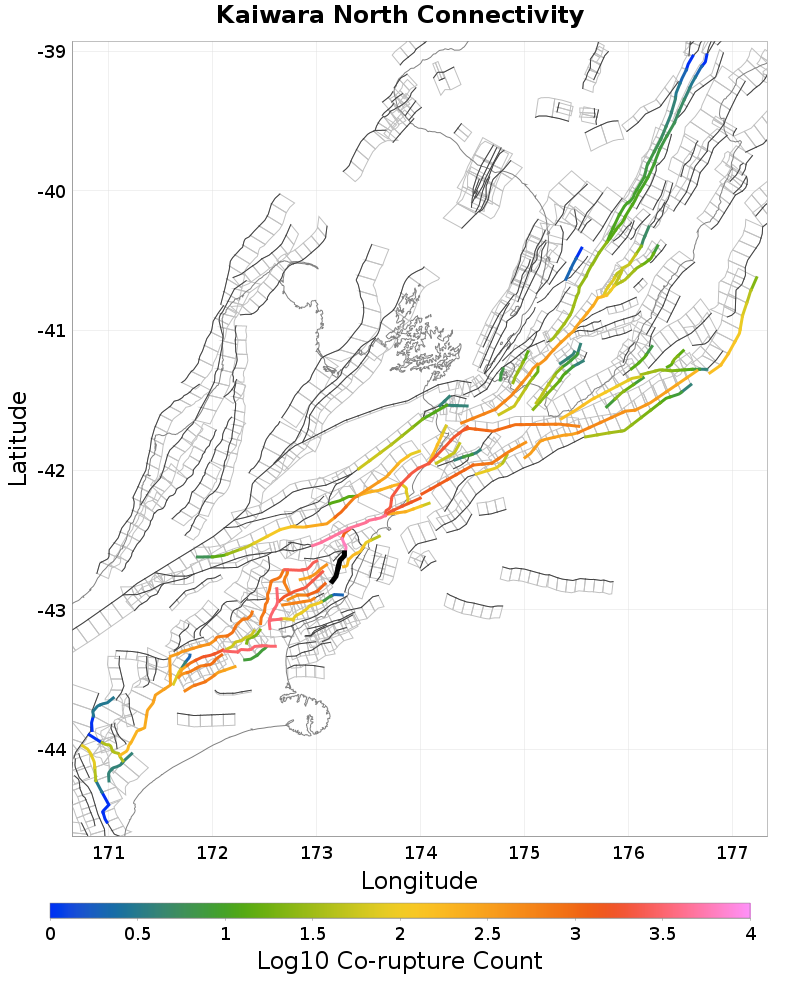

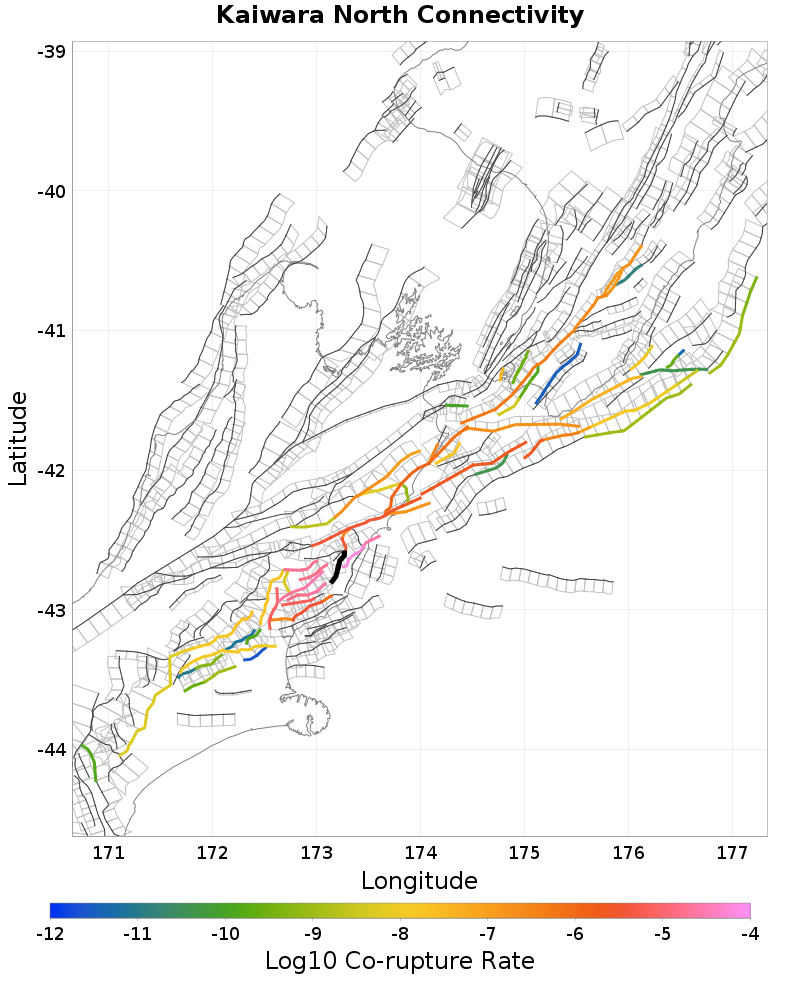

Connectivity

Nearby Sections

Fault Section	Fault Section
Lowry, 0.15 km away	Hanmer, 5.4 km away
The Humps, 0.22 km away	Hope: Conway, 6.51 km away
Leonard Mound, 0.3 km away	Hawkswood, 9.21 km away
Mt Culverden, 0.53 km away	OmihiLwrHuru, 10.71 km away
Leader: South, 0.57 km away	Leader: North, 10.78 km away
Leader: Central, 2.03 km away	Kaiwara South, 11.67 km away
Hundalee, 3.47 km away	Hope: Hamner SE, 12.43 km away
Alexander, 5.18 km away	StoneJug, 13.46 km away

Lowry, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	true
Directly Connected?	true
Co-rupture Count	2,422
Co-rupture Rate	4.711023E-5

The Humps, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leonard Mound, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	true
Directly Connected?	true
Co-rupture Count	424
Co-rupture Rate	1.5383026E-5

Mt Culverden, 0.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	true
Directly Connected?	true
Co-rupture Count	2,537
Co-rupture Rate	1.7873414E-5

Leader: South, 0.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leader: Central, 2.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	true
Directly Connected?	true
Co-rupture Count	6,159
Co-rupture Rate	3.755944E-6

Hundalee, 3.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	true
Directly Connected?	true
Co-rupture Count	174
Co-rupture Rate	6.664086E-5

Alexander, 5.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	true
Directly Connected?	true
Co-rupture Count	1,296
Co-rupture Rate	3.2266333E-5

Hanmer, 5.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Conway, 6.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	true
Directly Connected?	false
Co-rupture Count	4,692
Co-rupture Rate	3.5147216E-6

Hawkswood, 9.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

OmihiLwrHuru, 10.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	true
Directly Connected?	false
Co-rupture Count	97
Co-rupture Rate	4.0256705E-6

Leader: North, 10.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	true
Directly Connected?	false
Co-rupture Count	1,220
Co-rupture Rate	2.4091176E-7

Kaiwara South, 11.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	true
Directly Connected?	false
Co-rupture Count	632
Co-rupture Rate	6.9438315E-6

Hope: Hamner SE, 12.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

StoneJug, 13.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
