Lyell Details
| Property | Value |
|---|---|
| Rupture Count | 2,302 |
| Ruptures Above Sect Min Mag | 2,299 |
| Ruptures w/ Nonzero Rates | 603 |
| Magnitude Range | [6.98, 8.56] |
| Length Range | [20, 814] km |
| Total Rate | 8.072127E-5 /yr |
| Multi-Fault Rate | 7.8012774E-5 /yr (96.64%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 34 |
Table Of Contents

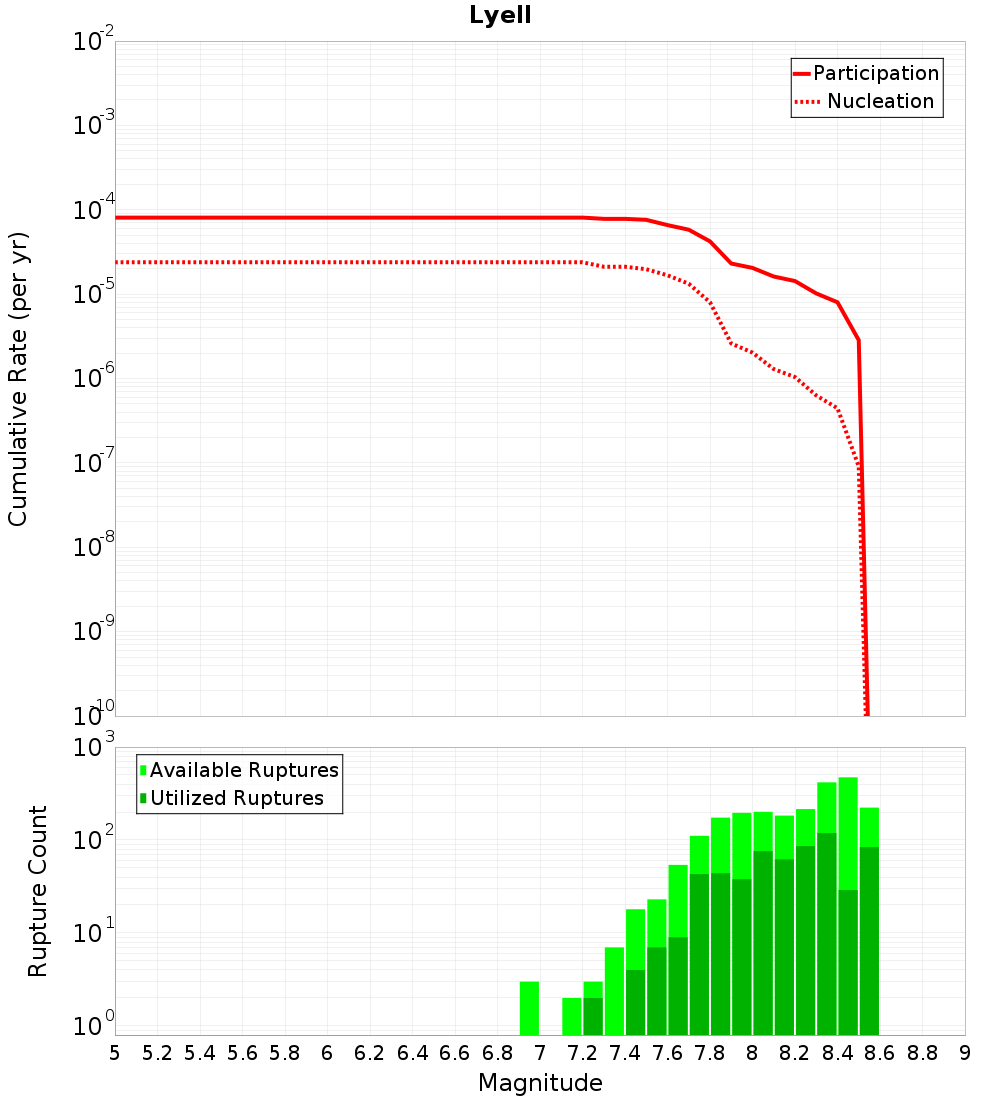

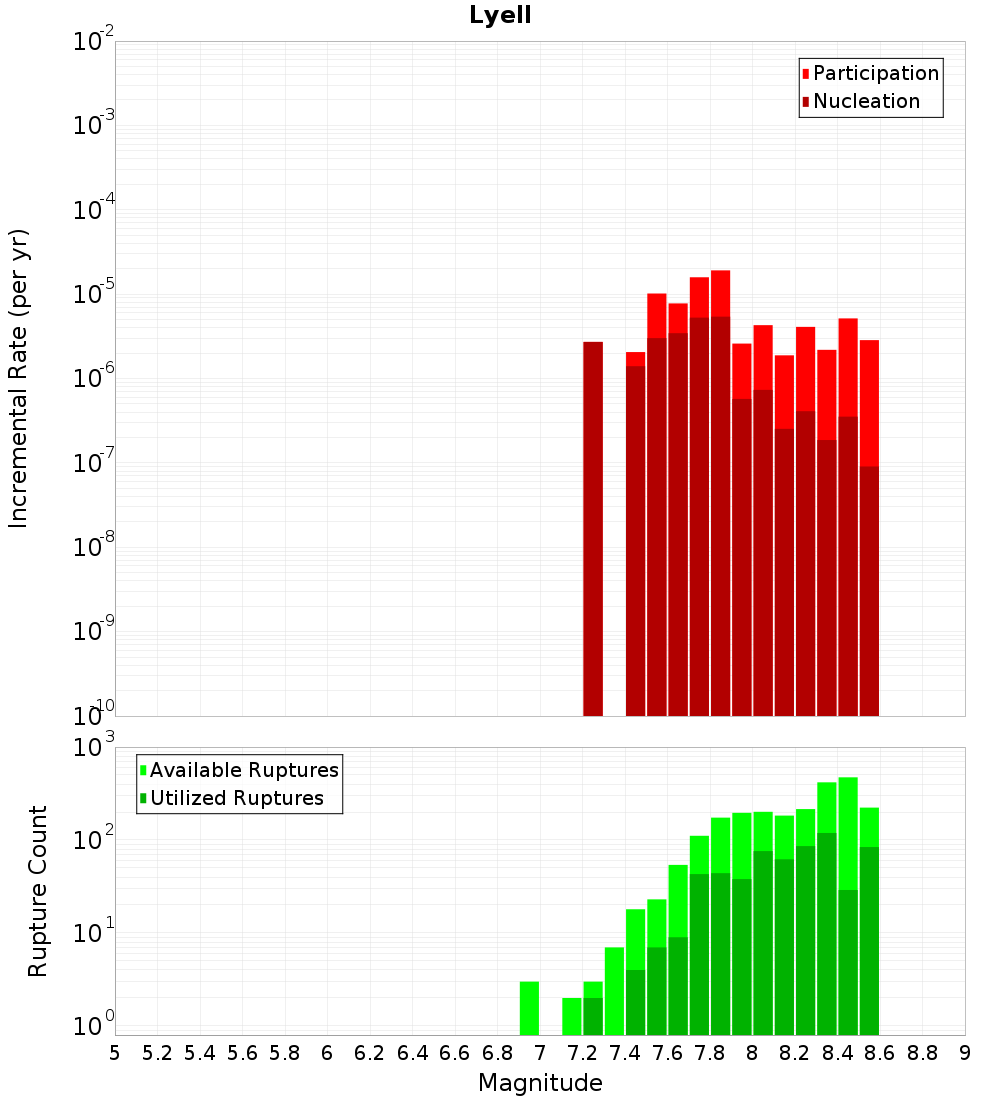

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

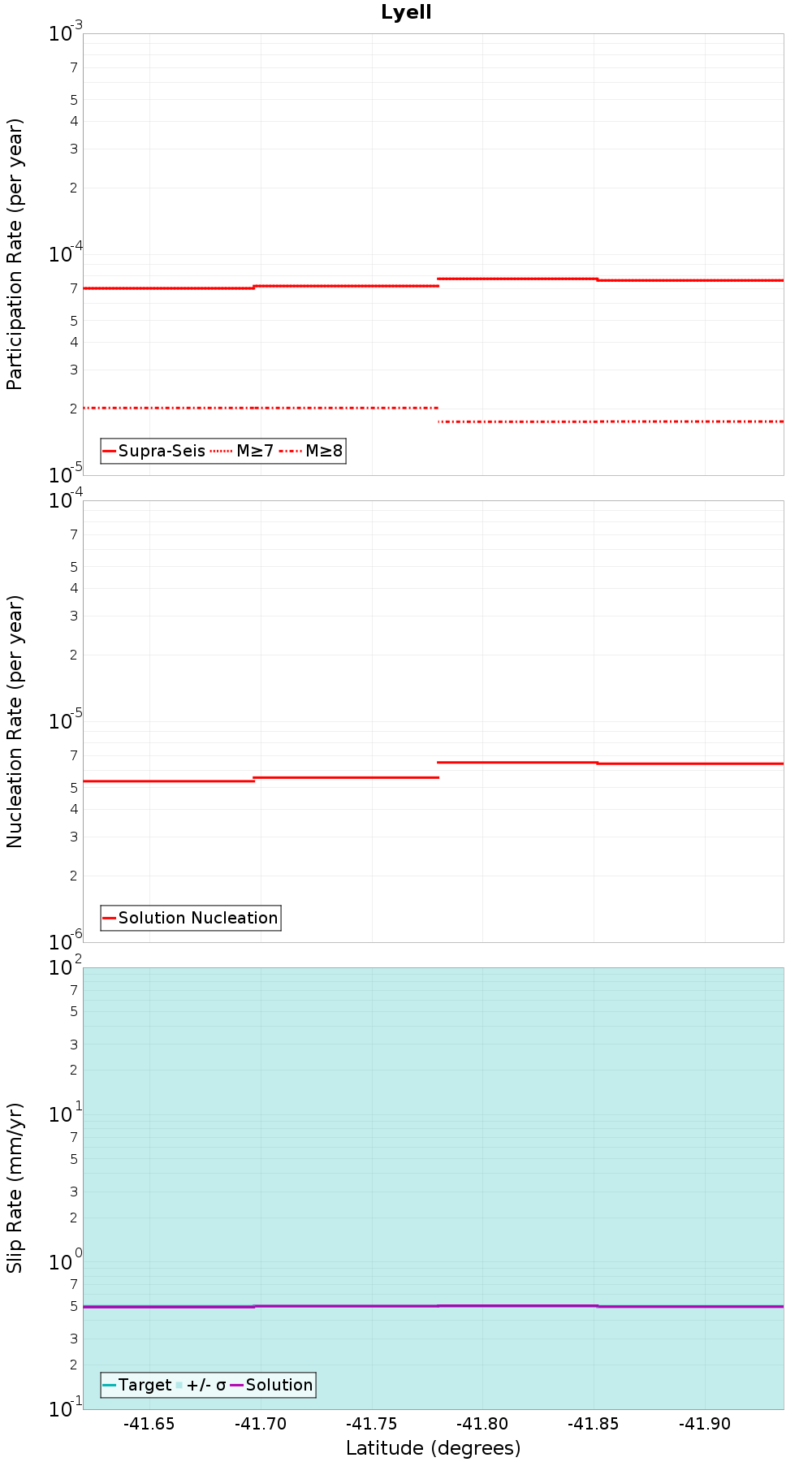

Along-Strike Values

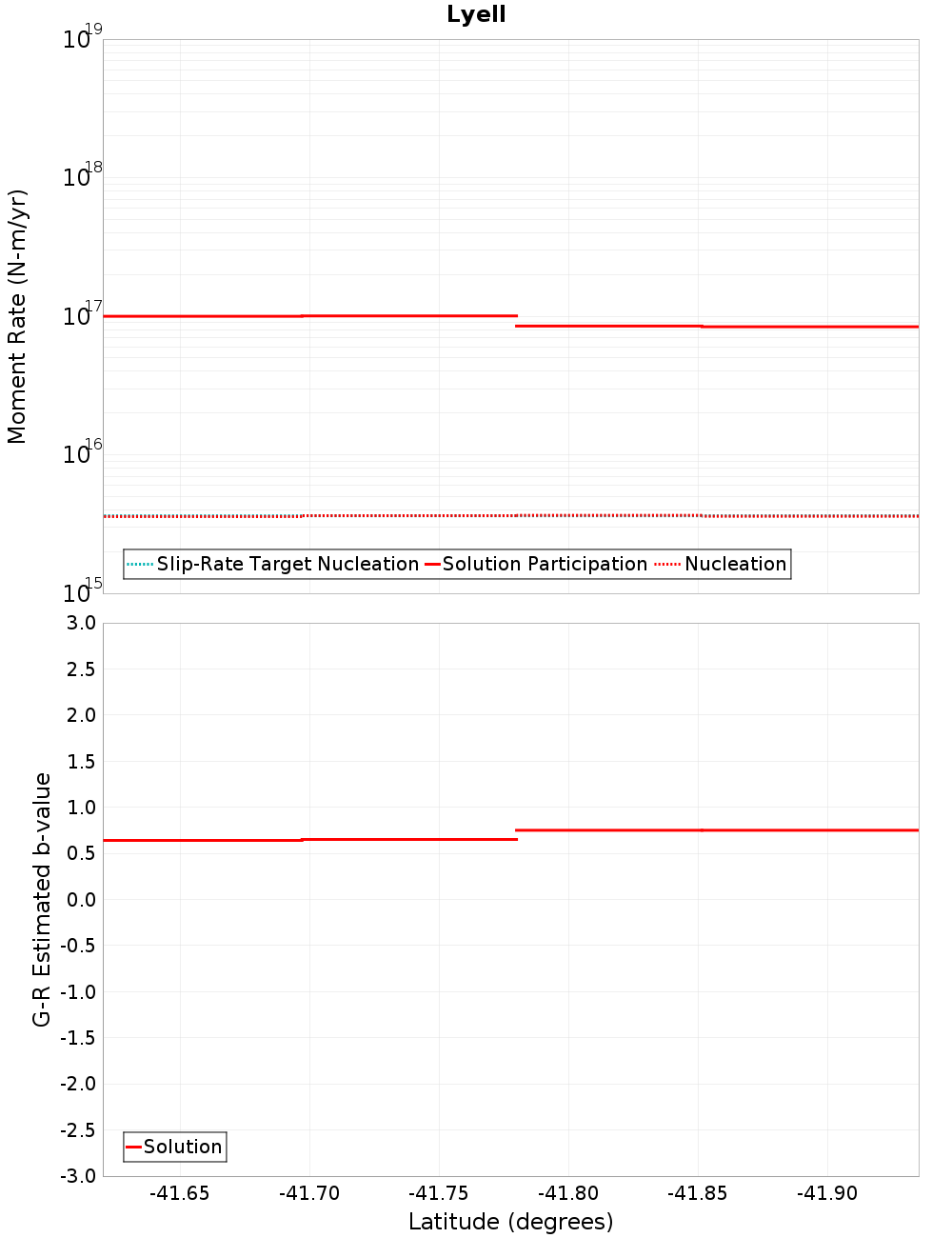

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| White Creek, 0.23 km away |
| Lyell South, 1.51 km away |
| Inangahua, 5.51 km away |
| Maimai: North, 7.56 km away |
White Creek, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,133 |
| Co-rupture Rate | 5.2608026E-5 |
Lyell South, 1.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,380 |
| Co-rupture Rate | 6.9829155E-5 |
Inangahua, 5.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 192 |
| Co-rupture Rate | 4.6815744E-6 |
Maimai: North, 7.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MjYuMHRUQnRH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 40 |
| Co-rupture Rate | 4.198349E-6 |
