Te Heka Details

PropertyValue
Rupture Count509
Ruptures Above Sect Min Mag508
Ruptures w/ Nonzero Rates82
Magnitude Range[7.01, 8.17]
Length Range[22, 324] km
Total Rate4.1810414E-5 /yr
Multi-Fault Rate3.817367E-5 /yr (91.30%)
Directly-Connected Faults4
All Co-Rupturing Faults31

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

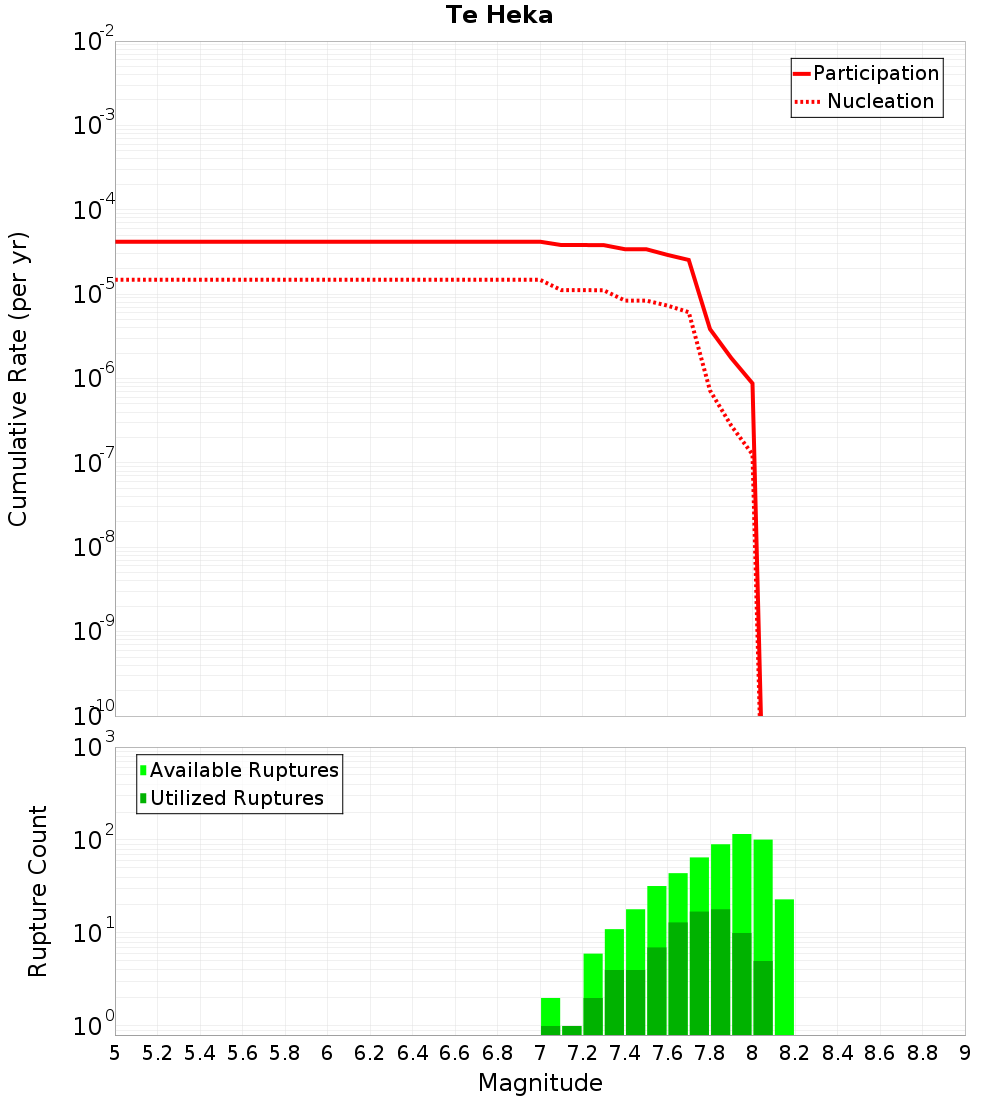

Incremental PlotCumulative Plot

Along-Strike Values

(top)

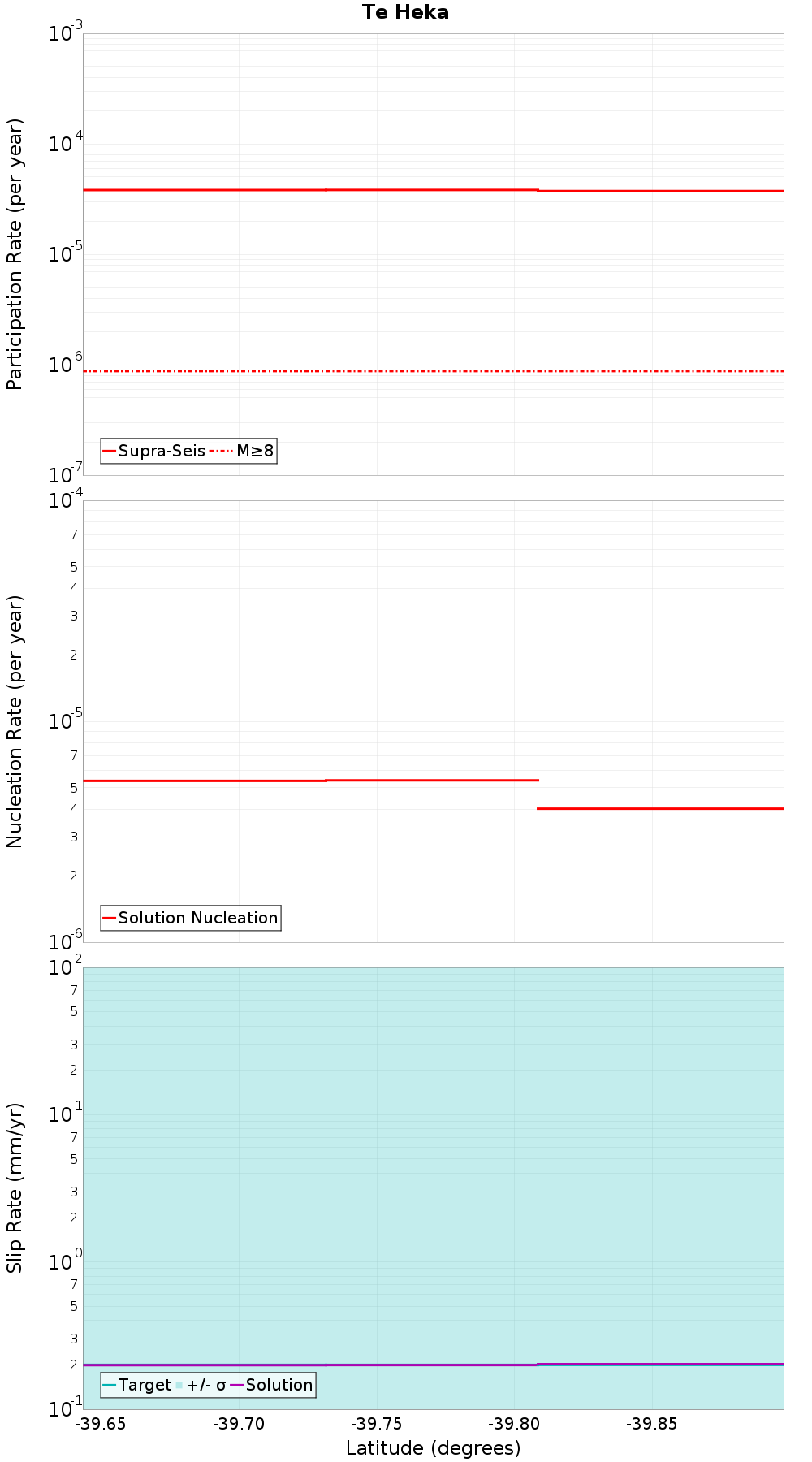

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awanui, 0.14 km away
Waipukurau - Poukawa, 5.65 km away
Oruawharo - Mangatoro, 8.05 km away
Tukituki Thrust, 11.15 km away
Ruataniwha, 12.04 km away
Mohaka: North, 14.28 km away
Wakarara, 14.9 km away
Mohaka: South, 14.94 km away

Awanui, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MzEuMDVZbnhN
Connected?true
Directly Connected?true
Co-rupture Count383
Co-rupture Rate2.770776E-5

Waipukurau - Poukawa, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MzEuMDVZbnhN
Connected?true
Directly Connected?true
Co-rupture Count138
Co-rupture Rate8.7379607E-7

Oruawharo - Mangatoro, 8.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MzEuMDVZbnhN
Connected?true
Directly Connected?true
Co-rupture Count260
Co-rupture Rate3.3243356E-5

Tukituki Thrust, 11.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MzEuMDVZbnhN
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate6.81517E-6

Ruataniwha, 12.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MzEuMDVZbnhN
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Mohaka: North, 14.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MzEuMDVZbnhN
Connected?true
Directly Connected?false
Co-rupture Count238
Co-rupture Rate4.520481E-6

Wakarara, 14.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MzEuMDVZbnhN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: South, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5MzEuMDVZbnhN
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate1.5536999E-15
