Alpine: George to Jacksons Details

PropertyValue
Rupture Count57,867
Ruptures Above Sect Min Mag57,857
Ruptures w/ Nonzero Rates6,547
Magnitude Range[6.96, 8.71]
Length Range[21, 1,129] km
Total Rate0.0027578245 /yr
Multi-Fault Rate0.0027578245 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults154

Table Of Contents

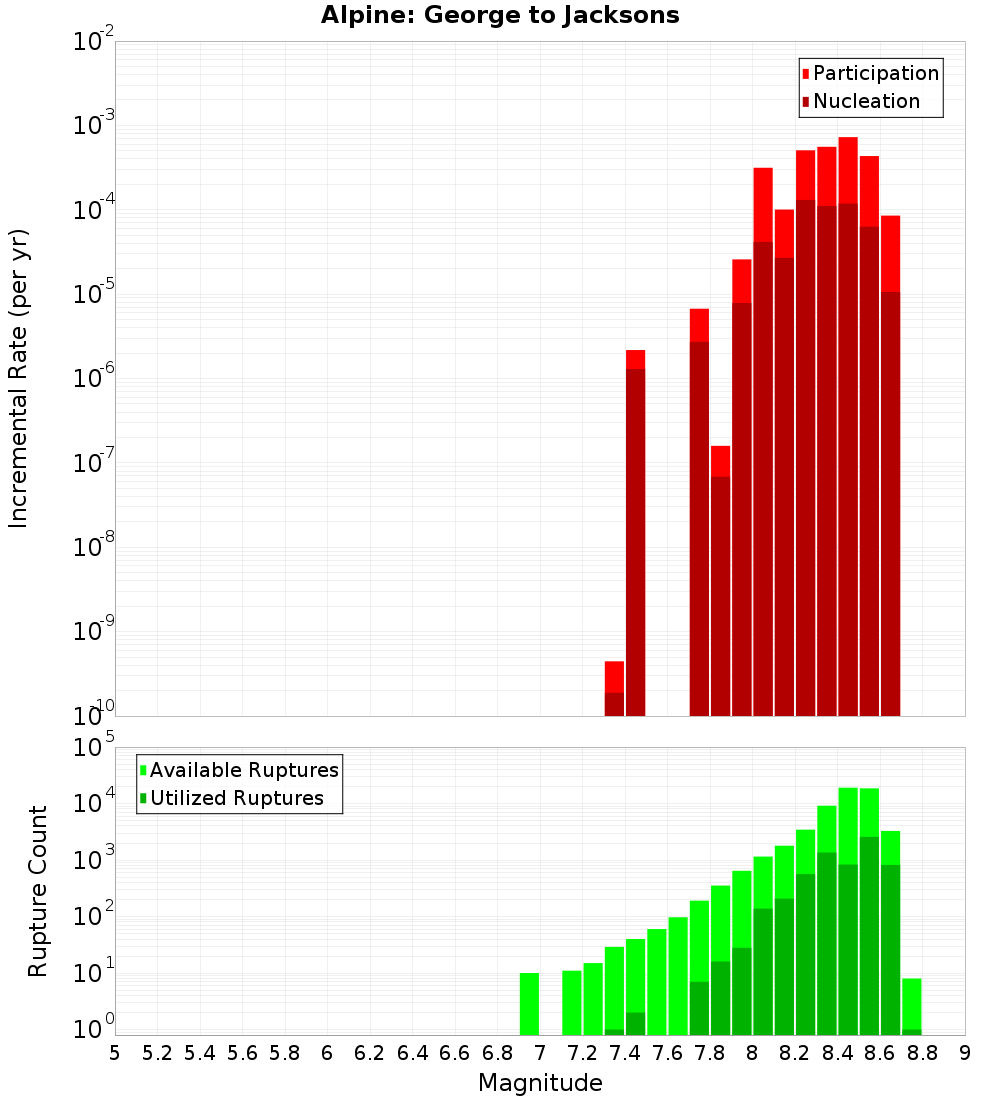

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

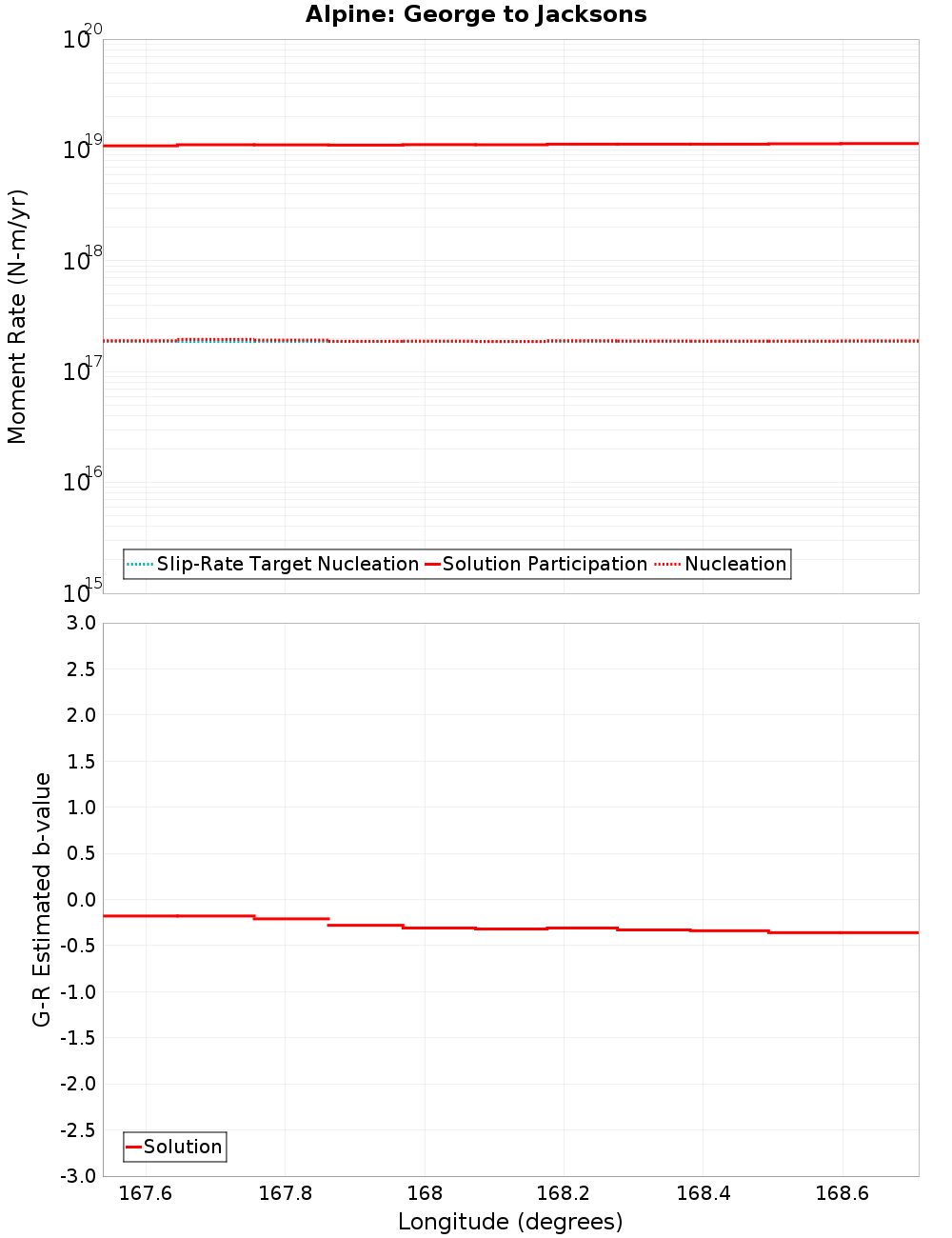

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: George seaward, 0 km away
Alpine: Jacksons to Kaniere, 0 km away
Alpine: George landward, 0 km away
Skippers, 0.18 km away
Hollyford, 0.23 km away
Madagascar, 0.25 km away
Darran, 0.26 km away
Barn, 0.78 km away
Moonlight North, 9.46 km away

Alpine: George seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDUuMHNoQlVj
Connected?true
Directly Connected?true
Co-rupture Count20,633
Co-rupture Rate0.0016909804

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDUuMHNoQlVj
Connected?true
Directly Connected?true
Co-rupture Count55,249
Co-rupture Rate0.002264762

Alpine: George landward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDUuMHNoQlVj
Connected?true
Directly Connected?true
Co-rupture Count21,474
Co-rupture Rate7.1947655E-4

Skippers, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDUuMHNoQlVj
Connected?true
Directly Connected?true
Co-rupture Count1,005
Co-rupture Rate5.1210263E-5

Hollyford, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDUuMHNoQlVj
Connected?true
Directly Connected?true
Co-rupture Count606
Co-rupture Rate1.6880378E-5

Madagascar, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDUuMHNoQlVj
Connected?true
Directly Connected?false
Co-rupture Count272
Co-rupture Rate5.935096E-6

Darran, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDUuMHNoQlVj
Connected?true
Directly Connected?true
Co-rupture Count4,598
Co-rupture Rate6.295425E-5

Barn, 0.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDUuMHNoQlVj
Connected?true
Directly Connected?true
Co-rupture Count904
Co-rupture Rate4.8004647E-5

Moonlight North, 9.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDUuMHNoQlVj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
