Maimai Details

Property	Value
Rupture Count	2,768
Ruptures Above Sect Min Mag	2,768
Ruptures w/ Nonzero Rates	797
Magnitude Range	[7.09, 8.23]
Length Range	[25, 383] km
Total Rate	3.4610604E-4 /yr
Multi-Fault Rate	3.1615215E-4 /yr (91.35%)
Directly-Connected Faults	5
All Co-Rupturing Faults	19

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

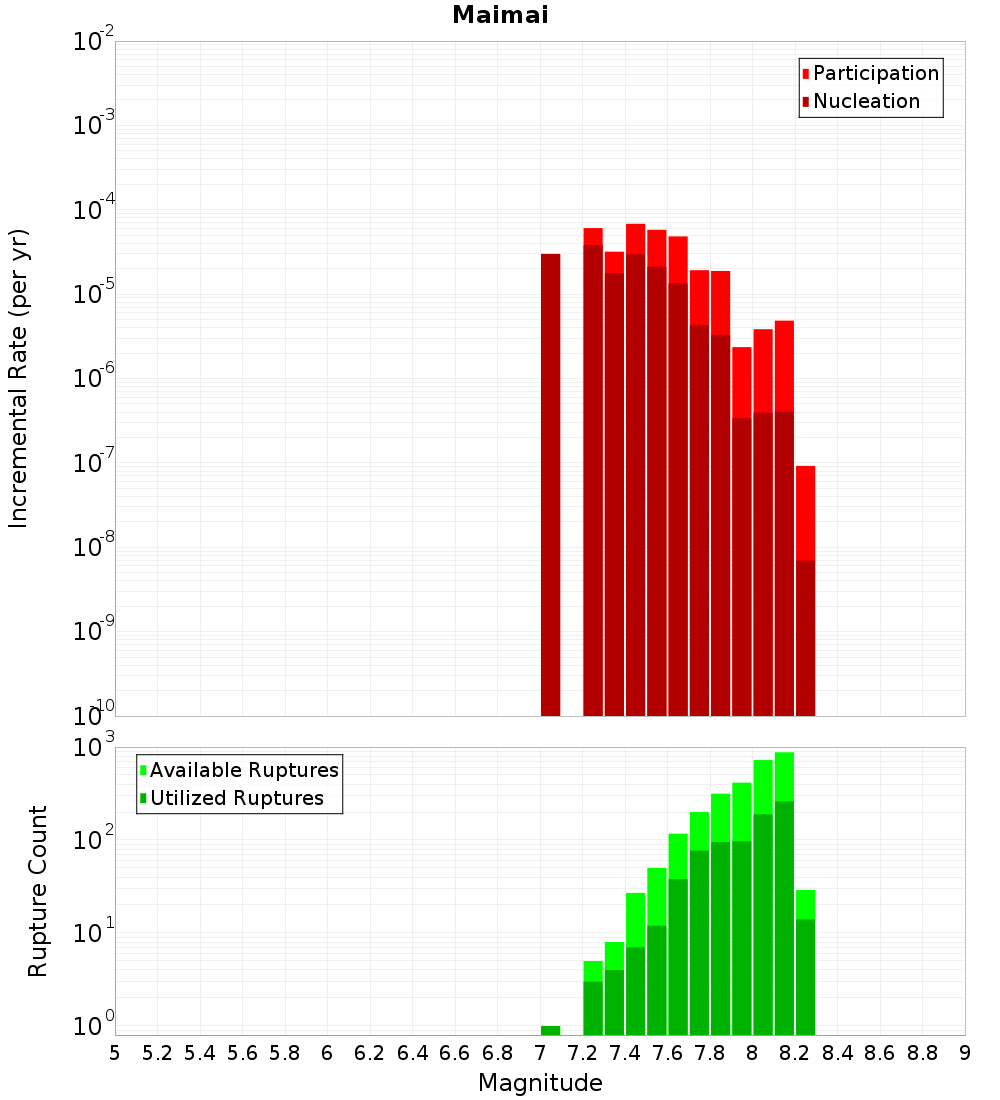

Magnitude-Frequency Distribution

Incremental	Cumulative

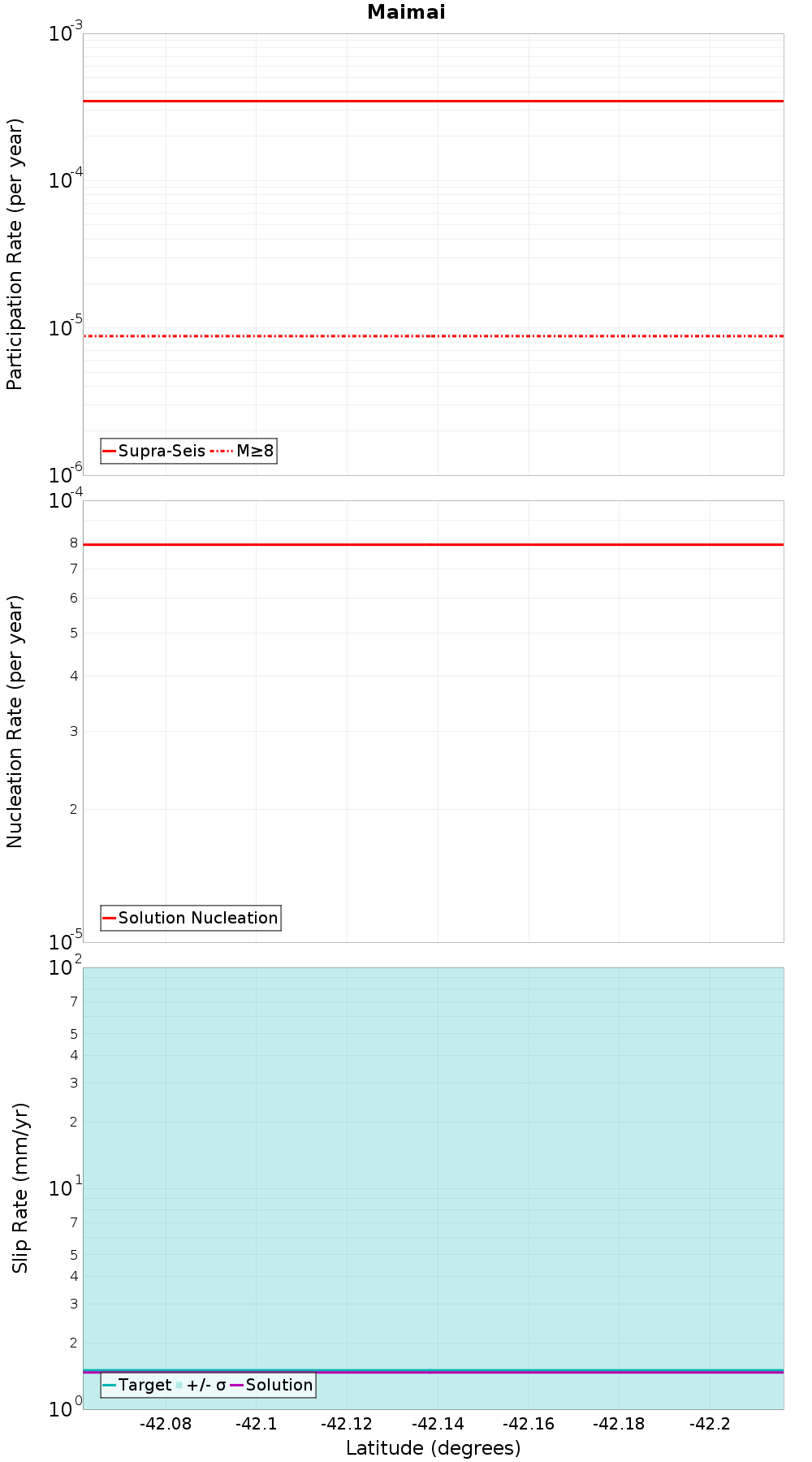

Along-Strike Values

Moment-Rates and b-Values

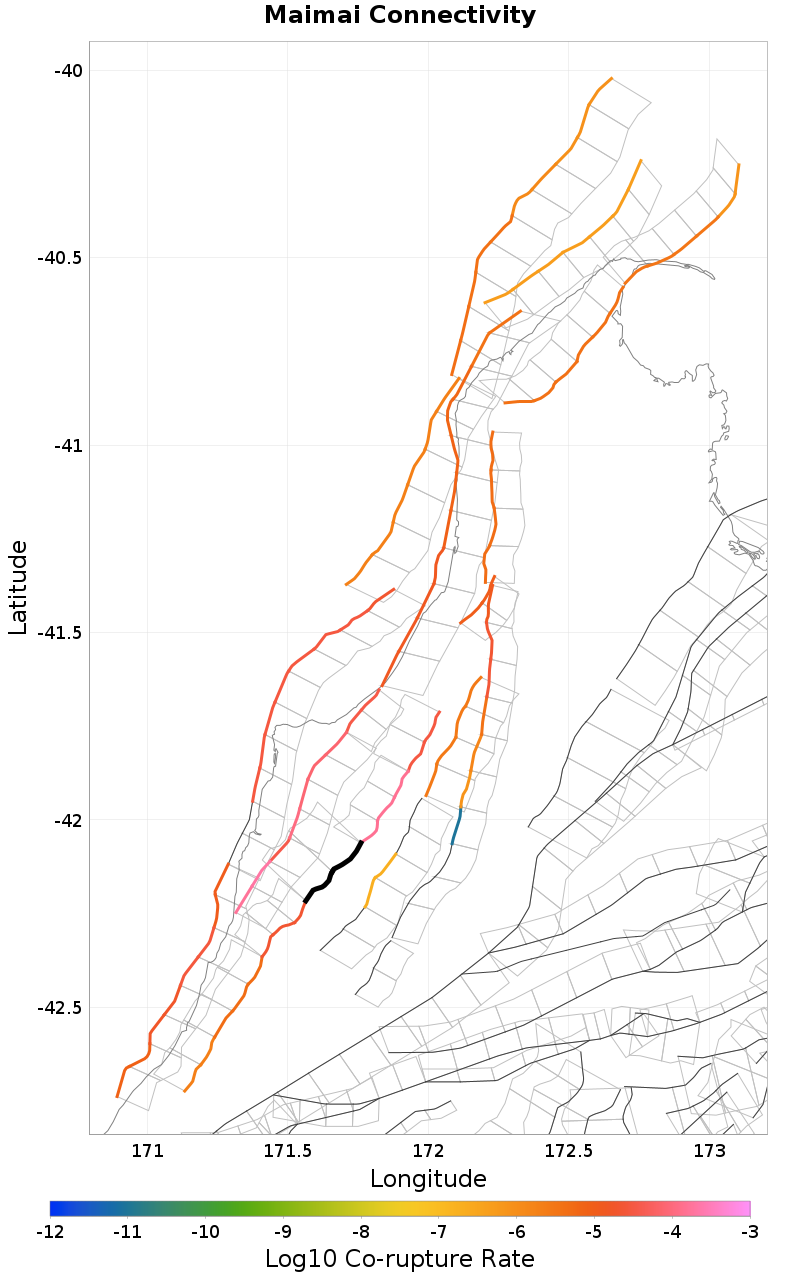

Connectivity

Nearby Sections

Fault Section
Maimai: North, 0 km away
Maimai: South, 0.09 km away
Paparoa West, 0.14 km away
Cape Foulwind 2, 0.27 km away
Cape Foulwind 1, 4.83 km away
Lyell South, 9.15 km away

Maimai: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,846
Co-rupture Rate	1.4946099E-4

Maimai: South, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,552
Co-rupture Rate	2.1704971E-5

Paparoa West, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?	true
Directly Connected?	true
Co-rupture Count	350
Co-rupture Rate	2.8074795E-4

Cape Foulwind 2, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?	true
Directly Connected?	true
Co-rupture Count	805
Co-rupture Rate	2.9354185E-5

Cape Foulwind 1, 4.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,465
Co-rupture Rate	2.850423E-5

Lyell South, 9.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	1.8753428E-7
