Poulter Details

PropertyValue
Rupture Count1,484
Ruptures Above Sect Min Mag1,474
Ruptures w/ Nonzero Rates332
Magnitude Range[6.79, 8.53]
Length Range[16, 668] km
Total Rate1.2671361E-4 /yr
Multi-Fault Rate1.2671361E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults54

Table Of Contents

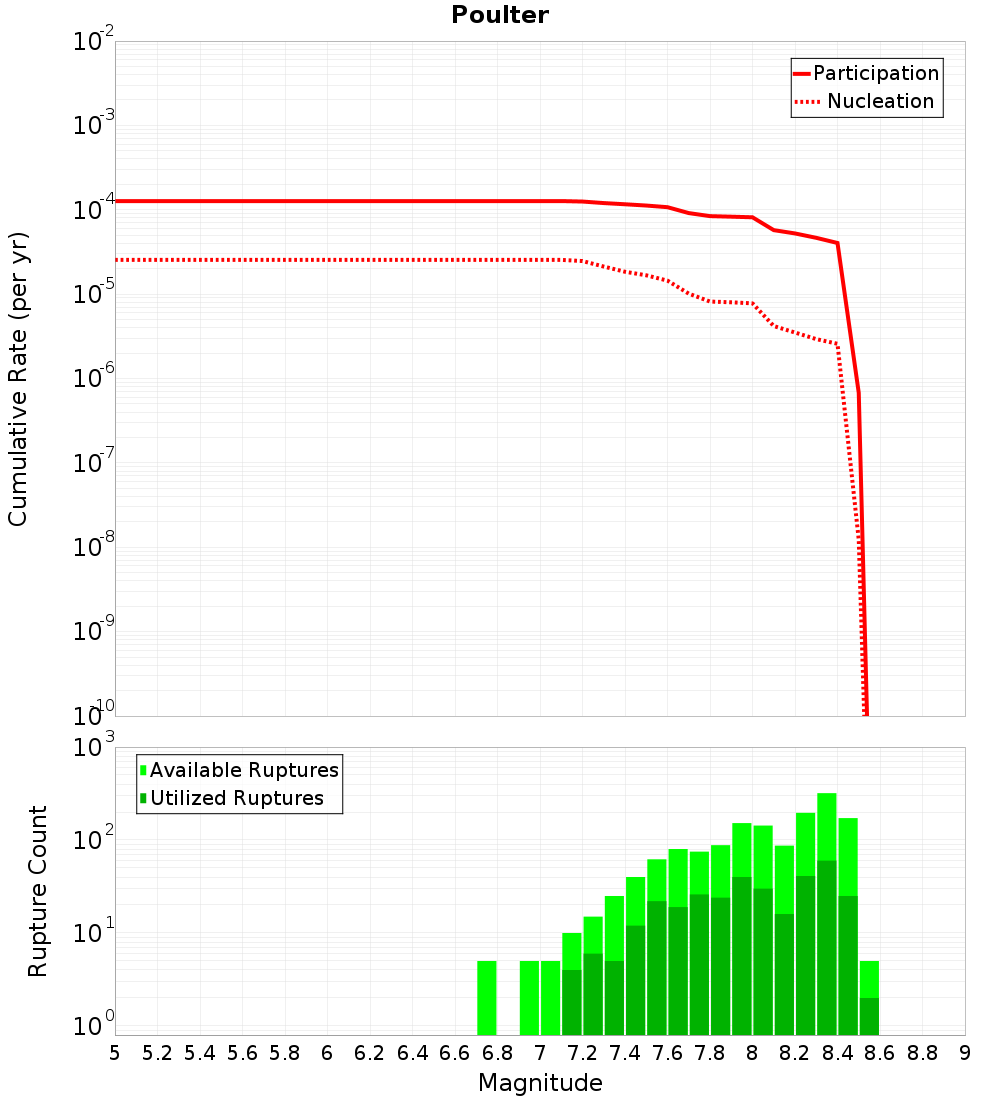

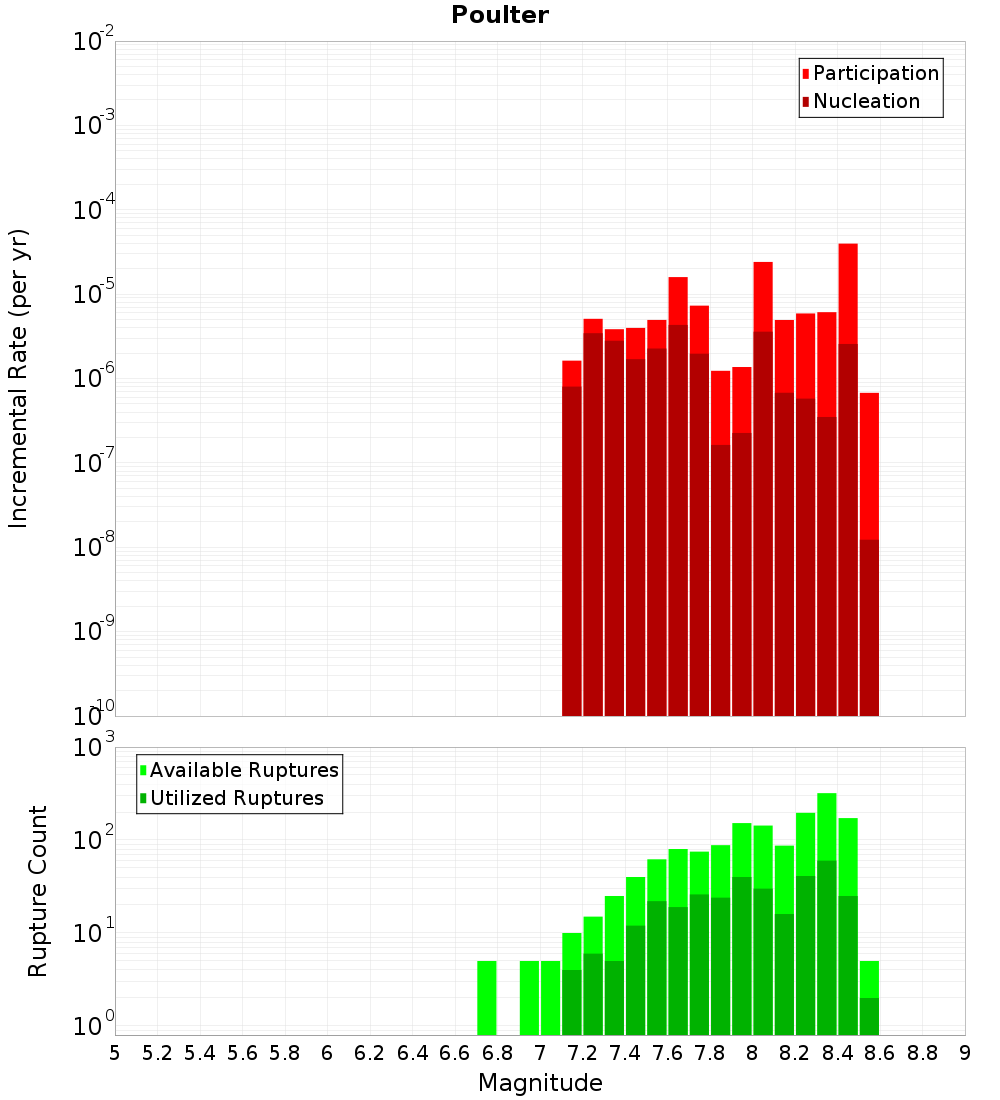

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

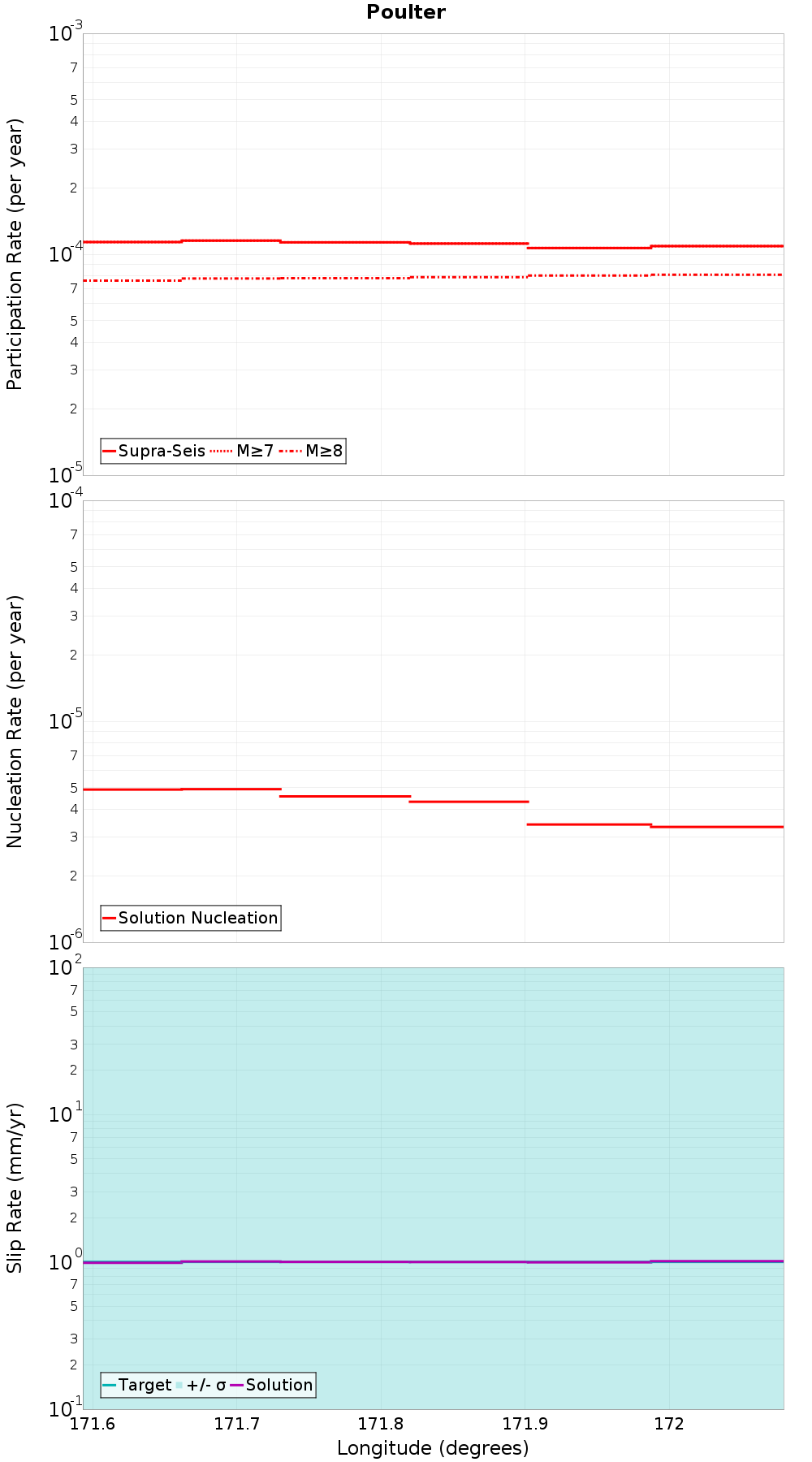

Along-Strike Values

(top)

Along-strike plot

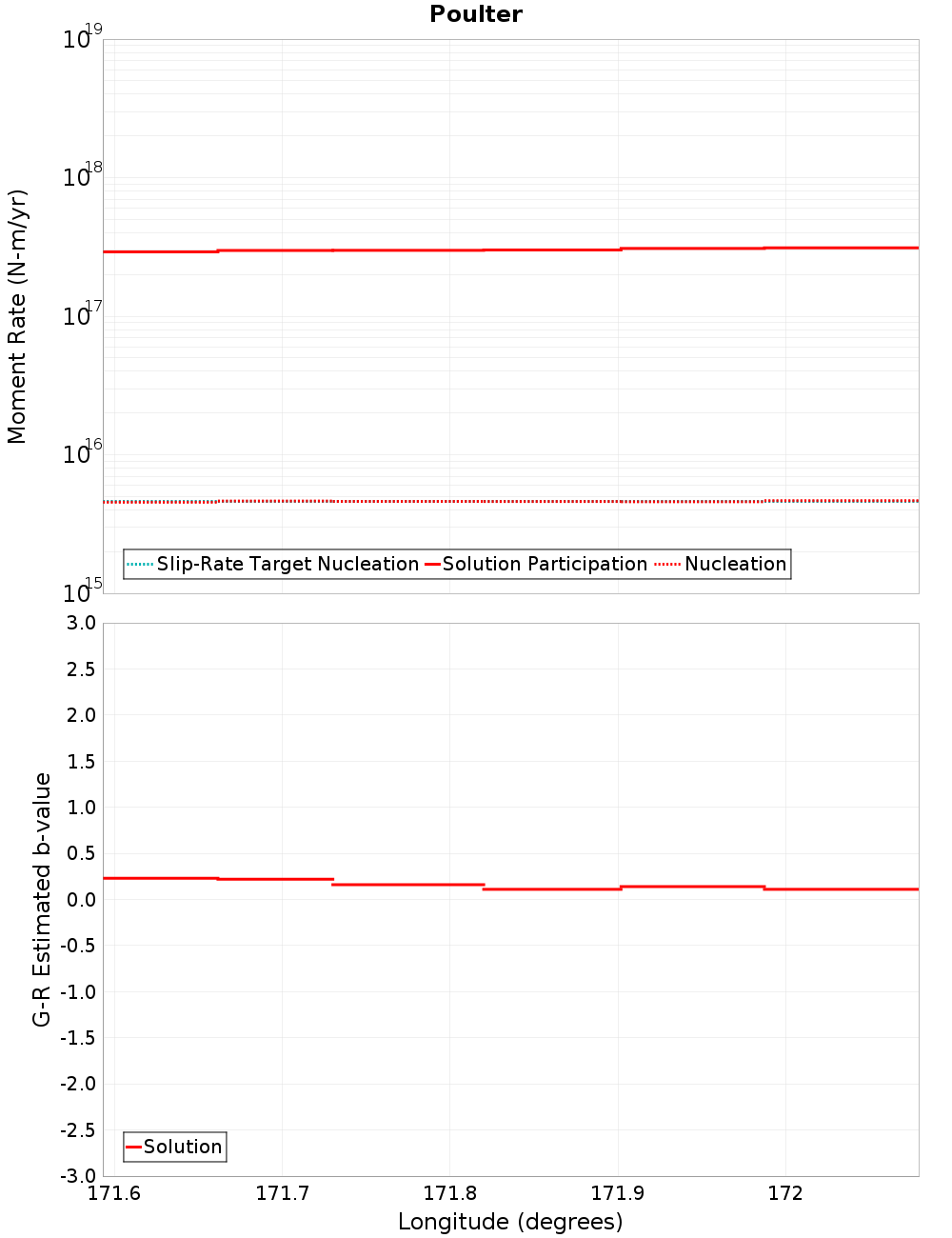

Moment-Rates and b-Values

(top)

Along-strike plot

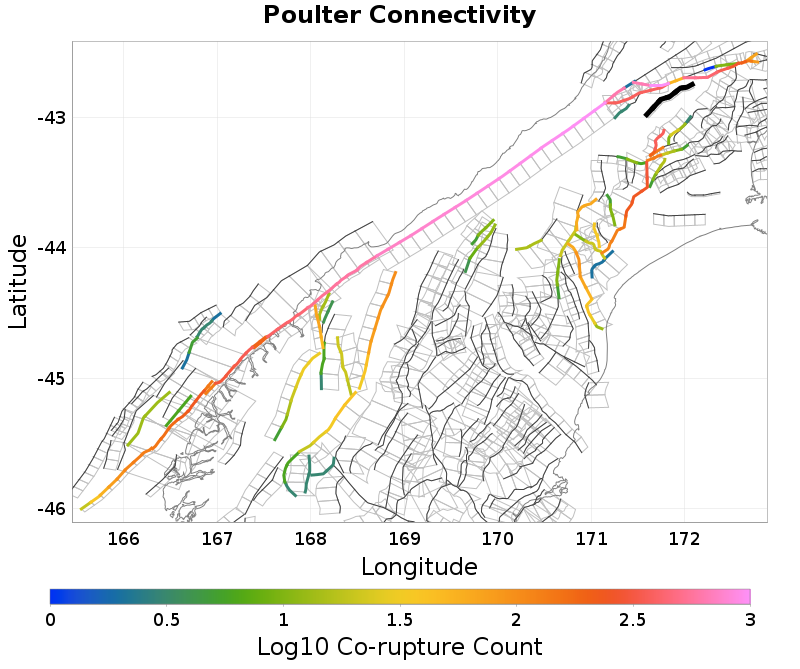

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kakapo, 5.65 km away
Hope: Hurunui, 7.27 km away
Hope: Taramakau, 7.5 km away
Hope: Hope River, 7.81 km away
Kelly, 9.5 km away
Esk North, 9.54 km away
Cheeseman, 10.59 km away
Sailor, 11.01 km away
Browning Pass, 14.55 km away

Kakapo, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?true
Directly Connected?true
Co-rupture Count522
Co-rupture Rate2.3782E-5

Hope: Hurunui, 7.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?true
Directly Connected?false
Co-rupture Count52
Co-rupture Rate3.171372E-18

Hope: Taramakau, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?true
Directly Connected?true
Co-rupture Count989
Co-rupture Rate9.05288E-5

Hope: Hope River, 7.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate2.2188726E-10

Kelly, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?true
Directly Connected?false
Co-rupture Count375
Co-rupture Rate7.4401385E-7

Esk North, 9.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cheeseman, 10.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?true
Directly Connected?true
Co-rupture Count368
Co-rupture Rate2.2787162E-5

Sailor, 11.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?true
Directly Connected?true
Co-rupture Count23
Co-rupture Rate1.5426729E-5

Browning Pass, 14.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NDYuNTk2elYy
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0
