Garvie Details
| Property | Value |
|---|---|
| Rupture Count | 9,385 |
| Ruptures Above Sect Min Mag | 9,384 |
| Ruptures w/ Nonzero Rates | 174 |
| Magnitude Range | [7.47, 8.62] |
| Length Range | [37, 787] km |
| Total Rate | 6.7392466E-6 /yr |
| Multi-Fault Rate | 6.1586543E-6 /yr (91.38%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 66 |
Table Of Contents

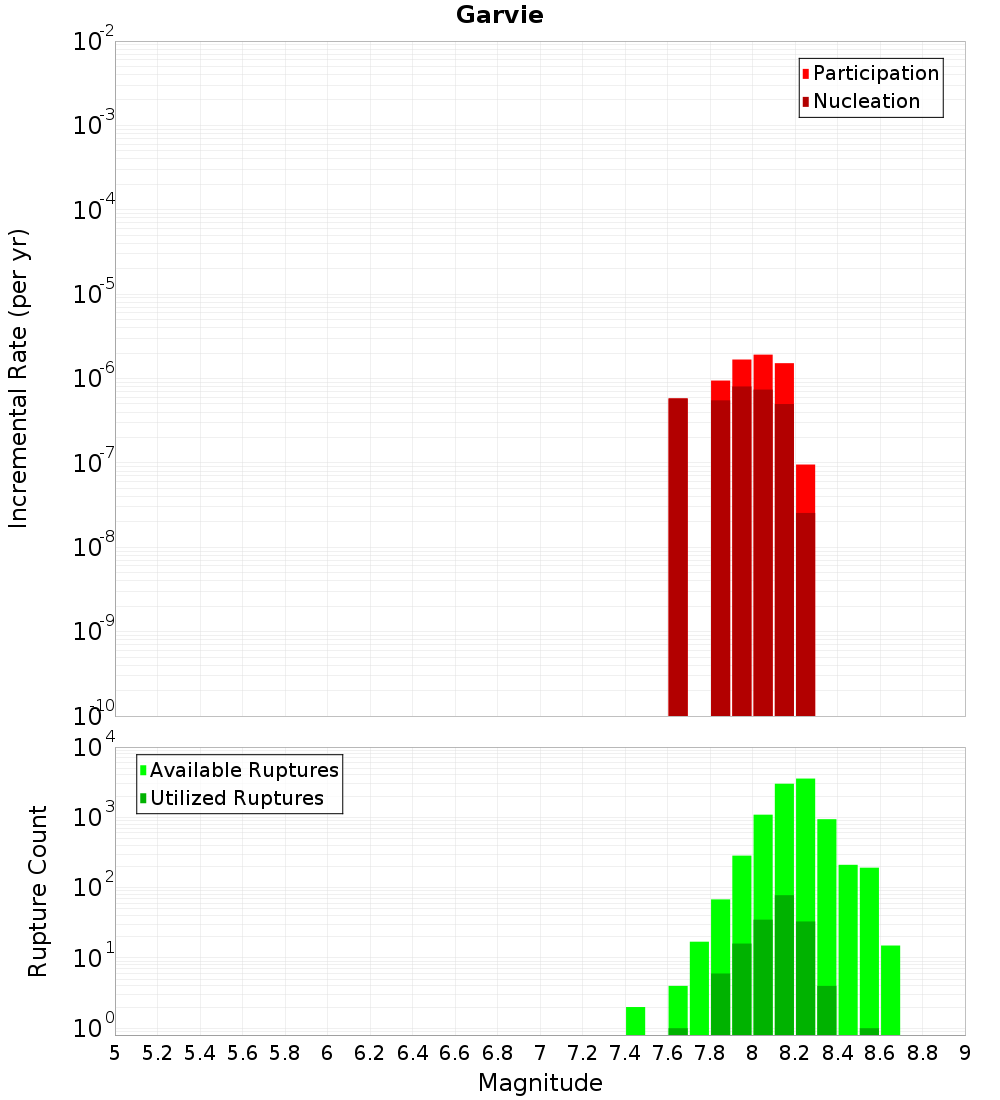

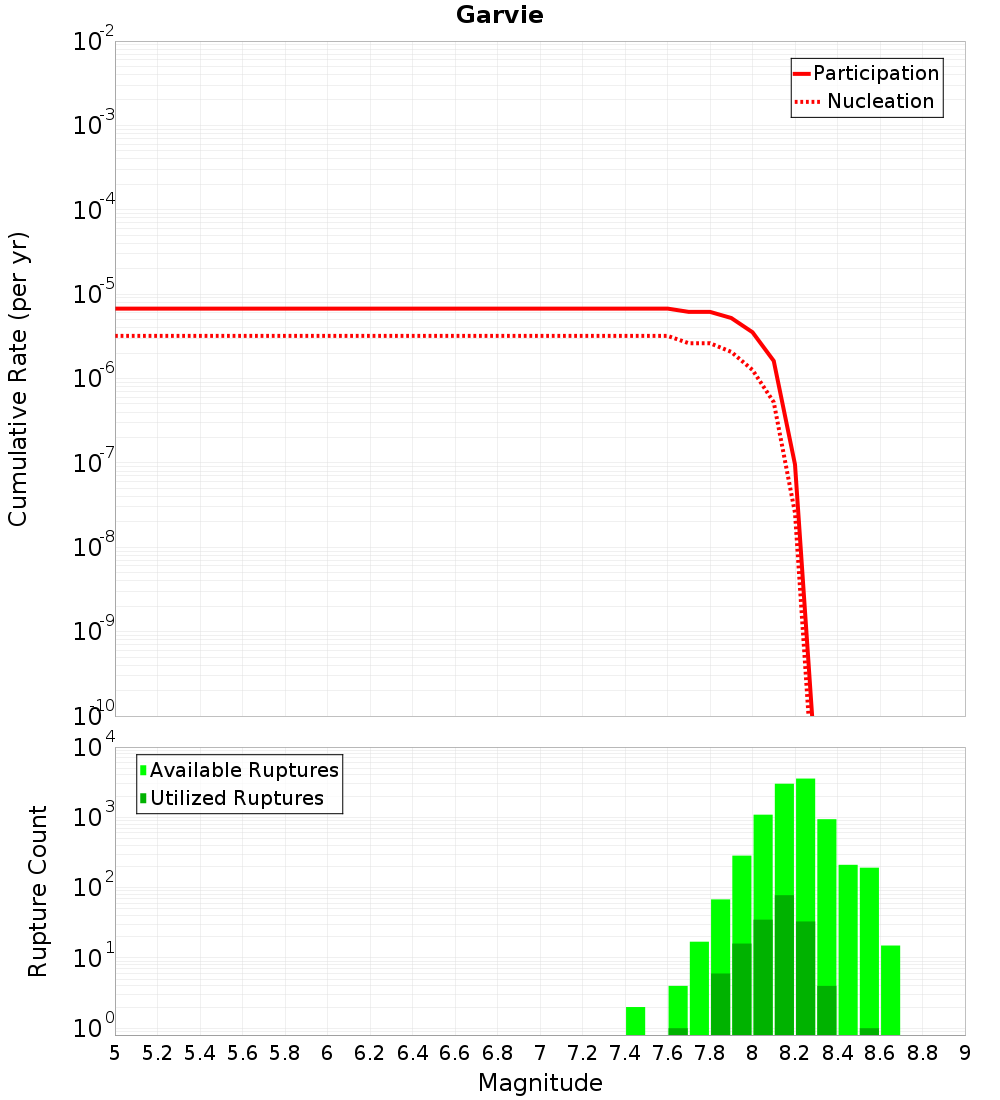

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

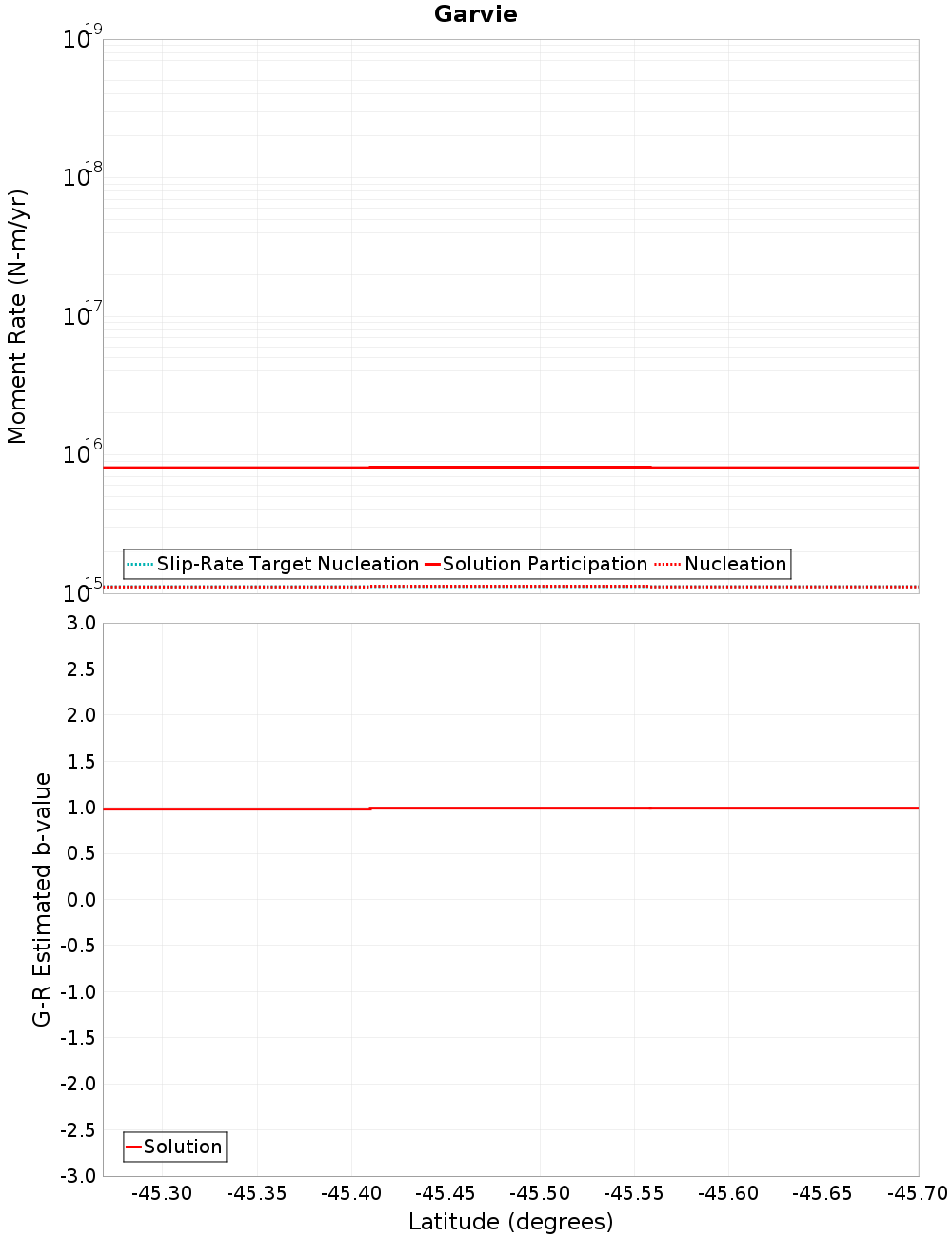

Moment-Rates and b-Values

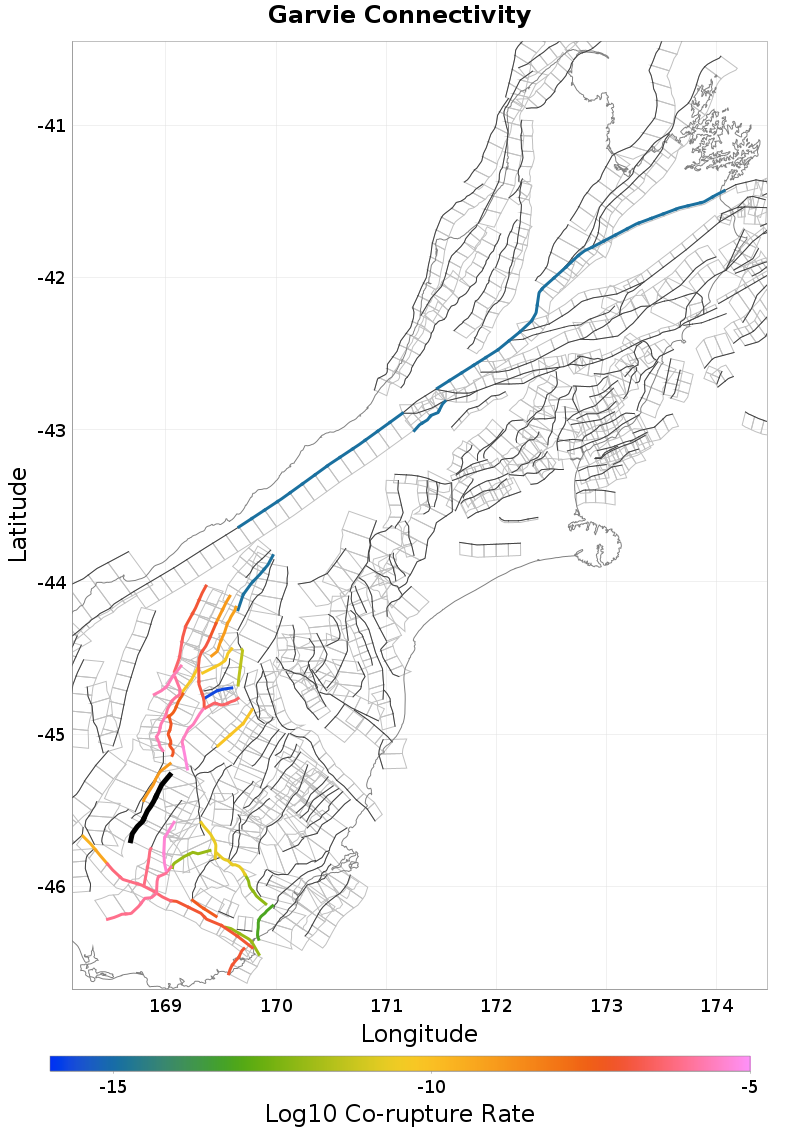

Connectivity
 |  |
|---|
Nearby Sections
Teviot, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 416 |
| Co-rupture Rate | 2.1016364E-11 |
Old Man, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,408 |
| Co-rupture Rate | 0.0 |
Waikaia, 1.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,685 |
| Co-rupture Rate | 6.5209906E-7 |
Roaring Lion, 2.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,005 |
| Co-rupture Rate | 9.767237E-10 |
Waikaka, 4.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,780 |
| Co-rupture Rate | 1.0485663E-6 |
Wendon Valley, 5.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 51 |
| Co-rupture Rate | 4.275498E-6 |
Nevis, 6.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lake Onslow, 7.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pisa, 8.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,574 |
| Co-rupture Rate | 4.892838E-6 |
Galloway, 9.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 289 |
| Co-rupture Rate | 0.0 |
Mid Dome, 11.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dunstan, 12.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,362 |
| Co-rupture Rate | 6.928403E-11 |
Roaring Meg, 14.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,176 |
| Co-rupture Rate | 6.2624636E-8 |
