Wellington: Tararua 3 Details

Property	Value
Rupture Count	50,840
Ruptures Above Sect Min Mag	50,838
Ruptures w/ Nonzero Rates	1,176
Magnitude Range	[6.87, 8.54]
Length Range	[16, 777] km
Total Rate	0.0011274042 /yr
Multi-Fault Rate	0.0011274042 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	128

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

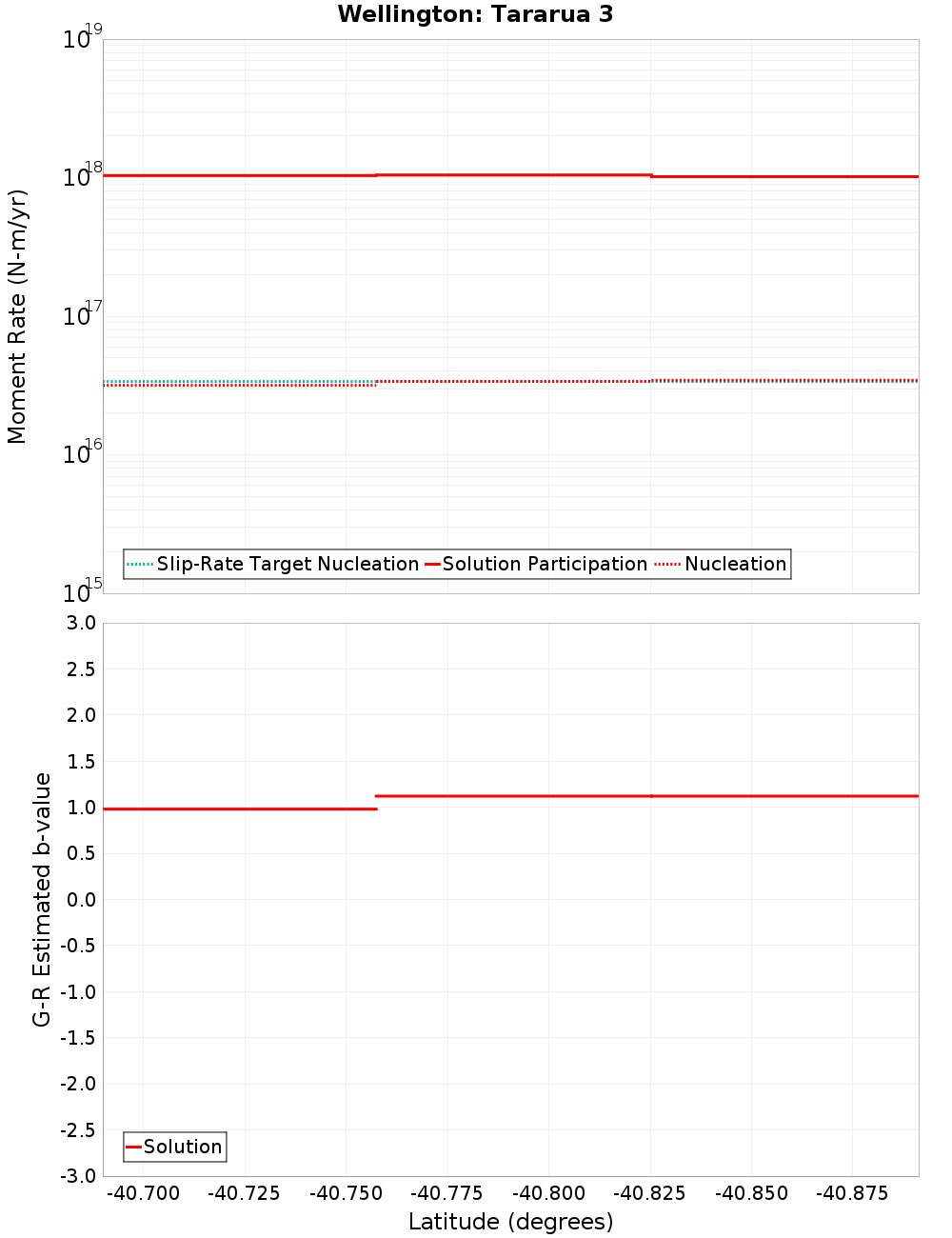

Moment-Rates and b-Values

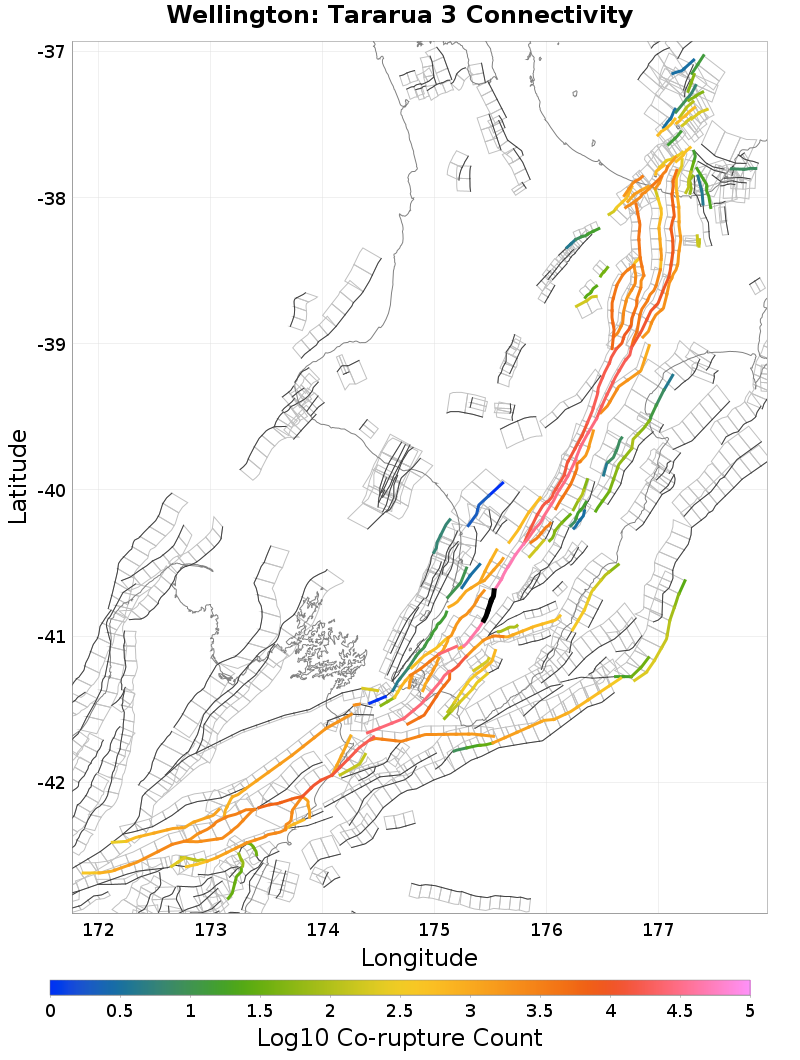

Connectivity

Nearby Sections

Fault Section
Wellington: Tararua 2, 0 km away
Wellington: Pahiatua, 0.03 km away
Otaki Forks: 2, 0.3 km away
Tokomaru, 1.29 km away
Northern Ohariu, 1.86 km away
Wairarapa: 3, 9.13 km away
Mokonui Southwest, 9.81 km away
Otaki Forks: 1, 11.36 km away
Masterton, 11.85 km away
Carterton, 13.79 km away
Wairarapa: 2, 14.29 km away

Wellington: Tararua 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx
Connected?	true
Directly Connected?	true
Co-rupture Count	42,630
Co-rupture Rate	9.899532E-4

Wellington: Pahiatua, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx
Connected?	true
Directly Connected?	true
Co-rupture Count	49,026
Co-rupture Rate	6.96617E-4

Otaki Forks: 2, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx
Connected?	true
Directly Connected?	true
Co-rupture Count	2,035
Co-rupture Rate	2.3462795E-5

Tokomaru, 1.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx
Connected?	true
Directly Connected?	true
Co-rupture Count	1,044
Co-rupture Rate	2.8112157E-5

Northern Ohariu, 1.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx
Connected?	true
Directly Connected?	true
Co-rupture Count	1,334
Co-rupture Rate	2.2995642E-5

Wairarapa: 3, 9.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mokonui Southwest, 9.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaki Forks: 1, 11.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx
Connected?	true
Directly Connected?	false
Co-rupture Count	1,638
Co-rupture Rate	1.8795734E-5

Masterton, 11.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx
Connected?	true
Directly Connected?	false
Co-rupture Count	91
Co-rupture Rate	9.012621E-6

Carterton, 13.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx
Connected?	true
Directly Connected?	true
Co-rupture Count	3,082
Co-rupture Rate	1.444469E-4

Wairarapa: 2, 14.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTAuMG9mRVpx
Connected?	true
Directly Connected?	false
Co-rupture Count	14,347
Co-rupture Rate	7.0768096E-5
