Wairarapa: Needles Details

PropertyValue
Rupture Count44,612
Ruptures Above Sect Min Mag44,610
Ruptures w/ Nonzero Rates2,058
Magnitude Range[6.95, 8.60]
Length Range[19, 925] km
Total Rate0.0017557363 /yr
Multi-Fault Rate0.0017557363 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults161

Table Of Contents

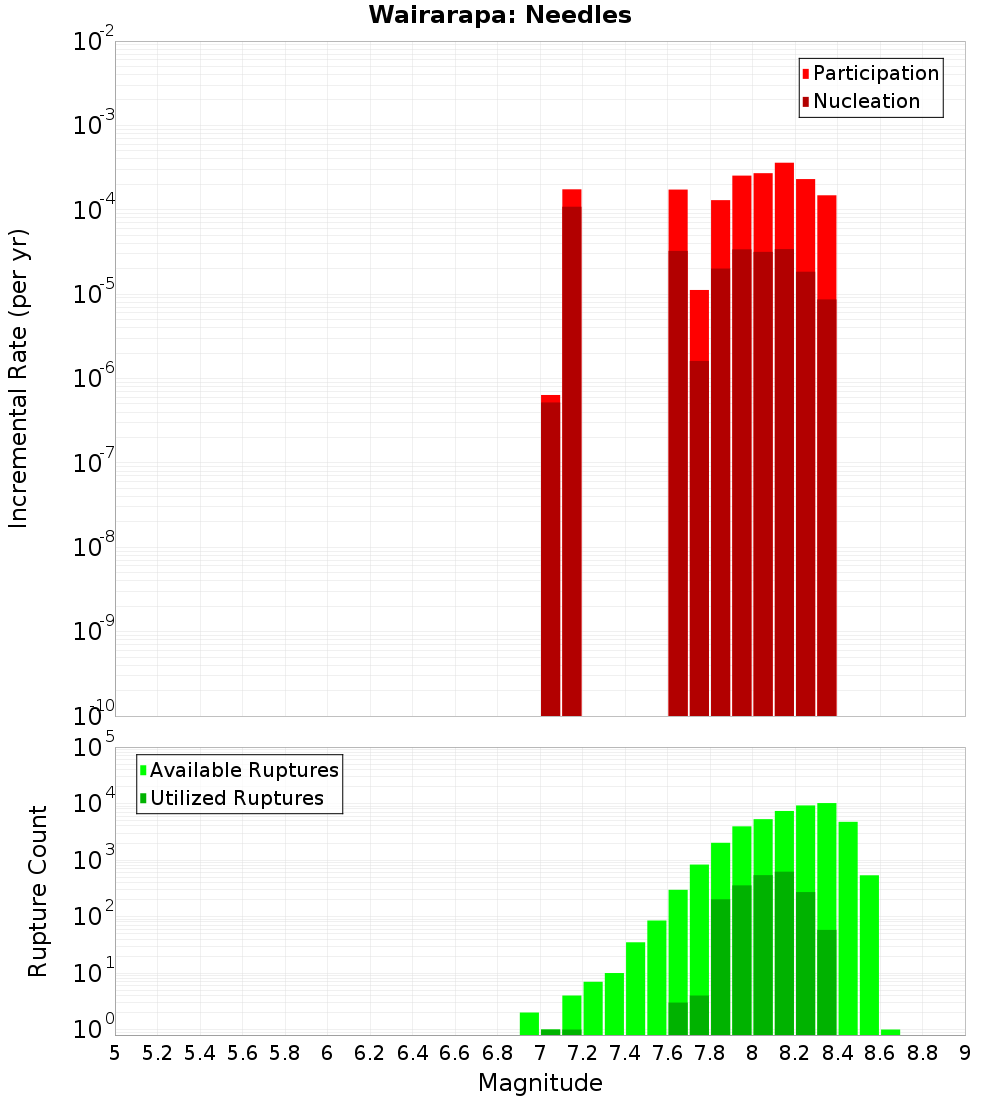

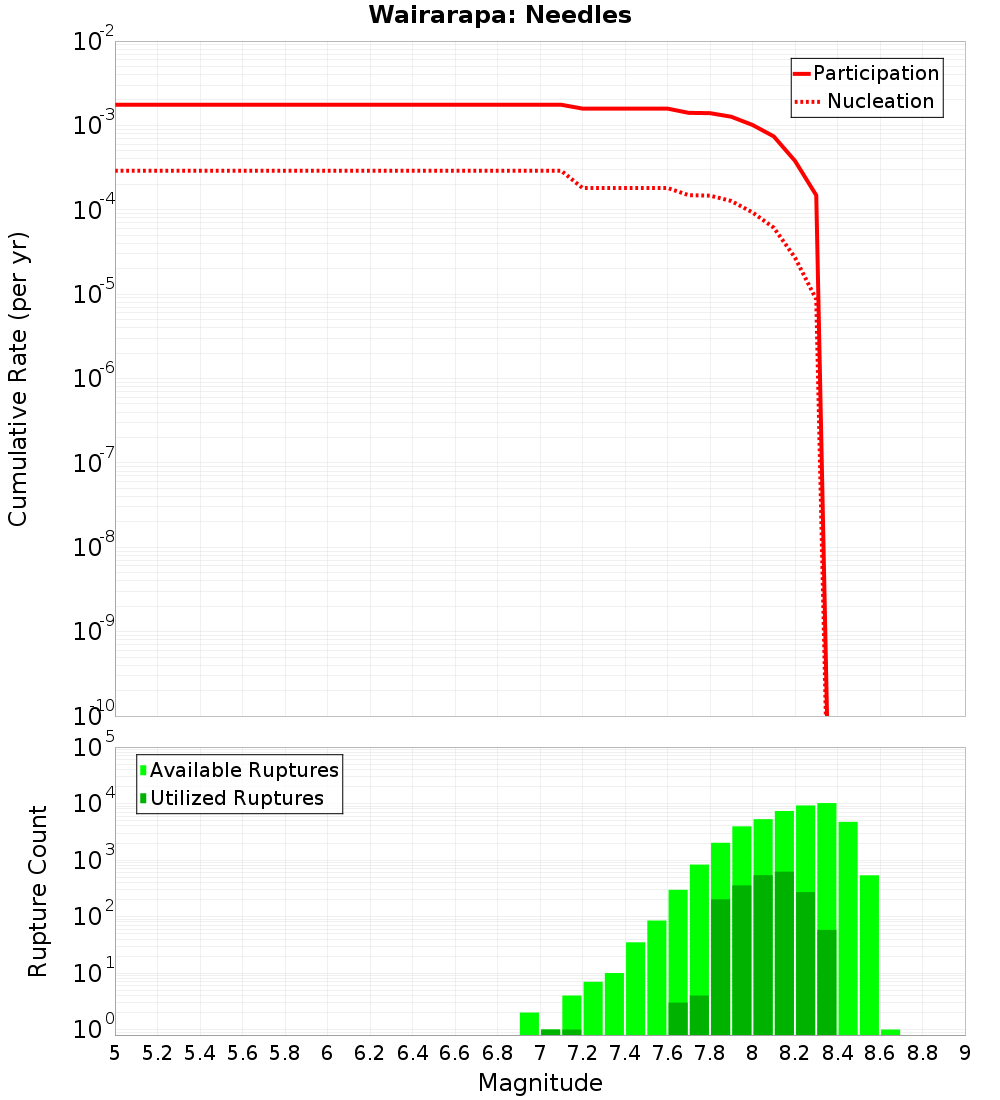

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 1, 0 km awayWairau 3, 9.87 km away
Cloudy 3, 0.29 km awayCloudy 1, 10.84 km away
Wharekauhau, 0.3 km awayWellington Hutt Valley: 2, 12.47 km away
Vernon 4, 0.42 km awayNeedles East 2, 12.75 km away
Needles, 4.57 km awayVernon 2, 14.03 km away
BooBoo, 5.6 km awayWellington Hutt Valley: 1, 14.52 km away
Cloudy 2, 6.58 km awayAwatere: Northeast 2, 14.79 km away
Vernon 3, 9.01 km awayOhariu, 14.92 km away
London Hill, 9.47 km away

Wairarapa: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?true
Directly Connected?true
Co-rupture Count36,897
Co-rupture Rate0.0013806723

Cloudy 3, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharekauhau, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?true
Directly Connected?true
Co-rupture Count8,440
Co-rupture Rate1.8353961E-4

Vernon 4, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles, 4.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?true
Directly Connected?true
Co-rupture Count33,033
Co-rupture Rate0.0011372393

BooBoo, 5.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?true
Directly Connected?true
Co-rupture Count3,601
Co-rupture Rate1.9049376E-6

Cloudy 2, 6.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?true
Directly Connected?true
Co-rupture Count3,699
Co-rupture Rate5.01734E-5

Vernon 3, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

London Hill, 9.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?true
Directly Connected?false
Co-rupture Count2,277
Co-rupture Rate3.3672926E-10

Wairau 3, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?true
Directly Connected?true
Co-rupture Count395
Co-rupture Rate7.808539E-5

Cloudy 1, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 12.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles East 2, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?true
Directly Connected?false
Co-rupture Count354
Co-rupture Rate0.0

Vernon 2, 14.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 1, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?true
Directly Connected?true
Co-rupture Count217
Co-rupture Rate4.5437802E-4

Awatere: Northeast 2, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?true
Directly Connected?false
Co-rupture Count3,213
Co-rupture Rate1.1444397E-17

Ohariu, 14.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NTkuMGoyUlFm
Connected?true
Directly Connected?false
Co-rupture Count422
Co-rupture Rate6.031629E-5
