Galloway Details

Property	Value
Rupture Count	2,149
Ruptures Above Sect Min Mag	2,149
Ruptures w/ Nonzero Rates	140
Magnitude Range	[7.18, 8.39]
Length Range	[23, 419] km
Total Rate	1.7566541E-5 /yr
Multi-Fault Rate	1.7566541E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	43

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

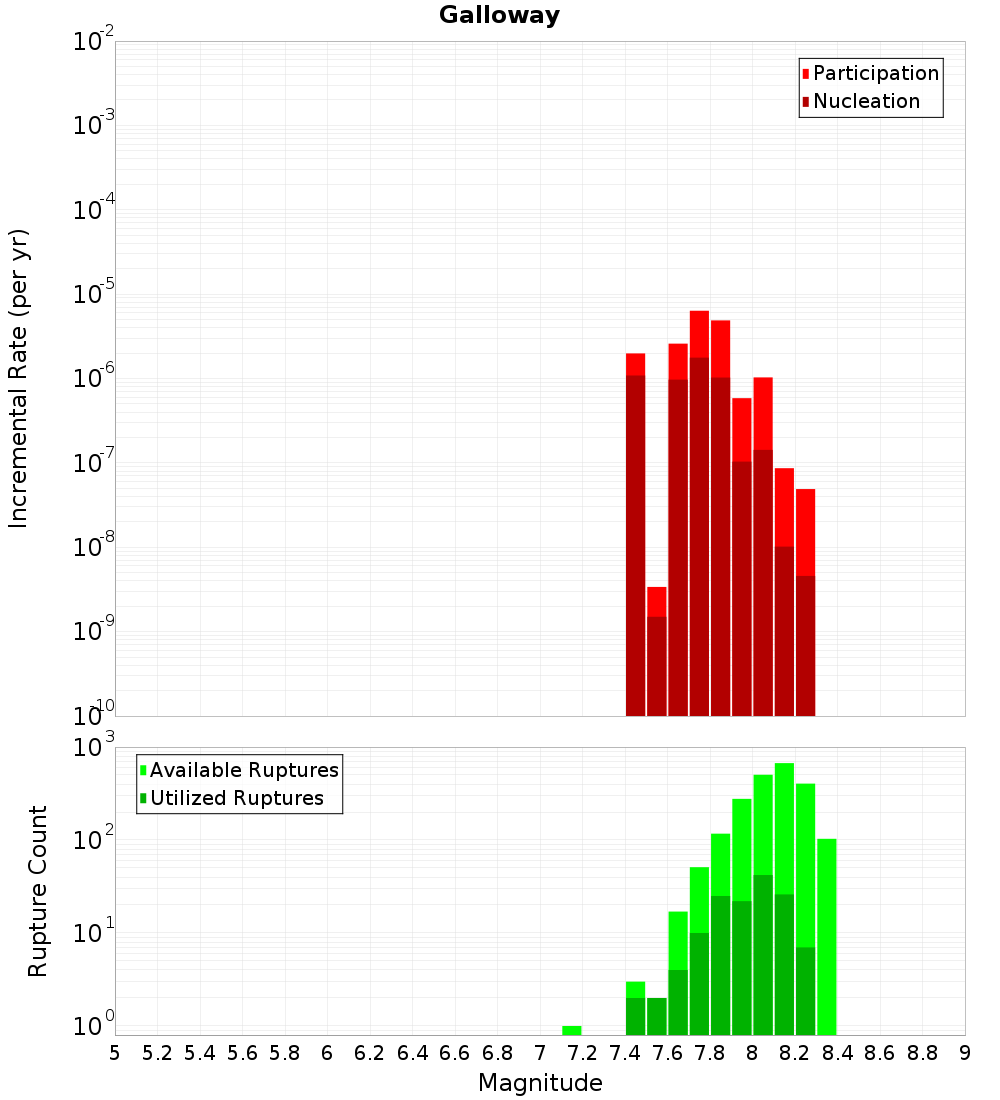

Magnitude-Frequency Distribution

Incremental	Cumulative

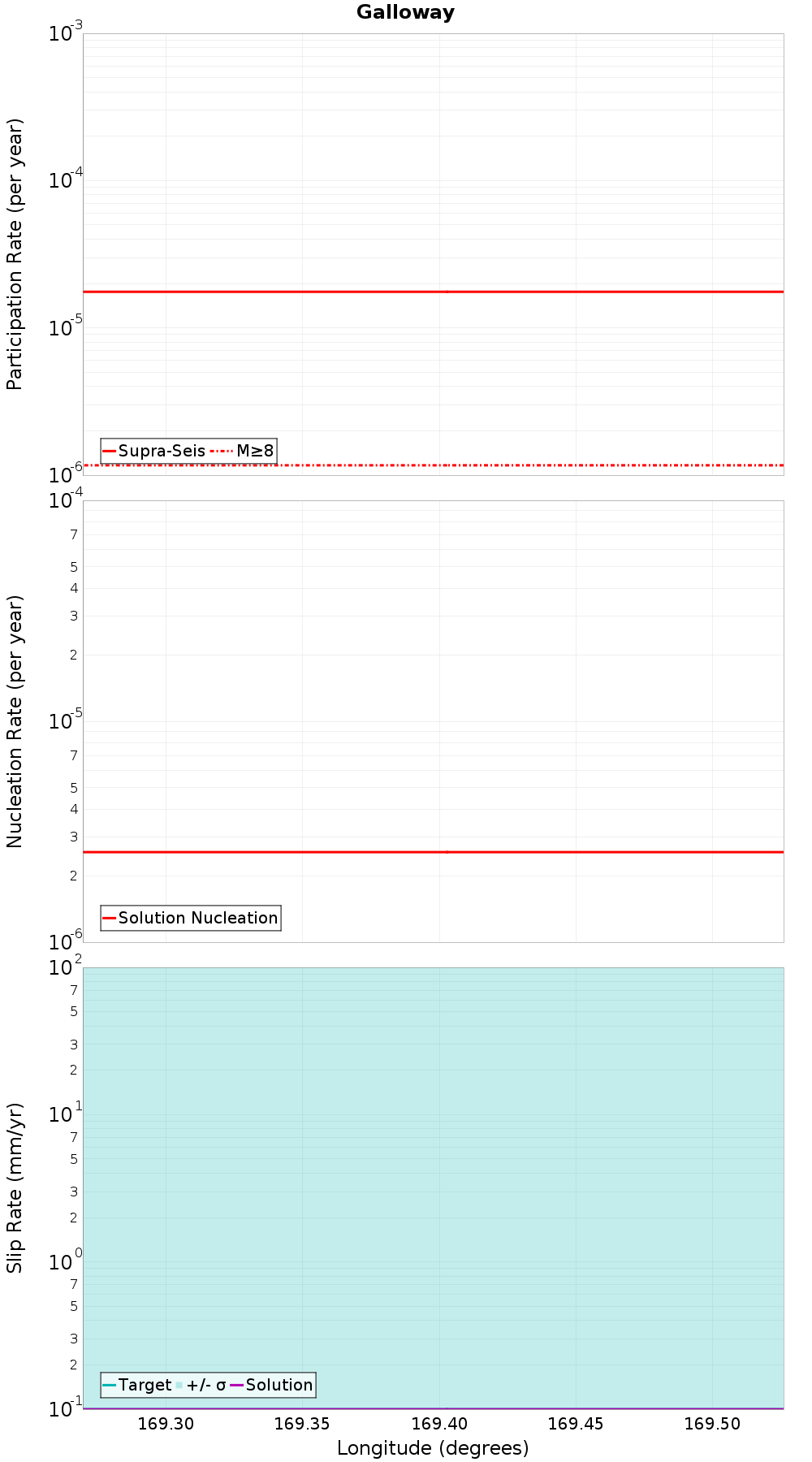

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Lake Onslow, 0.3 km away
Old Man, 0.55 km away
Little Valley, 2.75 km away
Dunstan, 3.61 km away
Gimmerburn, 4.14 km away
Raggedy - Blackstone, 4.8 km away
Waikaia, 6.91 km away
Pisa, 7.93 km away
Garvie, 9.46 km away
Garibaldi, 13.11 km away
Roaring Lion, 13.84 km away
Long Valley, 13.99 km away

Lake Onslow, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	true
Co-rupture Count	815
Co-rupture Rate	4.4776752E-6

Old Man, 0.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,207
Co-rupture Rate	2.0209279E-9

Little Valley, 2.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	false
Co-rupture Count	64
Co-rupture Rate	7.628502E-10

Dunstan, 3.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	6.402991E-6

Gimmerburn, 4.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	true
Co-rupture Count	757
Co-rupture Rate	9.948036E-6

Raggedy - Blackstone, 4.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,345
Co-rupture Rate	7.8939975E-6

Waikaia, 6.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	false
Co-rupture Count	815
Co-rupture Rate	2.0209279E-9

Pisa, 7.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Garvie, 9.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	false
Co-rupture Count	289
Co-rupture Rate	0.0

Garibaldi, 13.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	false
Co-rupture Count	153
Co-rupture Rate	1.8463063E-6

Roaring Lion, 13.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Long Valley, 13.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	0.0
