Needles Details

Property	Value
Rupture Count	53,906
Ruptures Above Sect Min Mag	53,899
Ruptures w/ Nonzero Rates	2,443
Magnitude Range	[6.78, 8.63]
Length Range	[17, 973] km
Total Rate	0.0020378677 /yr
Multi-Fault Rate	0.0020378677 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	182

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

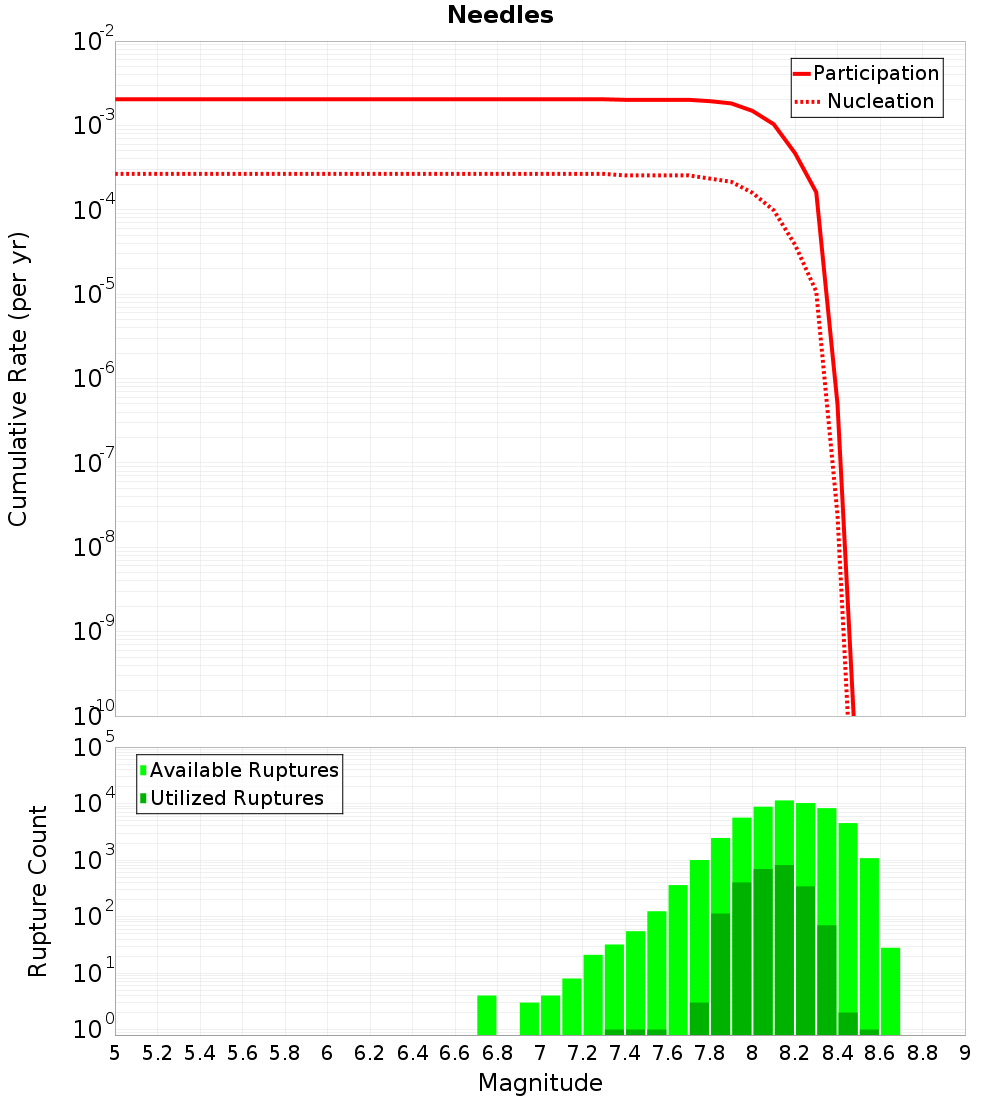

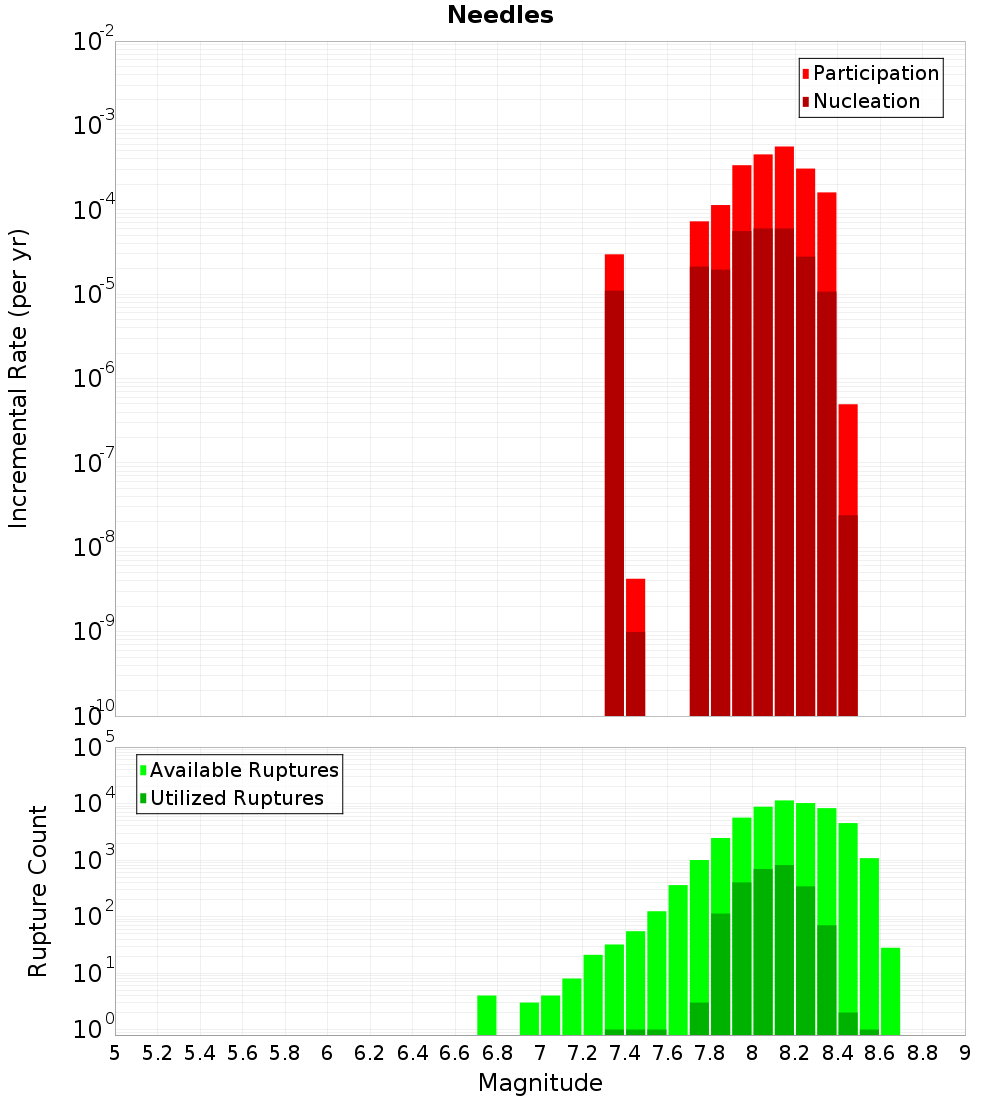

Magnitude-Frequency Distribution

Incremental	Cumulative

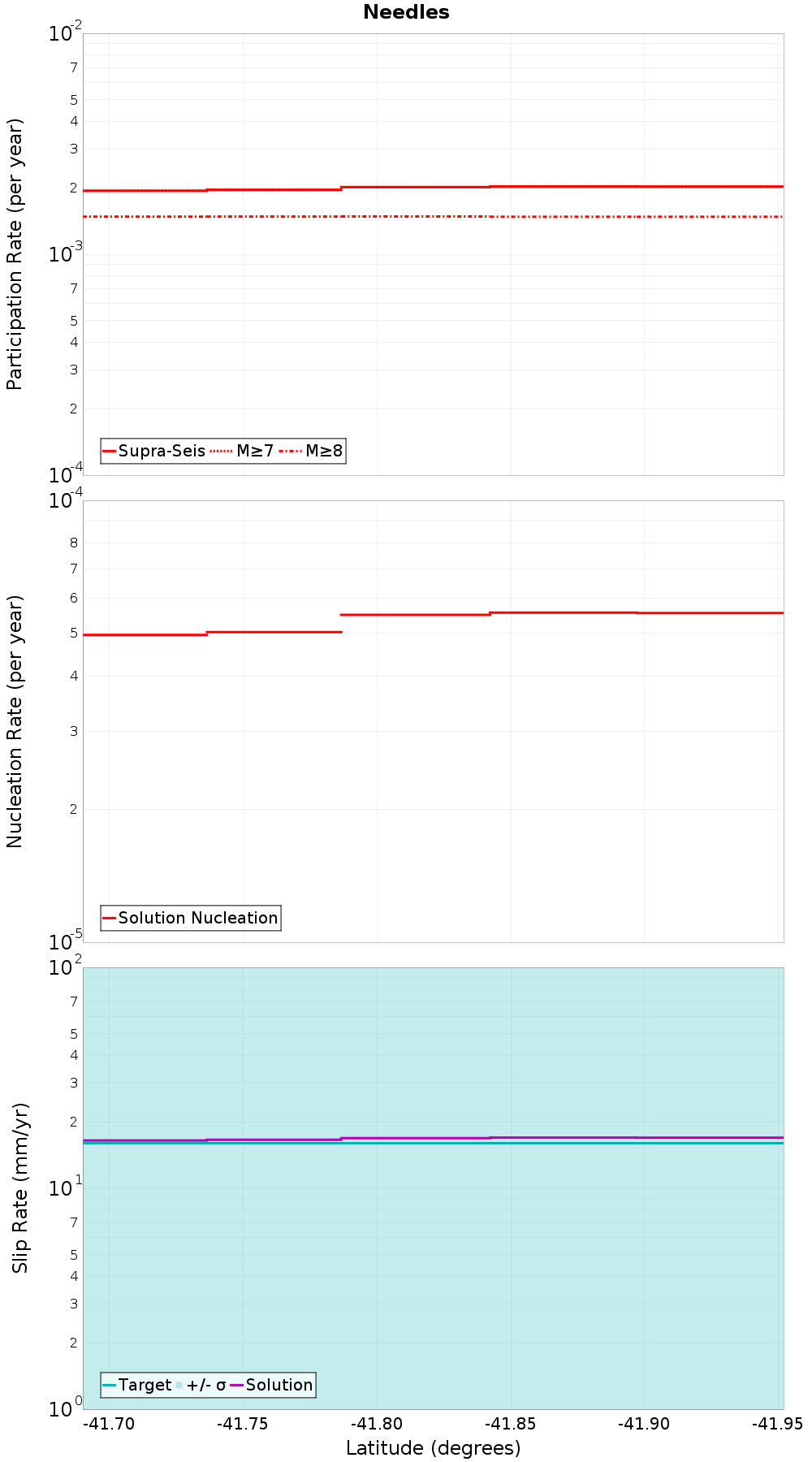

Along-Strike Values

Moment-Rates and b-Values

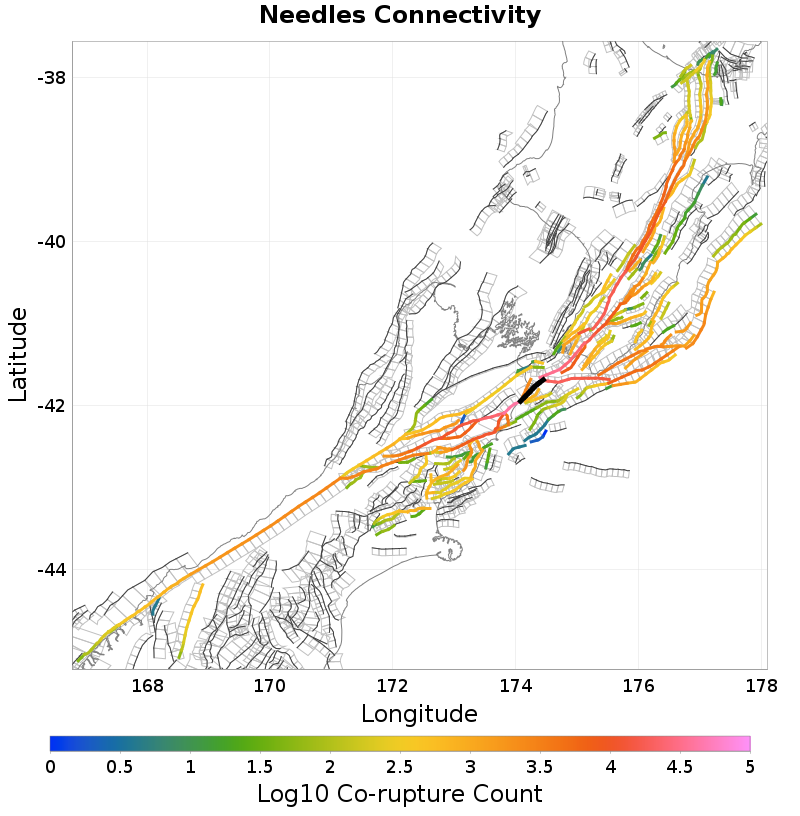

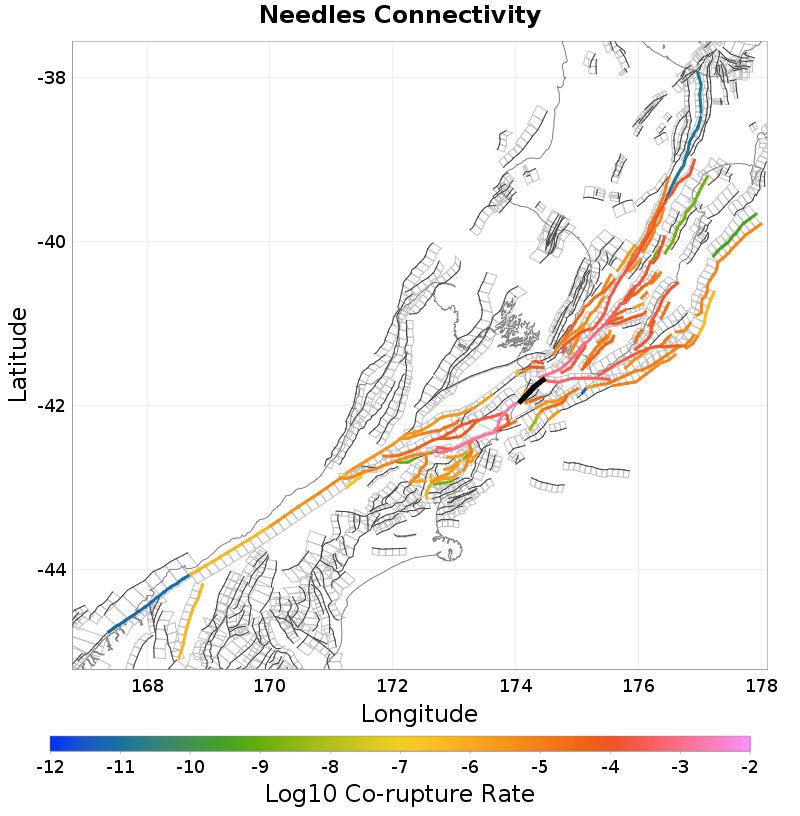

Connectivity

Nearby Sections

Fault Section
Kekerengu 1, 0 km away
London Hill, 0 km away
BooBoo, 0.17 km away
Needles East 2, 0.22 km away
Vernon 4, 3.69 km away
Wairarapa: Needles, 4.57 km away
Chancet, 6.52 km away
Cloudy 3, 9.38 km away
Wharanui, 10.35 km away
Clarence: Northeast, 11.97 km away
Upper Slope, 14.3 km away
Vernon 3, 14.87 km away

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	true
Co-rupture Count	40,777
Co-rupture Rate	0.0020227632

London Hill, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	true
Co-rupture Count	3,448
Co-rupture Rate	2.6021348E-6

BooBoo, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	true
Co-rupture Count	19,770
Co-rupture Rate	7.7384734E-4

Needles East 2, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	true
Co-rupture Count	788
Co-rupture Rate	0.0

Vernon 4, 3.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	false
Co-rupture Count	46
Co-rupture Rate	9.812552E-5

Wairarapa: Needles, 4.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	true
Co-rupture Count	33,033
Co-rupture Rate	0.001148229

Chancet, 6.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	true
Co-rupture Count	625
Co-rupture Rate	4.00767E-5

Cloudy 3, 9.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	false
Co-rupture Count	438
Co-rupture Rate	1.1426808E-4

Wharanui, 10.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clarence: Northeast, 11.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Upper Slope, 14.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	false
Co-rupture Count	247
Co-rupture Rate	3.531257E-5

Vernon 3, 14.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
