Pahiatua Details

Property	Value
Rupture Count	1,588
Ruptures Above Sect Min Mag	1,585
Ruptures w/ Nonzero Rates	73
Magnitude Range	[6.84, 8.31]
Length Range	[16, 458] km
Total Rate	8.8523004E-5 /yr
Multi-Fault Rate	5.4290176E-5 /yr (61.33%)
Directly-Connected Faults	3
All Co-Rupturing Faults	75

Table Of Contents

Magnitude-Frequency Distribution

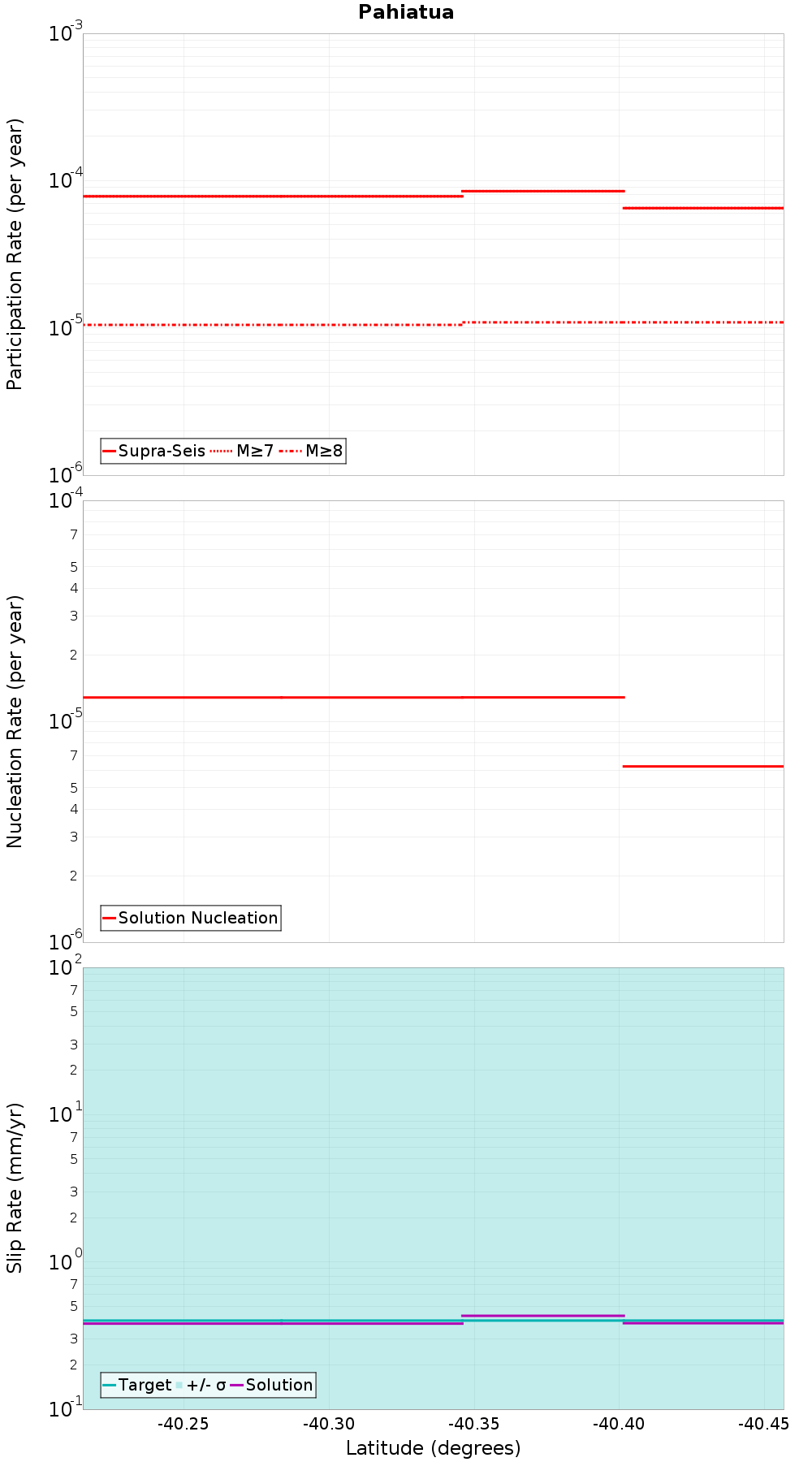

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

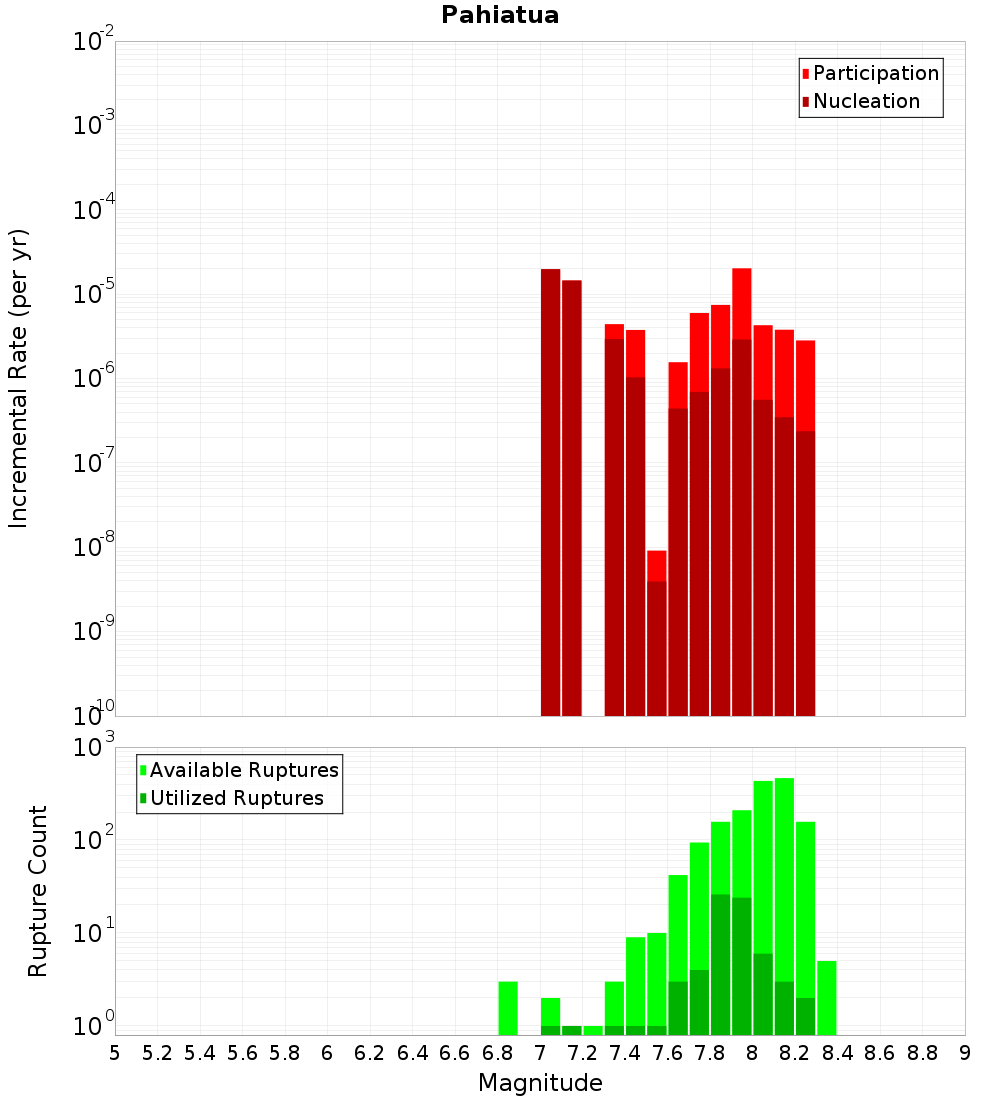

Magnitude-Frequency Distribution

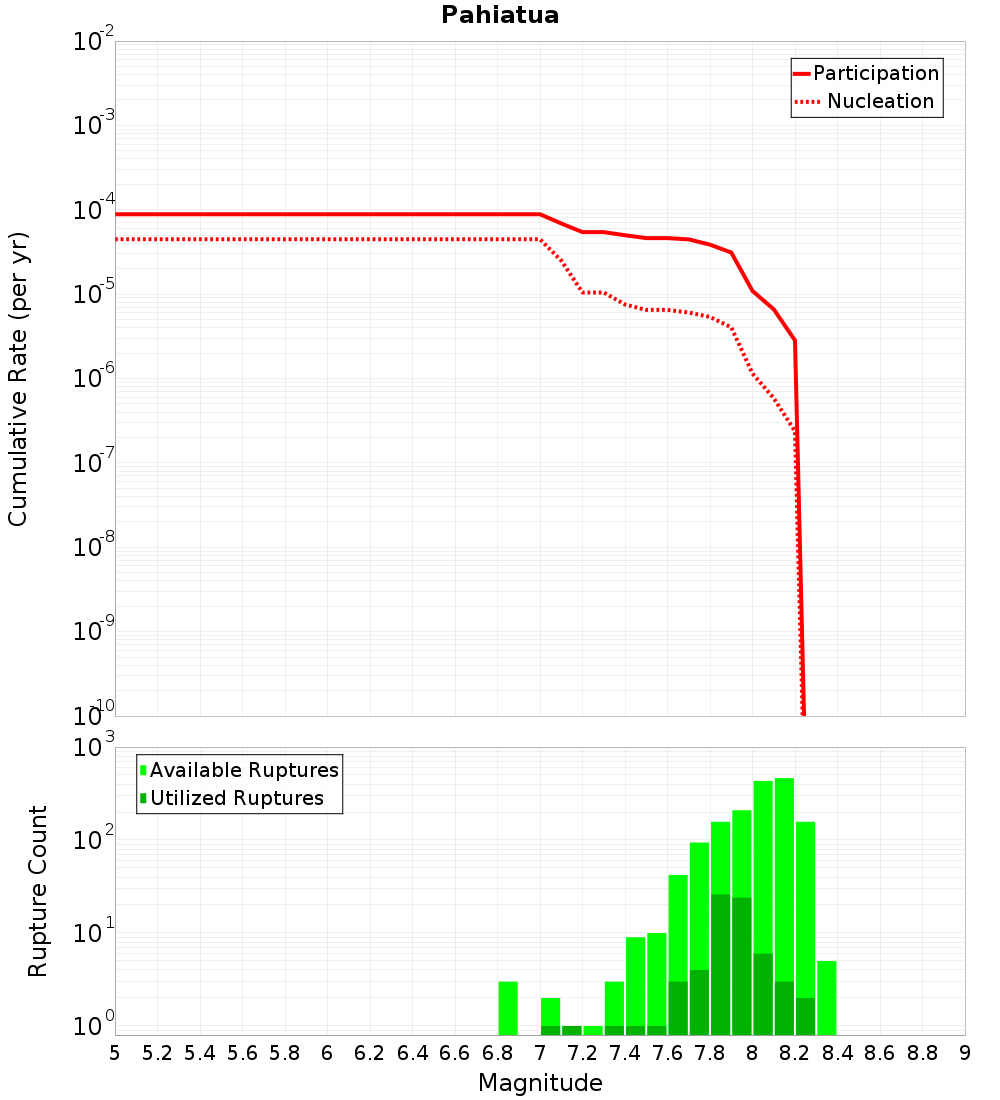

Incremental	Cumulative

Along-Strike Values

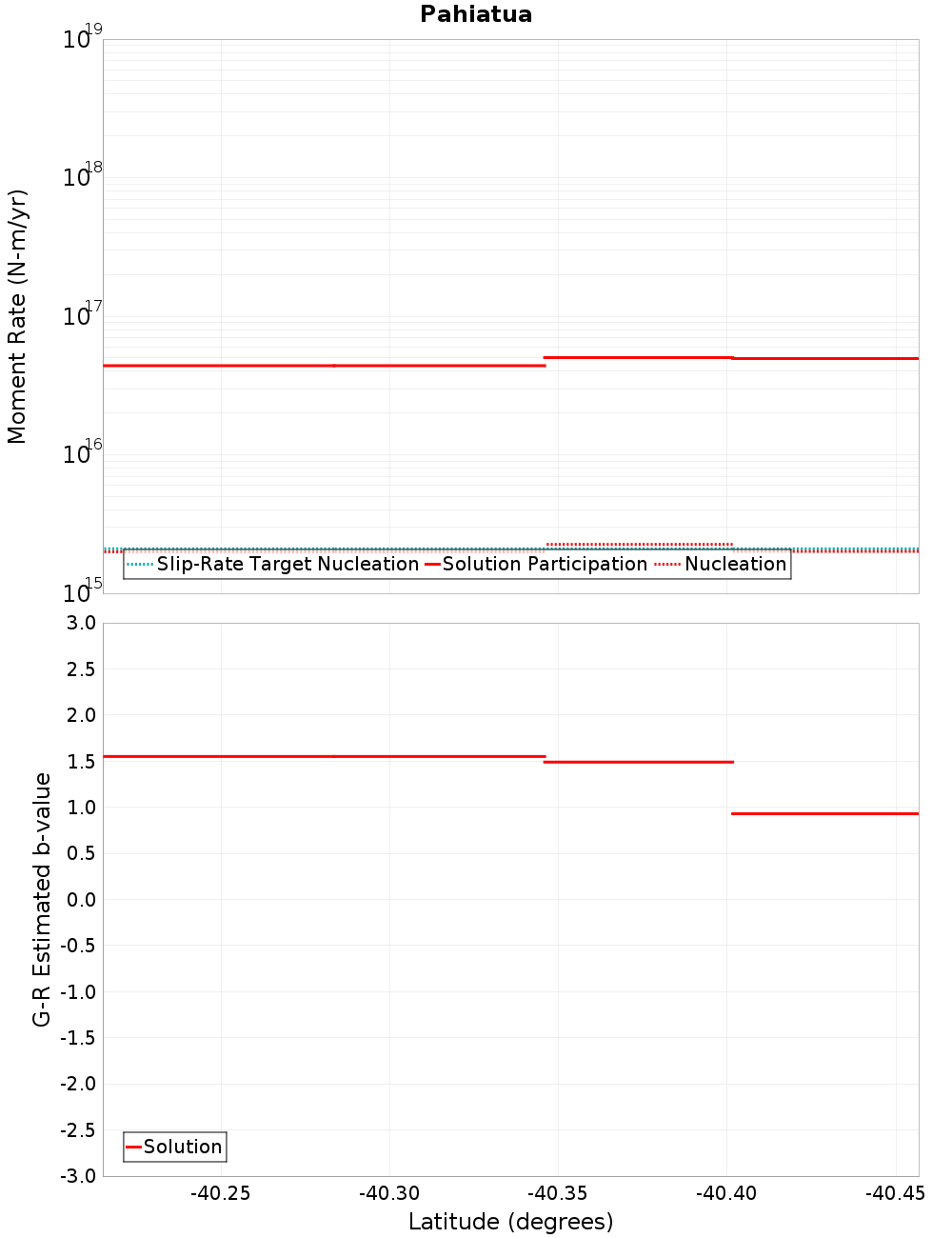

Moment-Rates and b-Values

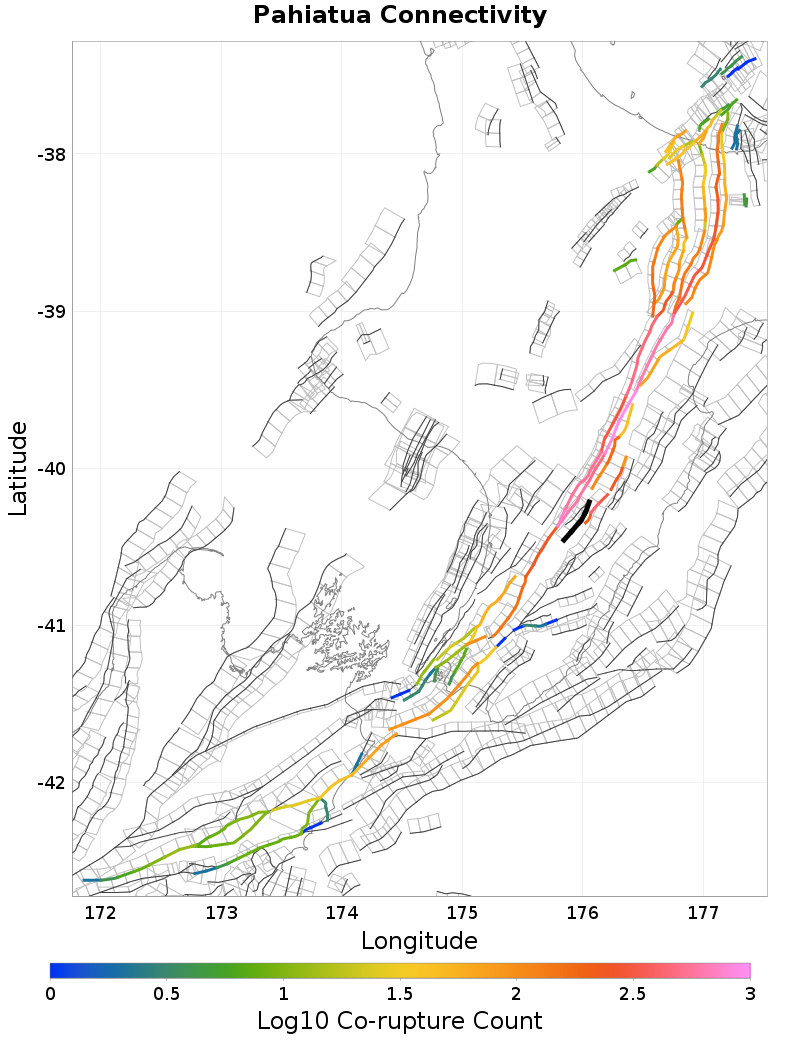

Connectivity

Nearby Sections

Fault Section
Woodville, 1.01 km away
Maunga, 3.33 km away
Mohaka: South, 4.26 km away
Wellington: Pahiatua, 5.58 km away
Ruahine: South, 5.97 km away
Tokomaru, 9.6 km away
Rangefront, 9.78 km away
Waewaepa, 11.55 km away
Makuri - Waewaepa, 12.67 km away
Alfredton North, 12.97 km away
Clear Hills - Waikopiro, 13.79 km away
Pa Valley, 14.33 km away
Ruataniwha, 14.82 km away

Woodville, 1.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maunga, 3.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	true
Co-rupture Count	423
Co-rupture Rate	2.1574491E-5

Mohaka: South, 4.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,219
Co-rupture Rate	3.4442484E-5

Wellington: Pahiatua, 5.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	false
Co-rupture Count	237
Co-rupture Rate	9.276424E-6

Ruahine: South, 5.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	true
Co-rupture Count	734
Co-rupture Rate	1.998512E-5

Tokomaru, 9.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangefront, 9.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	false
Co-rupture Count	182
Co-rupture Rate	6.753475E-7

Waewaepa, 11.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Makuri - Waewaepa, 12.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alfredton North, 12.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clear Hills - Waikopiro, 13.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pa Valley, 14.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruataniwha, 14.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMEVNcXZ5
Connected?	true
Directly Connected?	false
Co-rupture Count	233
Co-rupture Rate	8.8274E-6
