Ruataniwha Details

Property	Value
Rupture Count	1,322
Ruptures Above Sect Min Mag	1,320
Ruptures w/ Nonzero Rates	93
Magnitude Range	[6.88, 8.24]
Length Range	[17, 381] km
Total Rate	3.5972844E-5 /yr
Multi-Fault Rate	3.5972844E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	78

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

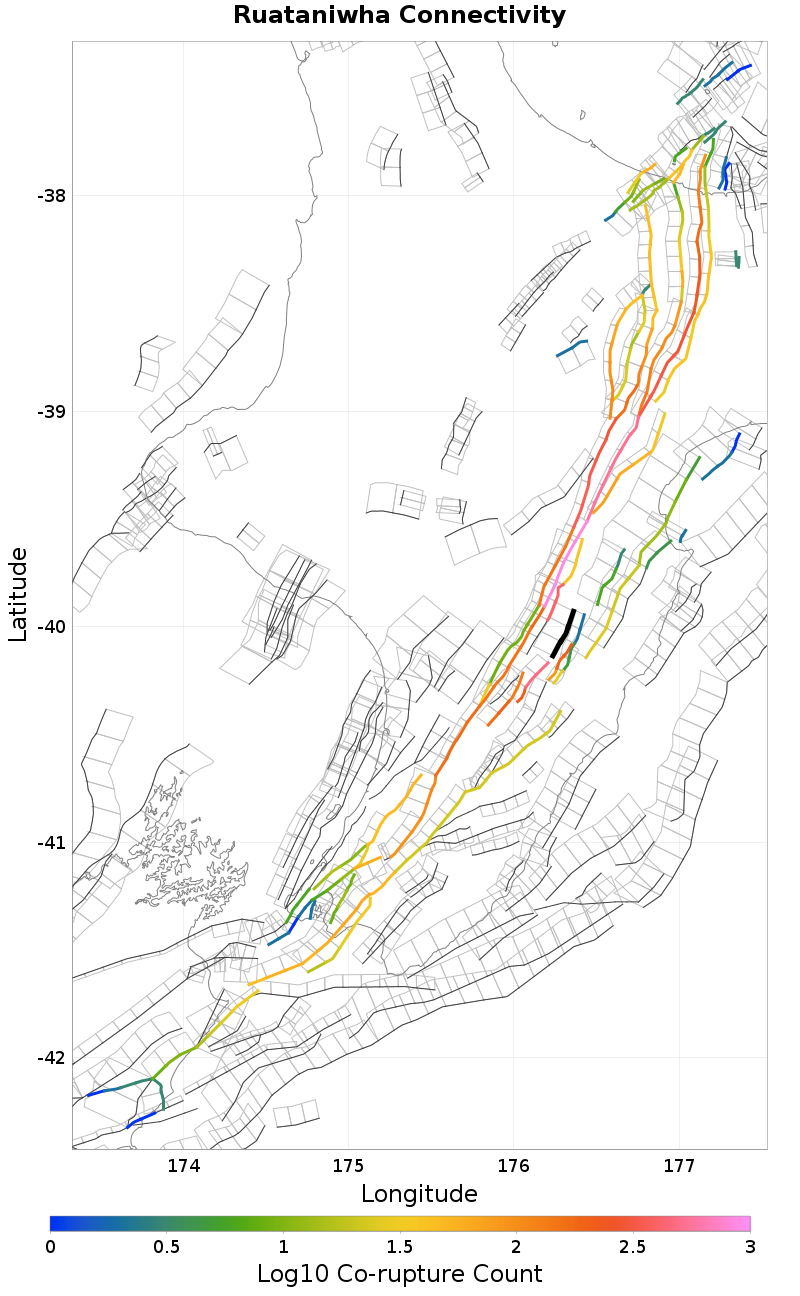

Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

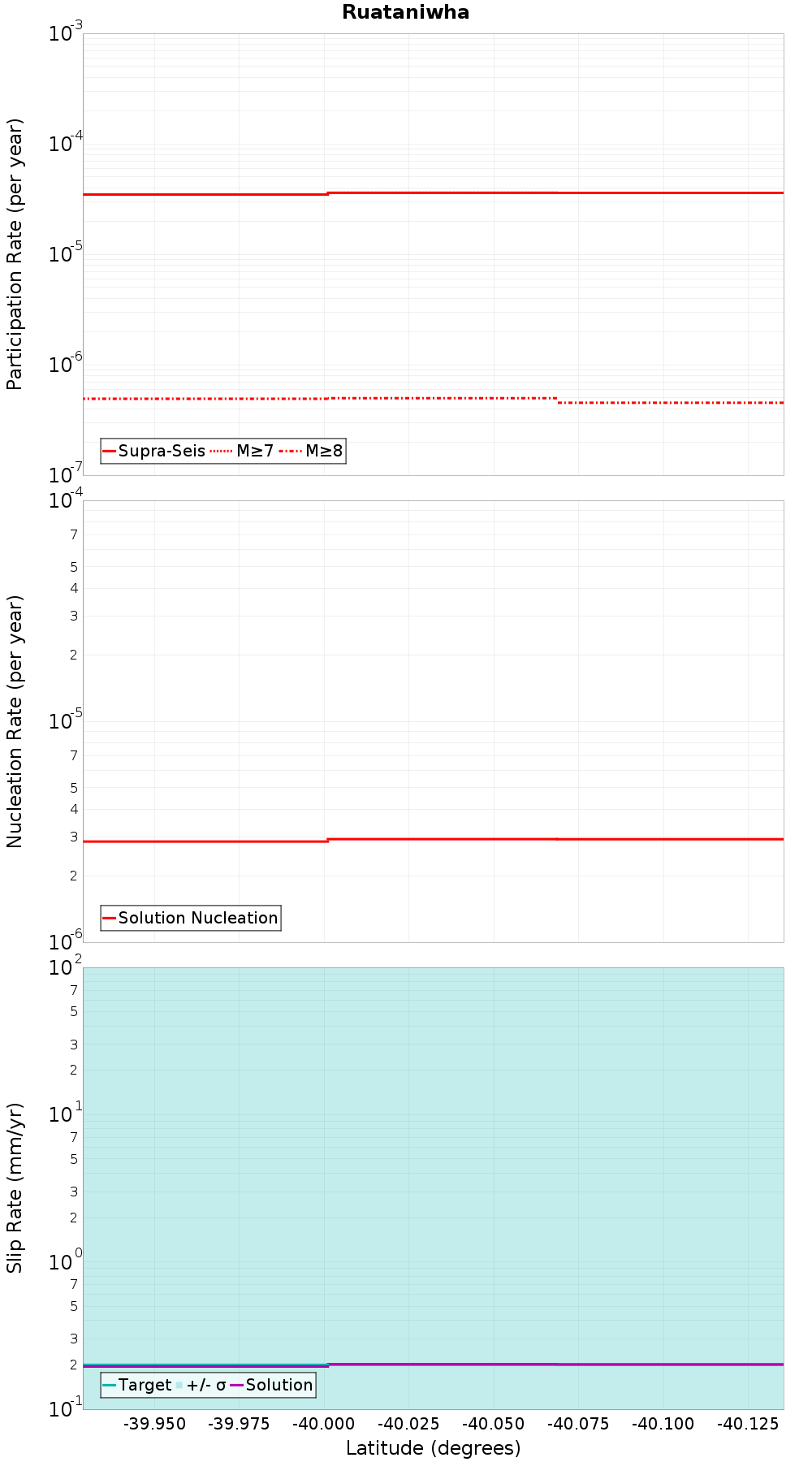

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Maunga, 3.9 km away
Clear Hills - Waikopiro, 4.28 km away
Oruawharo - Mangatoro, 5.67 km away
Mohaka: South, 6.61 km away
Rangefront, 8.95 km away
Ruahine: South, 9.87 km away
Ruahine: Central, 9.9 km away
Te Heka, 12.04 km away
Waipukurau - Poukawa, 13.21 km away
Wakarara, 13.37 km away
Waewaepa, 13.99 km away
Pahiatua, 14.82 km away

Maunga, 3.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	true
Co-rupture Count	468
Co-rupture Rate	3.4762037E-5

Clear Hills - Waikopiro, 4.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	true
Co-rupture Count	217
Co-rupture Rate	1.136396E-6

Oruawharo - Mangatoro, 5.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	false
Co-rupture Count	27
Co-rupture Rate	1.30097755E-14

Mohaka: South, 6.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	true
Co-rupture Count	1,094
Co-rupture Rate	1.43545685E-5

Rangefront, 8.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	true
Co-rupture Count	414
Co-rupture Rate	2.324566E-5

Ruahine: South, 9.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	false
Co-rupture Count	35
Co-rupture Rate	1.1939543E-6

Ruahine: Central, 9.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	false
Co-rupture Count	149
Co-rupture Rate	7.819432E-6

Te Heka, 12.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	5.0688065E-12

Waipukurau - Poukawa, 13.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	false
Co-rupture Count	25
Co-rupture Rate	1.1361701E-6

Wakarara, 13.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	false
Co-rupture Count	39
Co-rupture Rate	9.95537E-7

Waewaepa, 13.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahiatua, 14.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	false
Co-rupture Count	233
Co-rupture Rate	6.8865215E-6
