Whangamoa Details

Property	Value
Rupture Count	186
Ruptures Above Sect Min Mag	186
Ruptures w/ Nonzero Rates	9
Magnitude Range	[8.48, 8.63]
Length Range	[595, 806] km
Total Rate	2.4246023E-9 /yr
Multi-Fault Rate	2.4246023E-9 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	18

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

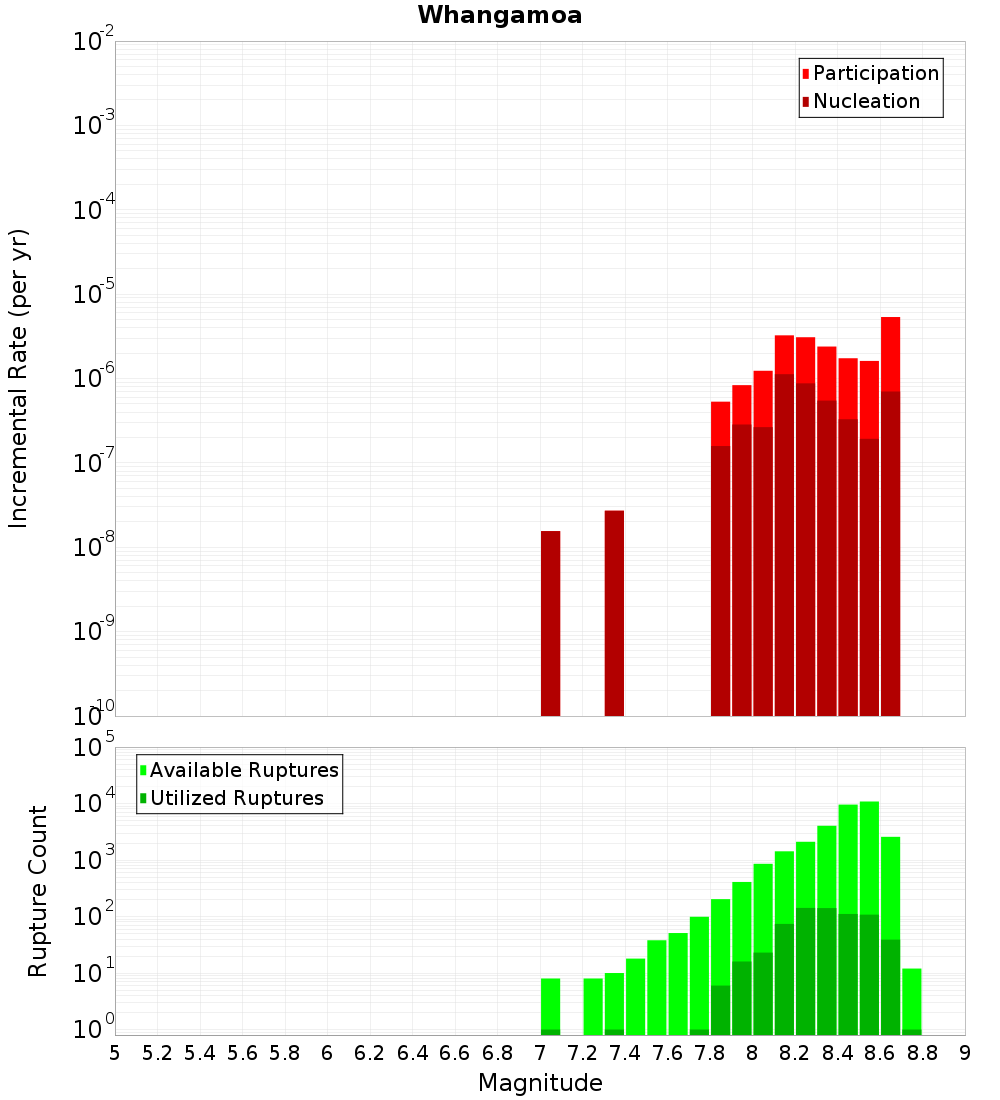

Magnitude-Frequency Distribution

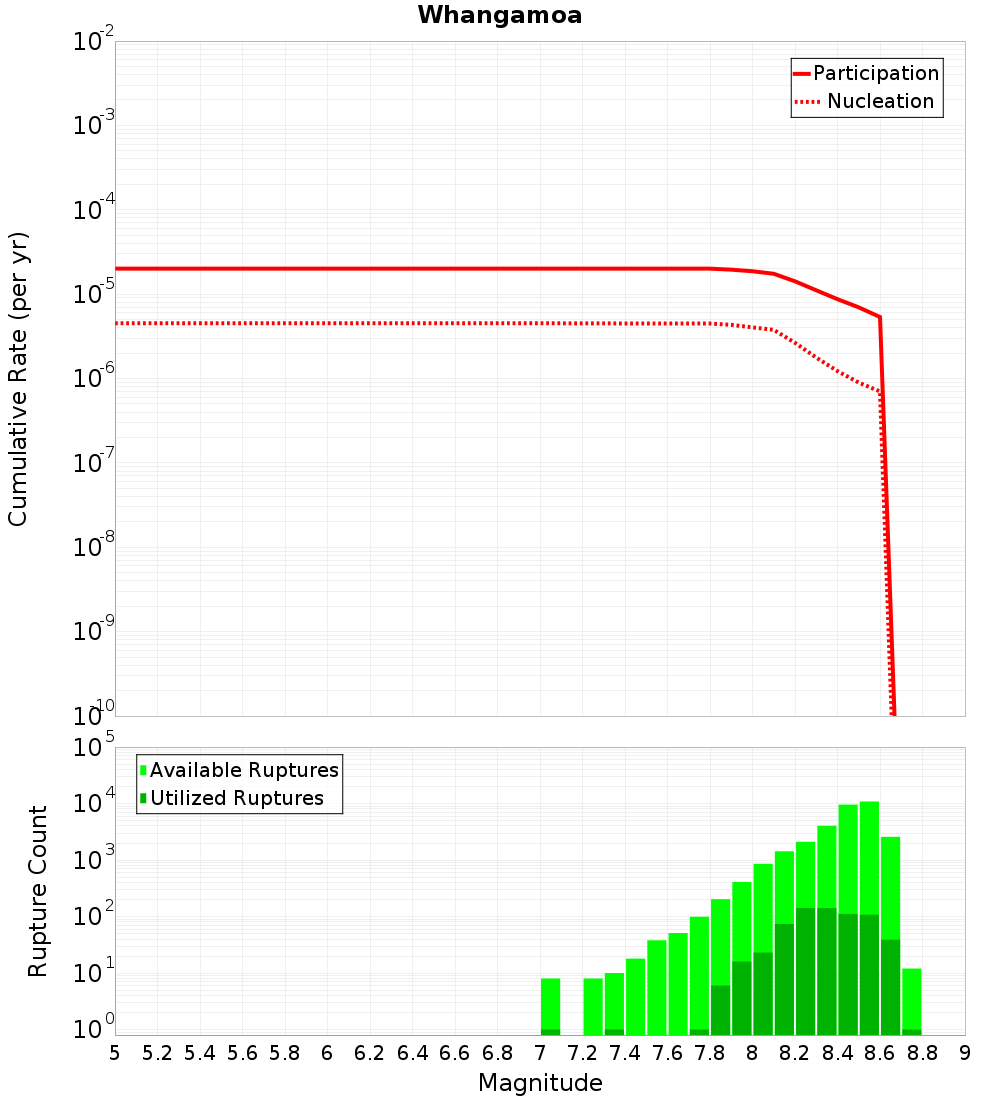

Incremental	Cumulative

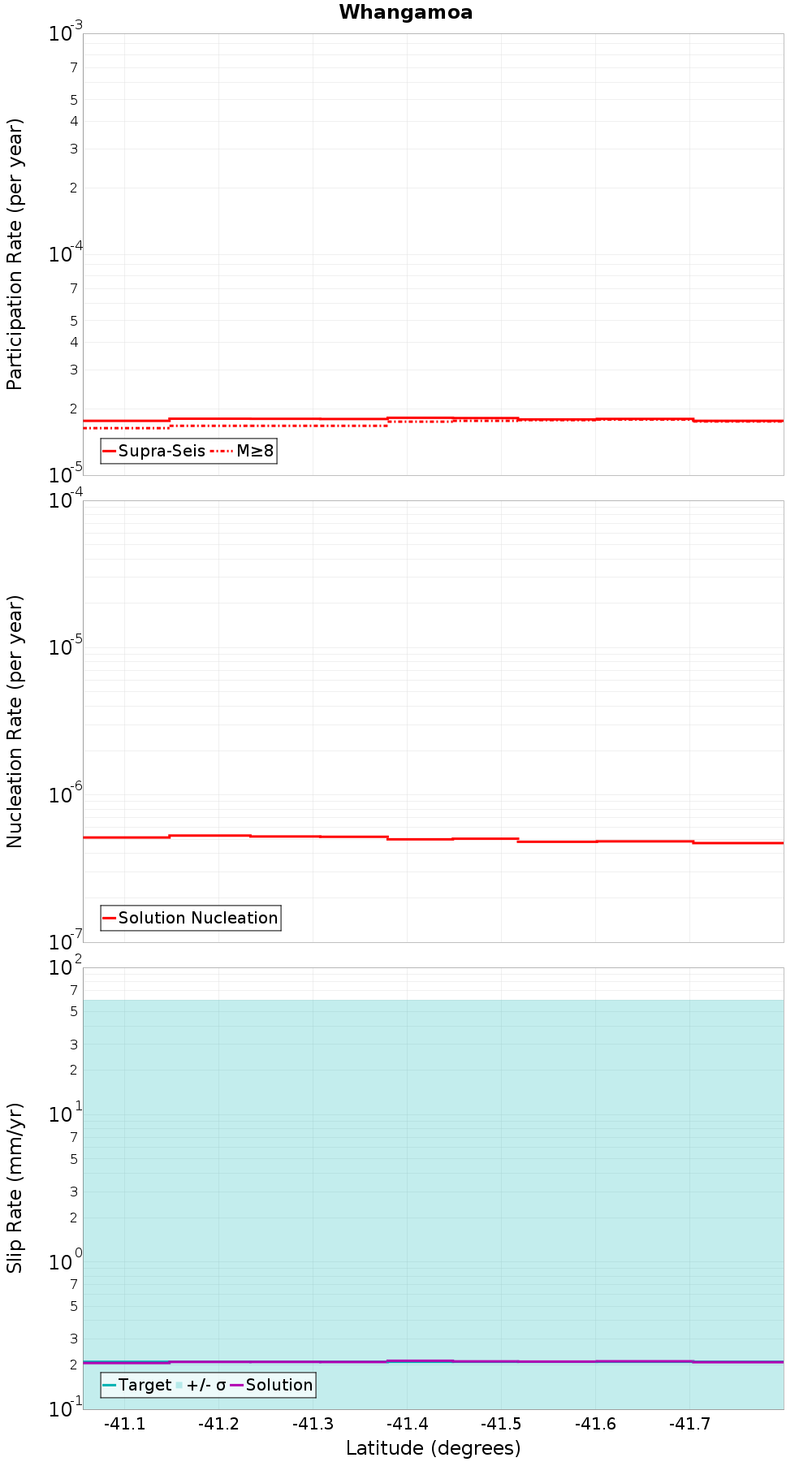

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Wairau, 0 km away
Waimea Offshore, 0.82 km away
Flaxmore - Waimea - Tahunanui, 2.28 km away
Surville, 14.06 km away
Tutaki, 14.86 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	true
Co-rupture Count	31,470
Co-rupture Rate	1.8447361E-5

Wairau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	true
Co-rupture Count	5,375
Co-rupture Rate	3.4947925E-7

Waimea Offshore, 0.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	true
Co-rupture Count	12,245
Co-rupture Rate	7.877129E-6

Flaxmore - Waimea - Tahunanui, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	true
Co-rupture Count	4,716
Co-rupture Rate	1.7694554E-6

Surville, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	true
Co-rupture Count	2,882
Co-rupture Rate	1.5158566E-6

Tutaki, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjMuMG83a1hx
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0
