Kaumingi Details

Property	Value
Rupture Count	514
Ruptures Above Sect Min Mag	508
Ruptures w/ Nonzero Rates	105
Magnitude Range	[6.56, 8.27]
Length Range	[12, 440] km
Total Rate	2.470143E-4 /yr
Multi-Fault Rate	2.470143E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	21

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

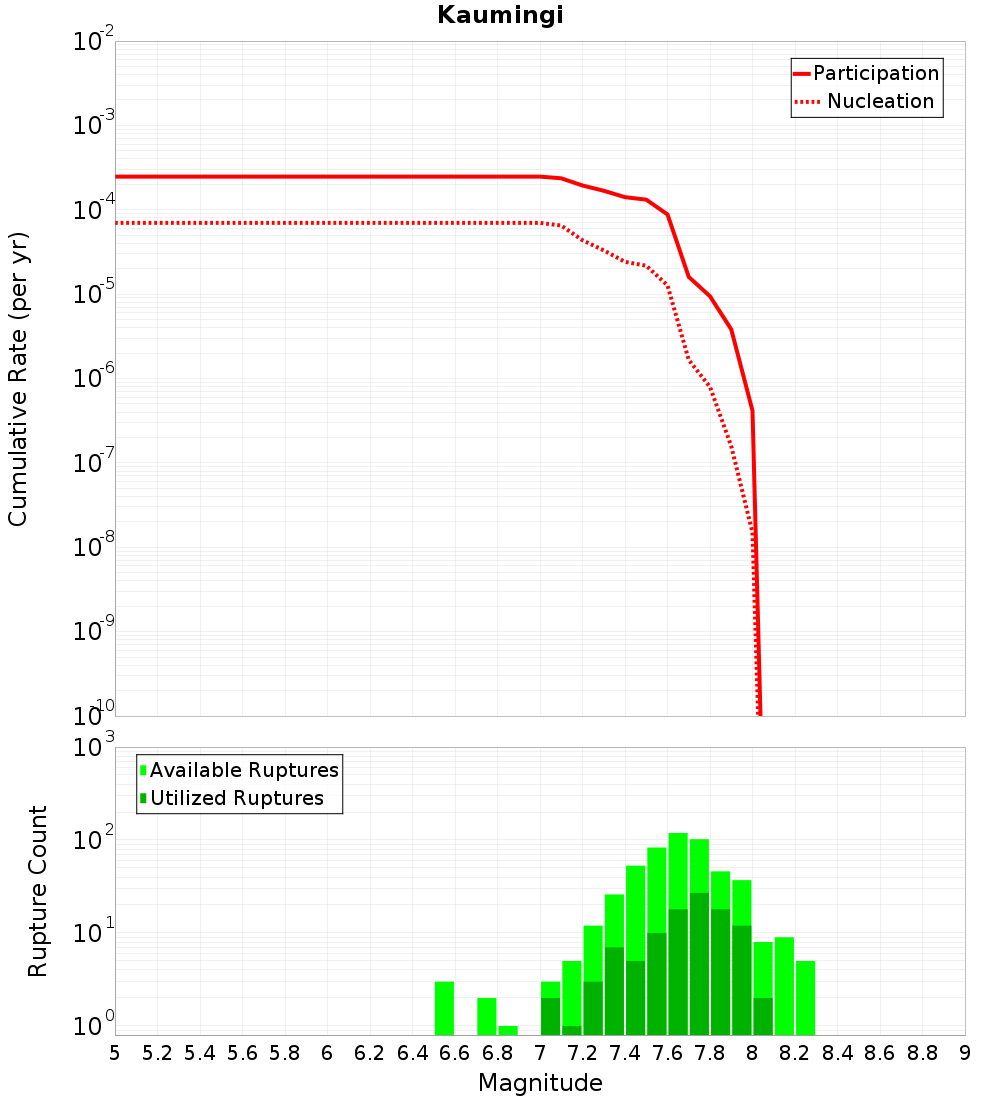

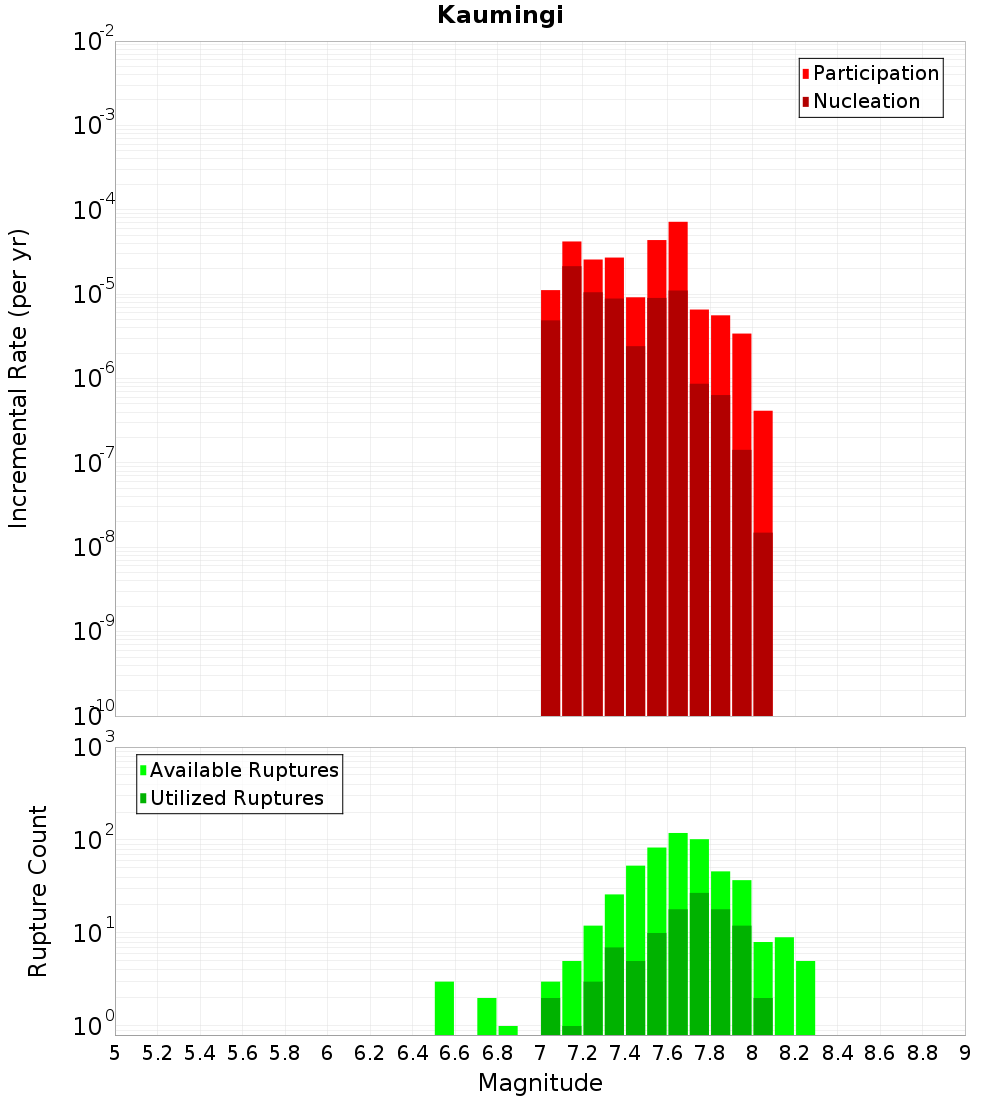

Magnitude-Frequency Distribution

Incremental	Cumulative

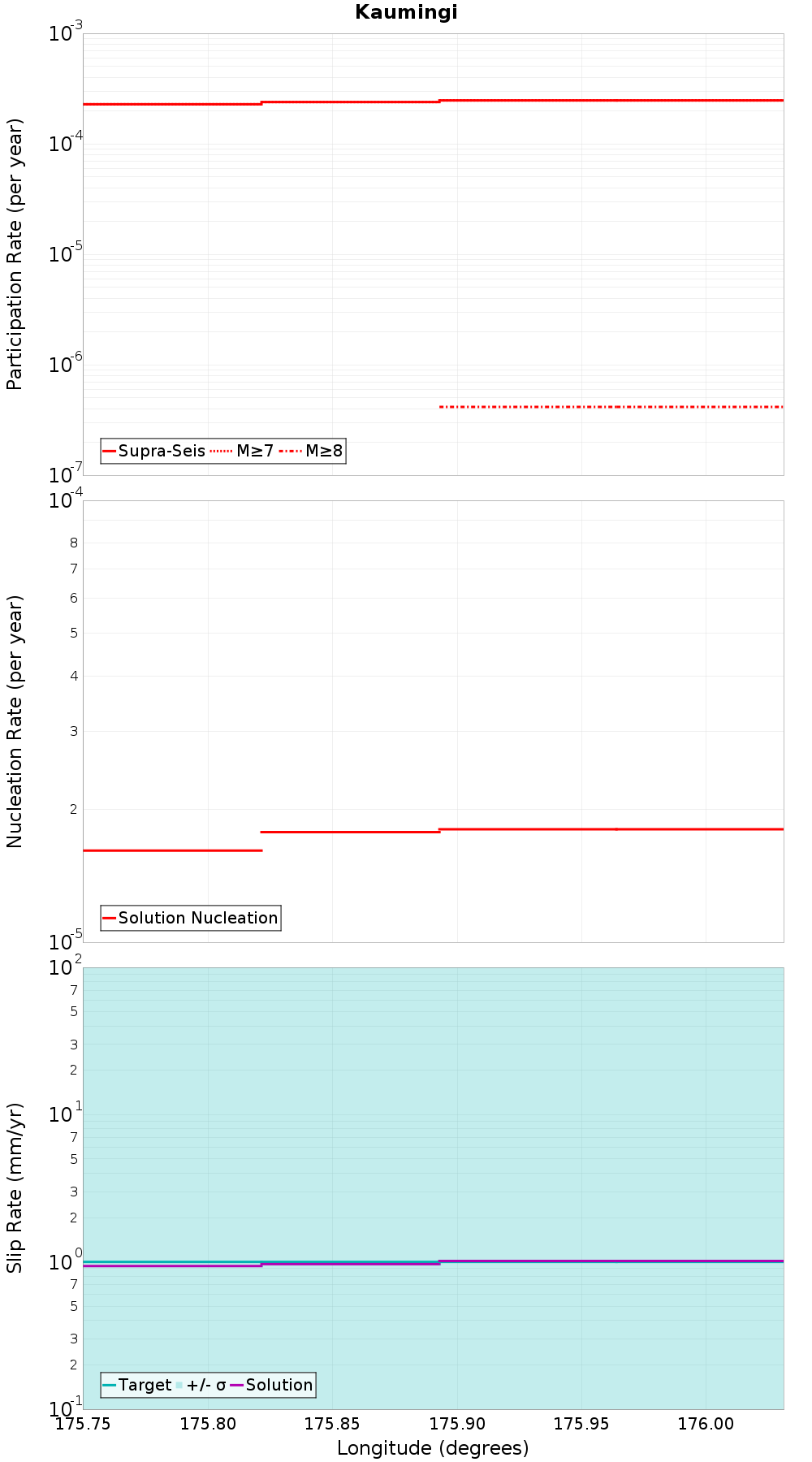

Along-Strike Values

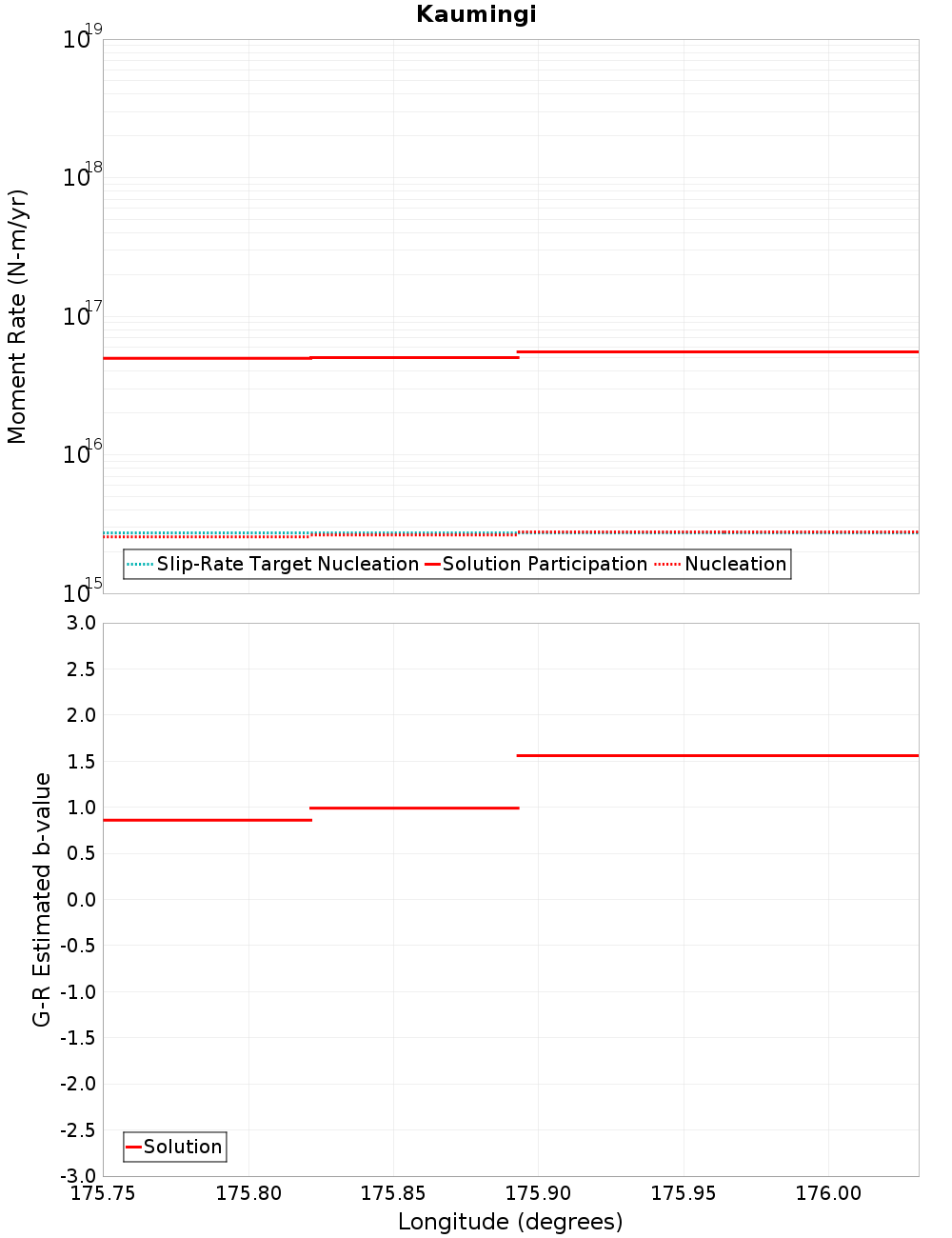

Moment-Rates and b-Values

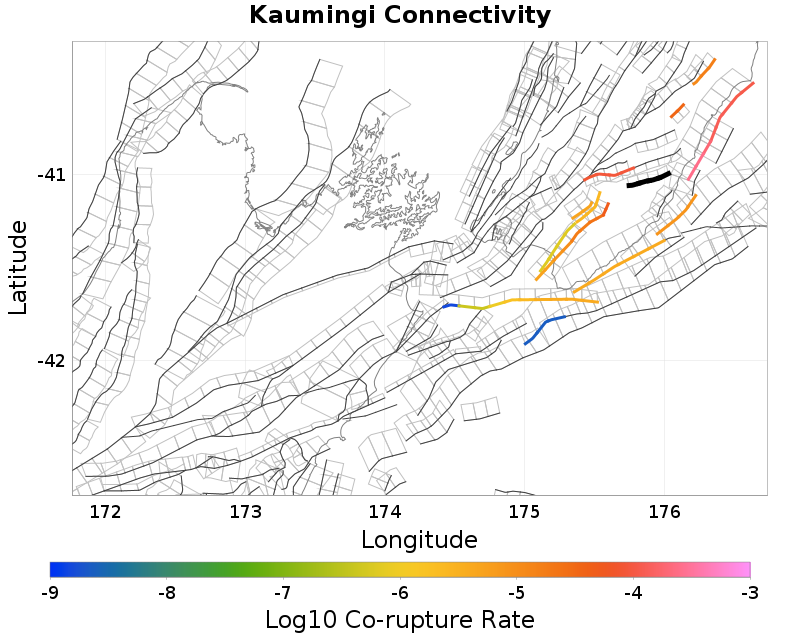

Connectivity

Nearby Sections

Fault Section
Carterton, 0.54 km away
Mataikona, 1.19 km away
Masterton, 2.31 km away
Riversdale North, 4.3 km away
Uruti Point, 8.98 km away
Riversdale, 9.84 km away
Mokonui Northeast, 11.8 km away

Carterton, 0.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	true
Directly Connected?	true
Co-rupture Count	323
Co-rupture Rate	8.852767E-5

Mataikona, 1.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	true
Directly Connected?	true
Co-rupture Count	375
Co-rupture Rate	2.4699836E-4

Masterton, 2.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Riversdale North, 4.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Uruti Point, 8.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Riversdale, 9.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	true
Directly Connected?	true
Co-rupture Count	157
Co-rupture Rate	8.2649085E-6

Mokonui Northeast, 11.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
