NW Cardrona North Details

Property	Value
Rupture Count	21,665
Ruptures Above Sect Min Mag	21,664
Ruptures w/ Nonzero Rates	627
Magnitude Range	[7.05, 8.70]
Length Range	[21, 952] km
Total Rate	7.166023E-5 /yr
Multi-Fault Rate	5.019047E-5 /yr (70.04%)
Directly-Connected Faults	5
All Co-Rupturing Faults	76

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

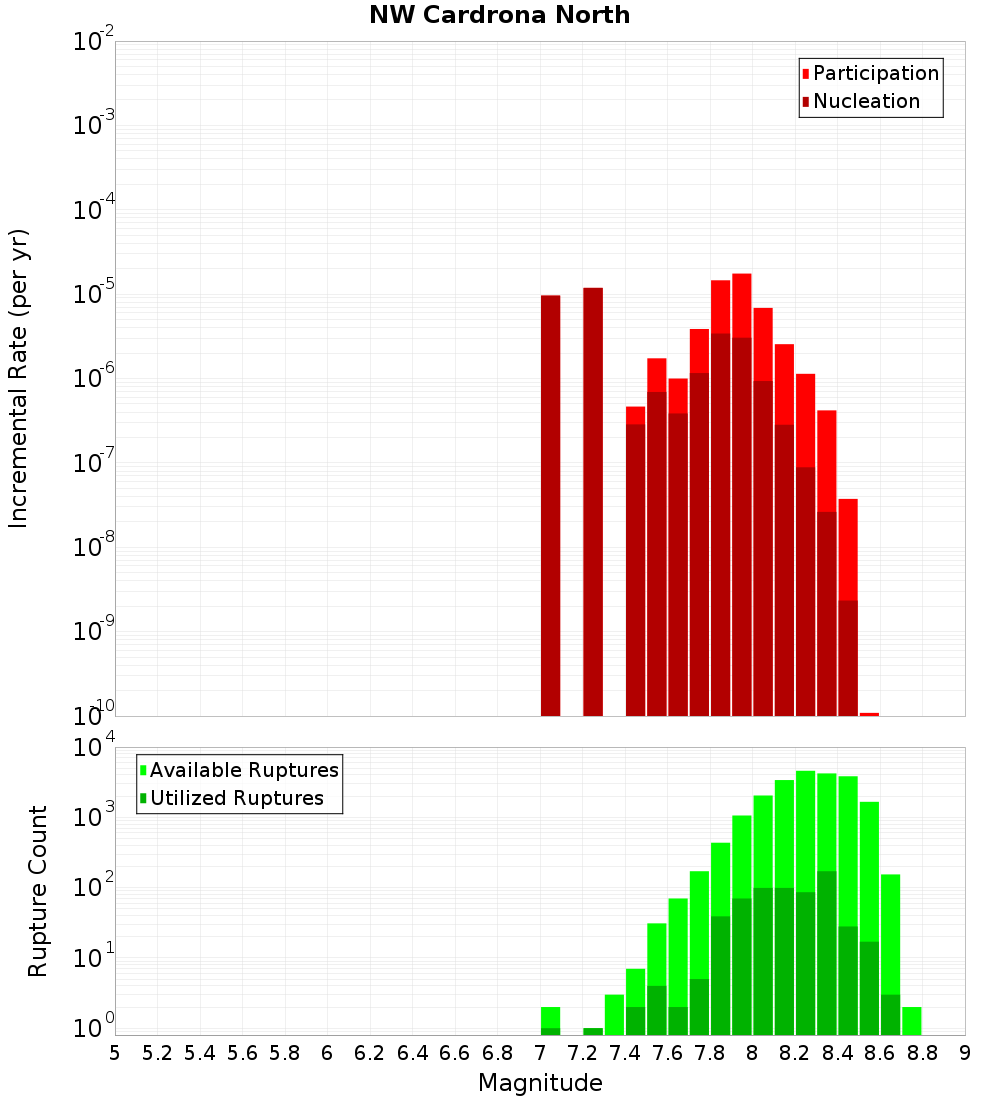

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

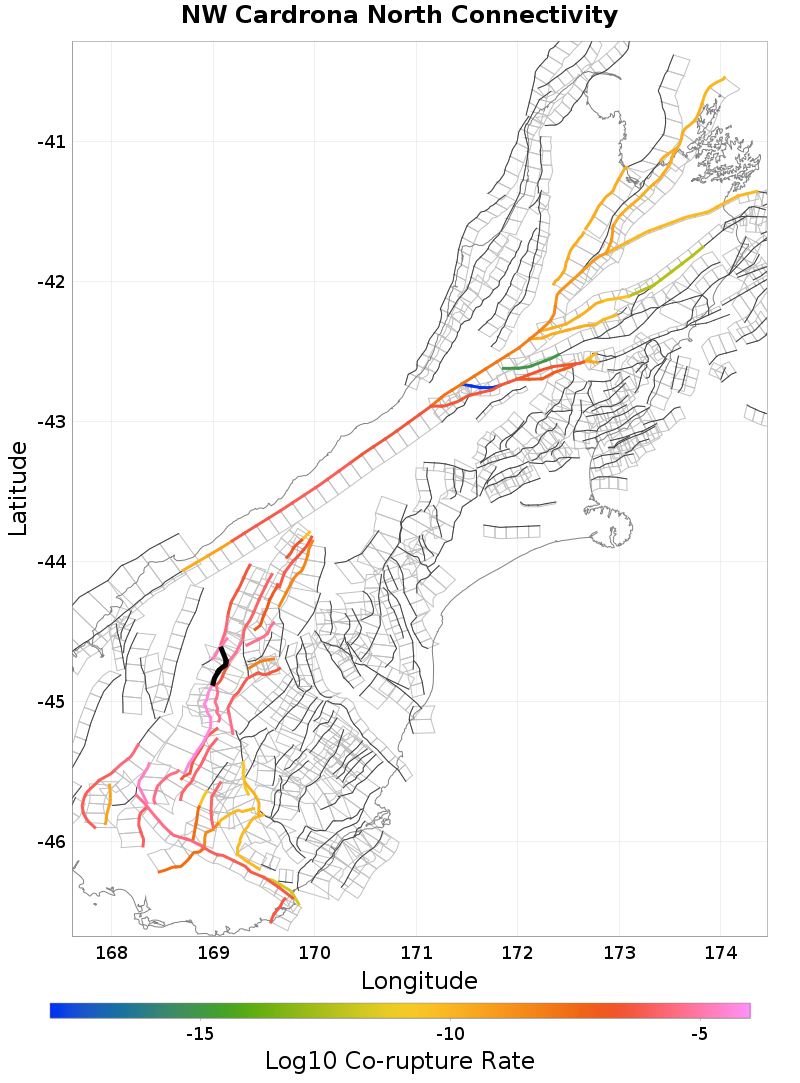

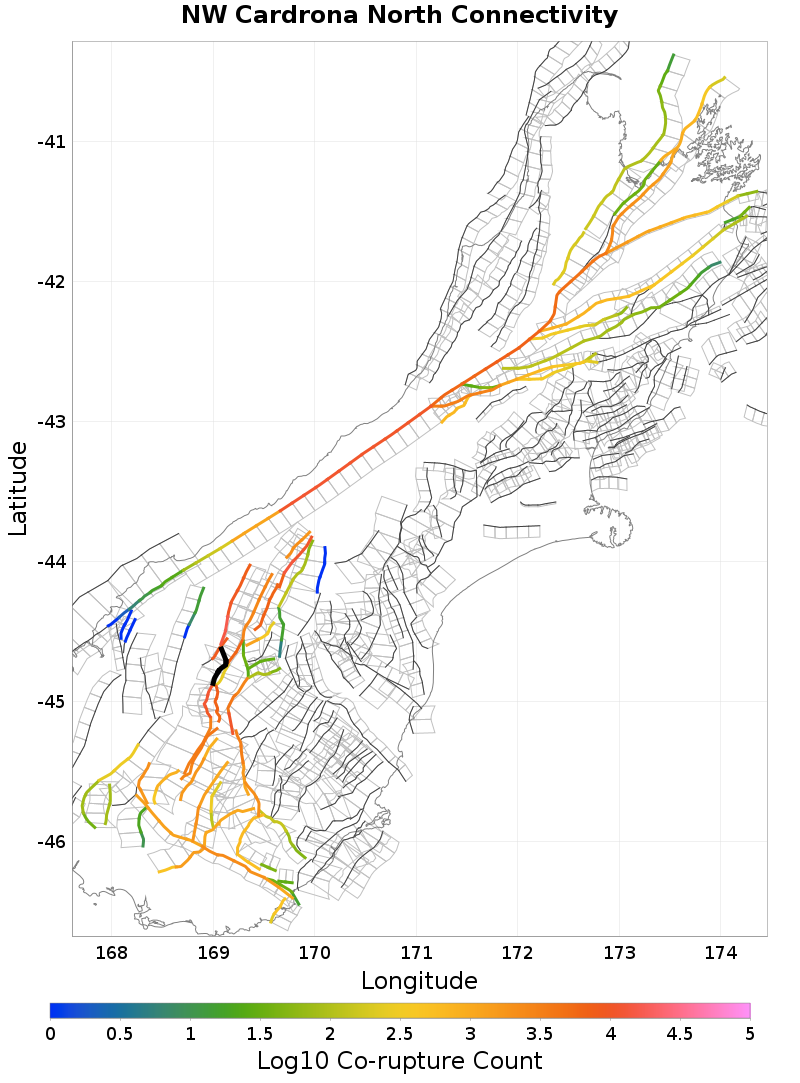

Connectivity

Nearby Sections

Fault Section
Motatapu, 0.08 km away
NW Cardrona South, 1.15 km away
Cardrona - Hawea, 1.36 km away
Paddys Ridge, 1.63 km away
Roaring Meg, 3.16 km away
Wanaka, 3.89 km away
Pisa, 9.29 km away
Grandview, 14.11 km away

Motatapu, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	true
Directly Connected?	true
Co-rupture Count	8,491
Co-rupture Rate	1.336133E-5

NW Cardrona South, 1.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	true
Directly Connected?	true
Co-rupture Count	11,988
Co-rupture Rate	4.471376E-5

Cardrona - Hawea, 1.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	true
Directly Connected?	true
Co-rupture Count	6,271
Co-rupture Rate	5.891232E-6

Paddys Ridge, 1.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	true
Directly Connected?	false
Co-rupture Count	246
Co-rupture Rate	3.7752244E-7

Roaring Meg, 3.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	true
Directly Connected?	true
Co-rupture Count	8,409
Co-rupture Rate	4.9157197E-6

Wanaka, 3.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	true
Directly Connected?	true
Co-rupture Count	16,817
Co-rupture Rate	2.53847E-6

Pisa, 9.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	true
Directly Connected?	false
Co-rupture Count	10,821
Co-rupture Rate	3.821458E-6

Grandview, 14.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	true
Directly Connected?	false
Co-rupture Count	34
Co-rupture Rate	0.0
