Nukumuru - Waitotara 1-6 Details

Property	Value
Rupture Count	12
Ruptures Above Sect Min Mag	10
Ruptures w/ Nonzero Rates	9
Magnitude Range	[7.20, 7.69]
Length Range	[25, 78] km
Total Rate	2.6867438E-5 /yr
Multi-Fault Rate	1.3643146E-5 /yr (50.78%)
Directly-Connected Faults	2
All Co-Rupturing Faults	2

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

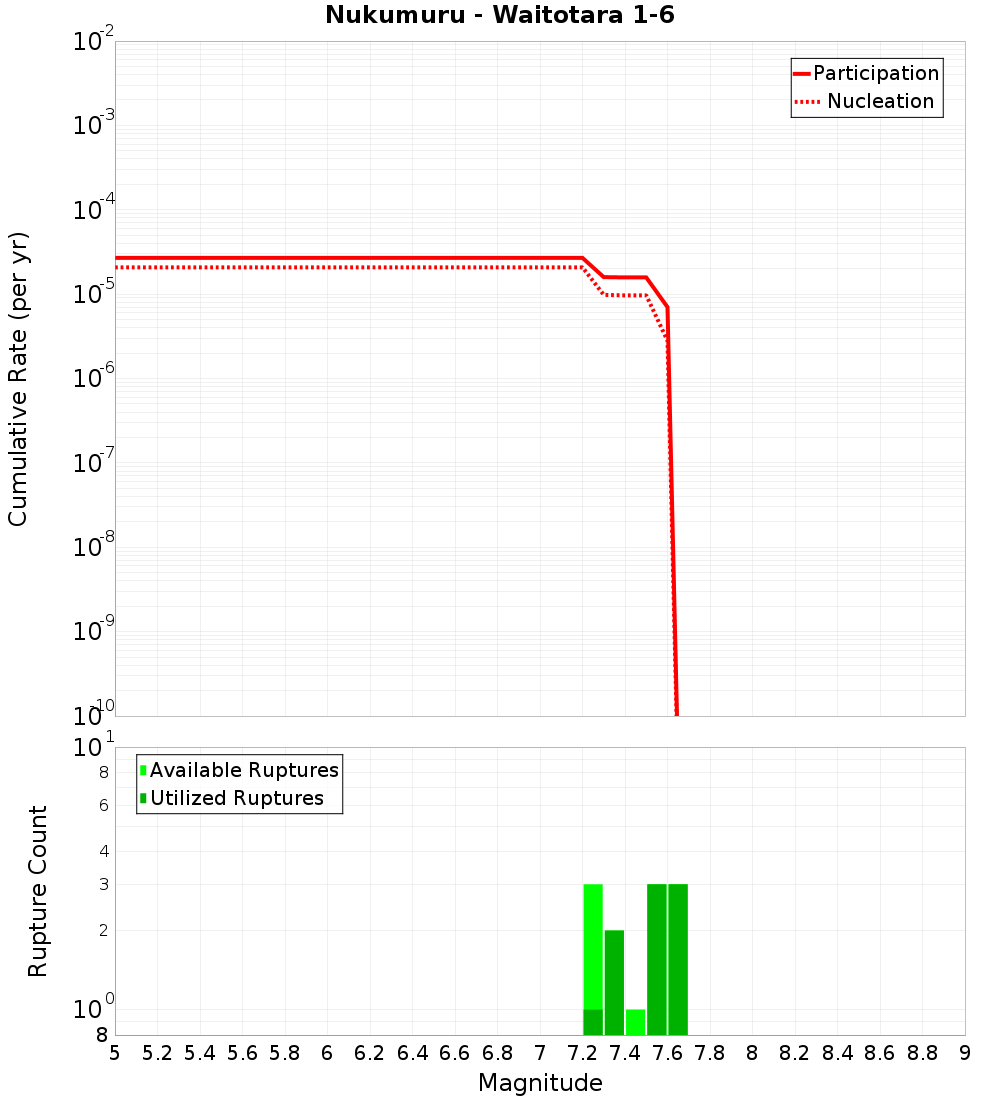

Magnitude-Frequency Distribution

Incremental	Cumulative

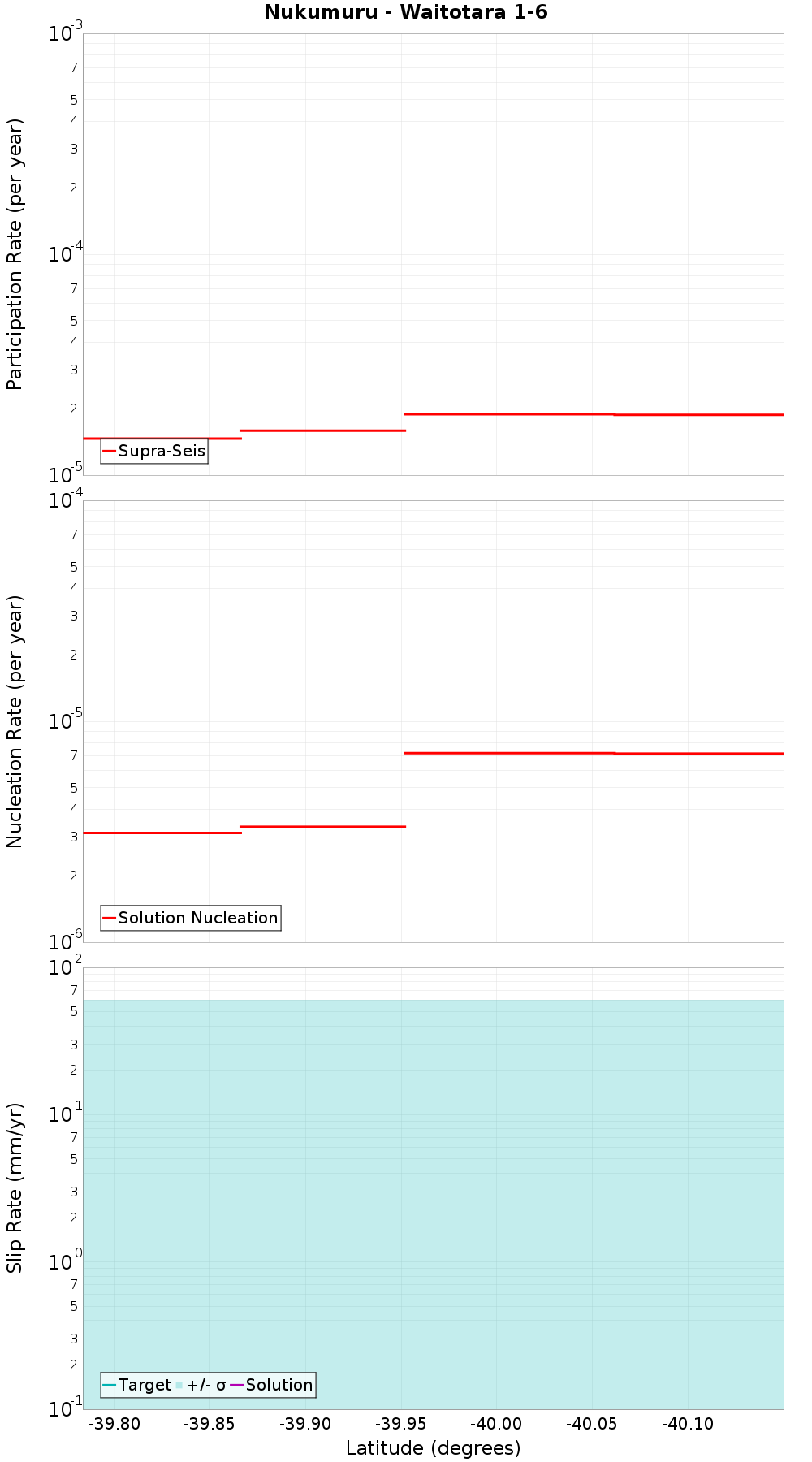

Along-Strike Values

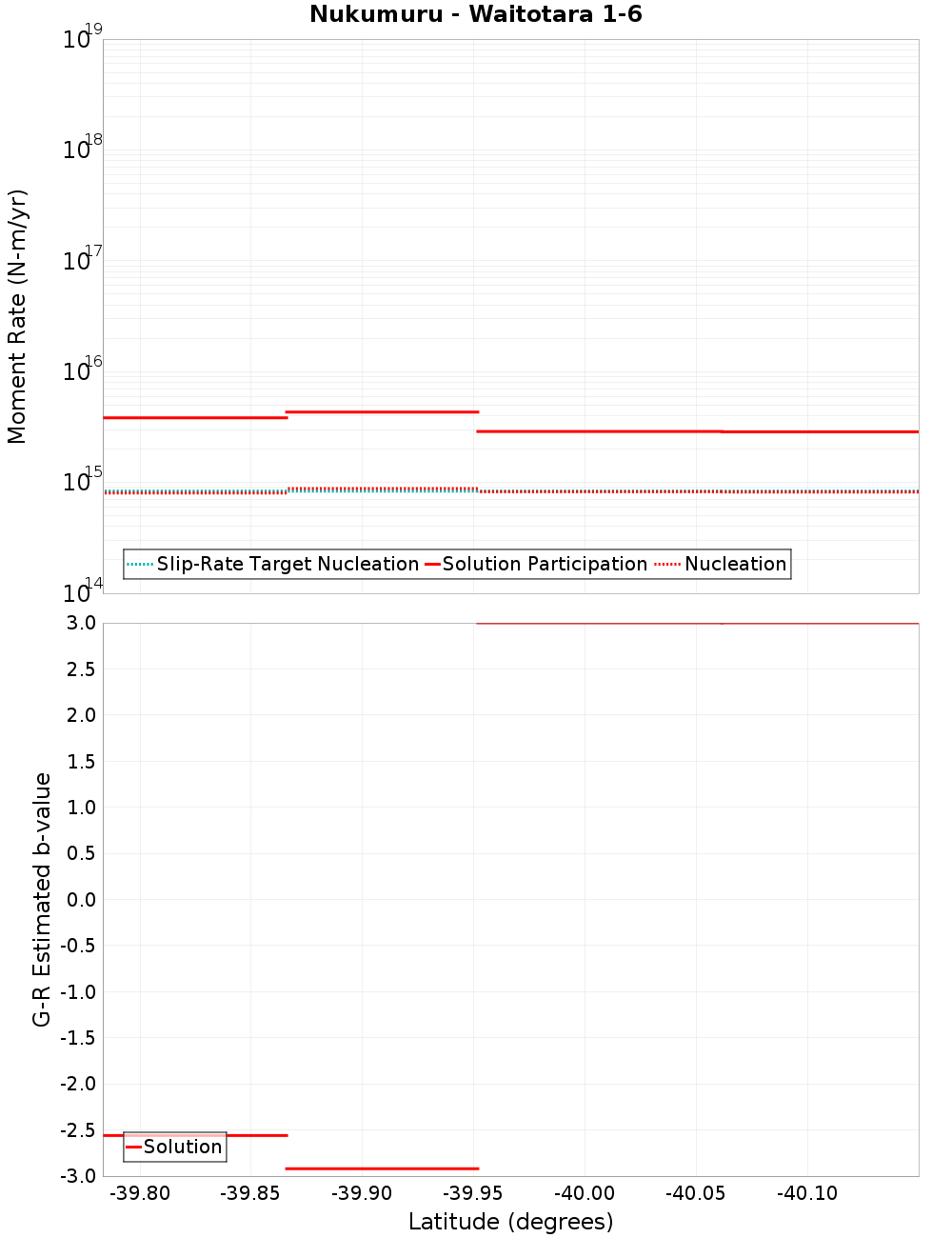

Moment-Rates and b-Values

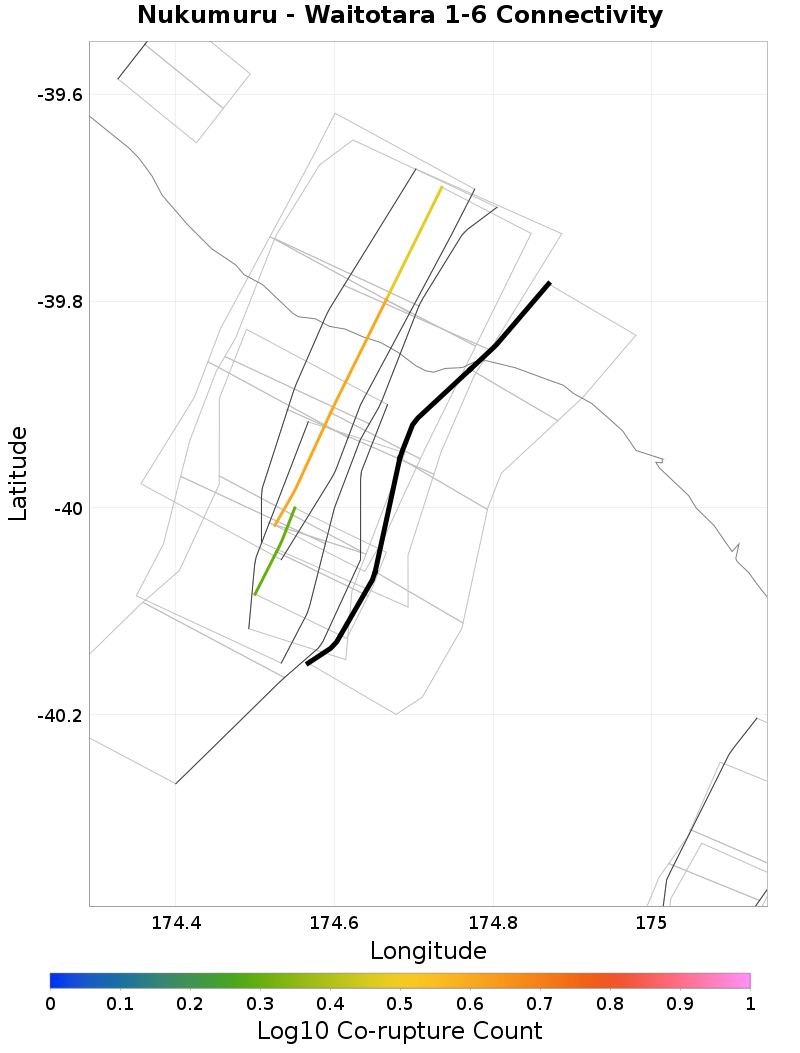

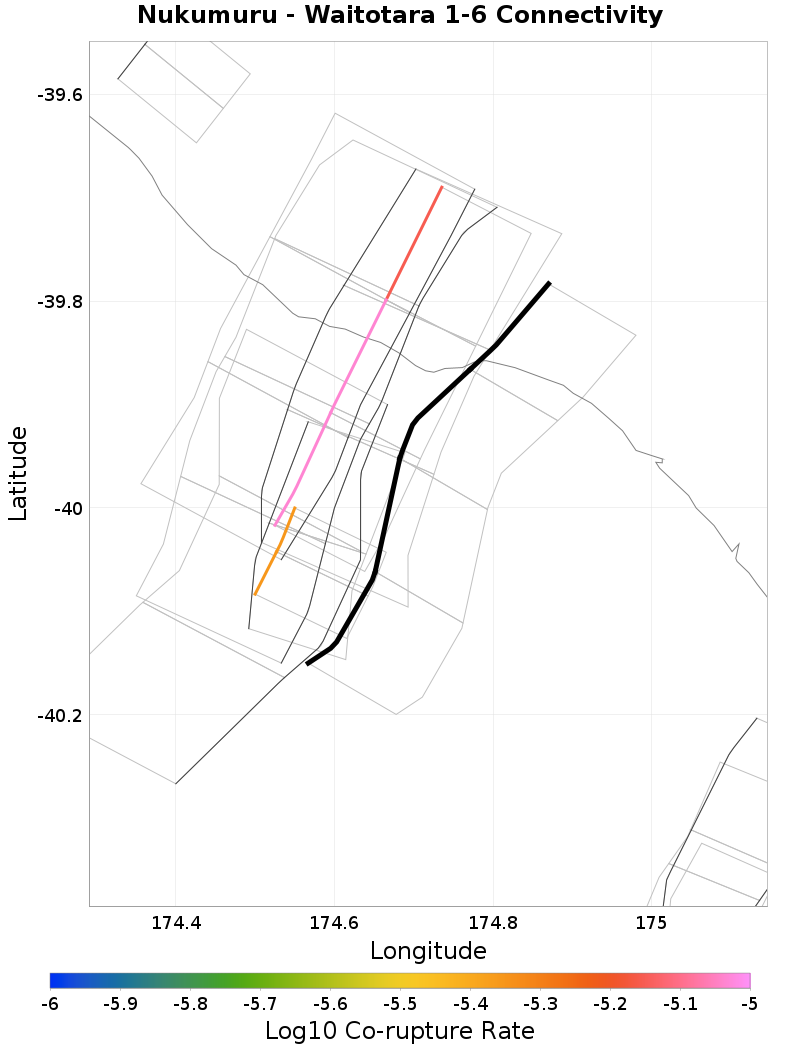

Connectivity

Nearby Sections

Fault Section
Waitotara 8 & 9, 0.51 km away
Waitotara 10 & 11, 2.59 km away
Waverley - Okaia 1, 5.72 km away
Ridge Road - Okaia 2, 5.96 km away
Okaia 5, 6.97 km away
Moumahaki - Okaia 4, 7.97 km away
Okaia 3, 8.91 km away

Waitotara 8 & 9, 0.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitotara 10 & 11, 2.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waverley - Okaia 1, 5.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ridge Road - Okaia 2, 5.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Okaia 5, 6.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Moumahaki - Okaia 4, 7.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	9.225733E-6

Okaia 3, 8.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NjkuMHZWM3Nh
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	4.417413E-6
